MX-10 Extreme
Discontinued

MX-10 Extreme

Auf Anfrage!

  • 90145400
The MX-10 is a powerful 250 W discharge scanner with 12 replaceable colors, 8... mehr
Produktinformationen "MX-10 Extreme"

The MX-10 is a powerful 250 W discharge scanner with 12 replaceable colors, 8 interchangeable indexed-rotating gobos and a 3-facet prism for brilliant effects.

Features
  • 250 W discharge lamp
  • Long lamp life (3000 hrs)
  • 12 interchangeable colors plus open
  • 8 interchangeable indexable rotating gobos plus open
  • Interchangeable 3-facet rotating prism
  • Separate shutter for strobe effect
  • High-speed mirror
  • Motorized focus
  • DMX control
  • Continuous operation - no cool down time needed
  • 8 prism/gobo pre-programmed macros for fast start-up
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability
Weiterführende Links zu "MX-10 Extreme"

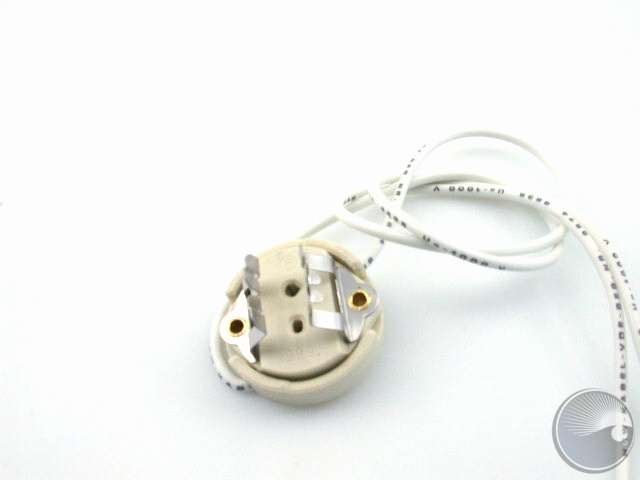

Martin Socket hal.lamp, GY9,5, (M38)05221205Martin Socket hal.lamp, GY9,5, (M38)
Martin Step motor KH42HM2-017 Ø5/2405701601Martin Step motor KH42HM2-017 Ø5/24
Martin Step motor 17PM-K004-09V Ø5/2405701602Martin Step motor 17PM-K004-09V Ø5/24

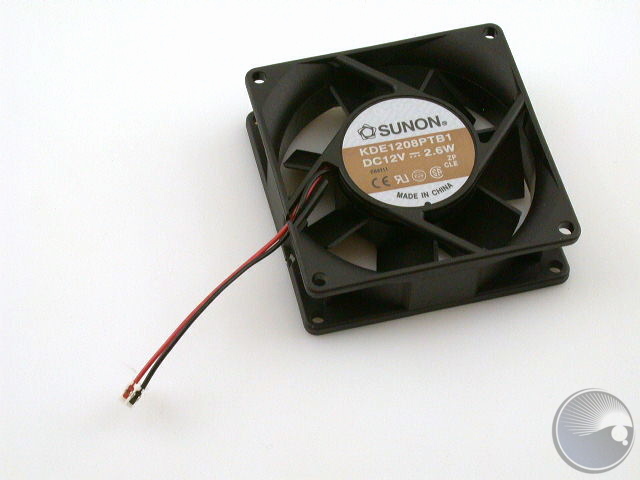

Martin Fan 12V DC Brushless 80mm05741801Martin Fan 12V DC Brushless 80mm
Martin Guard for fan 305749001Martin Guard for fan 3
Martin M3x6 ph torx black08050702Martin M3x6 ph torx black
Martin M3x8 cs torx black08050803Martin M3x8 cs torx black
Martin M3x7 stand off m5/f3,5 black08053806Martin M3x7 stand off m5/f3,5 black
Martin M6 nut lock PA shiny08112701Martin M6 nut lock PA shiny
Martin M6 washer 6,4/12x1,6 black08114301Martin M6 washer 6,4/12x1,6 black
Martin PT 2,9x6,5 ph torx black08200102Martin PT 2,9x6,5 ph torx black
Martin PT 5x12 ph pz black08200107Martin PT 5x12 ph pz black

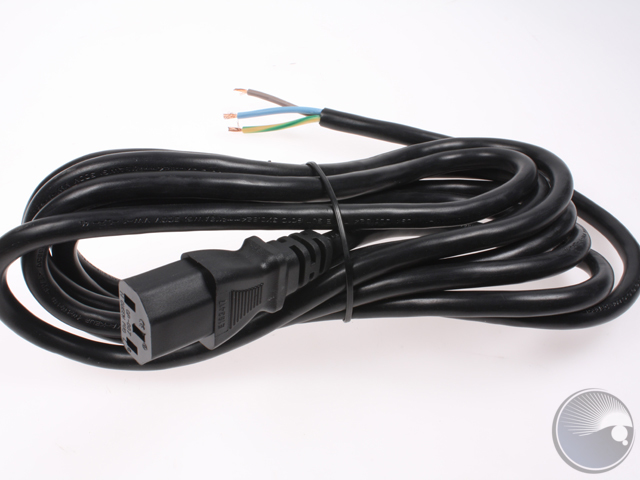

Mains cable I.E.C. 3pin  , 3 m11501013Mains cable I.E.C. 3pin , 3 m

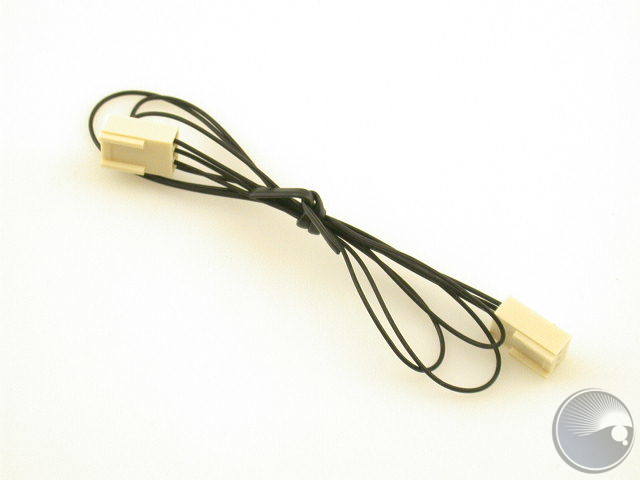

Wire Hall sensor,250mm 3-3 pol11740002Wire Hall sensor,250mm 3-3 pol
Martin Wireset 10 pole flatcable 15cm11750005Martin Wireset 10 pole flatcable 15cm

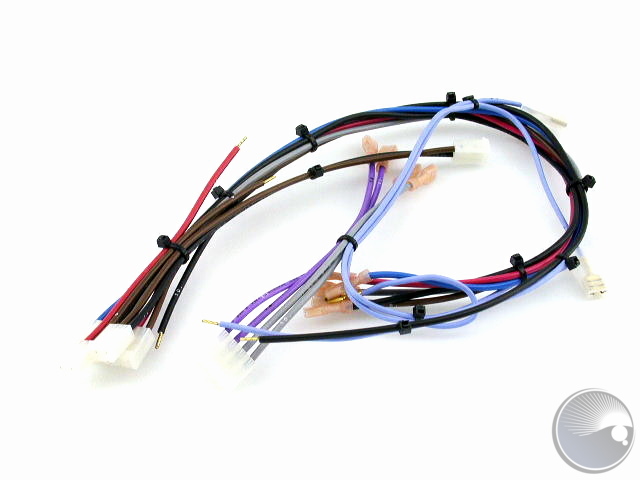

Martin Wireset High-volt, MX-1011850009Martin Wireset High-volt, MX-10

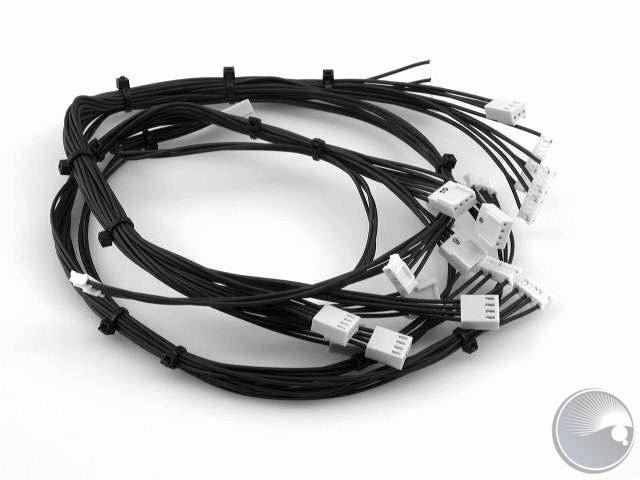

Martin Wireset for motors, MX-1011860052Martin Wireset for motors, MX-10
Martin Wireset for pan/tilt, MX-1011860053Martin Wireset for pan/tilt, MX-10

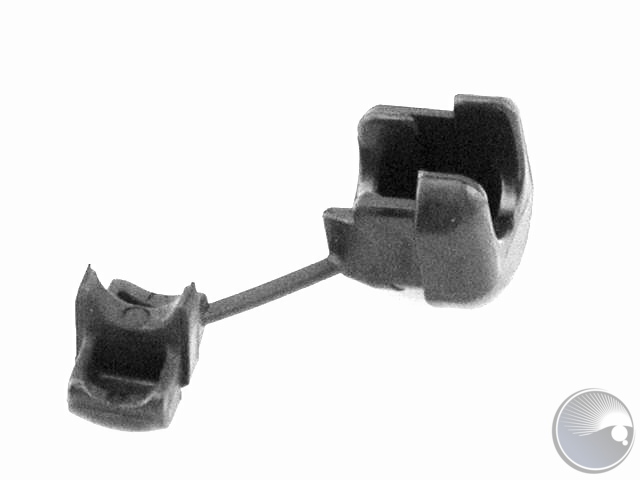

Cabel clamp 3mm plade13101002Cabel clamp 3mm plade
Martin Wire Retainer Flexible13101008Martin Wire Retainer Flexible
Martin Strap,black,high temp,2.5x9813104000Martin Strap,black,high temp,2.5x98
Martin Strap, black, 3.6x140mm13104003Martin Strap, black, 3.6x140mm

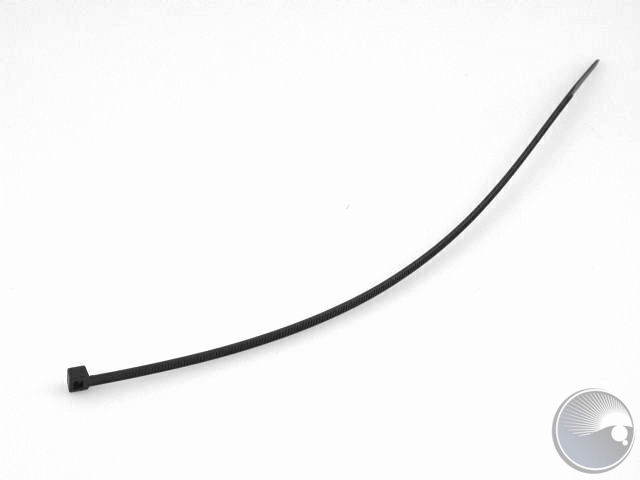

Strap, black, 4.8x290mm13104004Strap, black, 4.8x290mm
Strab,Auto,high-temp.2,5x103mm13104020Strab,Auto,high-temp.2,5x103mm

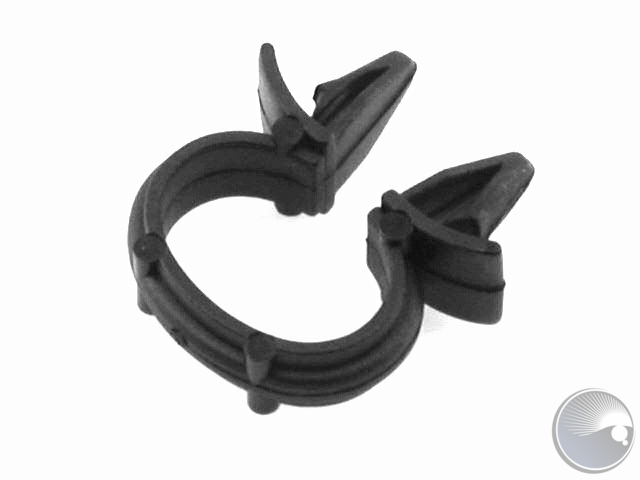

Cable bearer, black, 14x10.5x613105002Cable bearer, black, 14x10.5x6
Martin Rubber grommet DA 95/130/1513200001Martin Rubber grommet DA 95/130/15
Rubber grommet DA 95/130/3013200002Rubber grommet DA 95/130/30
Martin Rubber grommet DA 60/90/2013200007Martin Rubber grommet DA 60/90/20
Martin Tube rubber  d=4,0  D=9 (for m14026004Martin Tube rubber d=4,0 D=9 (for m
Martin Sleeve flexible ,hose  5mm, bl15800000Martin Sleeve flexible ,hose 5mm, bl
Martin Silicon/glas sleeve  d=7mm ,Bl15802003Martin Silicon/glas sleeve d=7mm ,Bl
Timing wheel T2,5 z=24 wide16000120Timing wheel T2,5 z=24 wide
Timing wheel T2,5-62 M50016000160Timing wheel T2,5-62 M500
Martin Timing belt T2,5-200-04 CF16040440Martin Timing belt T2,5-200-04 CF
Martin Belt Viton d75,87 w2,6216120070Martin Belt Viton d75,87 w2,62

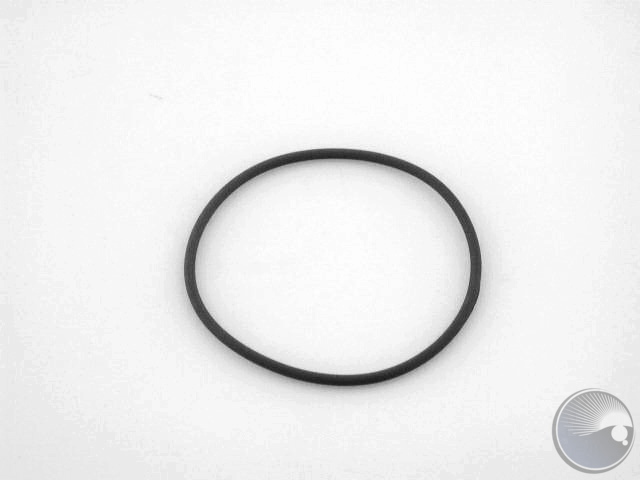

Martin Belt Viton d66,34 w2,6216120080Martin Belt Viton d66,34 w2,62

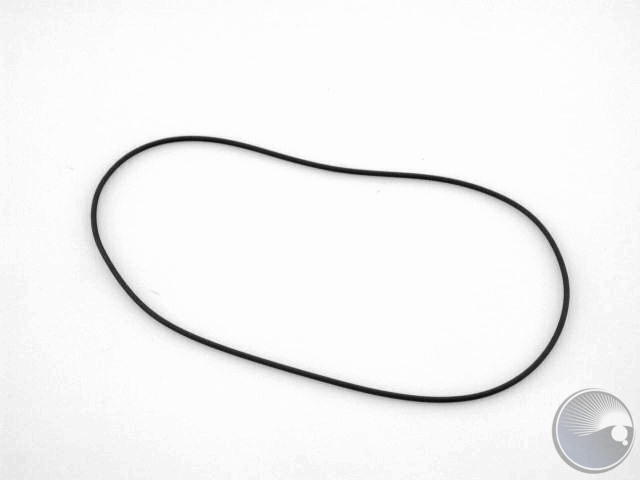

Martin Belt Viton d133,07 w1,7816120100Martin Belt Viton d133,07 w1,78

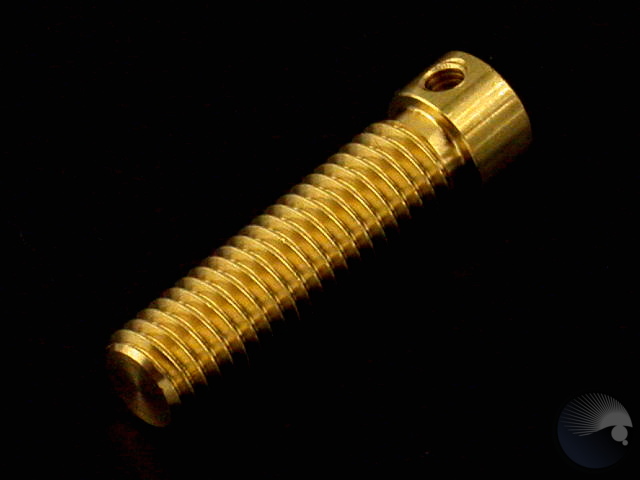

Spindel for focus, Effect modu16170020Spindel for focus, Effect modu

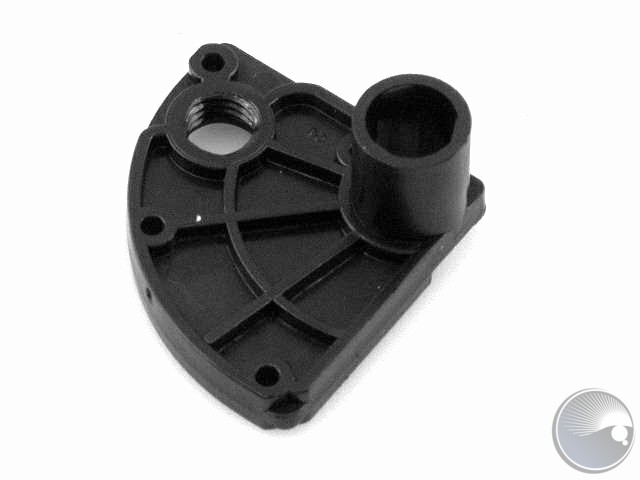

Martin Plasticguide for focusmodule,16170030Martin Plasticguide for focusmodule,
Adaptor w. 5mm hole16300131Adaptor w. 5mm hole

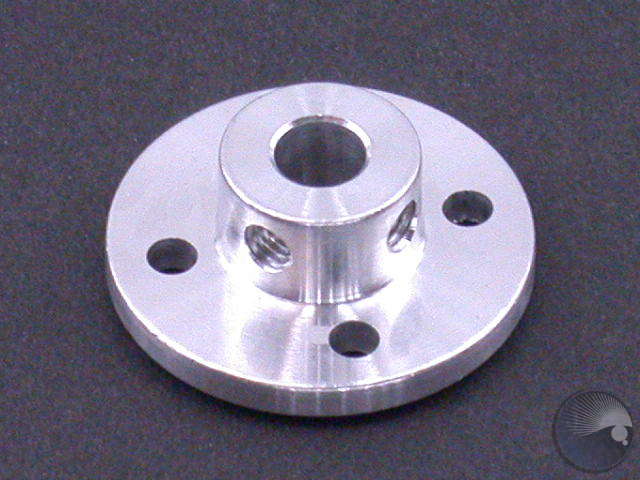

Adaptor 16320100Adaptor

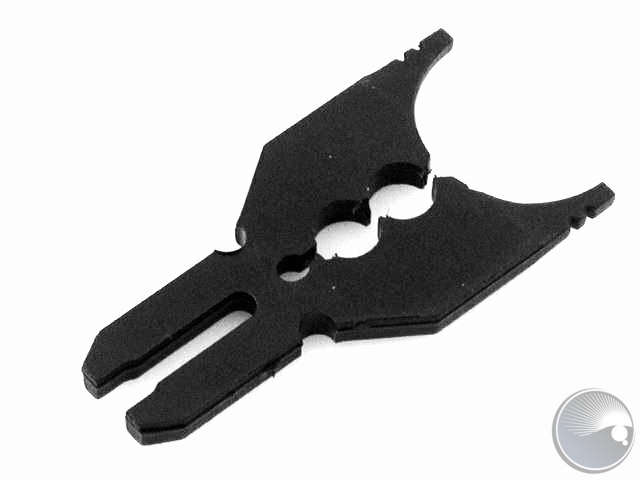

Damper plastic, 16520010Damper plastic,
Martin Damper plastic for ø5,016520070Martin Damper plastic for ø5,0
Martin Sliding bearing d=6, Special16700022Martin Sliding bearing d=6, Special
Shaft for bearing, MAC60016720110Shaft for bearing, MAC600
Martin Bearing 8/22x7 608-ZZ16760021Martin Bearing 8/22x7 608-ZZ
Bearing 25/37x7 6180516760060Bearing 25/37x7 61805
Martin Bearing 45/58x7 6180916760100Martin Bearing 45/58x7 61809

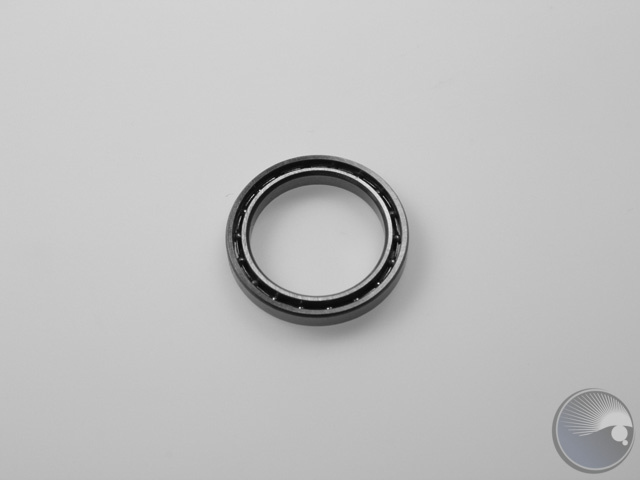

Bearing 20/27x4 6704/C416760200Bearing 20/27x4 6704/C4

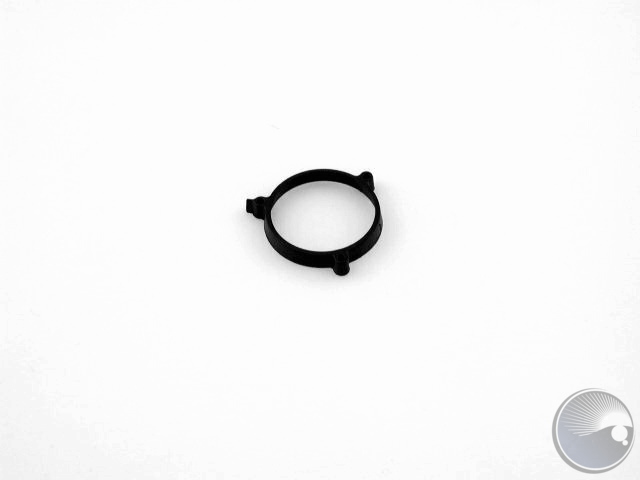

Martin Plastic gobobearing housing16920021Martin Plastic gobobearing housing

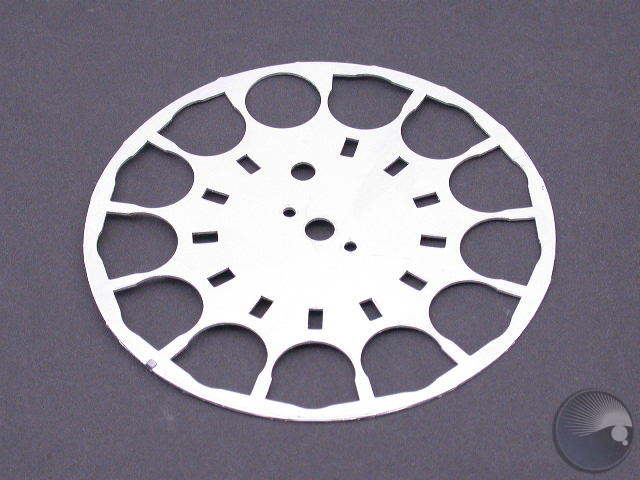

Pl.for int. colorwheel M250Pro17000270Pl.for int. colorwheel M250Pro

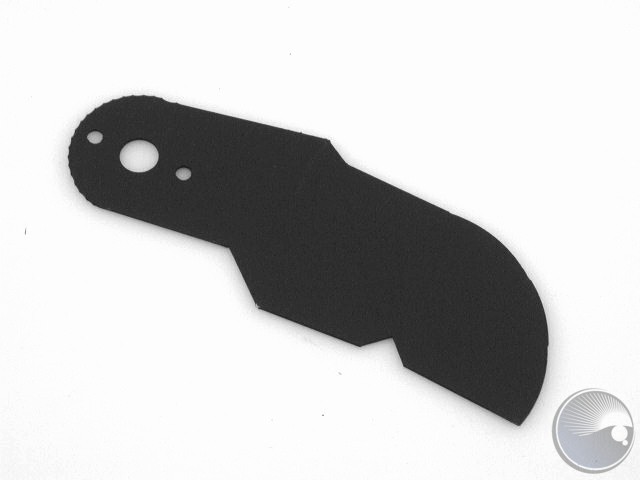

Dimmer plate, Mac 25017040050Dimmer plate, Mac 250

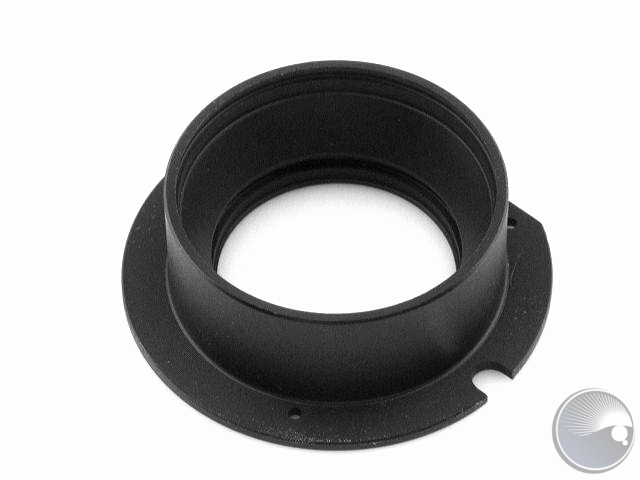

Martin Adaptor focus lens, MAC250+17200560Martin Adaptor focus lens, MAC250+

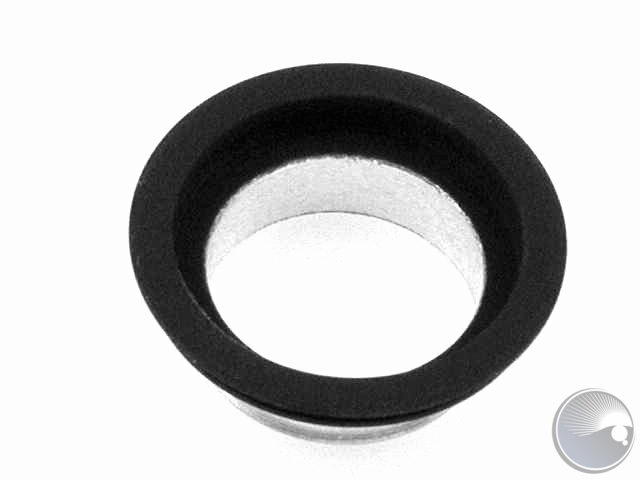

Martin Goboguide, rot.paint  MAC250,17320140Martin Goboguide, rot.paint MAC250,
21.8/14x0.3   Spring washer1770003021.8/14x0.3 Spring washer
Martin Tension spring D3/d0,6x21,217740010Martin Tension spring D3/d0,6x21,2
Circular spring D18/d117760130Circular spring D18/d1

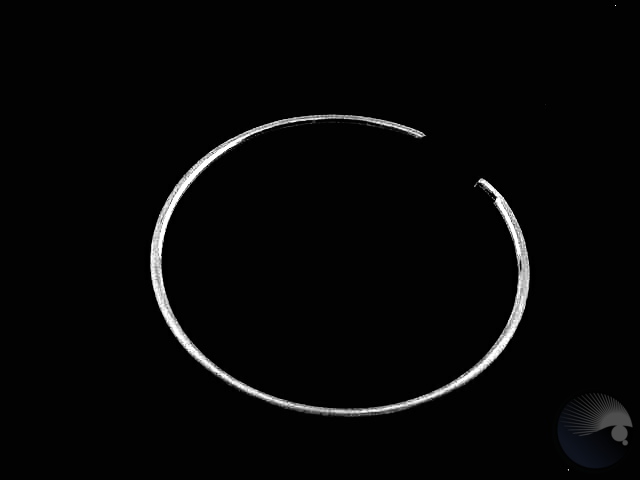

Circular spring D43/d1,4 with bend17760160Circular spring D43/d1,4 with bend

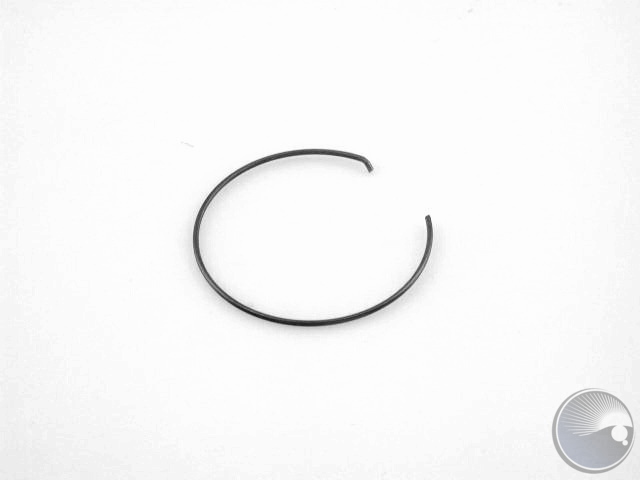

Martin Circular spring D56/d1,417760170Martin Circular spring D56/d1,4

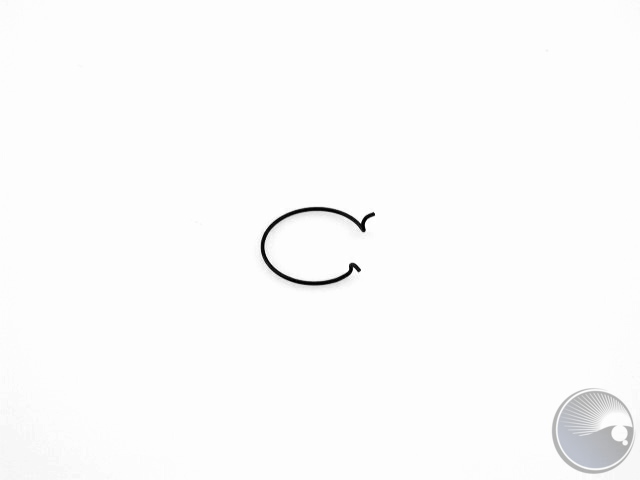

Martin Gobo spring 4 bends, MAC 25017760190Martin Gobo spring 4 bends, MAC 250

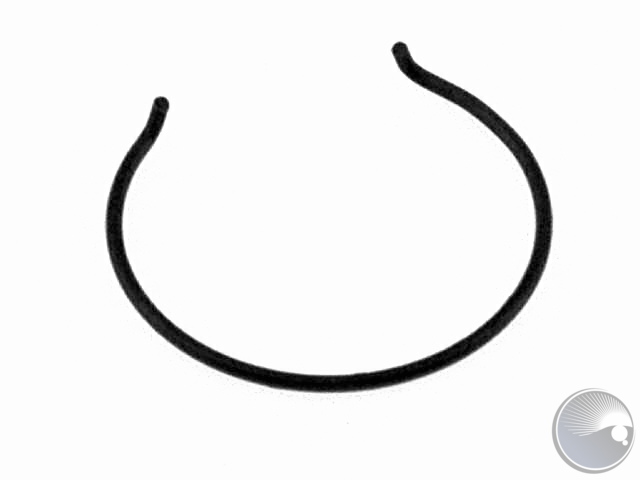

Rotating gobo spring, MiniMAC17760250Rotating gobo spring, MiniMAC

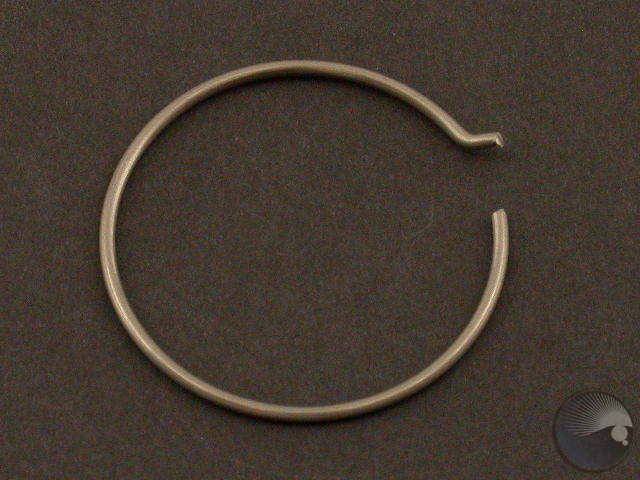

Circular spring D41/d1,717760340Circular spring D41/d1,7

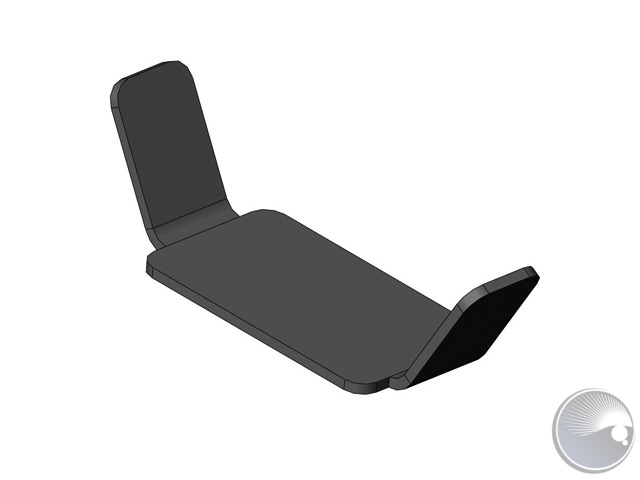

spring f. mounting b. MX1017780540spring f. mounting b. MX10
5mm tapx13.5+WAF6x3.5+M3x7.5 b180001905mm tapx13.5+WAF6x3.5+M3x7.5 b
tap18000310tap
tap18000320tap

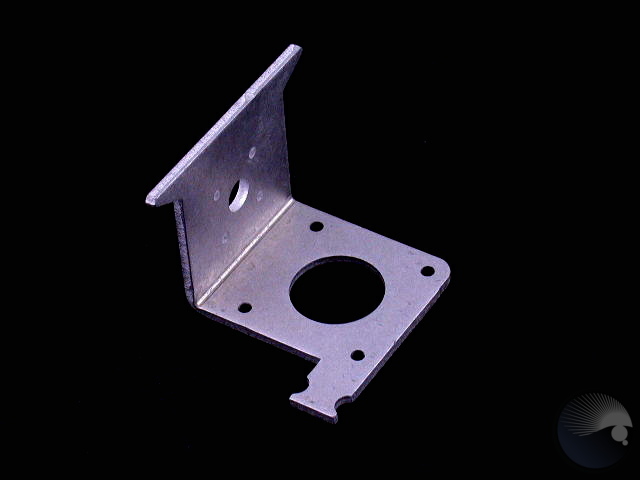

MX-10 pan bracket20000270MX-10 pan bracket

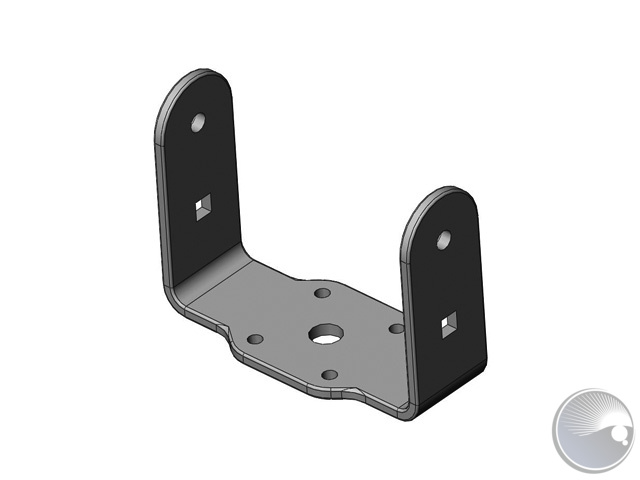

Martin MX-10 mounting bracket21020912Martin MX-10 mounting bracket

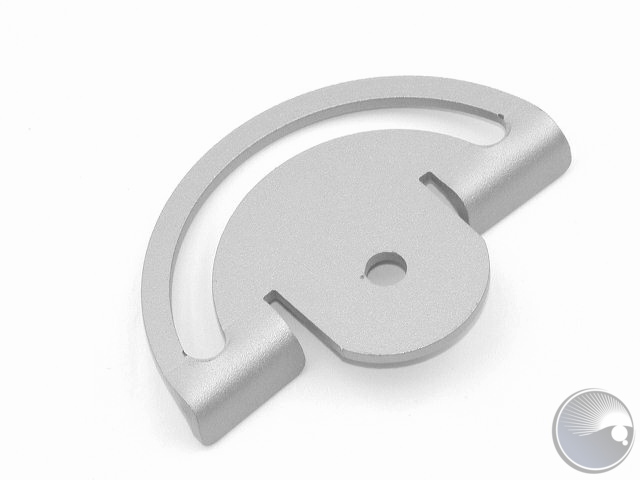

Martin MX-10 mounting bracket lock21021020Martin MX-10 mounting bracket lock
ULN2803A Transistor Array2121010ULN2803A Transistor Array
Martin Dual Full Bridge L62042121014Martin Dual Full Bridge L6204

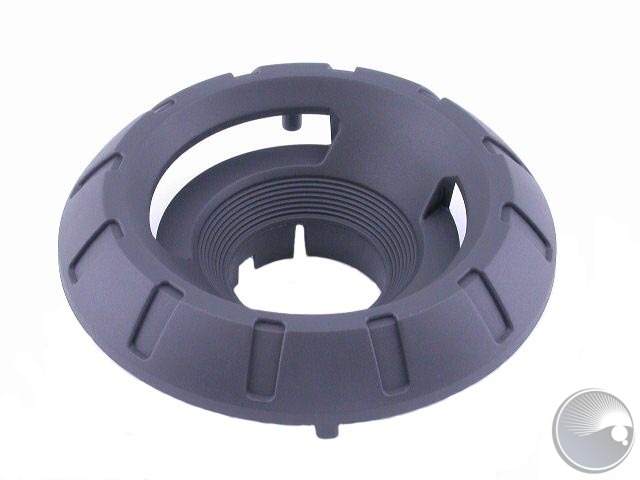

Martin Plast, Front ring, MX-10 ect.23400990Martin Plast, Front ring, MX-10 ect.

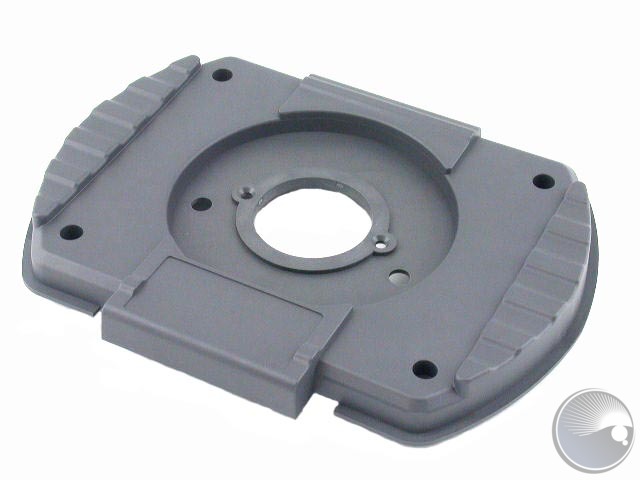

Plast, Rear plate, MX-10 ect.23401000Plast, Rear plate, MX-10 ect.
Plast, Pan/Tilt house,MX10 ect23401020Plast, Pan/Tilt house,MX10 ect

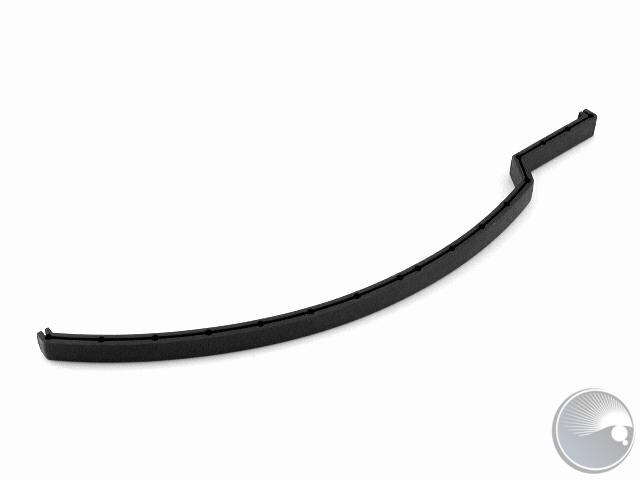

Mould, Base LH, MX-10 ect.23401040Mould, Base LH, MX-10 ect.
Mould, Base RH, MX-10 ect.23401050Mould, Base RH, MX-10 ect.

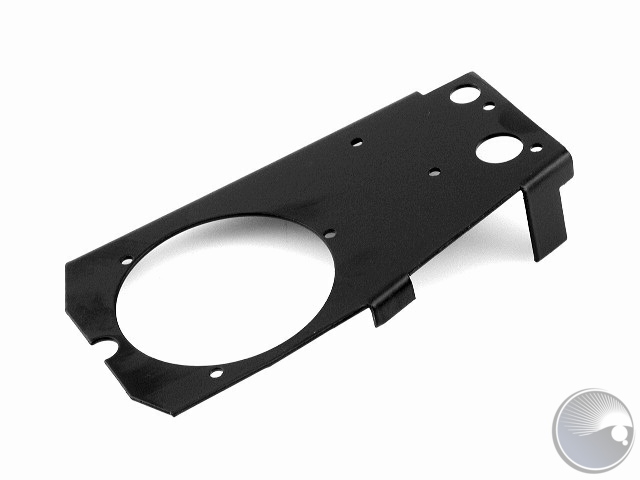

Pl.for focus, Effect mod.,M25023801570Pl.for focus, Effect mod.,M250

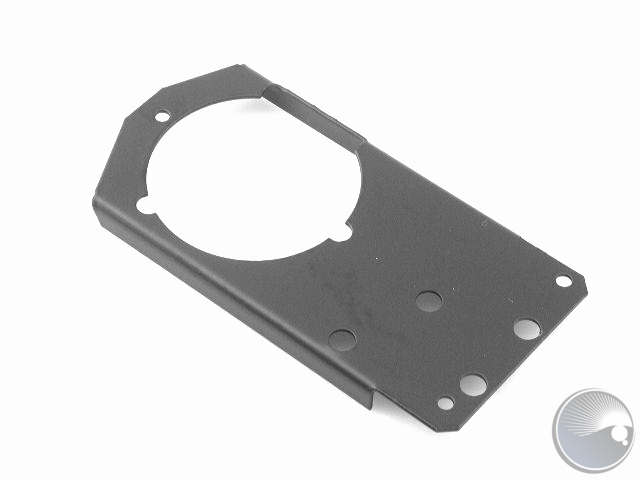

Pl.focusstop,Effect mod,M25023801580Pl.focusstop,Effect mod,M250

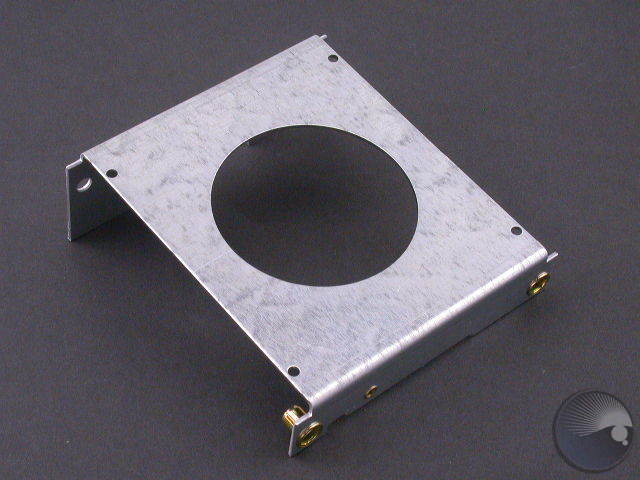

MX-10 lens module plate23807400MX-10 lens module plate

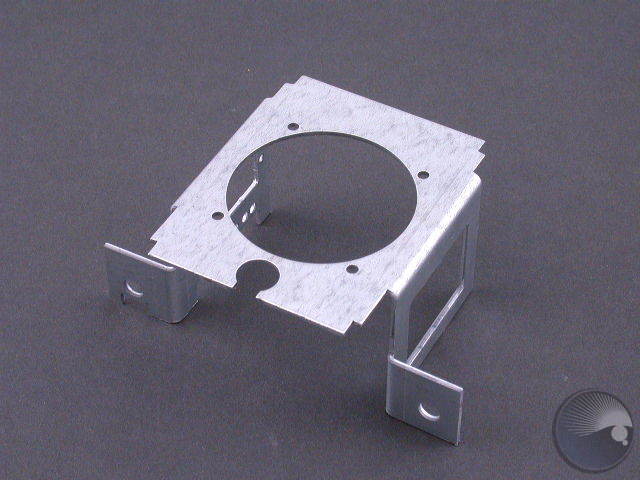

MX-10 pan/tilt plate23807410MX-10 pan/tilt plate

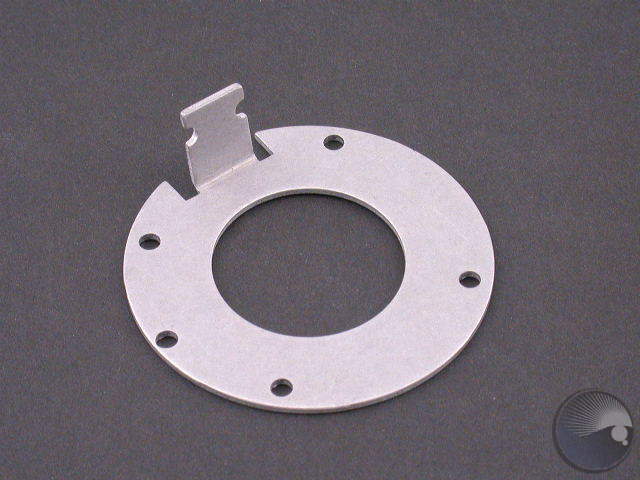

MX-10 mechanical stop plate23807420MX-10 mechanical stop plate

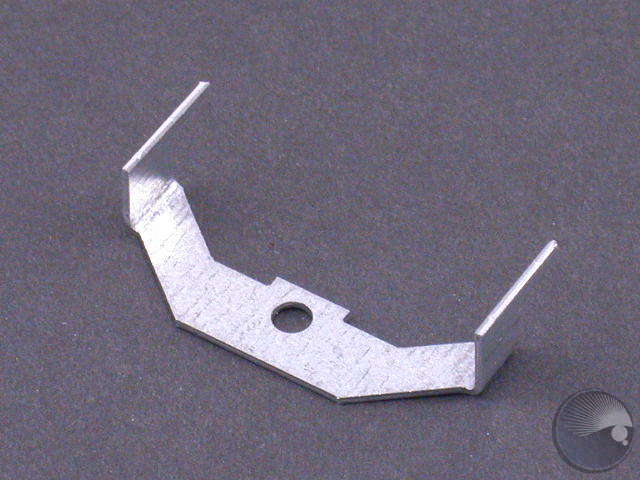

MX-10 + Mac250 lens support23807440MX-10 + Mac250 lens support

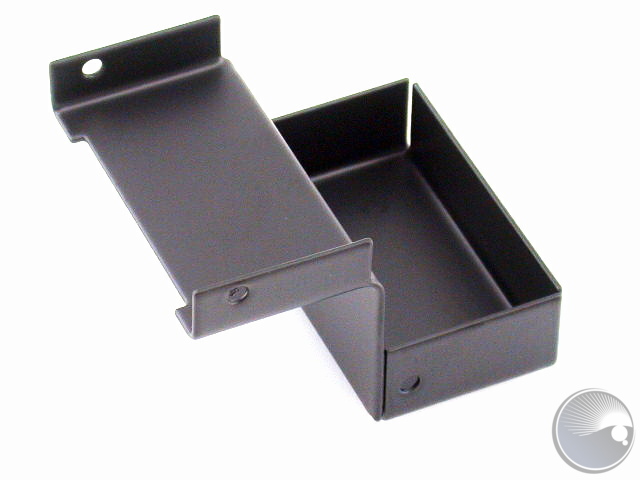

MX-10 chimney mainplate23807560MX-10 chimney mainplate

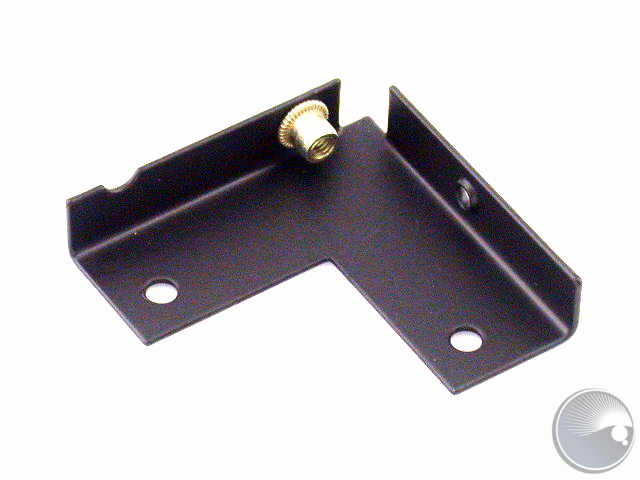

MX-10 chimney wingplate23807570MX-10 chimney wingplate

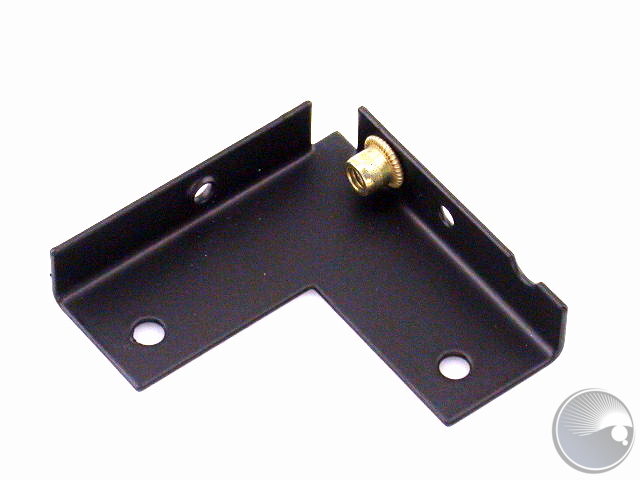

MX-10 chimney wingplate ekstra23807580MX-10 chimney wingplate ekstra

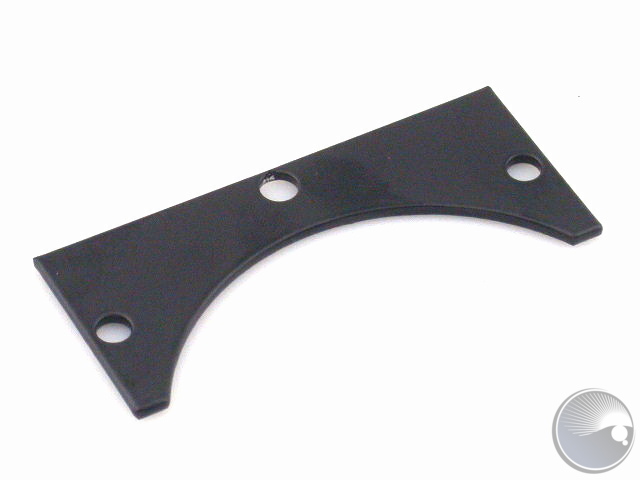

Martin MX-10 fan plate23807690Martin MX-10 fan plate

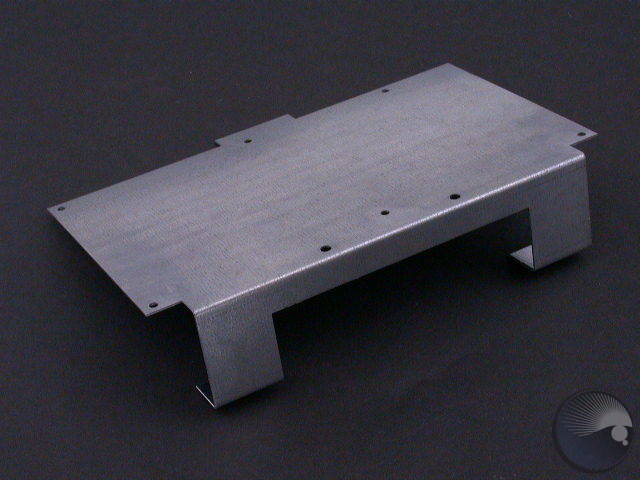

MX-10 PCB mounting plate23807730MX-10 PCB mounting plate
MX-10 cover plate for PCB23807741MX-10 cover plate for PCB

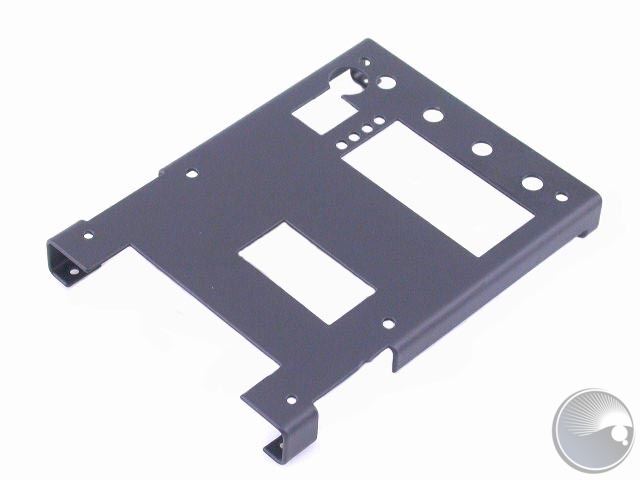

MX-10 mounting pl. f. disp.PCB23807780MX-10 mounting pl. f. disp.PCB

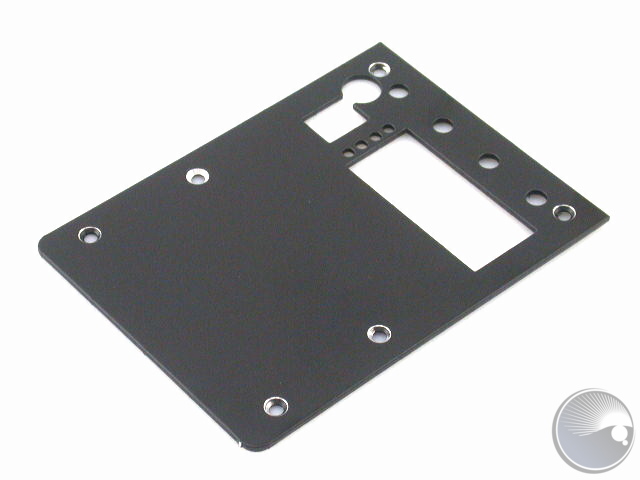

MX-10 cover plate f. disp.PCB23807790MX-10 cover plate f. disp.PCB
MX-10 E. lamp condensing unit23809130MX-10 E. lamp condensing unit
MX-10 Extreme, reflector plate23809140MX-10 Extreme, reflector plate
MX-10 Extreme, lamp shade23809150MX-10 Extreme, lamp shade
MX-10 Extreme, module plate23809160MX-10 Extreme, module plate
MX-10 Extreme, termoswitch pl.23810200MX-10 Extreme, termoswitch pl.
Martin Closed cell expanded rubber 3.32023001Martin Closed cell expanded rubber 3.

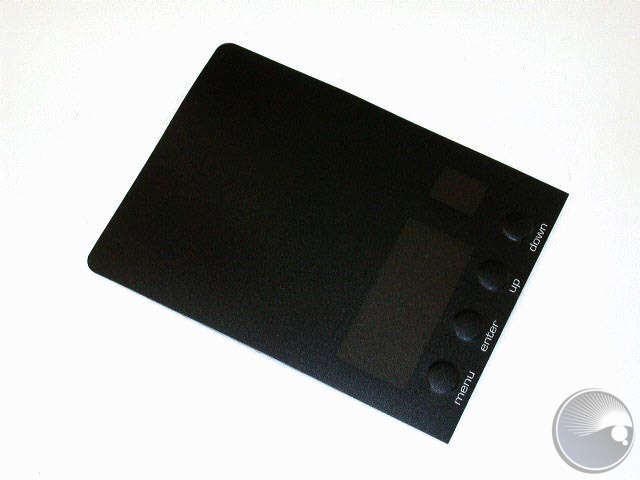

Martin MX 10, Keyboard Overlay33001028Martin MX 10, Keyboard Overlay
Logo label, MX-10 Extreme33001037Logo label, MX-10 Extreme

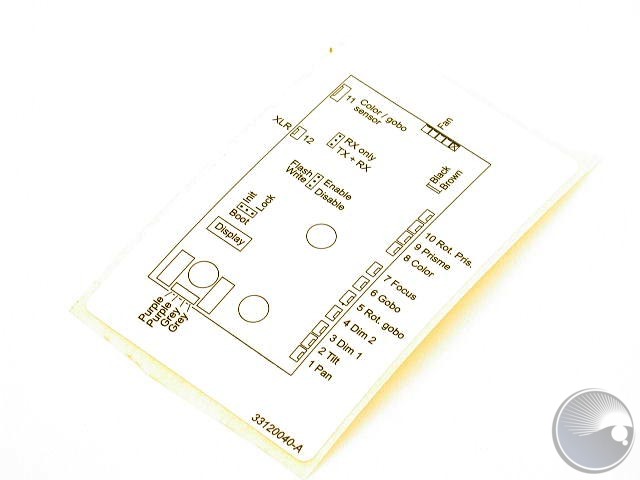

Label PCB connec. MX-1033120040Label PCB connec. MX-10
Martin Plast bag 600/250x1200x0.34240008Martin Plast bag 600/250x1200x0.
Silicone glue 732 clear, low temp. Dow C37000801Silicone glue 732 clear, low temp. Dow C
Martin Loctite 5927 red silicone high temp (SAL37001201Martin Loctite 5927 red silicone high temp (SAL
Loctite 243 10ml37021002Loctite 243 10ml
Martin D=65,6/25 F=50 Elliptic Reflec41002046Martin D=65,6/25 F=50 Elliptic Reflec

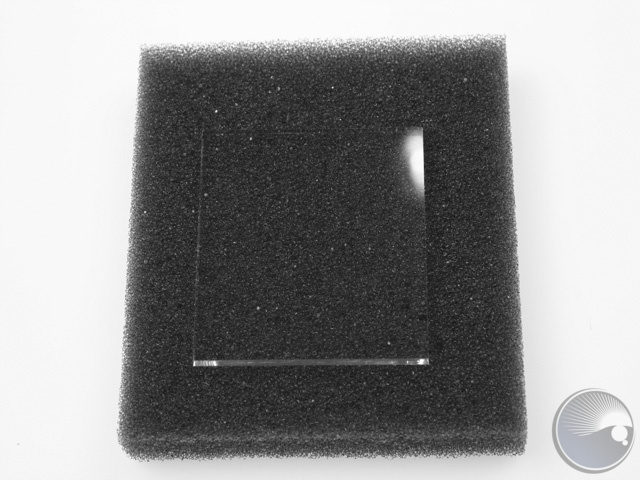

Martin 34x34x2 Heat filter Schott41102072Martin 34x34x2 Heat filter Schott

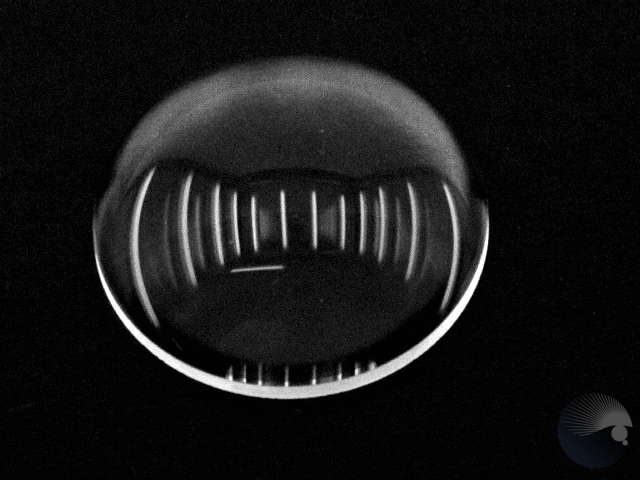

Martin D=40 f=95.4 Meniscus coated41201046Martin D=40 f=95.4 Meniscus coated

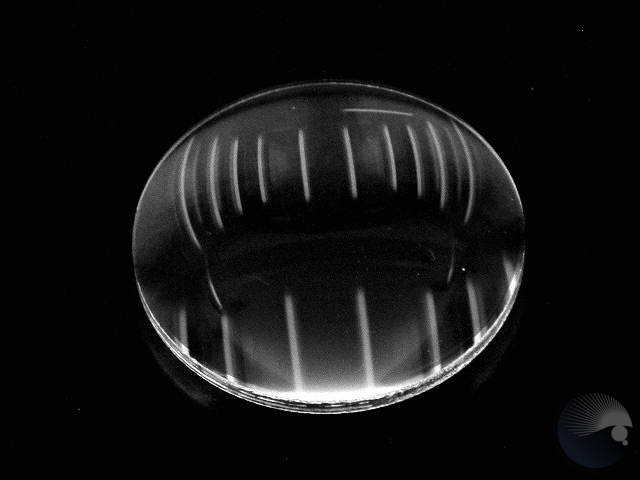

D=50 f=84 Biconvex, Coated41201048D=50 f=84 Biconvex, Coated

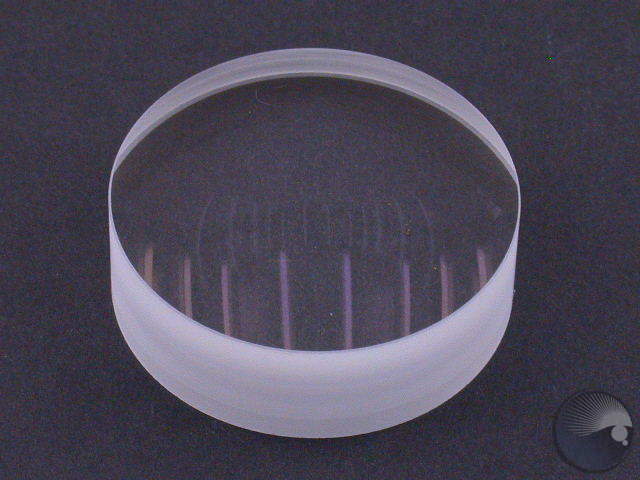

Martin D=60 f=192.3 Achromat Coated41202020Martin D=60 f=192.3 Achromat Coated
Martin Facets Prism D=47, 3 Coated41300010Martin Facets Prism D=47, 3 Coated

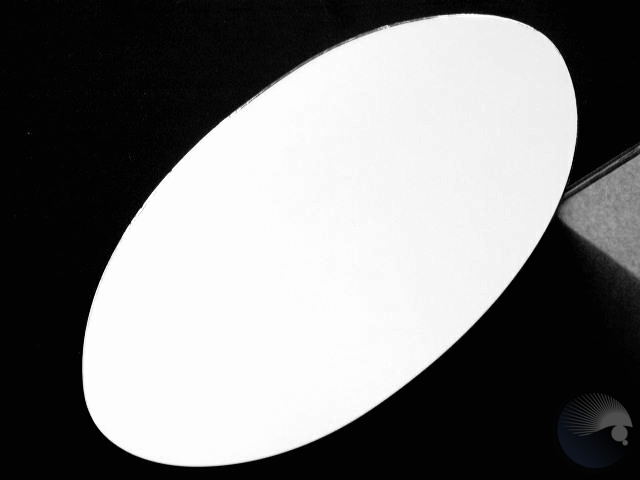

Martin Elliptic 190x135x1.2mm  91841400020Martin Elliptic 190x135x1.2mm 918
Gobo, Paint Mix Magenta, D22.5/d17, colo43082006Gobo, Paint Mix Magenta, D22.5/d17, colo
Gobo, Paint Mix Blue, D22.5/d17, colored43082007Gobo, Paint Mix Blue, D22.5/d17, colored

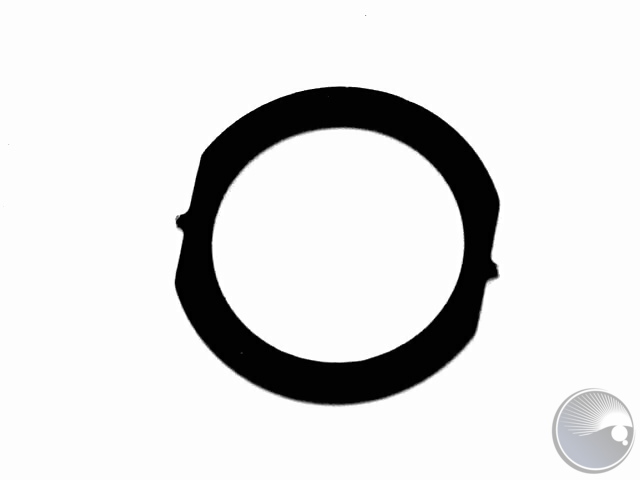

Gobo, Open Gobo, D22.5/d17, alu, painted43086001Gobo, Open Gobo, D22.5/d17, alu, painted
Martin Gobo, Eclipse, D22.5/d17, alu, painted43086023Martin Gobo, Eclipse, D22.5/d17, alu, painted

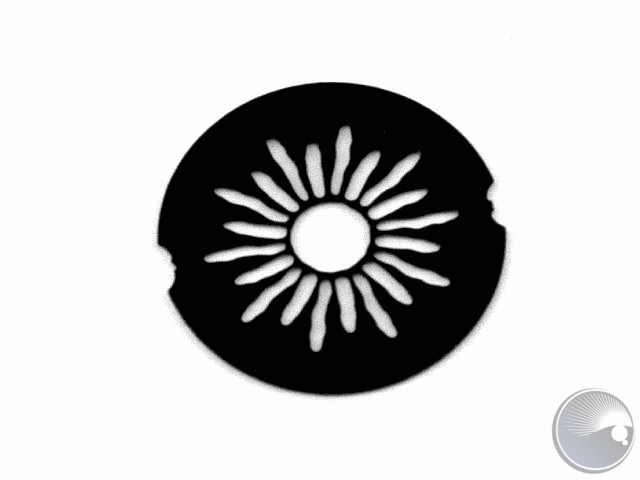

Gobo, Sun, D22.5/d17, alu, painted43086024Gobo, Sun, D22.5/d17, alu, painted

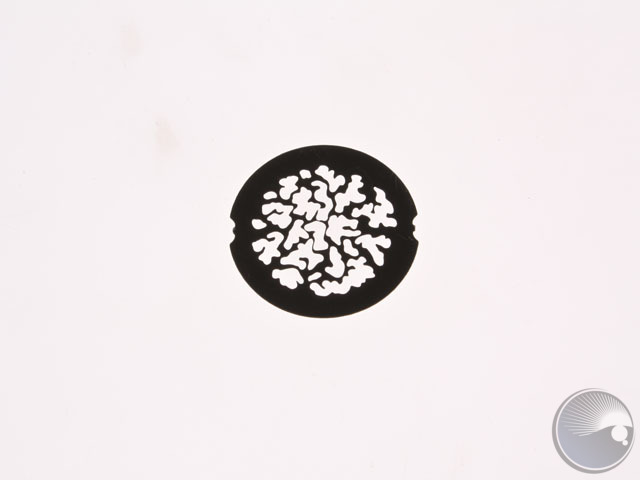

Martin Gobo, Oriental Fire, D22.5/d17, alu, pai43086025Martin Gobo, Oriental Fire, D22.5/d17, alu, pai
Gobo, Shark Bar, D22.5/d17, alu, painted43086026Gobo, Shark Bar, D22.5/d17, alu, painted
Gobo, Tail Spin, D22.5/d17, alu, painted43086027Gobo, Tail Spin, D22.5/d17, alu, painted

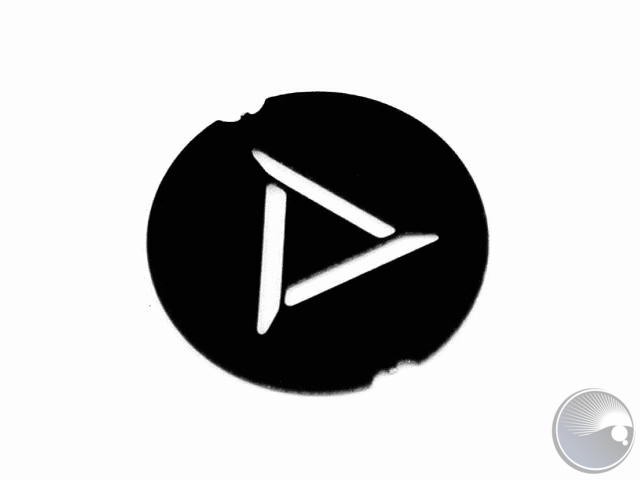

Martin Gobo, Triangle, D22.5/d17, alu, painted43086028Martin Gobo, Triangle, D22.5/d17, alu, painted
Gobo, Phat Fan, D22.5/d17, alu, painted43086029Gobo, Phat Fan, D22.5/d17, alu, painted
Martin Magnet 2x2x2 mm w. red mark4401102Martin Magnet 2x2x2 mm w. red mark
Martin Bal, 250W,210/60Hz,225/60Hz,224540010Martin Bal, 250W,210/60Hz,225/60Hz,22

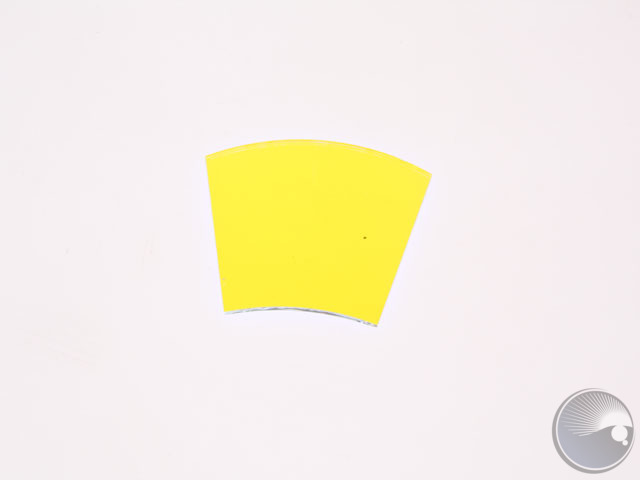

Martin Yellow 603     MAC250 shape46404602Martin Yellow 603 MAC250 shape

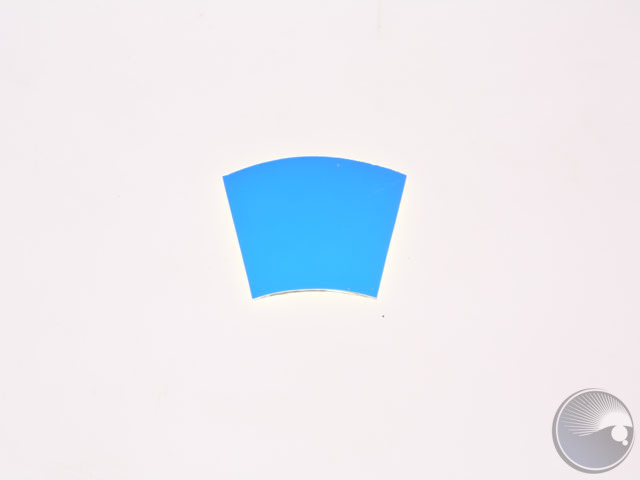

Blue 104       MAC250 shape46404603Blue 104 MAC250 shape

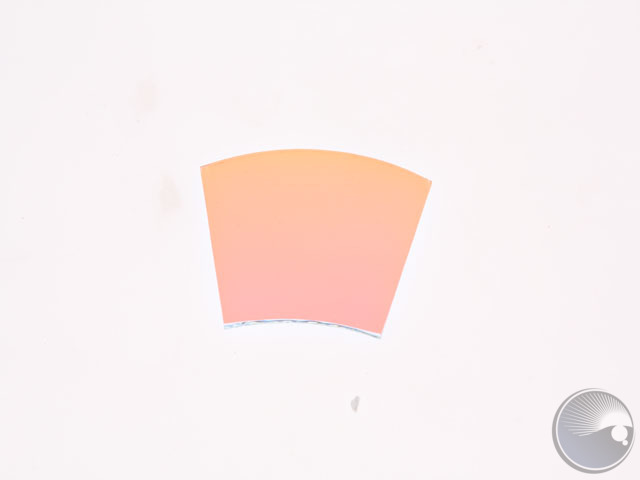

Pink 312       MAC250 shape46404604Pink 312 MAC250 shape

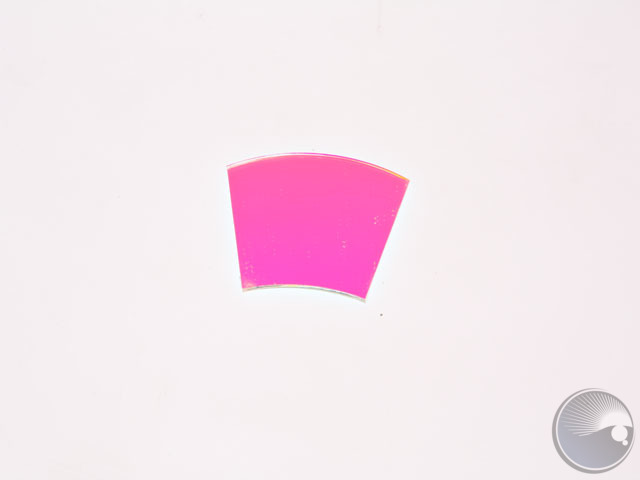

Martin Magenta 507    MAC250 shape46404608Martin Magenta 507 MAC250 shape

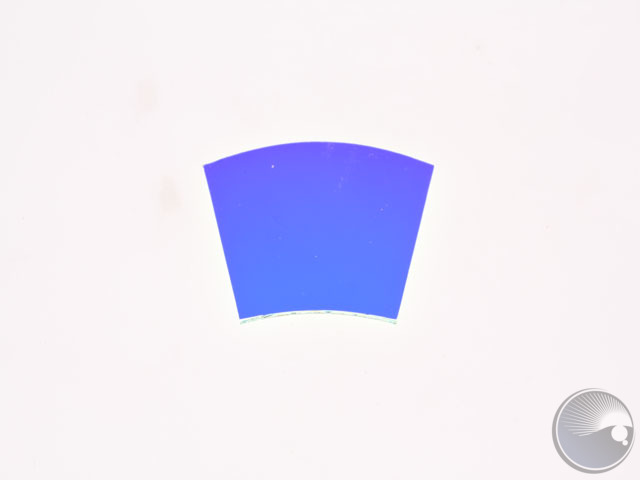

Martin Blue 101       MAC250 shape46404609Martin Blue 101 MAC250 shape

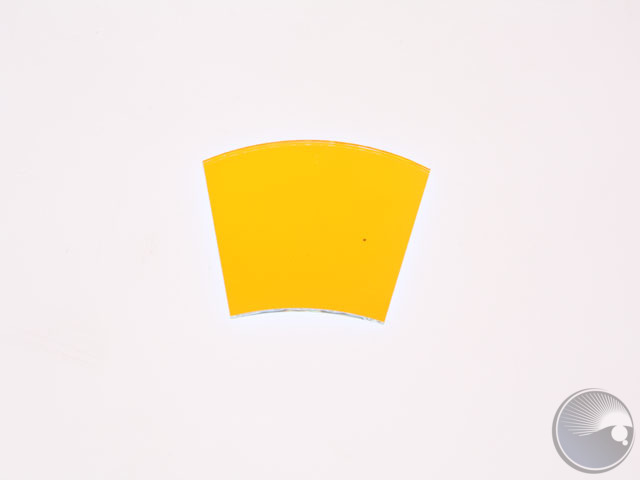

Orange 306     MAC250 shape46404610Orange 306 MAC250 shape

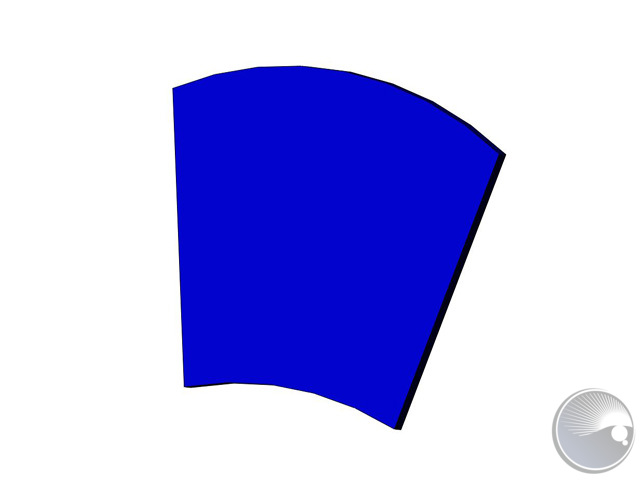

Martin Blue 108  MAC250 shape46404631Martin Blue 108 MAC250 shape

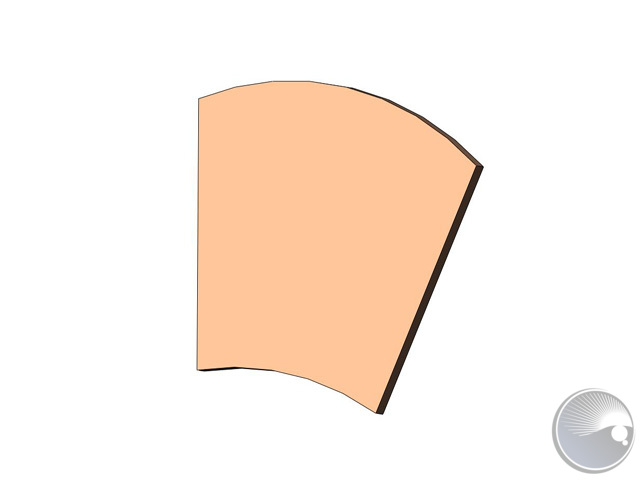

Martin CTC5500-2900K V2 MAC250 shape46404633Martin CTC5500-2900K V2 MAC250 shape

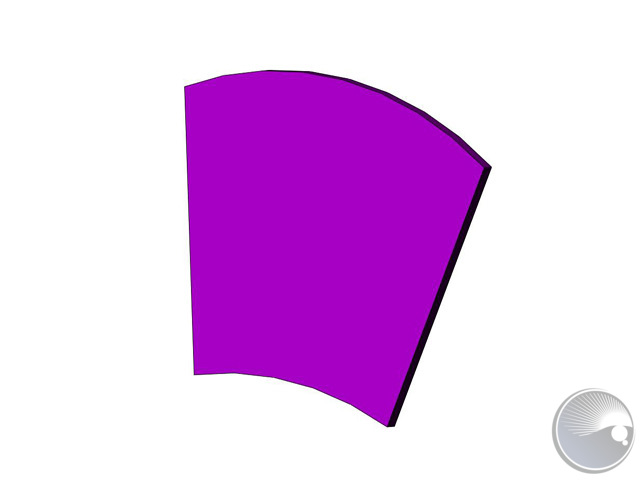

Martin Purple 502 MAC250 shape46404634Martin Purple 502 MAC250 shape

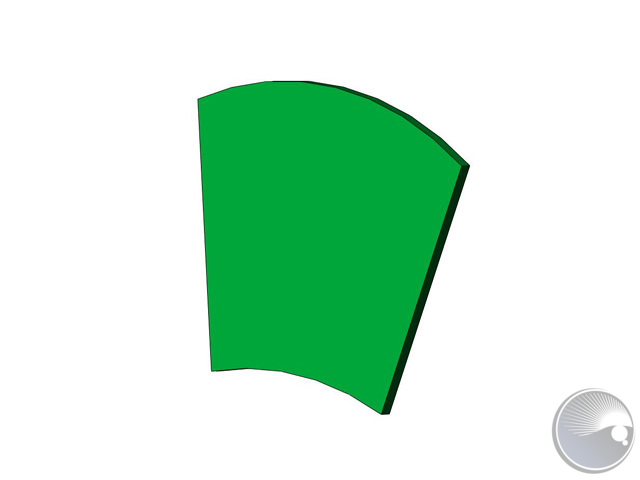

Martin Green 206 MAC 250 shape46404635Martin Green 206 MAC 250 shape

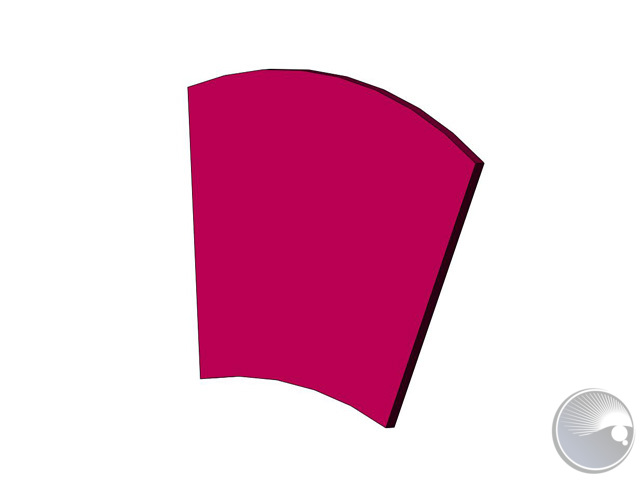

Martin Red 301 MAC250 Shape46404637Martin Red 301 MAC250 Shape

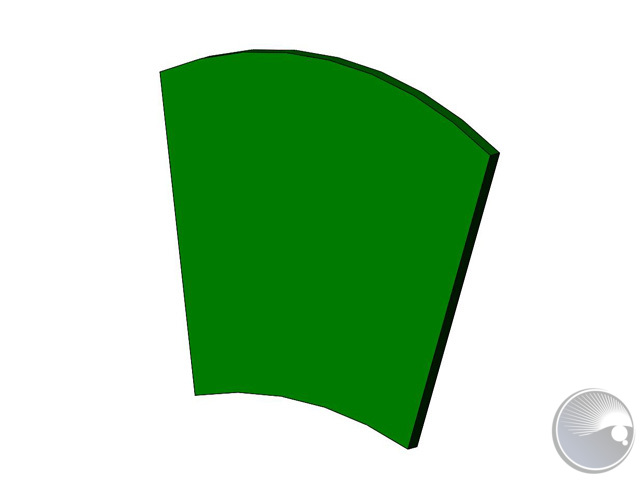

Dark Green, MAC250 shape46404644Dark Green, MAC250 shape
Relay 12V 16A single, high cur5000001Relay 12V 16A single, high cur
Martin Fuse, 2A slow blow5020009Martin Fuse, 2A slow blow
Martin Fuse 6.3 AT  5 x 20 mm5020020Martin Fuse 6.3 AT 5 x 20 mm
Transistor clip for heatsink5061014Transistor clip for heatsink
Jumper 2 Pole 2,54mm Spacing5120701Jumper 2 Pole 2,54mm Spacing
Martin Mains soc. chassis,flange I.E5247202Martin Mains soc. chassis,flange I.E
Martin Fuse holder H-17-FH5247204Martin Fuse holder H-17-FH
Plug female angle, wire, 4 pol5323514Plug female angle, wire, 4 pol
Martin Plug female angle, wire, 2 pol5323522Martin Plug female angle, wire, 2 pol
Martin Plug female angle, wire, 3 pol5323523Martin Plug female angle, wire, 3 pol
Martin Plug female angle, wire, 4 pol5323524Martin Plug female angle, wire, 4 pol
Cable plug 6.3 femalsingle iso5328405Cable plug 6.3 femalsingle iso

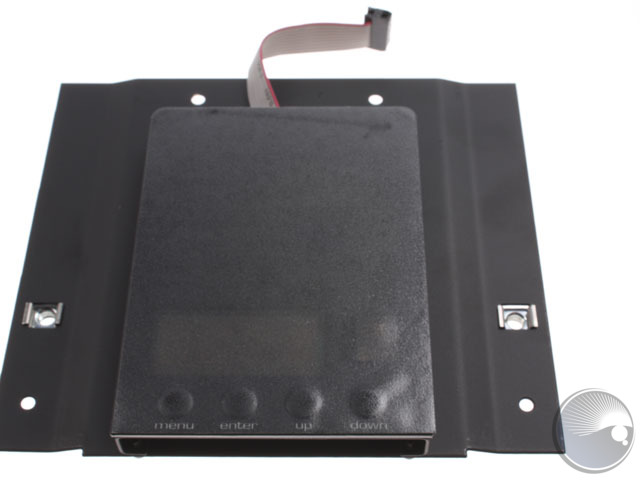

Display module MX-1055145160Display module MX-10

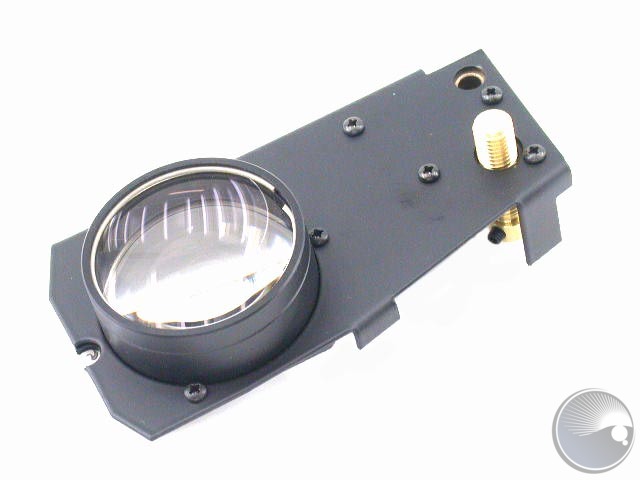

Focus module MAC 250+55225054Focus module MAC 250+
Martin Step motor 17PM-K105-03V Ø5/245701604Martin Step motor 17PM-K105-03V Ø5/24
Martin Step motor KH42JM2-027 Ø5/245701605Martin Step motor KH42JM2-027 Ø5/24
Martin Step motor KH42JM2-024 Ø5/245701606Martin Step motor KH42JM2-024 Ø5/24

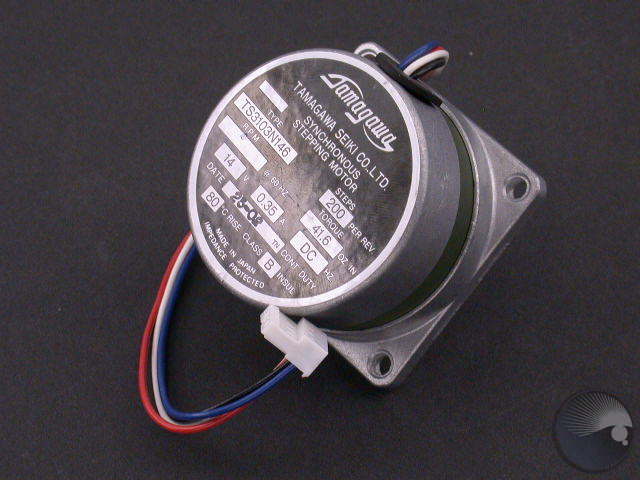

Step motor TS 3103N 146 5701801Step motor TS 3103N 146
Martin Batteri 3V Lithium  ,PCB5801001Martin Batteri 3V Lithium ,PCB
Martin Starter 200W serial, NI 200S6020005Martin Starter 200W serial, NI 200S

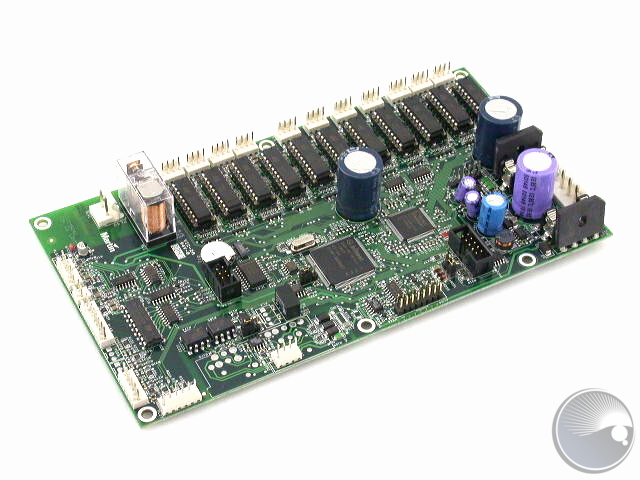

PCBA Mainboard MX-10, tested62000081PCBA Mainboard MX-10, tested
Martin PCBA Disp./Keyboard MX-10, tested62000082Martin PCBA Disp./Keyboard MX-10, tested

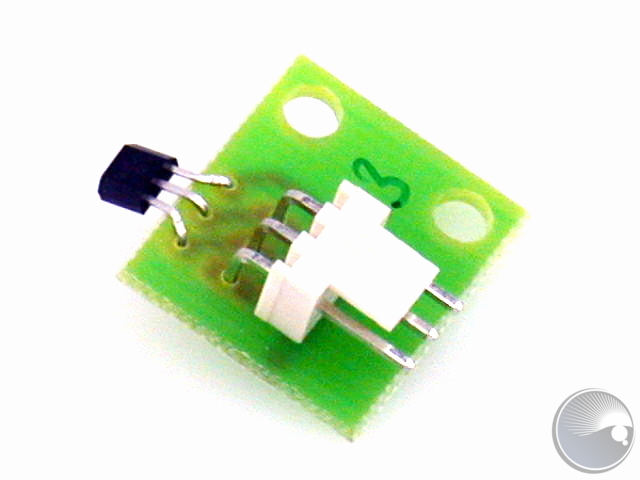

Martin PCBA Hall sensor MAC250Pro, Mou62003010Martin PCBA Hall sensor MAC250Pro, Mou
Martin PCBA Hall sensor MAC2000 Perfor62003017Martin PCBA Hall sensor MAC2000 Perfor

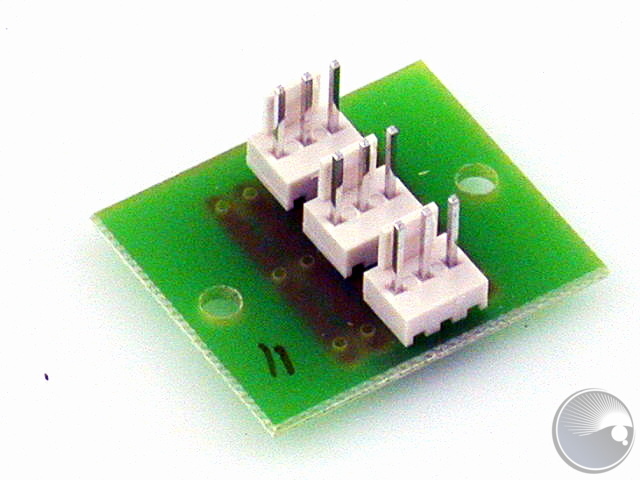

Martin PCBA Connector  3x(1x3pol)62004547Martin PCBA Connector 3x(1x3pol)

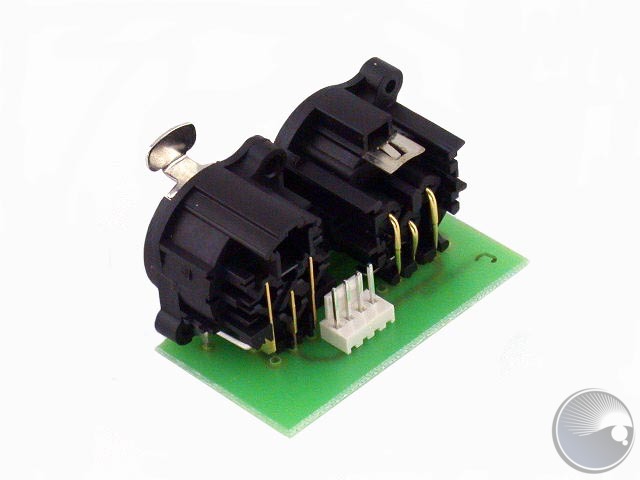

Martin PCBA 3pin XLR male/fem62004592Martin PCBA 3pin XLR male/fem

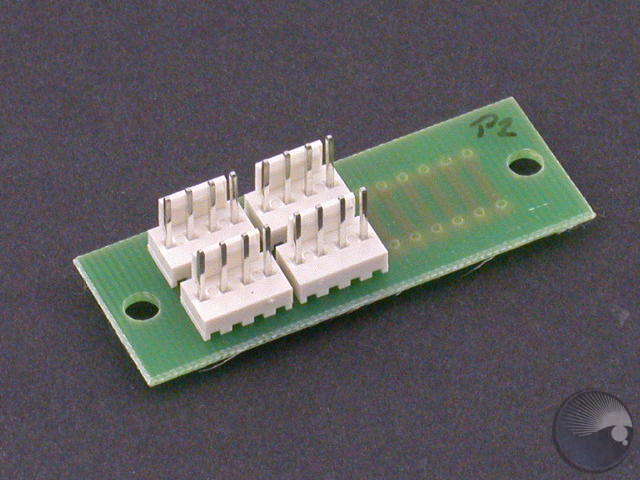

PCBA Connector 4x4pol, no print62004593PCBA Connector 4x4pol, no print

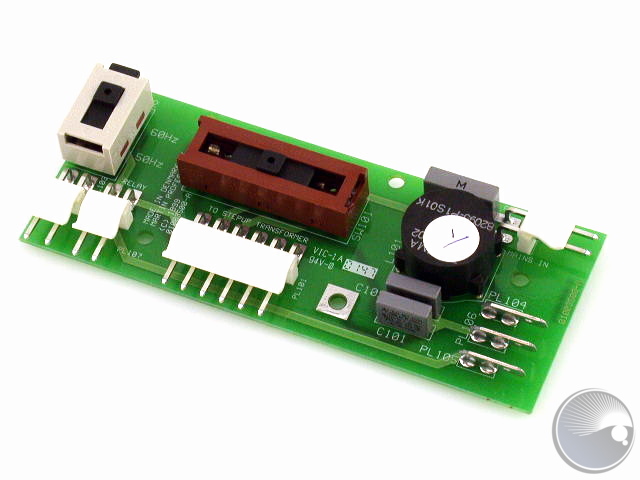

Martin PCBA Voltage/Feq. select, Asmb62005006Martin PCBA Voltage/Feq. select, Asmb

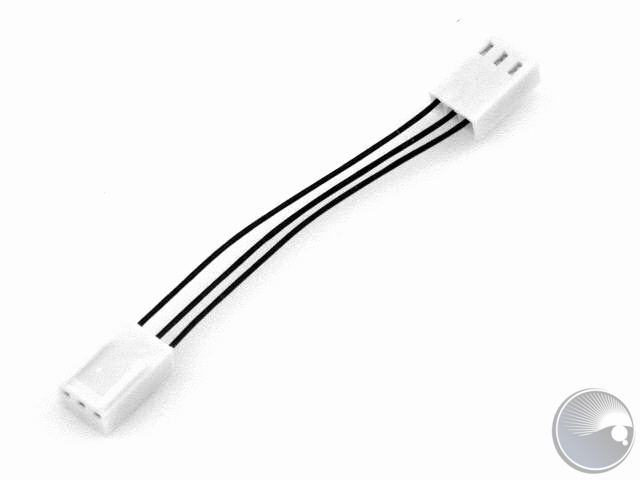

Martin Wire Hall sensor,70mm 3-3pol62203173Martin Wire Hall sensor,70mm 3-3pol

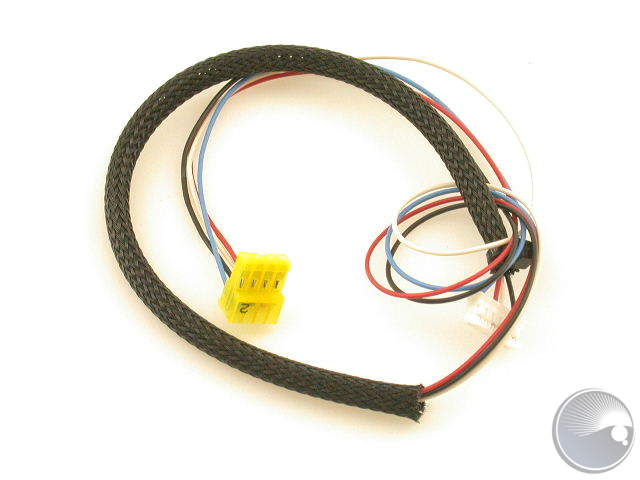

Martin Wire stepm.NMB 360mm w.pl/flex62205210Martin Wire stepm.NMB 360mm w.pl/flex
Martin Fan 12V DC 3 2.6W, w.plug 5cm62222046Martin Fan 12V DC 3 2.6W, w.plug 5cm
Stepmotor 05701801 w.plug,200m62226004Stepmotor 05701801 w.plug,200m

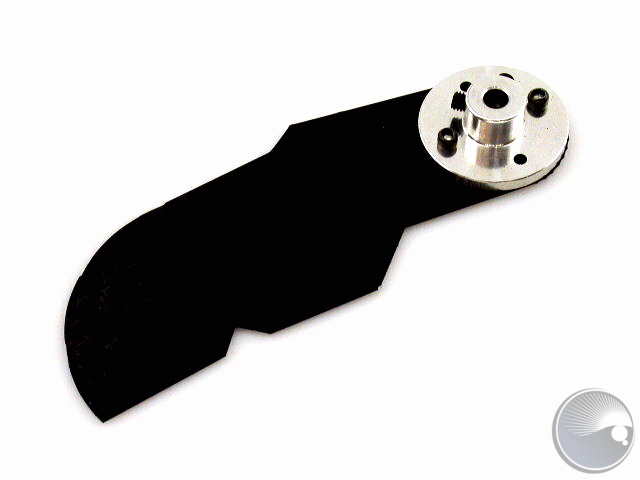

Martin Dimmerplate L w. adaptor M25062324008Martin Dimmerplate L w. adaptor M250

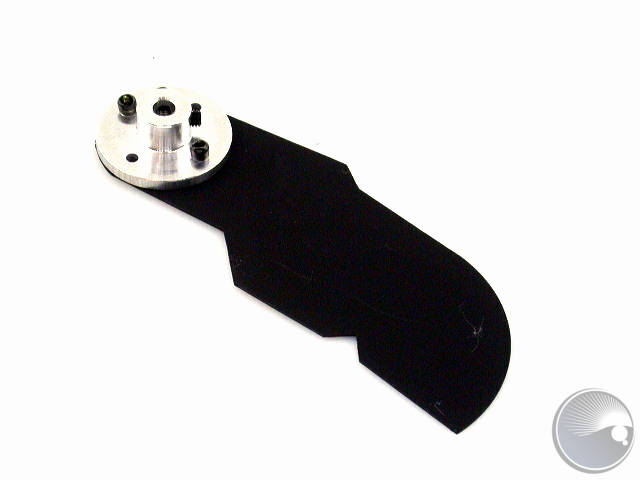

Martin Dimmerplate R w. adaptor M25062324009Martin Dimmerplate R w. adaptor M250

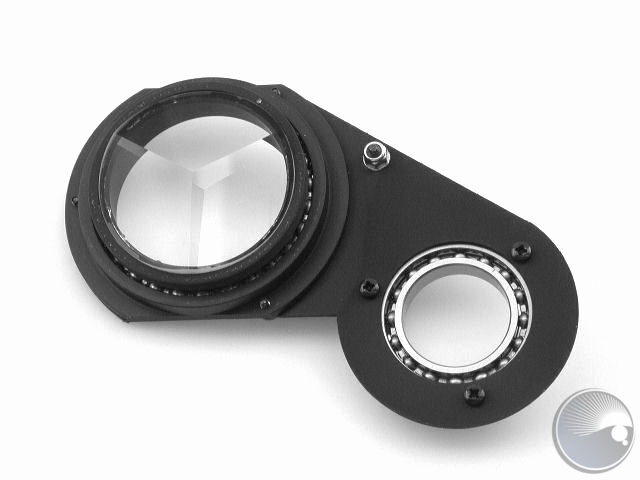

Prisme flag, MX-10, Mac 25062324016Prisme flag, MX-10, Mac 250

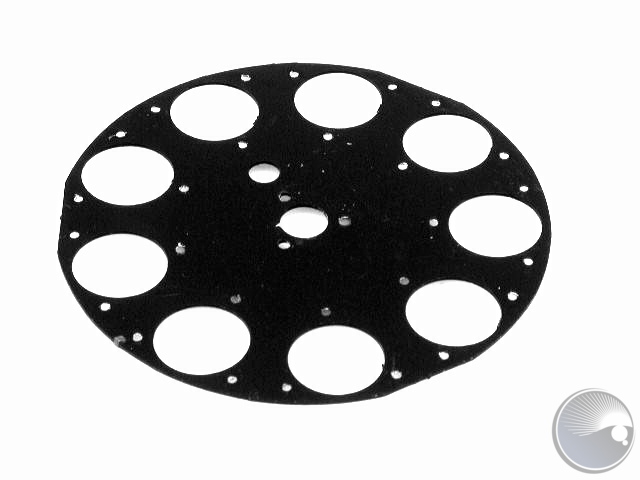

Plate for rotating gobo wheel MAC 25062325021Plate for rotating gobo wheel MAC 250

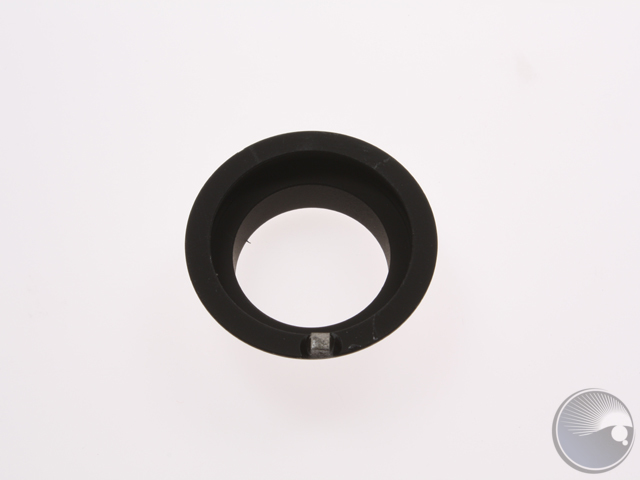

Martin Goboguide w.magnet M250+62326027Martin Goboguide w.magnet M250+

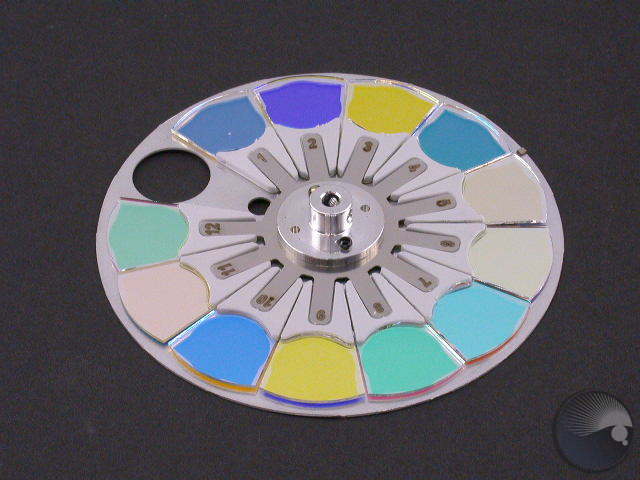

MX-10 colorwheel modul62326044MX-10 colorwheel modul
MAC500 Prism lens asmb.62329001MAC500 Prism lens asmb.

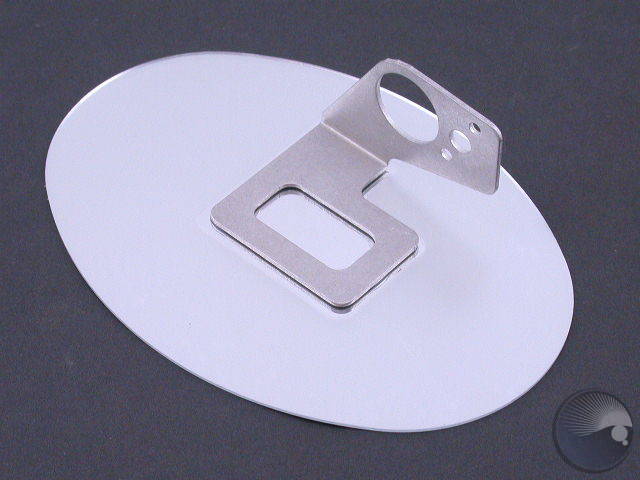

MX-10 mirror modul62333029MX-10 mirror modul
MX-10 arm glued w. wire62334034MX-10 arm glued w. wire
Tuberubber,spacer,d=4 D=9 l=1362400077Tuberubber,spacer,d=4 D=9 l=13

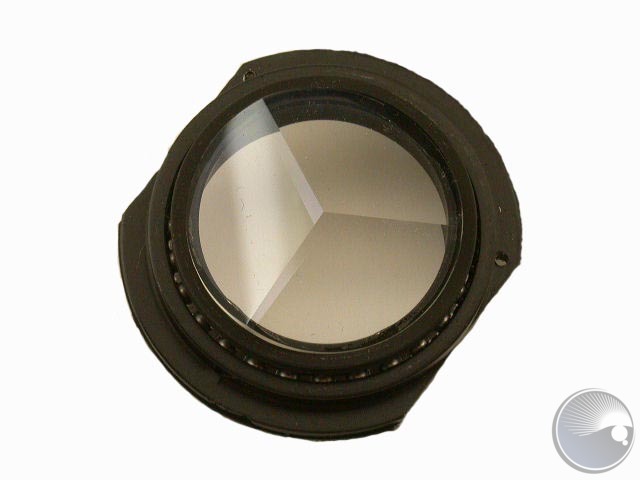

MAC250 Prism lens asmb,w.beari62400107MAC250 Prism lens asmb,w.beari

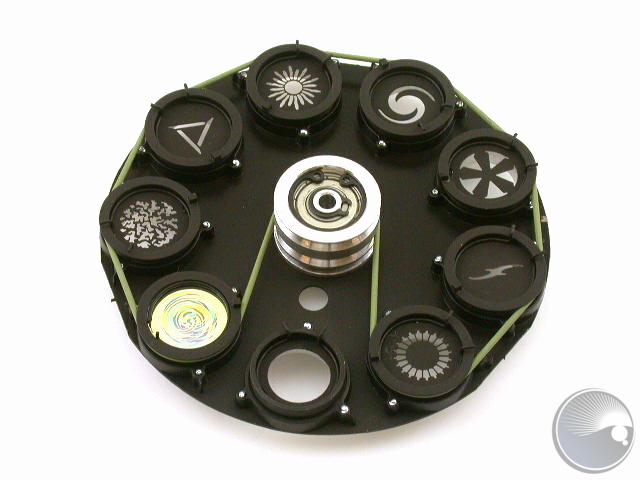

MX-10 gobowheel modul62400260MX-10 gobowheel modul
Adapt f. open gobo effect HT62400338Adapt f. open gobo effect HT

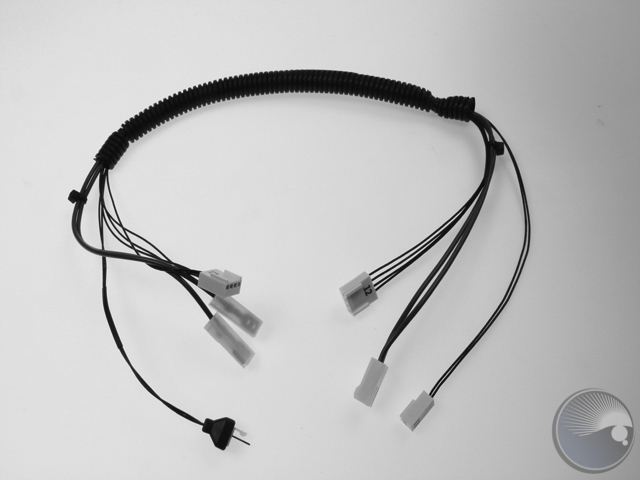

Martin Wire Assembly for MX-1062400424Martin Wire Assembly for MX-10

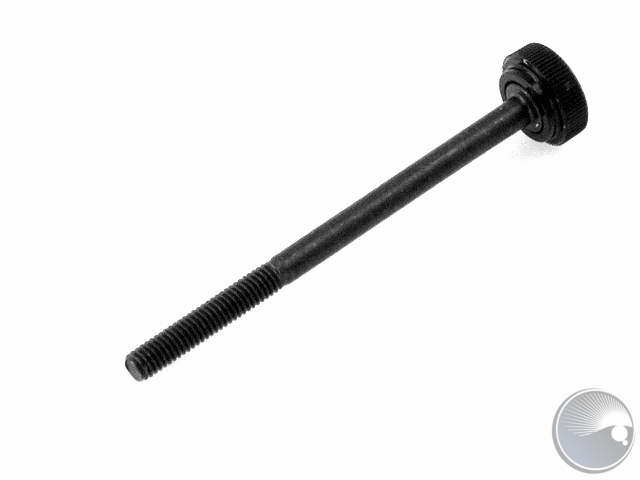

Martin Fingerscrew assembled62420009Martin Fingerscrew assembled
Martin M3x4 ph pz black8050401Martin M3x4 ph pz black
Martin M3x6 ph torx tapt spike black8050700Martin M3x6 ph torx tapt spike black
Martin M3x8 ph torx tapt black8050701Martin M3x8 ph torx tapt black
Martin M3x12 ph torx black8050706Martin M3x12 ph torx black
Martin M3x6 cs torx black8050802Martin M3x6 cs torx black
Martin M3x8 cs torx tapt black8050804Martin M3x8 cs torx tapt black
Martin M3 nut black8052601Martin M3 nut black
Martin M3 nut lock PA shiny8052701Martin M3 nut lock PA shiny
M3x6 stand off f/f nylon8053804M3x6 stand off f/f nylon
Martin M3x10 stand off m6/f7 black8053807Martin M3x10 stand off m6/f7 black
M3x14 stand off f/f shiny8053817M3x14 stand off f/f shiny
Martin M3 washer 3,2/7x0,5 shiny8054301Martin M3 washer 3,2/7x0,5 shiny
M4x10 ph pz black8070402M4x10 ph pz black
Martin M4x12 ph pz tapt black8070406Martin M4x12 ph pz tapt black
Martin M4x16 ph pz black8070407Martin M4x16 ph pz black
Martin M4x20 ph pz tapt black8070409Martin M4x20 ph pz tapt black
Martin M4x10 ph torx tapt spike black8070701Martin M4x10 ph torx tapt spike black
Martin M4x10 hex cap black8071002Martin M4x10 hex cap black
M4x6 ch allen shiny8071201M4x6 ch allen shiny
Martin M4x5 set allen raw8071501Martin M4x5 set allen raw
Martin M4 nut domed black8072901Martin M4 nut domed black
Martin M4 riv nut cs spline 1-3 shiny8073601Martin M4 riv nut cs spline 1-3 shiny
Martin M4 riv nut splined 1-3 shiny8073603Martin M4 riv nut splined 1-3 shiny
Martin M4 washer 4,1/10x1,25 shiny8074303Martin M4 washer 4,1/10x1,25 shiny
Martin M6x16 Hex cap screw raw8111003Martin M6x16 Hex cap screw raw
M6x12 ch allen black8111202M6x12 ch allen black
M6x16 ch allen black8111217M6x16 ch allen black
M6x55 Spacer male/fem.8113803M6x55 Spacer male/fem.
M6 cage nut 0,7-1,6 st8114102M6 cage nut 0,7-1,6 st
Martin M8x35 CS, Allen screw, shiny8131302Martin M8x35 CS, Allen screw, shiny
Martin M8 Adjustable Handle 79mm8132306Martin M8 Adjustable Handle 79mm
M8 Hex lock nut PA-insert8132701M8 Hex lock nut PA-insert
Martin M8 washer 8,4/16x1,6 black8134301Martin M8 washer 8,4/16x1,6 black
Martin 2.9x4.5 C. rec. Ph. Selftap bl8190101Martin 2.9x4.5 C. rec. Ph. Selftap bl
2.9x9.5 C. rec. Ph. Selftap bl81901042.9x9.5 C. rec. Ph. Selftap bl
3.5x6.3 C. rec. Ph. Selftap bl81902023.5x6.3 C. rec. Ph. Selftap bl
Martin Eco-syn 4x8 ph pz black8200106Martin Eco-syn 4x8 ph pz black
Eco-syn 2,2x6 cs pz shiny8200109Eco-syn 2,2x6 cs pz shiny
3.2x6  Pop Rivet Black82201013.2x6 Pop Rivet Black
Martin 3.2x8 Pop Rivet Black8220103Martin 3.2x8 Pop Rivet Black
Martin Ø25 shaft retaining ring raw8230104Martin Ø25 shaft retaining ring raw
22mm bore retaining ring823050222mm bore retaining ring
Push/pull Latch, male, plastic8240117Push/pull Latch, male, plastic
Push/pull Latch, female, plast8240118Push/pull Latch, female, plast
Martin Safety hook, 4X40mm galvanic8250303Martin Safety hook, 4X40mm galvanic
Philips MSD 250/2 lamp97010100Philips MSD 250/2 lamp

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "MX-10 Extreme"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
