Amhaze Stadium

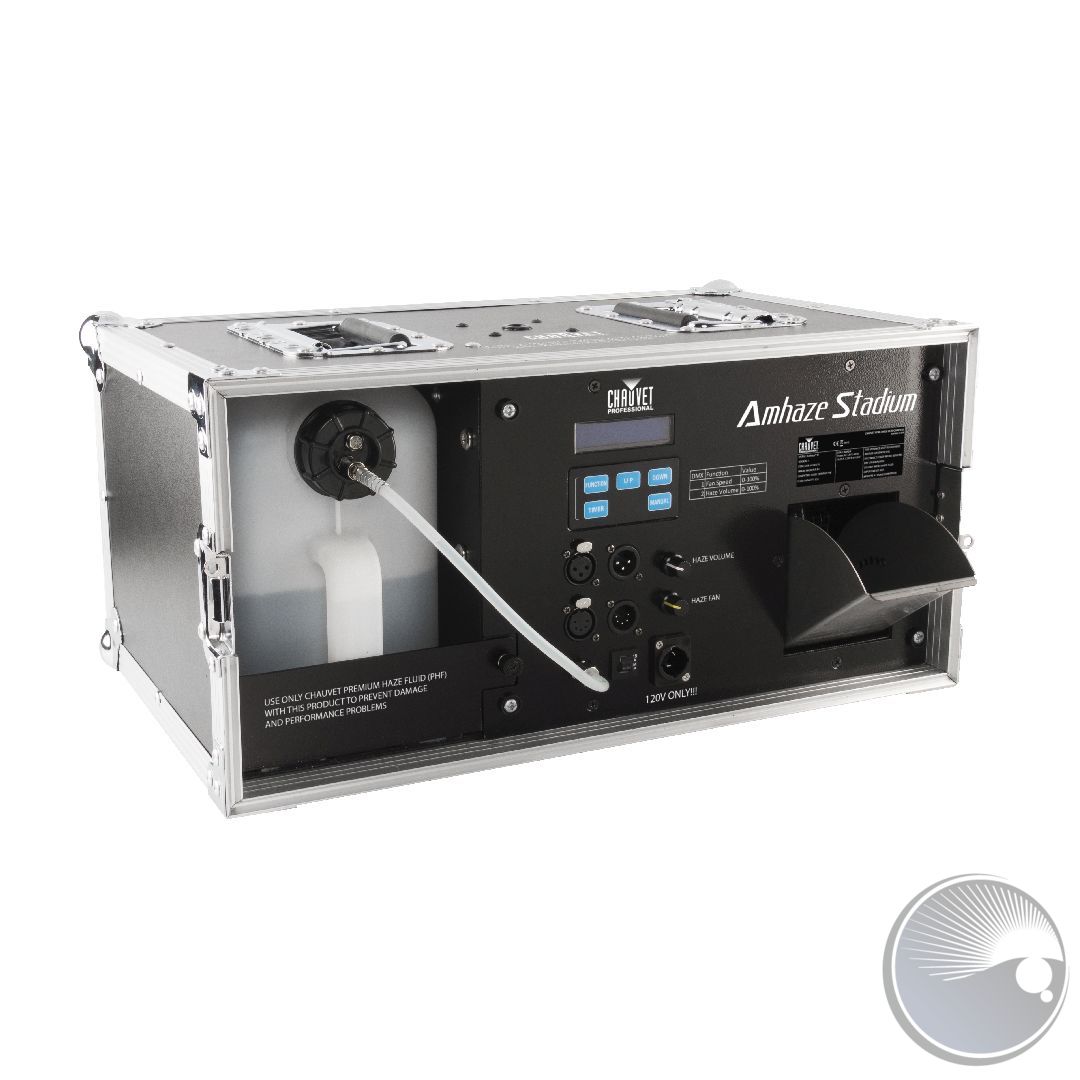

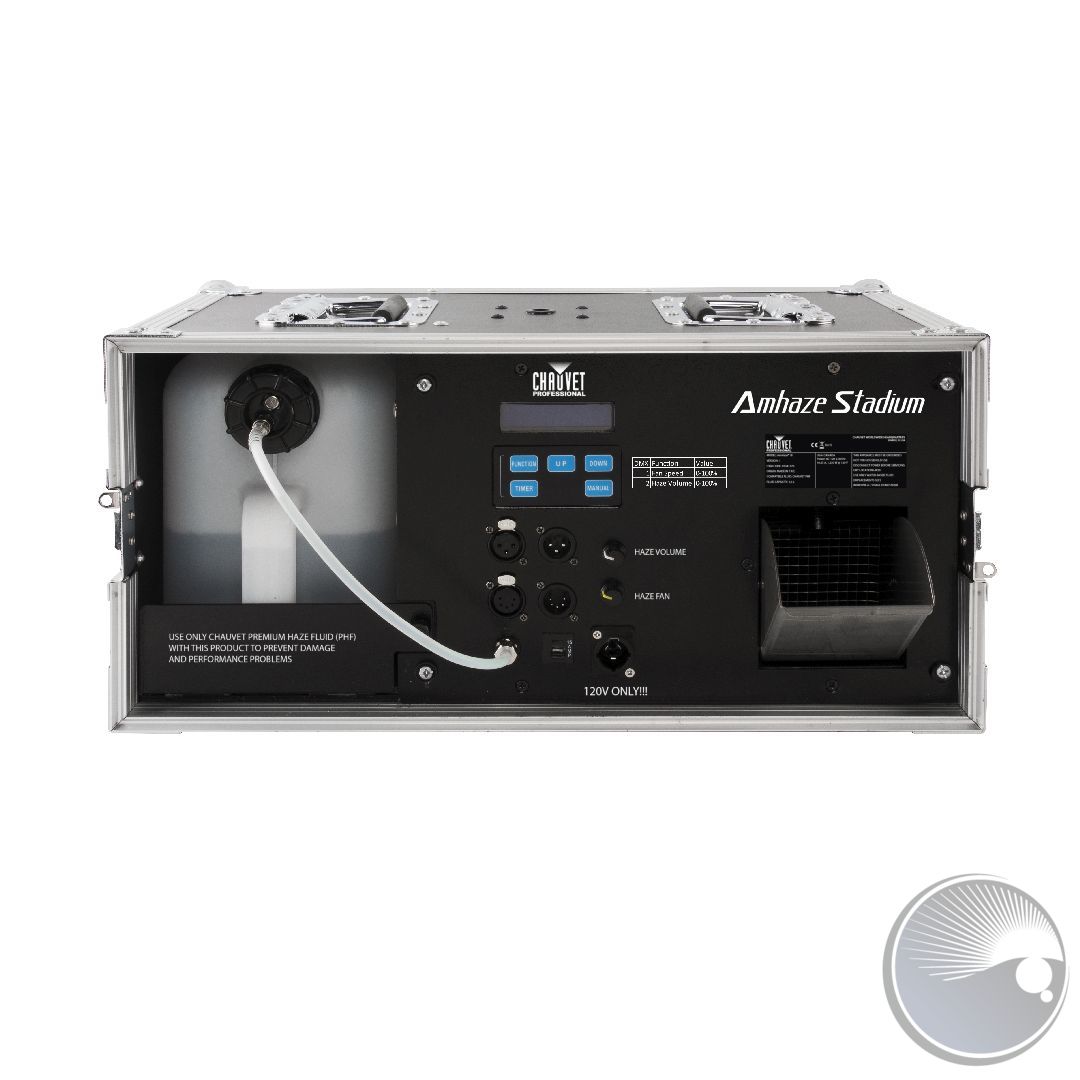

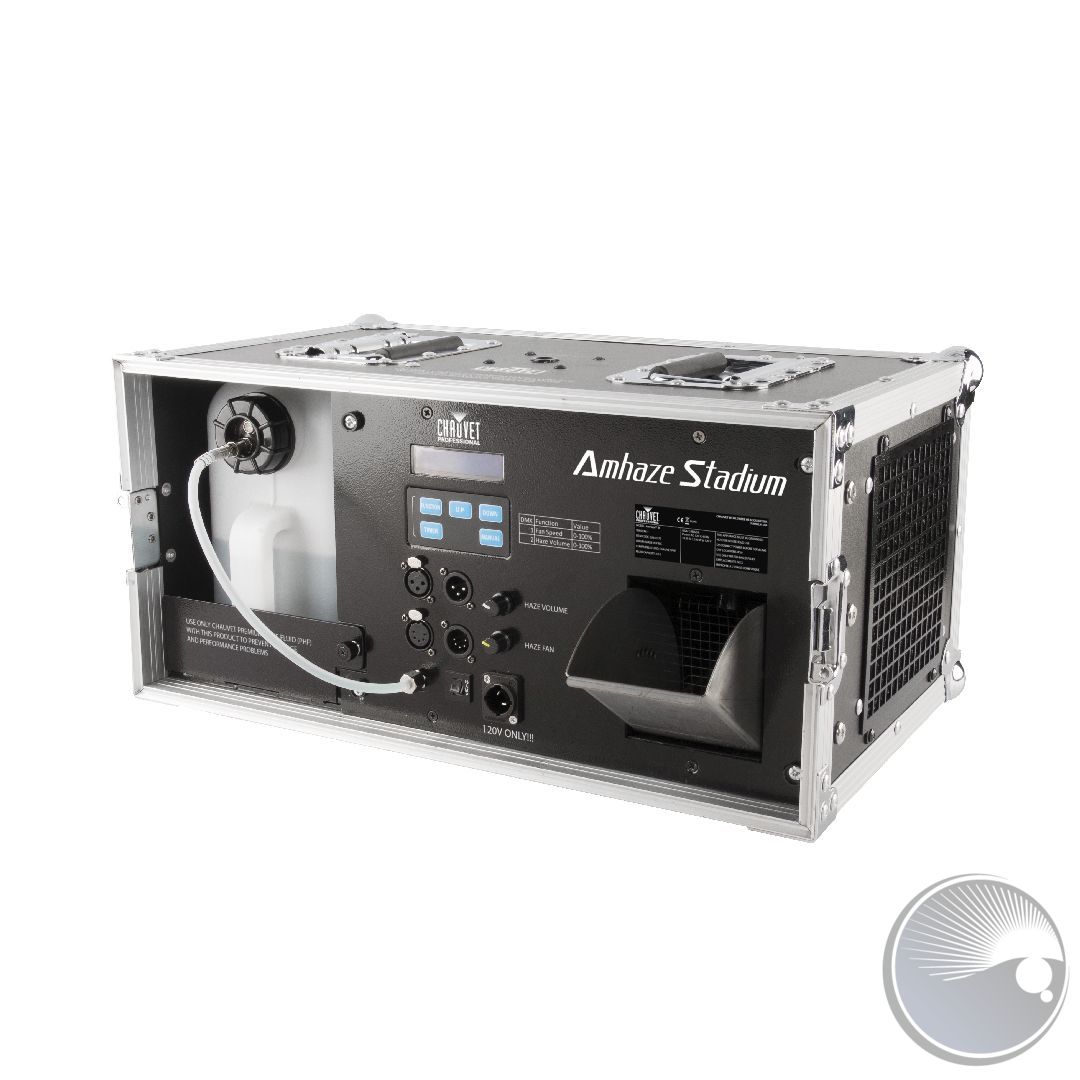

Amhaze Stadium is a tour-ready professional water-based haze machine ideal for large-scale applications. With an output of 157 cfm, the Amhaze Stadium boasts an impressive 30-second heat-up time. It also features a durable, low-profile road case to survive the rigors of touring and production. The output and speed of haze can be easily adjusted via DMX or the LCD screen, and the unit comes equipped with an M12 threaded insert for hanging.



AT A GLANCE

  • Professional water-based haze machine

  • 30-sec heat up time nearly eliminates wait time for operation

  • Adjustable vent louver for directional haze flow

  • Tour-ready with a rugged road case and M12 threaded rigging insert

  • Efficient fluid consumption lasts up to 11 hours on a single fluid container

  • Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

SPECIFICATIONS

DYNAMIC EFFECTS

  • Fan Speed: 157 cfm
  • Low Fluid Shutdown: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 20.60 in (523.42 mm) x 10.80 in (274.9 mm) x 15.97 (405.7 mm)
  • Weight: 38.4 lb (17.4 kg)
  • Threaded Bolt: M12
  • Exterior Color: Black
  • Tank Capacity: 1.3 gal (4.92l)
  • Fluid Consumption: 7.45 ml/min (0.12 gallons/hour)
  • Maximum Run time: 11 hours @ full volume

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 2
  • Modes/Personalities: 1 personality
  • On-Board Control: Yes

ELECTRICAL

  • Input Voltage: 120 VAC, 50/60 Hz or 230 VAC, 50 Hz
  • Power and Current: 1,230 W, 10.25 A @ 120 V, 50/60 Hz
  • Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
  • Heat-up Time: 30 sec

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, RCC, RoHS
  • MET Listing Number: E115095
  • US Safety: UL 499
  • Canadian Safety : CSA C22.2 No. 64-10
  • IP Rating: IP20, dry location
  • Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
  • Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

WHAT'S INCLUDED

  • Amhaze Stadium
  • Seetronic Powerkon IP65 power cord
  • Warranty Card
  • Quick Reference Guide or User Manual

REQUIRED ACCESSORIES

Weiterführende Links zu "Amhaze Stadium"

Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)PTF1100000469Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)
POWER CABLE (BOM#24)PTFX20147POWER CABLE (BOM#24)
PTGQTYZ004Copper Filter

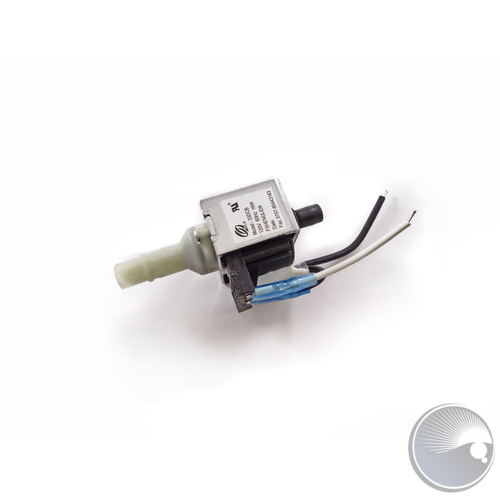

Pump for fluid 120V E120V 15W 255-80ccmin 0.28MPa (BOM#36) with 2 screw holesPTGYB010Pump for fluid 120V E120V 15W 255-80ccmin 0.28MPa (BOM#36) with 2 screw holes
PTI002323120V FUSES 15A (BOM#21)
PTI101010212Mounting Plate for Flight Case Size M12 Threaded
pump mount (BOM#22)PTI101010531pump mount (BOM#22)
PTI101011229LCD Isolation Cover (BOM#8)

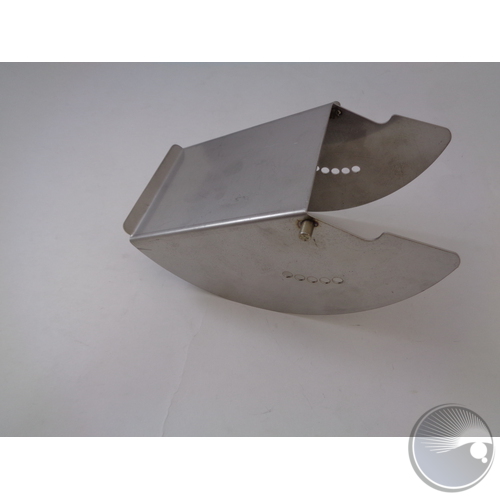

Air deflector (BOM#21)PTI101011405Air deflector (BOM#21)

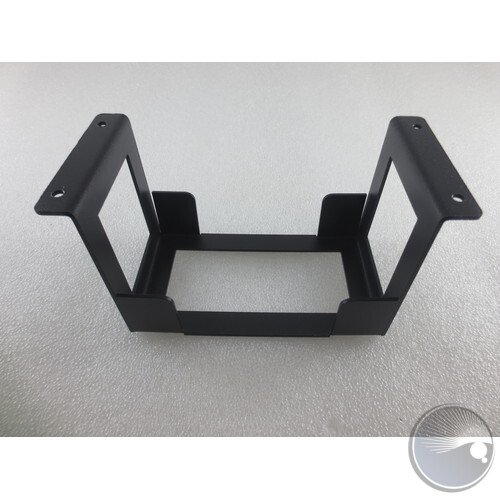

PTI101011406Air pump clip (BOM#3)
PTI101011409Aluminum heater sink (BOM#6)
PTI101011412Pump dead plate (BOM#30)
PTI101011681Nozzle baffle (BOM#25)
PTI101011745Dead plate for MPCB (BOM#4)
PTI101011827Top cover (BOM#2)

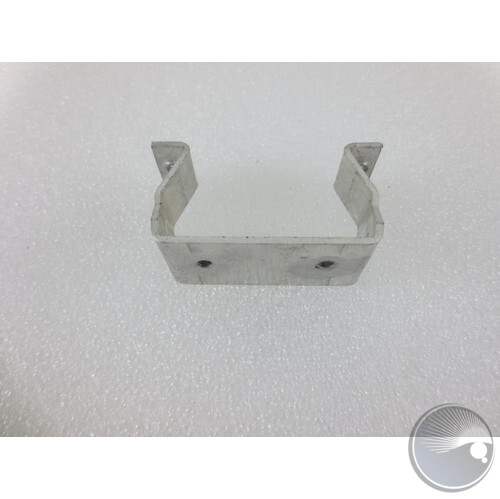

PTI101011835Thermostat support (BOM#31)

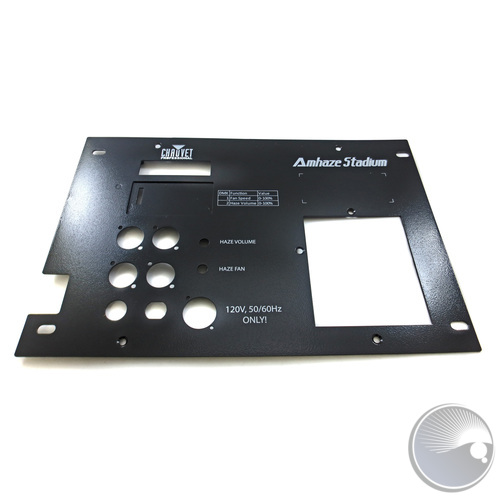

Control panel (BOM#14)PTI101011836Control panel (BOM#14)

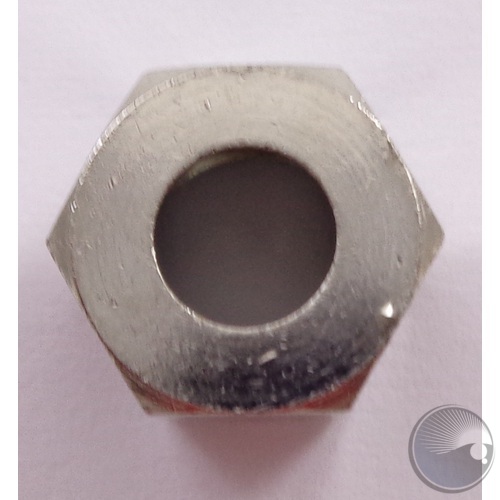

Copper cap (BOM#20)PTI103010055Copper cap (BOM#20)

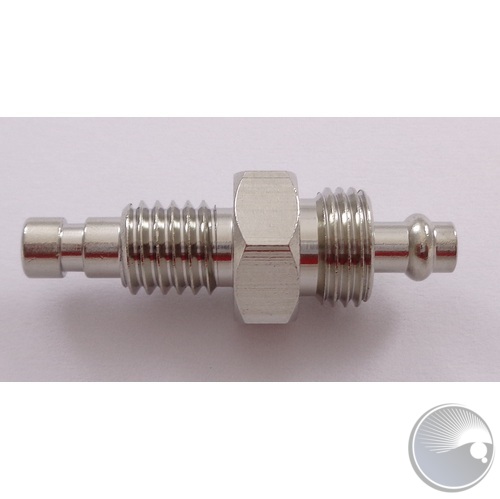

Copper connector (BOM#19)PTI103010056Copper connector (BOM#19)
Nut (BOM#32)PTI103010095Nut (BOM#32)
Male Copper connector for pump-to-hose connection (BOM#31)PTI103010099Male Copper connector for pump-to-hose connection (BOM#31)
Heat filter (BOM#34)PTI104020091Heat filter (BOM#34)
Black Rubber Tabs for pump. Needs Left & Right rubber.  (BOM#22)PTI104030064Black Rubber Tabs for pump. Needs Left & Right rubber. (BOM#22)

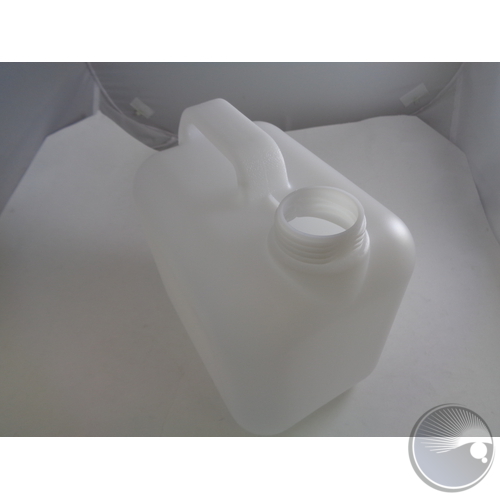

Fluid container (BOM#7)PTI104050012Fluid container (BOM#7)
230V  LCD SCREEN (BLUE) without VOLUM button (BOM#23)PTI104070011230V LCD SCREEN (BLUE) without VOLUM button (BOM#23)

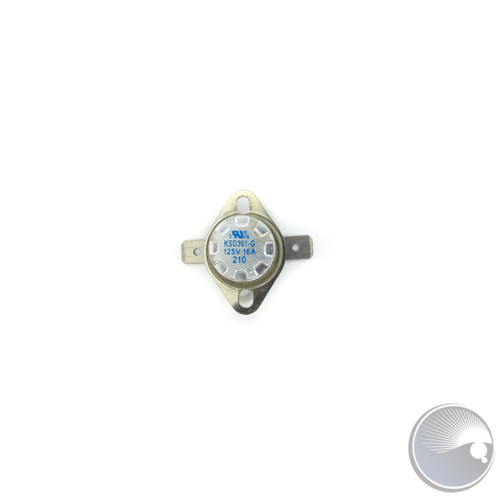

210°C auto-resetting thermostat - KSD301-G (16A/125V) (BOM#14)PTI106130021210°C auto-resetting thermostat - KSD301-G (16A/125V) (BOM#14)
130° celsius degree thermostat (16A/125V) (BOM#33)PTI106130034130° celsius degree thermostat (16A/125V) (BOM#33)
PTI106140002NUTRIX POWER CONNECTION (BOM#35)

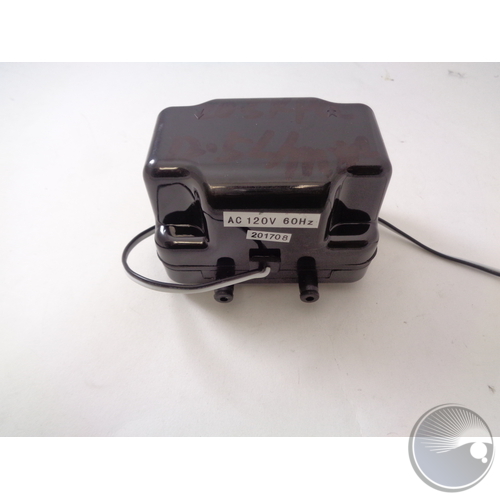

Air pump (BOM#3)PTI117020064Air pump (BOM#3)

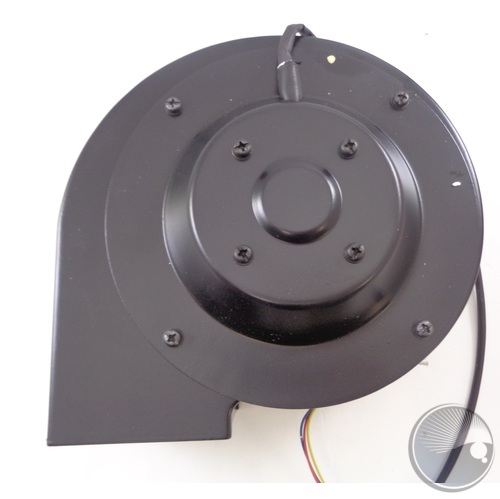

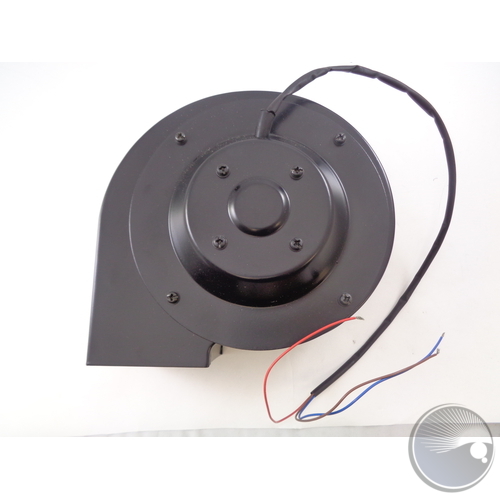

120V blower (BOM#33)PTI117060034120V blower (BOM#33)

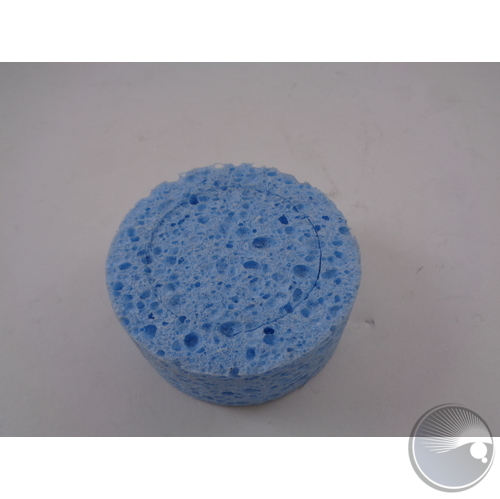

Absorbent sponge (BOM#23)PTI118020112Absorbent sponge (BOM#23)
PTI118040006Filter net (BOM#26)

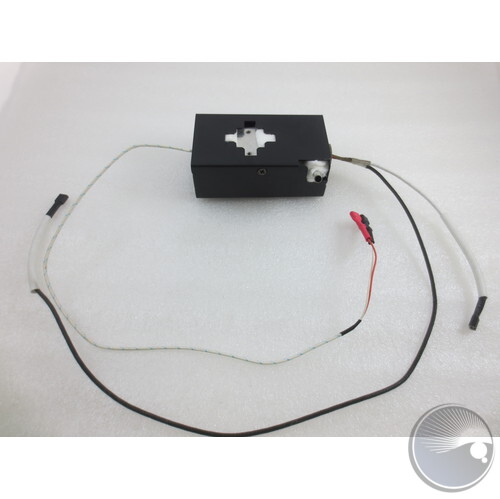

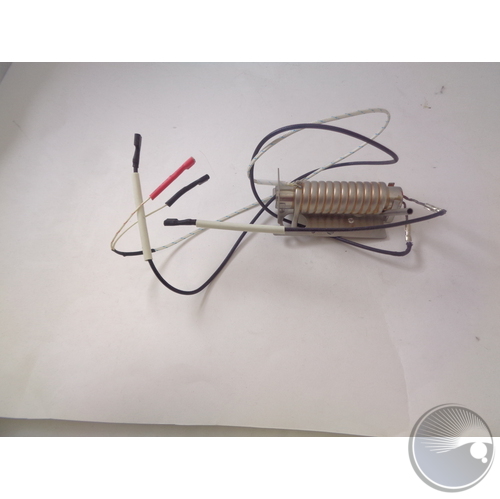

Quick heater -120V 501201100055 001 (BOM#10)PTI201021002Quick heater -120V 501201100055 001 (BOM#10)
PTI2010300173-PIN DMX PCB (BOM#12)

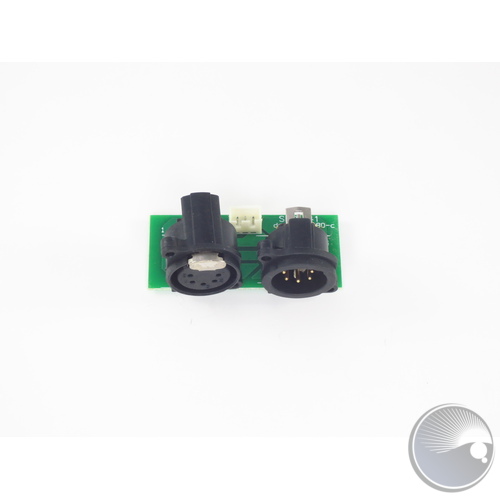

PTI2010300185-pin DMX PCB (BOM#16)
PTI202030074Position bead for air deflector direction ( air deflector ) (BOM#24)

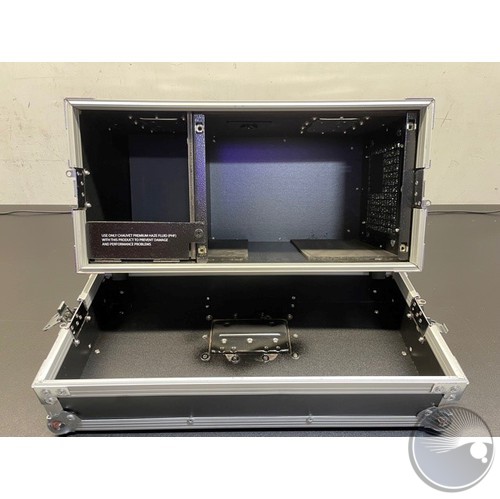

Flightcase assembly (BOM#1)PTI202030075Flightcase assembly (BOM#1)
PTI202030077Position bead for air deflector direction (body bottom) (BOM#20)

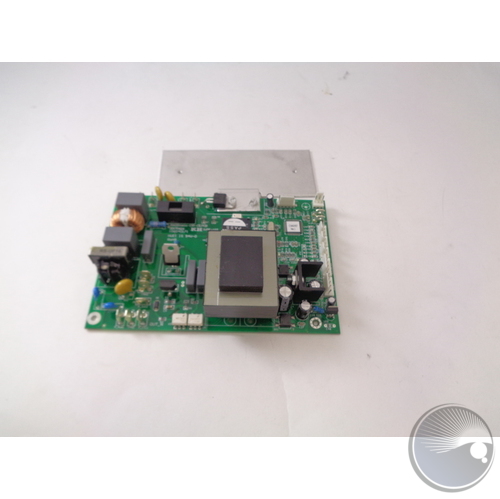

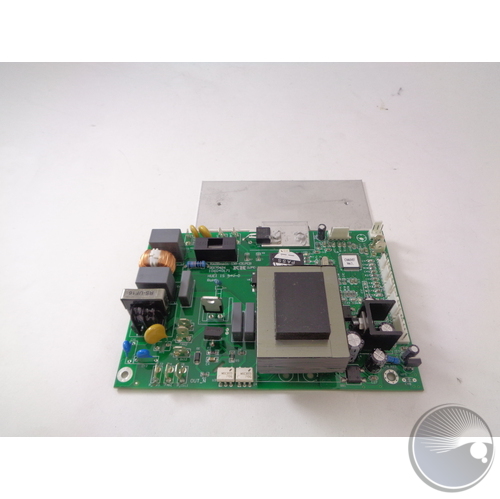

120V MPCB (BOM#5)PTI203011191120V MPCB (BOM#5)

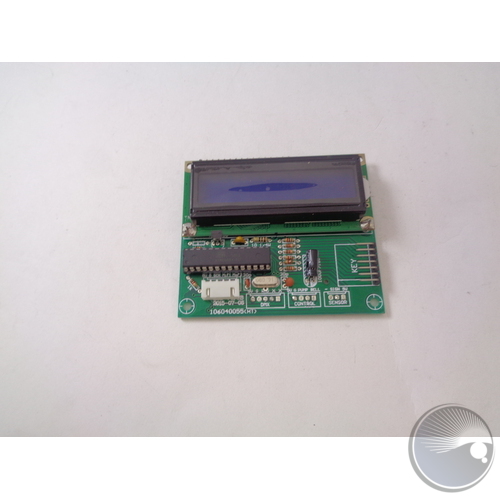

DISPLAY PCB  (BOM#9)PTI203021085DISPLAY PCB (BOM#9)
FAN SPEED/HAZE OUTPUT PCB (BOM#16)PTI203092019FAN SPEED/HAZE OUTPUT PCB (BOM#16)

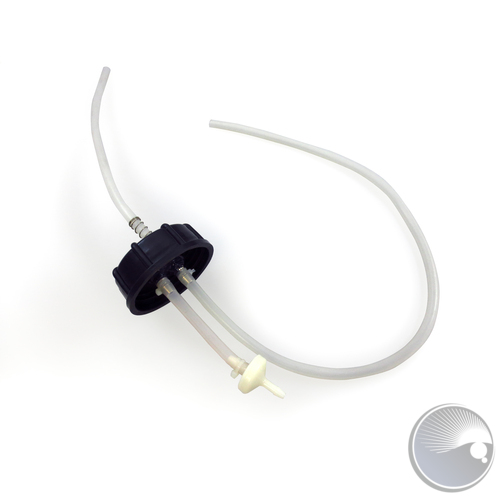

CAP ASSEMBLY (BOM#3,#4,#5,#6,#7,#20,#45,#46,#52)PTIAMIICAPCAP ASSEMBLY (BOM#3,#4,#5,#6,#7,#20,#45,#46,#52)
