COLORado Solo Batten

Auf Anfrage!

  • COLORADOSOLOBATTEN
COLORado  Solo Batten COLORado Solo Batten is a powerful one-of-a-kind batten that... mehr
Produktinformationen "COLORado Solo Batten"

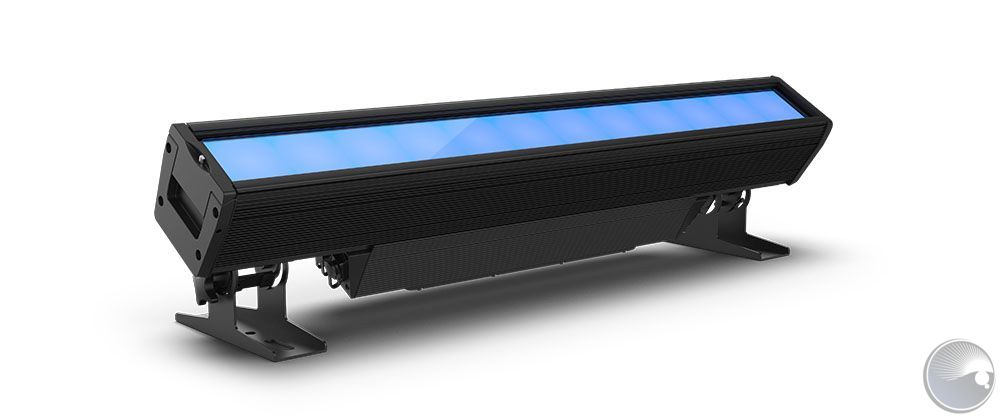

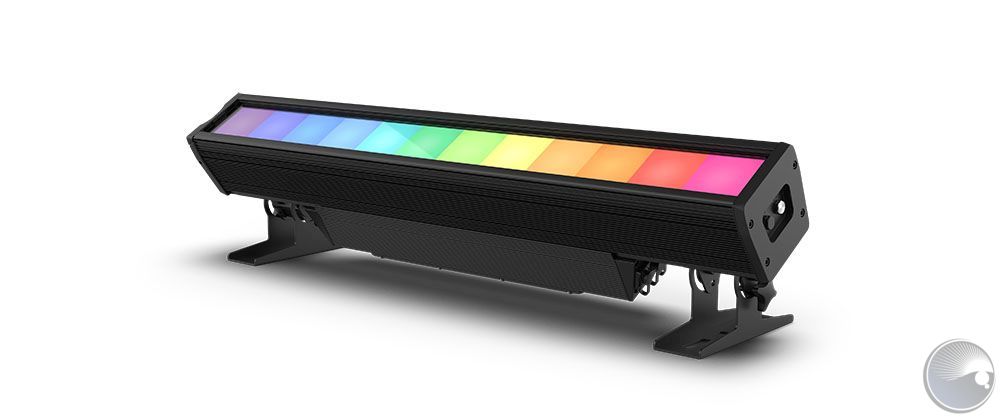

COLORado Solo Batten

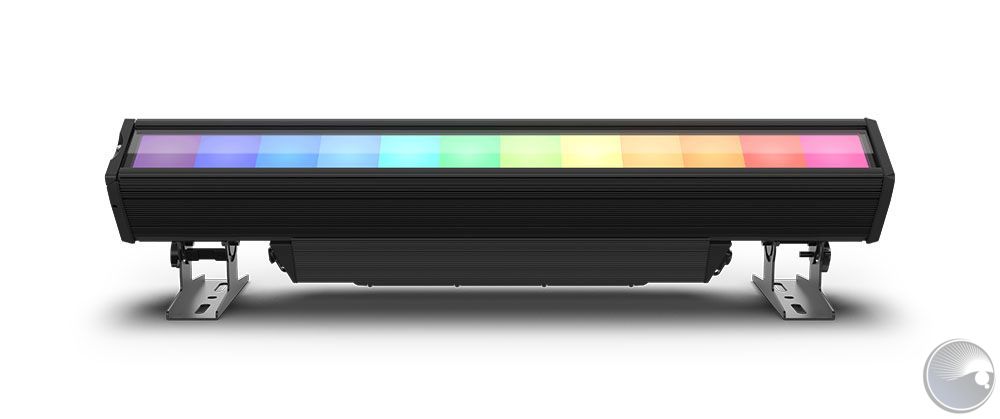

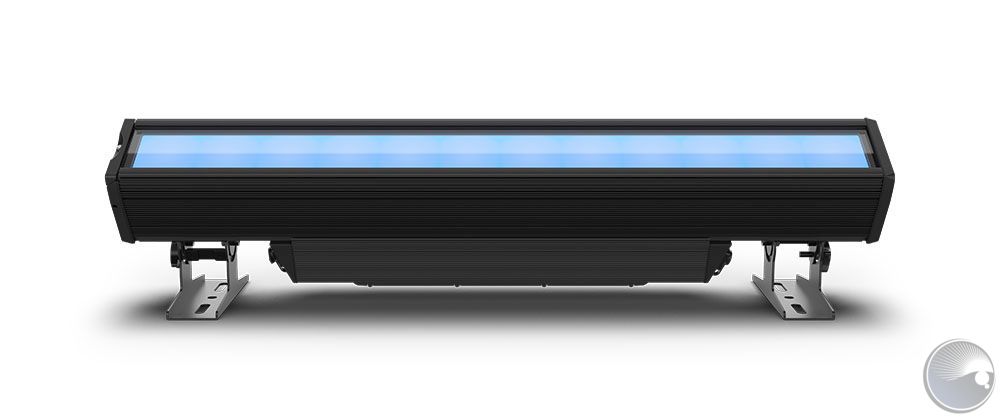

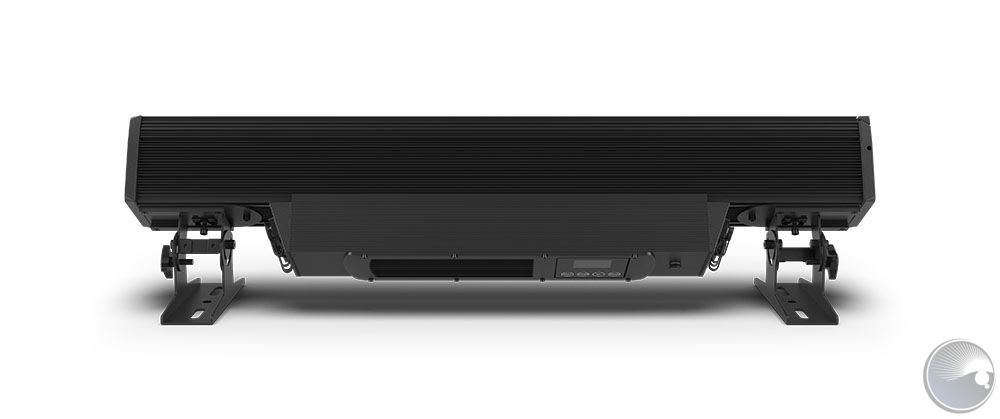

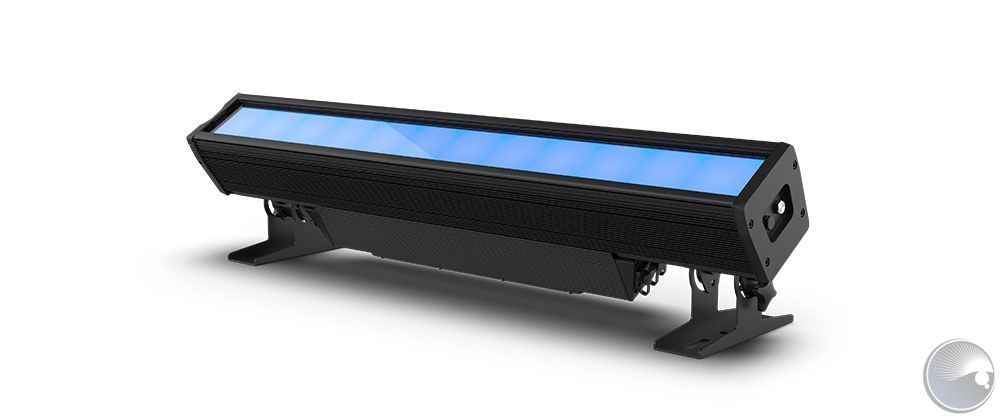

COLORado Solo Batten is a powerful one-of-a-kind batten that projects a single homogenized wash with smooth color-mixing, giving it the appearance of a bright single bar of light without round “eyes” or pixels. It complements the COLORado Solo pars perfectly. This very versatile fixture is also engineered with 12 square sections that can be controlled individually, appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and RDM protocols.



AT A GLANCE

  • RGBAW LED Batten with seamless end-to-end color for wash or pixel mapping

  • Completely homogenized color with no separation or dimmed lens corners

  • All environment operation with IP rated power, DMX, and Ethernet connections

  • Color temperature presets, from 1800 to 8000 K

  • Selectable, smooth dimming curves for programming versatility

  • Built for touring, live event, television, and theatrical productions

  • Large, easy to navigate display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 144 LEDs (24 red, 24 green, 24 blue, 24 amber, 48 white) 3 W, (612 mA) 50,000 hours life expectancy
  • Color Temperature (range): 1800 to 8000 K
  • Installed Optics: 18°
  • Beam Angle (Horizontal): 20°
  • Beam Angle (Vertical): 16°
  • Beam Angle (Horizontal w/filter): 37°
  • Beam Angle (Vertical w/filter): 15°
  • Field Angle (Horizontal): 34°
  • Field Angle (Vertical): 29°
  • Field Angle (Horizontal w/filter): 63°
  • Field Angle (Vertical w/filter): 30°
  • Lumens: 6,968
  • Illuminance (total): 3,870 lux @ 5 m
  • Illuminance (w/filter): 1,230 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.86 x 9.06 x 9.84 in (1012.5 x 230 x 249.8 mm)
  • Weight: 41.9 lb (19 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 38.75 x 3.81 in (984.25 x 97 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, DMX, RDM, sACN
  • DMX Channels:
    1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
    2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
    3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
    12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
  • Art-Net™ Channels:
    1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
    2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
    3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
    12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
  • Modes/Personalities: 37 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
  • Power and Current: 336 W, 3.046 A @ 120 V, 60 Hz
  • Power and Current: 336 W, 1.610 A @ 208 V, 60 Hz
  • Power and Current: 339 W, 1.602 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • COLORado Solo Batten, with glare shield
  • Seetronic Powerkon IP65 power cord
  • Wall Washing filter

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado Solo Batten"

Thermal protector (BOM#34)PTF1080000127Thermal protector (BOM#34)
DMX CONNECTOR(5PIN,MALE) (BOM#18)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#18)
DMX CONNECTOR(5PIN,FEMALE) (BOM#38)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#38)
IP POWER OUT SOCKET(BOM#30)PTF1100000468IP POWER OUT SOCKET(BOM#30)
Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)PTF1100000469Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)
RJ45 socket (BOM#50)PTF1100000471RJ45 socket (BOM#50)
Adaptor PCB PTF1120000220Adaptor PCB

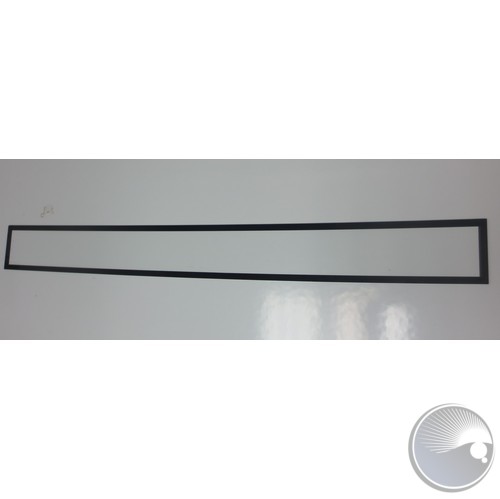

Glass  (BOM#22)PTF1120000229Glass (BOM#22)

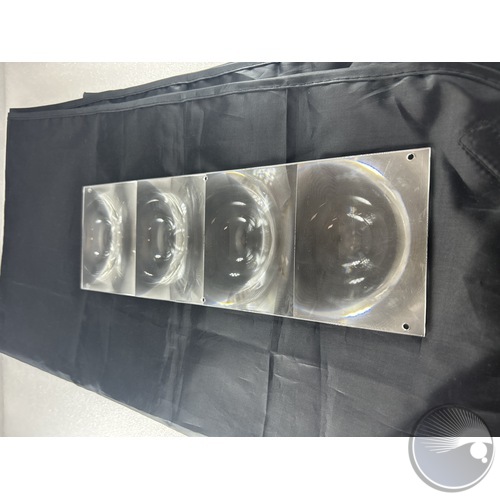

PTF11202002734-in-1 thread mirror (BOM#19)
PTF1140000281heat conducting silicone pad (BOM#25)
battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)PTF1160000482battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)

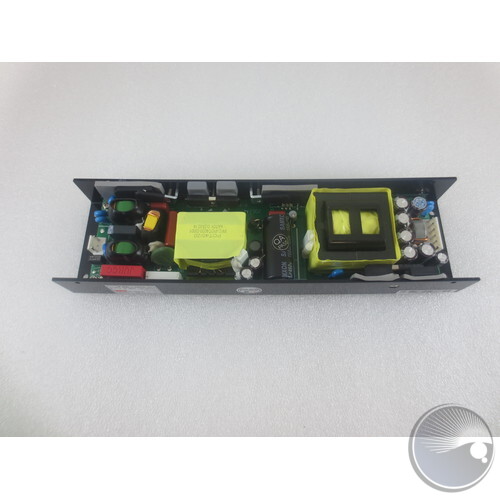

PTF1160000545power supply (BOM#54)

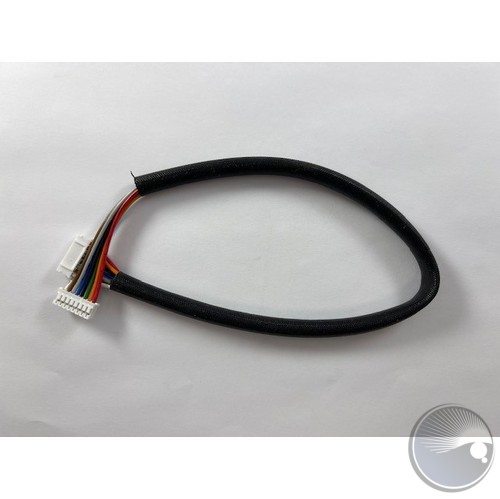

PH 8-pin connection wirePTF1170300855PH 8-pin connection wire

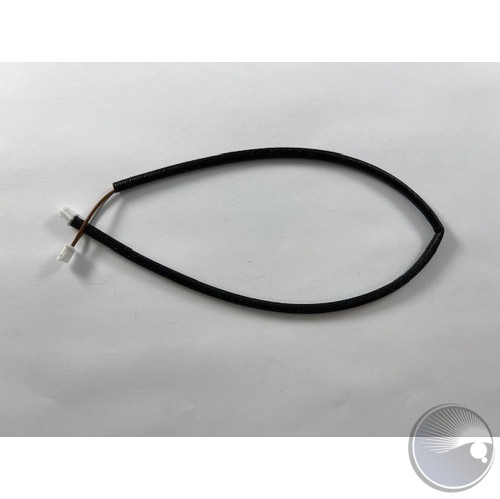

PH 2-pin connection wirePTF1170301113PH 2-pin connection wire

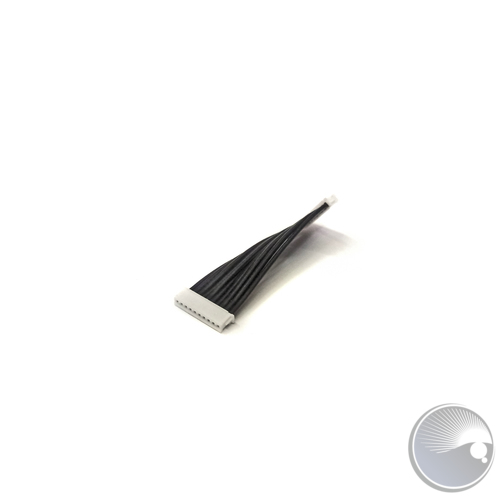

ZH 10-pin connection wirePTF1170301787ZH 10-pin connection wire

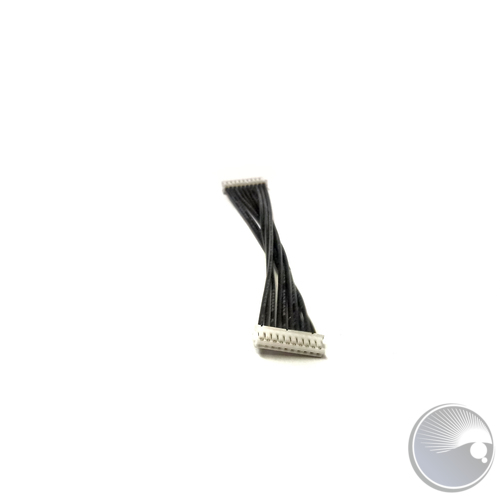

ZH 10-pin connection wirePTF1170301788ZH 10-pin connection wire

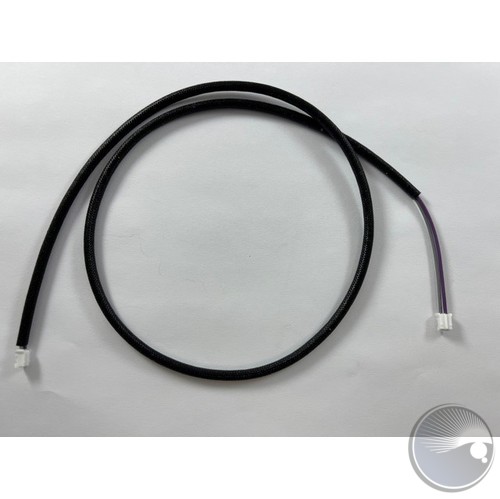

PH  2-pin connection wirePTF1170301792PH 2-pin connection wire
PTF1170301794PH 8-pin connection wire
PTF1170301808XH 8-pin connection wire
PTF1170301809XH 8-pin connection wire

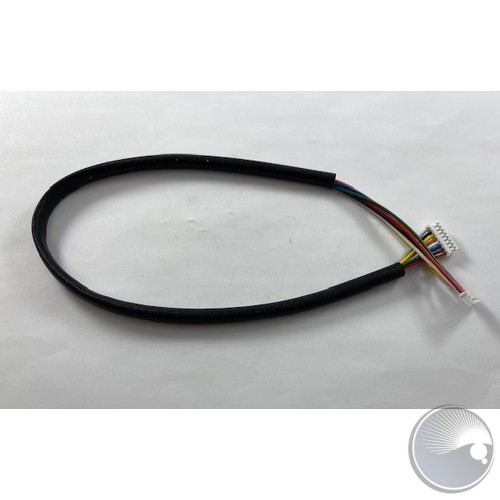

PH 8-pin connection wirePTF1170301857PH 8-pin connection wire
Nylon gasket (BOM#1)PTF1180000079Nylon gasket (BOM#1)
Foam cotton with single side glue (BOM#27)PTF1180000319Foam cotton with single side glue (BOM#27)
Power socket cover (out) (BOM#55)PTF1180000375Power socket cover (out) (BOM#55)
Power socket cover (in) (BOM#53)PTF1180000376Power socket cover (in) (BOM#53)
PTF1210000398Metal swivel head CCG-M12M121.55 (BOM#26)
PTF1340103558thermal switch holder (BOM#25.2)
PTF1340110189button (BOM#11)

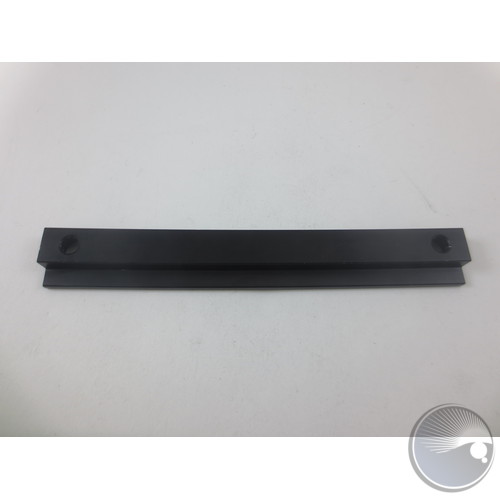

Rotating bracket slider (BOM#40)PTF1340112434Rotating bracket slider (BOM#40)
PTF1340112436Positioning metal thick gasket (BOM#8)
positioning plate (BOM#7)PTF1340112437positioning plate (BOM#7)
Socket connector A (BOM#57)PTF1340112863Socket connector A (BOM#57)
Socket connector B (BOM#61)PTF1340112951Socket connector B (BOM#61)
PTF1340300223spring (BOM#14)
PTF1340601967battery holder (BOM#45)

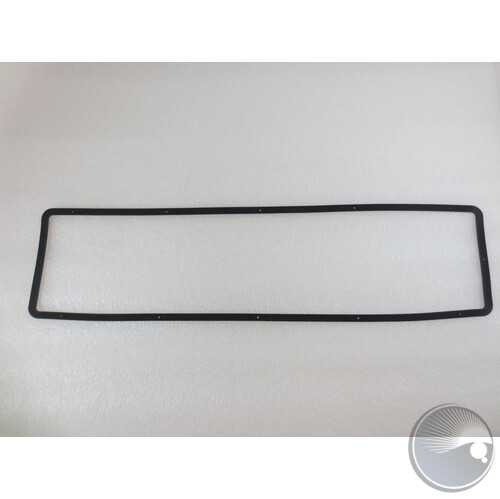

PTF1340602409waterproof ring (BOM#53)
PTF1340602411IP ring of Connect tube (BOM#38)
Reflective bowl (BOM#21)PTF1340602412Reflective bowl (BOM#21)

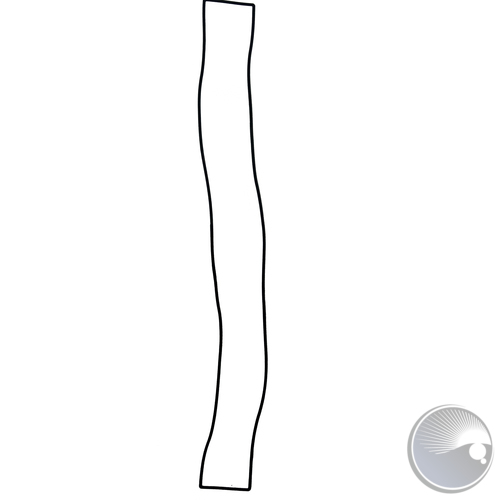

glass waterproof ring (BOM#21)PTF1340602434glass waterproof ring (BOM#21)

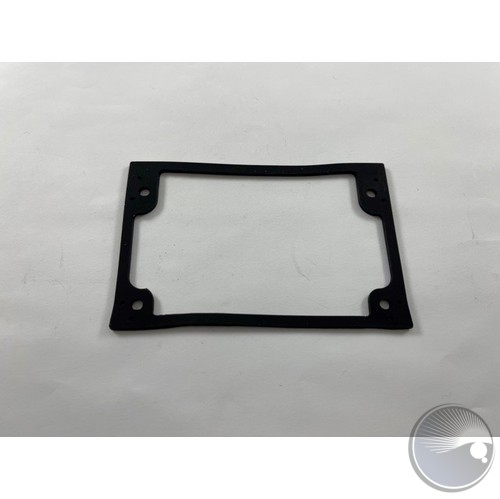

end cover waterproof ring (BOM#46)PTF1340602436end cover waterproof ring (BOM#46)
End cover waterproof ring (BOM#13)PTF1340602444End cover waterproof ring (BOM#13)
PTF1340803077Connecting barrel (BOM#47)
PTF1340803078nut of connect tube (BOM#41)
PTF1490300009BOLT (CROSS/NORM)(BOM#11A)
PTF1490300117screw (ZOOMLENS BOM#23)
PTF1490400004Countersunk cross screw (BOM#23)
PTF1490400120Countersunk cross screw (BOM#51)
PTF1491000030Hexagon pillars (BOM#58)
PTF1491000217copper column (BOM#62)
M8 screw (BOM#3)PTF1491300079M8 screw (BOM#3)
inner screw  (BOM#9)PTF1491400011inner screw (BOM#9)
PTF1491400044inner screw (BOM#51)
PTF1491400071inner screw (BOM#24)
rnner screw (BOM#6)PTF1491400087rnner screw (BOM#6)
PTF1491400108inner screw (BOM#9)

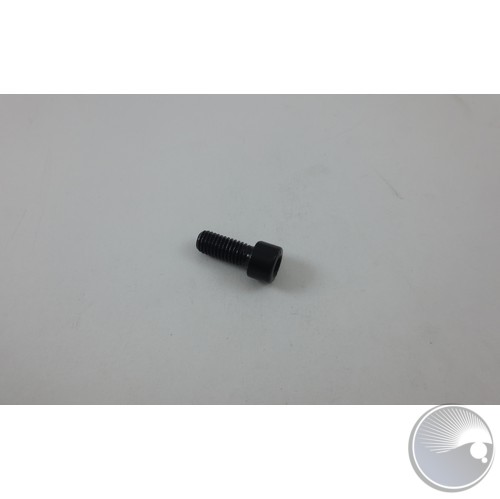

inner screw (BOM#4)PTF1491400118inner screw (BOM#4)

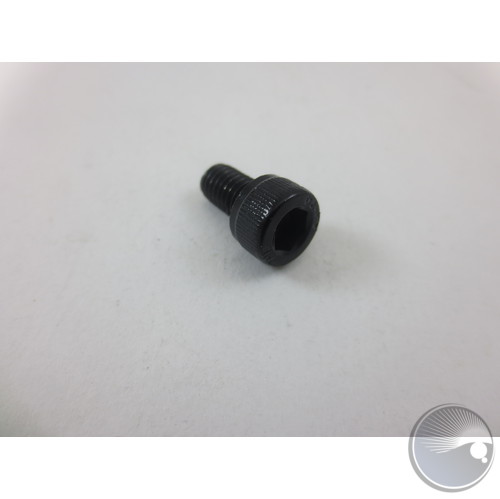

Inner screw  (BOM#39)PTF1491400251Inner screw (BOM#39)
PRESSURE COMPENSATION VALVE (BOM#13)PTF1491700004PRESSURE COMPENSATION VALVE (BOM#13)
10 degree filter  (BOM#20)PTF222000016510 degree filter (BOM#20)

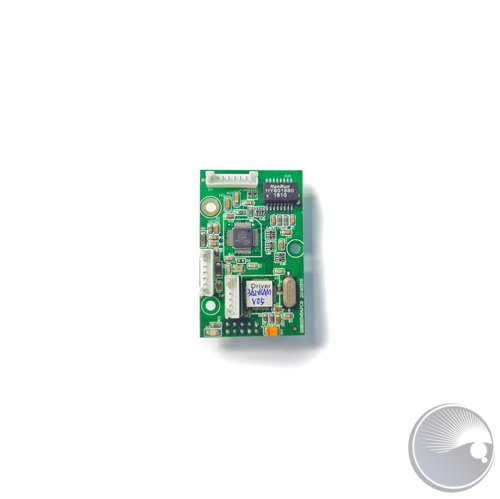

Driver PCBPTF2260002210Driver PCB
driver PCB (BOM#15)PTF2260002773driver PCB (BOM#15)
PTF2260003035Display PCB + adapter PCB (BOM#56)
LED PCB 1 - L19074V02.PCB (BOM#24)PTF2260003089LED PCB 1 - L19074V02.PCB (BOM#24)
LED PCB 2 - L16064V01.PCB (BOM#24)PTF2260003090LED PCB 2 - L16064V01.PCB (BOM#24)
LED PCB 4 - L16065V01.PCB (BOM#24)PTF2260003091LED PCB 4 - L16065V01.PCB (BOM#24)
LED PCB 3 - L16066V01.PCB (BOM#24)PTF2260003092LED PCB 3 - L16066V01.PCB (BOM#24)
Omega bracket (120mm)PTF2440104143Omega bracket (120mm)
PTF2440104941Lithium battery support plate -P (BOM#62)
PTF2440104942Lithium battery platen -P (BOM#43)

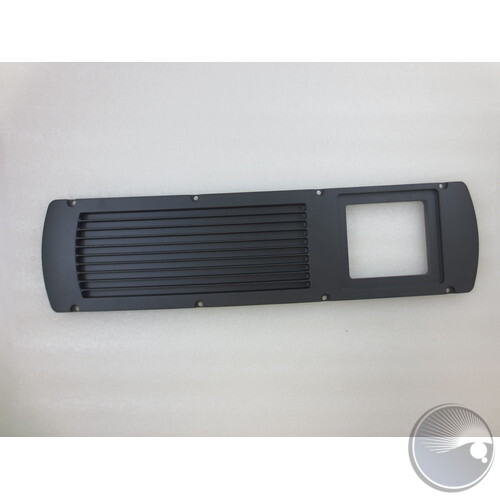

PTF2440105512bottom cover (BOM#52)

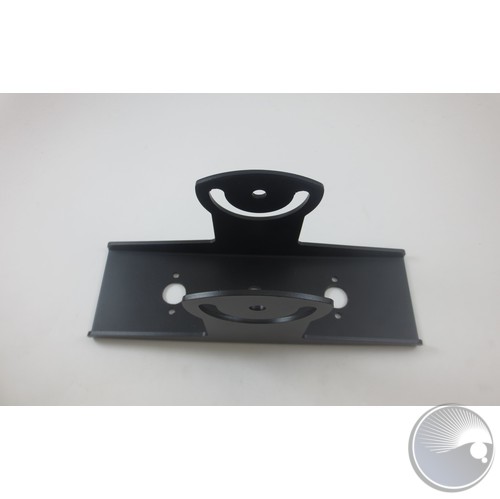

bracket (BOM#1)PTF2440105560bracket (BOM#1)
PTF2440105561Threaded lens catch (BOM#14)
PTF2440105562Bottom end cover B (BOM#44)

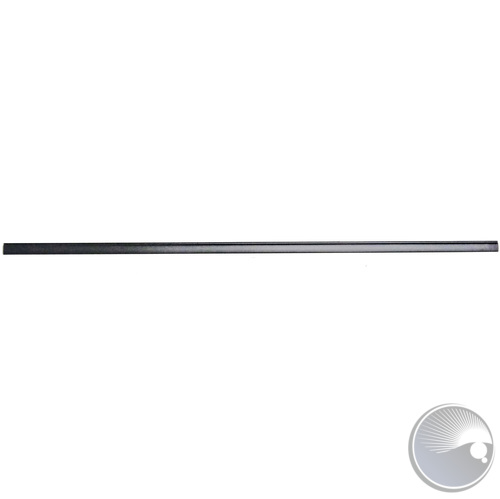

screw cover (BOM#25)PTF2440105563screw cover (BOM#25)
End cover A top (BOM#8)PTF2440105564End cover A top (BOM#8)
End cover A (BOM#12)PTF2440105565End cover A (BOM#12)
End cover B (BOM#29)PTF2440105566End cover B (BOM#29)
PTF2440105567base cover (BOM#50)
PTF2440105568housing (BOM#37)

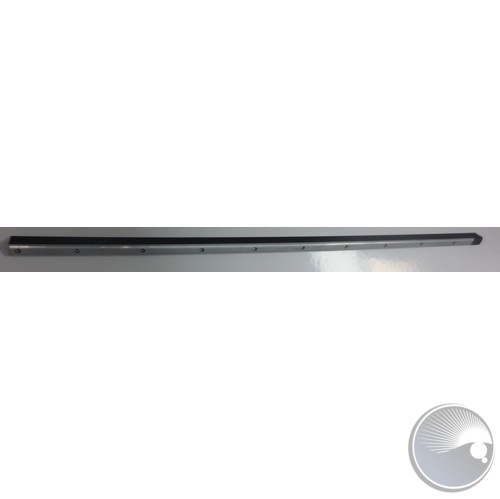

Glass bead (BOM#23)PTF2440105569Glass bead (BOM#23)

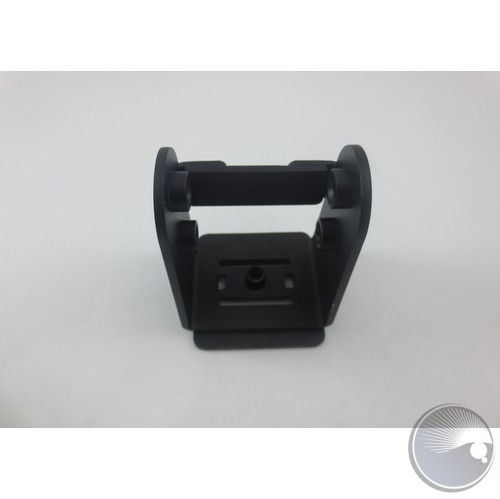

Fixing bracket assembly (BOM#5)PTF2440105570Fixing bracket assembly (BOM#5)

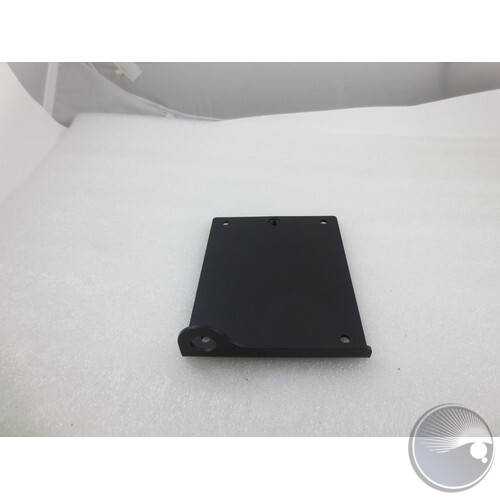

PTF2440105572Pad plate (BOM#38)
End cover tablet (BOM#7)PTF2440105573End cover tablet (BOM#7)
PTF2440105574Bottom end cap A (BOM#65)
Assembled Omega Bracket (140mm, new version)PTF2440106672Assembled Omega Bracket (140mm, new version)
barn door (BOM#26)PTF2441015571barn door (BOM#26)
UPLOAD01PTFUPLOAD01UPLOAD01

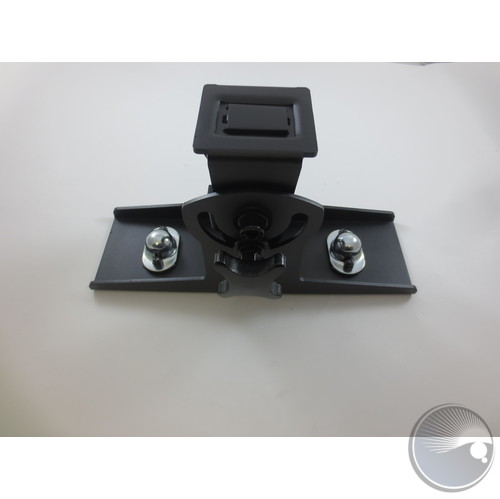

Foot bracket assembly (BOM#1,2,3,4,5,6)Uses as a Pair Same for Left & RightPTFX10178Foot bracket assembly (BOM#1,2,3,4,5,6)Uses as a Pair Same for Left & Right

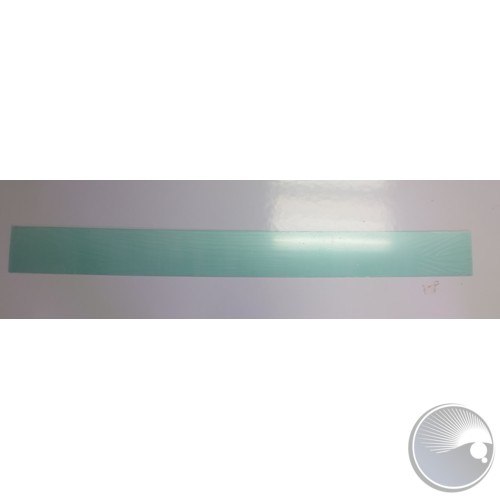

60*1 degree filterPTFX4046960*1 degree filter
