COLORado Solo Batten 4

Auf Anfrage!

  • COLORADOSOLOBATTEN4
COLORado  Solo Batten 4 COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten... mehr
Produktinformationen "COLORado Solo Batten 4"

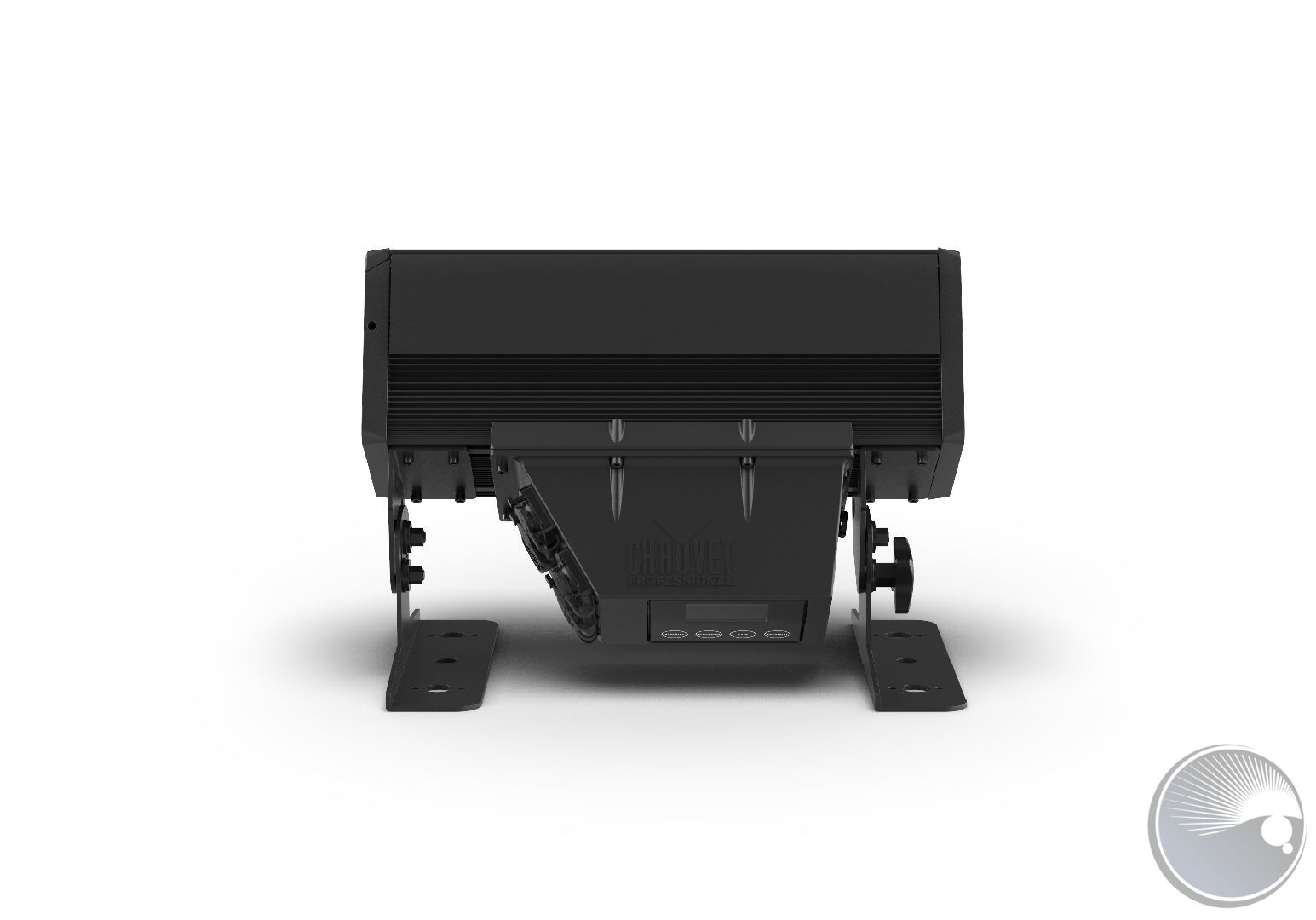

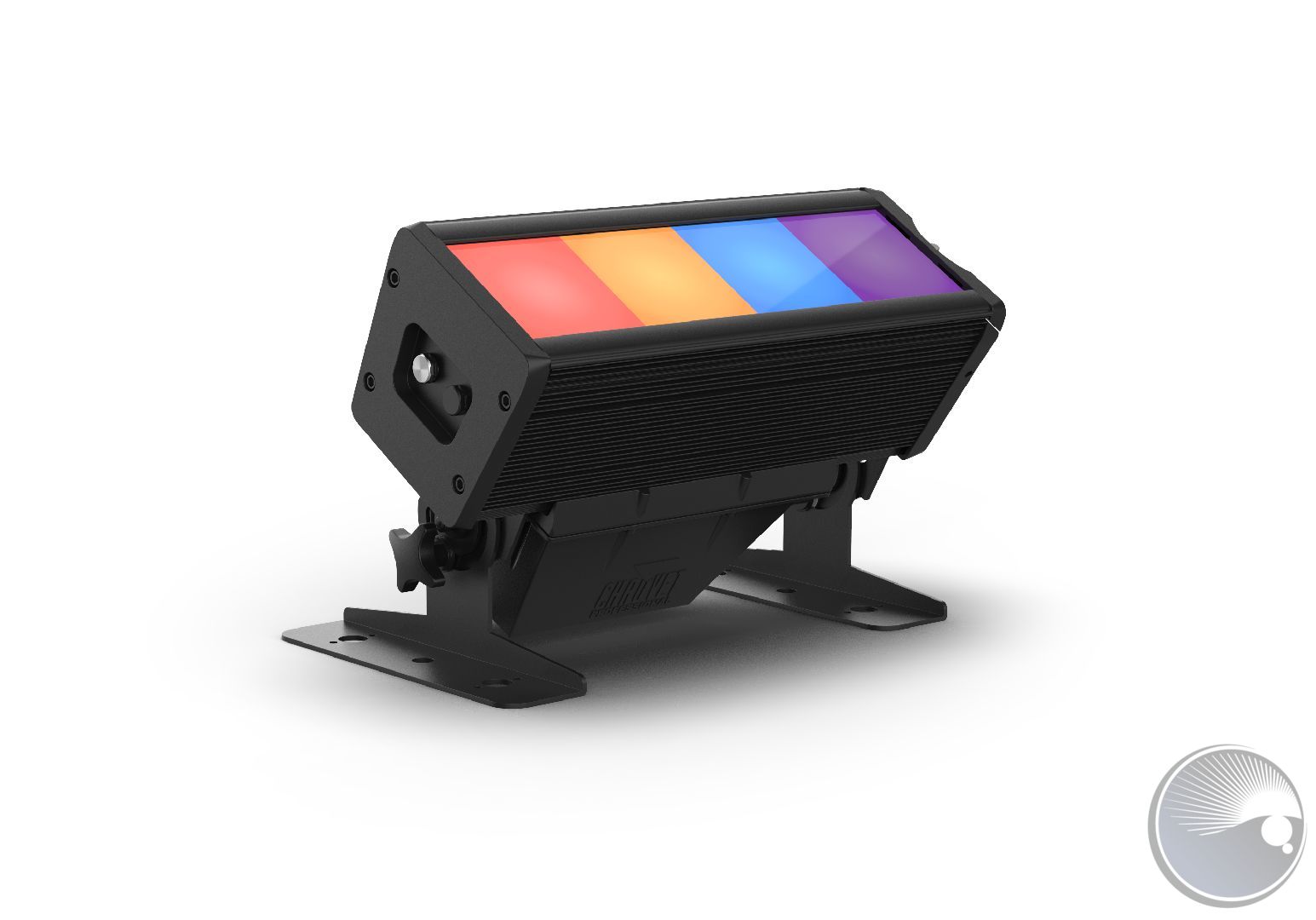

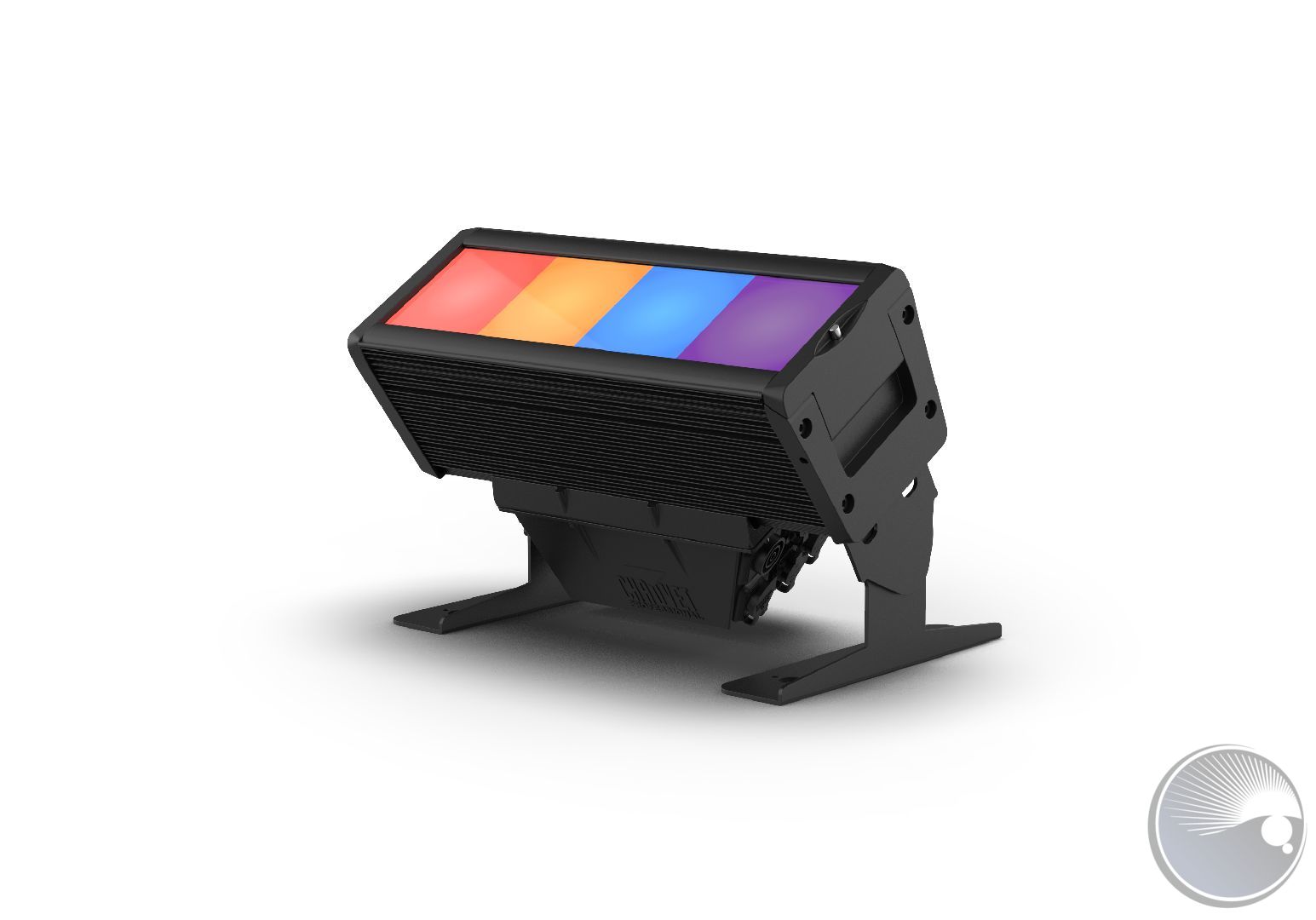

COLORado Solo Batten 4

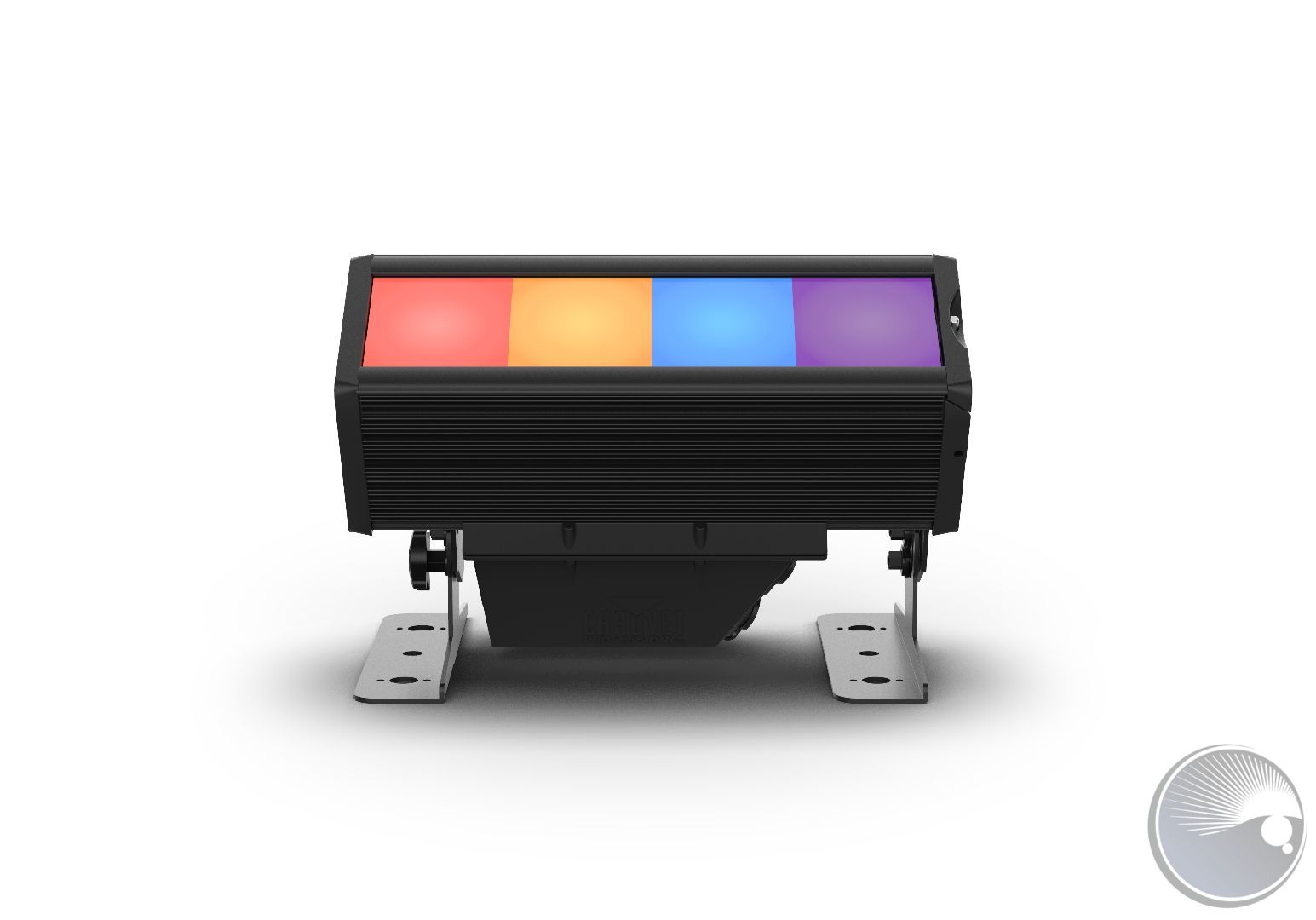

COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments our COLORado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.

AT A GLANCE

  • RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping

  • Completely homogenized color with no separation or dimmed lens corners

  • All-environment operation with IP rated power, DMX, and Ethernet connections

  • Color temperature presets, from 1800K to 8000 K

  • Selectable, smooth dimming curves for programming versatility

  • Built for touring, live event, television, and theatrical productions

  • Large, easy-to-navigate display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy
  • Color Temperature (range): 1800 to 8000 K
  • CRI (3200 K): 77.2
  • Installed Optics: 18°
  • Beam Angle (Horizontal): 18°
  • Beam Angle (Horizontal w/ Filter): 35°
  • Beam Angle (Vertical): 17°
  • Beam Angle (Vertical w/ Filter): 16°
  • Field Angle (Horizontal): 34°
  • Field Angle (Horizontal w / Filter): 66°
  • Field Angle (Vertical): 30°
  • Field Angle (Vertical w / Filter): 32°
  • Lumens: 3,730
  • Illuminance (total): 1,270 lux @ 5 m
  • Illuminance w/ Filter (total): 432 lux @ 5 m
  • Selectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)
  • Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)
  • Weight:17.2 lb (7.8 kg)
  • Weight (shipping weight): 20.50 lb (9.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
  • DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
  • Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
  • Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
  • Modes/Personalities: 19 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 24 units @ 208 V; 25 units @ 230 V
  • Power and Current: 114 W, 0.990 A @ 120 V, 60 Hz [4.2 A inrush]
  • Power and Current: 116 W, 0.558 A @ 208 V, 60 Hz [3.60 A inrush]
  • Power and Current: 116 W, 0.538 A @ 230 V, 50 Hz [2.6 A inrush]
  • Power and Current (resting): 10 W, 0.09 A @ 120 V, 60 Hz
  • Power and Current (resting): 23 W, 0.11 A @ 208 V, 60 Hz
  • Power and Current (resting): 26 W, 0.11 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • COLORADO SOLO BATTEN 4, with glare shield
  • Seetronic Powerkon IP65 power cord

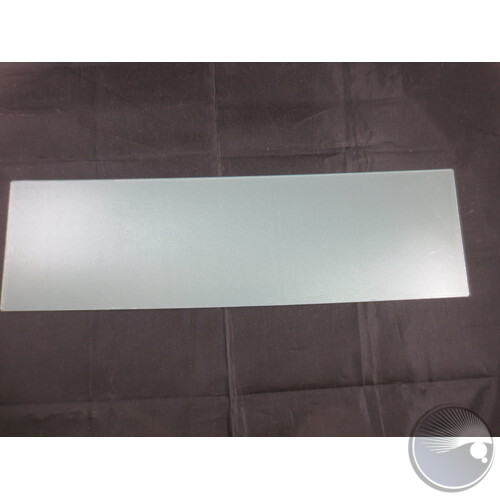

  • Wall Wash Filter
  • Omega Brackets
  • Quick Reference Guide

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables
  • Colorado Solo Batten 4 Barndoor







Weiterführende Links zu "COLORado Solo Batten 4"

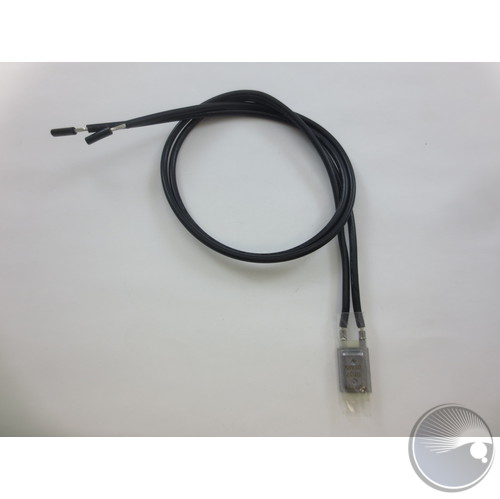

Thermal protector (BOM#34)PTF1080000127Thermal protector (BOM#34)
DMX CONNECTOR(5PIN,MALE) (BOM#18)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#18)
DMX CONNECTOR(5PIN,FEMALE) (BOM#38)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#38)
IP POWER OUT SOCKET(BOM#30)PTF1100000468IP POWER OUT SOCKET(BOM#30)
Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)PTF1100000469Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)

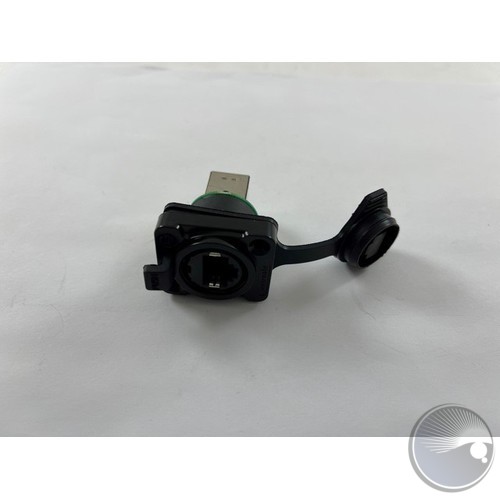

RJ45 socket (BOM#50)PTF1100000471RJ45 socket (BOM#50)

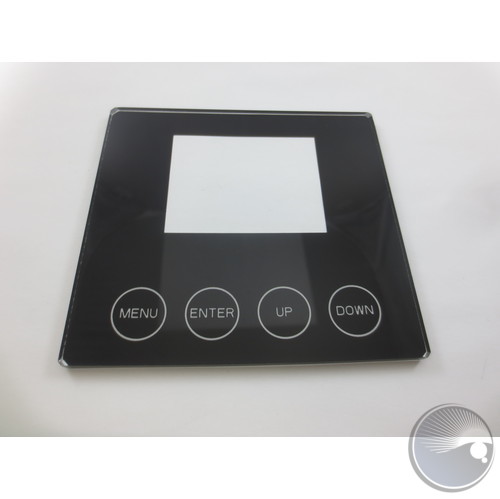

Adaptor PCB PTF1120000220Adaptor PCB

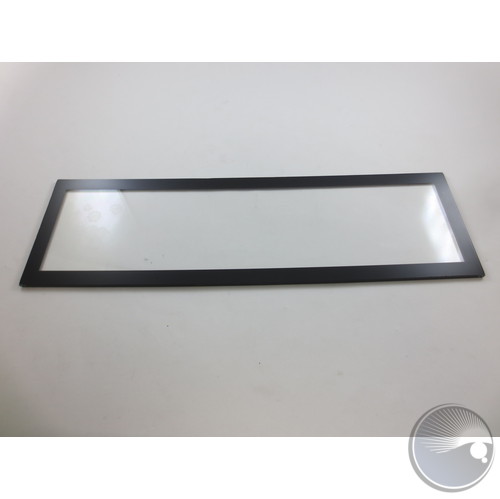

GLASS (BOM#20)PTF1120000239GLASS (BOM#20)

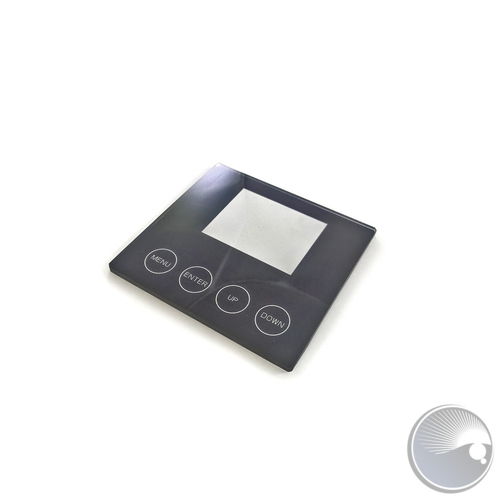

glass of display PCB (BOM#48)PTF1120000243glass of display PCB (BOM#48)
PTF11202002504 in 1 threaded mirror (BOM#17)
PTF1140000281heat conducting silicone pad (BOM#25)
PTF1140000370Power insulation pad (BOM#64)
PTF1140000371Power insulation heat conducting pad (BOM#66)

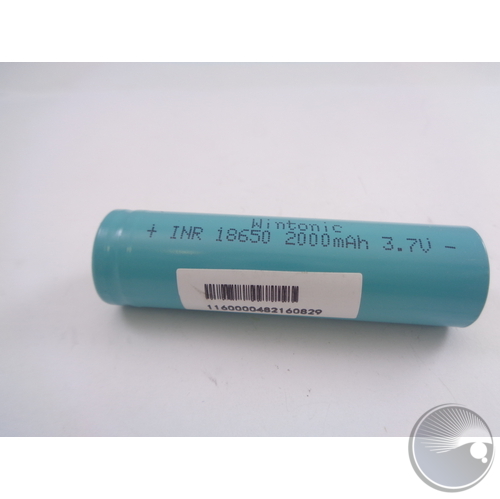

battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)PTF1160000482battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)

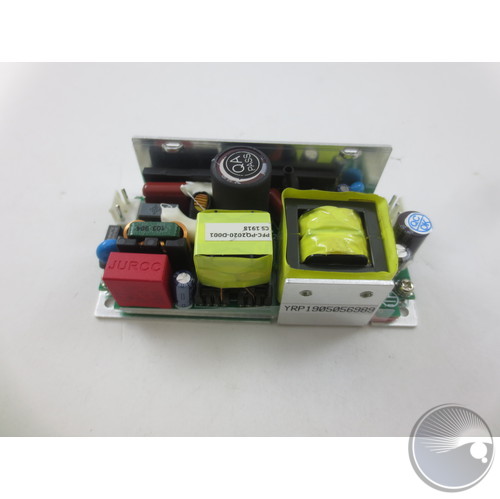

power supply (BOM#65)PTF1160000553power supply (BOM#65)
Nylon gasket (BOM#1)PTF1180000079Nylon gasket (BOM#1)
Foam cotton with single side glue (BOM#27)PTF1180000319Foam cotton with single side glue (BOM#27)
Power socket cover (out) (BOM#55)PTF1180000375Power socket cover (out) (BOM#55)
Power socket cover (in) (BOM#53)PTF1180000376Power socket cover (in) (BOM#53)
PTF1210000398Metal swivel head CCG-M12M121.55 (BOM#26)
PTF1340103558thermal switch holder (BOM#25.2)
PTF1340110189button (BOM#11)
PTF1340112504thumb screw (BOM#36)

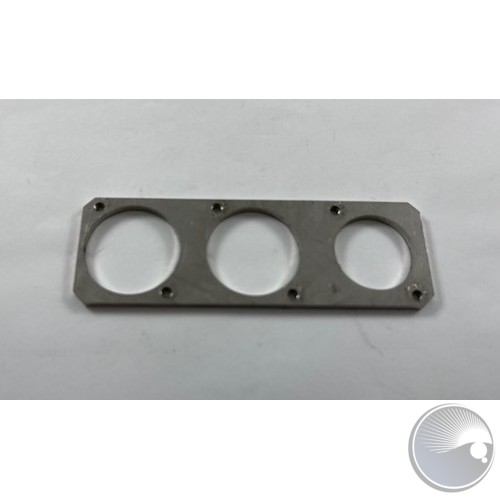

Socket connector A (BOM#57)PTF1340112863Socket connector A (BOM#57)

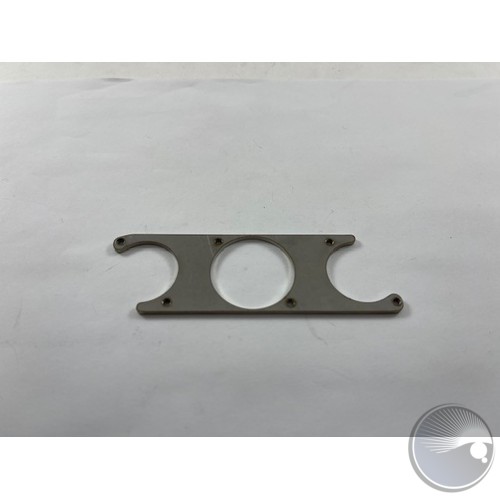

Socket connector B (BOM#61)PTF1340112951Socket connector B (BOM#61)

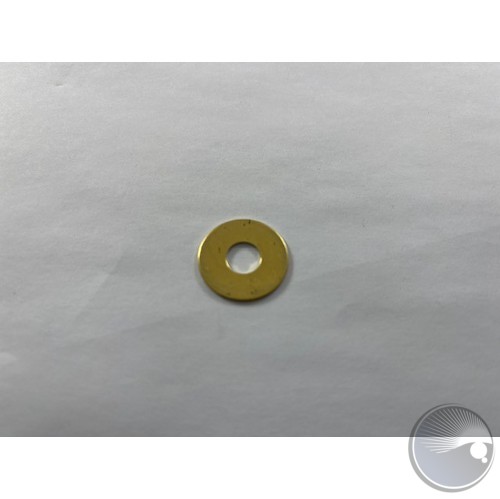

brass gasket (BOM#3)PTF1340113382brass gasket (BOM#3)
PTF1340300284Spring (BOM#10)

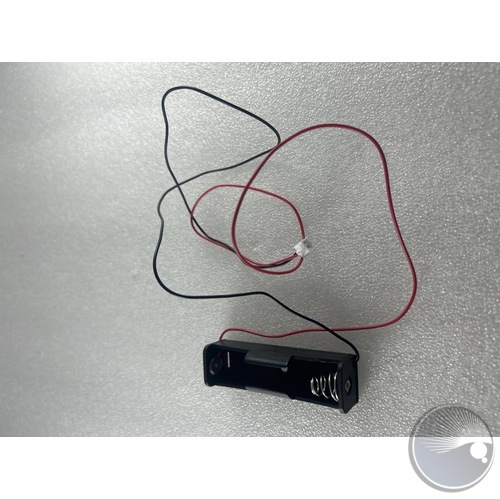

PTF1340601967battery holder (BOM#45)

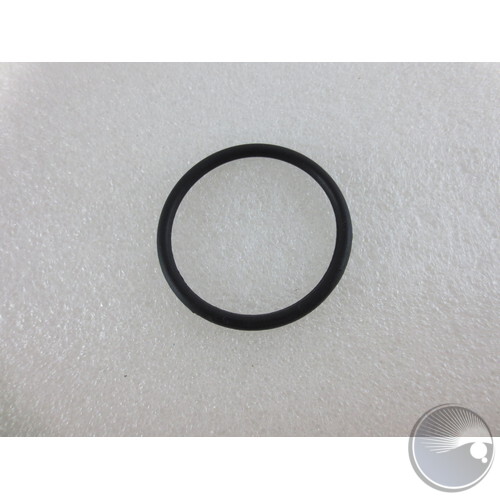

PTF1340602411IP ring of Connect tube (BOM#38)

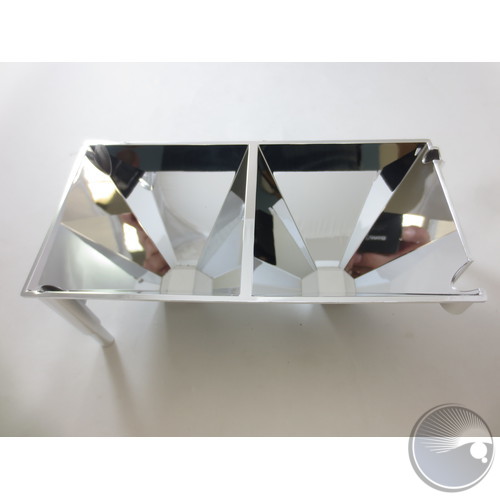

Reflective bowl (BOM#21)PTF1340602412Reflective bowl (BOM#21)
End cover waterproof ring (BOM#13)PTF1340602444End cover waterproof ring (BOM#13)
PTF1340602495Glass IP ring (BOM#19)
PTF1340602496 IP ring OF Bottom case (BOM#42)
fast/quick installation lock/bolts (BOM#39)PTF1340802466fast/quick installation lock/bolts (BOM#39)
PTF1340803078nut of connect tube (BOM#41)
PTF1340803158Connect tube (BOM#39)
PTF1490300117screw (ZOOMLENS BOM#23)
PTF1490300122Round cross screw (BOM#60)
PTF1490400004Countersunk cross screw (BOM#23)
PTF1490400017Countersunk cross screw (BOM#23)

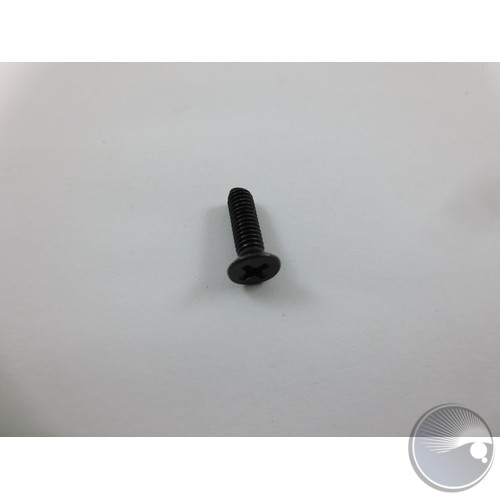

Countersunk cross screw (BOM#37)PTF1490400052Countersunk cross screw (BOM#37)
PTF1490400120Countersunk cross screw (BOM#51)
FLAT WASHERPTF1490500042FLAT WASHER
PTF1490600017Outer sawtooth anti loose gasket (BOM#29)
PTF1491000030Hexagon pillars (BOM#58)
SELF LOCKING NUT FOR HANGING/SUPPORTING BRACKET (need 2) (BOM#4B)PTF1491100043SELF LOCKING NUT FOR HANGING/SUPPORTING BRACKET (need 2) (BOM#4B)

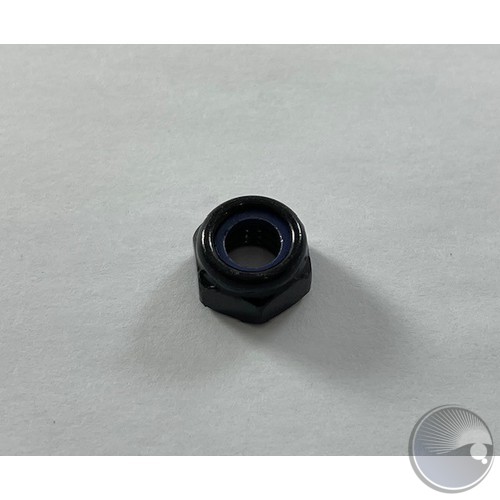

self-locking nut (BOM#35)PTF1491100088self-locking nut (BOM#35)
inner screw  (BOM#9)PTF1491400011inner screw (BOM#9)
PTF1491400281inner screw (BOM#4)
PTF1491400295inner screw (BOM#6)
PRESSURE COMPENSATION VALVE (BOM#13)PTF1491700004PRESSURE COMPENSATION VALVE (BOM#13)
PTF222000017020°filter (BOM#18)

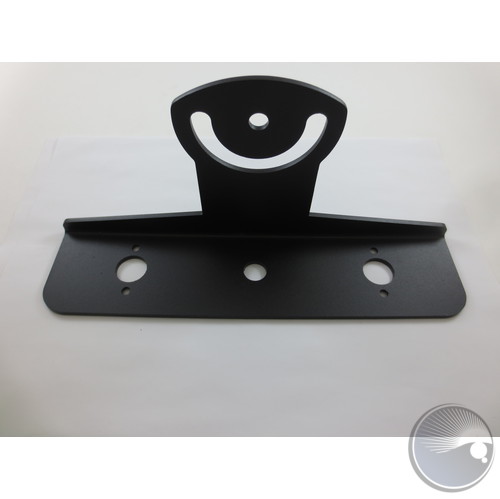

Foot Bracket-P - V2 (BOM#2) Newer VersionPTF2240106413Foot Bracket-P - V2 (BOM#2) Newer Version

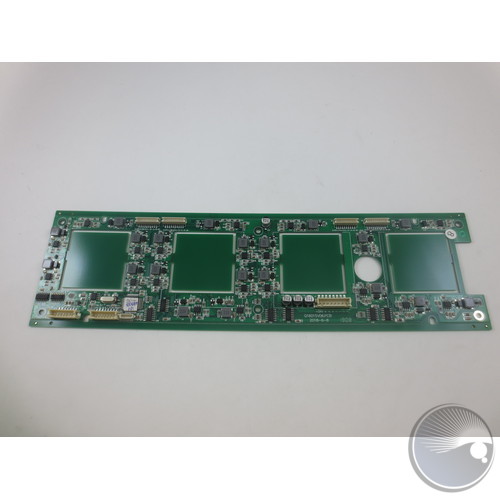

driver PCB (BOM#15)PTF2260002773driver PCB (BOM#15)

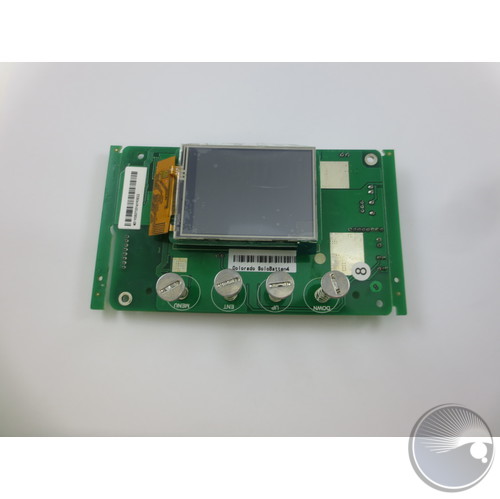

display PCB  & adapter PCB (BOM#46)PTF2260003050display PCB & adapter PCB (BOM#46)

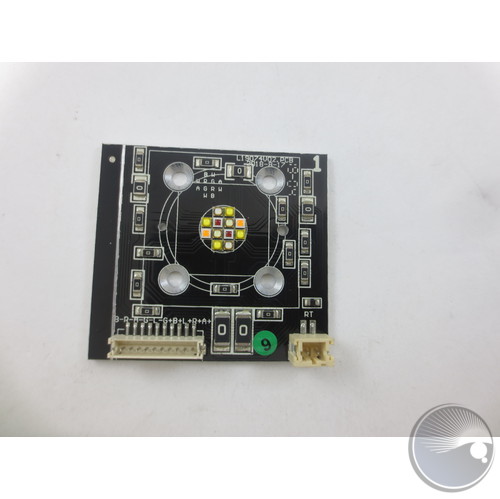

LED PCB 1 - L19074V02.PCB (BOM#24)PTF2260003089LED PCB 1 - L19074V02.PCB (BOM#24)

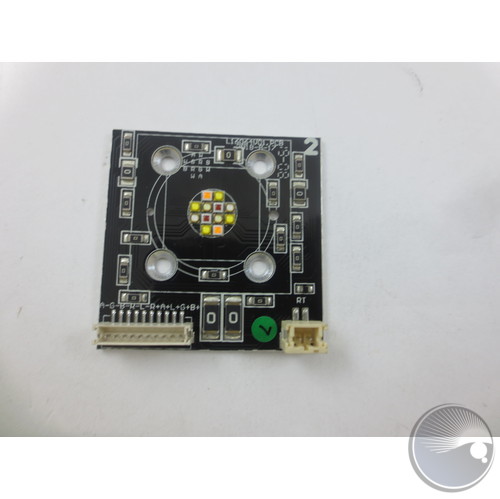

LED PCB 2 - L16064V01.PCB (BOM#24)PTF2260003090LED PCB 2 - L16064V01.PCB (BOM#24)

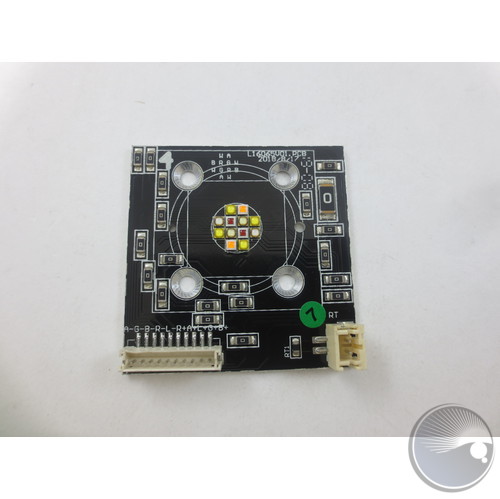

LED PCB 4 - L16065V01.PCB (BOM#24)PTF2260003091LED PCB 4 - L16065V01.PCB (BOM#24)

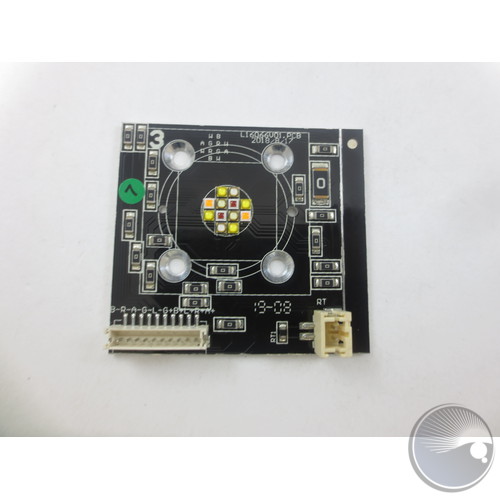

LED PCB 3 - L16066V01.PCB (BOM#24)PTF2260003092LED PCB 3 - L16066V01.PCB (BOM#24)

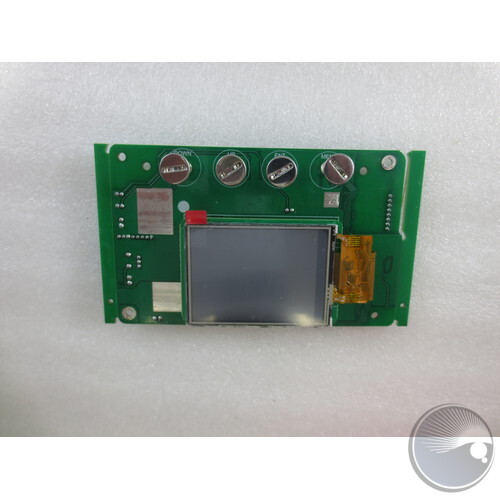

PTF2260003485Display PCB
Omega bracket (120mm)PTF2440104143Omega bracket (120mm)

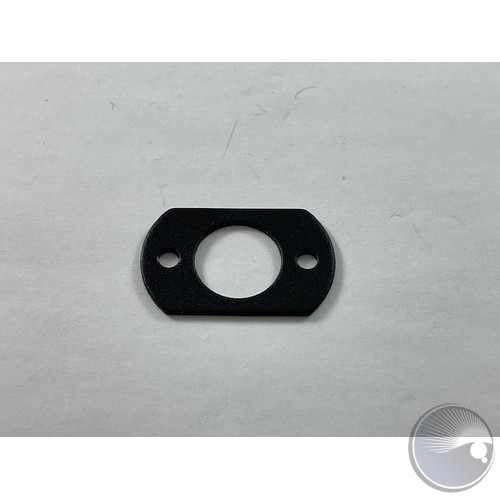

Quick lock gasket -P (BOM#71)PTF2440104150Quick lock gasket -P (BOM#71)
PTF2440104941Lithium battery support plate -P (BOM#62)
PTF2440104942Lithium battery platen -P (BOM#43)

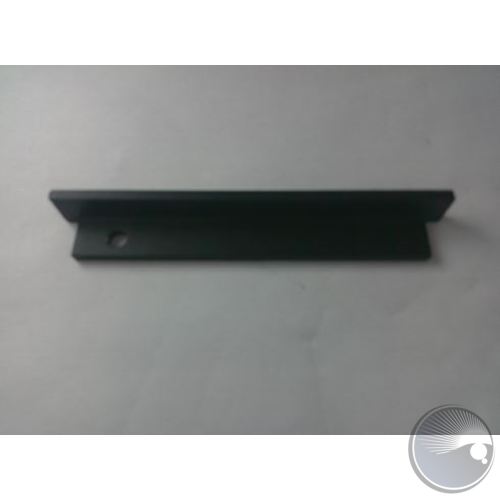

PTF2440105561Threaded lens catch (BOM#14)

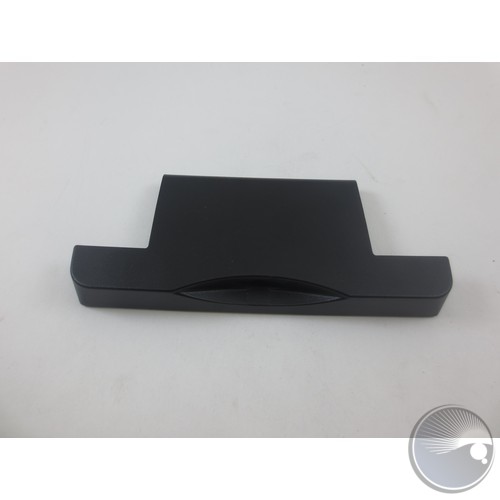

End cover A top (BOM#8)PTF2440105564End cover A top (BOM#8)

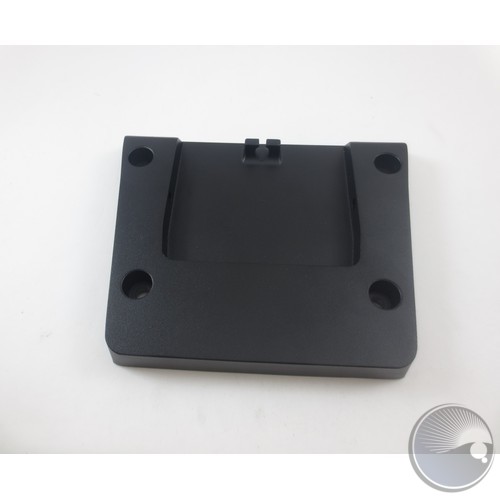

End cover A (BOM#12)PTF2440105565End cover A (BOM#12)

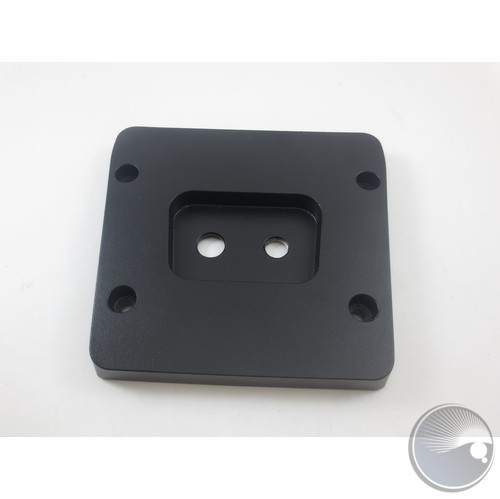

End cover B (BOM#29)PTF2440105566End cover B (BOM#29)

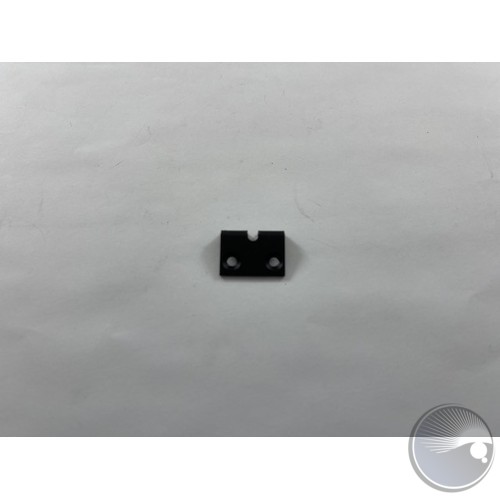

End cover tablet (BOM#7)PTF2440105573End cover tablet (BOM#7)

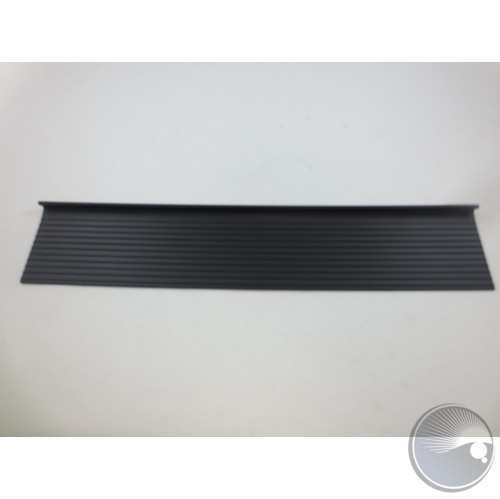

barndoor-P (BOM#67)PTF2440106021barndoor-P (BOM#67)
PTF2440106022Glass layer-p (BOM#26)

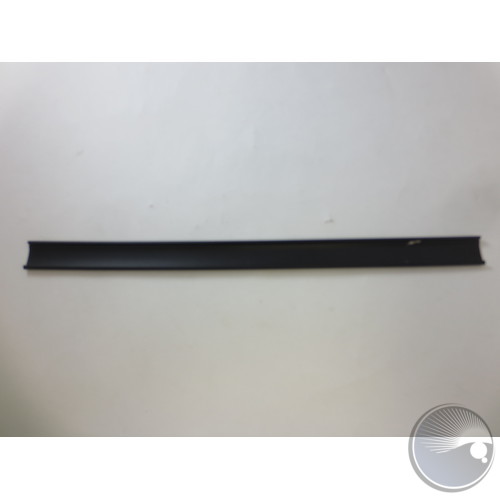

screw catch (BOM#22)PTF2440106023screw catch (BOM#22)
PTF2440106024housing (BOM#28)

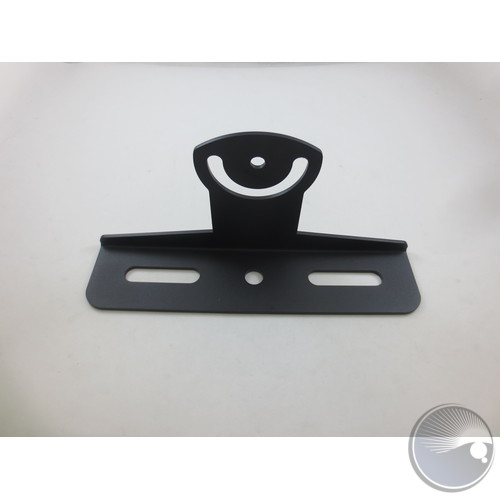

Foot Bracket-P (BOM#2)PTF2440106025Foot Bracket-P (BOM#2)

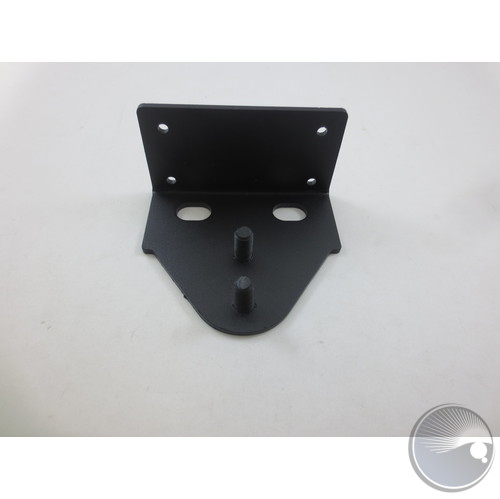

fixed bracket (BOM#5)PTF2440106026fixed bracket (BOM#5)
PTF2440106027Bottom case top cover -P (BOM#40)

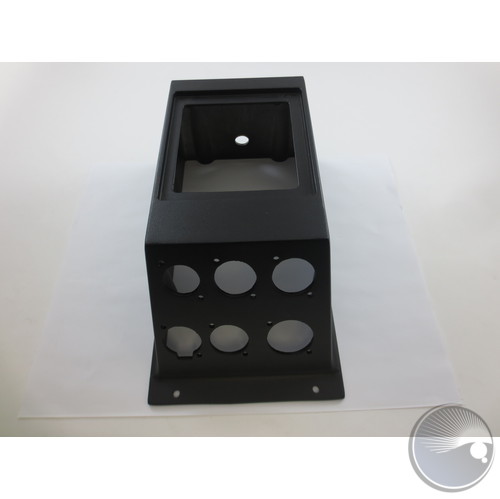

back cover (BOM#47)PTF2440106170back cover (BOM#47)
UPLOAD01PTFUPLOAD01UPLOAD01
