COLORdash Accent Quad

Auf Anfrage!

  • COLORDASHACCENTQUAD
COLORdash  Accent Quad Colordash Accent Quad  delivers a tremendous punch of... mehr
Produktinformationen "COLORdash Accent Quad"

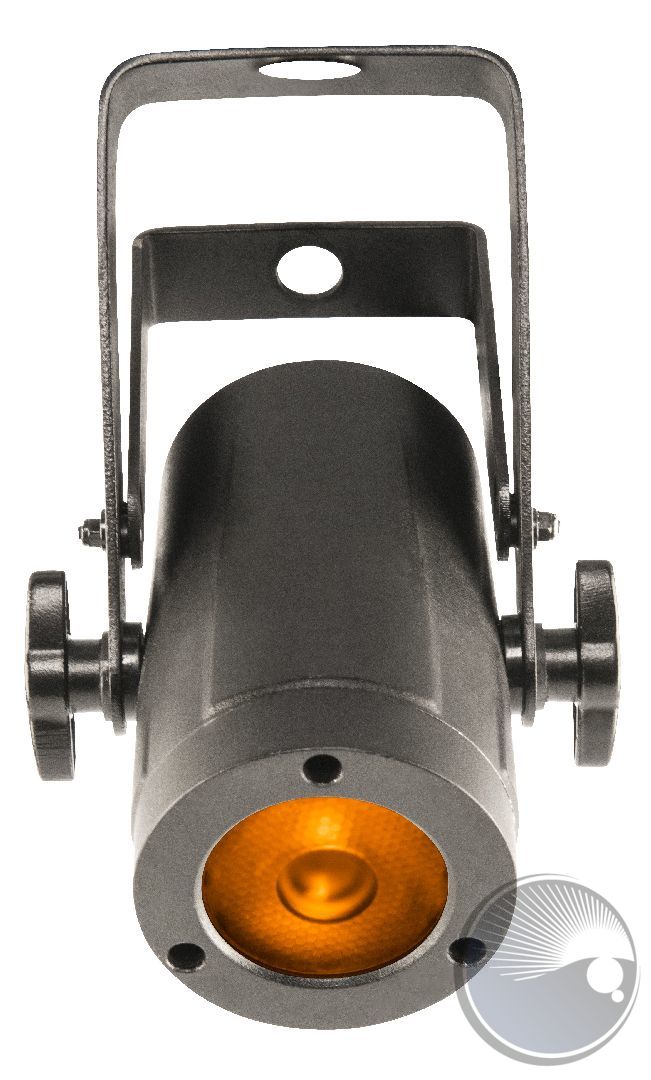

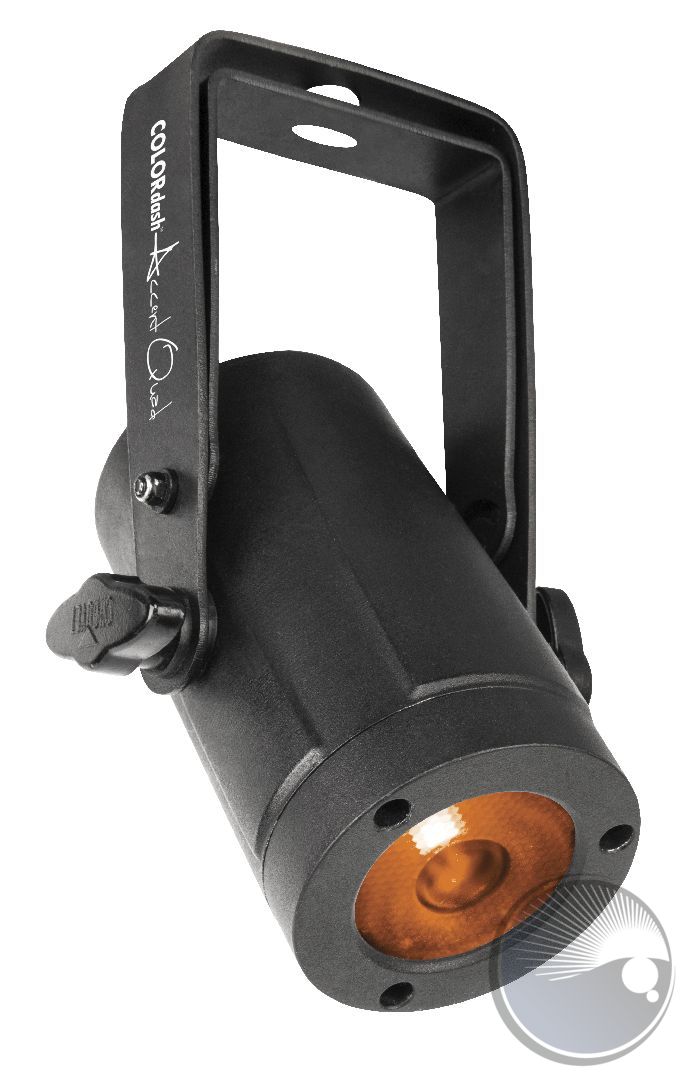

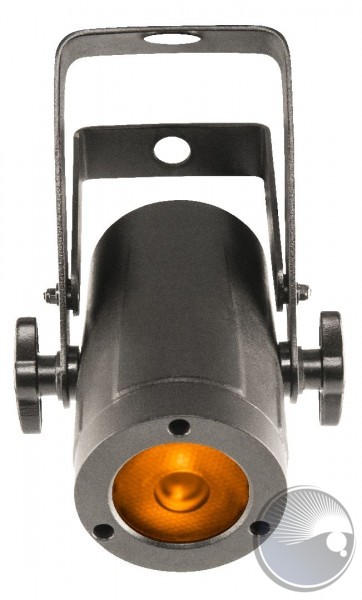

COLORdash Accent Quad

Colordash Accent Quad delivers a tremendous punch of evenly mixed light into tight locations. Powered by a 10 W quad-color (RGBA) LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. An onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.



AT A GLANCE

  • Quad-color LED - red, green, blue, amber (RGBA)

  • RGBA color mixing via DMX or manually

  • Extremely compact with excellent output

  • Variable electronic dimmer (0–100%)

  • Simple and complex DMX channel profiles for programming versatility

  • Double-bracketed yoke doubles as floor stand

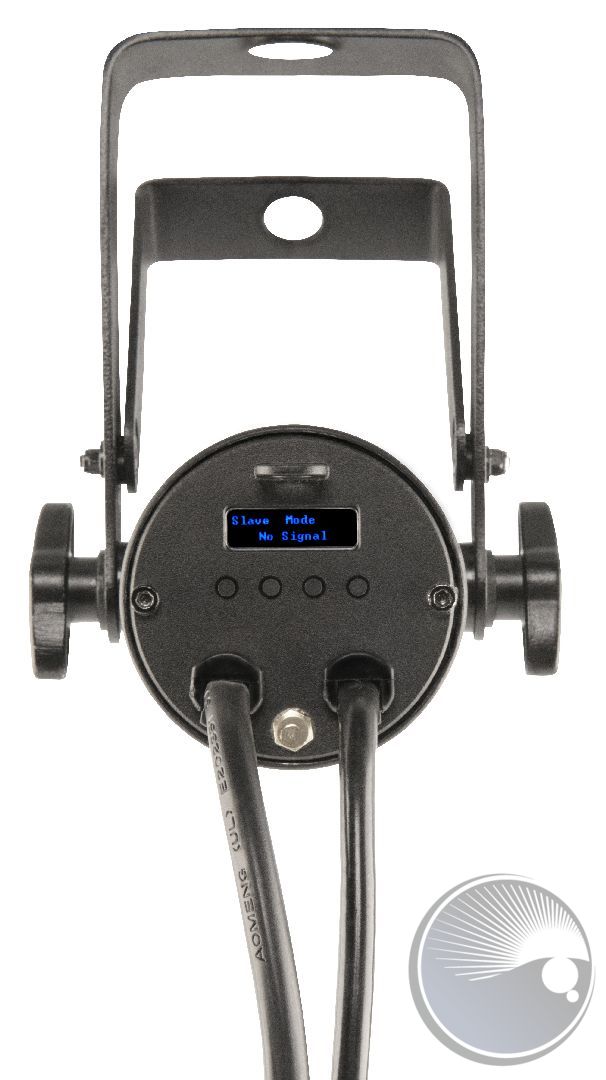

  • Easy to use OLED digital display

  • Built-in auto programs recalled via DMX or Master/Slave

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (quad-color RGBA) 10 W, (700 mA), 50,000 hours life expectancy
  • Beam Angle: 15°
  • Field Angle: 29°
  • Illuminance (total): 140 lux @ 5 m
  • PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 33 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 4.3 x 2.6 x 6.8 in (110 x 67 x 172 mm)
  • Weight: 1.8 lb (0.8 kg)
  • Exterior Color: Black

CONNECTIONS

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired

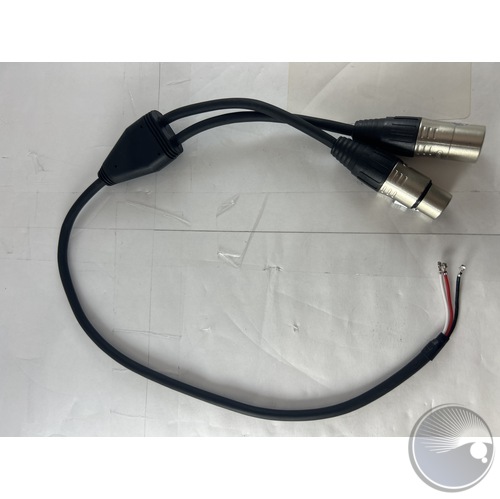

  • Data Connectors: 5-pin XLR DMX input and output cable whips
  • Cable Length (power): 3.5 ft (1.07 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 4, 6 or 10
  • Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 14 W, 0.20 A @ 120 V, 60 Hz
  • Power and Current: 14 W, 0.13 A @ 208 V, 60 Hz
  • Power and Current: 13 W, 0.12 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • COLORdash Accent Quad

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORdash Accent Quad"

PTJ20140818011TOP COVER (BOM#1)
PTJ201408180125℃ FILTER (BOM#2)
LENS (BOM#3)PTJ20140818013LENS (BOM#3)
LED PCB  (BOM#4)PTJ20140818014LED PCB (BOM#4)
PTJ20140818015GRAPHITE SHEETS (BOM#5)
PTJ20140818016HOUSING (BOM#6)
PTJ20140818017HANGING BRACKET-OUTER (BOM#9)
PTJ20140818018HANGING BRACKET - IN (BOM#10)
PTJ20140818019HOLDER FOR POWER SUPPLY (BOM#12)
MPCB (BOM#13)PTJ20140818020MPCB (BOM#13)
DISPLAY COVER LENS (BOM#14)PTJ20140818021DISPLAY COVER LENS (BOM#14)
PTJ20140818022REAR PANEL (BOM#15)

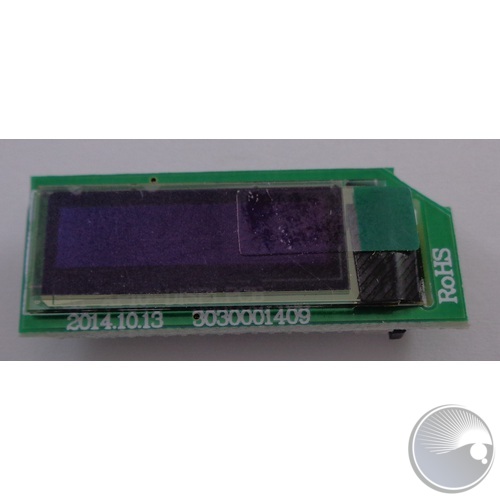

DISPLAY PCB (CH-AP10.3030001409)PTJ2020200987DISPLAY PCB (CH-AP10.3030001409)
PTJ3020010001HM SCREW (BOM#17)

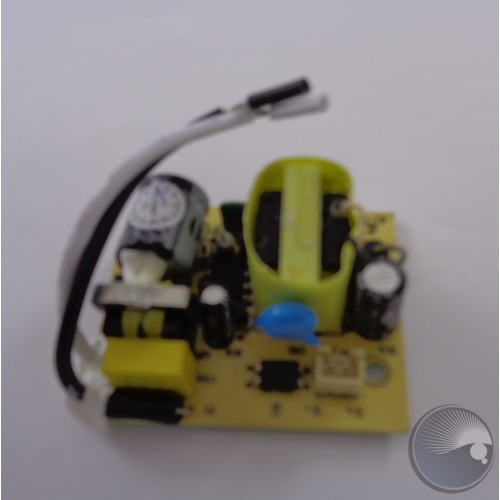

POWER SUPPLY +12V, 1A, 12W (BOM#11)PTJ3020400135POWER SUPPLY +12V, 1A, 12W (BOM#11)
PLASTIC WASHER FOR KNOBPTJ3021700480PLASTIC WASHER FOR KNOB
LINKING LOCK (BOM#16)PTJ3028007001LINKING LOCK (BOM#16)

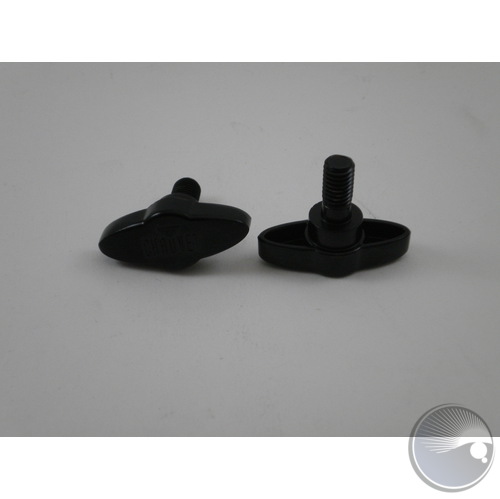

HANGING BRACKET KNOB (BOM#15)PTJ40148200607000HANGING BRACKET KNOB (BOM#15)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!
