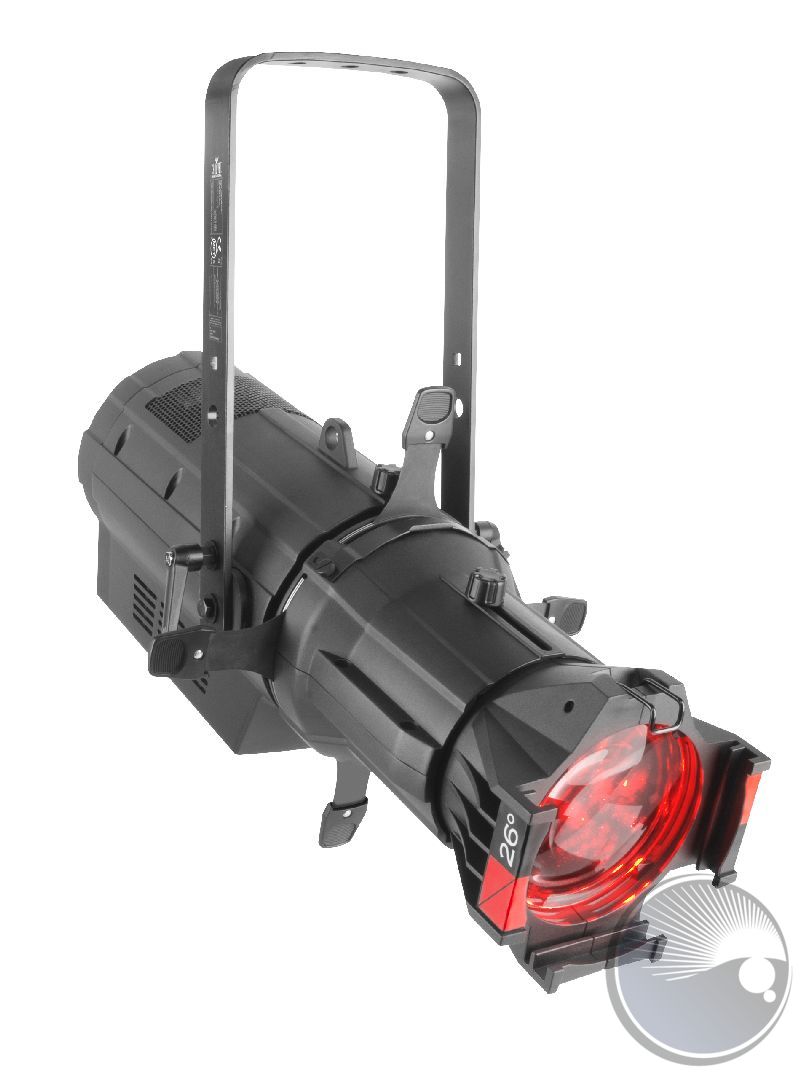

Ovation E-910FC

1.740,97 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONE910FC
Ovation  E-910FC Ovation E-910FC  is a high-performance ERS-style fixture with... mehr
Produktinformationen "Ovation E-910FC"

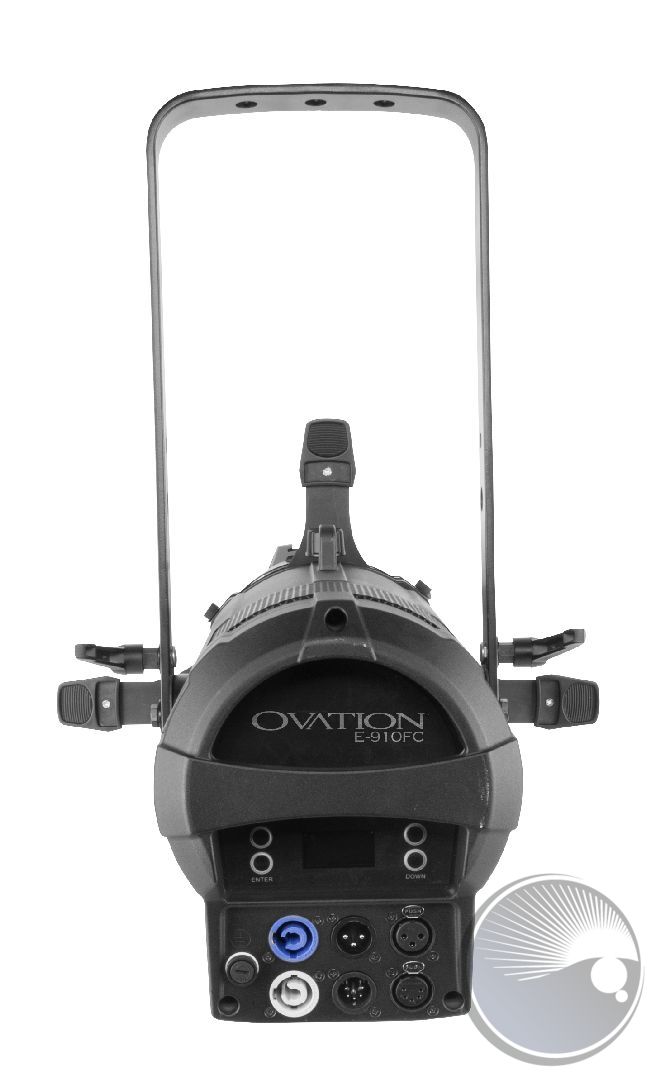

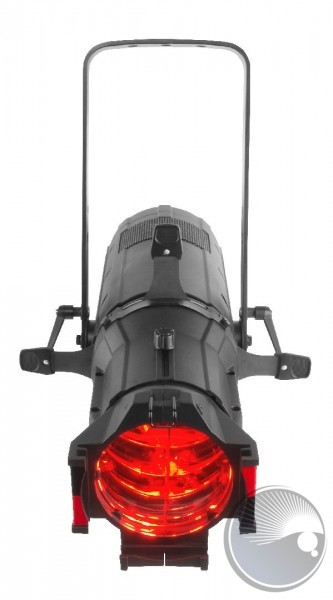

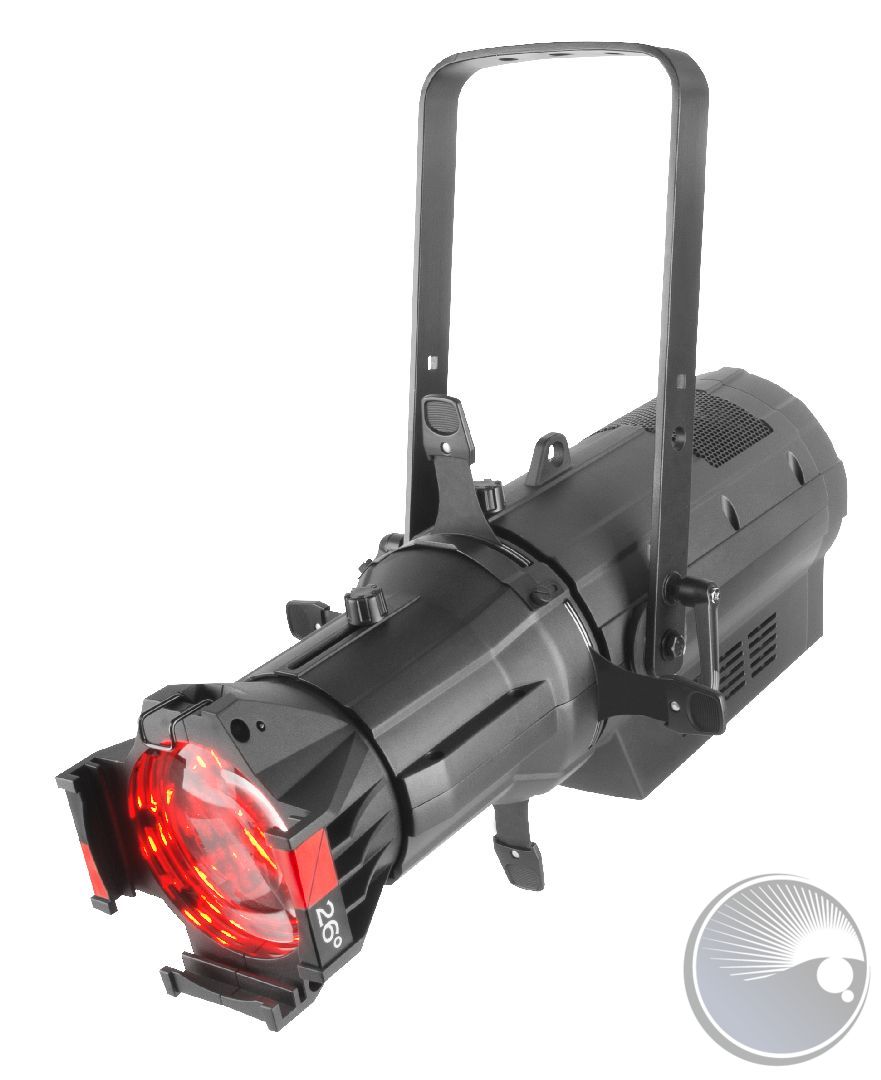

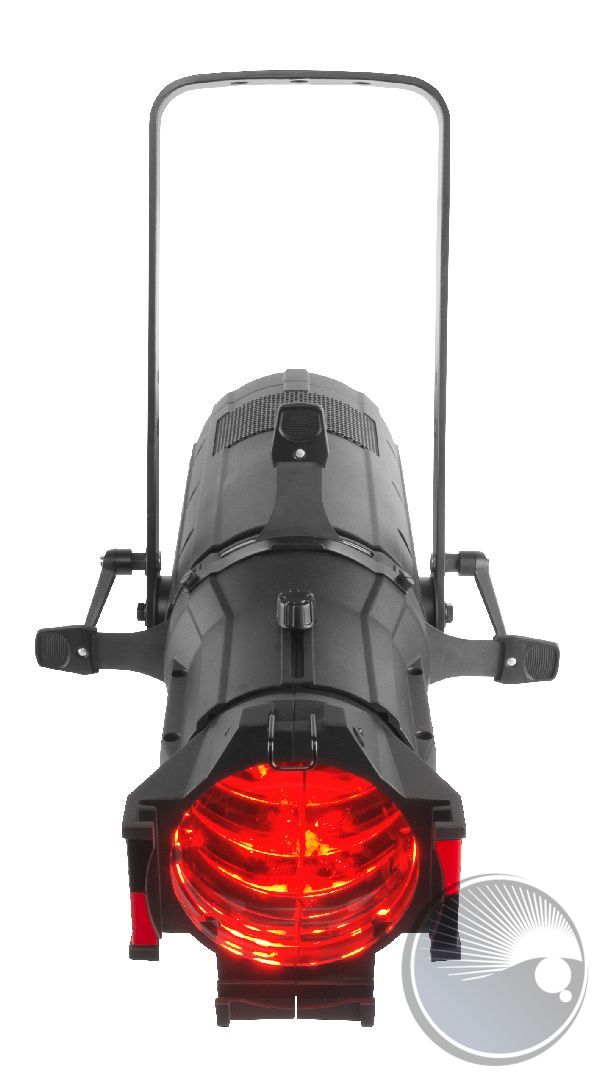

Ovation E-910FC

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.



AT A GLANCE

  • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production

  • Ultra smooth 16-bit dimming of master dimmer and individual colors

  • Flat, even field of light with superior color mixing

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

  • Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

  • Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 6031 K
  • CRI (3200 K): 86
  • Beam Angle (w/5° lens): 7°
  • Beam Angle (w/10° lens): 10°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 19°
  • Beam Angle (w/26° lens): 24°
  • Beam Angle (w/36° lens): 28°
  • Beam Angle (w/50° lens): 41°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 24°
  • Beam Angle (w/25°–50° lens)(Narrow): 23°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens):19°
  • Field Angle (w/26° lens): 26°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 51°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 50°
  • Lumens (w/14° lens): 2,827
  • Lumens (w/19° lens): 3,236
  • Lumens (w/26° lens): 4,316
  • Lumens (w/36° lens): 3,918
  • Lumens (w/50° lens): 3,813
  • Illuminance (w/5° lens): 16,300 lux @ 5 m
  • Illuminance (w/10° lens): 7,430 lux @ 5 m
  • Illuminance (w/14° lens): 4,420 lux @ 5 m
  • Illuminance (w/19° lens): 2,530 lux @ 5 m
  • Illuminance (w/26° lens): 1,720 lux @ 5 m
  • Illuminance (w/36° lens): 1,020 lux @ 5 m
  • Illuminance (w/50° lens): 457 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7.1 kg)
  • Weight (w/14° lens): 20.8 lb (9.43 kg)
  • Weight (w/26° lens): 19.8 lb (9 kg)
  • Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
  • Weight (w/25°–50° lens): 27 lb (12.2 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
  • Modes/Personalities: 8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and Current: 220 W, 2.171 A @ 100 V, 60 Hz
  • Power and Current: 215 W, 1.786 A @ 120 V, 60 Hz
  • Power and Current: 214 W, 1.032 A @ 208 V, 60 Hz
  • Power and Current: 216 W, 0.935 A @ 230 V, 50 Hz
  • Power and Current: 217 W, 0.904 A @ 240 V, 60 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03121116
Weiterführende Links zu "Ovation E-910FC"

3.15AMPGMAFUSE (BOM#14)
*LOC1* OVATION B-SIZE GLASS GOBO HOLDEROVBGOBOGLASS*LOC1* OVATION B-SIZE GLASS GOBO HOLDER
*LOC1* OVATION B-SIZE METAL GOBO HOLDEROVBGOBOMETAL*LOC1* OVATION B-SIZE METAL GOBO HOLDER
PTF1001002202Seetronic POWER OUT indoor white socket SAC3FPX
PTF1001002302POWER IN SOCKET (MALE)(BOM#2B)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#33)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#33)
THUMB SCREW/KNOB (BOM#2)PTF2440000125THUMB SCREW/KNOB (BOM#2)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK US POWER CABLE 1.5M - 5FT (POWERCON TO EDISON) 14 AWG
DMX XLR SOCKET(5PIN) (BOM#51)PTJ2010033700DMX XLR SOCKET(5PIN) (BOM#51)
PTJ2010325000DMX XLR SOCKET PCB (3PIN) (BOM#26)

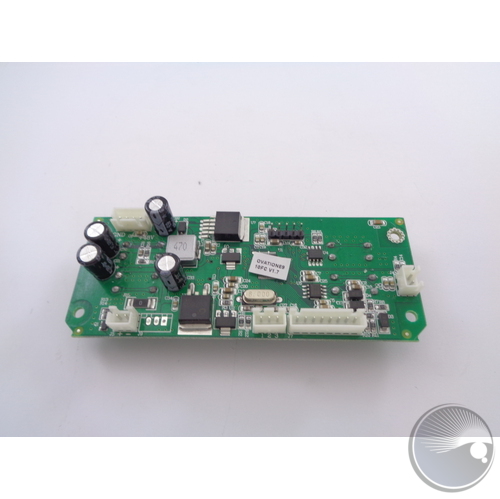

MPCB (BOM#21)PTJ2020100091MPCB (BOM#21)

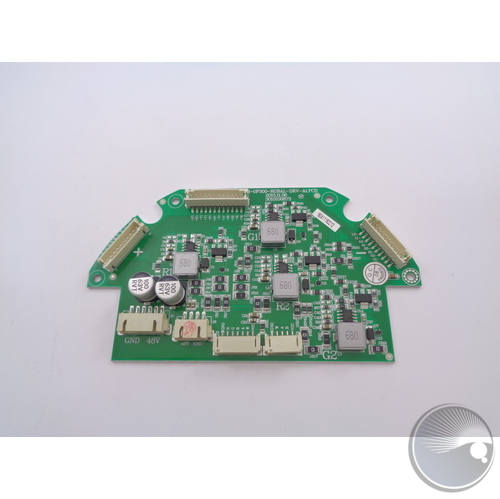

DRIVER PCB A (BOM#23)PTJ2020201264DRIVER PCB A (BOM#23)

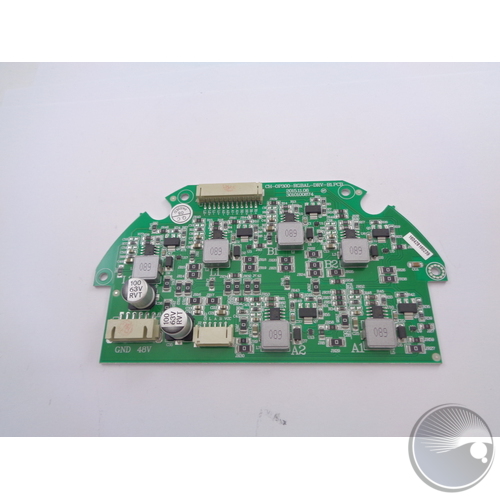

DRIVER PCB B (BOM#24)PTJ2020201265DRIVER PCB B (BOM#24)

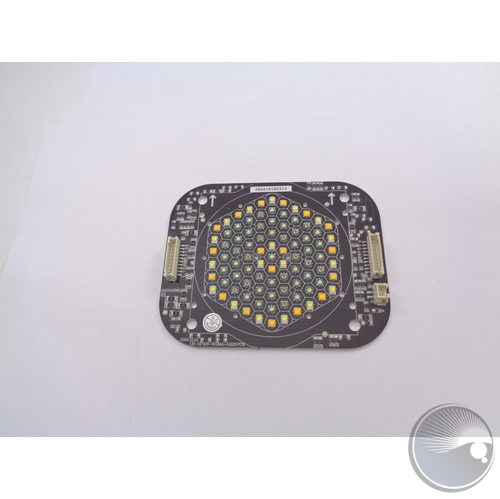

LED PCB  (BOM#34)PTJ2020201277LED PCB (BOM#34)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
light tube somponents (BOM#3)PTJ2030100057light tube somponents (BOM#3)
SHUTTER BLADE ASSEMBLY (BOM#29,30)PTJ2030100076SHUTTER BLADE ASSEMBLY (BOM#29,30)
Soft Focus Filter w/ HolderPTJ2030100091Soft Focus Filter w/ Holder
SPHERICAL CONDENSE (BOM#19)PTJ3020200213SPHERICAL CONDENSE (BOM#19)
PTJ3020300266COLOR BLENDING FILTER

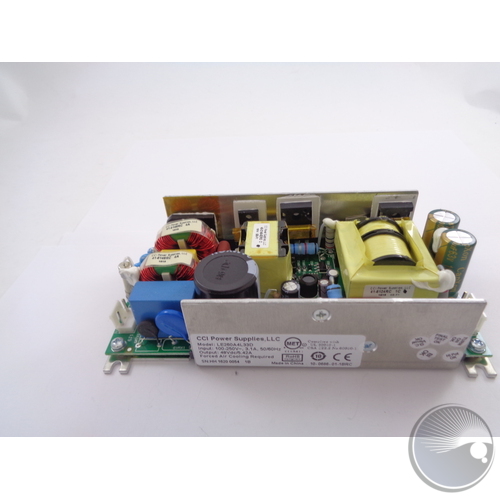

POWER SUPPLY (BOM#10)PTJ3020400139POWER SUPPLY (BOM#10)
FAN NET (BOM#41)PTJ3020900026FAN NET (BOM#41)
FAN  (BOM#39)PTJ3020900035FAN (BOM#39)
PTJ3021600044SPRING (BOM#20)
HM SCREW (BOM#33)PTJ3021700158HM SCREW (BOM#33)
SCREW INSIDE HANGING BRACKET  (BOM#38)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#38)
FUSE HOLDER (BOM#18)PTJ3027001001FUSE HOLDER (BOM#18)

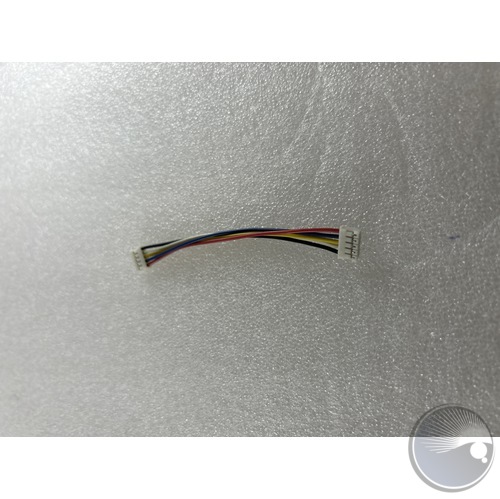

PTJ3040401406Wire harness contact driver A to driver B
PTJ3040401408Wire harness contact MPCB to driver A

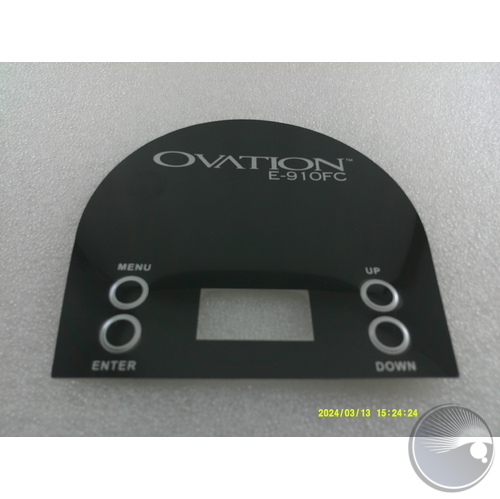

PTJ3050801648STICKER (BOM#18)
PTJ4010102009POWER SUPPLY HOLDER (BOM#9)
ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#18)PTJ4010102024ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#18)
PTJ4010200026REFLECT TUBE HOLDER (BOM#35)
PTJ4010200027HEAT SINK (BOM#31)

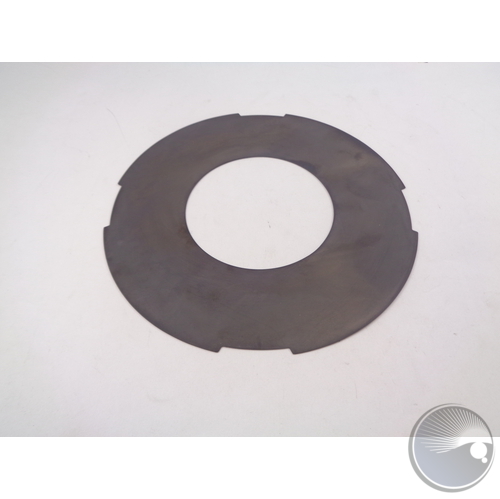

SHUTTER BLADE HOLDER 4  (BOM#43)PTJ4010200028SHUTTER BLADE HOLDER 4 (BOM#43)

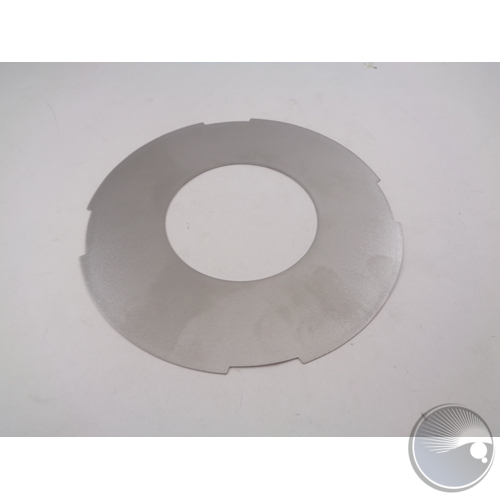

SHUTTER BLADE HOLDER 3 (BOM#44)PTJ4010200029SHUTTER BLADE HOLDER 3 (BOM#44)
SHUTTER BLADE HOLDER 2 (BOM#22)PTJ4010200030SHUTTER BLADE HOLDER 2 (BOM#22)
SHUTTER BLADE HOLDER 1 (BOM#21)PTJ4010200031SHUTTER BLADE HOLDER 1 (BOM#21)
PTJ4010302041COVER FOR POWER SOCKET (BOM#18)
HOUSING (BOM#43)PTJ4010302514HOUSING (BOM#43)
HOUSING COVER (BOM#13)PTJ4010302515HOUSING COVER (BOM#13)
SEMI-CIRCLE  METAL PART (BOM#31)PTJ4010302516SEMI-CIRCLE METAL PART (BOM#31)

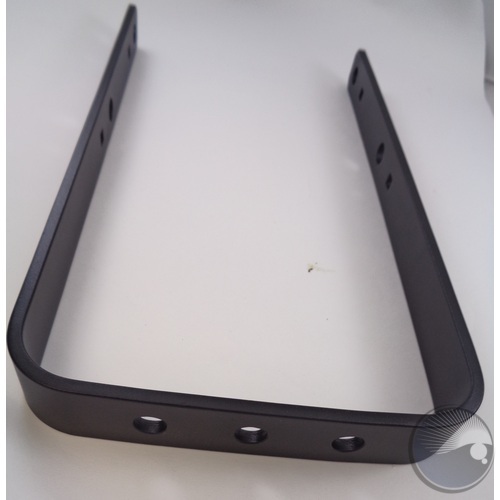

HANGING BRACKET (BOM#1)PTJ4010302517HANGING BRACKET (BOM#1)
PTJ4010302519ALUMINIUM PLATE FOR THE REAR (BOM#3)

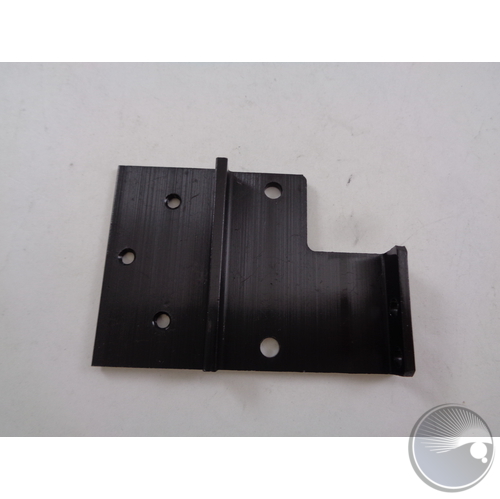

CONNECTER PANEL1 (BOM#25)PTJ4010302520CONNECTER PANEL1 (BOM#25)

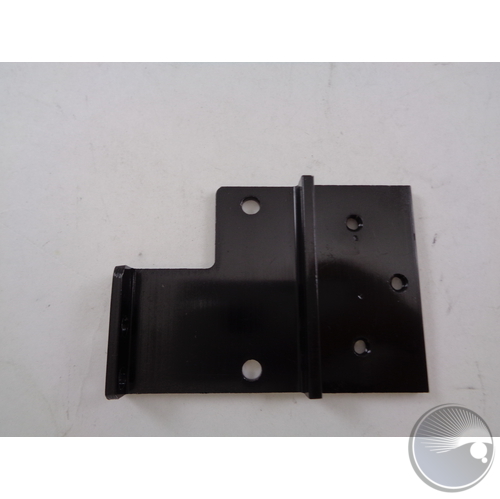

CONNECTER PANEL2 (BOM#26)PTJ4010302521CONNECTER PANEL2 (BOM#26)

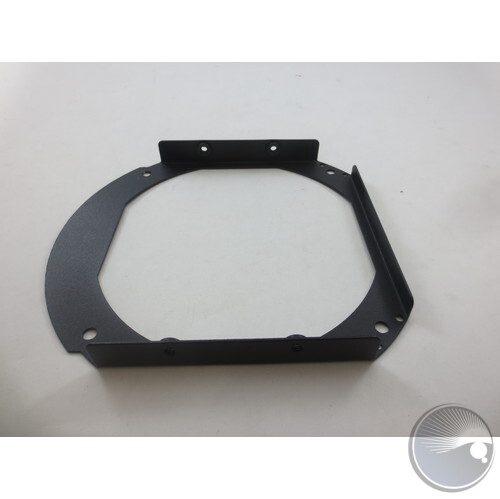

PTJ4010302522FAN HOLDER (BOM#29)
PTJ4010302523WIND DEFLECTOR (BOM#11)
SHUTTER TUBE1 (BOM#27)PTJ4010302525SHUTTER TUBE1 (BOM#27)
SHUTTER TUBE2 (BOM#28)PTJ4010302526SHUTTER TUBE2 (BOM#28)

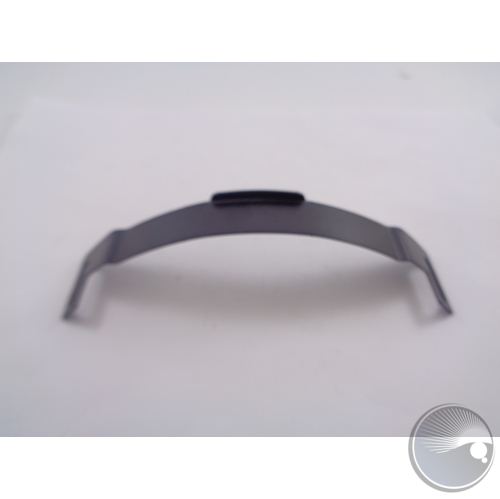

SHADOW SHIELD  (BOM#39)PTJ4010302527SHADOW SHIELD (BOM#39)
THUMB SCREW (BOM#25)PTJ4010302528THUMB SCREW (BOM#25)
VENTILATE NET (BOM#12)PTJ4010302529VENTILATE NET (BOM#12)

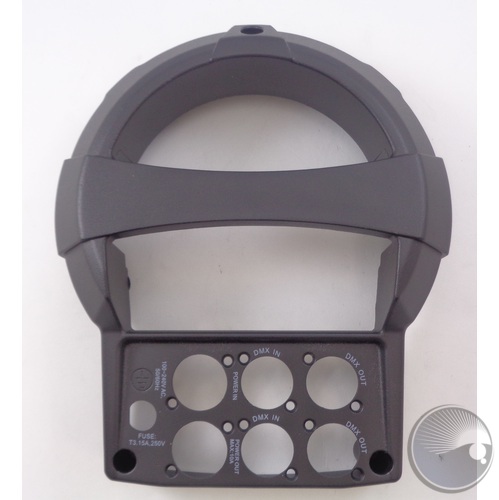

REAR (BOM#17)PTJ4010401336REAR (BOM#17)
SHUTTER BLADE COVER (BOM#30)PTJ4020200211SHUTTER BLADE COVER (BOM#30)
91 LENS (BOM#16)PTJ402020030391 LENS (BOM#16)
PTJ4020200304REFLECT TUBE (BOM#17)
ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)PTJ5000000015ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)
UPLOAD03PTJUPLOAD03UPLOAD03
