Ovation FTD-55WW

487,90 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONFTD55WW
Ovation  FTD-55WW Ovation F TD-55WW  is a track mounted, warm white LED... mehr
Produktinformationen "Ovation FTD-55WW"

Ovation FTD-55WW

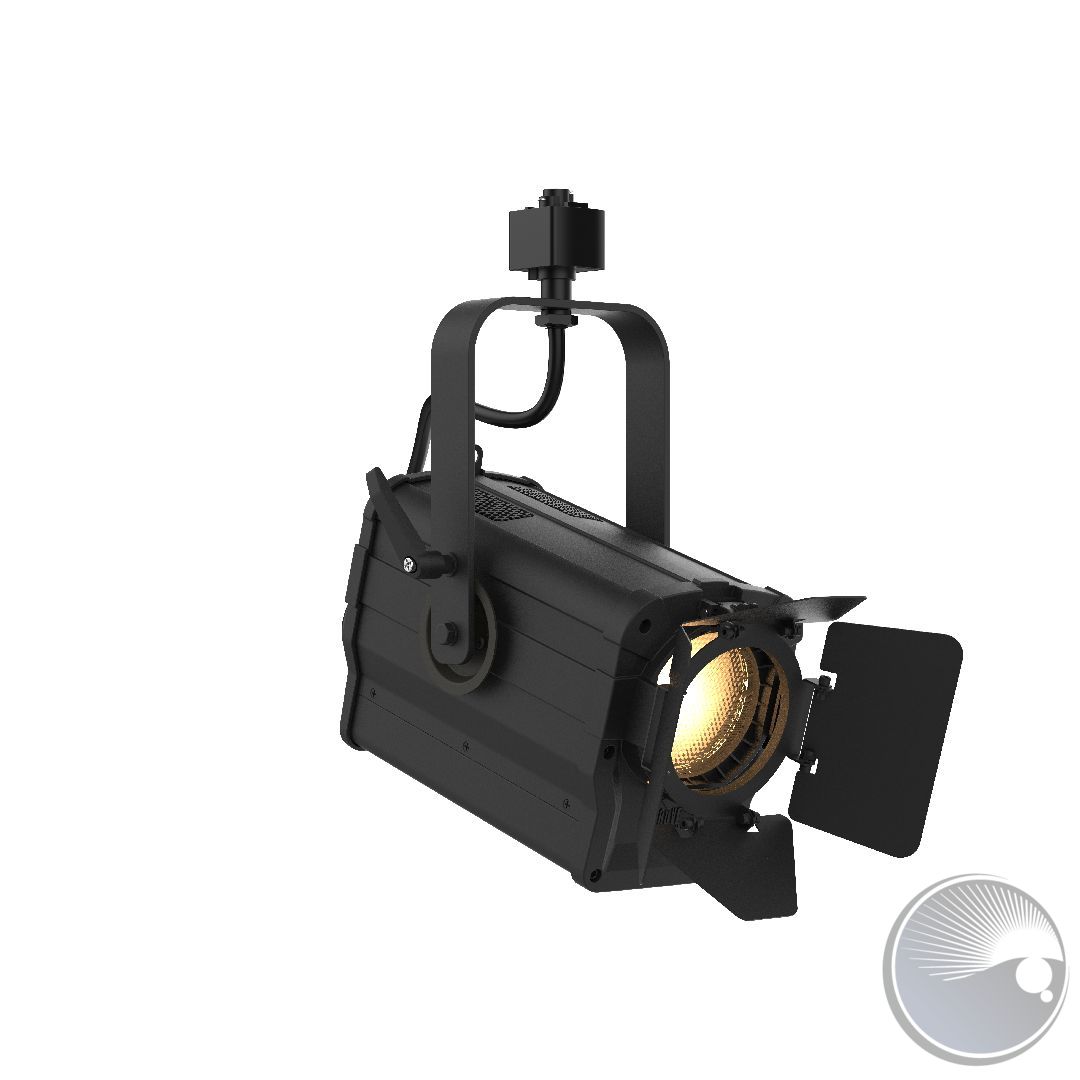

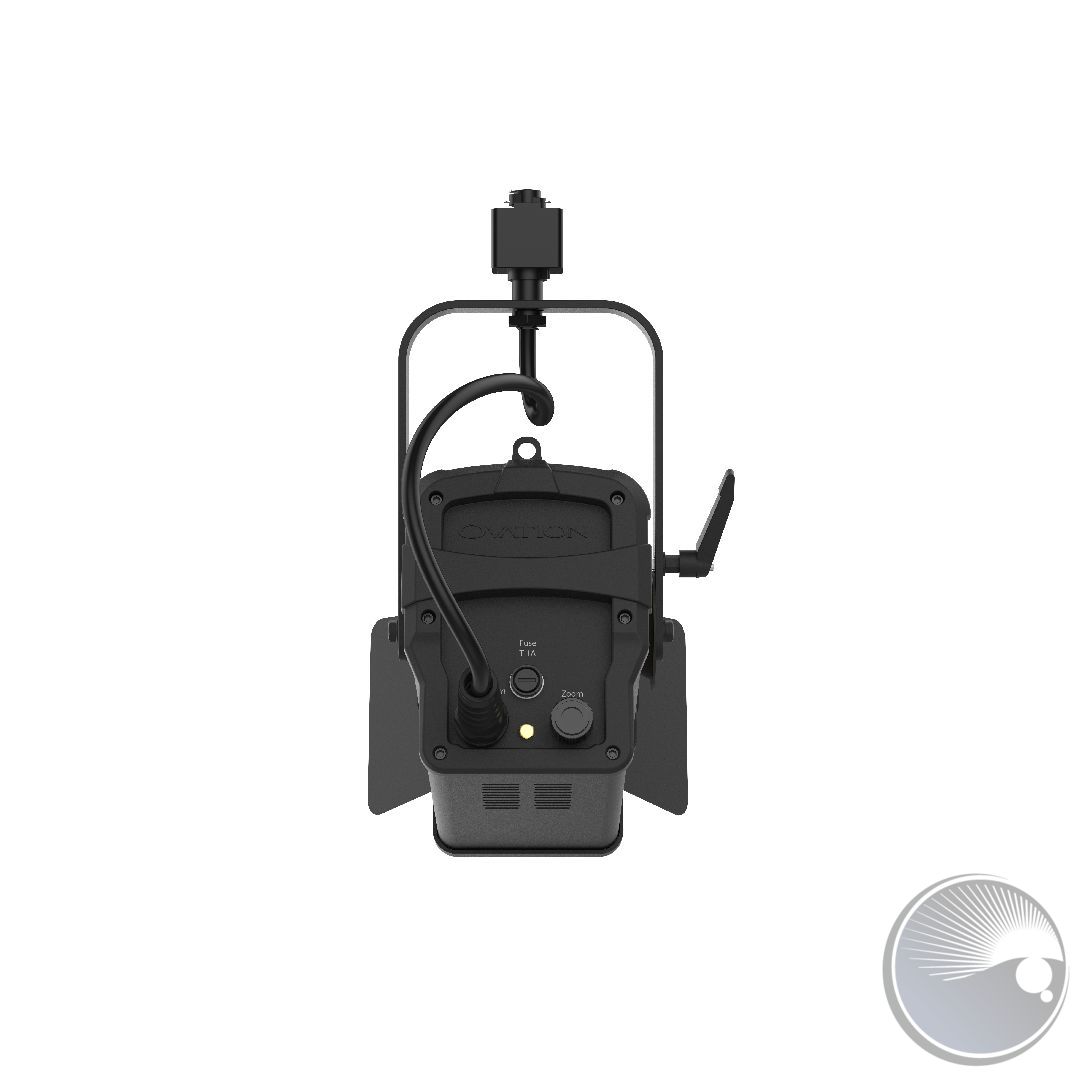

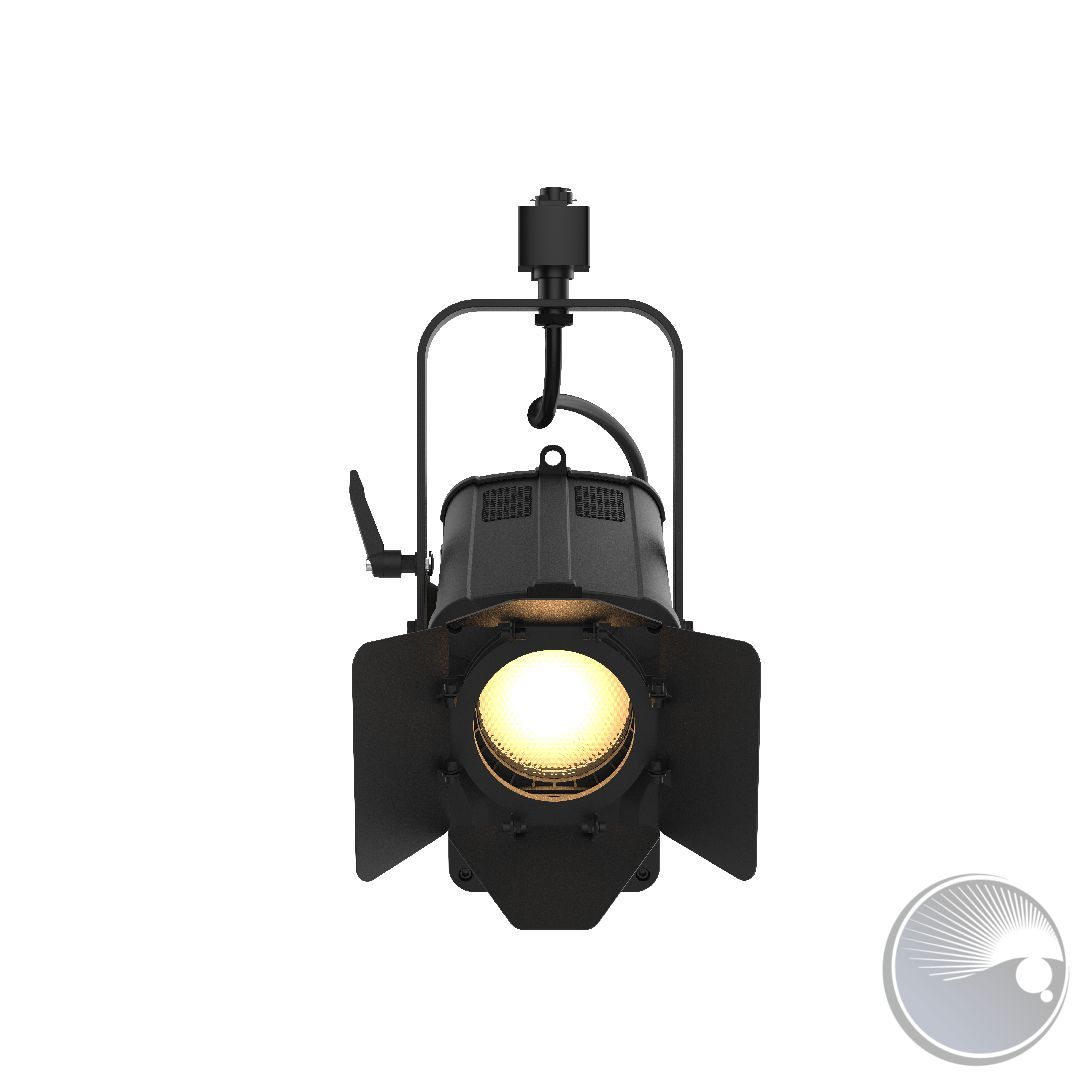

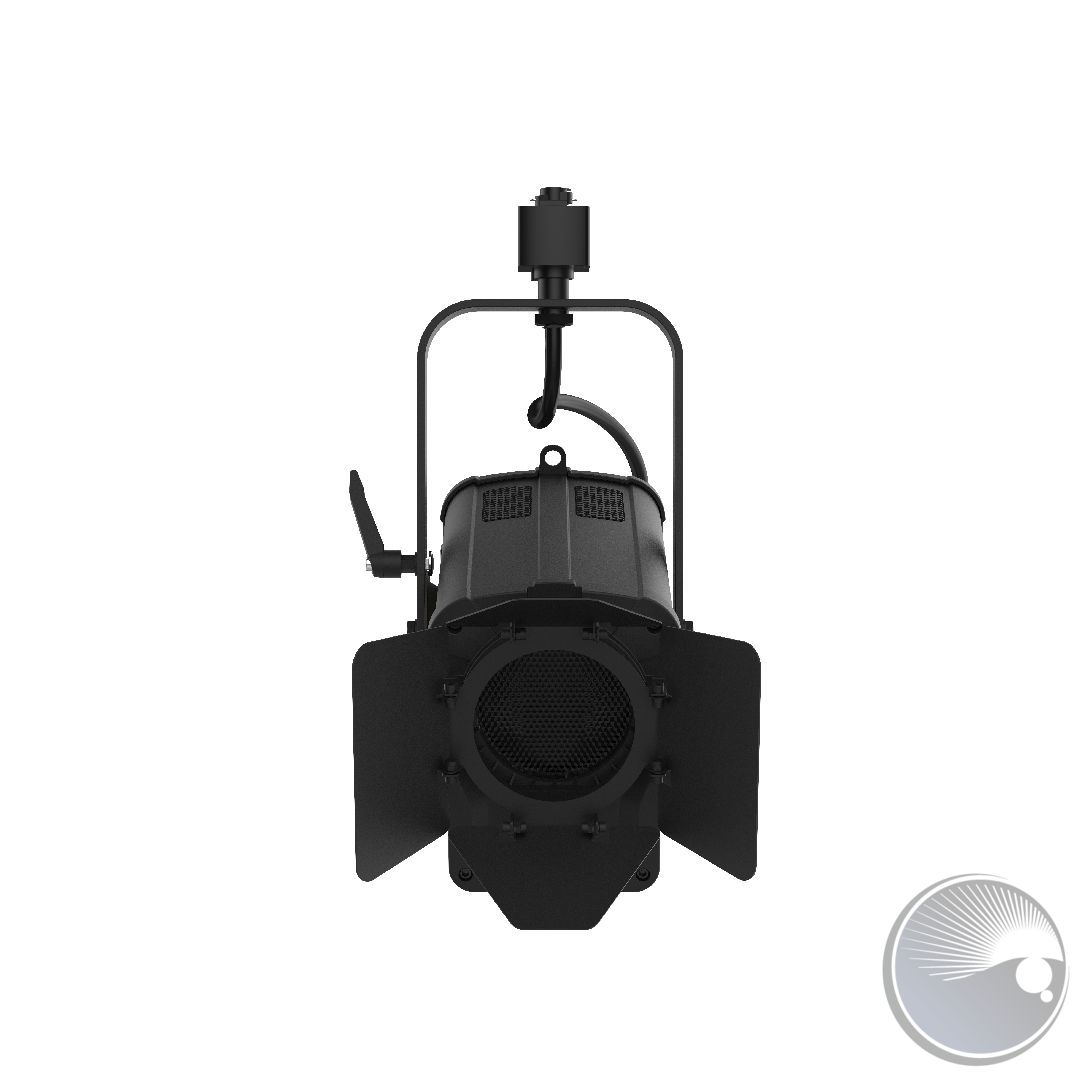

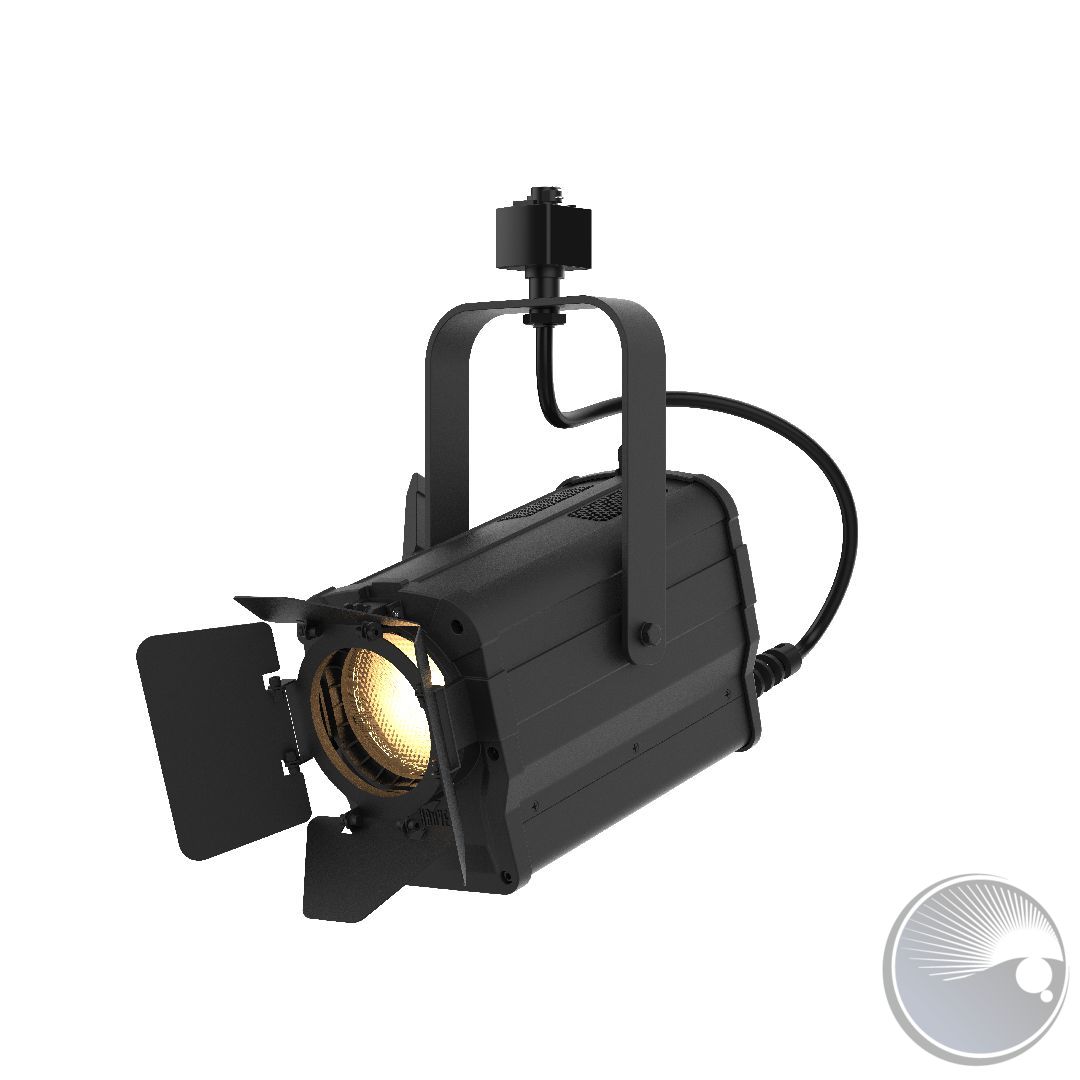

Ovation FTD-55WW is a track mounted, warm white LED (3-inch) inkie Fresnel-style fixture. This fixture projects a bright, beautifully soft field of light within a 20° – 75° field range controlled by a manual zoom allowing you to add light where needed. A barn door for the fixture is included to help shape the light and direct the light.



AT A GLANCE

  • Track-mountable and dimmable 3” LED Fresnel

  • Soft and even field of light

  • Virtually silent operation for use in any situation

  • Manually controlled variable zoom range between 20° to 75°

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3200 K
  • CRI: 91
  • Beam Angle: 18° to 56°
  • Field Angle: 30° to 69°
  • Zoom Range: 20° to 75°
  • Lumens (30°): 795
  • Lumens (69°): 1,920
  • Illuminance (30°) : 279 lux @ 5 m
  • Illuminance (69°): 100 lux @ 5 m

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Zoom: Manual

CONSTRUCTION / PHYSICAL

  • Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
  • Weight: 4 lb (1.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 3.26 in (83 mm)

CONNECTIONS

  • Power Connection: Track Type H
  • Cable Length (power): 1.5 ft (0.45 m)

CONTROL

  • Control Protocol: Dimmer

ELECTRICAL

  • Input Voltage: 120 VAC, 60 Hz
  • Input Voltage: 230 VAC, 50 Hz
  • Power and Current: 31 W, 0.257 A @ 120 V, 60 Hz
  • Power and Current: 30 W, 0.133 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation FTD-55WW
  • Track adaptor
  • Gel Frame
  • Barn Doors

REQUIRED ACCESSORIES

  • Global Track (110v Version), EUTRAC (220v Version)

OPTIONAL ACCESSORIES

  • Color Blending Filters: DF60X1D, DF20D

ORDERING INFO

  • Item Code: (120 V): 03031438; (230 V): 03031439
Weiterführende Links zu "Ovation FTD-55WW"

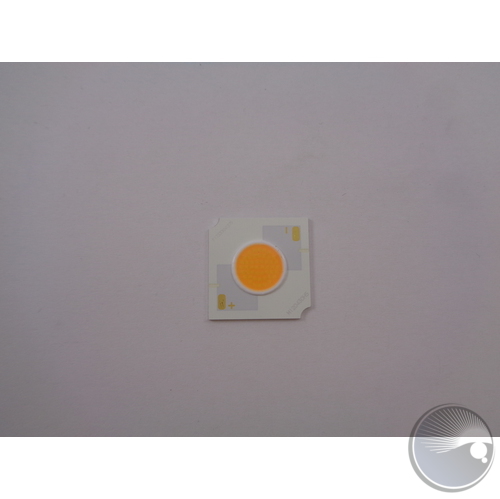

LED (BOM#15)PTJ3010500213LED (BOM#15)
PTJ3020100373ASPHERIC SURFACE LENS (BOM#12)
PTJ3020100383FRESNEL LENS (BOM#7)

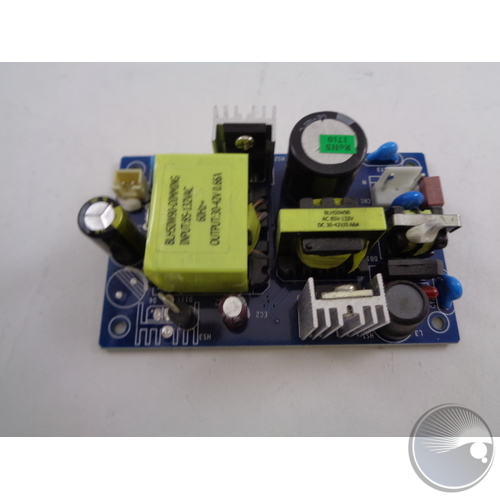

POWER SUPPLY (BOM#29)PTJ3020400267POWER SUPPLY (BOM#29)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3021200023RUBBER LOOP (BOM#17)
PTJ3021200029ASPHERIC RING (BOM#11)
SPRING  (BOM#3)PTJ3021600100ASPRING (BOM#3)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
PTJ3021700883BRAKET ADJUSTMENT KNOB (BOM#50)
PTJ3021700890SCREW INSIDE HANGING BRACKET (BOM#48)
PTJ3022000005IP CONNETOR (BOM#33)
PTJ3022100052PLASTIC PANEL (BOM#28)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100211AXLE COVER (BOM#22)
PTJ3030100212PILLAR (BOM#47)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)

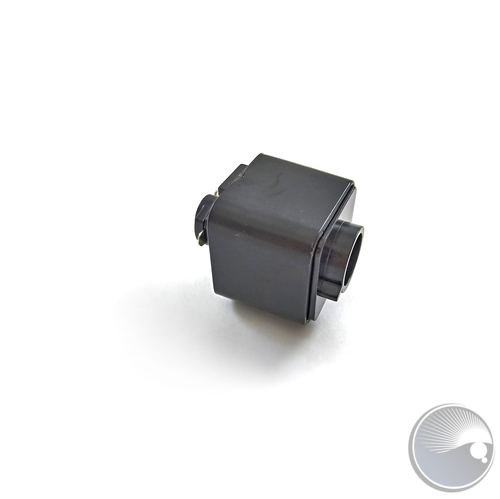

TRACK ADAPTOR (BOM#38)PTJ3030600019TRACK ADAPTOR (BOM#38)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600025FOCUSING LEVER (BOM#20)
PTJ3030600026AFOUR-HEAD SCREW FIXATION (BOM#18)
SAFETY PIN (BOM#4)PTJ3030800005SAFETY PIN (BOM#4)
PTJ3030900006ROTARY KNOB A1 (BOM#26)

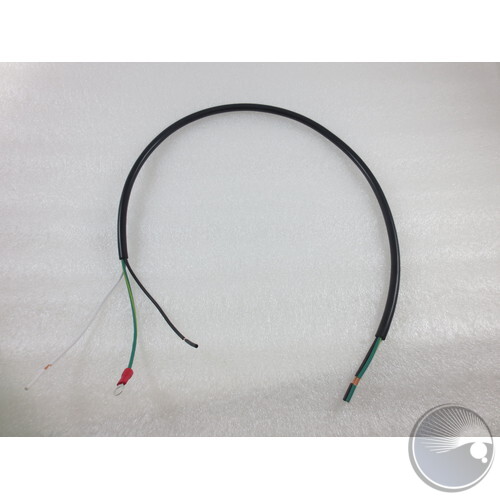

PTJ3040700484POWER CABLE (BOM#34)
PTJ3080100132LED COVER (BOM#16)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010303646FRONT PANEL (BOM#8)
PTJ4010303651HOUSING BASE (BOM#27)
PTJ4010303652PLATE FOR ASPHERIC SURFACE LENS (BOM#13)
PTJ4010303653ASPHERIC HODER (BOM#10)
PTJ4010303654SCREW FIXATION PLATE 1 (BOM#18)
PTJ4010303655SCREW FIXATION PLATE 2 (BOM#23)
PTJ4010303656HEAT SINK HOLDER (BOM#9)
GEL FRAME (BOM#5)PTJ4010303657GEL FRAME (BOM#5)
PTJ4010303658HEAT SINK (BOM#28)
PTJ4010303863BRACKET (BOM#37)
PTJ4010401990REAR (BOM#30)
PTJ4020200360FRONT COVER (BOM#6)
PTJ4020200361REAR (BOM#38)
LOCK (BOM#1)PTJ4020200362LOCK (BOM#1)
PTJ6010100012TOP COVER ASSEMBLY (BOM#35-36)
