Ovation F-145WW

1.023,40 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF145WW
Ovation  F-145WW Ovation F -145WW delivers a beautifully soft and flat field of warm... mehr
Produktinformationen "Ovation F-145WW"

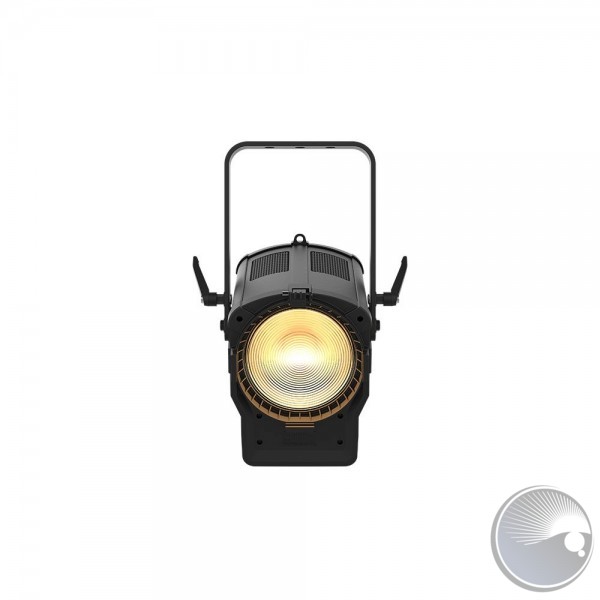

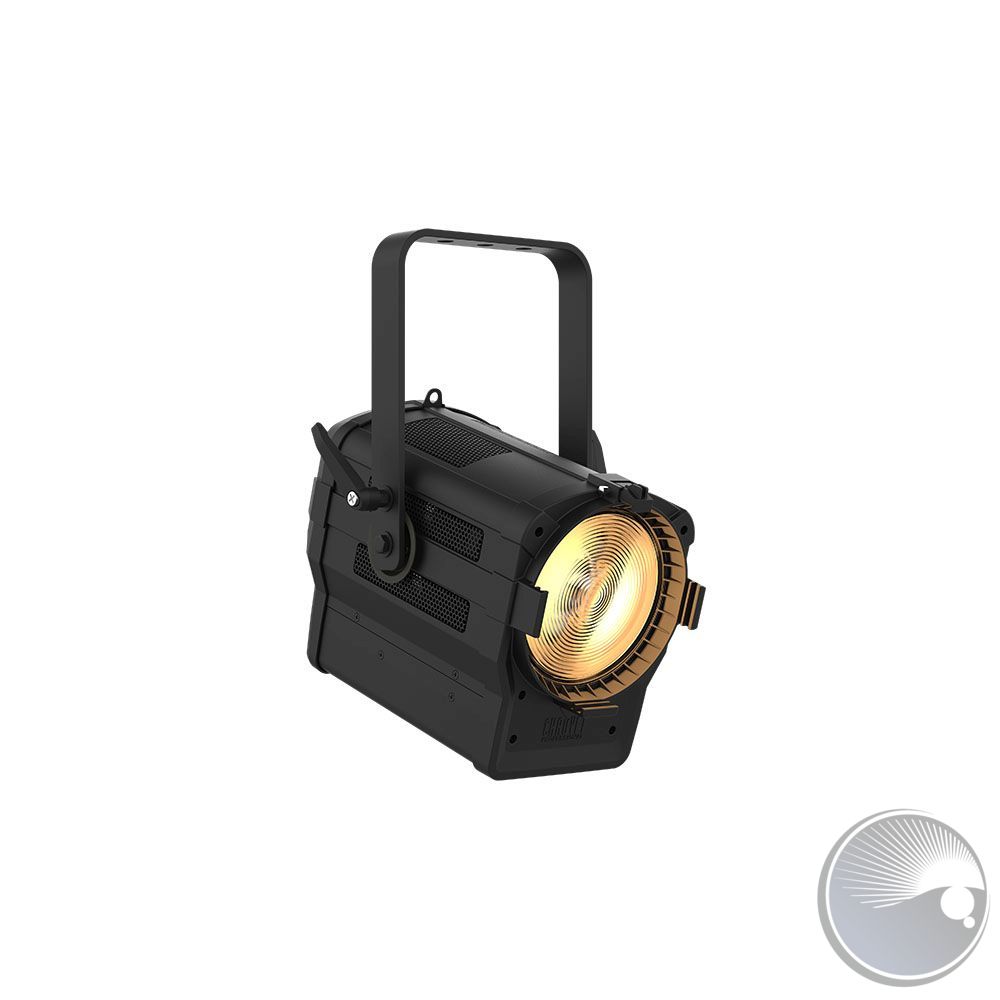

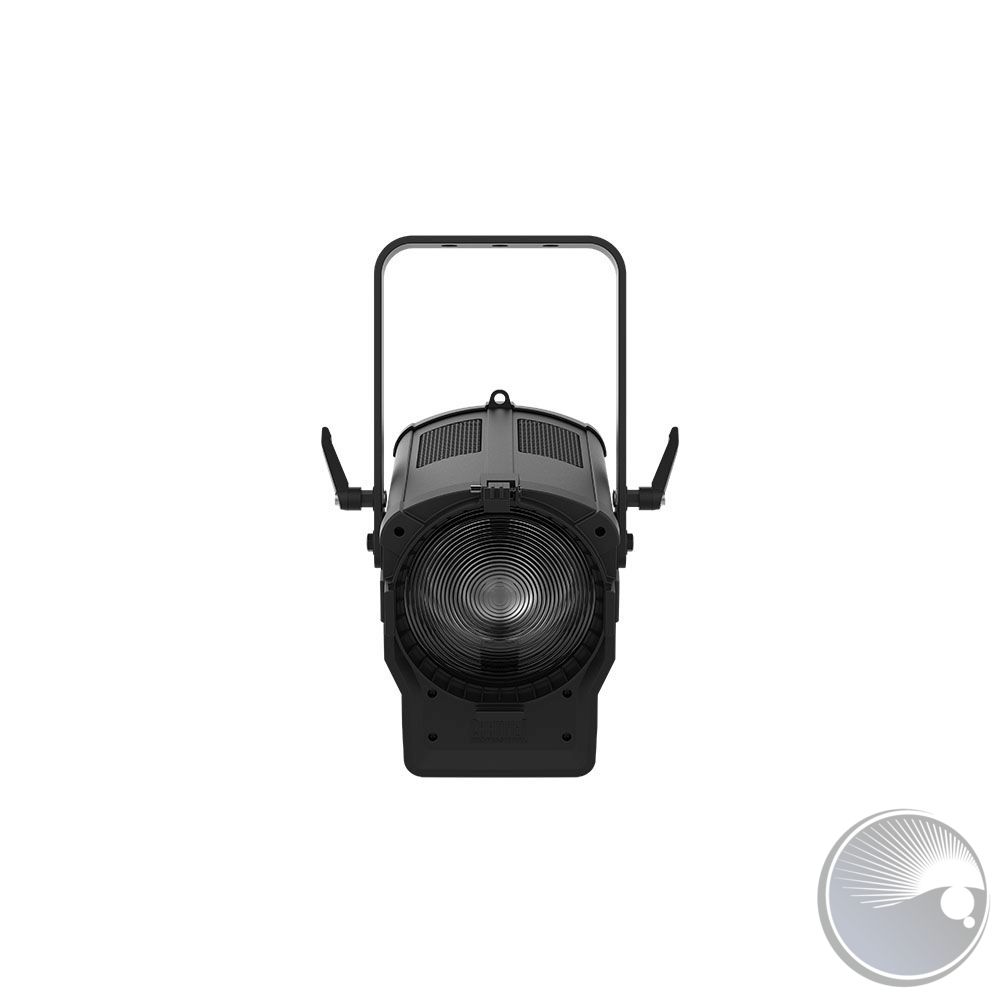

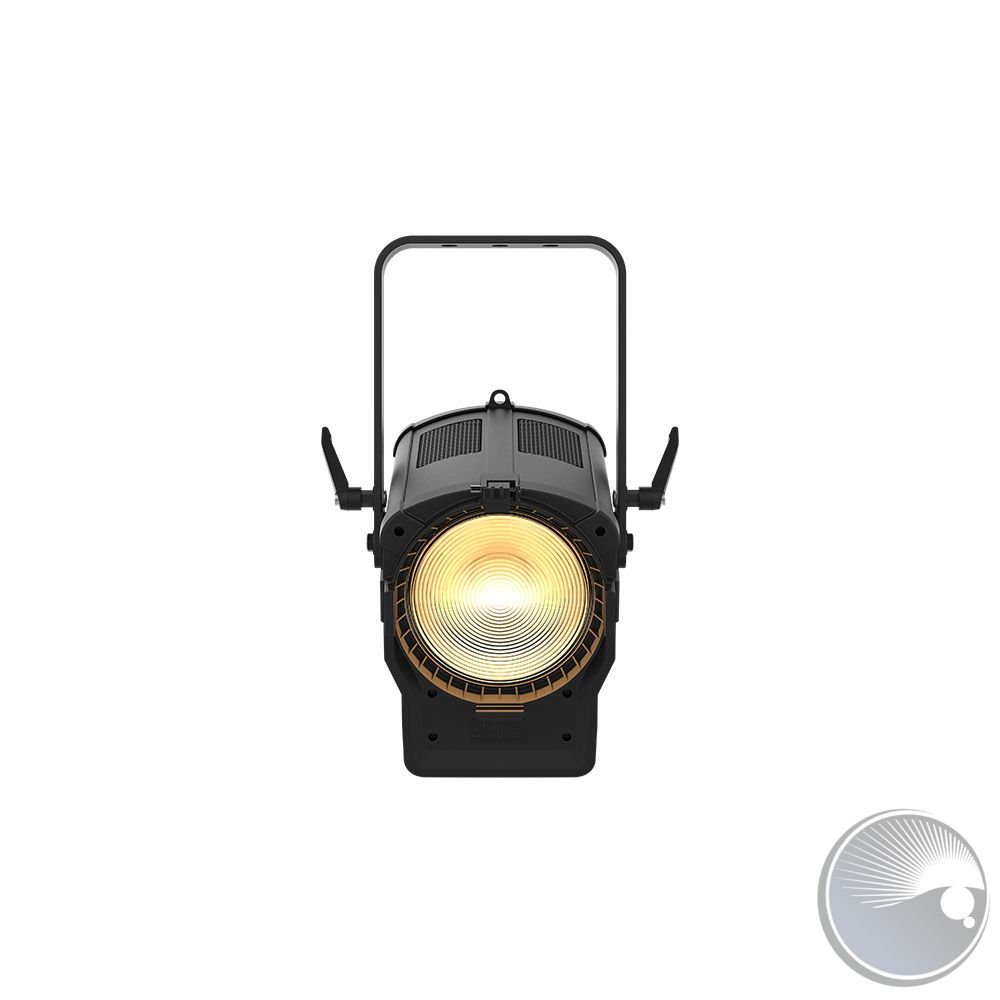

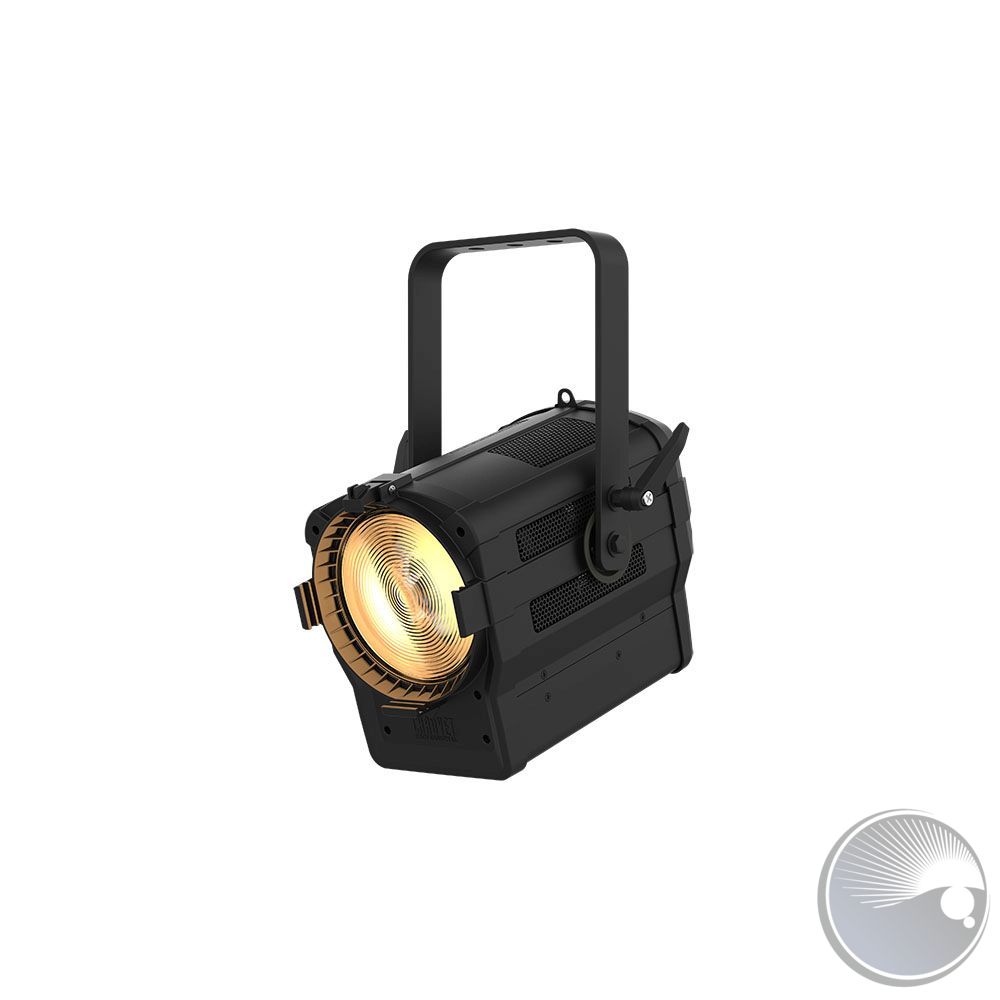

Ovation F-145WW

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.



AT A GLANCE

  • Warm white Fresnel with output comparable to a 6”, 650 W Fresnel

  • Soft and even field of light

  • 16-bit dimming resolution for smooth fades

  • Virtually silent operation for use in any situation

  • Motorized zoom range between 16° to 65°, manually or via DMX

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3096 K
  • CRI: 97
  • Beam Angle: 16° to 48°
  • Field Angle: 25° to 65°
  • Zoom Range: 16° to 65°
  • Lumens (25°): 2,787
  • Lumens (65°): 4,266
  • Illuminance (25°): 1,290 lux @ 5 m
  • Illuminance (65°): 252 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
  • Weight: 11 lb (5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

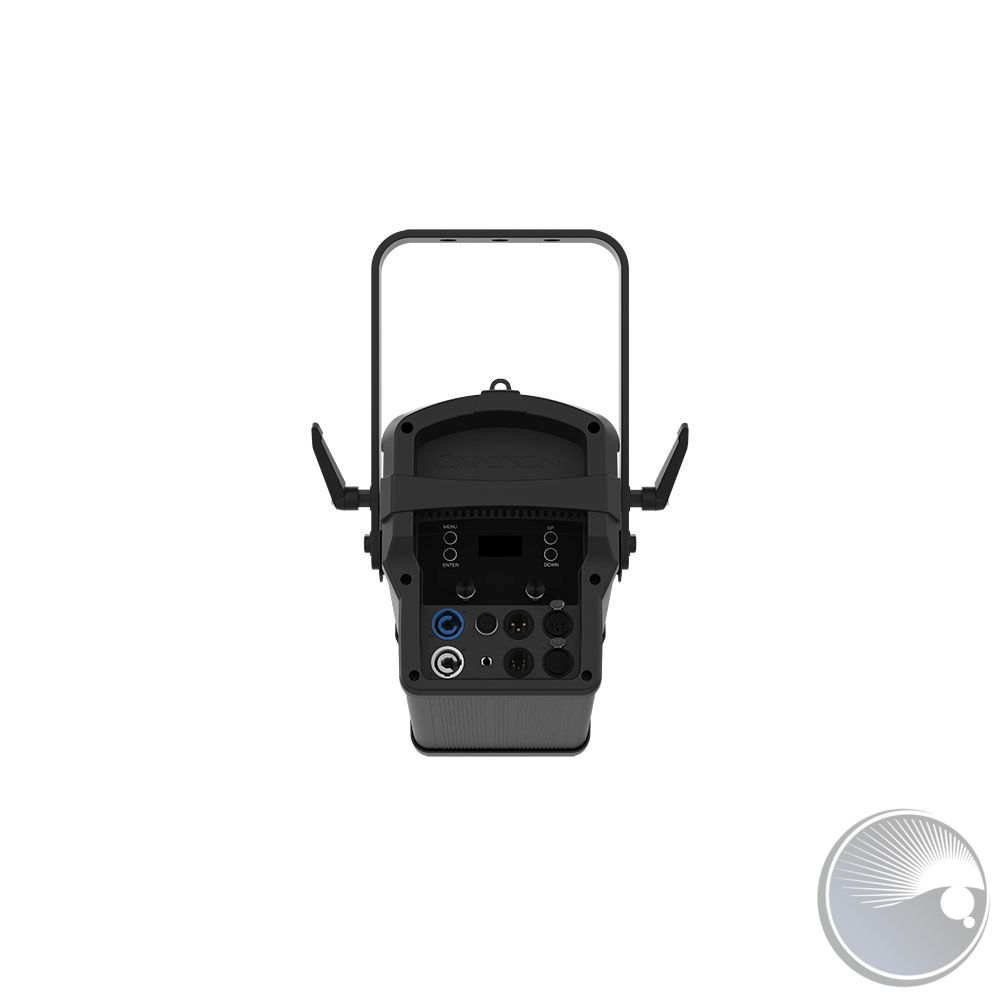

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 19 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
  • Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
  • Power and Current: 81 W, 0.40 A @ 208 V, 60 Hz
  • Power and Current: 81 W, 0.36 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation F-145WW
  • Neutrik powerCON power cord
  • Gel Frame

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031464
Weiterführende Links zu "Ovation F-145WW"

2AMPGMAFUSE 2 AMP 250V (BOM#16)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)
THERMAL SWITCHES (BOM#14)PTJ2020200739THERMAL SWITCHES (BOM#14)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

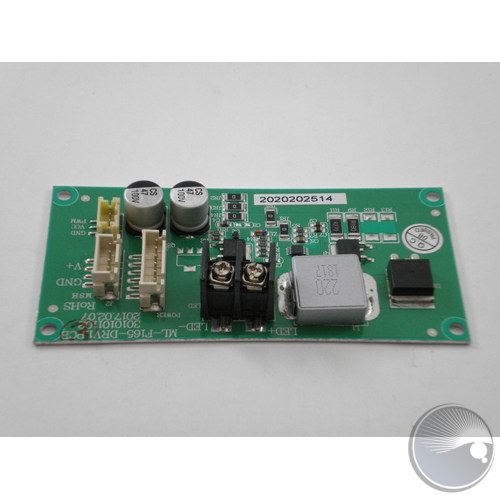

DRIVER PCB (BOM#39)PTJ2020202514DRIVER PCB (BOM#39)
PTJ2020202527MPCB (BOM#45)
LED (BOM#18)PTJ3010500260LED (BOM#18)
PTJ3020100372ATHREAD LENS (BOM#7)
PTJ3020100373ASPHERIC SURFACE LENS (BOM#12)
PTJ3020300267FILTER (BOM#4)

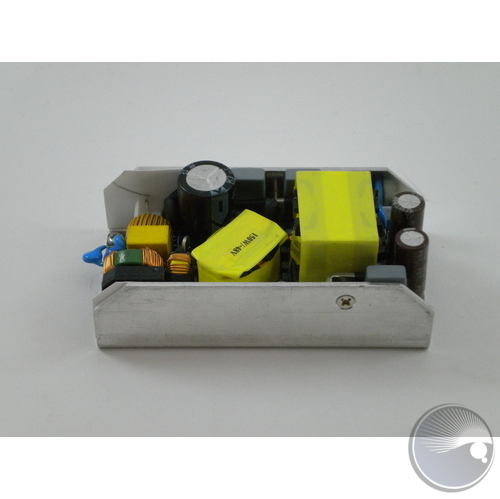

POWER SUPPLY (BOM#69)PTJ3020400287POWER SUPPLY (BOM#69)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3020600053SYNCHRONOUS BELT (BOM#39)
PTJ3020900025FAN GUARD (BOM#5)
PTJ3020900088DC FAN
PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100028PIPE (BOM#10)
PTJ3021200029ASPHERIC RING (BOM#11)
SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PTJ3021700429LOCK NUT (BOM#69)
RING (BOM#11)PTJ3021700452RING (BOM#11)
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021701046FOAM FOR THREAD LENS (BOM#8)
PTJ3021701047STICKER USE ON PIPE (BOM#11)
MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)
LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
PTJ3030100216PILLAR (BOM#9)
PTJ3030100268STAND OFF (BOM#21)
PTJ3030100269BEARING COVER (BOM#67)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600042SCREW FIXATION (BOM#66)
PTJ3030600043FOCUSING LEVER (BOM#68)
SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3050601337QRG (BOM#73)
PTJ3050802633DISPLAY STICKER (BOM#43)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
ASPHERIC SURFACE LENS HOLDER (BOM#18)PTJ4010303429ASPHERIC SURFACE LENS HOLDER (BOM#18)
PTJ4010304180SHADOW SHIELD FOR REAR (BOM#28)
PTJ4010304181DRIVER HOLDER (BOM#31)
PTJ4010304182FRONT PANEL (BOM#9)
PTJ4010304183HOUSING (BOM#55)
PTJ4010304184SIDE PANEL 1 (BOM#27)
PTJ4010304185SIDE PANEL 2 (BOM#54)
PTJ4010304186TOP COVER (BOM#29)
PTJ4010304187HANGING BRACKET (BOM#70)
PTJ4010304188VENTILATE NET 1 (BOM#76)
PTJ4010304189VENTILATE NET 2 (BOM#73)
PTJ4010304190BEARING COVER HOLDER 1 (BOM#55)
PTJ4010304191BEARING COVER HOLDER 2 (BOM#51)
PTJ4010304192SCREW FIXATION PLATE 1 (BOM#71)
PTJ4010304193ASCREW FIXATION PLATE 2 (BOM#59)
PTJ4010304194ABOTTOM PLATE (BOM#70)
PTJ4010304195CONNECTER PANEL (BOM#23)
PTJ4010304196FAN HOLDER (BOM#26)
PTJ4010304197HEAT SINK HOLDER (BOM#19)
PTJ4010304198HEAT SINK (BOM#20)
PTJ4010402106ALUMINIUM PLATE FOR THE REAR (BOM#32)
PTJ4020100106LED STAND (BOM#8)
LOCK (BOM#1)PTJ4020100174LOCK (BOM#1)
FRONT COVER (BOM#2)PTJ4020100294FRONT COVER (BOM#2)
PTJ4020100295BACK COVER (BOM#33)
UPLOAD03PTJUPLOAD03UPLOAD03
