Ovation F-415FC

1.570,80 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF415FC
Ovation  F-415FC Ovation F -415FC is a 6” Fresnel style fixture that features our... mehr
Produktinformationen "Ovation F-415FC"

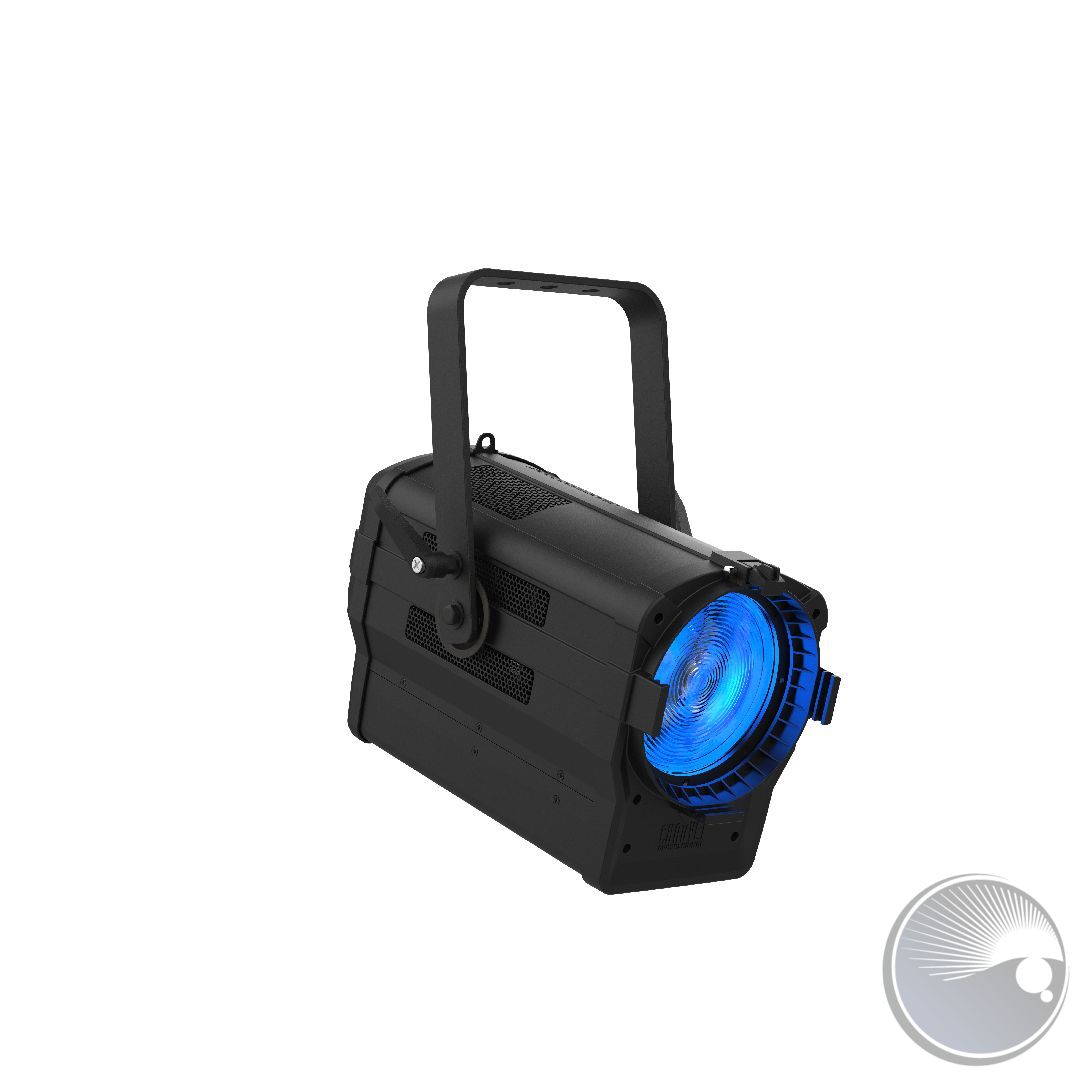

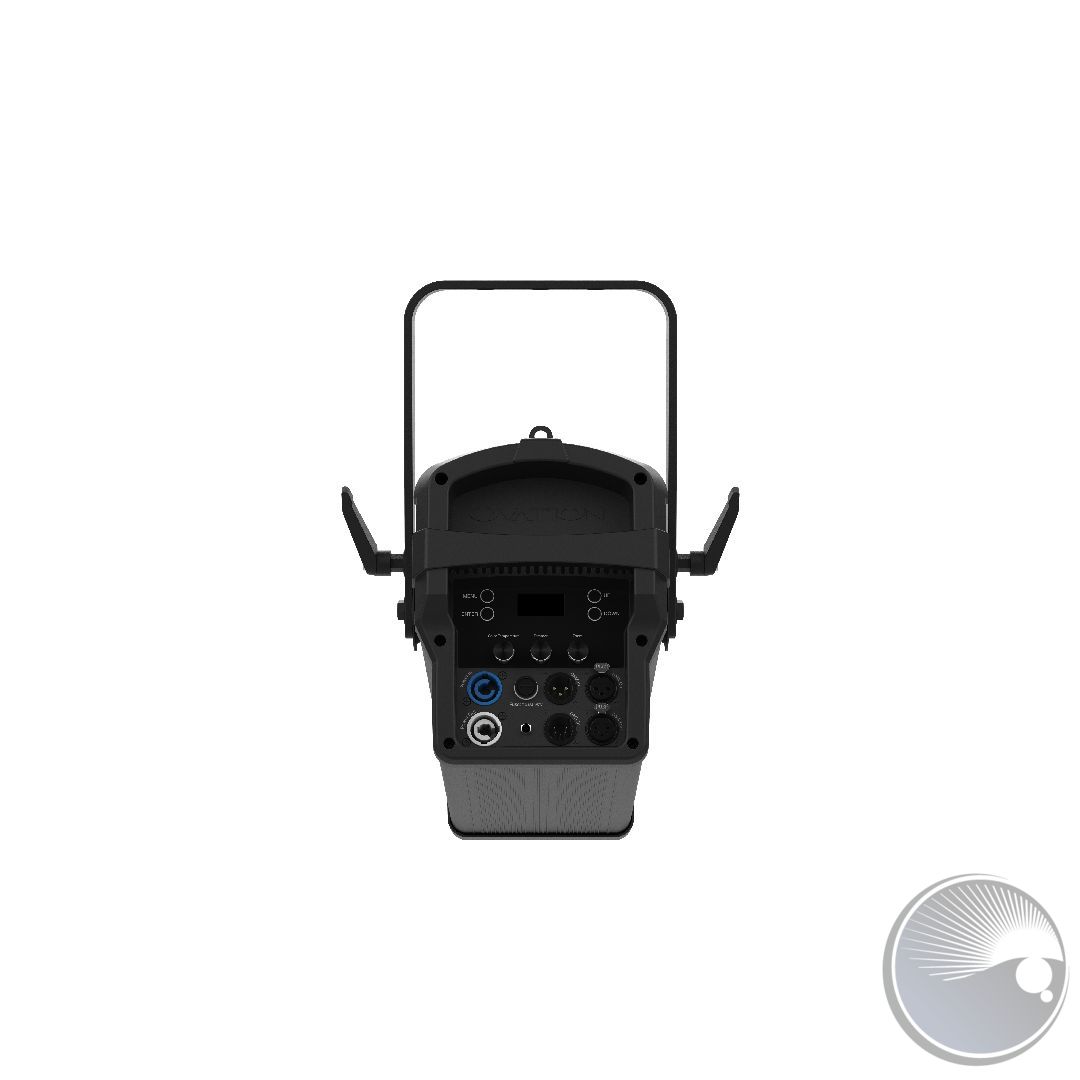

Ovation F-415FC

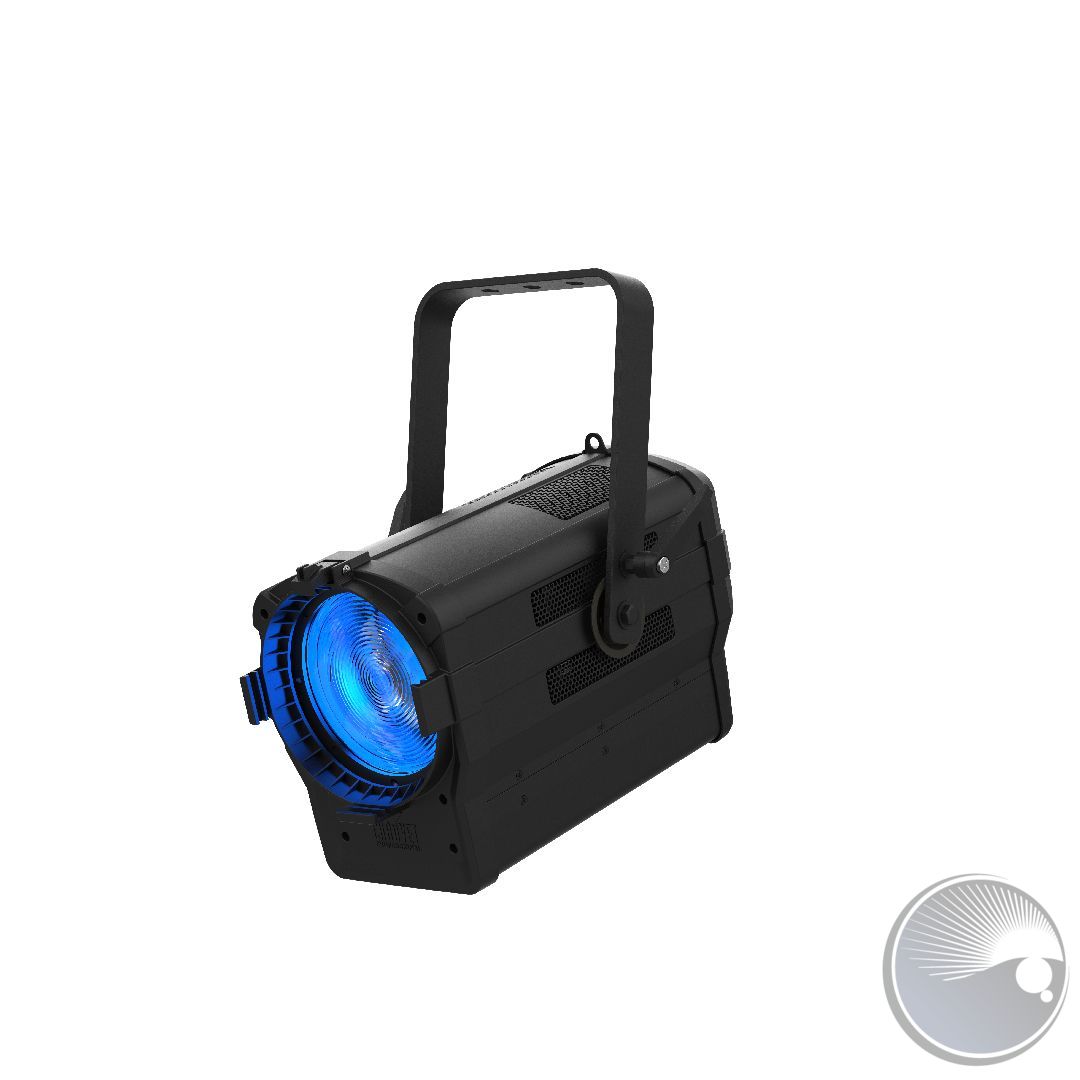

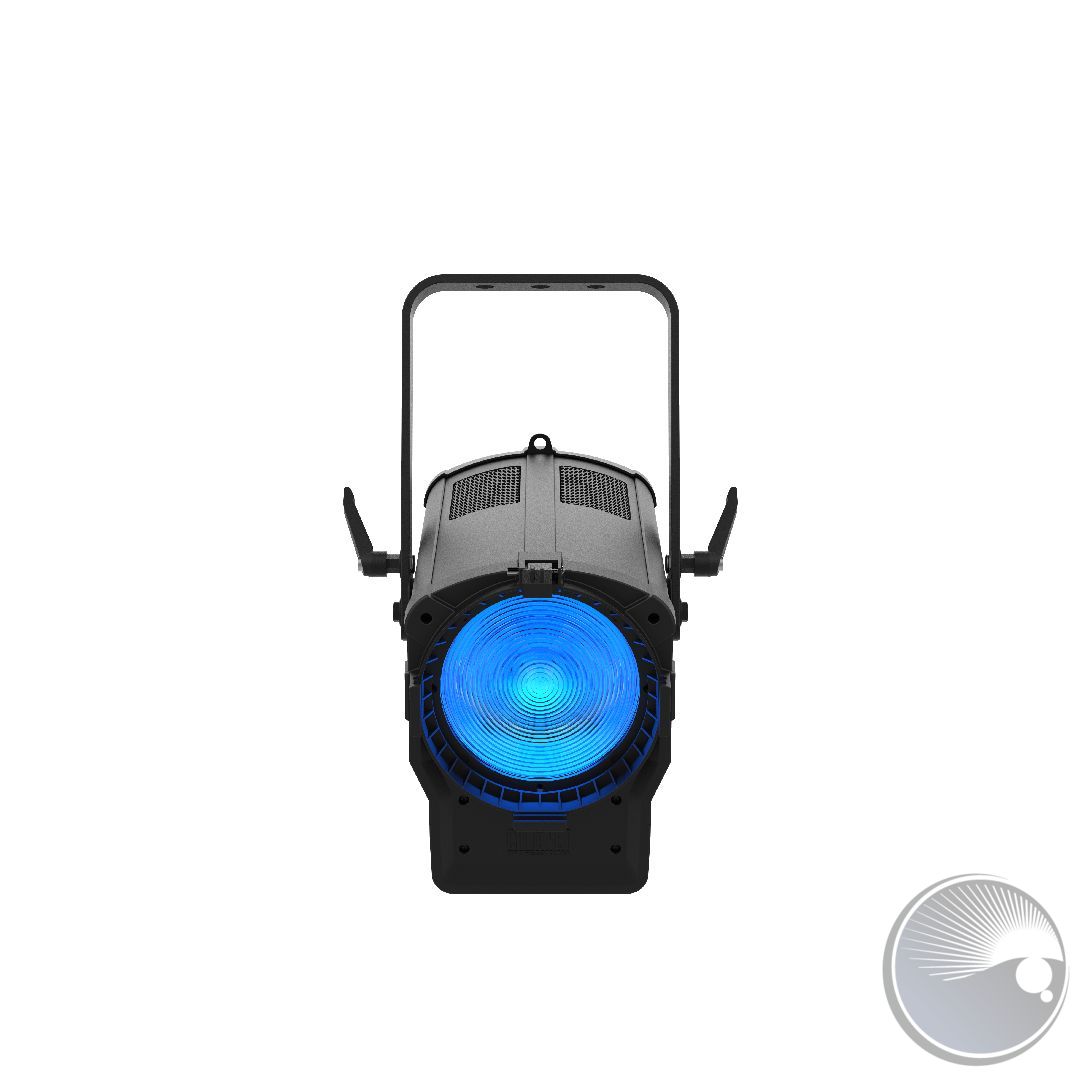

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

AT A GLANCE

  • Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 14° to 68°

  • Beautiful 16-bit dimming of master dimmer and individual colors

  • Easy to use on board control of color, zoom and dimming

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 6500 K
  • CRI (3200 K): 91
  • Beam Angle: 14° to 43°
  • Field Angle: 27° to 68°
  • Zoom Range: 14° to 68°
  • Lumens (27°): 1,877
    (68°): 2,815
  • Illuminance (27°): 915 lux @ 5 m
    (68°): 190 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
  • Weight: 12 lb (5.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
  • Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V
  • Power and Current: 124 W, 1.027 A @ 120 V, 60 Hz
  • Power and Current: 124 W, 0.608 A @ 208 V, 60 Hz
  • Power and Current: 126 W, 0.546 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation F-415FC
  • Neutrik® powerCON® power cord
  • Gel frame (6.25 in / 158.75 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031482
Weiterführende Links zu "Ovation F-415FC"

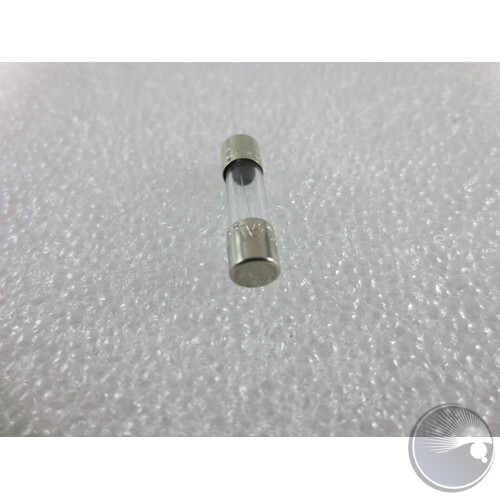

2AMPGMAFUSE 2 AMP 250V (BOM#16)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)

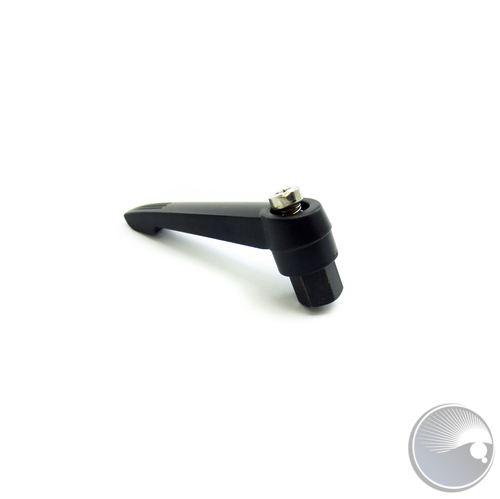

M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)

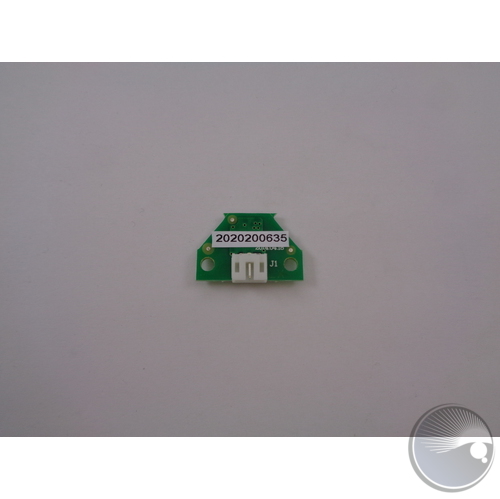

HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)

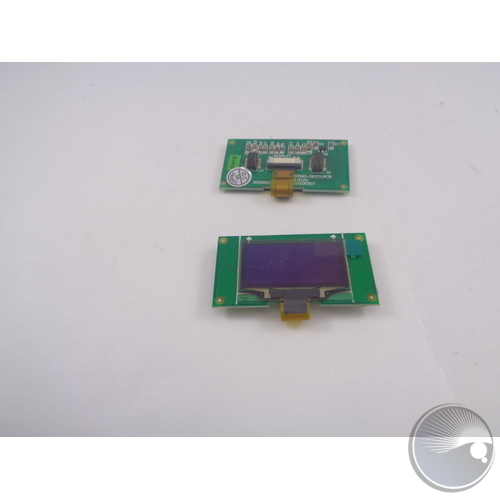

DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

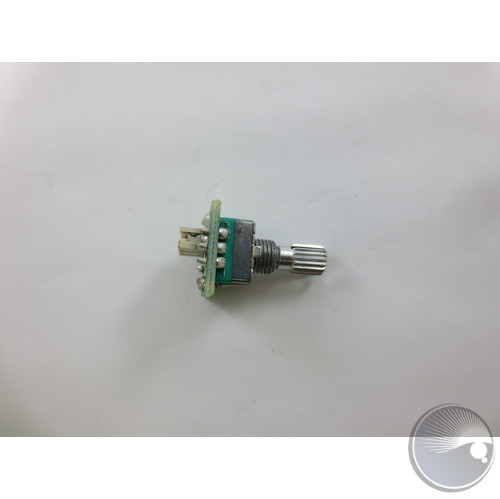

POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

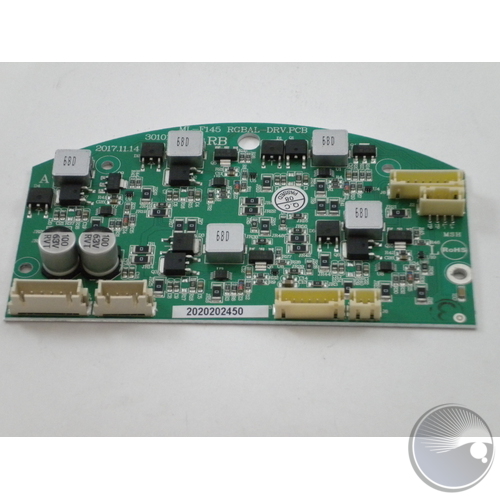

DRIVER PCB (BOM#30)PTJ2020202450DRIVER PCB (BOM#30)

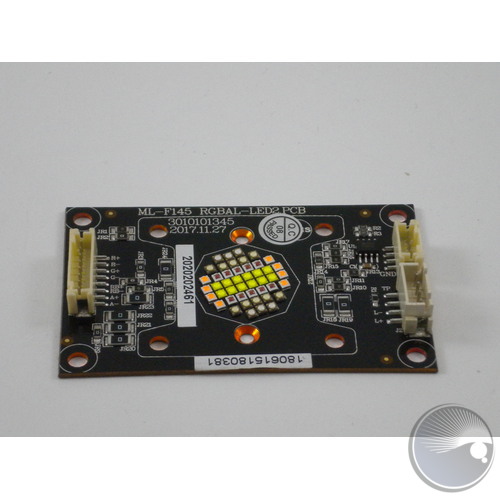

LED PCB (BOM#22)PTJ2020202461LED PCB (BOM#22)

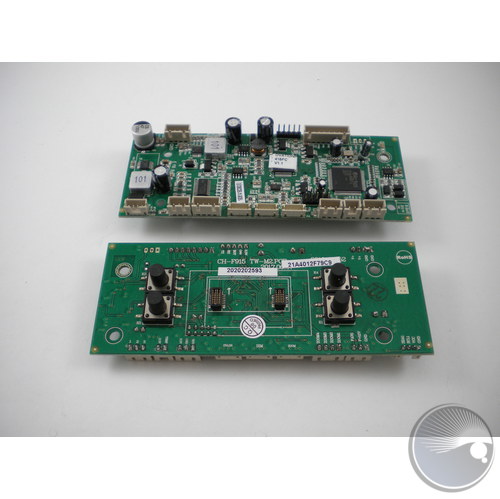

MPCB (BOM#29)PTJ2020202593MPCB (BOM#29)

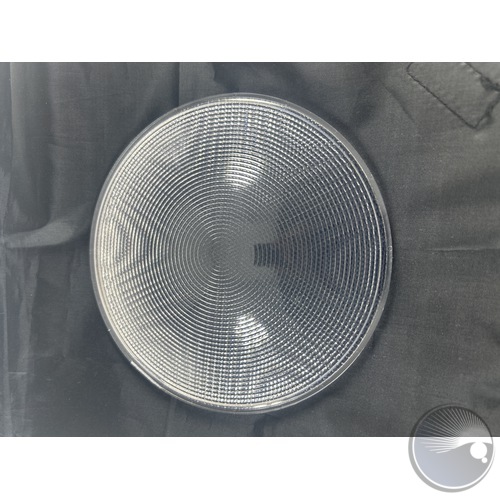

PTJ3020100372ATHREAD LENS (BOM#7)
PTJ3020200328MIRROR (BOM#19)
PTJ3020200329SPHERICAL CONDENSE (BOM#16)
PTJ3020300363FILTER (BOM#17)

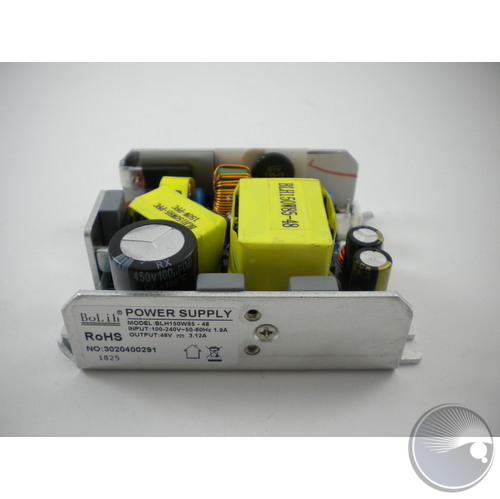

POWER SUPPLY (BOM#57)PTJ3020400291POWER SUPPLY (BOM#57)

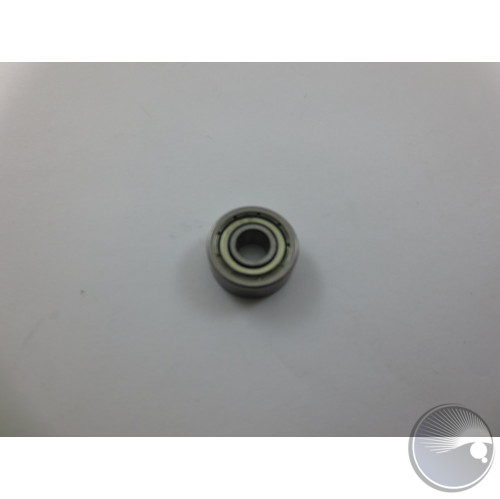

BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)

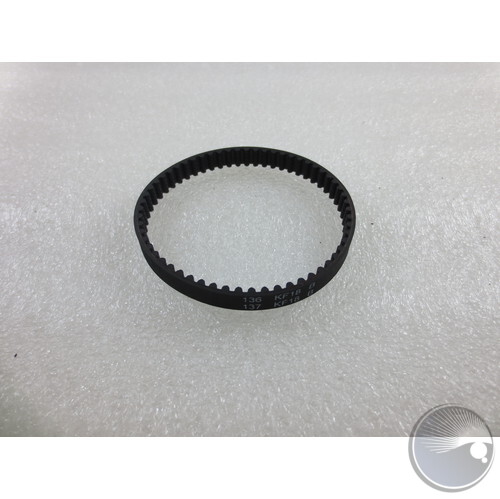

PTJ3020600053SYNCHRONOUS BELT (BOM#39)

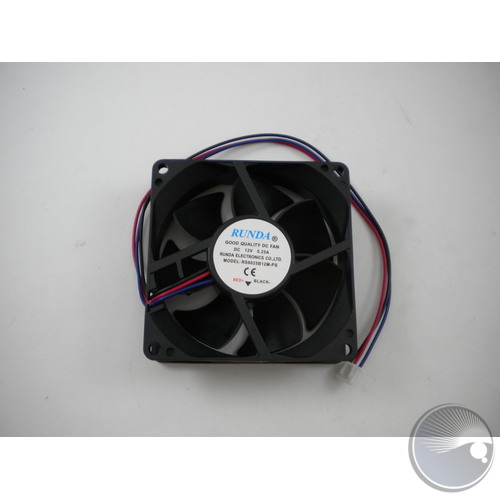

DC FAN (BOM#4)PTJ3020900020ADC FAN (BOM#4)
PTJ3020900025FAN GUARD (BOM#5)

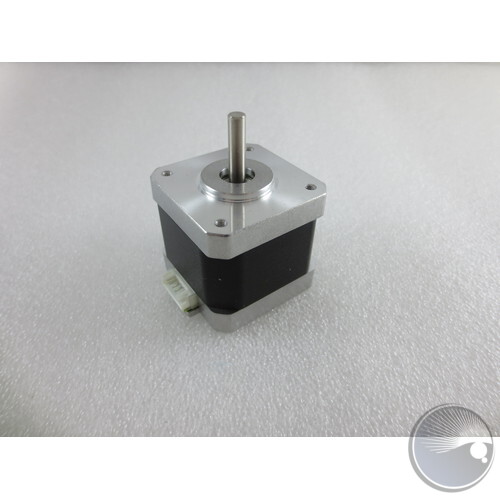

PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100028PIPE (BOM#10)

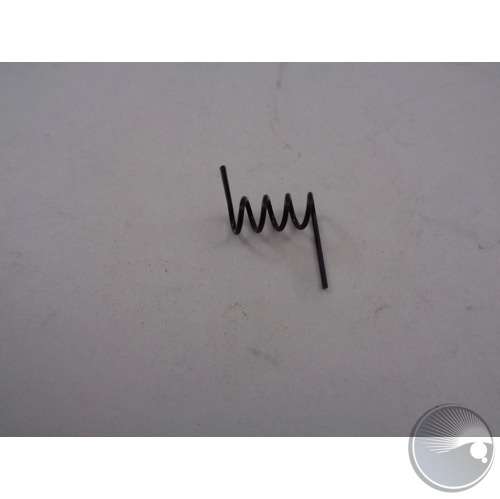

SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)

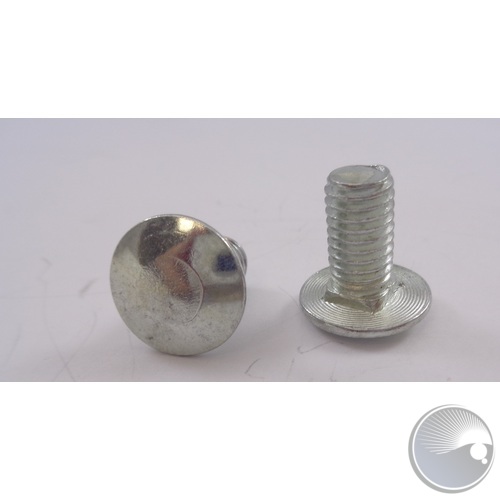

SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PTJ3021700429LOCK NUT (BOM#69)

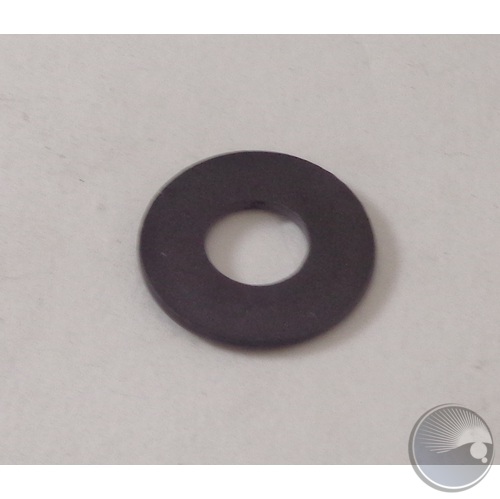

RING (BOM#11)PTJ3021700452RING (BOM#11)

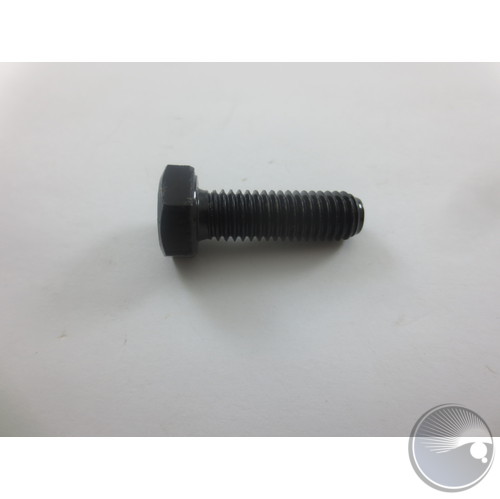

HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021701046FOAM FOR THREAD LENS (BOM#8)
PTJ3021701047STICKER USE ON PIPE (BOM#11)
PTJ3021701060SHADOW SHIELD STICKER (BOM#13)
PTJ3022100061PLASTIC PANEL (BOM#21)

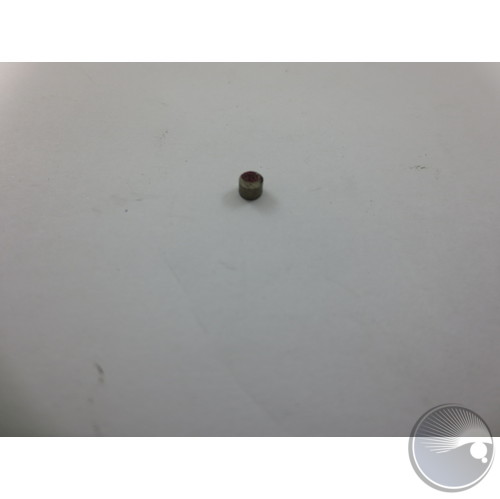

MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)

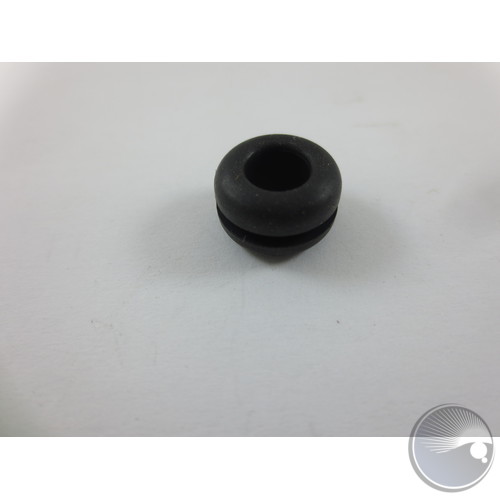

LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
PTJ3030100216PILLAR (BOM#9)
PTJ3030100273HEAT SINK STAND (BOM#20)
PTJ3030100274STAND OFF (BOM#24)
PTJ3030100275BEARING COVER (BOM#15)

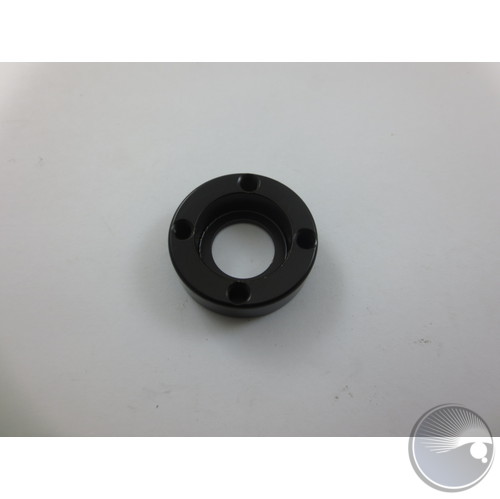

FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)

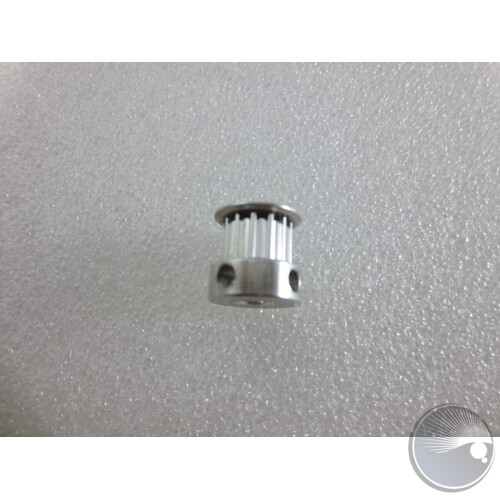

PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600044SCREW FIXATION (BOM#56)
PTJ3030600045FOCUSING LEVER (BOM#62)

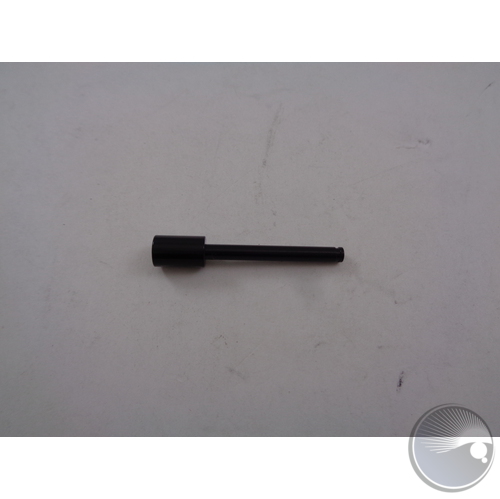

SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)

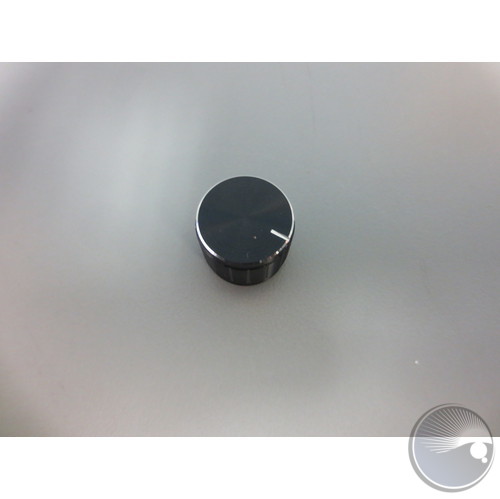

PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3050601353AQRG (BOM#78)
PTJ3050802677DISPLAY STICKER (BOM#35)
PTJ4010103958LIGHT TUBE (BOM#18)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)

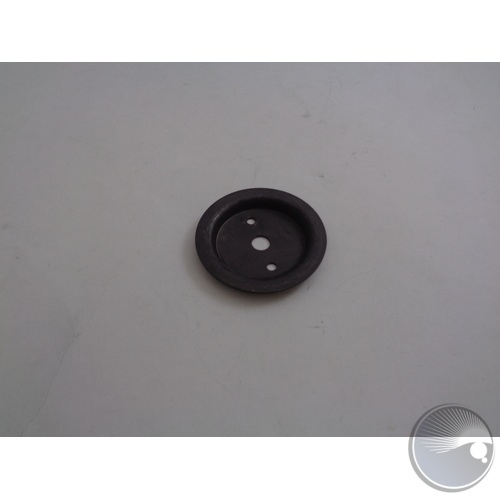

SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010304180SHADOW SHIELD FOR REAR (BOM#28)
PTJ4010304181DRIVER HOLDER (BOM#31)
PTJ4010304182FRONT PANEL (BOM#9)

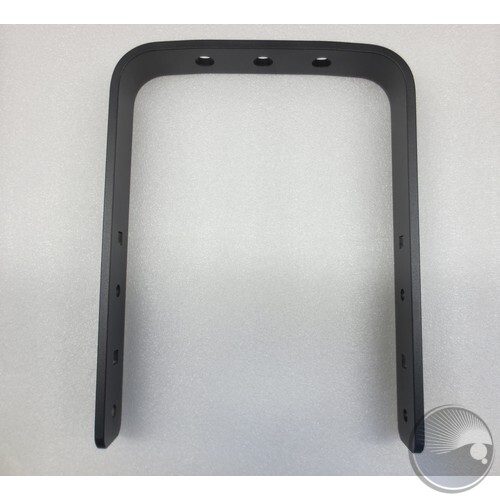

PTJ4010304187HANGING BRACKET (BOM#70)
PTJ4010304188VENTILATE NET 1 (BOM#76)
PTJ4010304189VENTILATE NET 2 (BOM#73)
PTJ4010304190BEARING COVER HOLDER 1 (BOM#55)
PTJ4010304191BEARING COVER HOLDER 2 (BOM#51)
PTJ4010304192ASCREW FIXATION PLATE 1 (BOM#61)
PTJ4010304193BSCREW FIXATION PLATE 2 (BOM#48)
PTJ4010304196FAN HOLDER (BOM#26)
PTJ4010304257SIDE PANEL 1 (BOM#72)
PTJ4010304258SIDE PANEL 2 (BOM#75)
PTJ4010304259TOP COVER (BOM#74)
PTJ4010304260ACONNECTER PANEL (BOM#53)
PTJ4010304261BBOTTOM PLATE (BOM#58)
PTJ4010304262HEAT SINK HOLDER (BOM#14)
PTJ4010304263HEAT SINK (BOM#23)
PTJ4010304264SHADOW SHIELD (BOM#12)
PTJ4010304265HEAT SINK PLATE (BOM#52)
PTJ4010304266HOUSING (BOM#77)
PTJ4010402106ALUMINIUM PLATE FOR THE REAR (BOM#32)

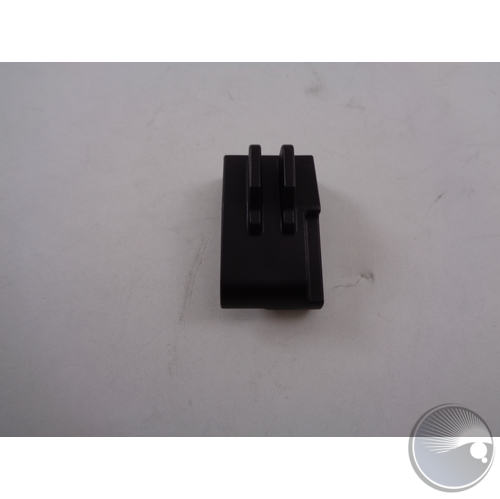

LOCK (BOM#1)PTJ4020100174LOCK (BOM#1)
FRONT COVER (BOM#2)PTJ4020100294FRONT COVER (BOM#2)
PTJ4020100295BACK COVER (BOM#33)
UPLOAD03PTJUPLOAD03UPLOAD03
