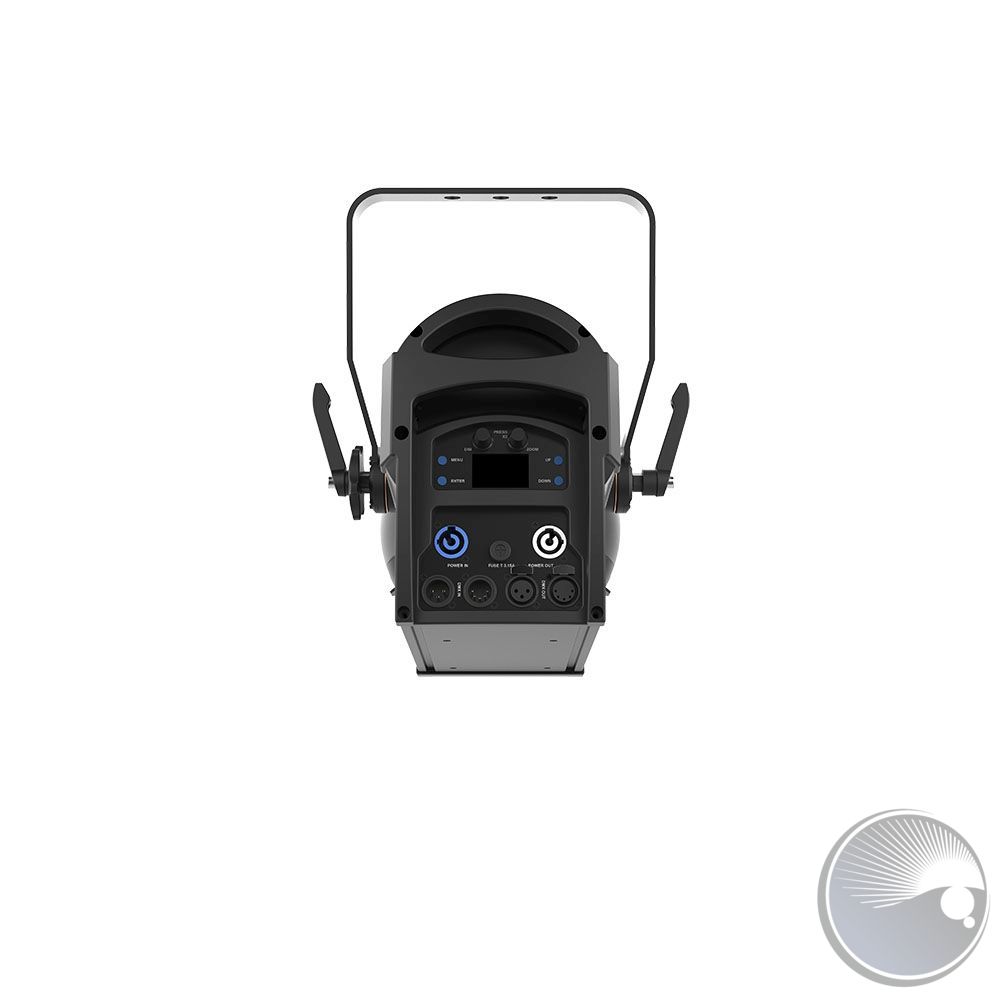

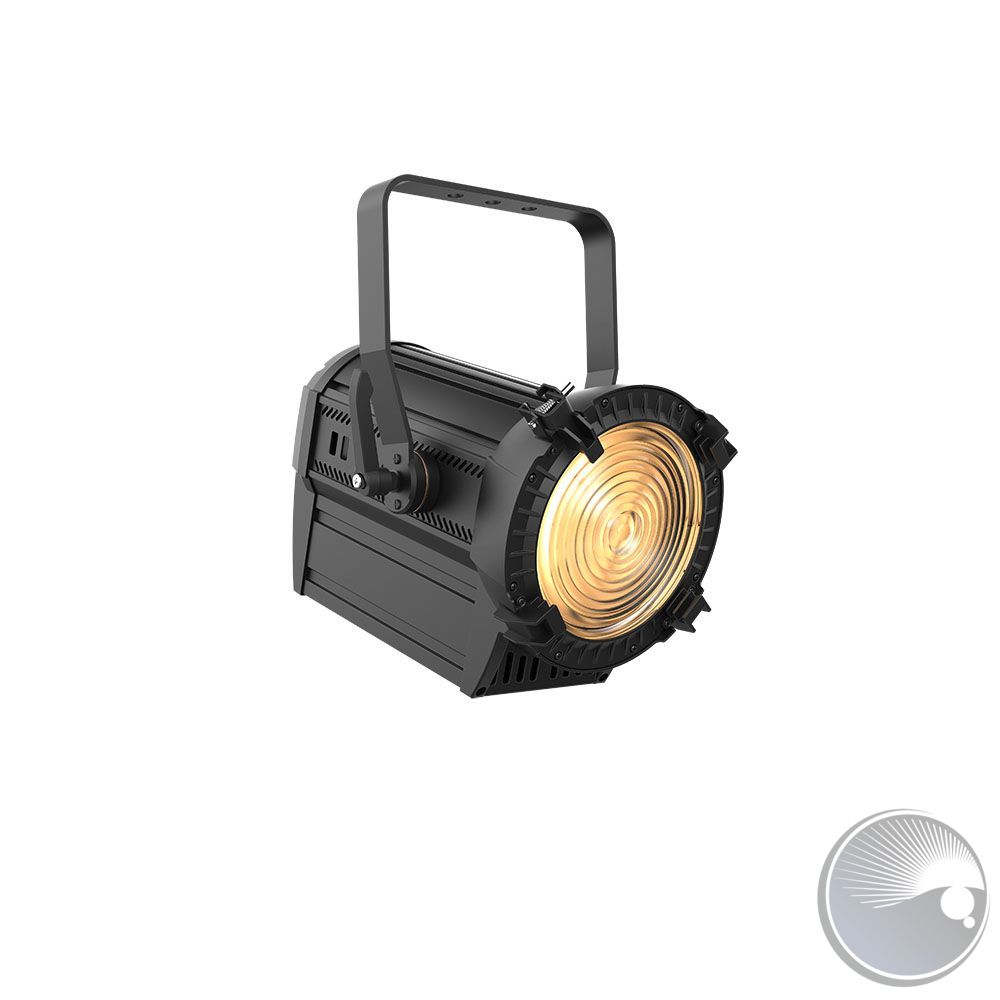

Ovation FD-205WW

1.654,10 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONFD205WW
Ovation  FD-205WW Ovation F D-205WW is a powerful LED Fresnel wash utilizing data and... mehr
Produktinformationen "Ovation FD-205WW"

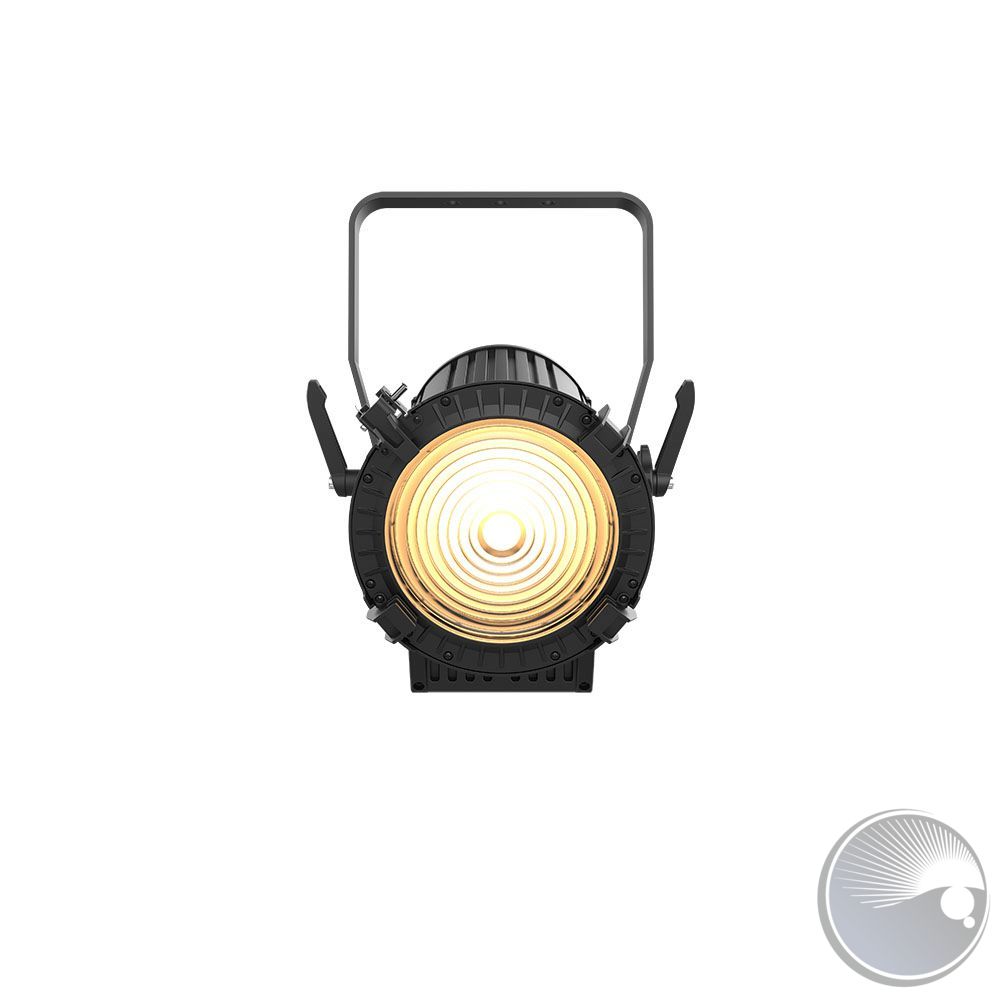

Ovation FD-205WW

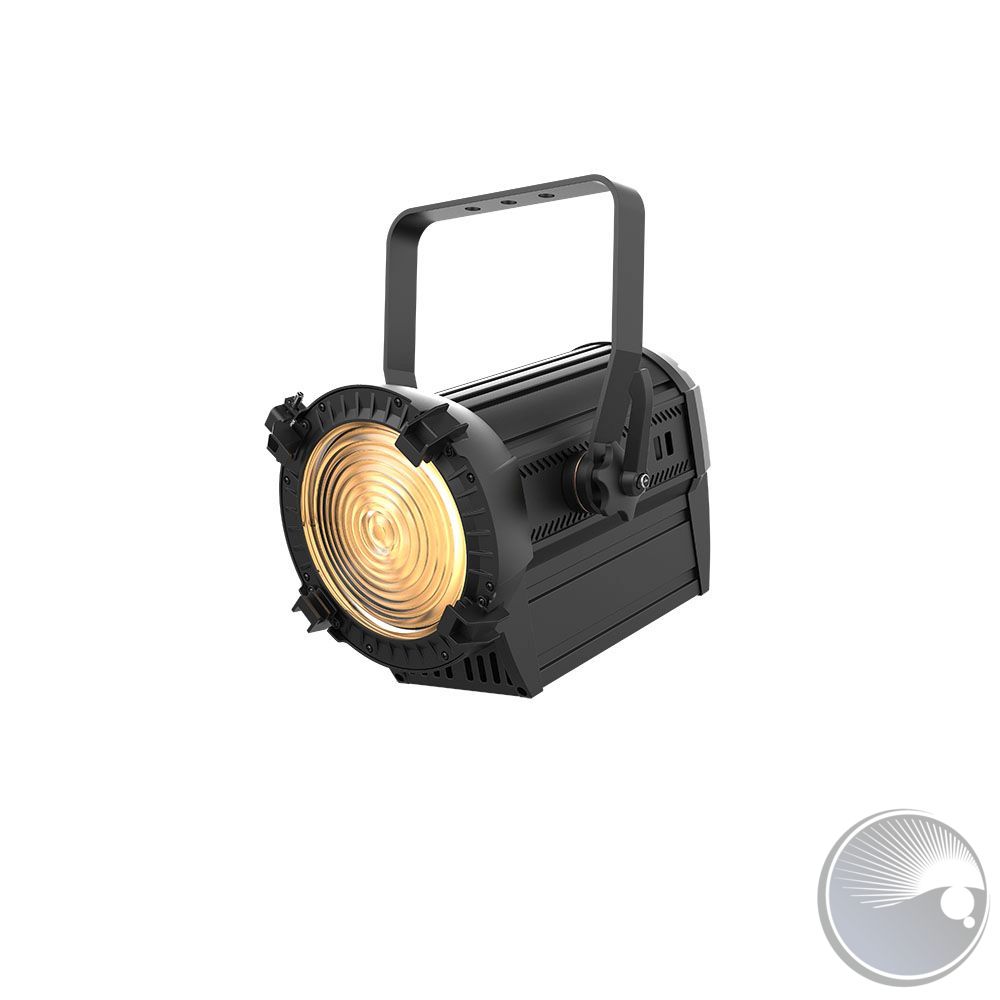

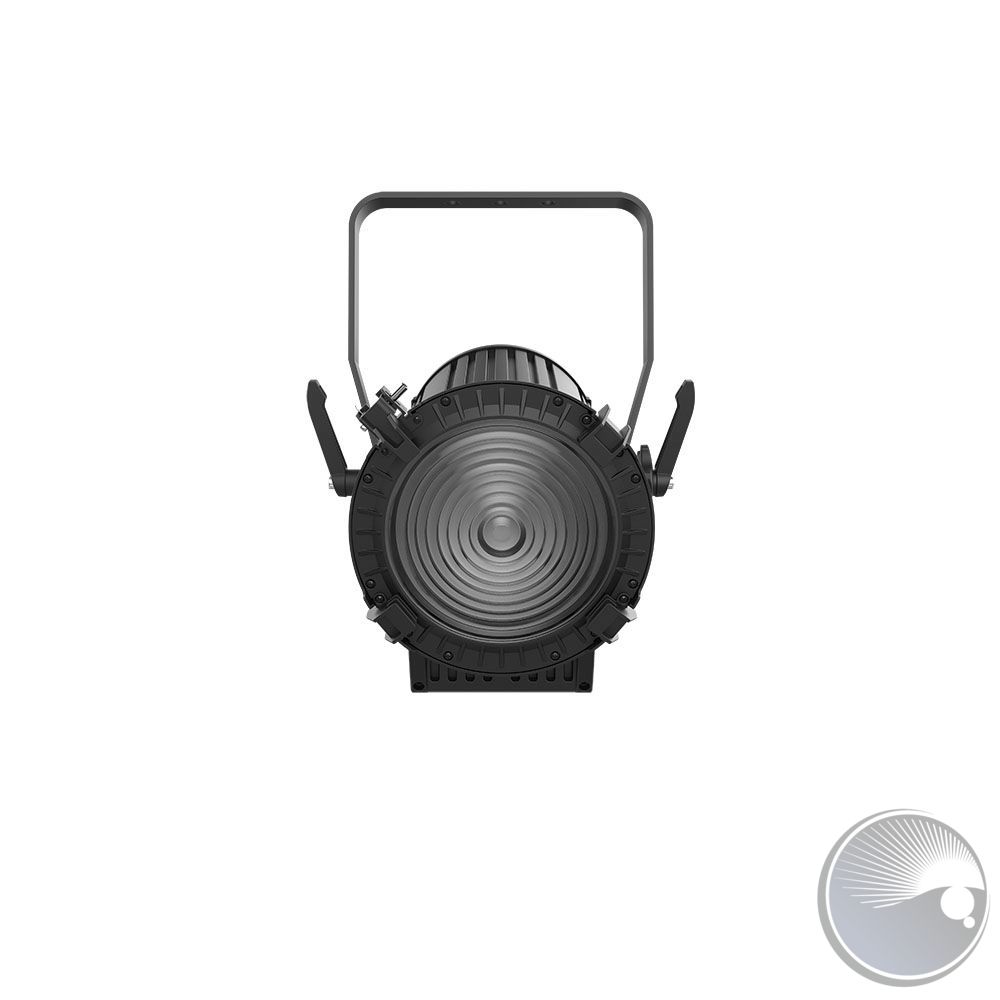

Ovation FD-205WW is a powerful LED Fresnel wash utilizing data and power sensors that make it possible to run it on both conventional dimming power systems and constant power rigs. A massive zoom range of 11° to 72° and a beautifully soft, warm white wash with high CRI make it an ideal LED replacement for aging incandescent eight-inch Fresnels. Our proprietary motorized zoom is easily accessed by the rotary knob on the back of the fixture even when the fixture is run via a traditional dimming system. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems!



AT A GLANCE

  • Works perfectly on conventional dimmers or constant power with DMX

  • Auto-senses what kind of system (dimmers or constant power with DMX) and responds appropriately

  • Superior low end dimming regardless of power supplied (conventional dimmer/constant power with DMX)

  • Perfect fixture for the retrofit market, utilizes existing infrastructure flawlessly

  • Motorized zoom feature available in Dimmer, SENS or DMX modes

  • 16-bit dimming resolution (DMX mode) for smooth fades

  • Soft and even field of light

  • Virtually silent operation for use in any situation

  • Simple and complex DMX channel profiles for programming versatility

  • Warm white Fresnel-style lighting fixture

  • Motorized zoom range between 11° to 72°, manually or via DMX

SPECIFICATIONS

OPTICAL

  • Light Source 1 LEDs (WW) 230 W, (2.5 A), 3069 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3069 K
  • CRI: 96
  • Beam Angle: 11° to 53°
  • Field Angle: 20° to 72°
  • Zoom Range: 11° to 72°
  • Lumens (20°): 6,414
  • Lumens (72°): 9,047
  • Illuminance (20°): 5,678 lux @ 5 m
  • Illuminance (72°): 450 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic or External Dimmer Rack
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 18 Hz
  • Dim Modes: 5
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 16.22 x 11.18 x 10.28 in (412 x 284 x 261 mm)
  • Weight: 14 lb (6.4 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM, Dimmer
  • DMX Channels: 1, 2 or 5
  • Modes/Personalities: 3 personalities (UNO, DOS, STD-P)

ELECTRICAL

  • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
  • Power Linking: 8 units @ 120 V; 16 units @ 230 V
  • Power and Current: 182 W, 1.52 A @ 120 V, 60 Hz
  • Power and Current: 188 W, .819 A @ 230 V, 50 Hz
  • Breaker Size: T3.15 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation FD-205WW
  • Neutrik® powerCON® power cord

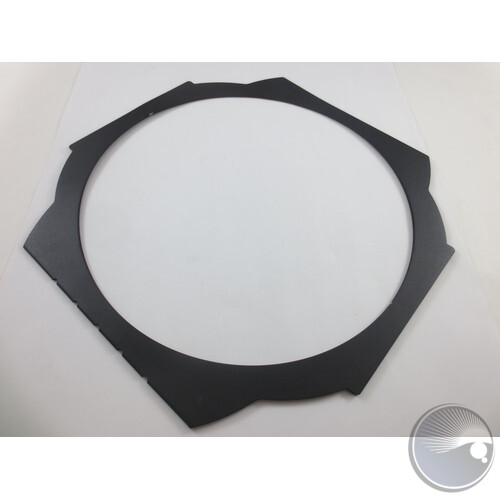

  • Gel frame (7.5 in/190.5 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 01031456
Weiterführende Links zu "Ovation FD-205WW"

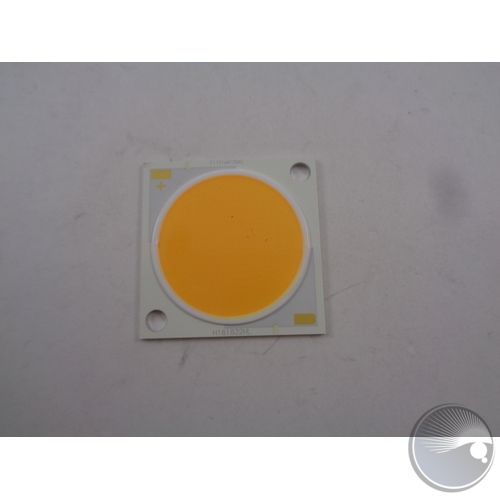

LED (BOM#55)PTF1070000611LED (BOM#55)
PTF1080000115thermal switch (BOM#23)
PTF1080000121voltage conversion switch (BOM#46)

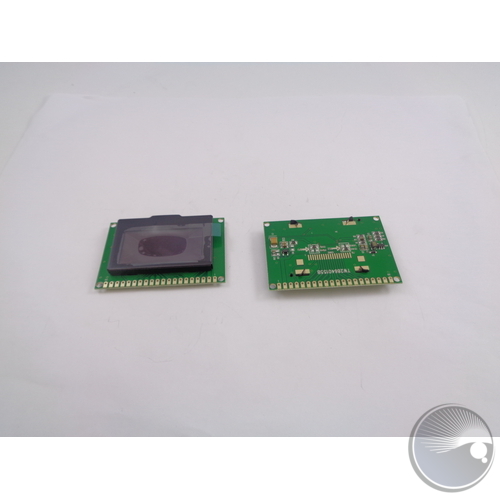

1.55 inch OLED screen (BOM#37)PTF11100000231.55 inch OLED screen (BOM#37)
Φ52 collecting mirrow (BOM#21)PTF1120200114Φ52 collecting mirrow (BOM#21)
PTF1120200242thread mirror (BOM#6)
PTF1140000266Insulation thermal silica film (BOM#35)
PTF1150000076motor (BOM#30)
PTF1160000132Fan network (BOM#27)
Fan (BOM#25)PTF1160000437Fan (BOM#25)

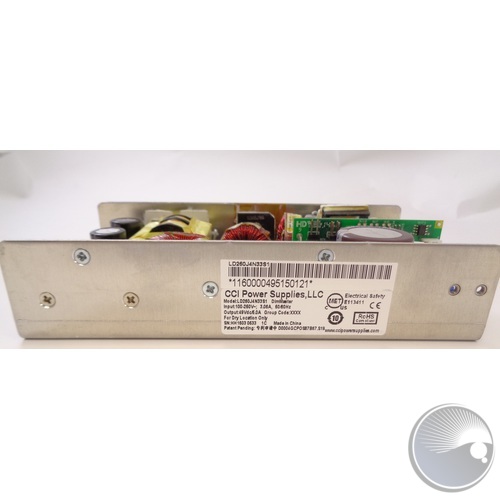

Power supply  (BOM#67)PTF1160000495Power supply (BOM#67)

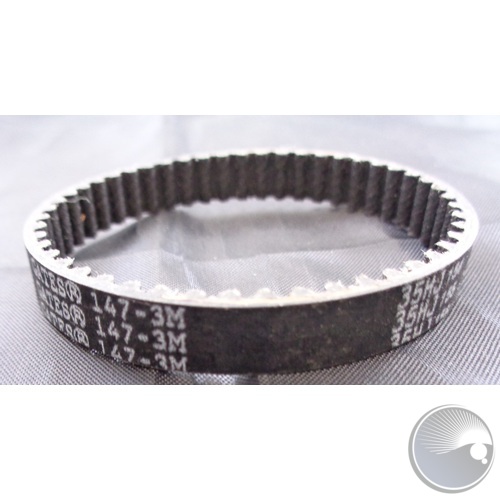

belt 3M-147 (BOM#48)PTF1180000306belt 3M-147 (BOM#48)
PTF1200000019Magnet mounting posts (BOM#28)
M10 handle/shank (BOM#9)PTF1340100039M10 handle/shank (BOM#9)
small gear (BOM#32)PTF1340103962small gear (BOM#32)
PTF1340109829lens plate (BOM#19)
PTF1340109833zoom plate 2 (BOM#60)
PTF1340109886Hall shelf (BOM#51)
PTF1340110000strengthen plate (BOM#50)
PTF1340111229motor plate (BOM#31)
PTF1340112154Radiating plate (BOM#24)
PTF1340300226torision spring (BOM#2)

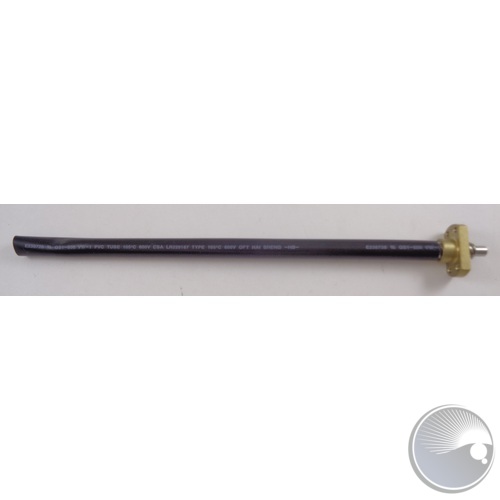

drive rod assembly (BOM#57)PTF1340500724drive rod assembly (BOM#57)
PTF1340601837Slider (BOM#58)

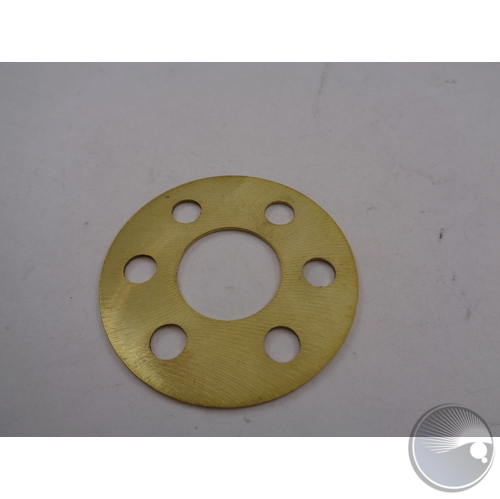

Copper gasket (BOM#12)PTF1340801433Copper gasket (BOM#12)

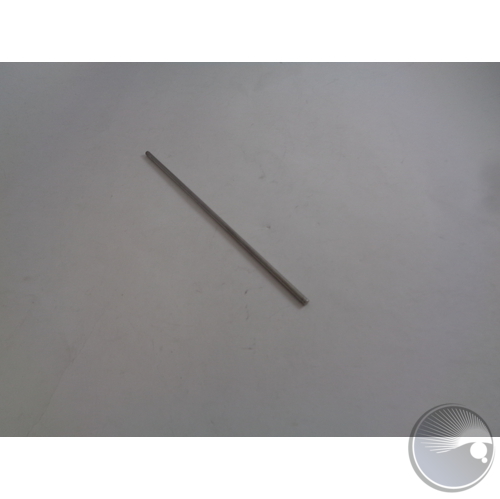

Guide rod (BOM#54)PTF1340802490Guide rod (BOM#54)
PTF1340802491pulley (BOM#49)
PTF1340802492Bearing seat (BOM#53)
PTF1340802493cover (BOM#52)
PTF1340802494lens holder (BOM#56)
PTF1340802495fan holder (BOM#20)
PTF1340802496Guide column (BOM#62)
PTF1340802715Display Pillar (BOM#55)
Black metal thin gasket (BOM#44)PTF1490500045Black metal thin gasket (BOM#44)
PTF1491000016Hexagonal Copper screw (BOM#1)
PTF1491600002black washer (BOM#10)
PTF222000013110 degree grinding slice (BOM#7)

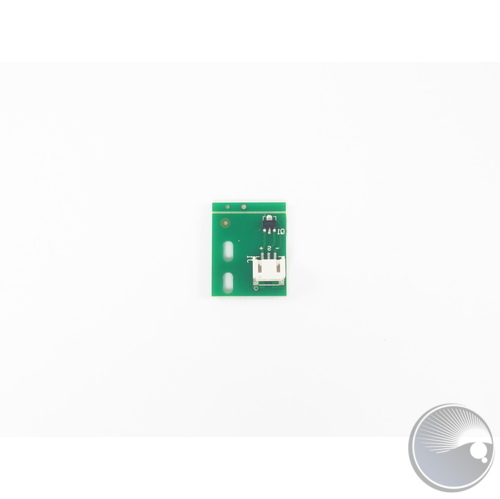

magnetic stopper sensor (BOM#29)PTF2260001593magnetic stopper sensor (BOM#29)
power PCB (BOM#69)PTF2260002007power PCB (BOM#69)

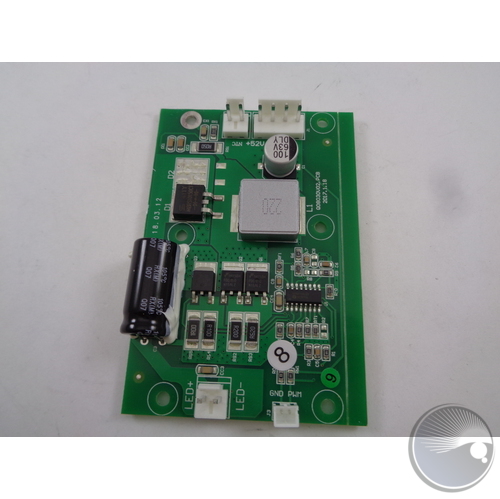

LED driver PCB (BOM#34)PTF2260002330LED driver PCB (BOM#34)

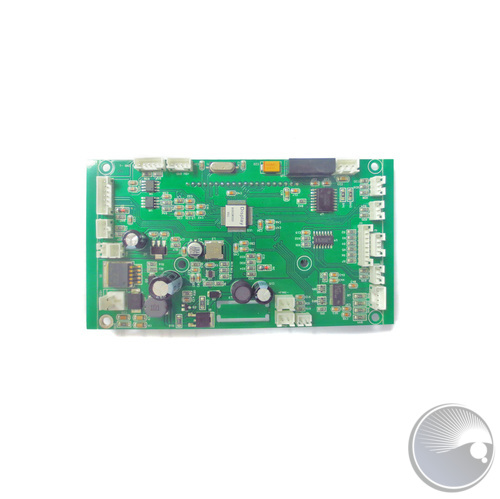

MPCB (BOM#42)PTF2260002331MPCB (BOM#42)
PTF2440102279up cover (BOM#16)
PTF2440102288Guide rod bracket (BOM#61)

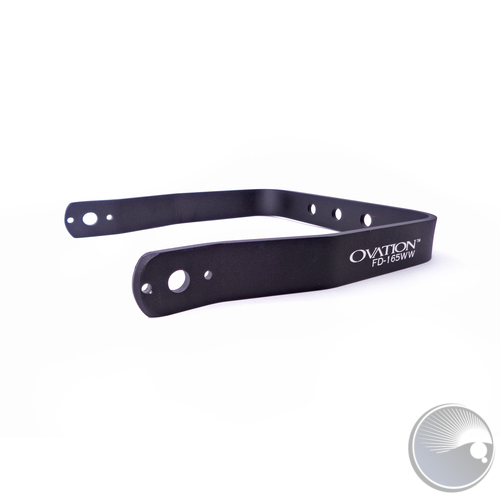

hanging bracket (BOM#17)PTF2440102335hanging bracket (BOM#17)
PTF2440102344Pulley cover (BOM#33)

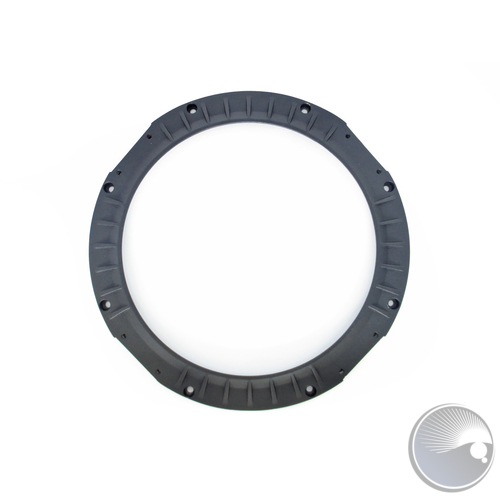

Front cover (BOM#5)PTF2440102372Front cover (BOM#5)
shade leaf buckle (BOM#68)PTF2440102373shade leaf buckle (BOM#68)
buckle 1 (BOM#1)PTF2440102374buckle 1 (BOM#1)
PTF2440102375zoom plate 1 (BOM#59)
PTF2440102382Heat sink rack (BOM#18)
PTF2440102383Shading plate (BOM#15)
shade leaf buckle mouting bracket (BOM#4)PTF2440102385shade leaf buckle mouting bracket (BOM#4)
PTF2440102408foreboard (BOM#14)
PTF2440102409Siding (BOM#65)
PTF2440104029Fan frame (BOM#26)
PTF2440104783down cover (BOM#66)
PTF2440104786Back plate (BOM#37)
shade leaf buckle of spindle (BOM#3)PTF2440800236shade leaf buckle of spindle (BOM#3)
PTF2440800240Connecting column 2 (BOM#71)
PTF2440800254Handrail fixed plate (BOM#11)
PTF2440800369lens frame (BOM#22)
PTF2441200290plastic front cover (BOM#8)

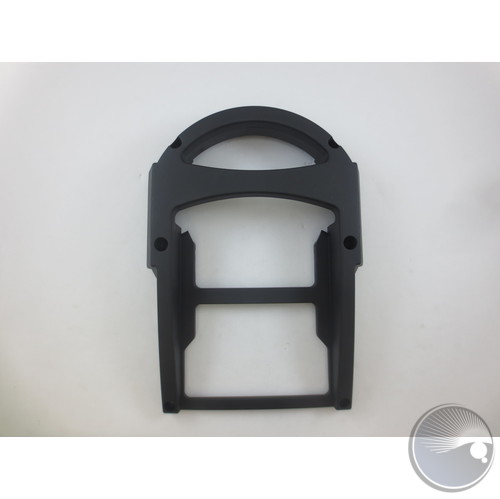

Back cover (BOM#40)PTF2441200568Back cover (BOM#40)
UPLOAD01PTFUPLOAD01UPLOAD01
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
