Ovation P-56FC

1.118,60 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONP56FC
Ovation  P-56FC Ovation P-56FC is a compact, virtually silent par that produces a... mehr
Produktinformationen "Ovation P-56FC"

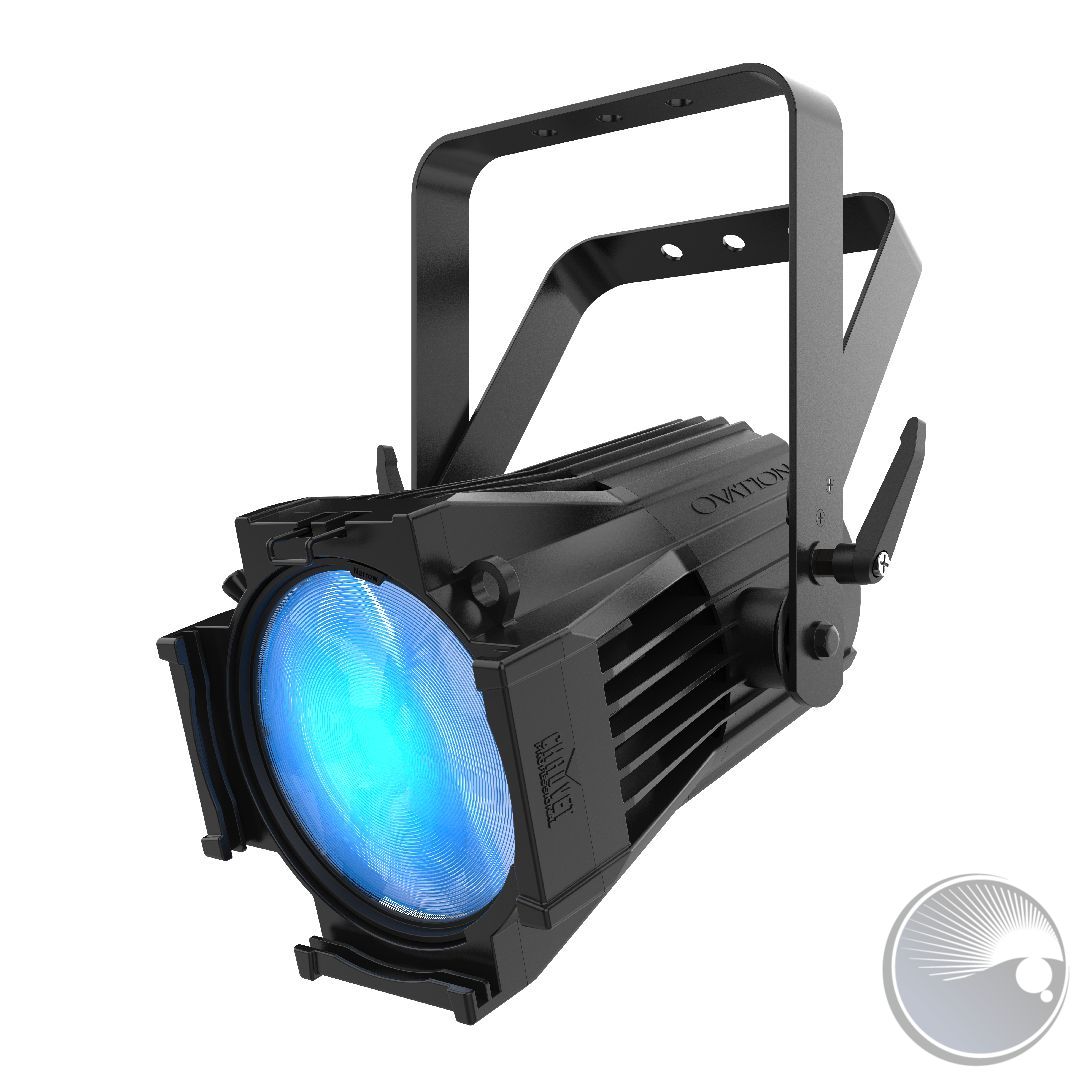

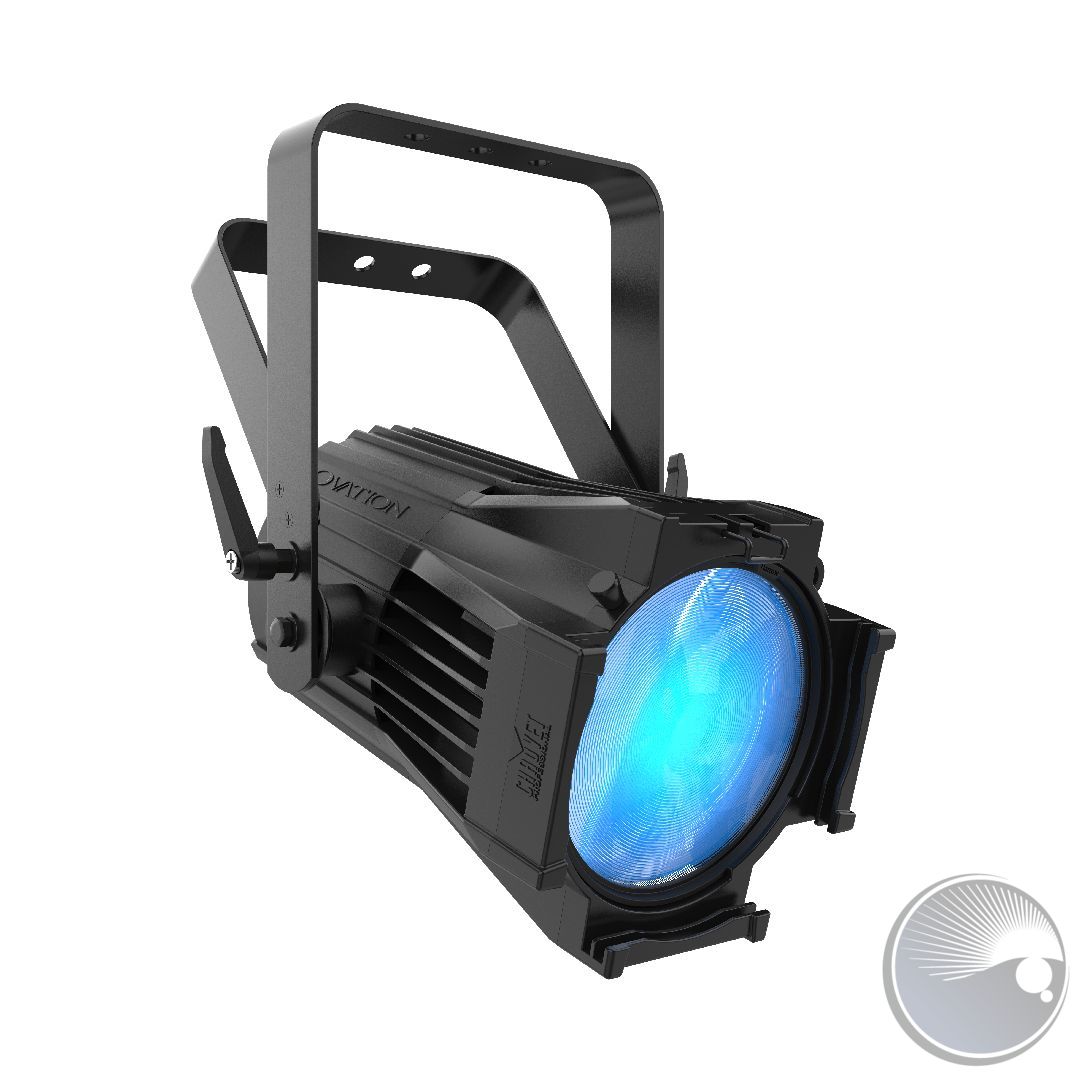

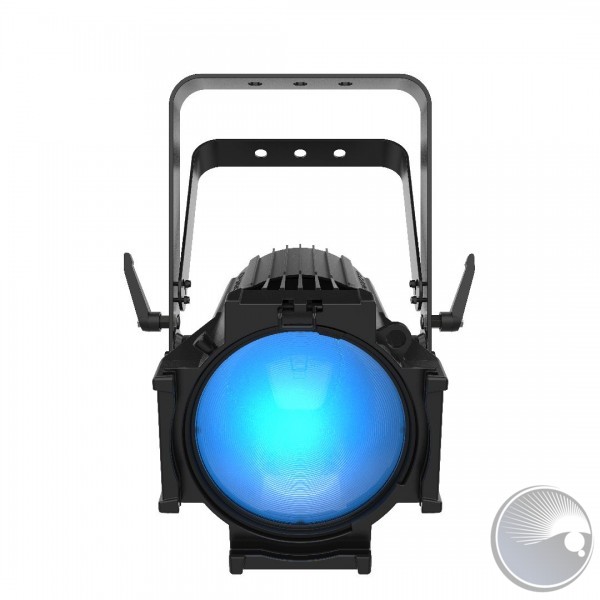

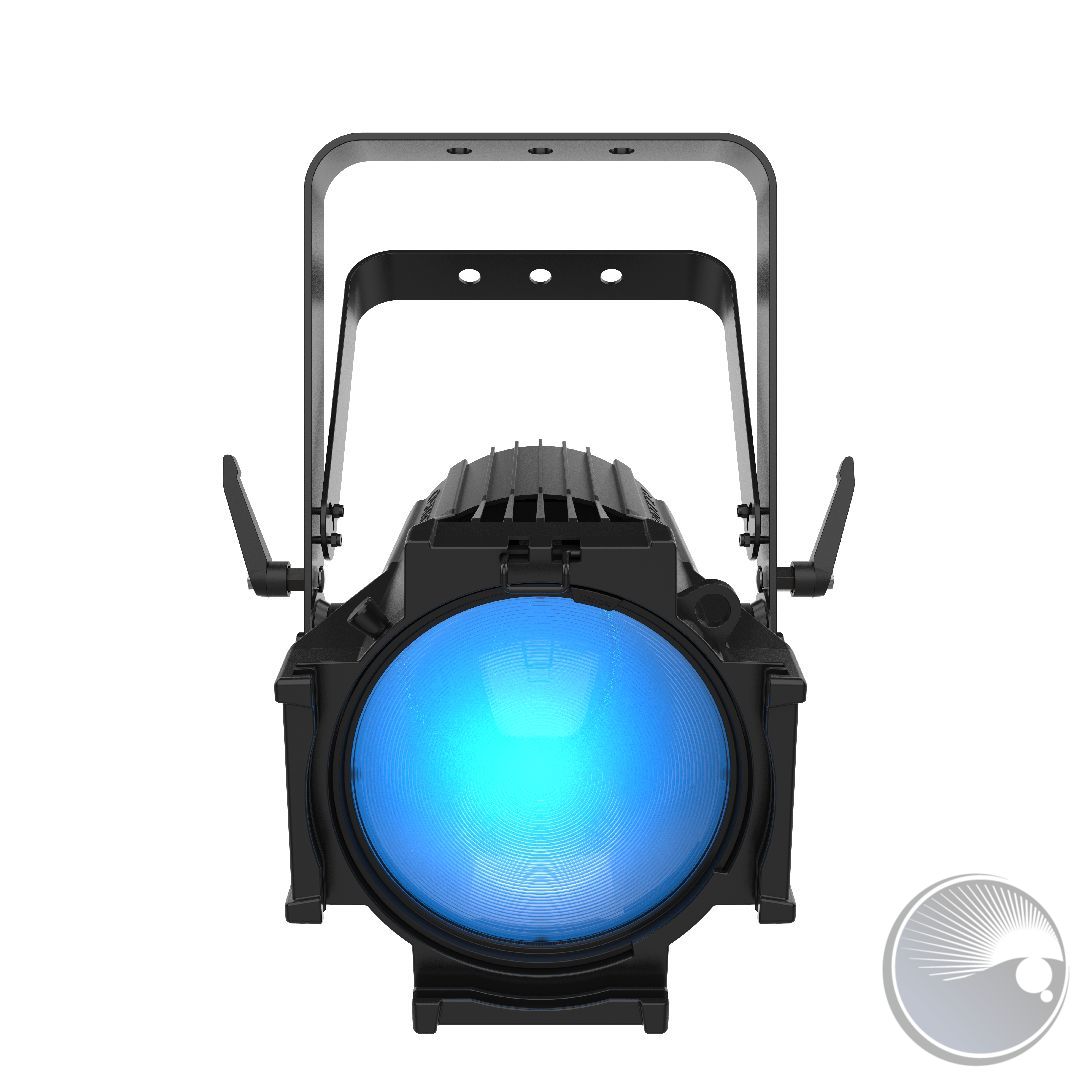

Ovation P-56FC

Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.



AT A GLANCE

  • Full color PAR style fixture with homogenized single source of light

  • Interchangeable lens plates included for medium and wide beam angles

  • Flat, even field of light

  • Quiet operation for use in any situation with fan speed control

  • RDM and variable Pulse Width Modulation for setup ease

  • Accepts standard 7.5” beam shaping accessories

  • 16-bit dimming resolution for smooth fades

SPECIFICATIONS

OPTICAL

  • Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 4889 K
  • CRI (3200): 90
  • Beam Angle (Medium Lens): 24°
  • Beam Angle (Wide Lens): 73°
  • Field Angle (Medium Lens): 41°
  • Field Angle (Wide Lens): 105°
  • Lumens (Medium Lens): 5,436
  • Lumens (Wide Lens): 5,216
  • Illuminance (Medium Lens): 1,250 lux @ 5 m
  • Illuminance (Wide Lens): 197 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 12.2 lb (5.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

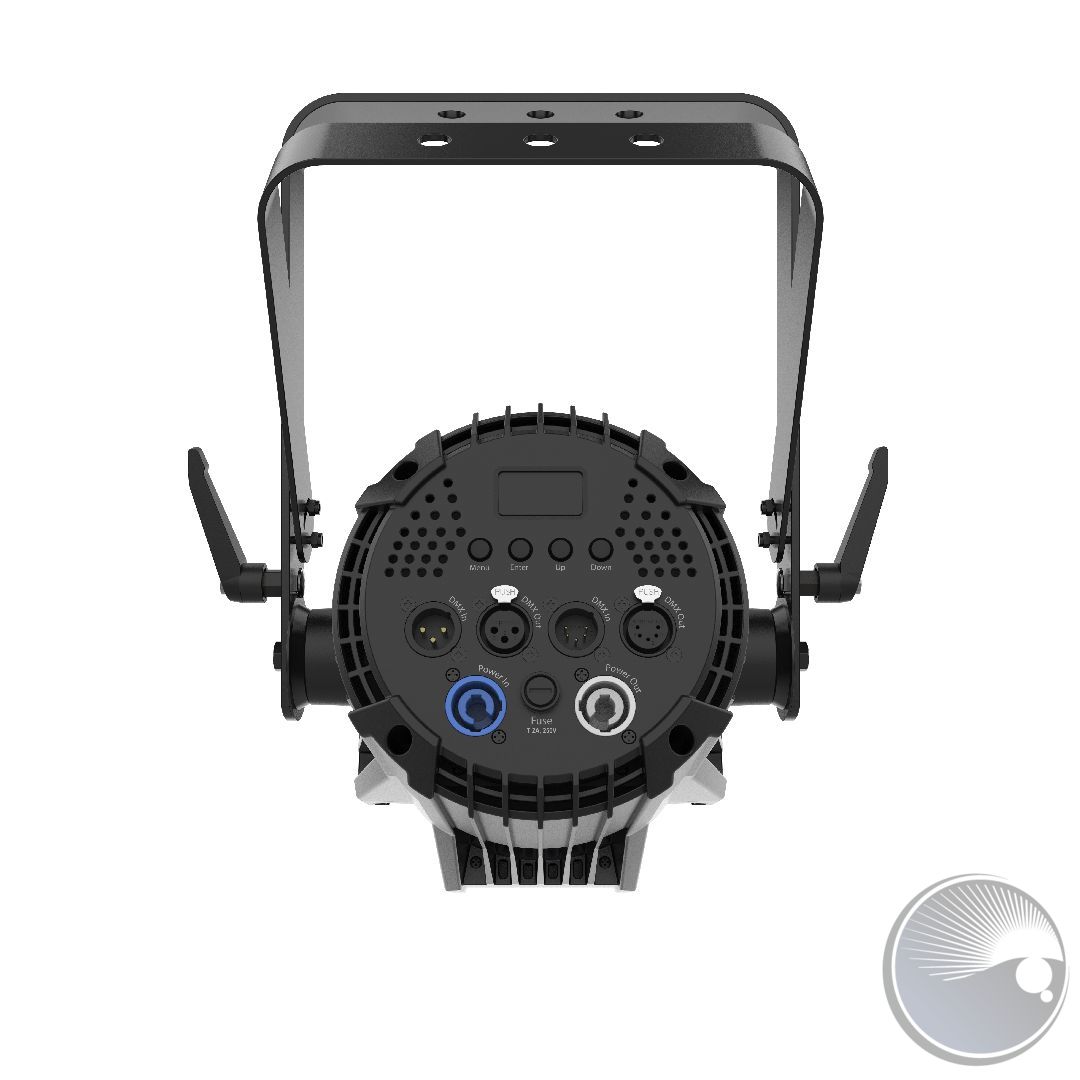

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15 or HSV
  • Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
  • Power and Current: 167 W, 1.740 A @ 100 V, 60 Hz
  • Power and Current: 164 W, 1.413 A @ 120 V, 60 Hz
  • Power and Current: 158 W, 0.813 A @ 208 V, 60 Hz
  • Power and Current: 156 W, 0.747 A @ 230 V, 50 Hz
  • Power and Current: 155 W, 0.716 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031500
Weiterführende Links zu "Ovation P-56FC"

3.15AMPGMAFUSE (BOM#14)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

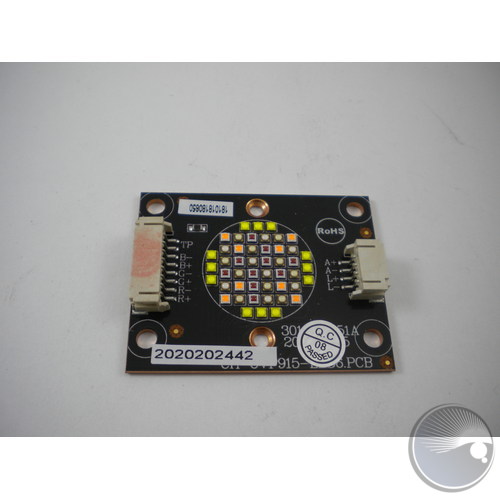

LED PCB (BOM#12)PTJ2020202442LED PCB (BOM#12)

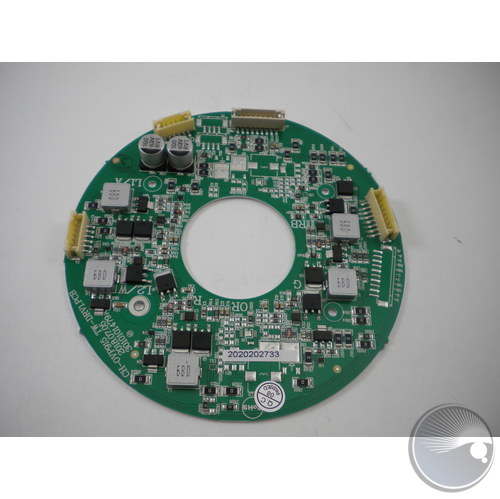

DRIVER PCB (BOM#11)PTJ2020202733DRIVER PCB (BOM#11)

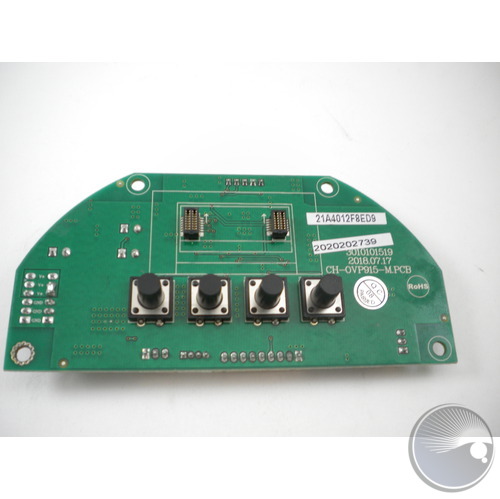

MPCB (BOM#21)PTJ2020202739MPCB (BOM#21)
Wide lens (BOM#2,3)PTJ2030100148Wide lens (BOM#2,3)
Medium lens (BOM#2,3)PTJ2030100149Medium lens (BOM#2,3)
PTJ3019001043BUTTON COVER (BOM#28)
FRESNEL LENS (BOM#3)PTJ3020100425AFRESNEL LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)
FILTER (BOM#9)PTJ3020300428FILTER (BOM#9)
POWER SUPPLY (BOM#18)PTJ3020400304POWER SUPPLY (BOM#18)
PTJ3020900027FAN NET (BOM#15)
DC FAN (BOM#17)PTJ3020900071ADC FAN (BOM#17)
PTJ3021600060LATCH SPRING (BOM#35)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PLASTIC WASHER FOR KNOBPTJ3021700480PLASTIC WASHER FOR KNOB
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021701039PLASTIC RING (BOM#35)
PTJ4010104125POWER HOLDER (BOM#19)
REFLECT CUP (BOM#10)PTJ4010104333REFLECT CUP (BOM#10)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010303009SPRING USE ON TOP COVER (BOM#4)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)

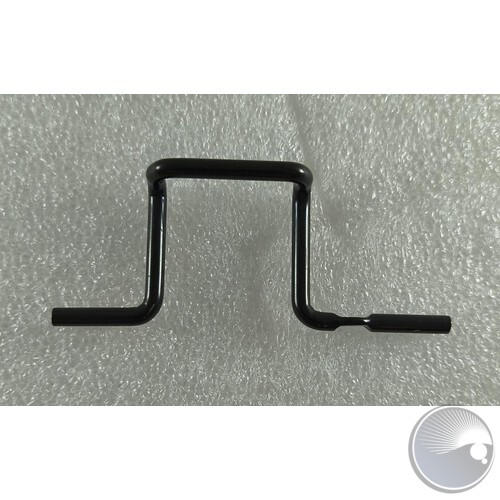

PTJ4010304308LOCK (BOM#6)
PTJ4010304309LOCK PLATE (BOM#8)
HANGING BRACKET-OUTER (BOM#31)PTJ4010304310AHANGING BRACKET-OUTER (BOM#31)
HANGING BRACKET-INNER (BOM#30)PTJ4010304311AHANGING BRACKET-INNER (BOM#30)
PTJ4010304312AHEAD HOUSING (BOM#14)
PTJ4010304313ATOP COVER (BOM#5)
PTJ4010304315BACK PLATE (BOM#16)
PTJ4010402149REAR (BOM#20)
PTJ4020200416THREAD LENS COVER (BOM#2)
UPLOAD03PTJUPLOAD03UPLOAD03
