Ovation P-56UV

1.237,60 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONP56UV
Ovation  P-56UV Ovation P-56UV is a compact, virtually silent par and the first of its... mehr
Produktinformationen "Ovation P-56UV"

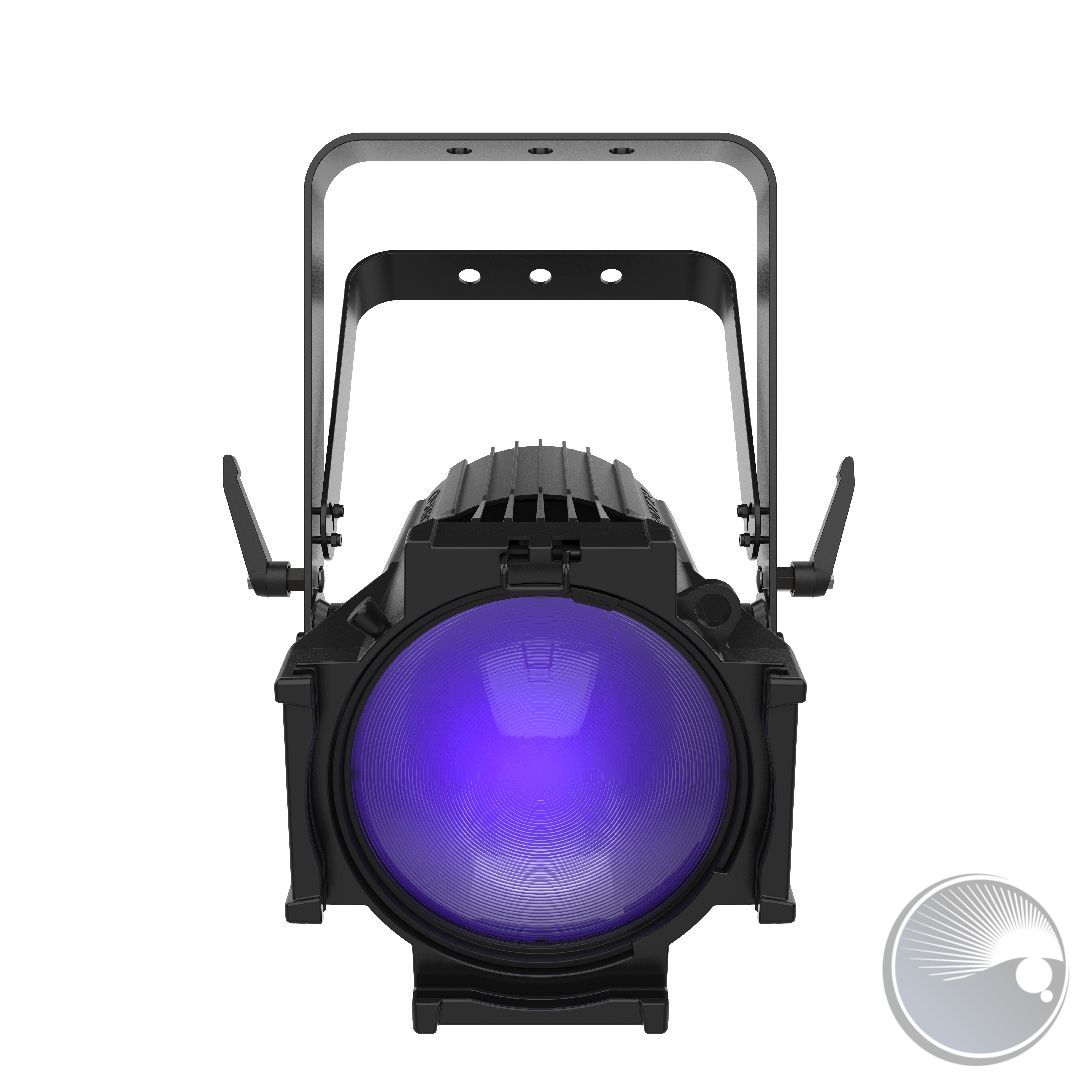

Ovation P-56UV

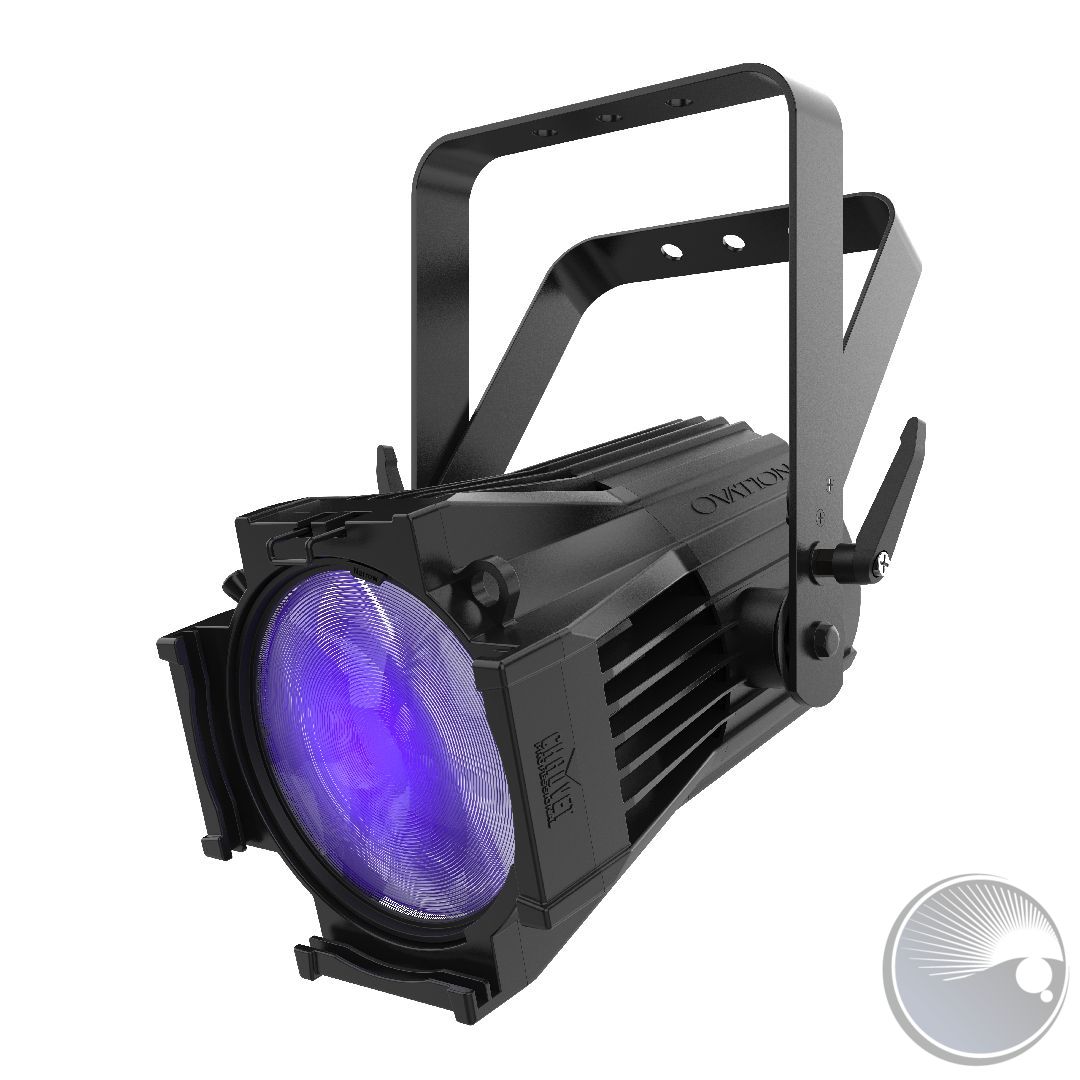

Ovation P-56UV is a compact, virtually silent par and the first of its kind to produce a flat and even field of true UV light with minimal projected visibility via a homogenized, single-source LED. Interchangeable lens plates are included for wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideally suited for theatrical and studio applications, the virtually silent and bright par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease.

AT A GLANCE

  • True (365 nM) UV light with homogenized single source

  • Minimal projected visible light

  • Quiet operation for use in any situation with fan speed control

  • RDM and variable Pulse Width Modulation for setup ease

  • Accepts standard 7.5” beam shaping accessories

  • Selectable dimming curves for smooth fades or snap-on use

  • 16-bit dimming resolution for smooth fades

  • Compact design with homogenous single source of blacklight

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (1UV) 114 W, (3 A), 50,000 hours life expectancy
  • Coverage Angle (Wide Lens): 56°
  • Radiant Power: 33022mW
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 12 lb (5.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

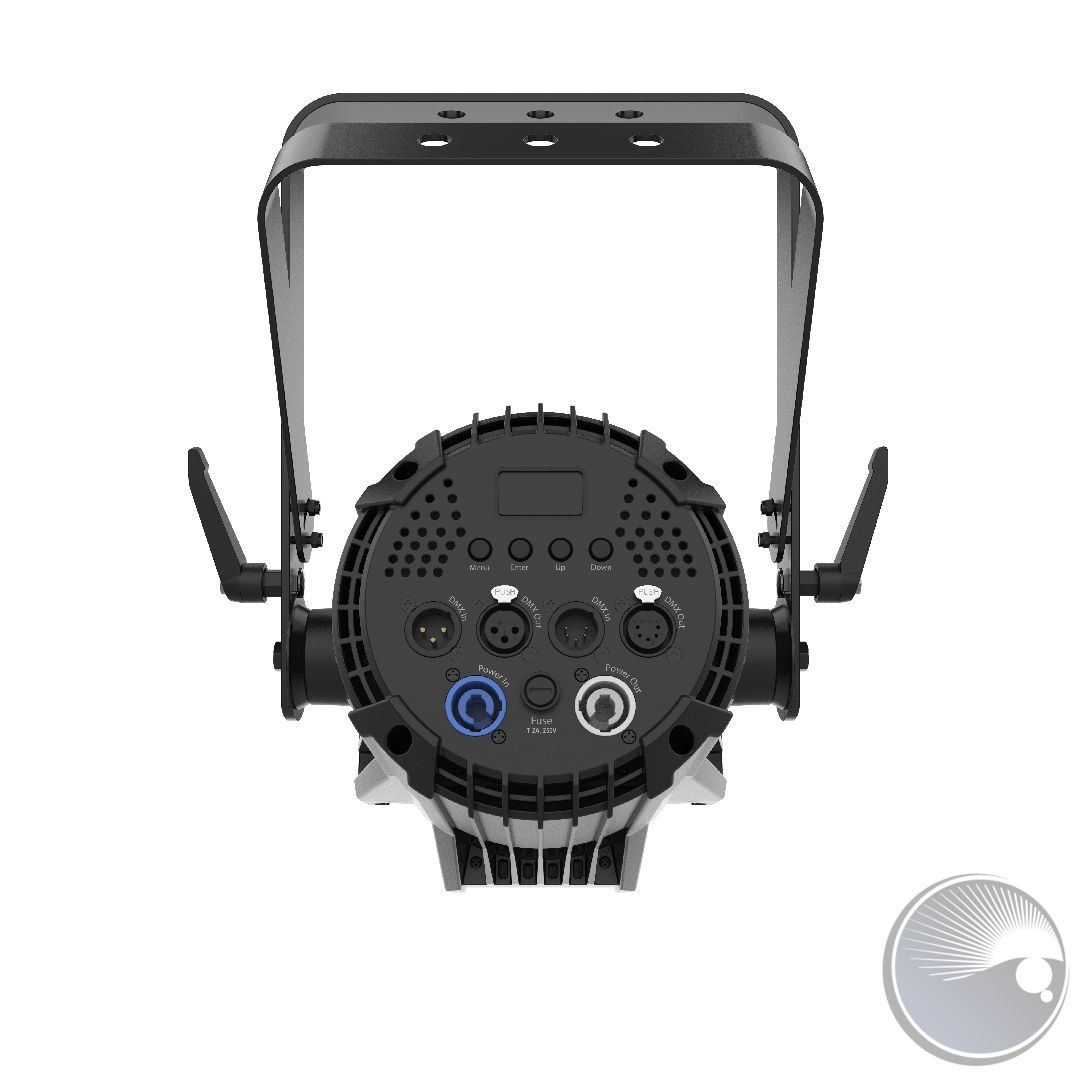

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
  • Power and Current: 125 W, 1.03 A @ 120 V, 60 Hz
  • Power and Current: 130 W, .62 A @ 208 V, 60 Hz
  • Power and Current: 136 W, .58 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031499
Weiterführende Links zu "Ovation P-56UV"

2AMPGMAFUSE 2 AMP 250V (BOM#16)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

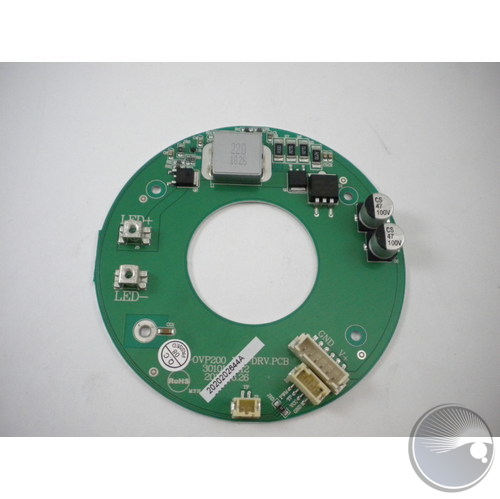

DRIVER PCB (BOM#10)PTJ2020202644ADRIVER PCB (BOM#10)

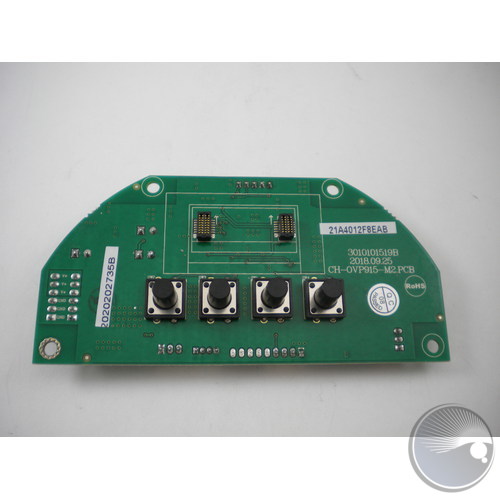

MPCB (BOM#20)PTJ2020202735MPCB (BOM#20)

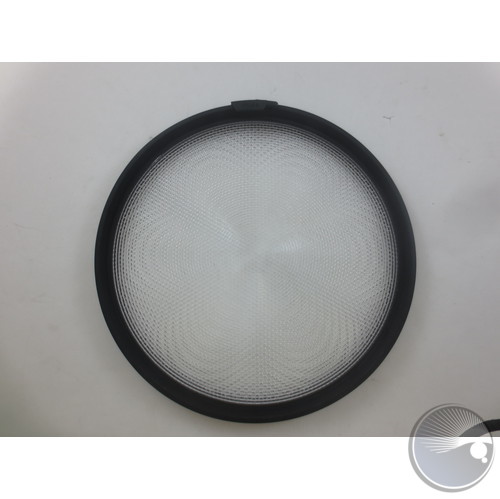

UV lens (BOM#2,3)PTJ2030100350UV lens (BOM#2,3)

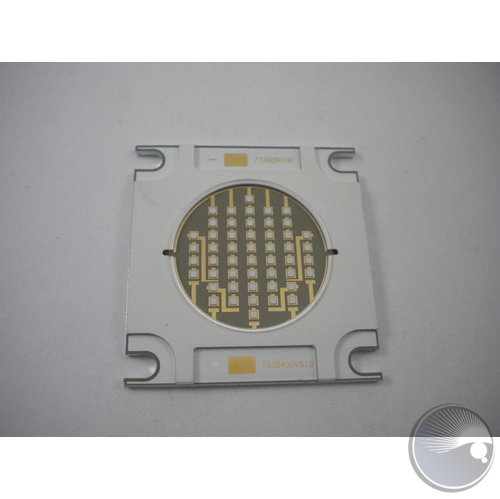

LED  (BOM#12)PTJ3010500296LED (BOM#12)
PTJ3019001043BUTTON COVER (BOM#28)

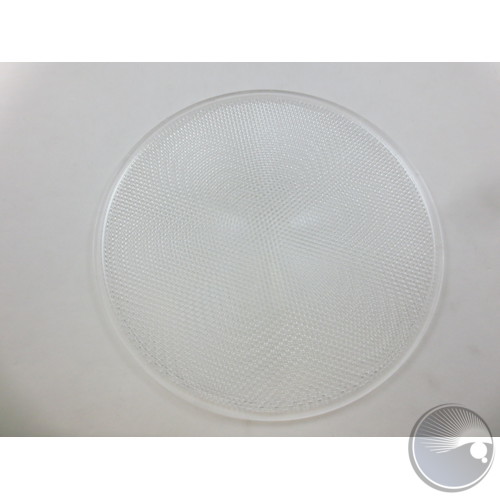

FRESNEL LENS (BOM#3)PTJ3020100448FRESNEL LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

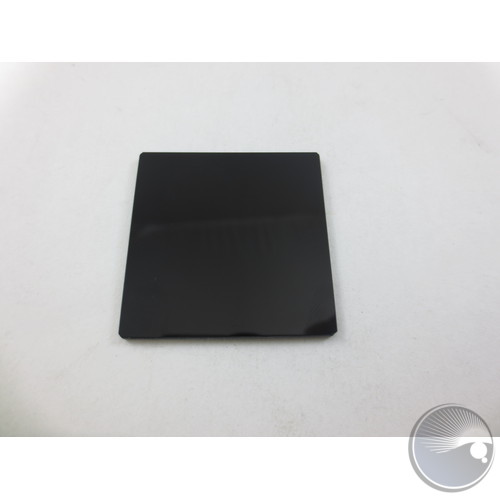

BAND-PASS FILTERPTJ3020300656BBAND-PASS FILTER

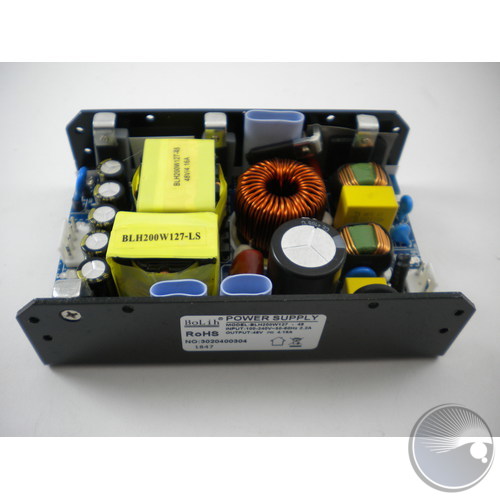

POWER SUPPLY (BOM#18)PTJ3020400304POWER SUPPLY (BOM#18)
PTJ3020900027FAN NET (BOM#15)
DC FAN (BOM#17)PTJ3020900071ADC FAN (BOM#17)
PTJ3021600060LATCH SPRING (BOM#35)
PTJ3021700110PWM SCREW (BOM#11)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PLASTIC WASHER FOR KNOBPTJ3021700480PLASTIC WASHER FOR KNOB
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021701039PLASTIC RING (BOM#35)
PTJ4010104125POWER HOLDER (BOM#19)

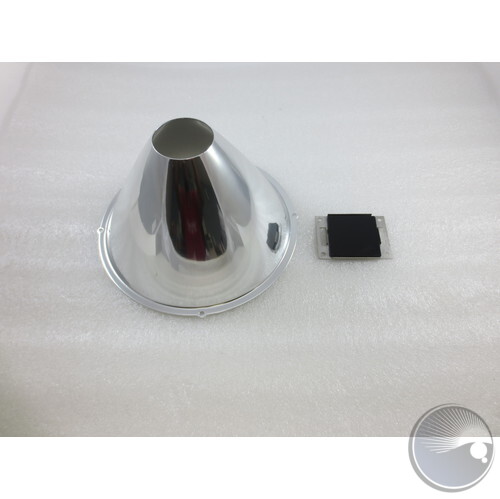

PTJ4010104444REFLECT CUP (BOM#9)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010303009SPRING USE ON TOP COVER (BOM#4)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)
PTJ4010304308LOCK (BOM#6)
PTJ4010304309LOCK PLATE (BOM#8)
HANGING BRACKET-OUTER (BOM#31)PTJ4010304310AHANGING BRACKET-OUTER (BOM#31)
HANGING BRACKET-INNER (BOM#30)PTJ4010304311AHANGING BRACKET-INNER (BOM#30)
PTJ4010304312AHEAD HOUSING (BOM#14)

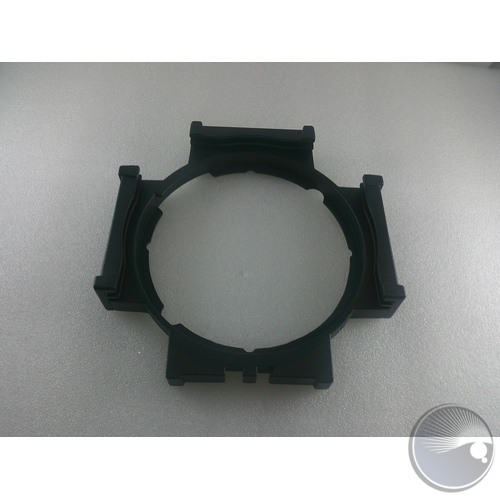

PTJ4010304313ATOP COVER (BOM#5)
PTJ4010304315BACK PLATE (BOM#16)
PTJ4010402149REAR (BOM#20)
PTJ4020200415THREAD LENS COVER (BOM#2)
UPLOAD03PTJUPLOAD03UPLOAD03
