Strike 1

Auf Anfrage!

  • STRIKE1
STRIKE  1 STRIKE 1  is a big, bold, outdoor-ready blinder powered by an intense... mehr
Produktinformationen "Strike 1"

STRIKE 1

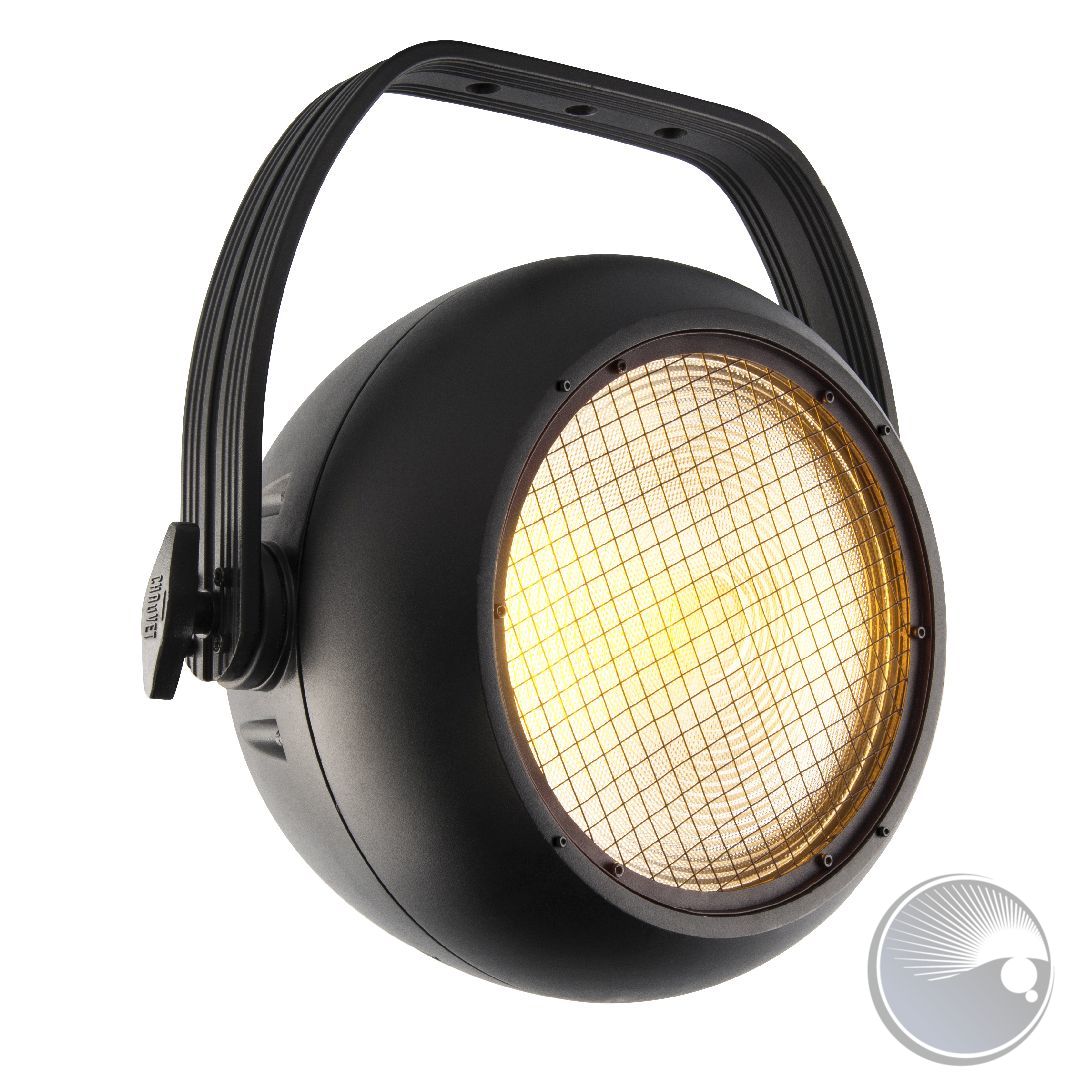

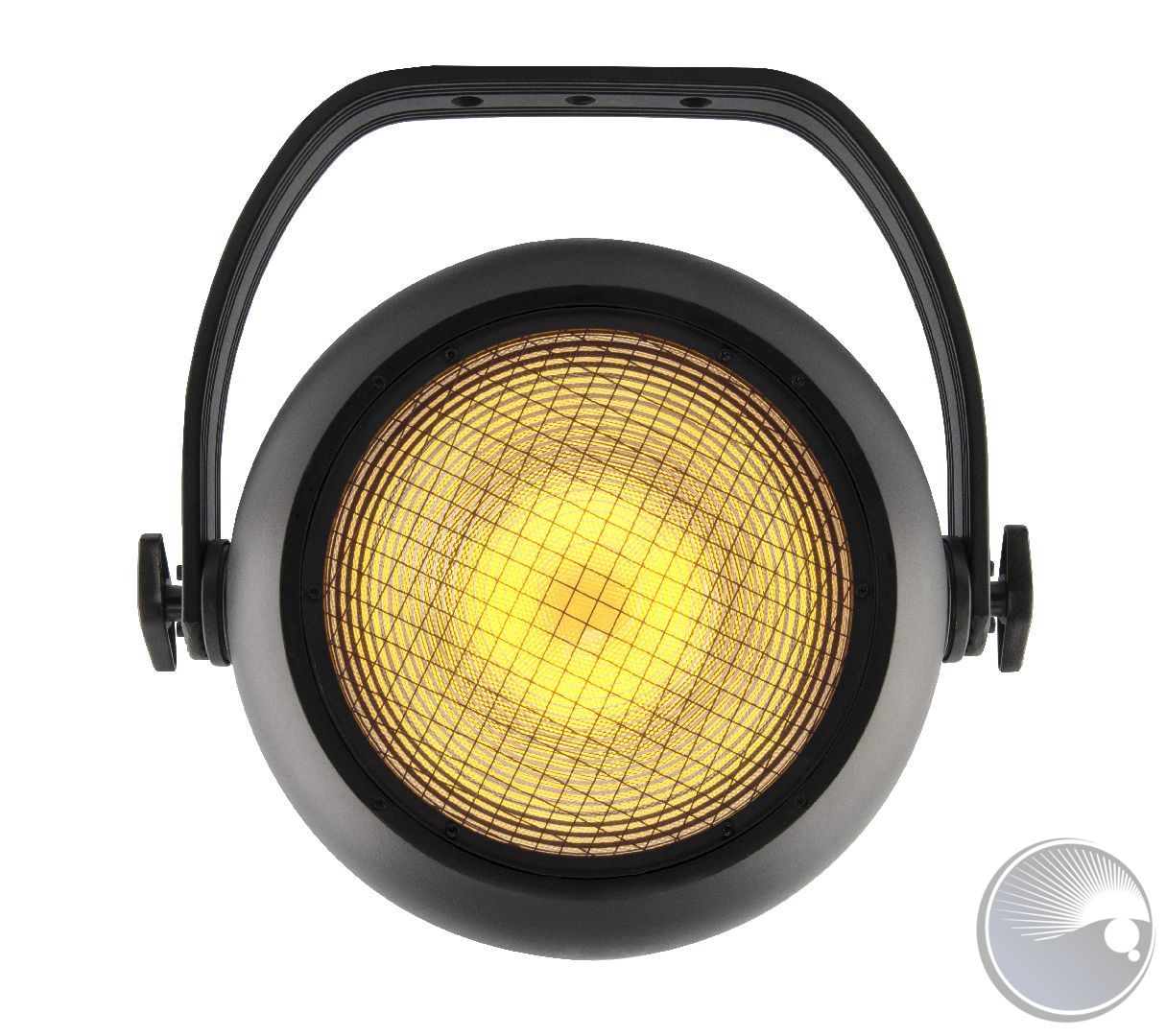

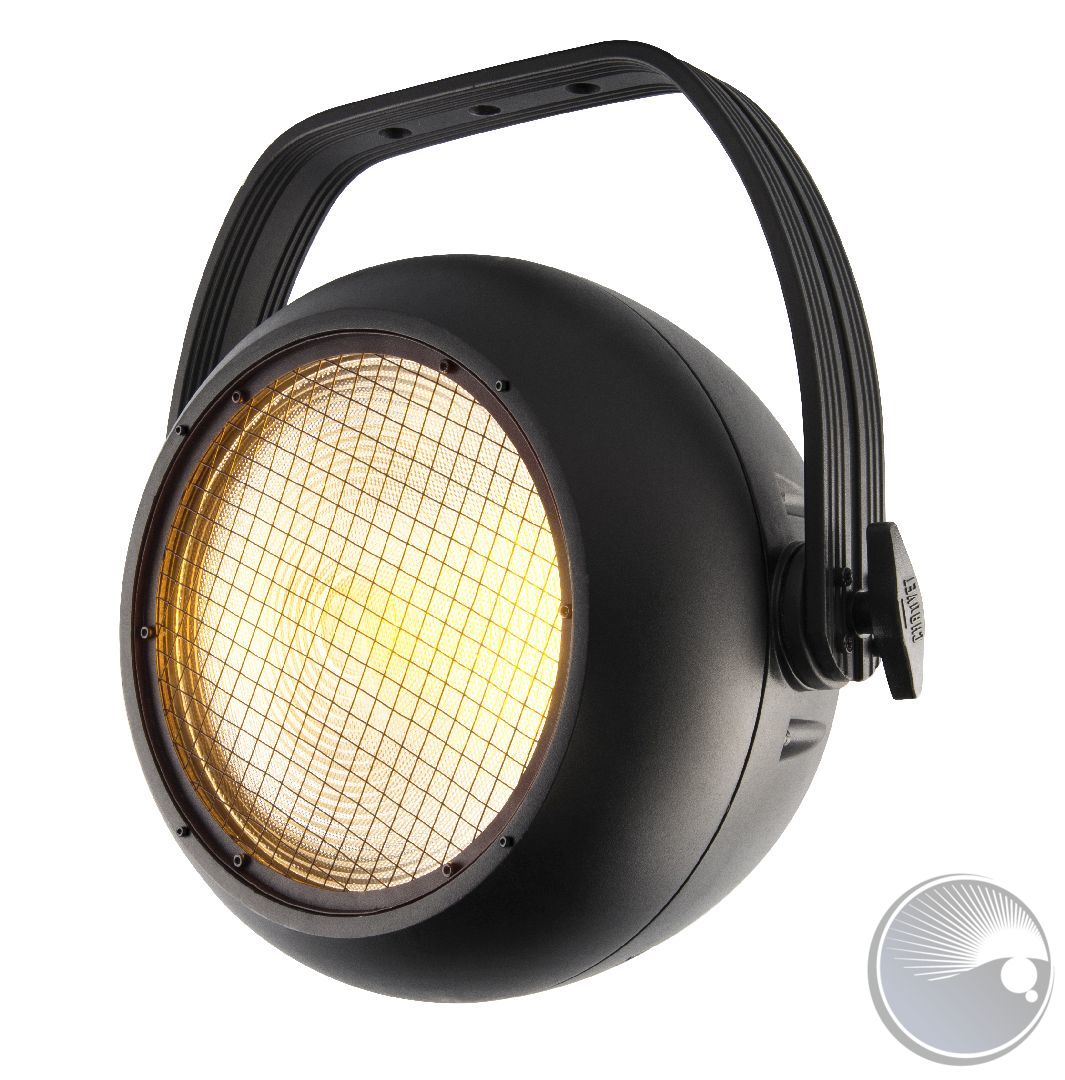

STRIKE 1 is a big, bold, outdoor-ready blinder powered by an intense 230 W warm white LED source. It is also an awesome strobe and a wide area floodlight. Its IP rated fan keeps it cool enough for use as a wash while IP rated direct power and DMX connections eliminate undesirable whips. An emulated “amber shift” warms the Color Temperature of the light as it dims to mimic incandescent lights perfectly.



AT A GLANCE

  • Intense single pod blinder/strobe rated IP65 for all-weather use

  • 16-bit dimming control for smooth, perfect fades

  • Strobe functionality for high-impact effects on-the-fly

  • Beautiful warm glow made possible with emulated “red shift” to mimic incandescent fixtures

  • Multi-bracket allows you to create multi-fixture banks with ease

  • Easy to use OLED display

  • Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera

  • RDM (Remote Device Management) for added flexibility

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 230 W, (4.1 A), 2688 K, 50,000 hours life expectancy
  • Light Source: 8 LEDs (Amber) 2 W, (0.7 A), 50,000 hours life expectancy
  • Color Temperature (at full): 2688 K
  • Color Temperature (at 10%): 1941 K
  • CRI: 93
  • Beam Angle: 30°
  • Field Angle: 51°
  • Illuminance: 1,119 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.96 x 7.40 x 14.61 in (380 x 188 x 371 mm)
  • Weight: 18.8 lb (8.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 8.87 in (225 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 3, 4, 5 or 6
  • Modes/Personalities: 5 personalities (1ch, 3ch, 4ch, 5ch, 6ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 100 V;6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 11 units @ 240 V
  • Power and Current: 265 W, 2.651 A @ 100 V, 60 Hz
  • Power and Current: 260 W, 2.180 A @ 120 V, 60 Hz
  • Power and Current: 257 W, 1.332 A @ 208 V, 60 Hz
  • Power and Current: 254 W, 1.179 A @ 230 V, 50 Hz
  • Power and Current: 259 W, 1.142 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Weiterführende Links zu "Strike 1"

DMX CONNECTOR(5PIN,MALE) (BOM#60)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#60)
DMX CONNECTOR(5PIN,FEMALE) (BOM#59)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#59)
IP POWER OUT SOCKET (BOM#13)PTF1100000468IP POWER OUT SOCKET (BOM#13)
KBM SCREW (BOM#1)PTF1490400024KBM SCREW (BOM#1)
PRESSURE COMPENSATION VALVE (BOM#42)PTF1491700004PRESSURE COMPENSATION VALVE (BOM#42)

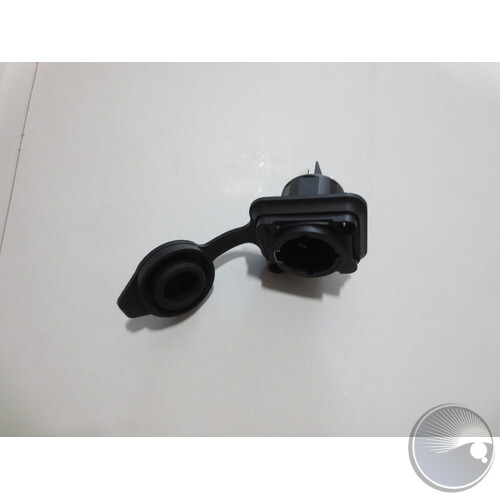

PTJ14000078IP POWER IN SOCKET ASSEMBLY comes with rubber cover (BOM#36)

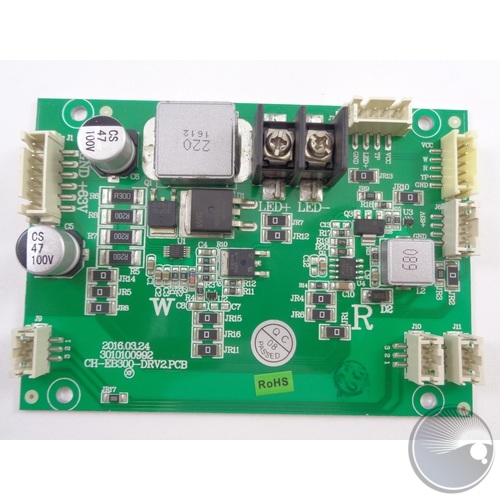

DRIVER PCB (BOM#12)PTJ2020201508DRIVER PCB (BOM#12)
DISPLAY PCB\(BOM#22)PTJ2020201509DISPLAY PCB\(BOM#22)

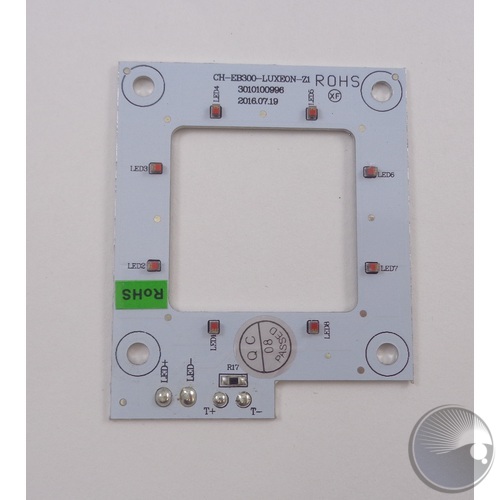

LED PCB (BOM#11)PTJ2020201570LED PCB (BOM#11)
MPCB (BOM#33)PTJ2020201725MPCB (BOM#33)

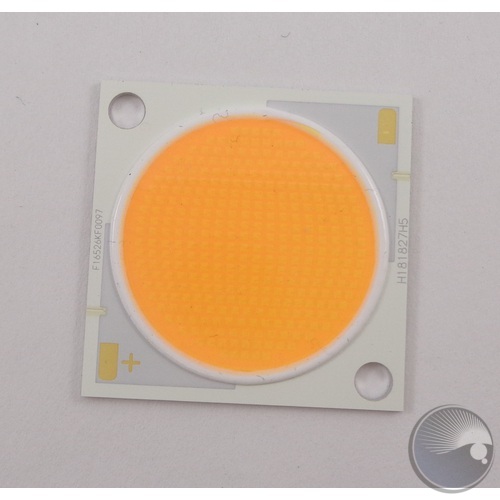

LED (BOM#13)PTJ3010500195LED (BOM#13)

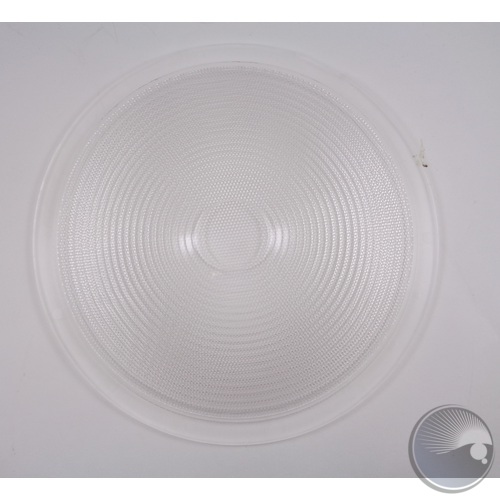

PMMA LEN (BOM#5)PTJ3020100328PMMA LEN (BOM#5)

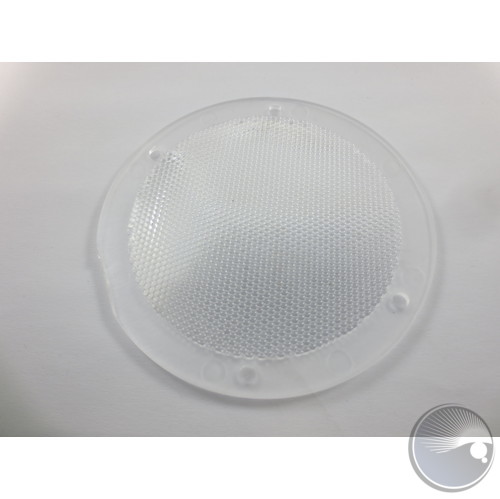

PC LEN (BOM#8)PTJ3020100329PC LEN (BOM#8)
DISPLAY GLASS LENS(BOM#25)PTJ3020200229DISPLAY GLASS LENS(BOM#25)

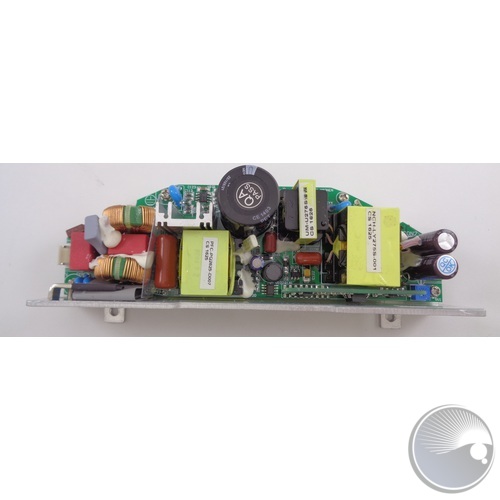

POWER SUPPLY (BOM#40)PTJ3020400222POWER SUPPLY (BOM#40)
IP POWER IN SOCKET (BOM#16)PTJ3020800033IP POWER IN SOCKET (BOM#16)

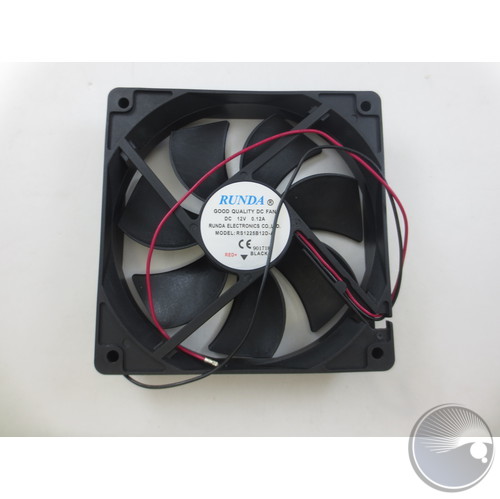

DC FAN (BOM#22)PTJ3020900043DC FAN (BOM#22)
PTJ3021200023RUBBER LOOP (BOM#17)
CUSHION RUBBER FOR DISPLAY COVER(BOM#24)PTJ3021300070CUSHION RUBBER FOR DISPLAY COVER(BOM#24)
PTJ3021300088CUSHION RUBBER FOR BASING (BOM#14)
PTJ3021300089SILICA GEL RING (BOM#39)

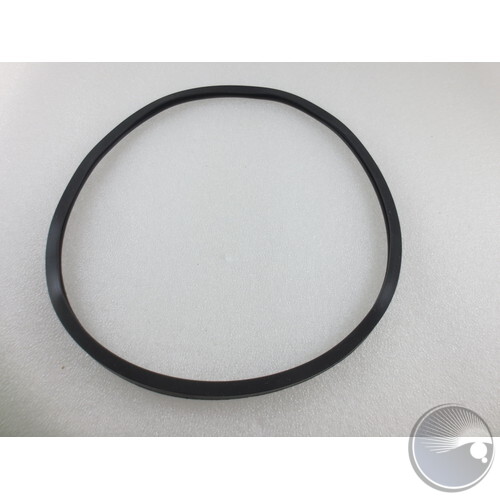

PTJ3021300090CUSHION RUBBER FOR PMMA LEN (BOM#6)

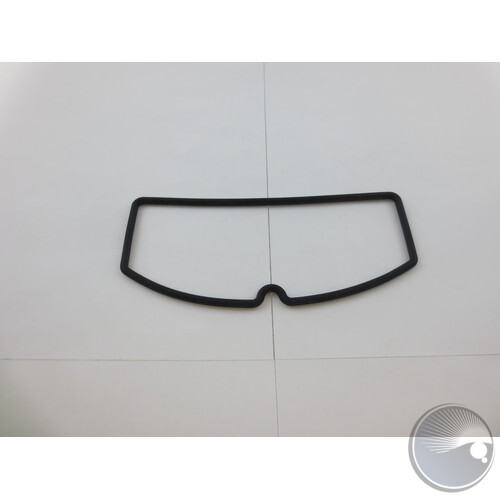

PTJ3021300091CUSHION RUBBER FOR DISPLAY COVER (BOM#34)
SPRING (BOM#10)PTJ3021600076SPRING (BOM#10)

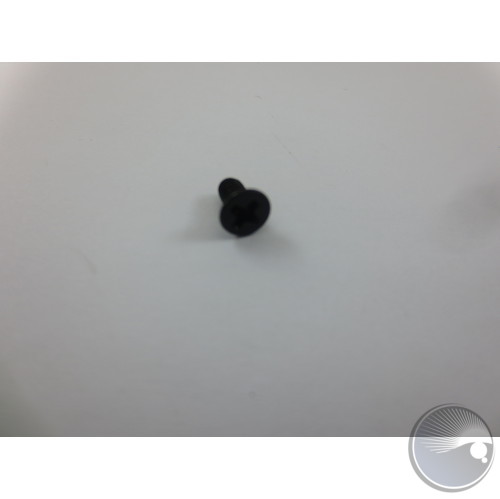

KM SCREW (BOM#12)PTJ3021700239KM SCREW (BOM#12)

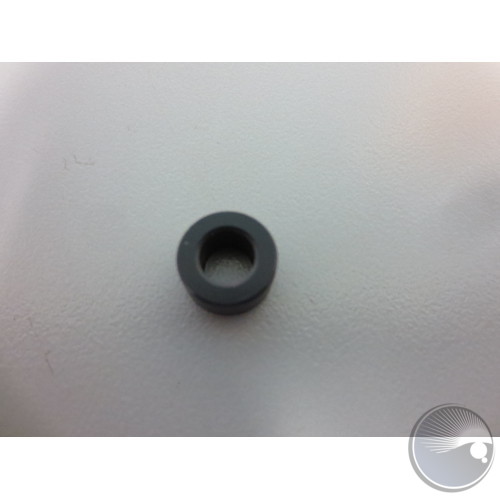

PTJ3021700701PA RING (BOM#23)

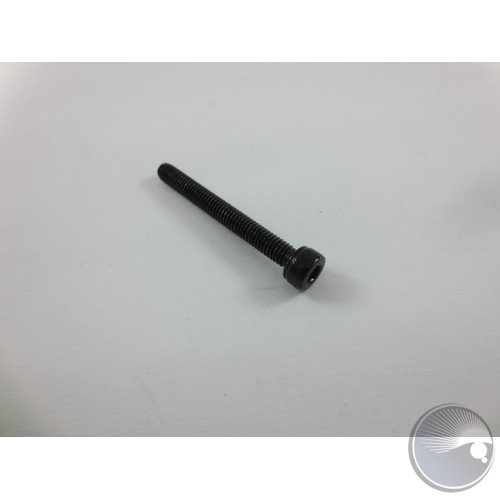

HOUSING SCREWPTJ3021700702HOUSING SCREW

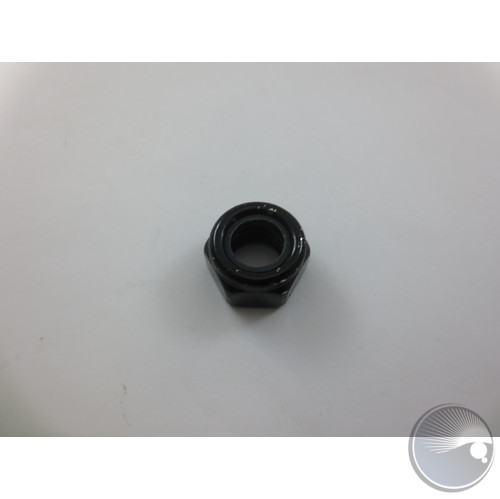

Lock nutPTJ3021700703Lock nut

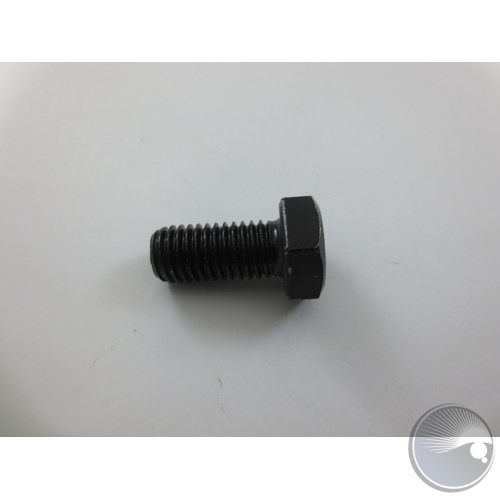

HM screw (bolt)PTJ3021700704HM screw (bolt)

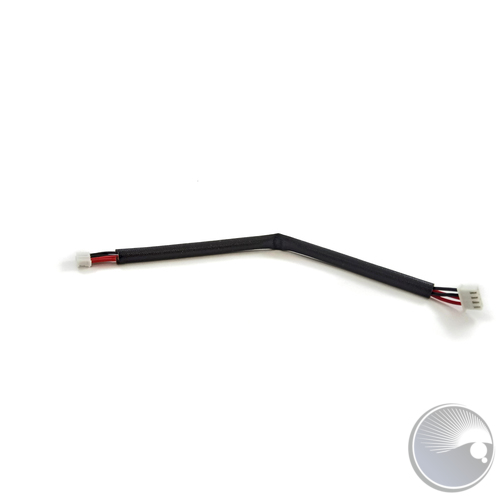

Wire Harness from MPCB TO Driver PCBPTJ3040401568Wire Harness from MPCB TO Driver PCB

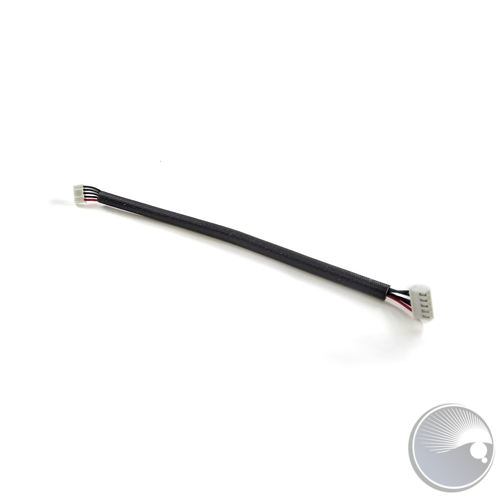

Wire Harness from MPCB TO Driver signalPTJ3040401569Wire Harness from MPCB TO Driver signal

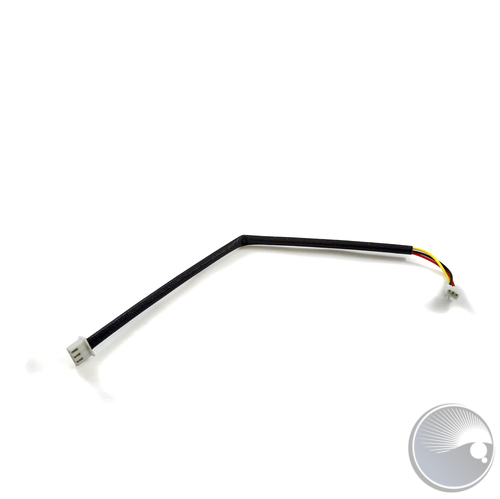

Wire Harness from MPCB TO Driver DMXPTJ3040401574Wire Harness from MPCB TO Driver DMX

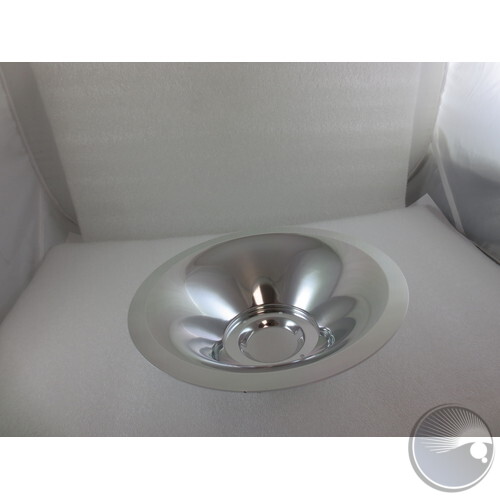

PTJ4010102791REFLECT CUP (BOM#9)
BRACKET HOLDER(BOM#37)PTJ4010301920BRACKET HOLDER(BOM#37)
TURNPLATE(BOM#38)PTJ4010301922TURNPLATE(BOM#38)

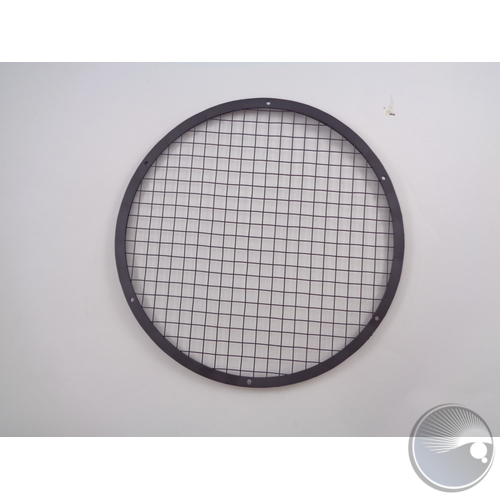

GLASS COVER (BOM#3)PTJ4010302877GLASS COVER (BOM#3)

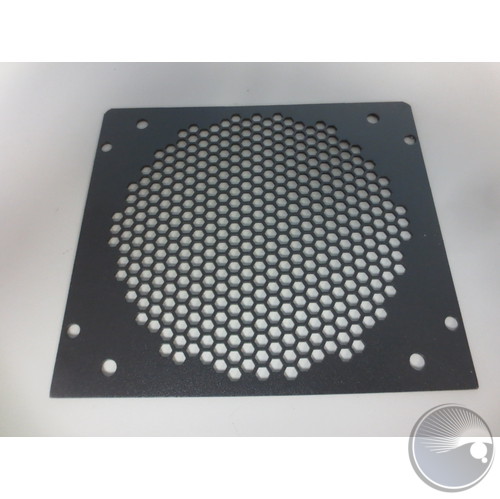

FAN HOLDER (BOM#24)PTJ4010302879FAN HOLDER (BOM#24)

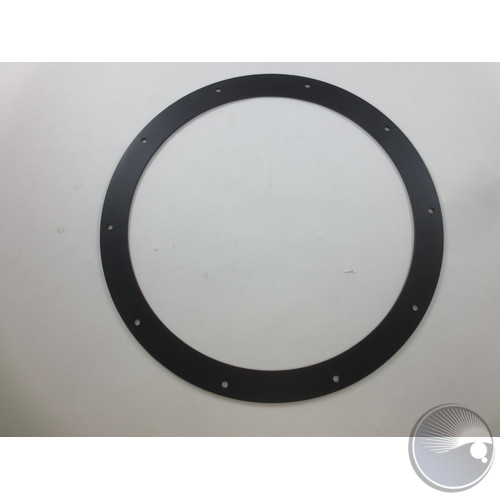

PTJ4010302880PMMA LEN COVER (BOM#7)

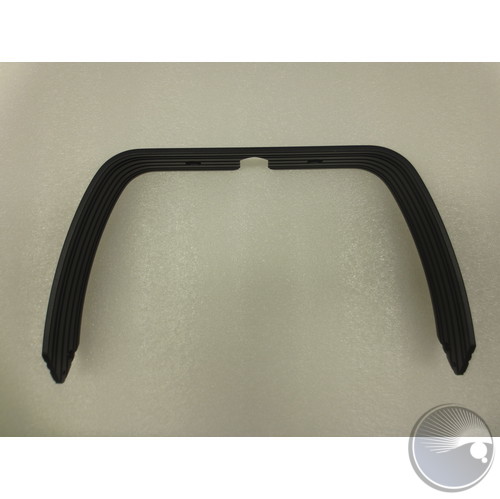

HANGING BRACKET - IN (BOM#25)PTJ4010302881HANGING BRACKET - IN (BOM#25)

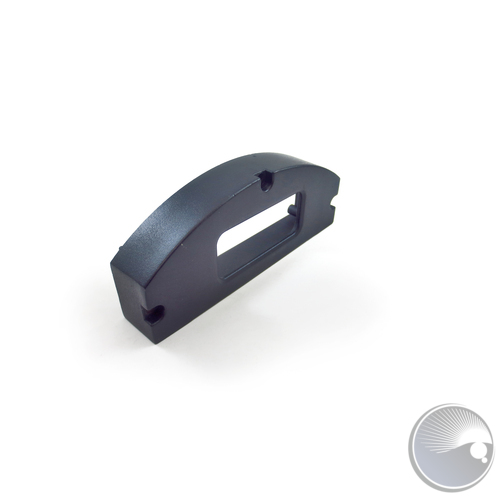

DISPLAY TOP COVER (BOM#28)PTJ4010302882DISPLAY TOP COVER (BOM#28)

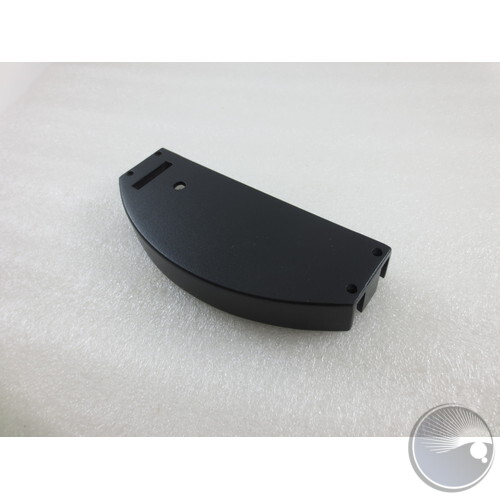

PTJ4010302883DISPLAY BASING (BOM#35)

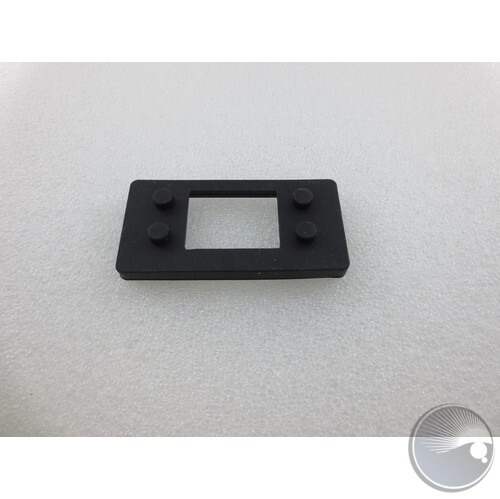

PTJ4010302884DISPLAY COVER PLATE (BOM#31)

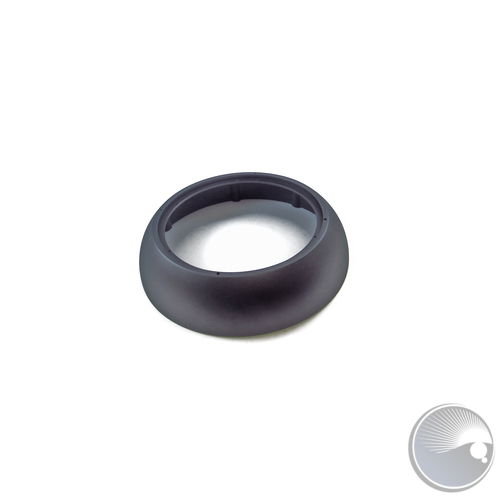

TOP COVER (BOM#4)PTJ4010302885TOP COVER (BOM#4)

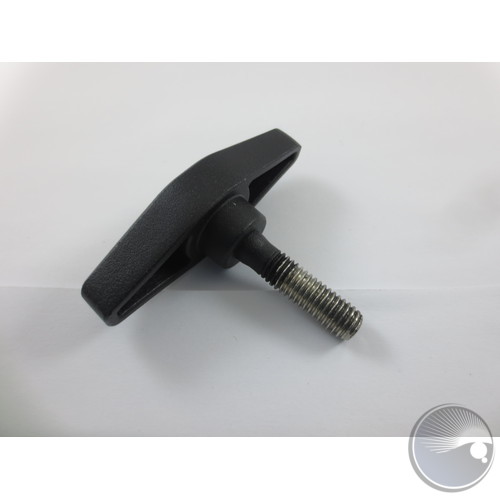

HANGING BRACKET KNOB (BOM#15)PTJ4010302886HANGING BRACKET KNOB (BOM#15)

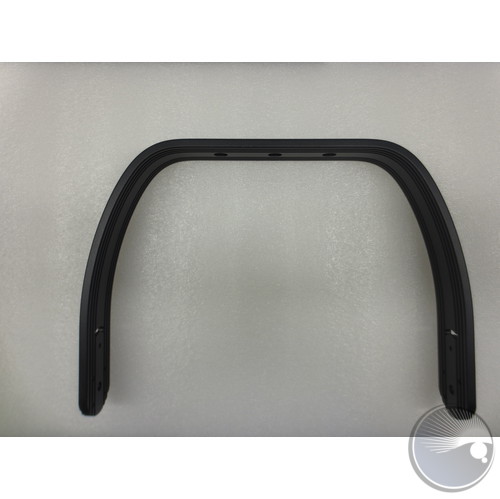

HANGING BRACKET-OUTER (BOM#26)PTJ4010302887HANGING BRACKET-OUTER (BOM#26)

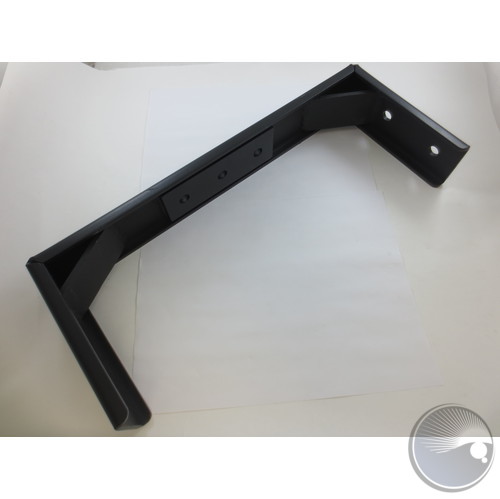

MULTI-BRACKET 1 (BOM#27)PTJ4010302888MULTI-BRACKET 1 (BOM#27)

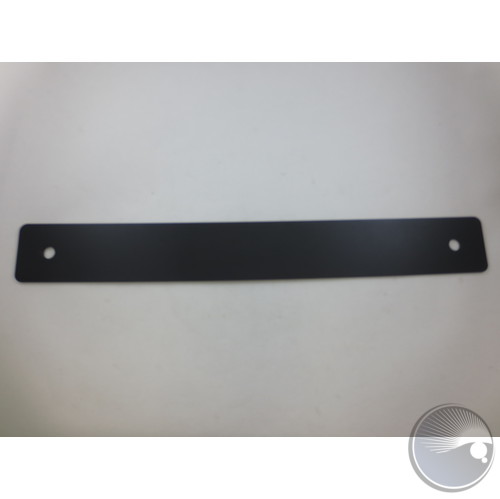

MULTI-BRACKET 2 (BOM#44)PTJ4010302889MULTI-BRACKET 2 (BOM#44)

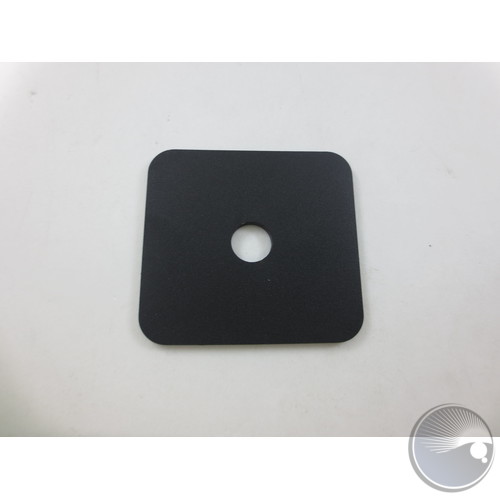

MULTI-BRACKET 3 (BOM#45)PTJ4010302890MULTI-BRACKET 3 (BOM#45)

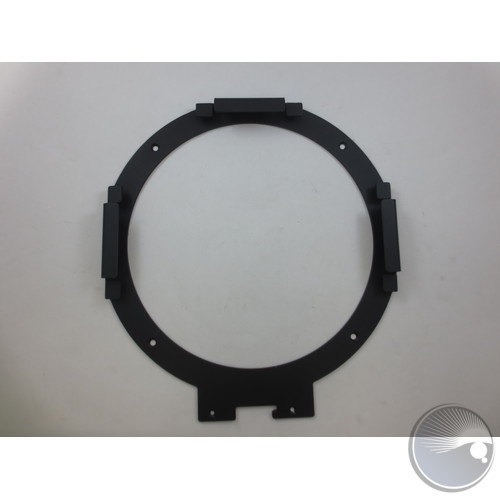

GEL FRAME HOLDER (BOM#2)PTJ4010302904GEL FRAME HOLDER (BOM#2)

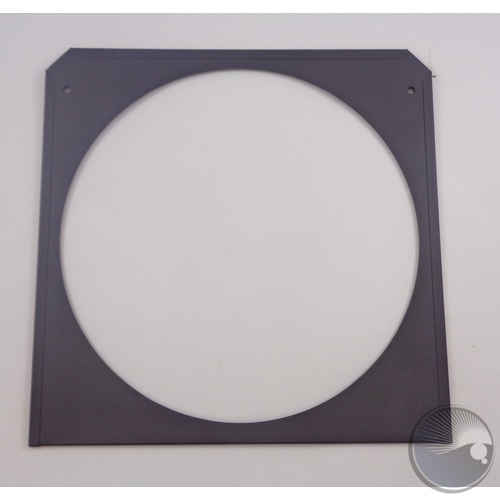

GEL FRAME (BOM#1)PTJ4010302905GEL FRAME (BOM#1)

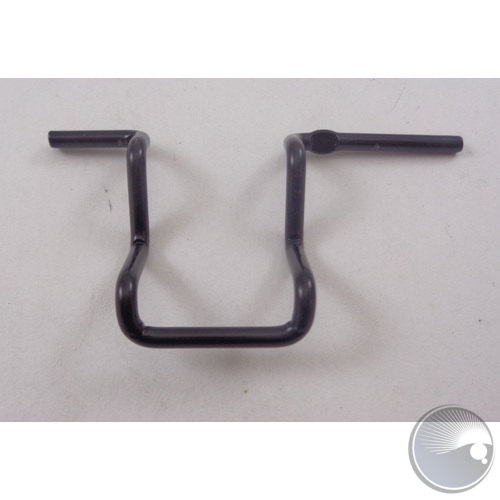

GEL FRAME CLIP (BOM#43)PTJ4010302906GEL FRAME CLIP (BOM#43)
GEL FRAME LOCK HOLDER (BOM#9)PTJ4010302907GEL FRAME LOCK HOLDER (BOM#9)

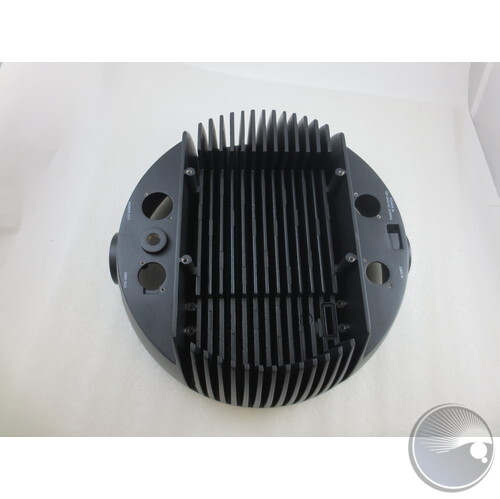

PTJ4010401576HOUSING (BOM#18)

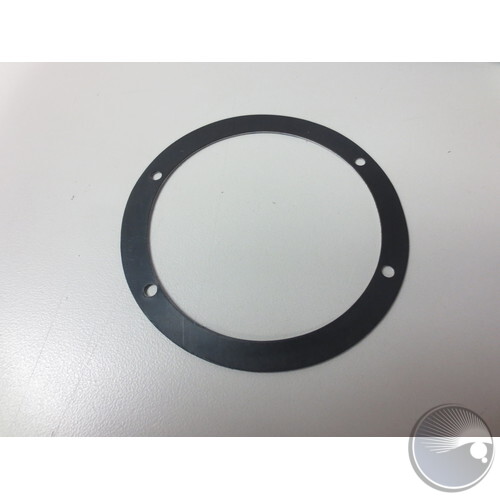

PTJ4020100105PLASTIC RING (BOM#10)
UPLOAD03PTJUPLOAD03UPLOAD03
