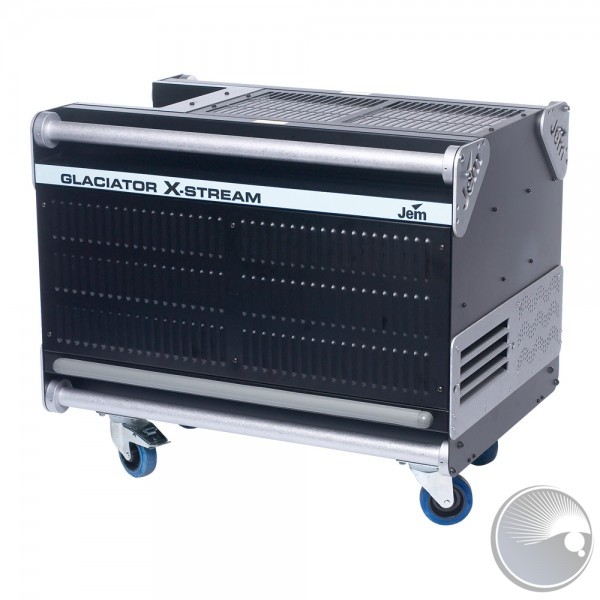

JEM Glaciator X-Stream, 230V
Discontinued

JEM Glaciator X-Stream, 230V

Auf Anfrage!

  • 92210500
The JEM™ Glaciator X-Stream creates a total ground fog effect from a self-contained unit... mehr
Produktinformationen "JEM Glaciator X-Stream, 230V"

The JEM™ Glaciator X-Stream creates a total ground fog effect from a self-contained unit (no C02 or dry ice required). It requires only a power source and the simple but effective JEM™ heavy fog fluids available in three densities for differing low-fog effects.

The Glaciator X-Stream houses a remarkably powerful compressor, allowing colossal fog output levels. And because of its advanced, electronically controlled expansion valve, it has a rapid freeze down time and a fast recovery when fired. This means the Glaciator X-Stream has a continuous effect output, almost infinitely, with a cool ease. Its chassis design; with two high velocity fans and smart-flow ventilation, also keeps the Glaciator X-Stream ticking in environments of high ambient temperatures; up to 40° C (104° F). Featuring a power save system when passive, the Glaciator X-Stream is conscientiously efficient with energy and sound, and its cooling fans have a low noise operation when idle, benefiting theatrical and studio applications.

The Glaciator X-Stream has the option of an external fluid supply; allowing voluminous levels of fog fluid to be stored up to 100 meters away from the unit and at a head height of up to 6 meters. Where silence is golden and space is rare, the optional ducting system allows you to place the unit up to 10 meters away from its application area. A great solution, the remote access system does not in any way compromise the fog output density. The JEM™ Glaciator X-Stream is the benchmark in low-fog production for use in touring and installation live performance applications such as theater, nightclubs, television, studio, film production, and live performance.

  • Self-contained low-fog solution
  • Robust feature set
  • Actors' Equity/Broadway League Approved
Features
  • Robust tour-ready industrial design
  • Self contained unit: no C02 or dry ice
  • Onboard DMX and PLC control
  • Dual digital control panels
  • Density control: low, medium or high
  • Continuous effect output
  • Diverse fluid options for differing effects
  • Internal or external fluid supply
  • Low fluid sensing
  • Optional ducting system and remote control
Weiterführende Links zu "JEM Glaciator X-Stream, 230V"

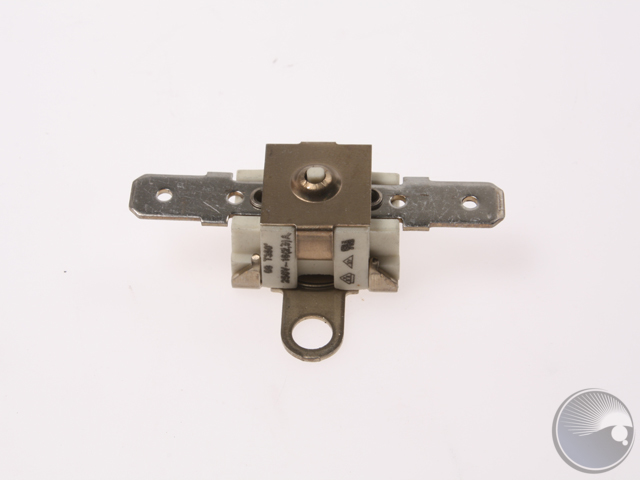

Martin Thermostat 350°C manual reset05041029Martin Thermostat 350°C manual reset
Martin Piston Pump     240V / 50Hz05761003Martin Piston Pump 240V / 50Hz
Martin Screw no6x1/4 self tapper p08190108Martin Screw no6x1/4 self tapper p

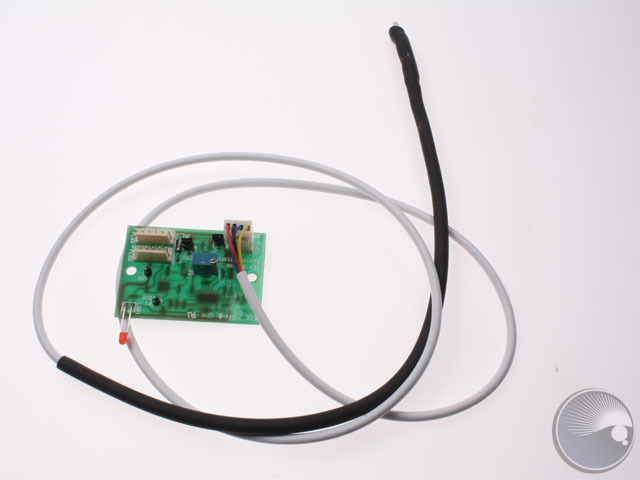

Martin Loom fluid sensor c/w wire & h11862026Martin Loom fluid sensor c/w wire & h

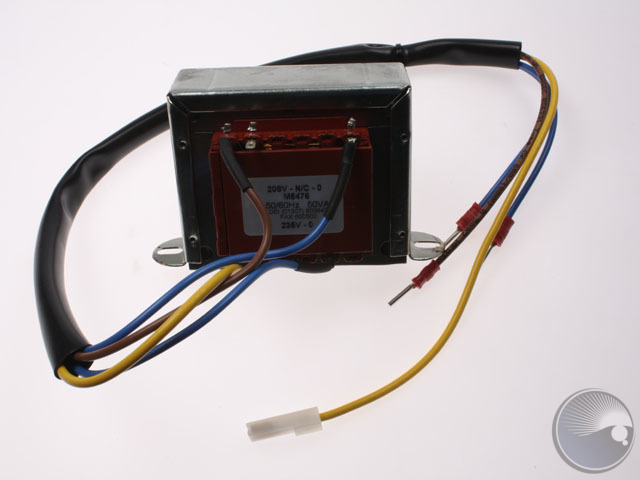

Martin Traffo, 50VA, HFGX, c/w leads11862042Martin Traffo, 50VA, HFGX, c/w leads

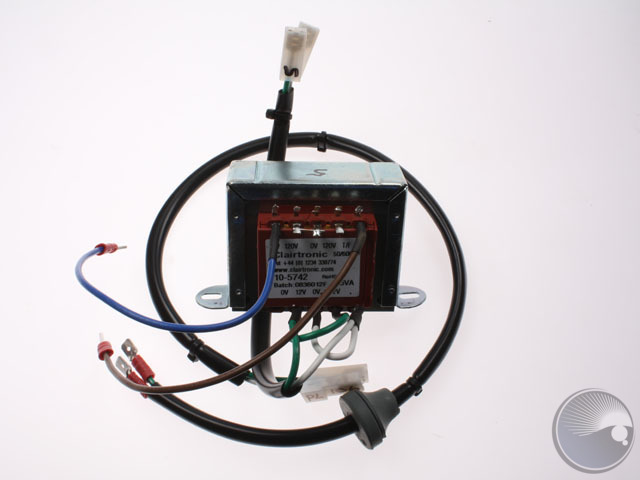

Martin Traffo, 25VA, HFGX, c/w leads11862043Martin Traffo, 25VA, HFGX, c/w leads
13101006Cable clamp
Martin Strap, black, 2.5x100mm13104001Martin Strap, black, 2.5x100mm
Martin Strap, black, 3.6x140mm13104003Martin Strap, black, 3.6x140mm
13104031Cable clamp self adhesive smal
13104040Cable tie base

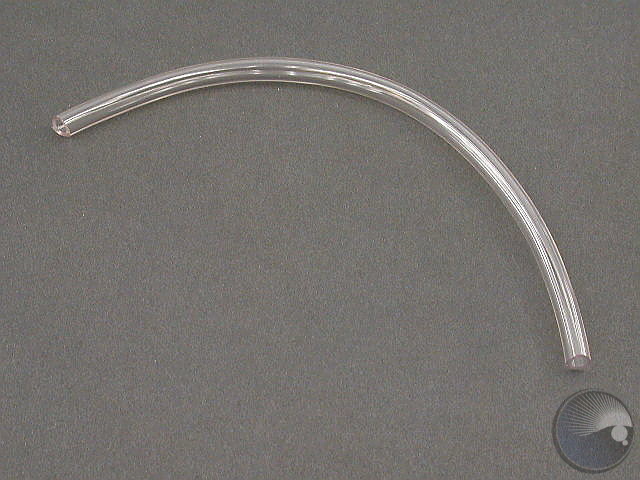

Martin Plastic tube  d=4 D=6, 1lfm14026002Martin Plastic tube d=4 D=6, 1lfm
Martin Tube rubber  d=4,0  D=9 (for m14026004Martin Tube rubber d=4,0 D=9 (for m

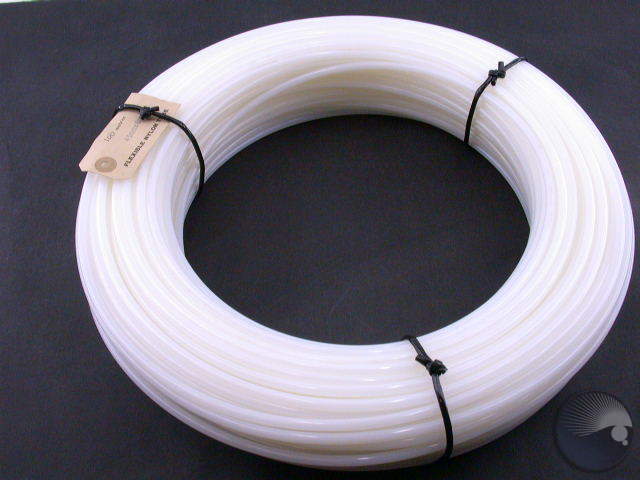

Martin Fluid line 6mm nylon14026011Martin Fluid line 6mm nylon

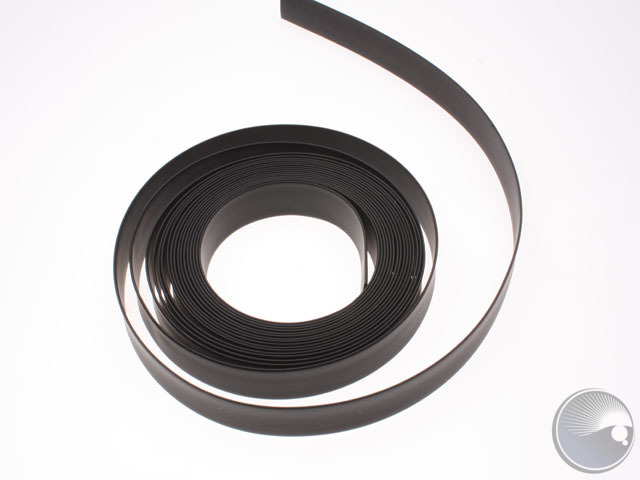

Martin Heatshrink 12.7mm black15803013Martin Heatshrink 12.7mm black
15804015Conduit flexible pvc 12mm x 16
15807005PVC sleeving 6mm, black
15807006PVC sleeving 10mm, black
Plate for xlr-plugs,M2000,18360070Plate for xlr-plugs,M2000,
19040120Hinge 50mm butt, 40mm open 18g
19200260Pawl latch

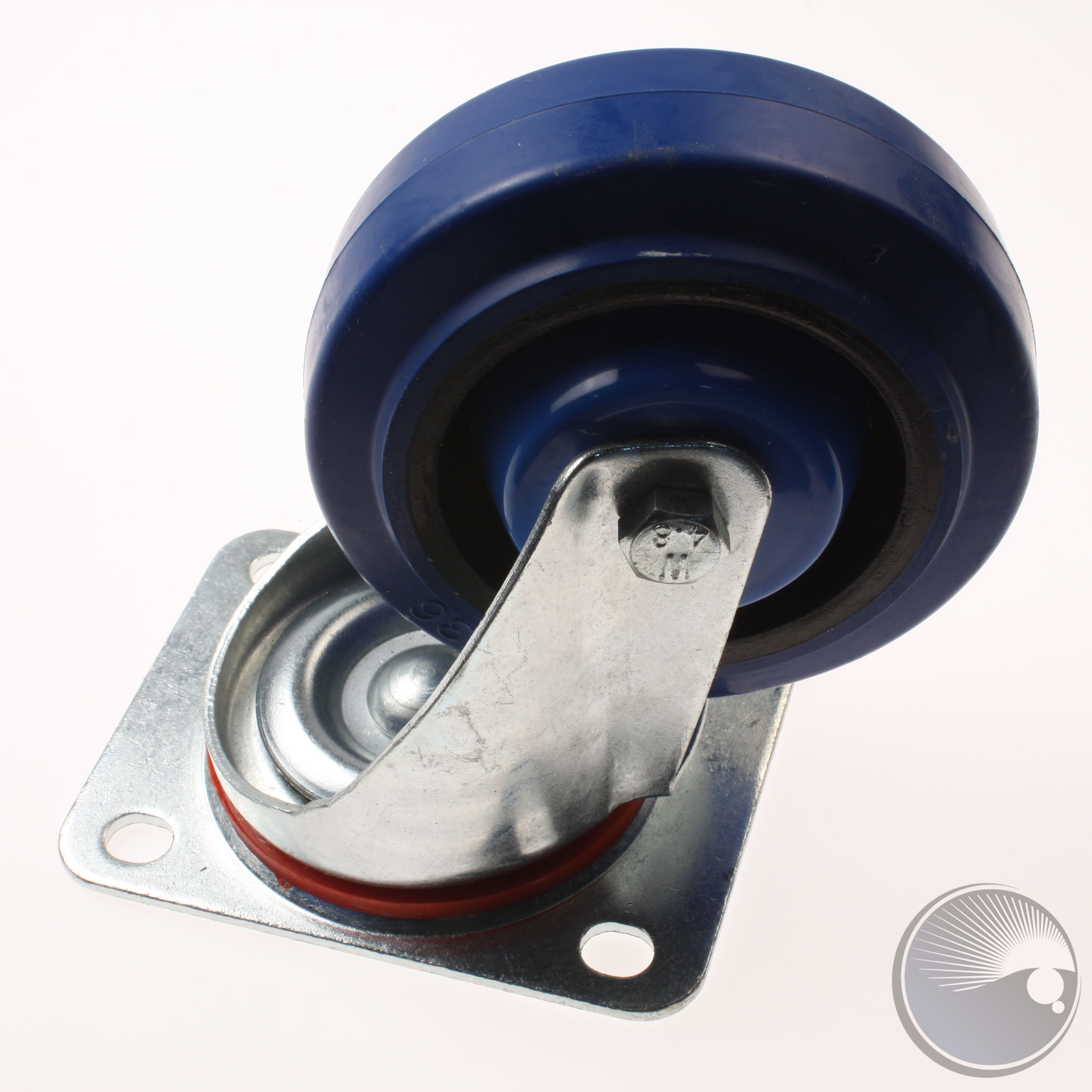

Wheel 4 inc frame (no brake)19400080Wheel 4 inc frame (no brake)

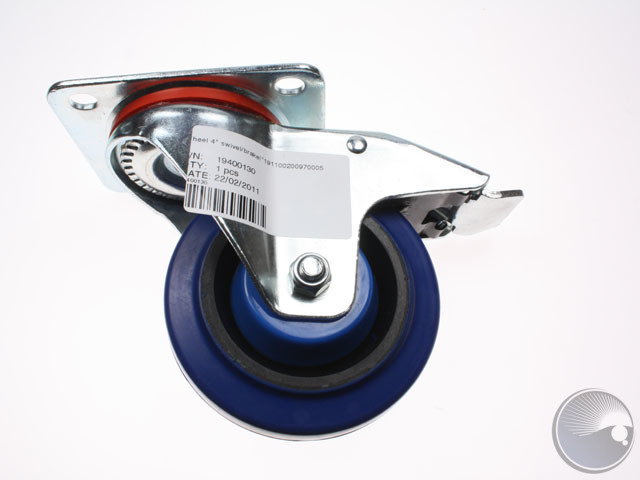

Wheel 4 swivel/brake19400130Wheel 4 swivel/brake
20600140Martin Neoprene gasket adhesive backe
26410110Elbow 6mm push in
26430070Evaporator coil 5 element
26430090Martin Receiver 1.4L c/w r/l valve
26430100Martin Filter dryer solder type
26430110Martin Sight glass moist ind solder

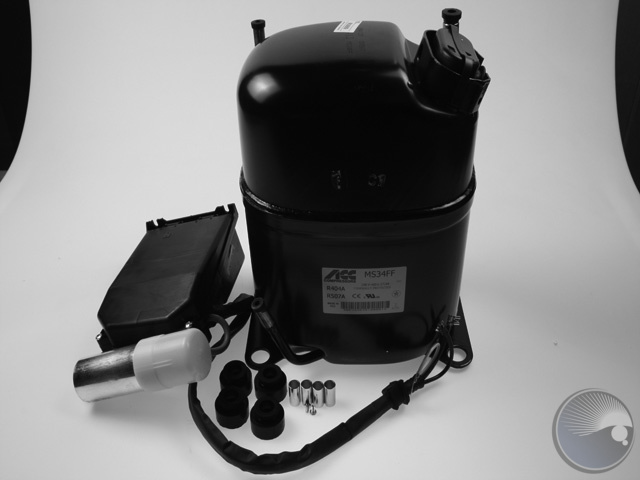

Martin Compressor,208V/60Hz,34cc,+EB26430210Martin Compressor,208V/60Hz,34cc,+EB
26430220EX2 PWM exp valve,3/8 x1/2
26430225EX0-003,No.3 orifice for EX2

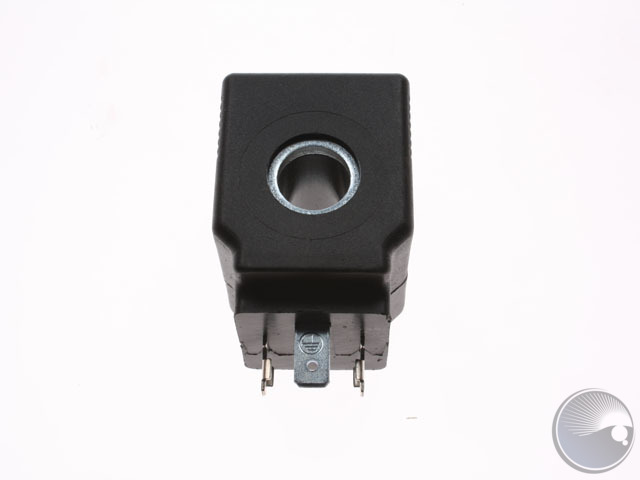

Martin Coil,ASC series,230V,50/60Hz26430230Martin Coil,ASC series,230V,50/60Hz

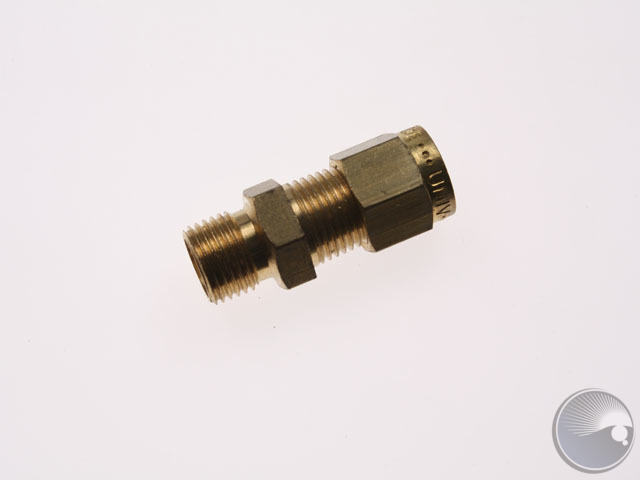

Martin Straight 1/8 fem to 3/16 fem26460240Martin Straight 1/8 fem to 3/16 fem
Martin Adaptor c16 metric Swilvel26460380Martin Adaptor c16 metric Swilvel
26460390Adaptor c16 straight fixed

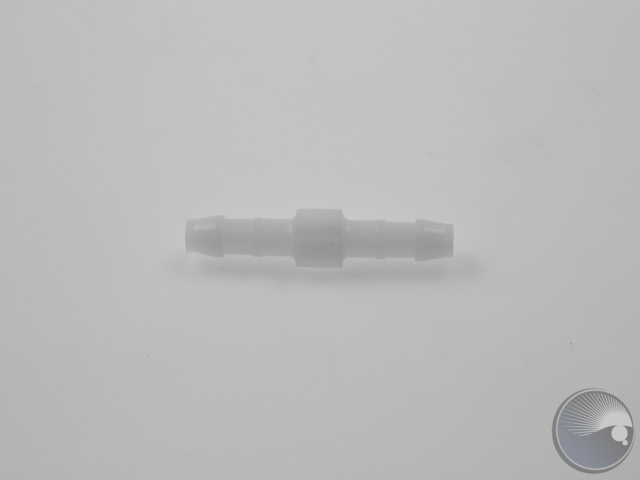

Hose fitting, 4mm straight26460430Hose fitting, 4mm straight

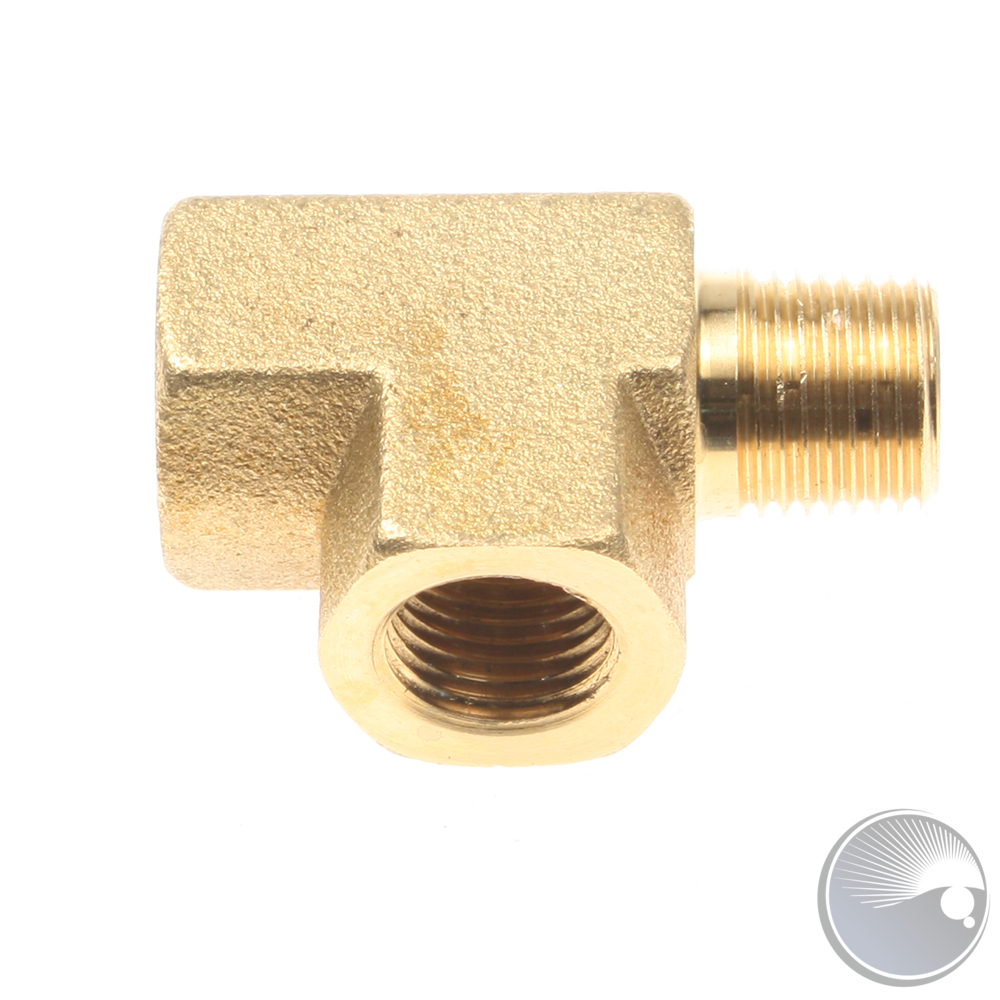

Adaptor, Tee 1/8/1/8/18 brass26460470Adaptor, Tee 1/8/1/8/18 brass
Martin Straight, 1/8 bsp-6mm push on26460500Martin Straight, 1/8 bsp-6mm push on

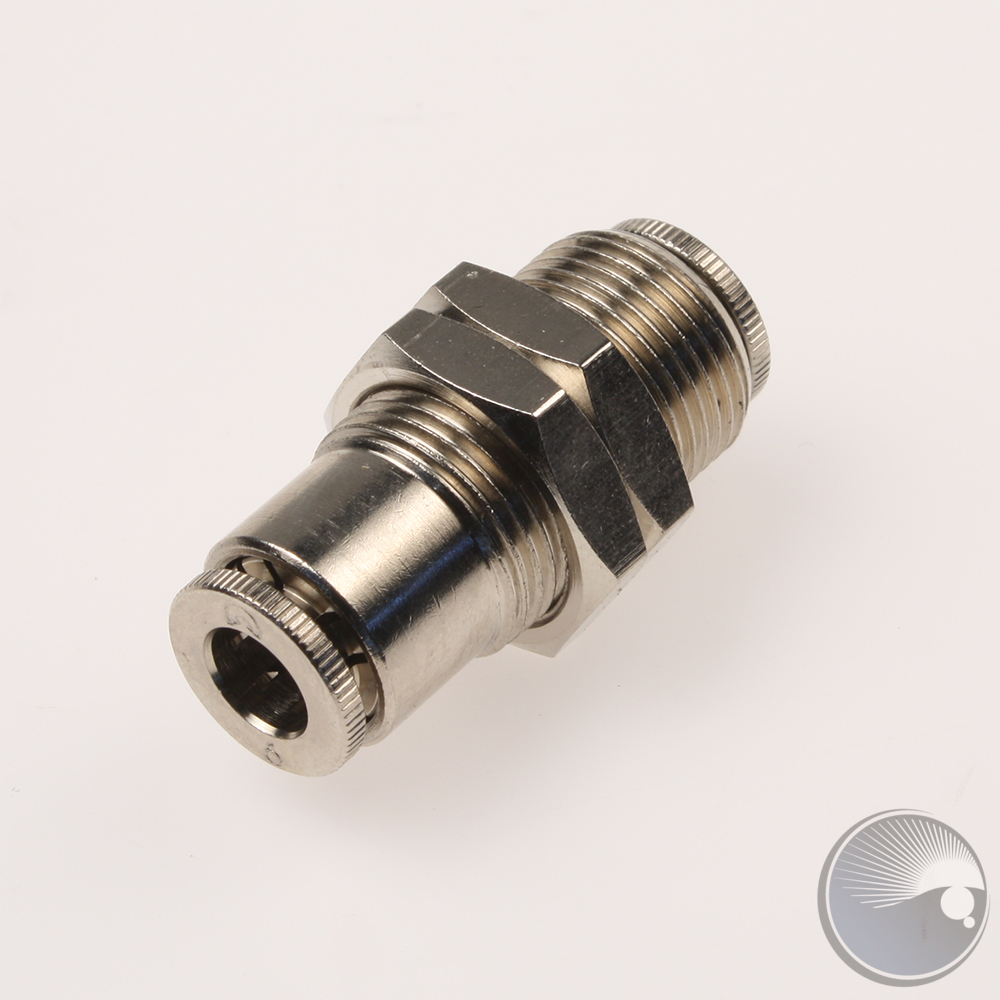

Martin B/head adaptor 6mm-6mm push in26460510Martin B/head adaptor 6mm-6mm push in

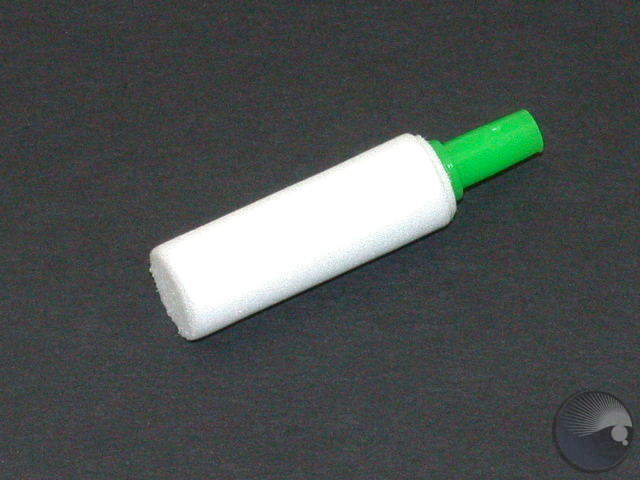

Fluid filter pe moulded26480020Fluid filter pe moulded
26540980Martin Bumper end, HFG
26561200Fan cylinder bracket roadie x
26561570Plate Pump ZR12/22/33/FX-2
26561730Heatsink pcb metal ZR33
26563000Logo trim plate, HFG
26563060Tube handle, HFG

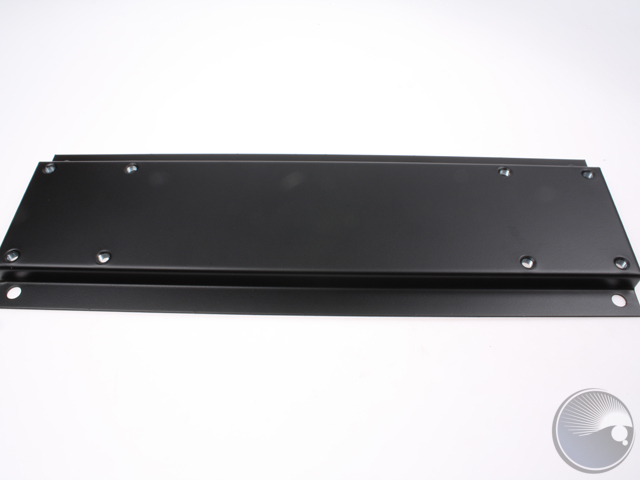

Martin Castor channel, HFG26563080Martin Castor channel, HFG
26563160Display mount, HFG
26564010Trim plate, HFG
26564020Martin Drain bush, HFG
26564030Dmx mount, HFG
26564050Control panel, HFG
26564060Baffle plate, HFG
26564090Grill, HFG
26564150Evaporator box, HFG
26564160Bottom angle strut, HFG

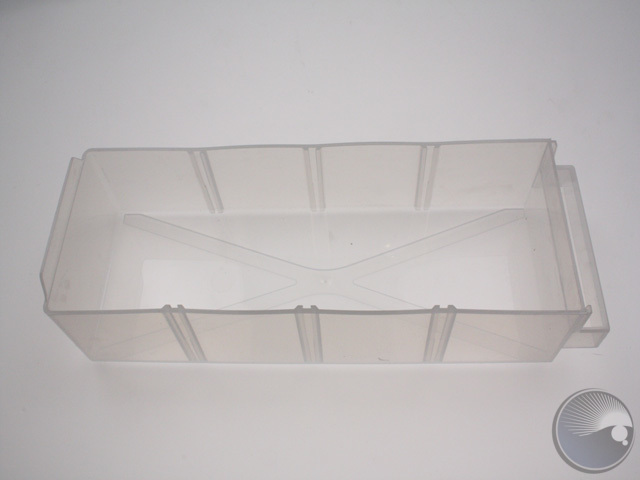

Martin Drip Tray, HFG26564230Martin Drip Tray, HFG
26564280Compressor Disc, HFG
26564430Plate, evaporator lid, HFG
26564460Side Panel uni coated, HFG
26564700Spacer, Mini Mac display

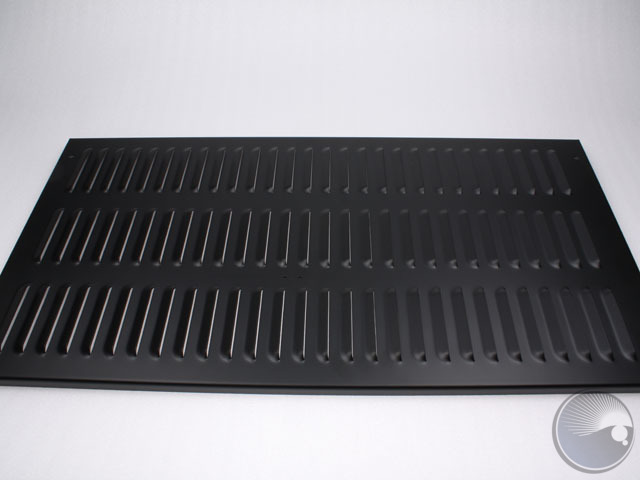

Martin L/H side panel coated, HFG-226564830Martin L/H side panel coated, HFG-2
26564850Door coated, HFG-2
26564860L/H top angle strut, HFG-2
26564870L/H bottom angle strut, HFG-2
26564880Fan Tray, HFG-2
26564890Fan mount 190mm, HFG-2
26564900Condenser mid mount, HFG-2
26564930Bottle comp lid, HFG-2
26564950Pump Bracket, HFG-2
26564960Fan tray pillar, HFG-2
26564970Fan tray end, HFG-2
26564980Bottle comp access, HFG-2
26564990R/H Top angle strut, HFG-2
26565000Martin Front Panel, HFG-2
26565010Condenser end mount, HFG-2
26565020Martin Condenser cover, HFG-2
26565060Fan capacitor bracket, HFG-2

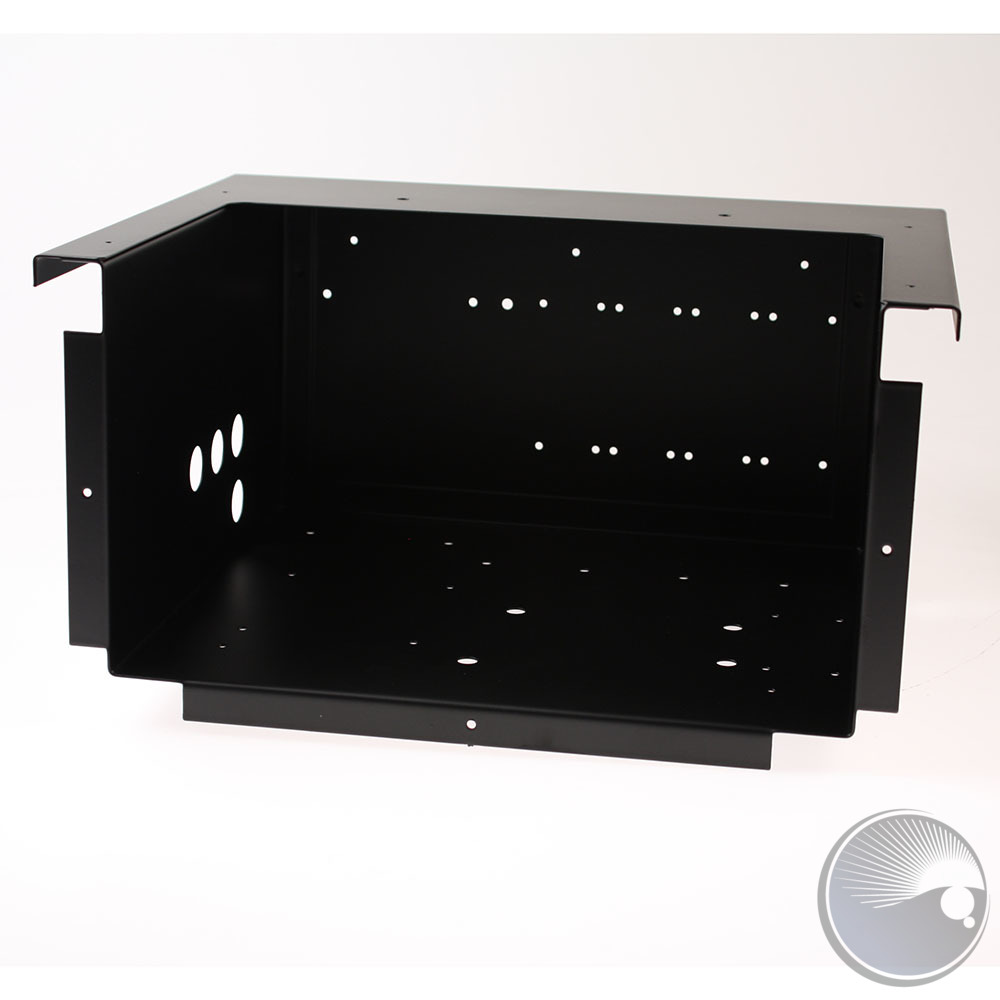

Control Box, HFG-226565160Control Box, HFG-2
26565570Rear Panel, HFG X

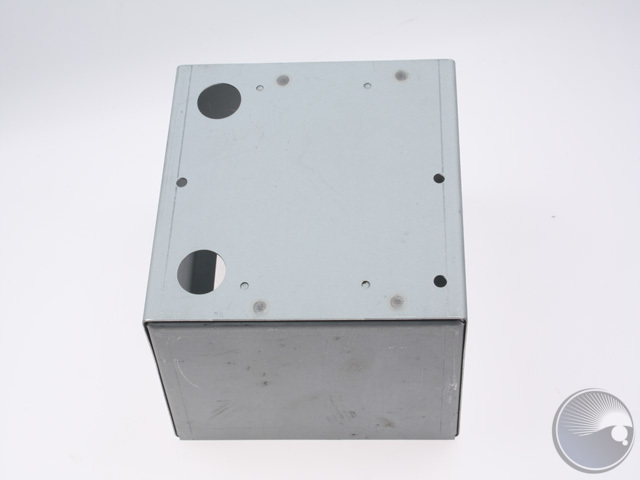

Circuit breaker box, HFG X26565610Circuit breaker box, HFG X
26565620Circuit breaker fascia, HFG X
26565630Chassis Base, HFG X
26565640Bottle comp base, HFG X
26565650Bottle comp top, HFG X
26565660Relay bracket, HFG X
26565670Electric Box Bracket, HFG X

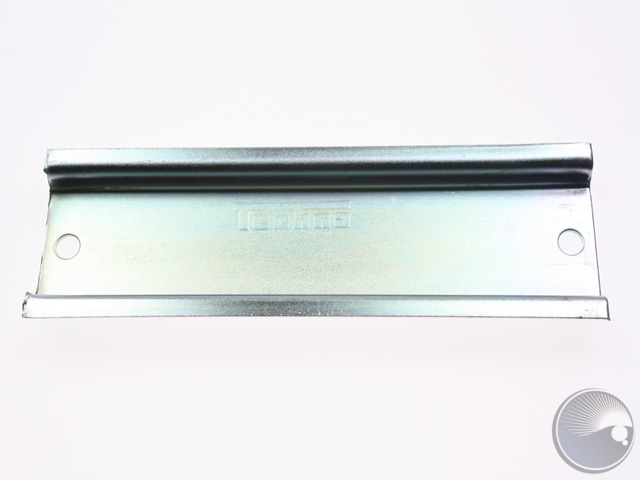

Din Rail 115mm26565800Din Rail 115mm
32021003Grommet open 25mm
32021009Grommet 7-10mm cable retention
Martin MiniMAC Keyboard Overlay33001006Martin MiniMAC Keyboard Overlay
33130035Label thermal trip

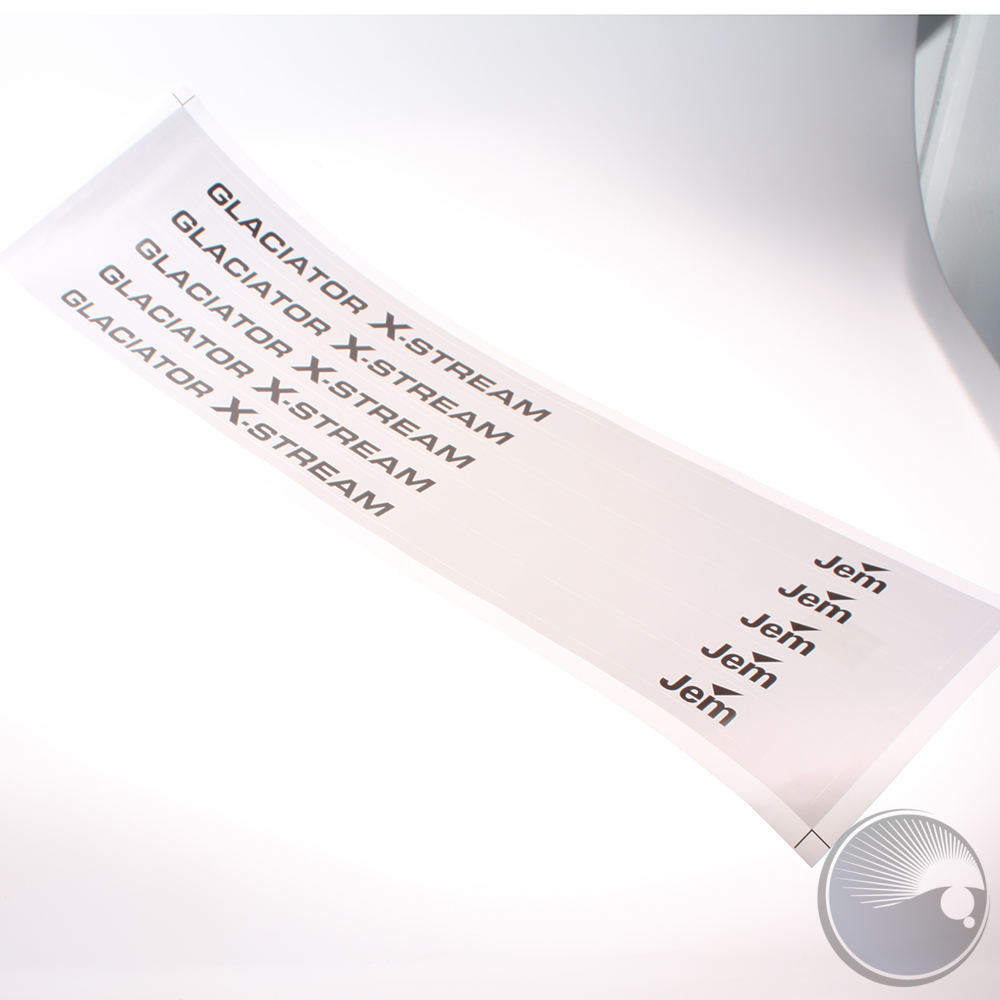

Martin Label, HFG X-Stream l/h side33130056Martin Label, HFG X-Stream l/h side

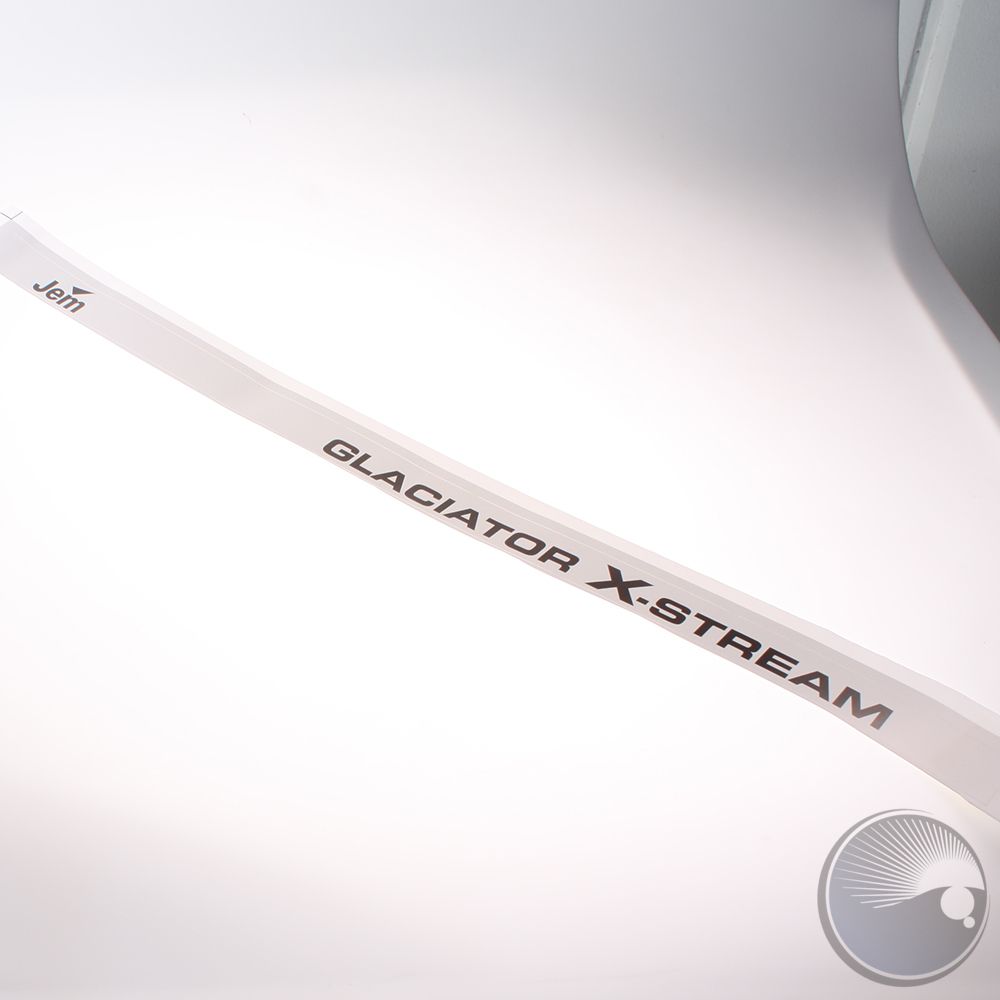

Martin Label, HFG X-Stream r/h side33130057Martin Label, HFG X-Stream r/h side
33140054Martin Label HF Glaciator ctrl. pnl.
33140055Label HF Glaciator dmx pnl.
33140064Label,HFG,local/remote fluid
33150028Martin Label FX-2 yellow warning tria
33150040Martin Label, Use Jem/Martin fluid
33150074Label, Caution-shock (ENG/FR)
33150097Label, refrigeration, HFG-X

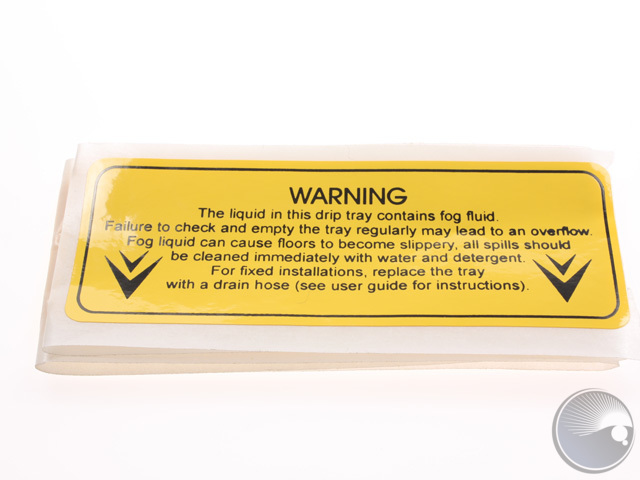

Label,HF drip tray33180085Label,HF drip tray

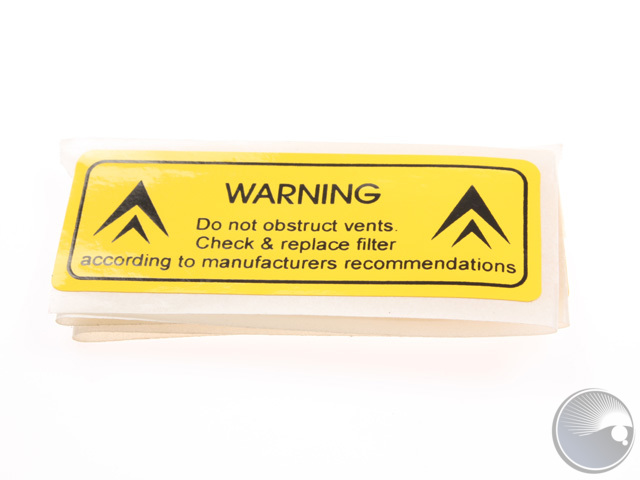

Martin Label,HF air filter33180086Martin Label,HF air filter
33190002Martin Label CE
33190082Martin WEEE label, black
34300506Container 5 ltr
Martin Capacitor 2uF, for R2E190 fan4030065Martin Capacitor 2uF, for R2E190 fan
Martin Relay,25A,SP,240V 50/60Hz5001001Martin Relay,25A,SP,240V 50/60Hz
Martin Circuit breaker roadie x5001210Martin Circuit breaker roadie x
Martin Fuse, 2A slow blow5020009Martin Fuse, 2A slow blow
Martin Fuse 3.15 AT, I*I*t=226.55020013Martin Fuse 3.15 AT, I*I*t=226.5
Martin Fuse 15AT5020027Martin Fuse 15AT
Martin Thermostat 350°C cw UL loom5041030Martin Thermostat 350°C cw UL loom
Terminal block nylon 10amp5220504Terminal block nylon 10amp
Xlr 3pin male chassis mount5243002Xlr 3pin male chassis mount
Martin Cable plug 4.8mm female single5328301Martin Cable plug 4.8mm female single
Martin Cable housing 4.8mm5328302Martin Cable housing 4.8mm
Martin Crimp non insulated5328408Martin Crimp non insulated
5328409Crimp blue piggy back
Crimp Contact5328421Crimp Contact
Crimp 5mm blue eyelet d insula5329003Crimp 5mm blue eyelet d insula
Martin DIP switch Piano type 12 bit D5500003Martin DIP switch Piano type 12 bit D
5523022Switch mini mains latching red
Switch cover for Roadie x5550009Switch cover for Roadie x

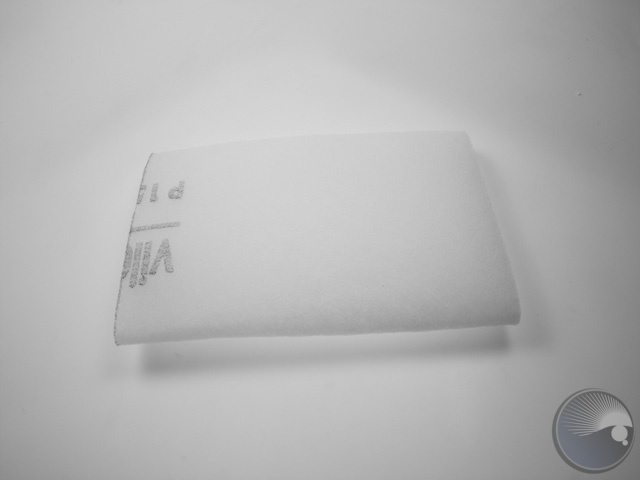

Martin Filter, HFG-2 condenser56210020Martin Filter, HFG-2 condenser
56210044Circuit breaker ass, HFGX 230V
56210047Power inlet assy, HFGX 208V
Martin Fan 190mm, radial s/inlet 230V5733207Martin Fan 190mm, radial s/inlet 230V
Martin Finger guard 150mm5749015Martin Finger guard 150mm
Martin Valve non return 1/8 bsp to 6m5761103Martin Valve non return 1/8 bsp to 6m
Martin Rubber Washer for piston Pump5769002Martin Rubber Washer for piston Pump

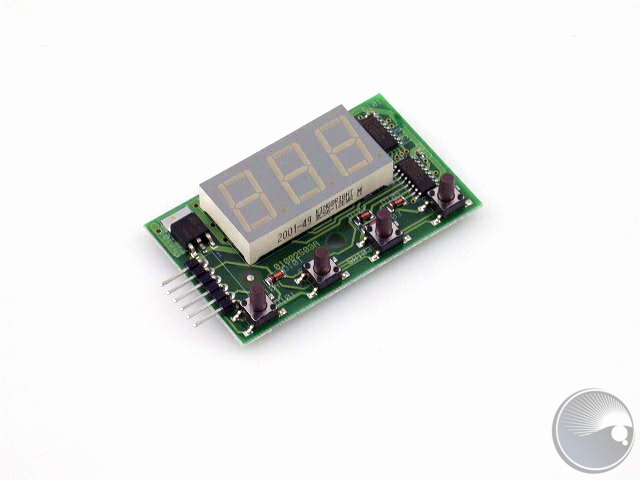

PCBA Disp./Keyboard MiniMAC, tested62000058PCBA Disp./Keyboard MiniMAC, tested

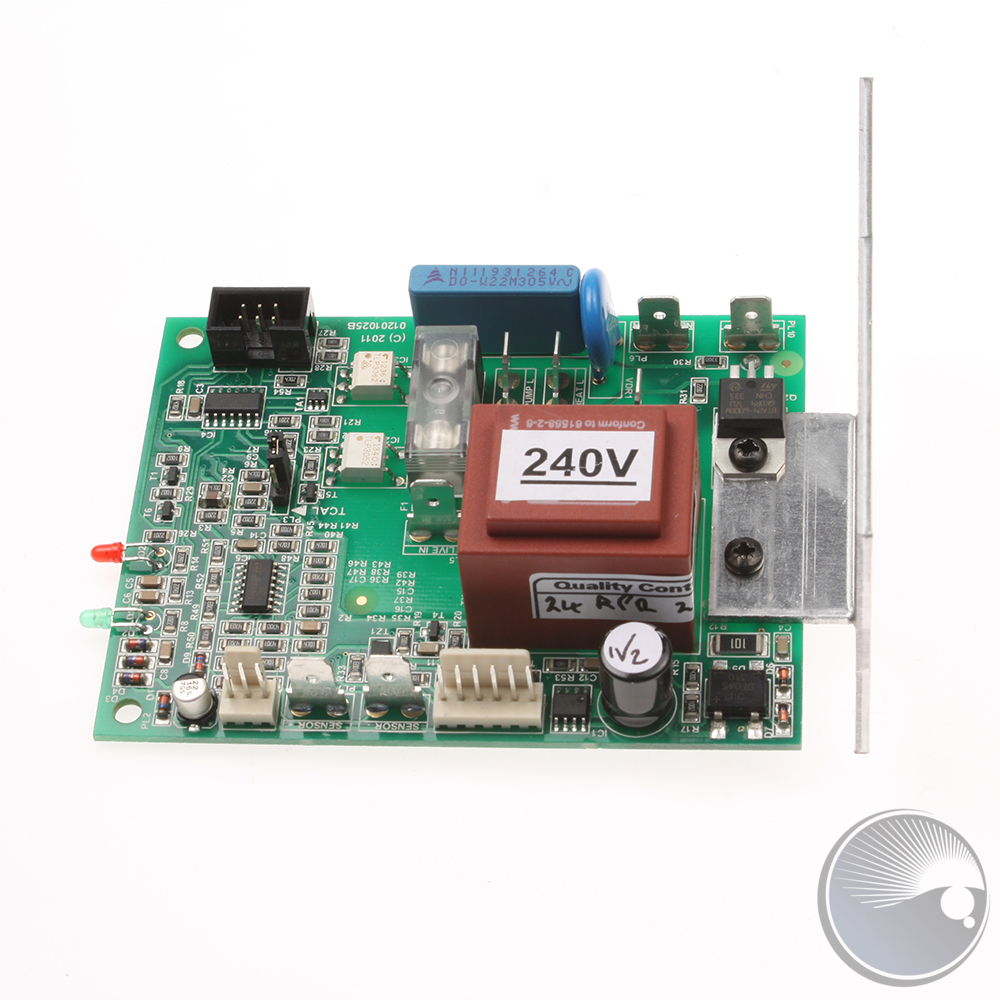

Martin PCBA power HFGX, 230V 50/60Hz, Tiny4462020130Martin PCBA power HFGX, 230V 50/60Hz, Tiny44
Martin PCBA roadie x display62020503Martin PCBA roadie x display
Martin PCBA 4ch Temp. sensor62021018Martin PCBA 4ch Temp. sensor
Martin PCBA dmx receiver HFGX 208V62021031Martin PCBA dmx receiver HFGX 208V

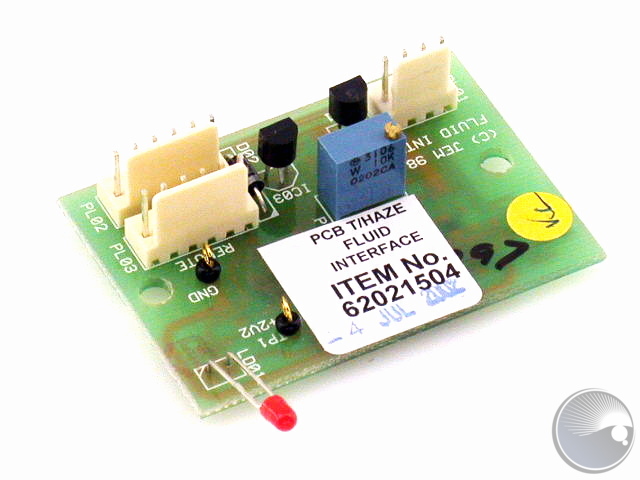

Martin PCBA t/haze fluid interface62021504Martin PCBA t/haze fluid interface
Martin PCBA relay,16A,spco62022503Martin PCBA relay,16A,spco
62203586Loom,XLR,HFG
62203616Martin Loom, evaporator fan HFG-2
62203617Loom,HFG2,Pressure switch
62203618Loom,HFG2,Earthing
62203624Loom, thermal HFG, UL
62203625Loom low voltage, HFGX
62203643Loom high voltage, HFGX 208V
62520053Martin Fluid line assy HFG-2
62544009Martin Thermocouple for refrigeration system
Martin M3x16 ph pz black8050407Martin M3x16 ph pz black
M3x10 ph pz black8050416M3x10 ph pz black
Martin M3 nut black8052601Martin M3 nut black
Martin M3 nut lock PA shiny8052701Martin M3 nut lock PA shiny
Martin M3x10 stand off f/f black8053837Martin M3x10 stand off f/f black
Martin M3 washer 3,2/7x0,5 shiny8054301Martin M3 washer 3,2/7x0,5 shiny
Martin M3 washer lock 3,2/6 black8054401Martin M3 washer lock 3,2/6 black
Washer m3 crinkle8054403Washer m3 crinkle
M4x10 ph pz black8070402M4x10 ph pz black
Martin M4x10 tapt black8070418Martin M4x10 tapt black
Martin M4x16 ph pz black8070419Martin M4x16 ph pz black
M4x8 ph pz black8070423M4x8 ph pz black
Martin M4 nut lock PA shiny8072701Martin M4 nut lock PA shiny
Martin M4 washer lock 4,3/8 black8074401Martin M4 washer lock 4,3/8 black
M5x16 ph pz black8090412M5x16 ph pz black
Nut m5 nyloc8092702Nut m5 nyloc
M5 Washer, black8094303M5 Washer, black
Martin Clip P type brass 4.8mm8105010Martin Clip P type brass 4.8mm
Washer m6 flat bzp8114404Washer m6 flat bzp
M8 hex half nut bzp8132605M8 hex half nut bzp
Martin M8 washer 8,4/16x1,6 black8134301Martin M8 washer 8,4/16x1,6 black
2.9x9.5 C. rec. Ph. Selftap bl81901042.9x9.5 C. rec. Ph. Selftap bl
Martin 3.9x9.5 C. rec. Ph. Selftap bl8190301Martin 3.9x9.5 C. rec. Ph. Selftap bl
Martin 3.2x10 Pop rivet steel black8220105Martin 3.2x10 Pop rivet steel black
Rivet earthing8220705Rivet earthing
Martin Hose clamp 7.9-9.2 plastic8250105Martin Hose clamp 7.9-9.2 plastic
Spacer  Snap-PCB / selftap   ,8261204Spacer Snap-PCB / selftap ,
