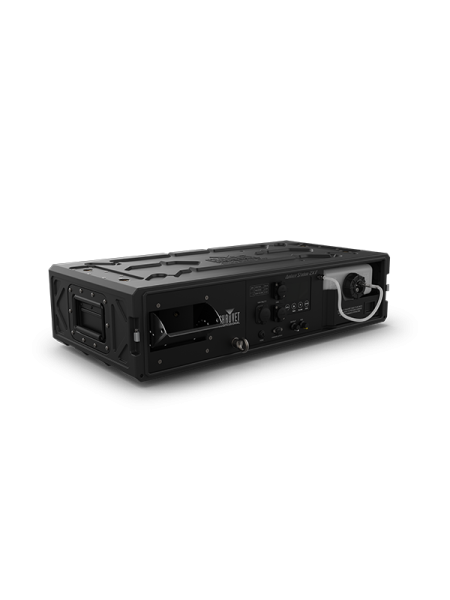

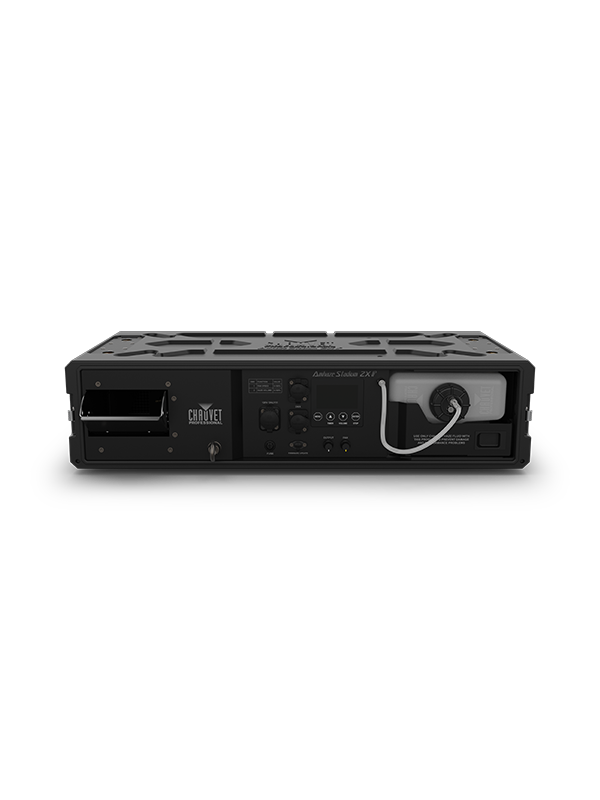

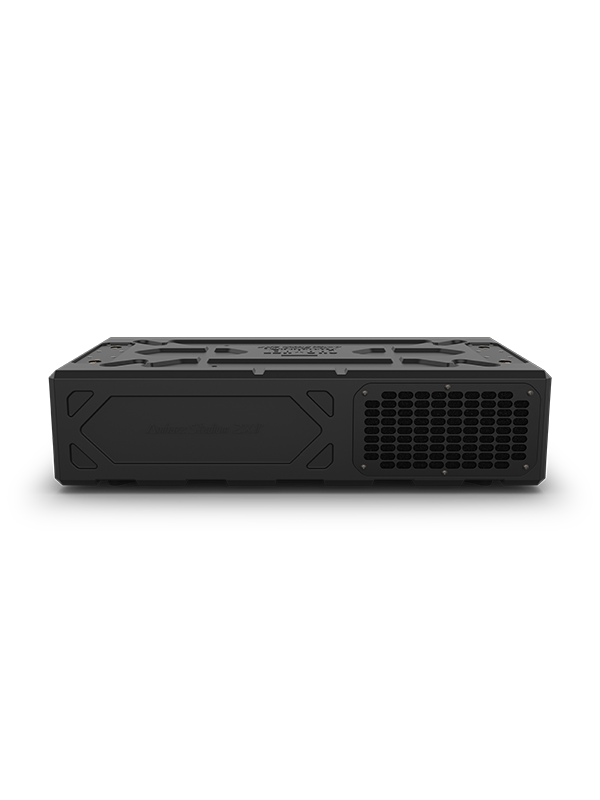

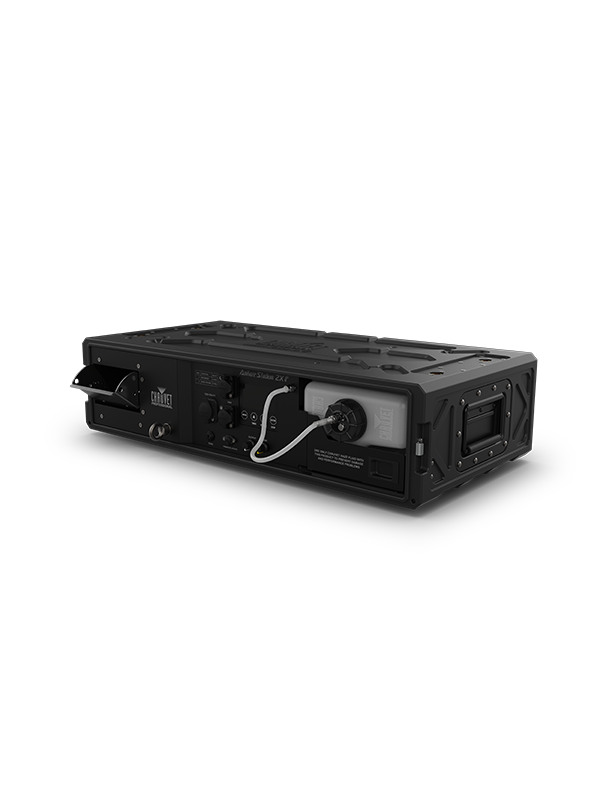

Amhaze Stadium 2X IP (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: AMHAZESTADIUM2XIP
At a Glance
Compact, professional hazer gives high quality haze for live lighting applications
Suitable for temporary outdoor/wet use
Continuous operation produces haze for medium to large applications
Our innovative, fully serviceable heater assembly is designed for maximum efficiency and longevity. Enjoy easy internal servicing and cleaning, ensuring optimal performance with minimal downtime. Plus, the replaceable heater core extends the product’s lifespan while reducing waste—delivering cost savings and sustainability without compromising on reliability.
Our innovative heater design significantly reduces clogging, ensuring smooth operation, minimal maintenance, and enhanced reliability for long-term performance
Adjustable vent louver for directional haze flow

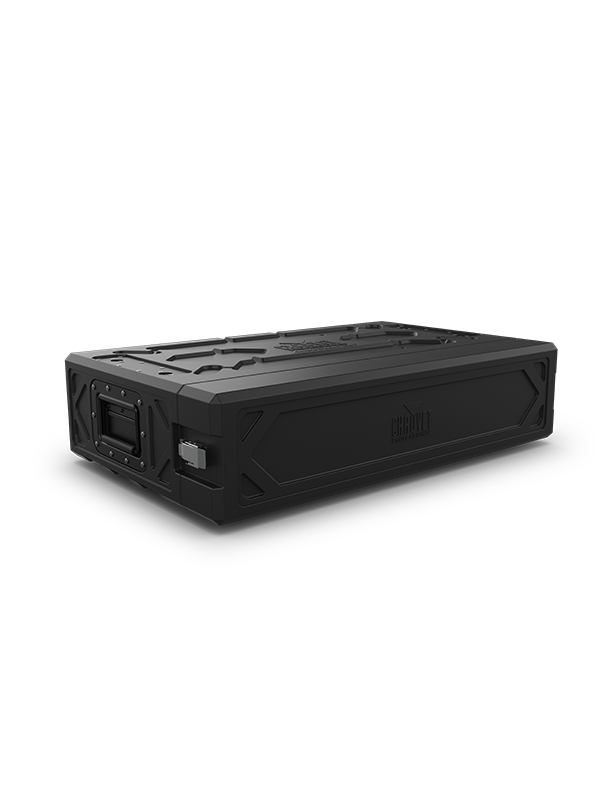

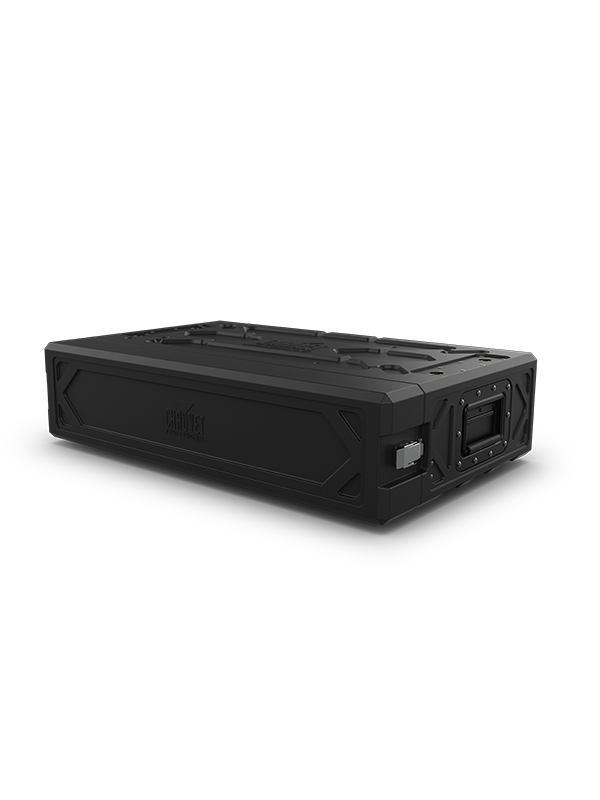

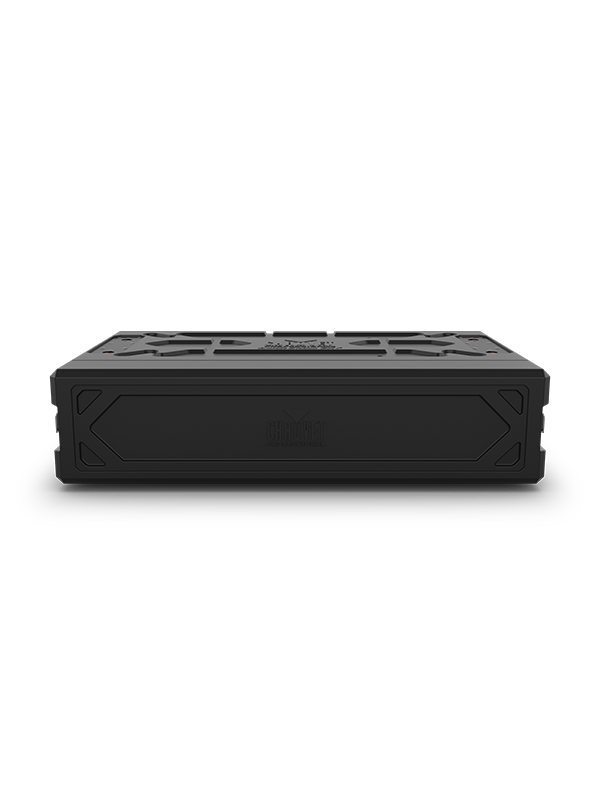

Ships in integrated, rugged flight case, suitable for rental/touring applications with removeable front cover with storage for accessories
Designed for seamless compatibility, this unit utilizes Chauvet’s standard 140D Omega Mounting Brackets, allowing for easy integration with standard mounting hardware for quick and secure installation.

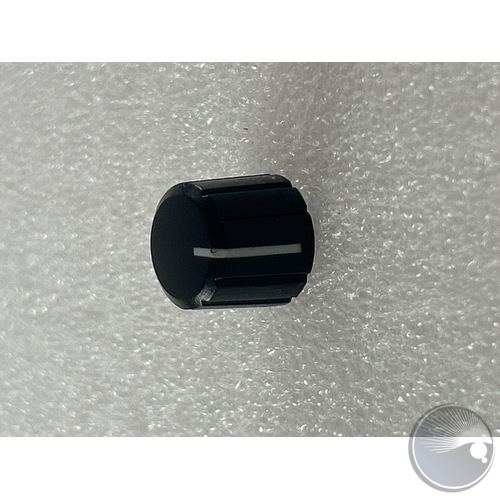

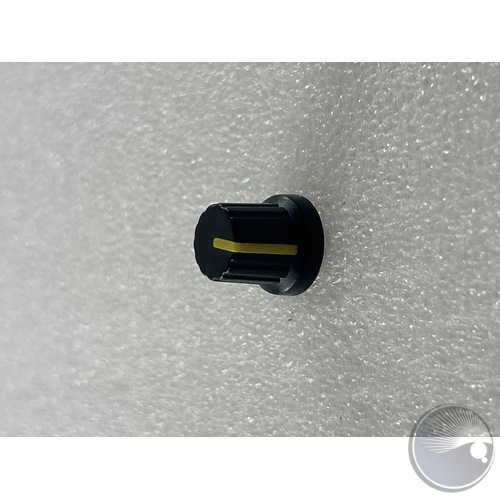

Experience precise control with continuous variable haze output and adjustable blower speed, easily fine-tuned via DMX integration or intuitive manual knobs for seamless customization.
Specifications
Dynamic Effects
- Fan Performance: 164 cfm
- Low Fluid Shutdown: Yes
Construction / Physical
- Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
- Weight: 48.8 lb (22.13 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
- Tank Capacity: 1.32 gal (5 l)
- Fluid Consumption: 9.5 ml/min
- Maximum Runtime: 8 hrs
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
- Firmware upgrades: USB type-C
Control
- Control Protocol: DMX, RDM
- DMX Channels: 2
- Modes/Personalities: 1 personality (2ch)
- On-Board Control: Yes
Electrical
- Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
- Power and Current: 511 W, 4.26 A @ 120 V, 60 Hz
- Power and Current: 722 W, 3.14 A @ 230 V, 50 Hz [1.2 A inrush]
- Heat-up Time: 6 min
- Fuse (120V model): F8 A, 250 V
- Fuse (230V model): F5 A, 250 V
Certifications / Qualifications
- CE, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Amhaze Stadium II IP
- Seetronic IP 65 Powerkon power cord
- 2x Mounting brackets

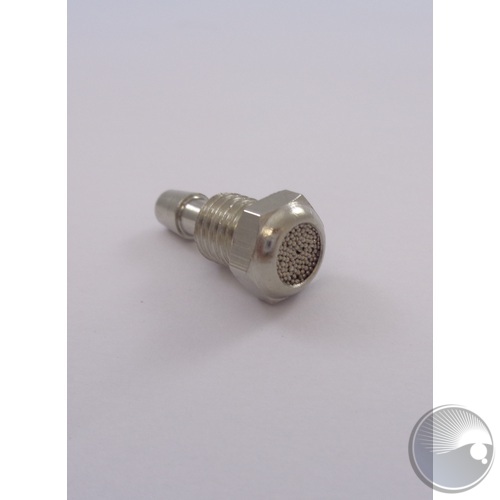

- Output nozzle assembly
- Front Cover
Required Accessories
- Accessories (required): Fog Fluid-PHF
- Compatible Mounting Options: M12 / ½” hole with mounting brackets (clamps)
Optional Accessories
- Neutrik powerKON cables
- DMX Cables
