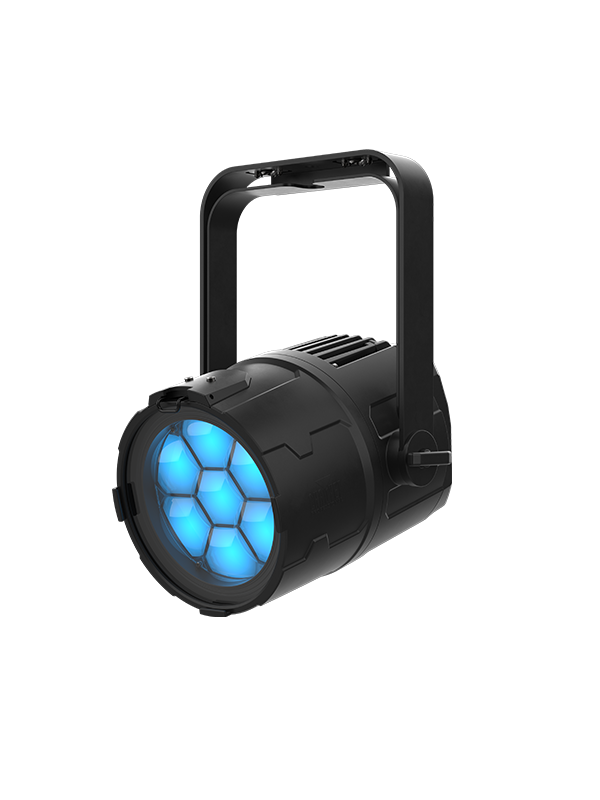

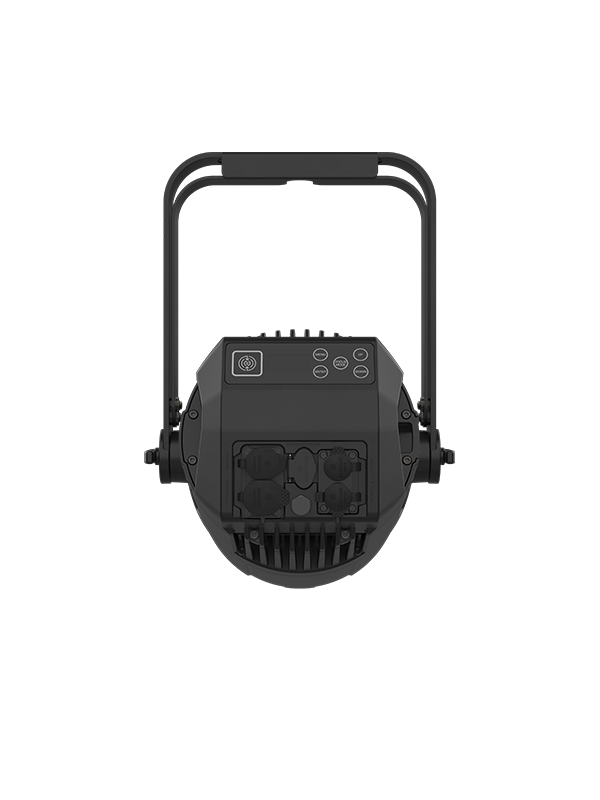

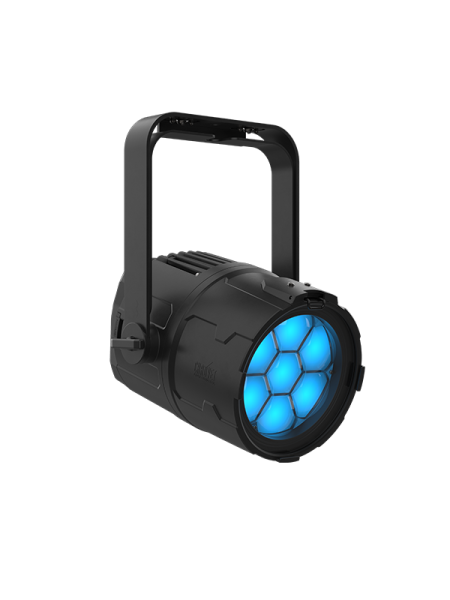

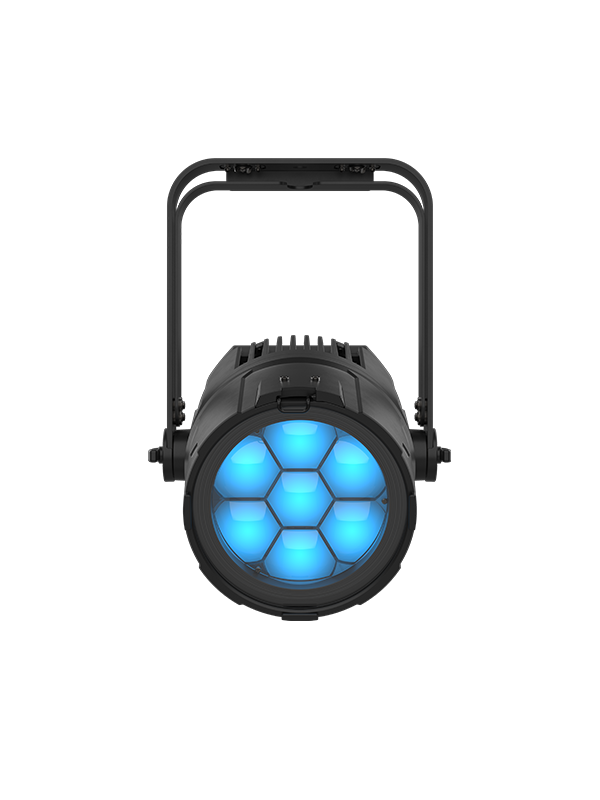

COLORado 3-Quad Zoom (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: COLORADO3QZL
At a Glance
High-performance RGBL LED zoom wash for touring, rental, and production -indoors or out
High-power with smooth and even color mixing
3.9° to 52.6° smooth and fast zoom
All environment operation with IP-rated power and DMX
connectionsEasy mounting using traditional clamps, quick
connecting omega bracket, or split yoke floor standSelectable, smooth dimming curves for programming

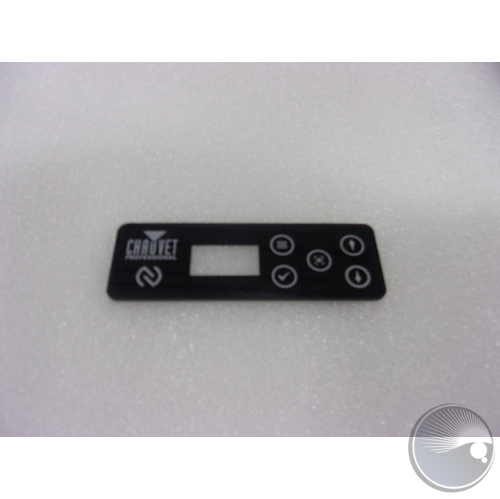

versatilityOLED display with back lit buttons, including focus mode
and password protection
Specifications
Optical

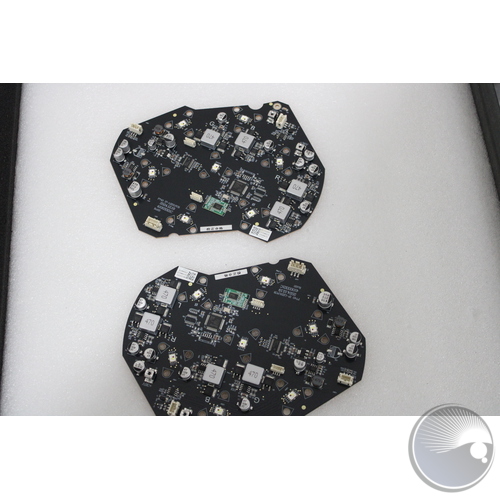

- Light Source: 7 LEDs (quad-color RGBL), 8.4 to 13 W, (2.7 A), 50,000 hours life.
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 5882 K
- CRI (3200K): 83
- Beam Angle: 3.9° to 38.5°
- Field Angle: 6° to 52.6°
- Cutoff Angle: 7.3° to 58.9°
- Zoom Range: 3.9° to 52.6°
- Lumens (3.2°) : 3350
- Lumens (39.9°) : 5974
- Illuminance (3.9°): 27,567 lux @ 5 m
- Illuminance (38.5°) : 657 lux @ 5 m
- Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic

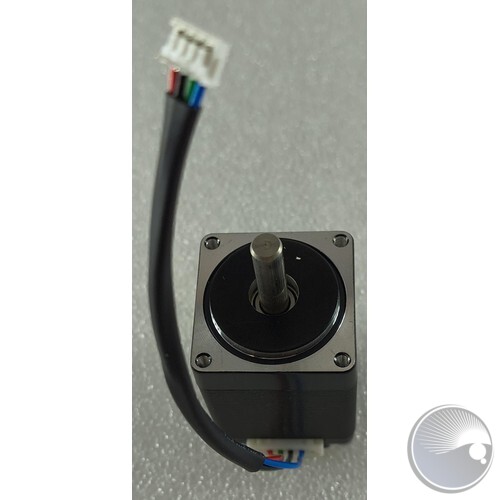

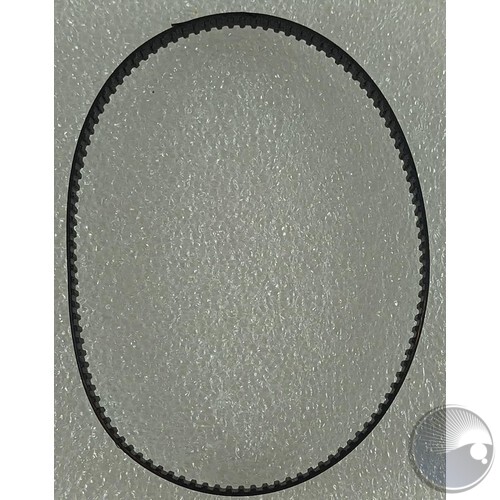

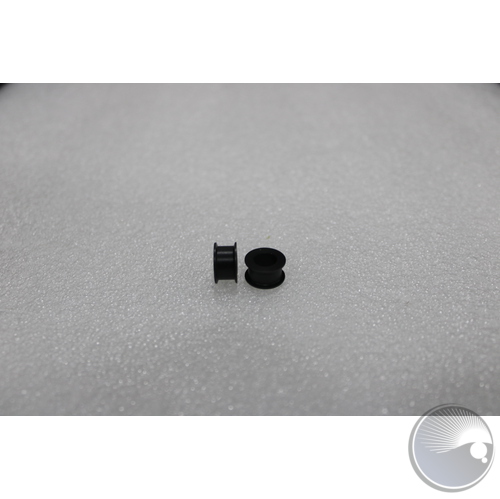

- Zoom: Motorized
- Focus: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 16.34 x 10.94 x 8.30 in (415 x 278 x 210.84 mm)
- Weight: 14.2 lb (6.4.0 kg)
- Exterior Color: Black
- Housing Material: Magnesium diecast
- Accessory Holder/Gel Frame Size: 7.5 in (190.5mm)
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)

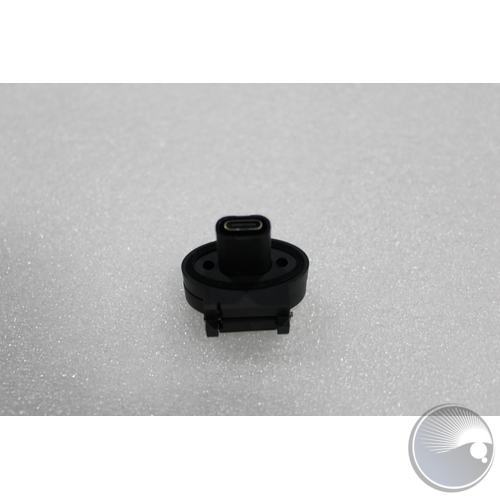

- Software Connection: USB
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH or HSV
- Modes/Personalities: 9 personalities (1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH, HSV)
Electrical

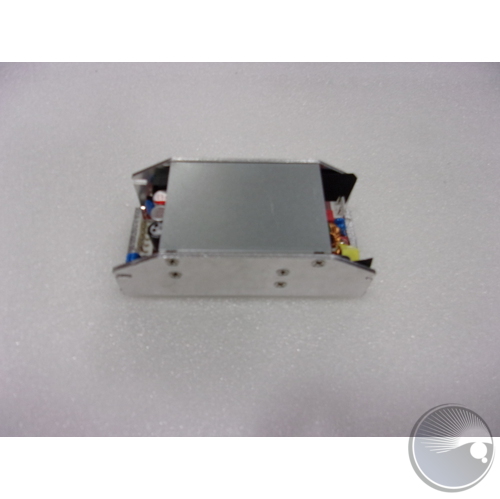

- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: units @ 120 V; units @ 208 V; units @ 230 V
- Power and Current: 258 W, 2.23 A @ 120 V, 60 Hz
- Power and Current: 255 W, 1.29 A @ 208 V, 60 Hz
- Power and Current: 260 W, 1.18 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC

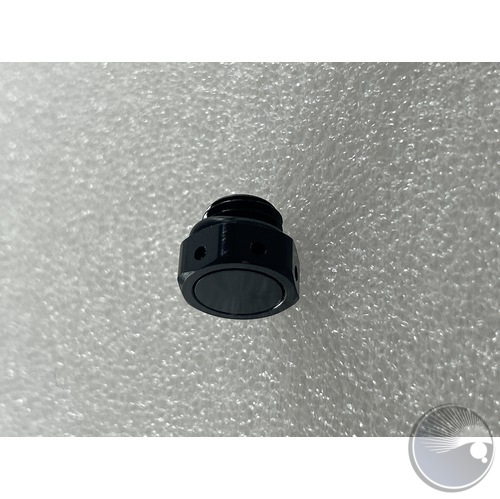

- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -4 °F to 122 °F (-20 °C to 50 °C)
What's Included
- COLORado 3 Quad Zoom
- Seetronic Powerkon IP65 power cord

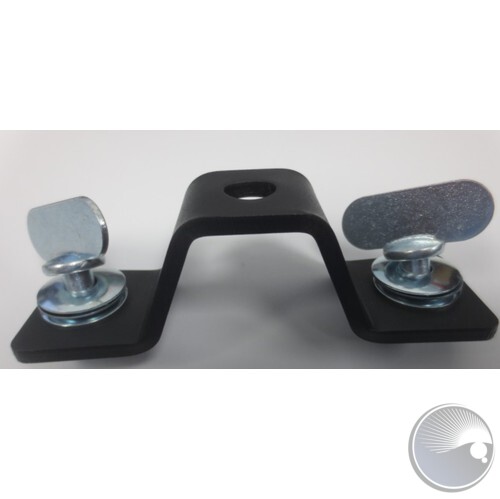

- Omega bracket

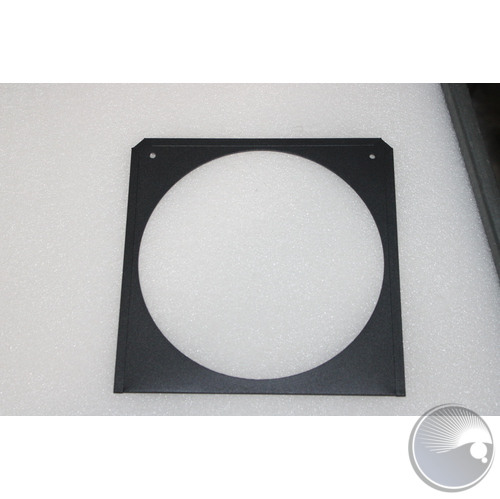

- Gel frame holder (7.5 in/190.5 mm accessories)
Optional Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Riglink TR1 Cables
- Riglink IP DMX Cables
- Ovation 7.5 Barndoor
ORDERING INFO
- Item Code: 03032273
