COLORado 2-SOLO

Auf Anfrage!

  • COLORADO2SOLO
COLORado  2 Solo COLORado 2 Solo  is fitted with three 40 W RGBW LEDs to project... mehr
Produktinformationen "COLORado 2-SOLO"

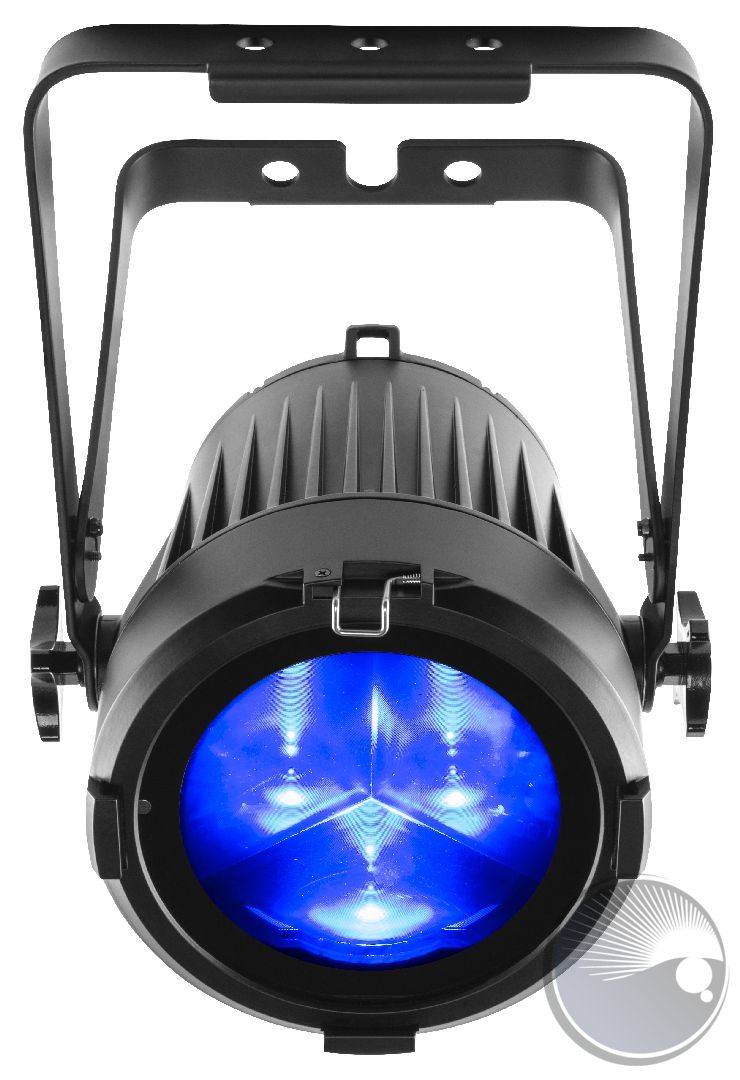

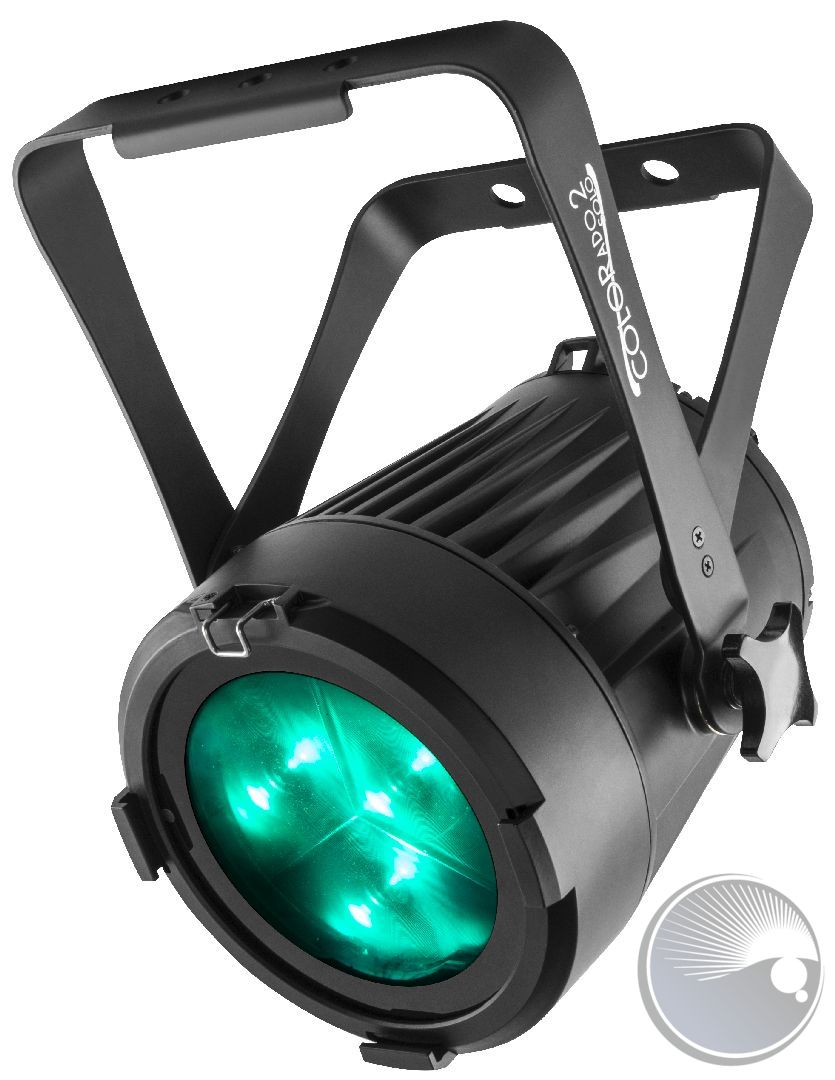

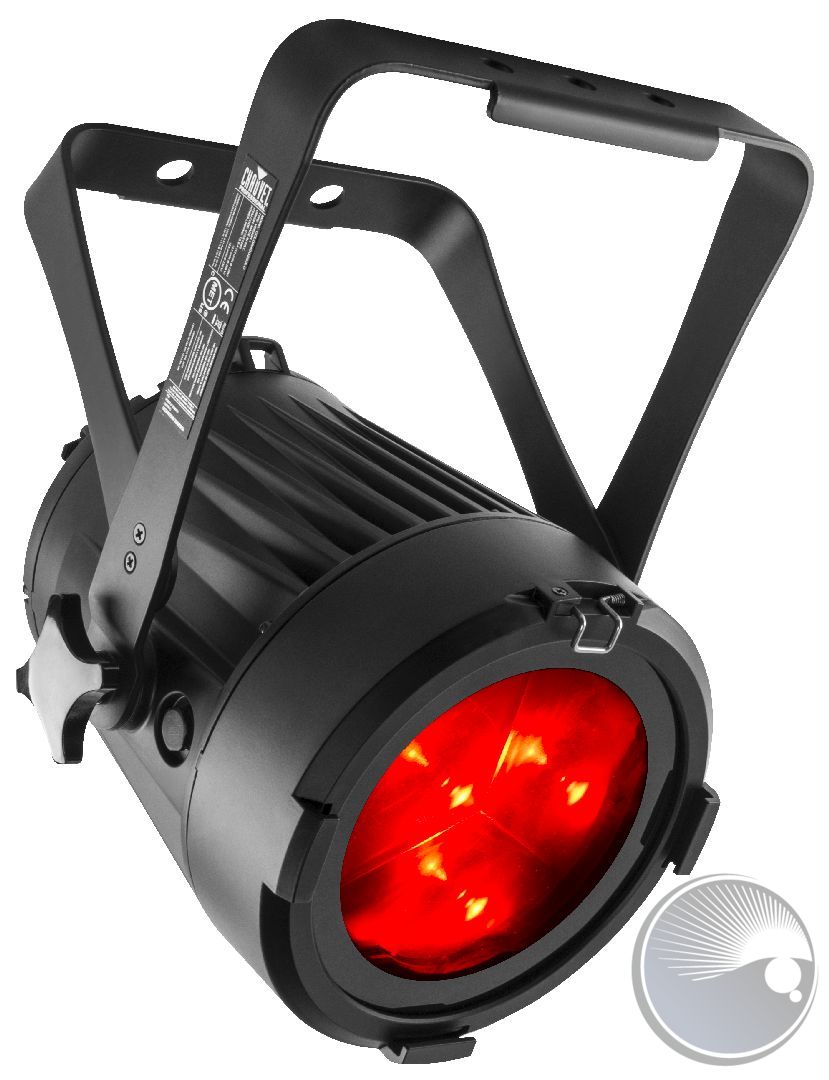

COLORado 2 Solo

COLORado 2 Solo is fitted with three 40 W RGBW LEDs to project a beautiful and fully homogenized beam through fast and smooth zoom and precision optics. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.



AT A GLANCE

  • Zooming RGBW LED wash for touring, rental, and production, indoors or out

  • Completely homogenized wash with superior color mixing and zoom

  • 5° to 42° smooth and fast zoom

  • All environment operation with IP rated power and DMX connections

  • Color temperature presets, from 3200 K to 10000 K

  • Selectable, smooth dimming curves for programming versatility

  • OLED display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 3 LEDs (quad-color RGBW) 40 W, (2.5 A), 50,000 hours life expectancy
  • Beam Angle: 5° to 27°
  • Field Angle: 7° to 42°
  • Zoom Range: 5° to 42°
  • Illuminance (5°): 9,720 lux @ 5 m
  • Illuminance (27°): 318 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 8.26 x 10.7 x 15.2in (210 x 274 x 387 mm)
  • Weight: 16.2lb (7.3kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

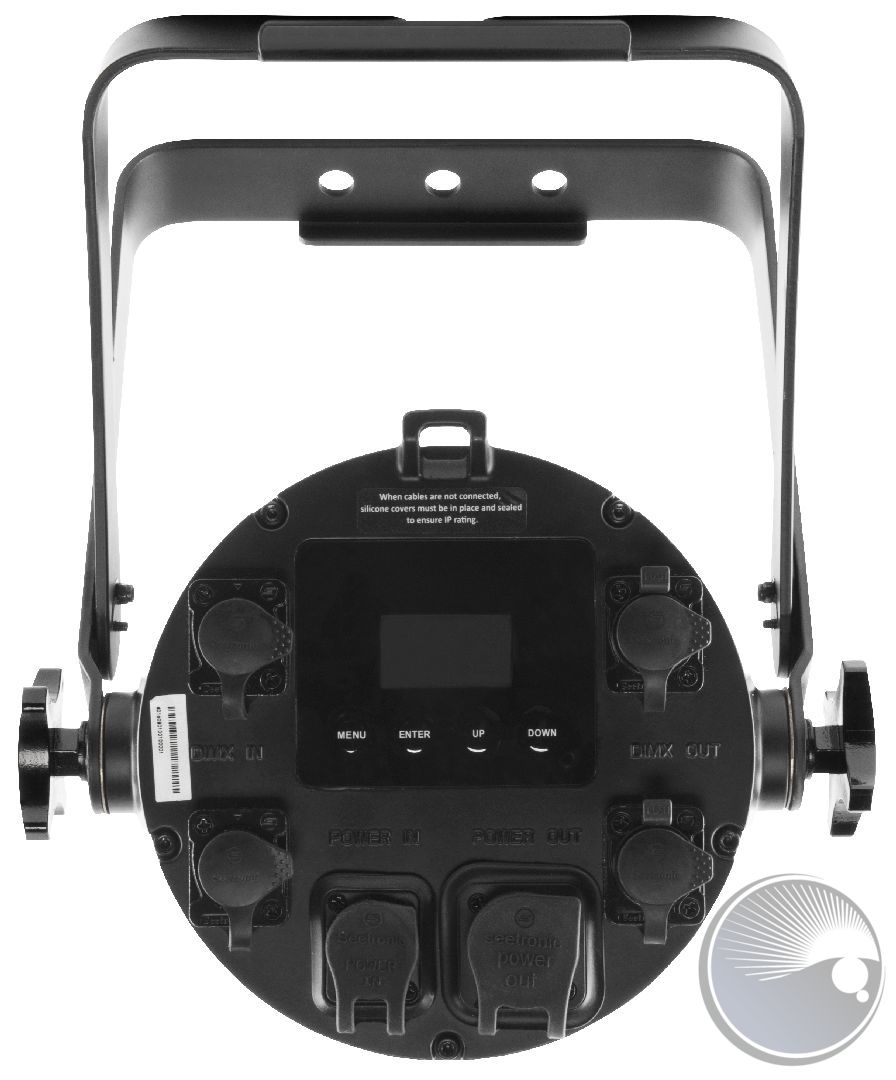

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 9, 12 or 17
  • Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
  • Power and Current: 130 W, 1.11 A @ 120 V, 60 Hz
  • Power and Current: 124 W, 0.63 A @ 208 V, 60 Hz
  • Power and Current: 123 W, 0.57 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado 2-SOLO"

PTF0807002900Thermal protector (BOM#17)

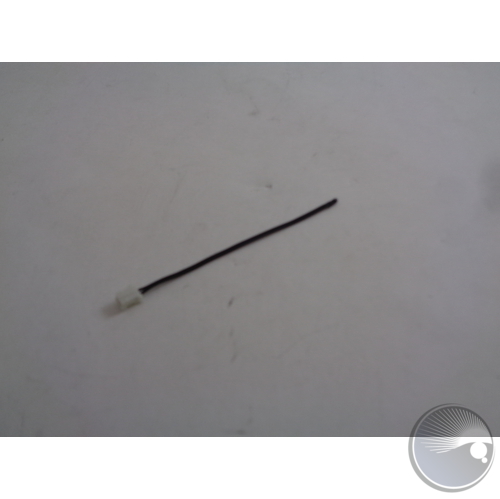

NTC temperature sensors (BOM#57)PTF1060000106NTC temperature sensors (BOM#57)

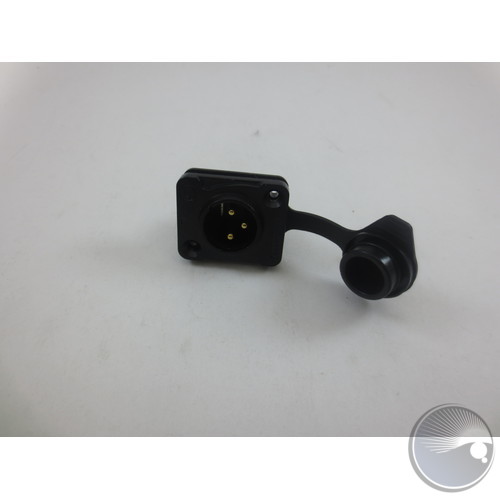

3 pin XLR IP connecter(M) (BOM#38)PTF11000004603 pin XLR IP connecter(M) (BOM#38)
IP SOCKET(3PIN FEMALE) (BOM#30)PTF1100000461IP SOCKET(3PIN FEMALE) (BOM#30)
5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)

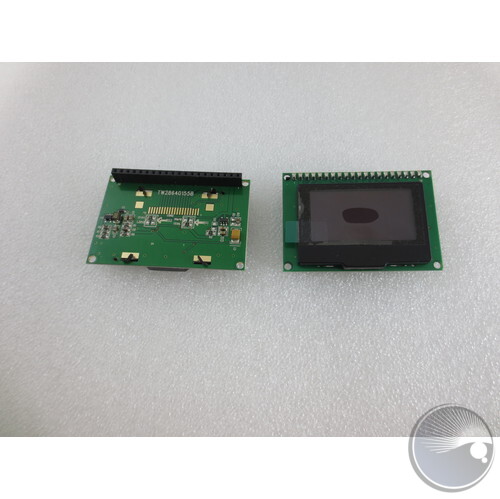

1.55 inch OLED screen display PCBPTF11100000231.55 inch OLED screen display PCB

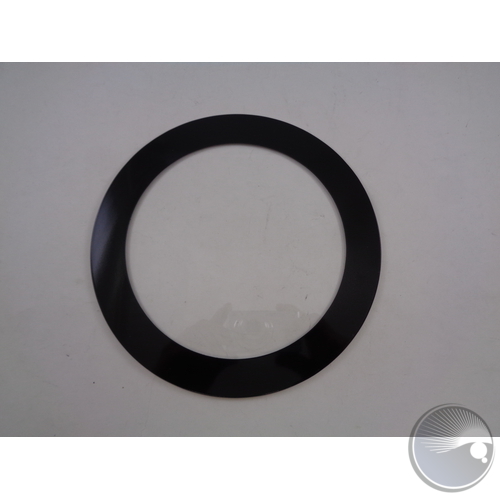

Tempered glass (BOM#6)PTF1120000178Tempered glass (BOM#6)

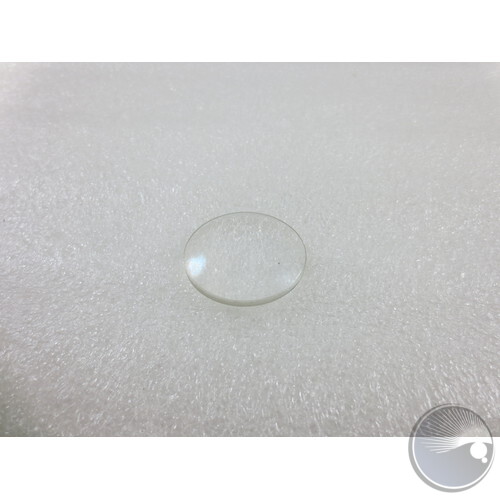

24°Biconvex mirror (BOM#17)PTF112020015824°Biconvex mirror (BOM#17)

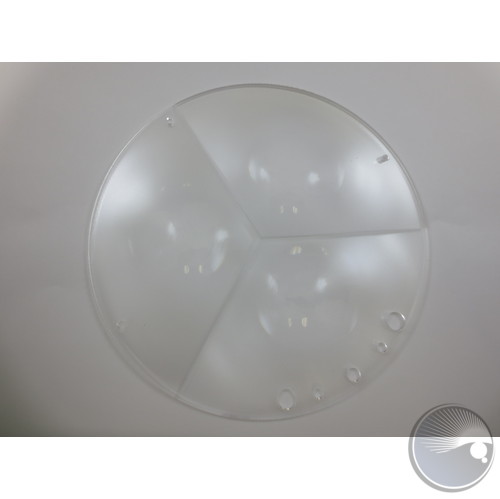

3 in 1 thread mirror (BOM#7)PTF11202002403 in 1 thread mirror (BOM#7)

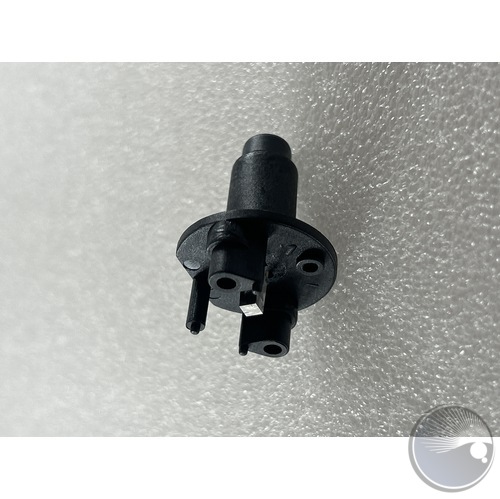

PTF1120300132Osram Pole (BOM#22)

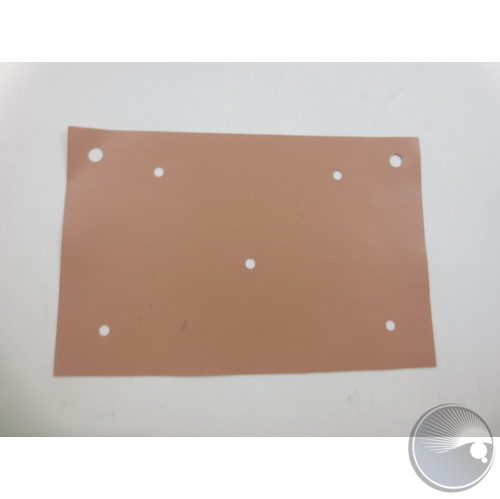

Drive PCB insulation mat (BOM#25)PTF1140000248Drive PCB insulation mat (BOM#25)
PTF1140000249Insulation for POWER SUPPLY (BOM#28)
PM Linear Driver - Zoom Motor(outside drive type) (BOM#14)PTF1150000187PM Linear Driver - Zoom Motor(outside drive type) (BOM#14)
battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)PTF1160000482battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)
POWER SUPPLY(PS) (BOM#23)PTF1160000488POWER SUPPLY(PS) (BOM#23)

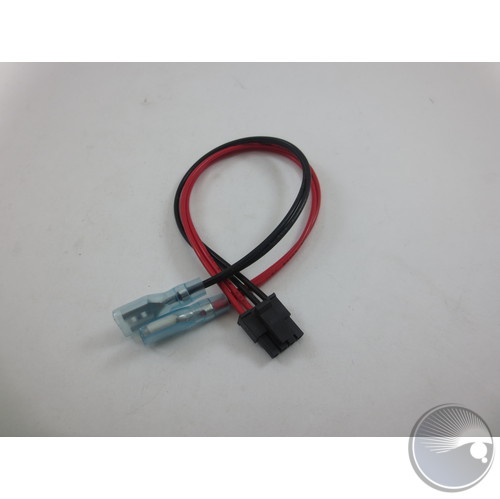

Cable between power supply and drive boardPTF1170301710Cable between power supply and drive board
PTF1180000001Micelle (BOM#13)
PTF1180000386Spongy Cushion (BOM#58)
PTF1180000392EVA mat (BOM#33)
PTF1340100036fixing bracket (BOM#11)
PTF1340111645Holder for POWER SUPPLY (BOM#33)

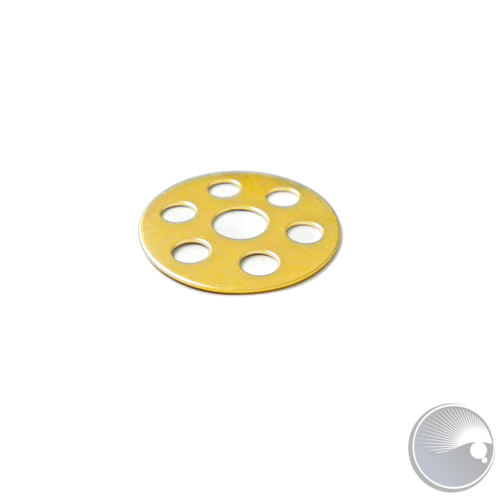

copper sheet (BOM#47)PTF1340111648copper sheet (BOM#47)
Spring (BOM#1)PTF1340300254Spring (BOM#1)
Conical Spring (BOM#3)PTF1340300255Conical Spring (BOM#3)
PTF1340601967battery holder (BOM#45)

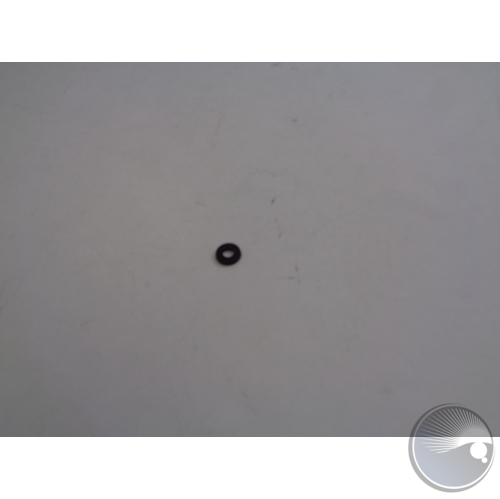

Nylon gasket (BOM#46)PTF1340601997Nylon gasket (BOM#46)

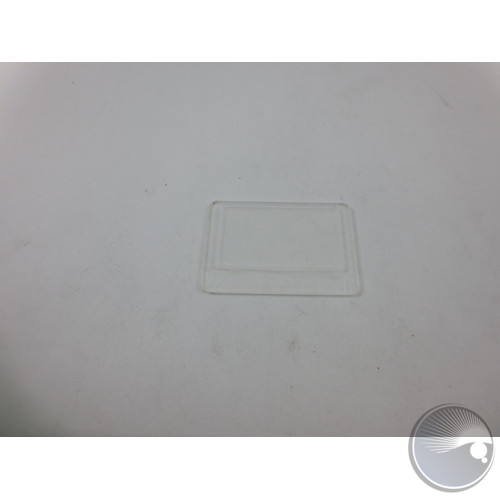

Display screen lens (BOM#38)PTF1340602202Display screen lens (BOM#38)

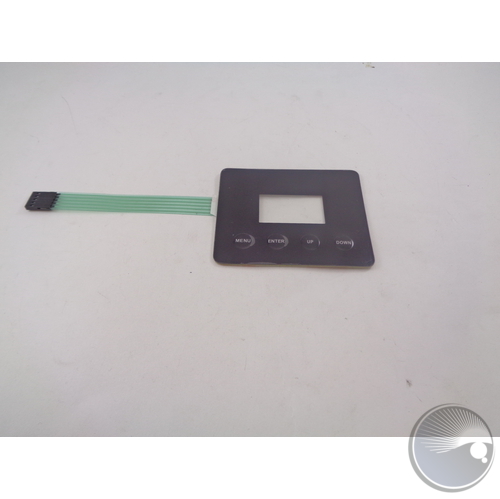

Membrane Keypad (BOM#53)PTF1340602204Membrane Keypad (BOM#53)

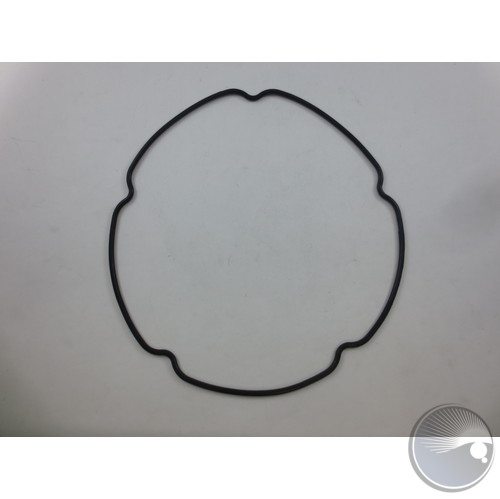

Back sealing ring (BOM#24)PTF1340602223Back sealing ring (BOM#24)

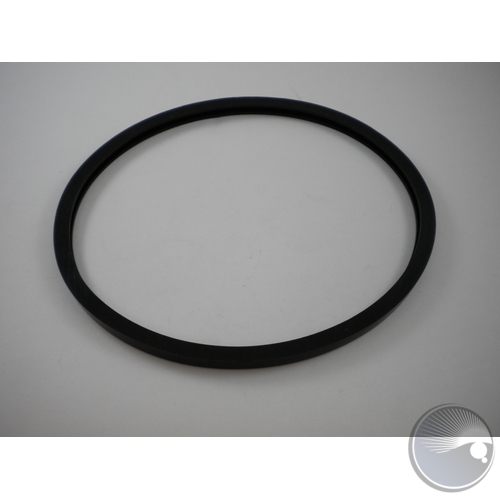

Glass sealing ring (BOM#5)PTF1340602224Glass sealing ring (BOM#5)
PTF1340602225Lens holder-A (BOM#18)
PTF1340602226Lens holder-B (BOM#16)
PTF1340802780Focusing slider (BOM#9)
ZOOM ASSEMBLY (BOM#11)PTF1340802861ZOOM ASSEMBLY (BOM#11)

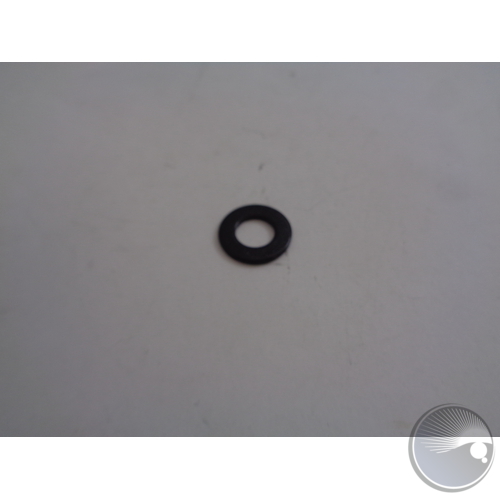

black betal thin mat (BOM#64)PTF1490500045black betal thin mat (BOM#64)

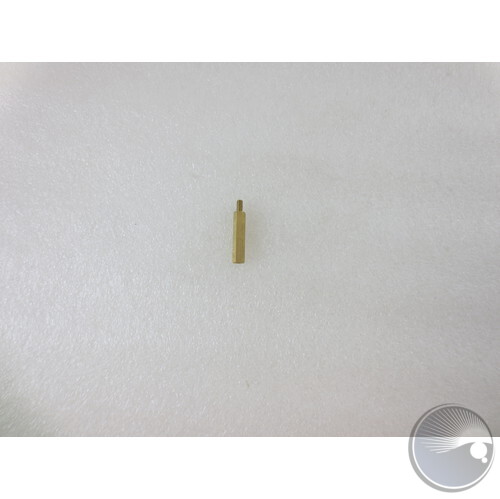

Display PCB tube column (BOM#34)PTF1491000192Display PCB tube column (BOM#34)
PTF1491000193Pole cylinder (BOM#19)

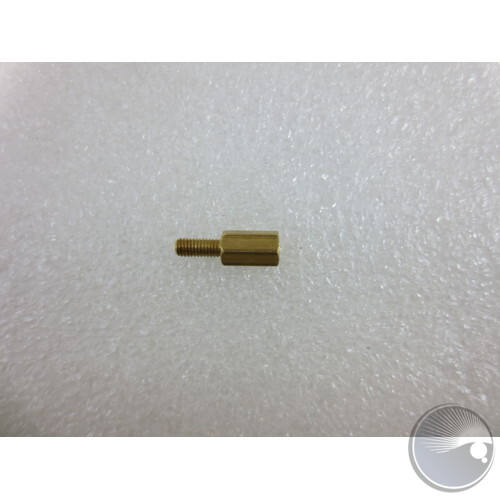

Display screen holder (BOM#36)PTF1491000194Display screen holder (BOM#36)

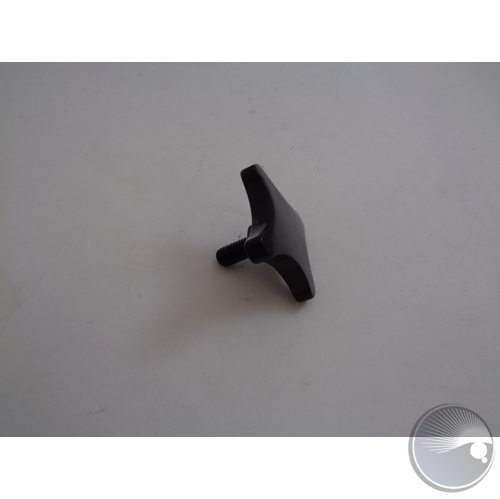

handing screw (BOM#43)PTF1491300093handing screw (BOM#43)

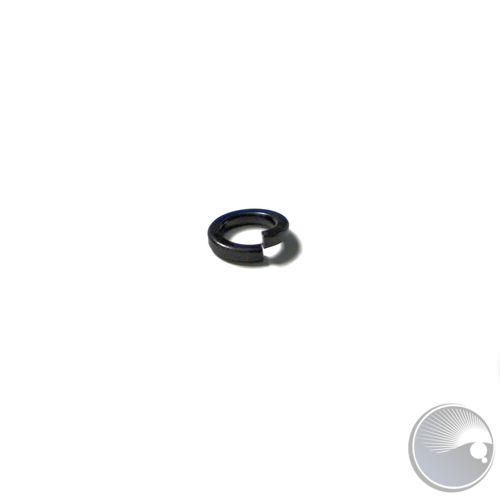

Black metal thick gasket (BOM#44)PTF1491600022Black metal thick gasket (BOM#44)
Pressure valve (BOM#18)PTF1491700004Pressure valve (BOM#18)

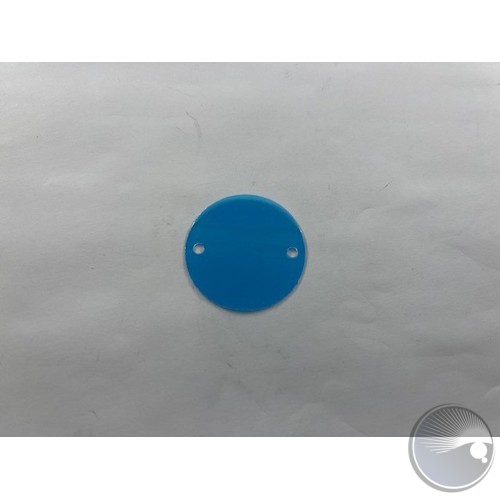

10°Frosted flake (BOM#15)PTF222000011410°Frosted flake (BOM#15)

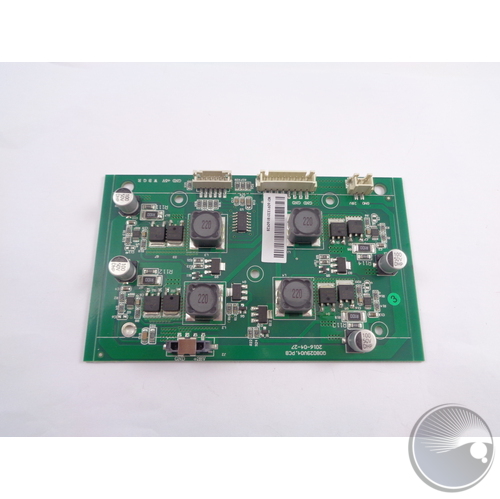

Drive board (BOM#26)PTF2260002241Drive board (BOM#26)

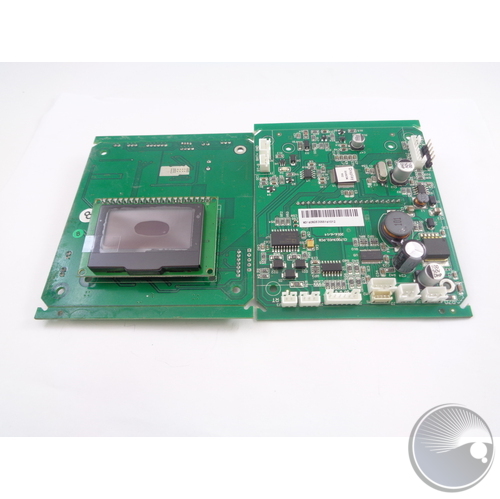

Display/ MPCB (BOM#35)PTF2260002242Display/ MPCB (BOM#35)

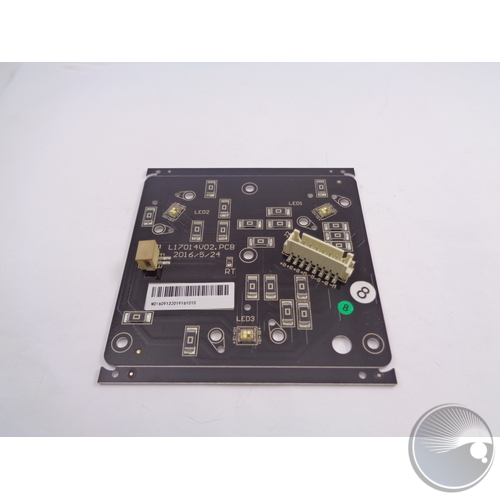

LED Board (BOM#21)PTF2260002243LED Board (BOM#21)
PTF2440101427Frosted Flake Fixed Plate (BOM#14)
Spring fixed block (BOM#2)PTF2440103848Spring fixed block (BOM#2)

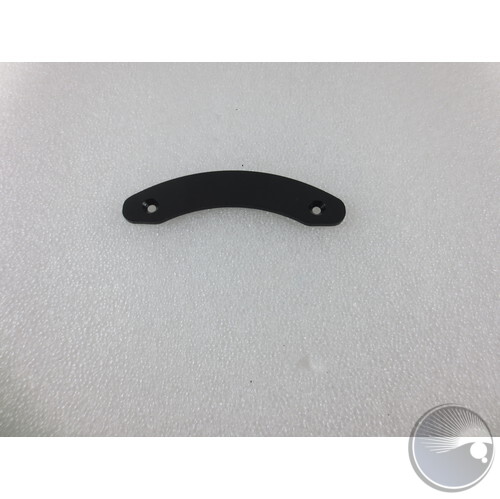

PTF2440103952Pole with Fixed Plate (BOM#7)
PTF2440104077battery lock plate (BOM#31)

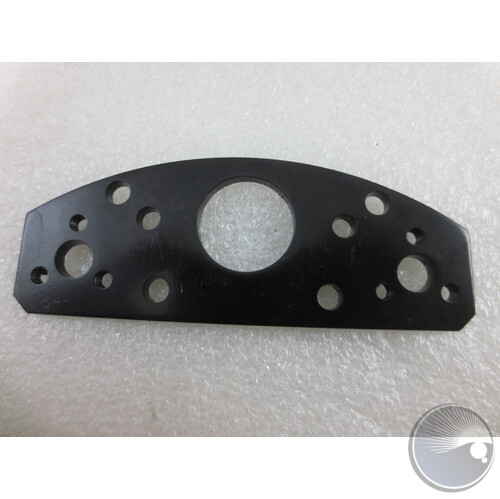

Focusing Base (BOM#12)PTF2440104087Focusing Base (BOM#12)

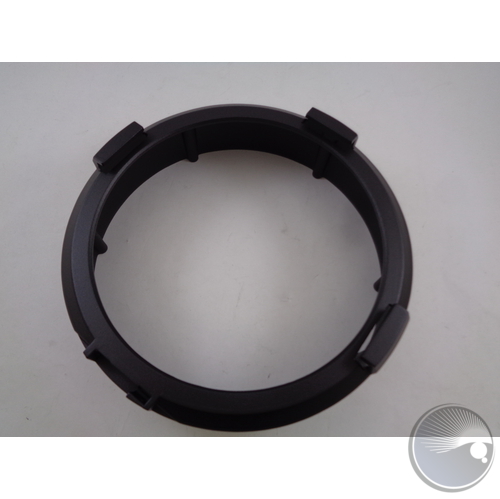

Front cover (BOM#4)PTF2440104123Front cover (BOM#4)

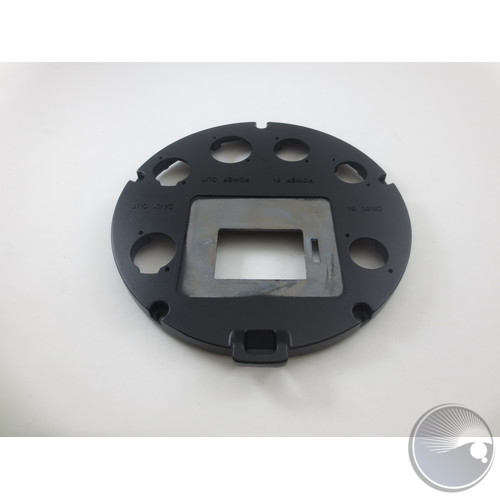

Back cover (BOM#39)PTF2440104124Back cover (BOM#39)

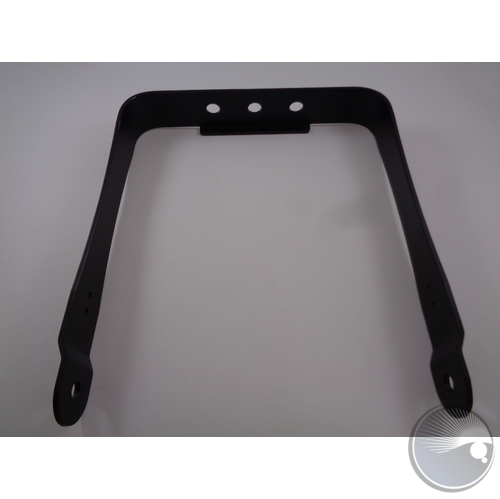

holder A-P (BOM#46)PTF2440104128holder A-P (BOM#46)
Holder B-P (BOM#49)PTF2440104129Holder B-P (BOM#49)

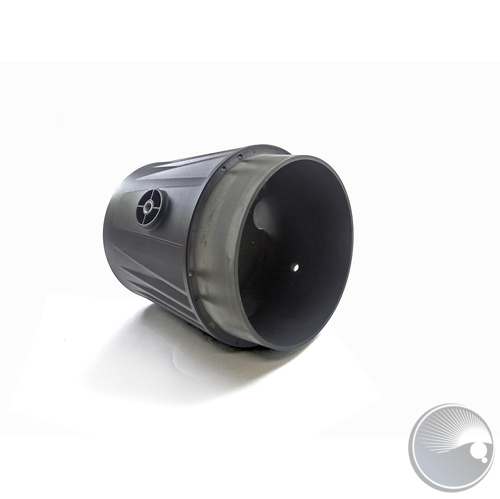

Housing (BOM#23)PTF2440104314Housing (BOM#23)

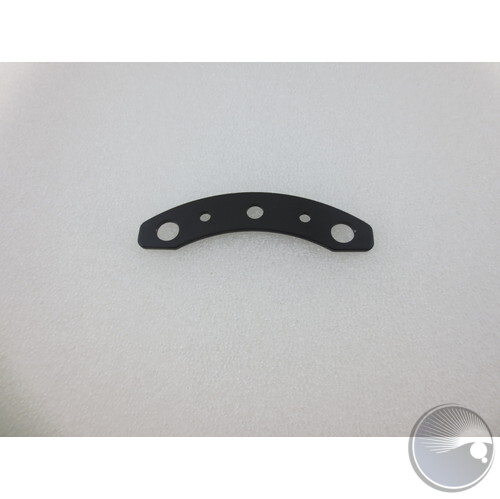

PTF2440104405Thread mirror holder (BOM#58)

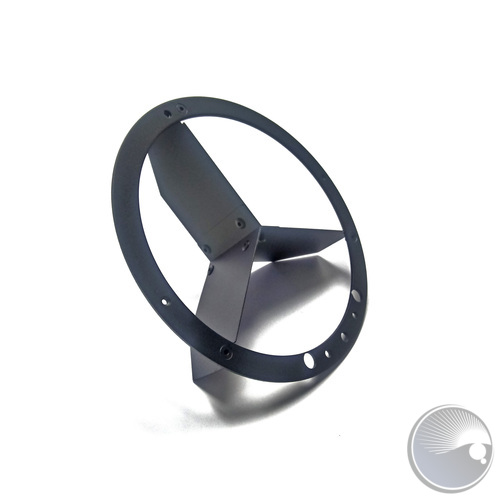

Lens barndoor (BOM#8)PTF2440500242Lens barndoor (BOM#8)
Anti-backlash Nut for Zoom MotorPTF4400023Anti-backlash Nut for Zoom Motor
Power cord (BOM#41)PTFX20147Power cord (BOM#41)

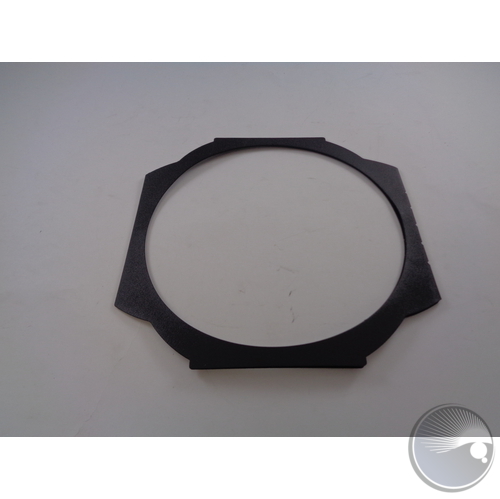

Gel FramePTFX40270Gel Frame
