COLORdash Par Quad 18

Auf Anfrage!

  • COLORDASHPARQUAD18
COLORdash  Par-Quad 18 COLORdash Par-Quad 18   is powered by 18 quad-colored... mehr
Produktinformationen "COLORdash Par Quad 18"

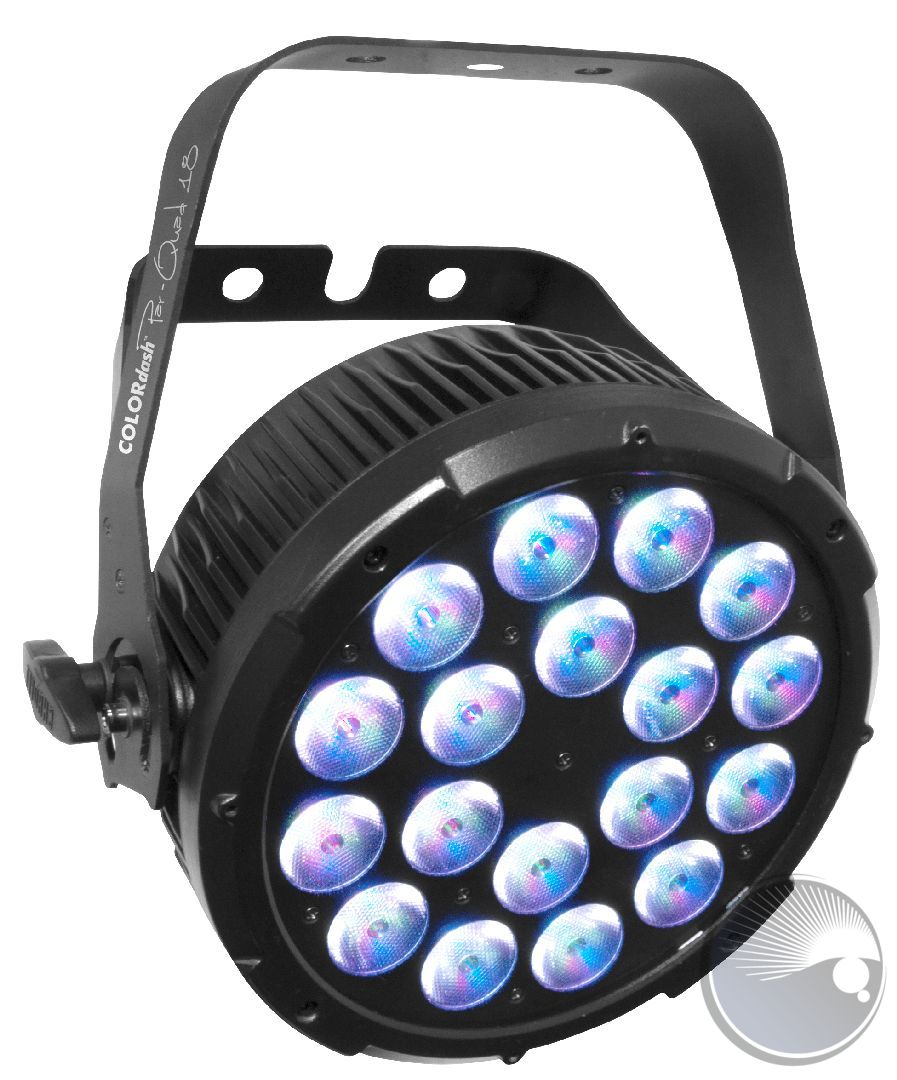

COLORdash Par-Quad 18

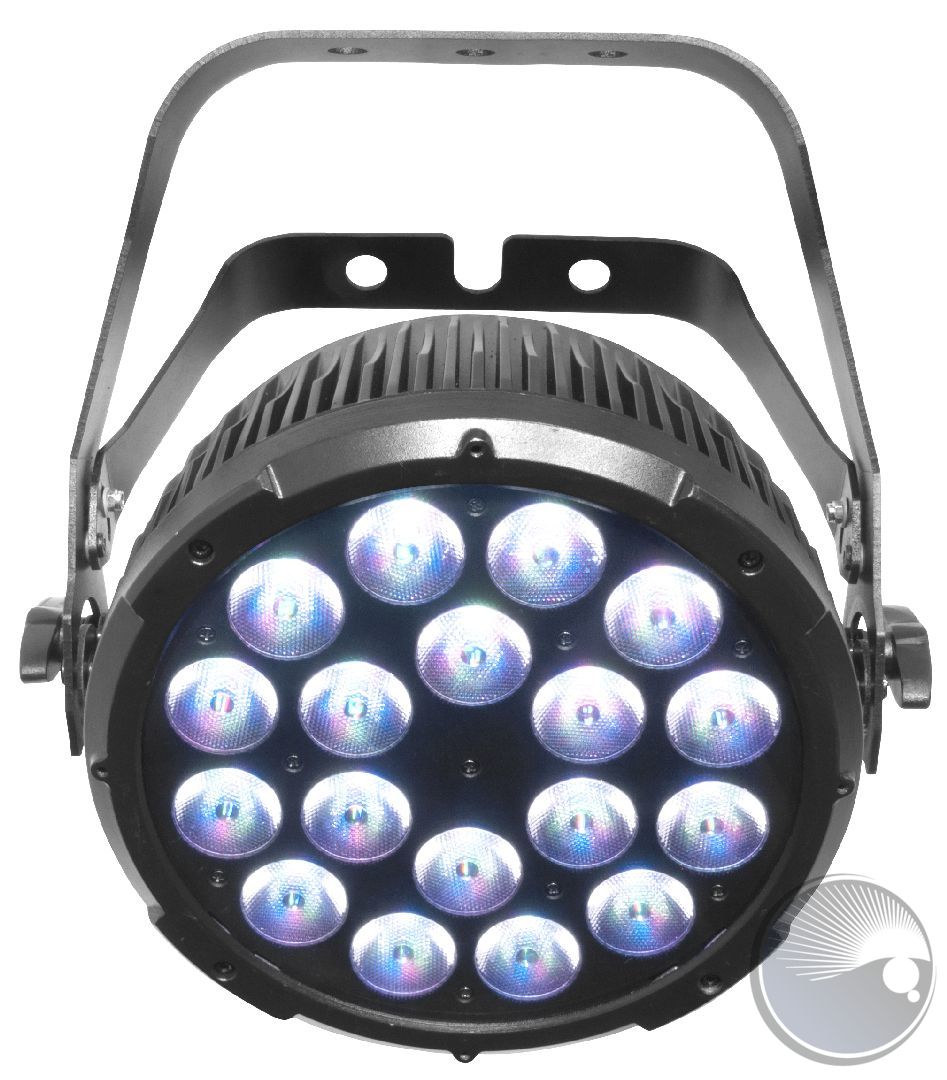

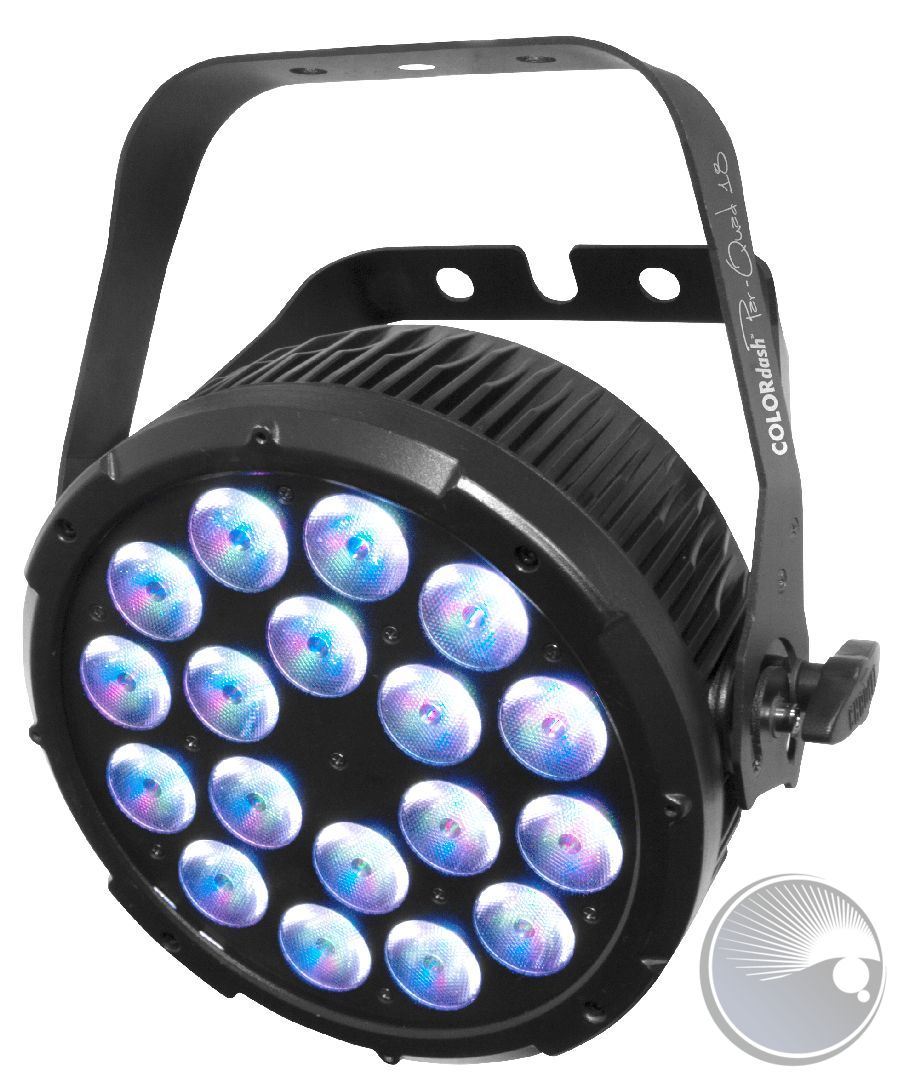

COLORdash Par-Quad 18 is powered by 18 quad-colored RGBA LEDs in a compact and durable housing. Amber LEDs help produce any variation of white and stunning saturated colors for an expansive palette devoid of multi-colored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors simplify connections and setup. COLORdash Par-Quad 18 also includes a gel frame holder and gel frame.

AT A GLANCE

  • 4, 6 or 10 DMX channels

  • Silent flicker free operation

  • Lightweight, easy to install

  • Metal construction for added durability

SPECIFICATIONS

OPTICAL

  • Light Source: 18 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Installed Optics: 20°
  • Beam Angle: 18°
  • Field Angle: 32.5°
  • Illuminance: 1,210 lux @ 5 m
  • PWM Frequency: 600 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.7 x 11.7 x 4.1 in (323 x 298 x 106 mm)
  • Weight: 10.2 lb (4.6 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 9.25 in/235 mm accessories

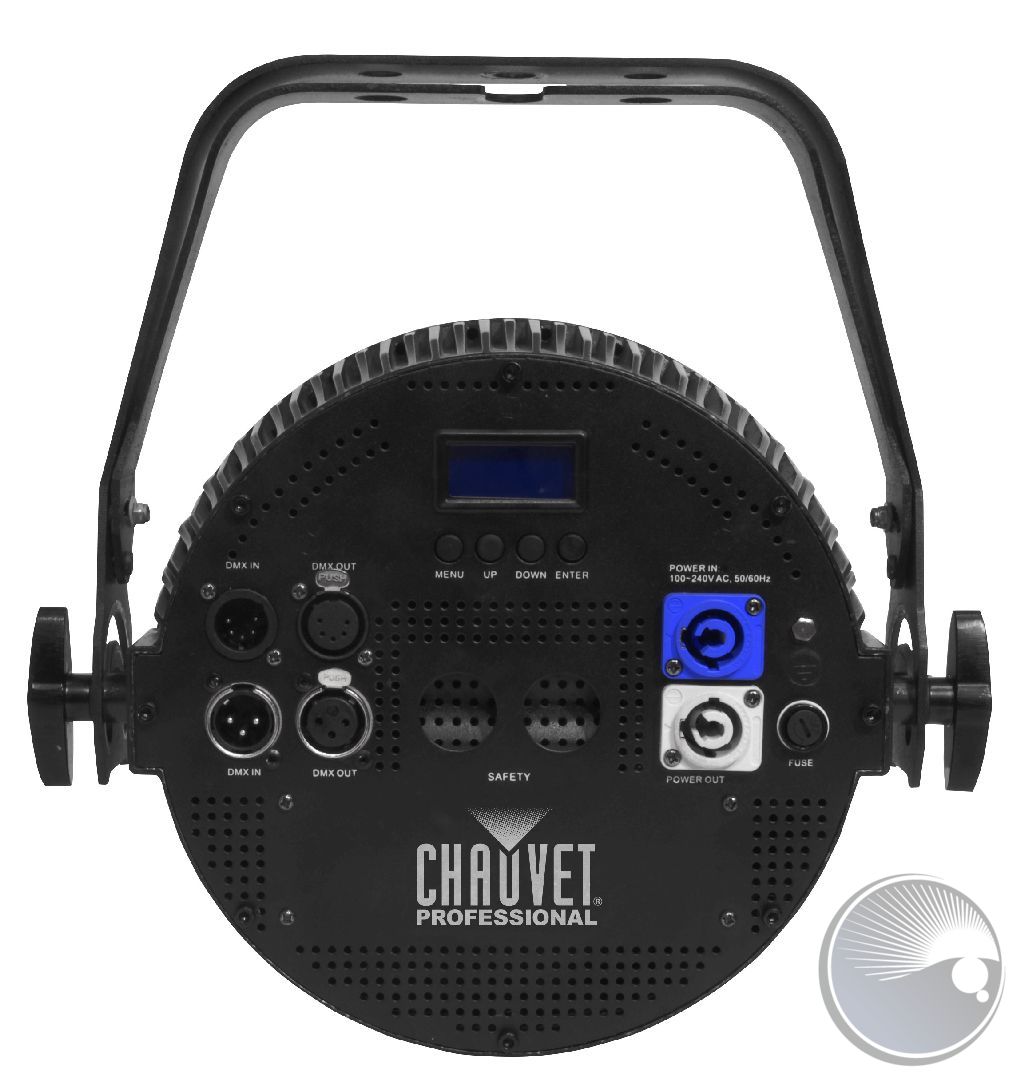

CONNECTIONS

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 4, 6 or 10
  • Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V, 25 units @ 240 V
  • Power and Current: 118 W, 1.00 A @ 120 V, 60 Hz
  • Power and Current: 116 W, 0.59 A @ 208 V, 60 Hz
  • Power and Current: 115 W, 0.54 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORdash Par Quad 18"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)

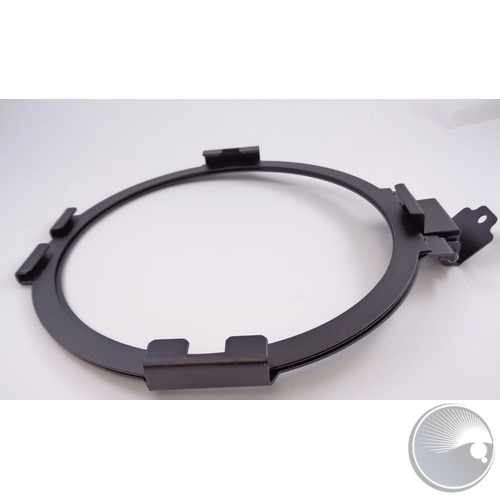

COMPLETE GEL FRAME & HOLDER PTJ1020100036COMPLETE GEL FRAME & HOLDER
5-PIN DMX XLR SOCKET PCB (BOM#19)PTJ20100337005-PIN DMX XLR SOCKET PCB (BOM#19)
METAL DMX XLR SOCKET 3-PIN - INPUT/OUTPUT (BOM#20)PTJ2010040000METAL DMX XLR SOCKET 3-PIN - INPUT/OUTPUT (BOM#20)

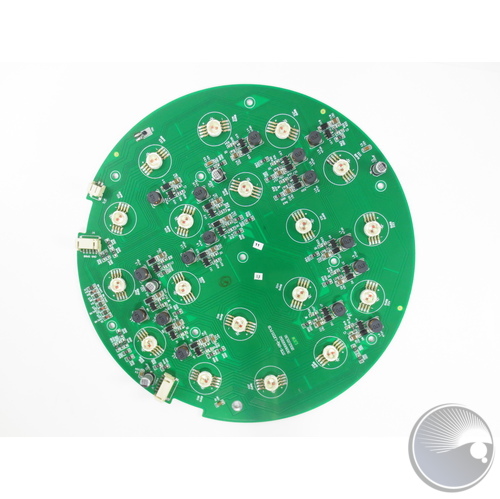

LED PCB (BOM#8)PTJ2010109000LED PCB (BOM#8)
MPCB (BOM#16)PTJ2010118001MPCB (BOM#16)
DISPLAY PCB (BOM#27)PTJ2010119000DISPLAY PCB (BOM#27)
DRIVER ON MASTER BOARD (BOM#28)PTJ2010120000DRIVER ON MASTER BOARD (BOM#28)
STANDOFF (BOM#7)PTJ3001001090STANDOFF (BOM#7)

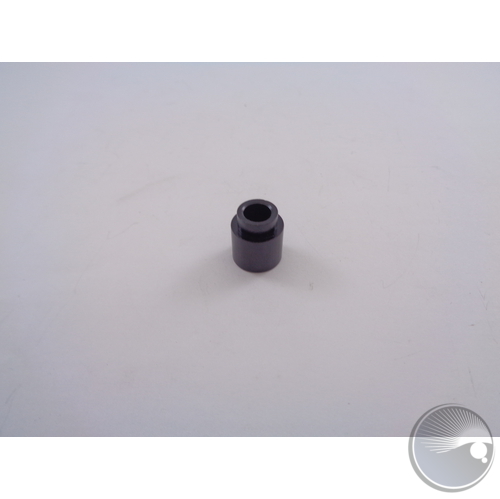

METAL-RING (BOM#11)PTJ3001001098METAL-RING (BOM#11)

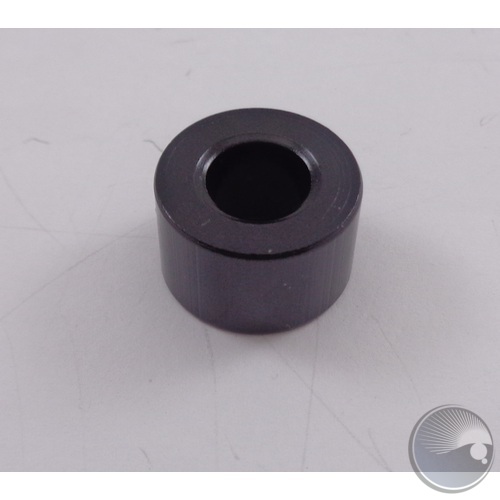

WASHER (BOM#13)PTJ3001001099WASHER (BOM#13)
LENS (BOM#3)PTJ3002003024LENS (BOM#3)
PTJ3003003029DISPLAY CLEAR LENS (BOM#9)

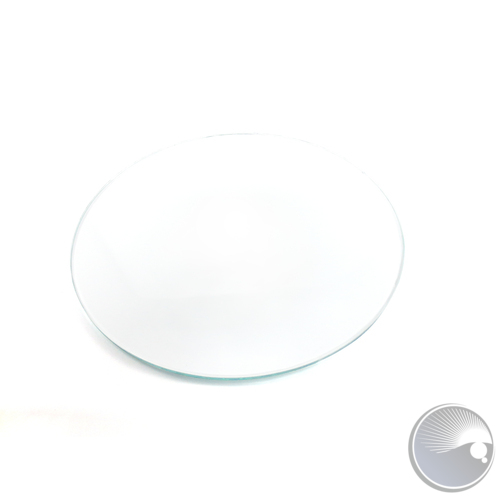

FRONT GLASS (BOM#2)PTJ3003004016FRONT GLASS (BOM#2)

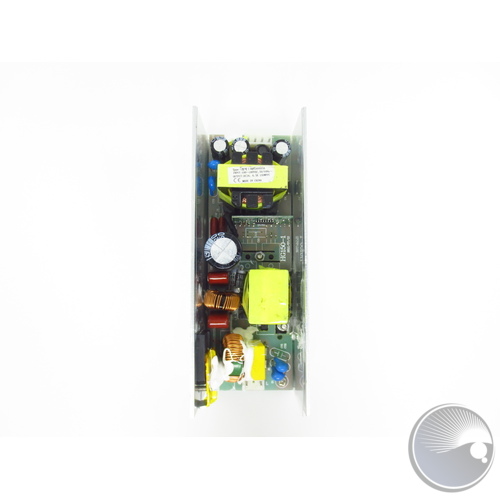

POWER SUPPLY +24V?6.25A, 150W - LPF-U160S24 (BOM#17)PTJ3013001056POWER SUPPLY +24V?6.25A, 150W - LPF-U160S24 (BOM#17)
PTJ3019001043BUTTON COVER (BOM#12)
LENS HOLDER (BOM#4)PTJ3019001102LENS HOLDER (BOM#4)
PTJ3019001103DISPLAY COVER (BOM#11)
PTJ3020016005CM SCREW6*25 (BOM#12)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ3027002001POWER OUT Edison socket IEC 2.0 15A 250V VDE UL CCC DB-14-ML (BOM#2.T-Bar)
PTJ3040400687Wire harness for power out
FRONT LENS FASTEN PLATE (BOM#3)PTJ40109901000400FRONT LENS FASTEN PLATE (BOM#3)

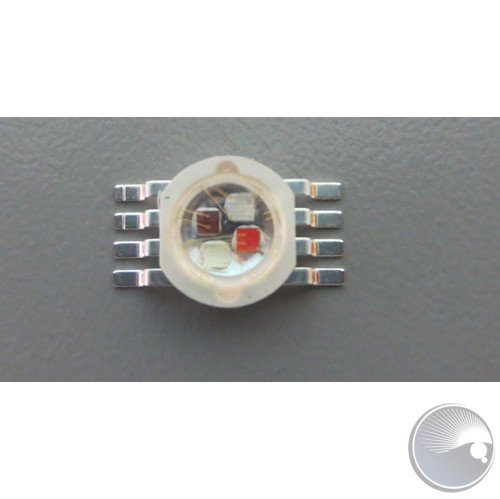

SINGLE LEDPTJ42500024SINGLE LED
SINGLE LEDPTJ42500024SINGLE LED
SINGLE LEDPTJ42500024SINGLE LED
SINGLE LEDPTJ42500024SINGLE LED
SINGLE LEDPTJ42500024SINGLE LED
KNOB FOR HANGING BRACKET (BOM#23)PTJ5011120010KNOB FOR HANGING BRACKET (BOM#23)
PTJ5014810010LENS COVER (BOM#4)

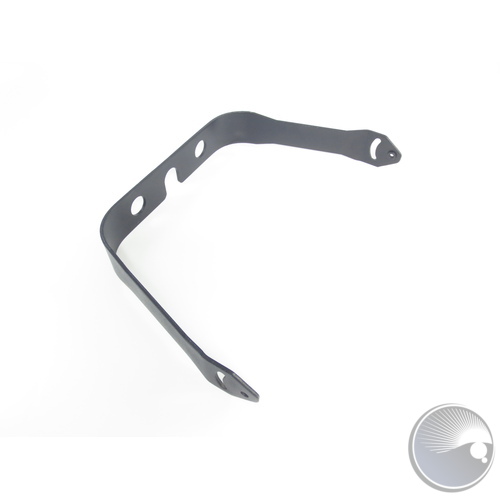

HANGING BRACKET - IN (BOM#15)PTJ5014810030HANGING BRACKET - IN (BOM#15)
PTJ5014810040HOUSING (BOM#9)

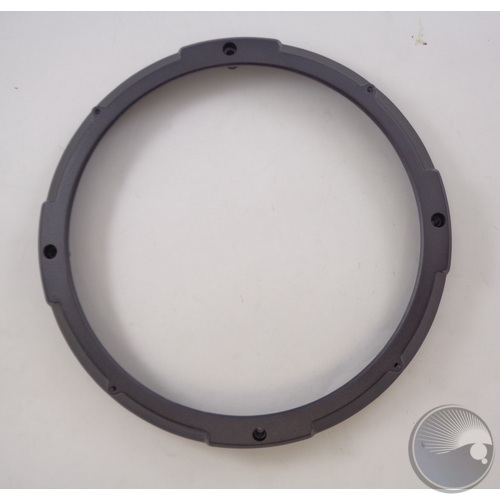

FRONT COVER (BOM#1)PTJ5014810050FRONT COVER (BOM#1)
PTJ5014900020HANGING BRACKET-OUTER (BOM#10)
PTJ5015060010REAR (BOM#18)
