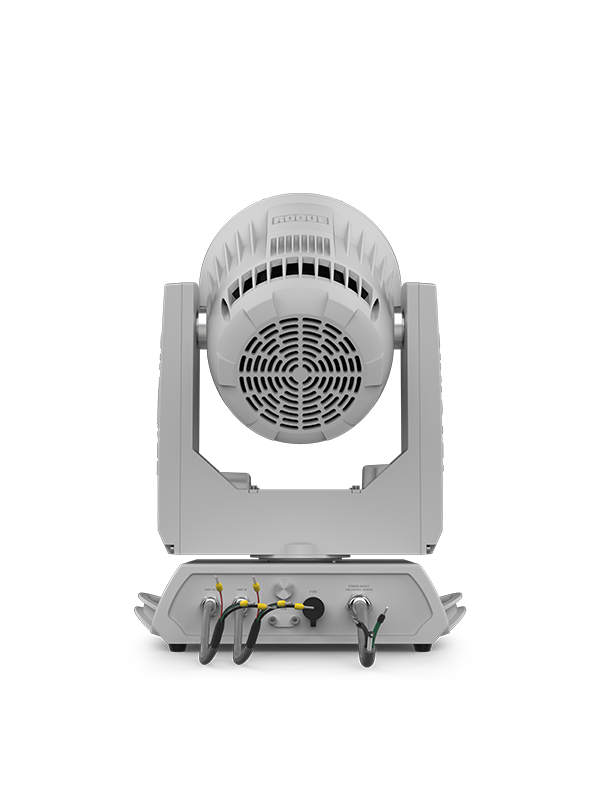

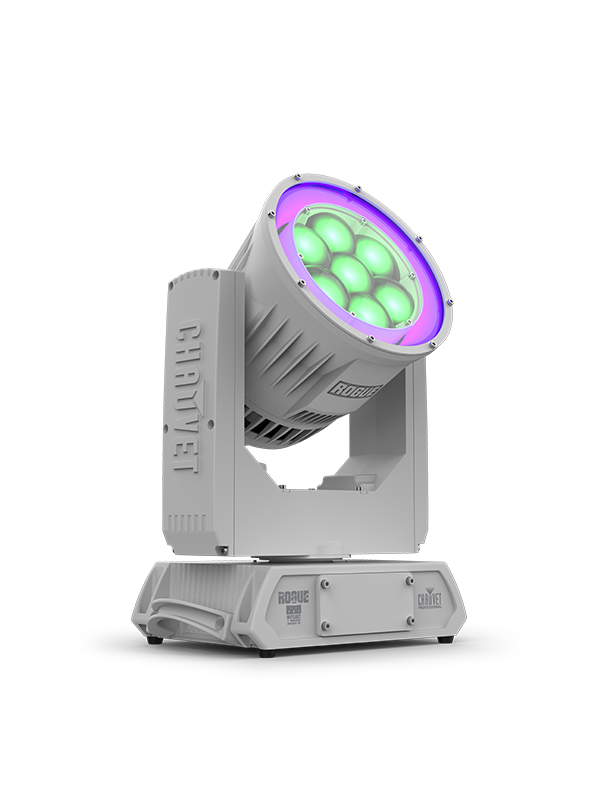

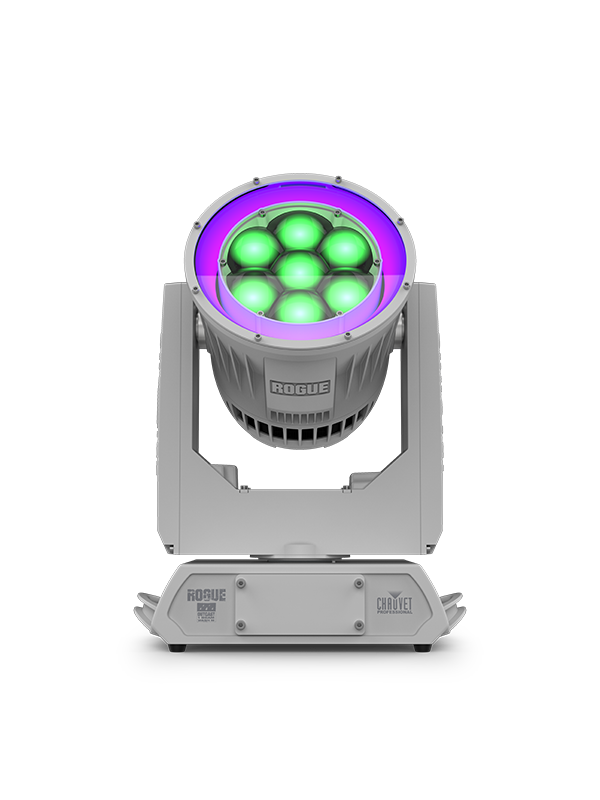

Rogue Outcast 1 BeamWash M (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: ROGUEOUTCAST1BWM
At a Glance
Fully featured RGBW LED IP 66 rated yoke wash fixture with zoom and RGB LED ring
C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments
Included display cover for extended outdoor usage in and near marine environments
Stainless steel gland nuts for extended outdoor usage in and near marine environments
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
5-pin DMX input/output connections
Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
Unique lens design for excellent color blending and tight beam effects
RDM-enabled for remote addressing and trouble shooting
Selectable PWM settings for camera operation
Zoom Range: 3.9° to 55.3° for maximum coverage
User selectable calibrated white for 7500 K at full output
6 distinct dimming modes for advanced control
Easy-to-read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software
Specifications
Optical
- Light Source: 7 LEDs (quad-color RGBW) 45W, (3 A), 50,000 hours life expectancy
- Light Source: 97 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 9.1° to 32.3°
- Field Angle: 11.2° to 49.2 °
- Zoom Range: 3.9° to 55.3°
- Zoom Angle: 11° to 63.2 °
- Lumens – Source: 5,900
- Lumens – Output: 4,073
- Illuminance (3.9°): 15,308 lux @ 5 m
- Illuminance (55.3°): 473 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/260°
- Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 260° Tilt.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
Construction / Physical
- Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
- Weight: 20.2 lb (9.16 kg)
- Exterior Color: White
- Housing Material: Aluminum
Connections
- Power Connection: Edison (local) plug to Seetronic PowerKON IP65
- Data Connectors: 5-pin XLR
- Cable Length (power input): 5 ft (1.5 m)
- Cable Length (signal in/out): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 15, 24, 30, 64, 111 or 135
- Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
- Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
- Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
- Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz
- Fuse Size: 8A, 250 V
Certifications / Qualifications
- CE, MET, FCC, FCC, UKCA
- IP Rating: IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
- Maximum Ambient Temperature (ta) 45° C / 113° F
What's Included
- Rogue Outcast 1 BeamWash M
- 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
- Display cover
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- DMX Cables
- Flight Case
- UPLOAD 08 software uploader
