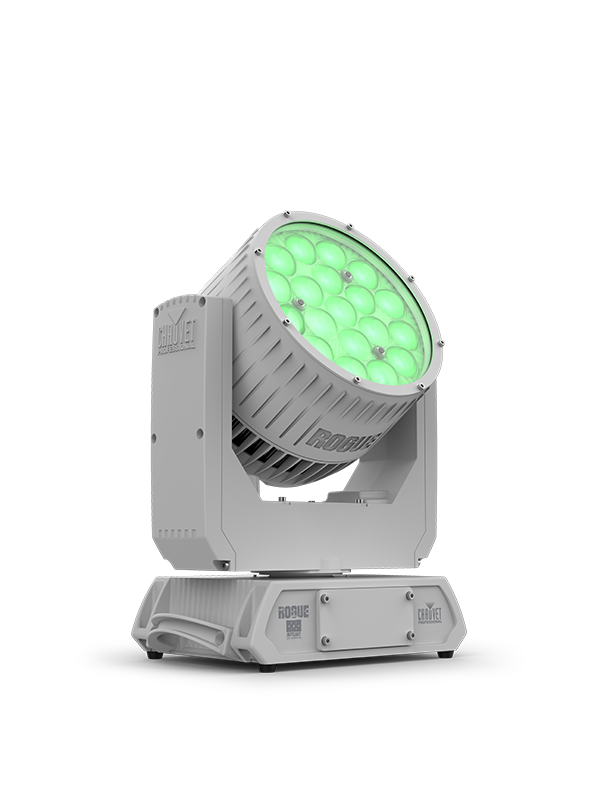

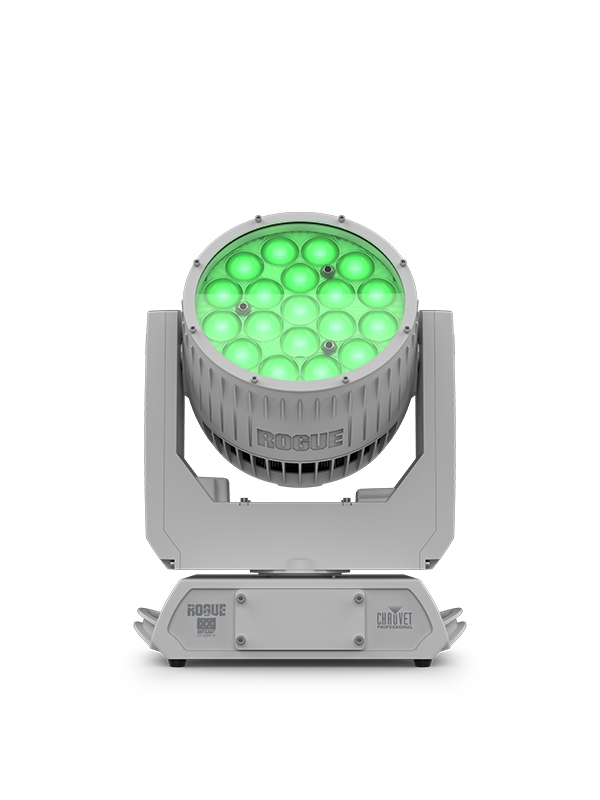

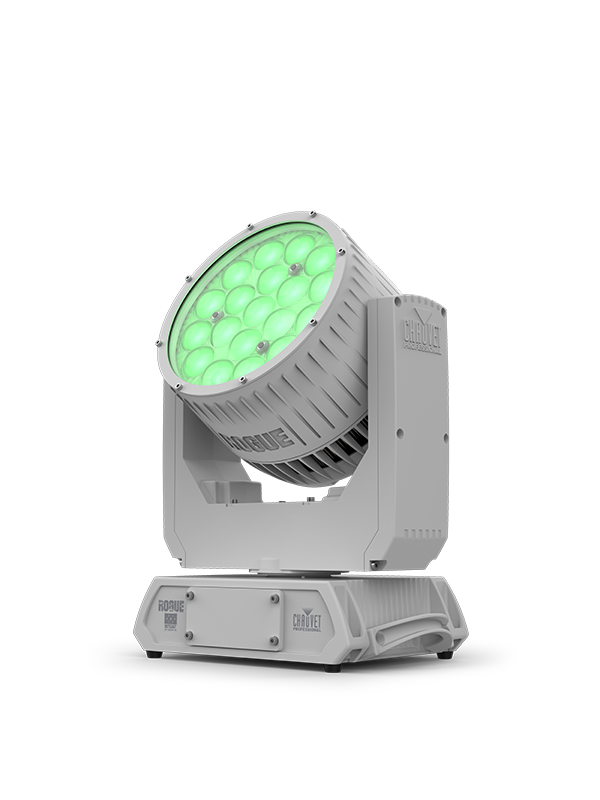

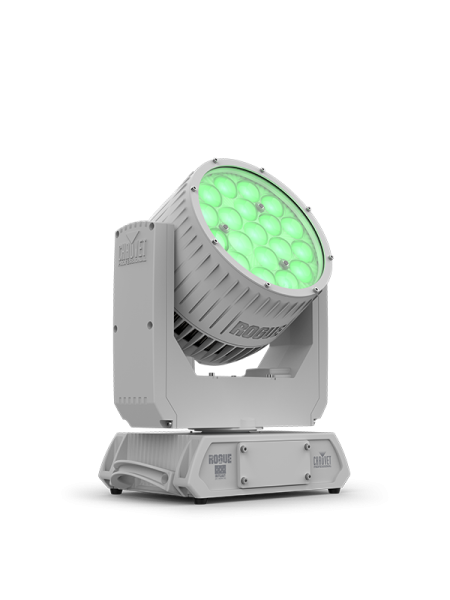

Rogue Outcast 2X Wash M (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: ROGUEOUTCAST2XWASHM
At a Glance
Fully featured IP66 RGBW LED yoke wash fixture with LED zone control, zoom, durable and lightweight aluminum body.
C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments
Included display cover for extended outdoor usage in and near marine environments
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
19 RGBW LEDs, 25 W each
5 zones of LED control for pixel mapping control
Color temperature control in select personalities (23CH, 55CH)
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM options for camera operation

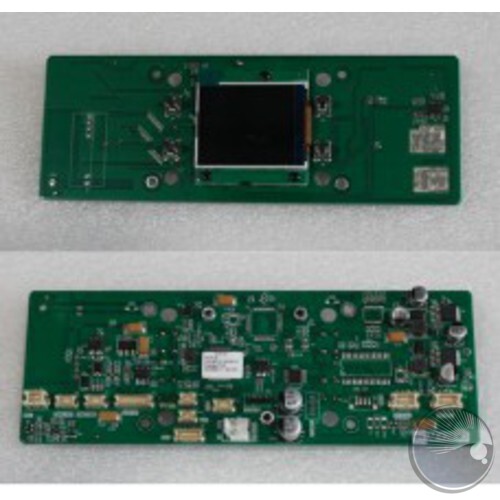

Easy to read OLED display with simple, effective menu options
User selectable calibrated white for 7500 K at full output
6 distinct dimming modes for advanced control
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software
Specifications
Optical
- Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectanc
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 7.9° to 35.3°
- Field Angle: 11.6° to 50.5°
- Cutoff Range: 18.5° to 63.7°
- Zoom Range: 7.9° to 63.7°
- Lumens – Source: n/a
- Lumens – Output 5,371
- Illuminance (7.9°): 7,632 lux @ 5 m
- Illuminance (63.7°): 639 lux @ 5 m
- Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 6
- Built-in Automated Programs: Yes
- Customizable Programs: yes
- Recall Custom Programs: yes
Construction / Physical
- Dimensions: 11.92x8.58x14.1" (303x218x361mm)
- Weight: 21.2 lb. (9.6 kg)
- Exterior Color: White
- Housing Material: Aluminum

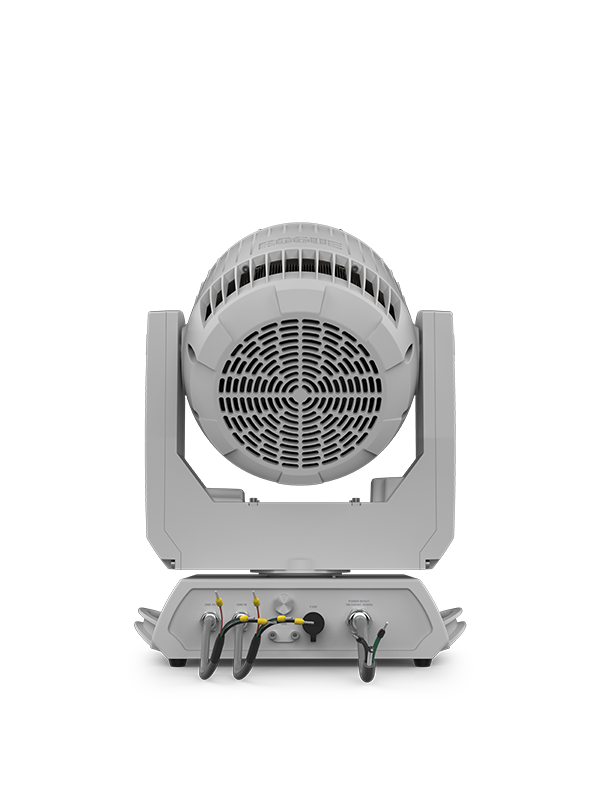

Connections
- Power Connection: Termination-ready bare-ended
- Data input/output: Termination-ready bare-ended
- Cable Length (power input): 5 ft (1.5 m)
- Cable Length (signal in/out): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 23, 33, 54, 55 or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
- Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
- Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
- Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA

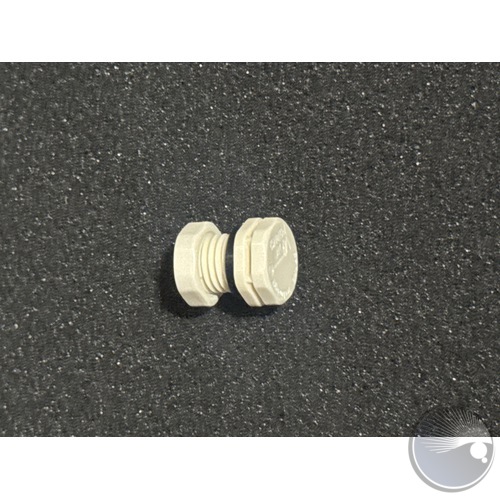

- IP Rating: IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve
What's Included
- Rogue Outcast R2X Wash M

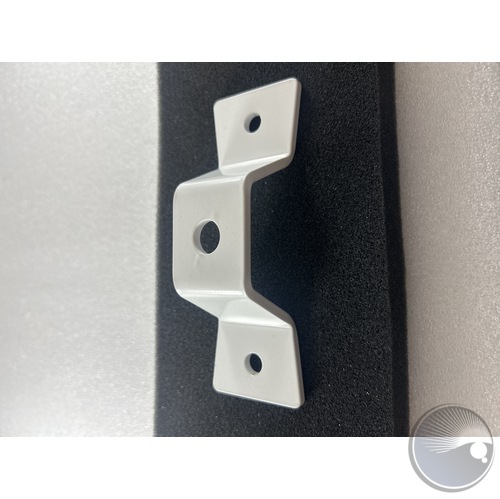

- 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
- Display cover
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-08
- UPLOAD 08 software uploader
