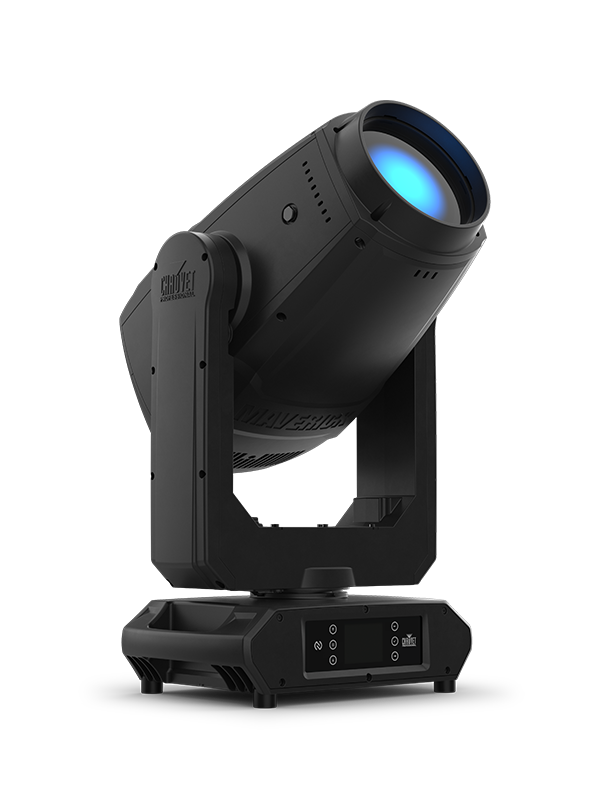

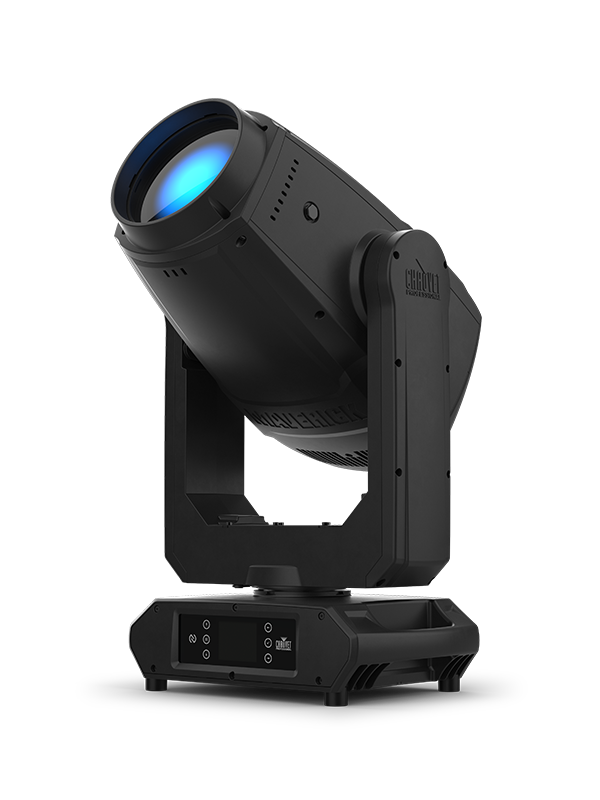

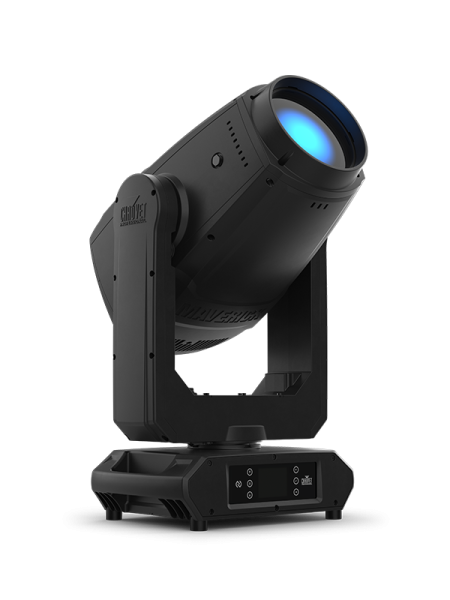

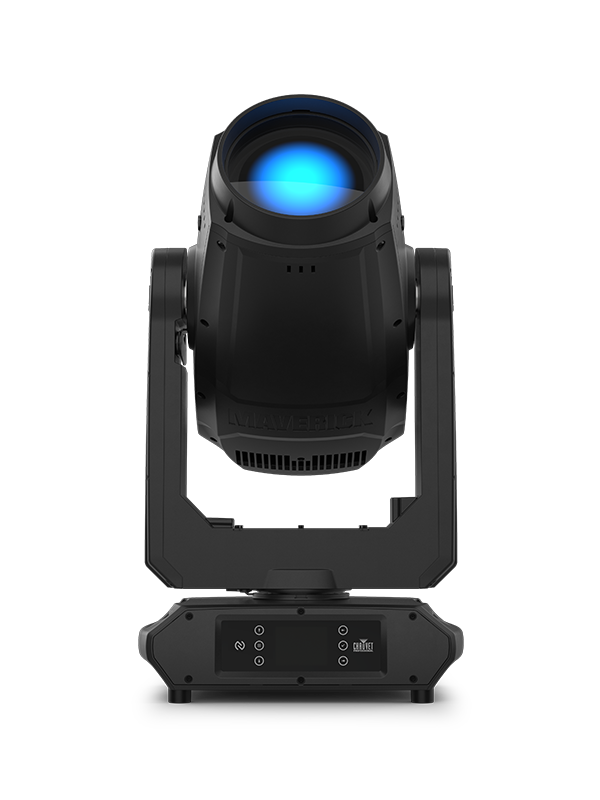

Maverick Storm 1 Flex (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: MAVERICKSTORM1FLEX
At a Glance
Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with a 520W LED source, CMY+CTO color mixing, an animation wheel, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide palette of colors

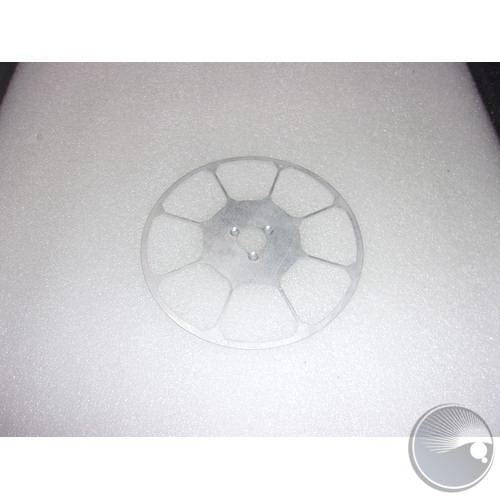

CRI and CTB filters on color wheel for added flexibility
1 rotating and 1 static gobo wheel
An animation wheel for kinetic textured effects
Tight 2.6° narrow beam angle for focused air effects
7 rotating and 10 static gobos for massive visual effect
DMX, CRMX, sACN, and Art-Net for full flexibility of control options
RDM control over DMX for fixture reporting
True 1 compatible power input
Integrated sun shield for protecting the optical path from sunlight when the fixture is off
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB-C slot for software uploads

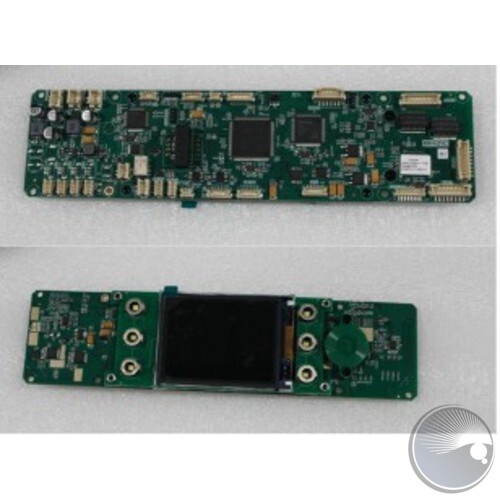

Battery backup display with auto-rotate depending on fixture orientation
Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
Built in Sky Tracker mode allows for up to 4 fixtures to work together to create sky tracker effects
Specifications
Optical
- Light Source: 1 Led, 6595K, up to 50,000 hours life expectancy*
- *Test lab conditions. May vary depending on several factors including but not limited to:
- Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
- Color Temperature (at full): 6595 K
- Front lens diameters: 165 mm
- Beam Angle: 3.1° to 46.6° (Spot mode)
- Field Angle: 4.1° to 57.9° (Spot mode)
- Cutoff Angle: 4.5° to 55.5 ° (Spot mode)
- Beam Angle: 2.6° to 43 ° (Beam mode)
- Field Angle: 3° to 47.3° (Beam mode)
- Cutoff Angle: 3.4° to 50.7° (Beam mode)
- Beam Angle: 2.8° to 45.8 ° (Wash mode)
- Field Angle: 3.7° to 53.1° (Wash mode)
- Cutoff Angle: 3.9° to 57° (Wash mode)
- Zoom Range: 3.1° to 55.5° (Spot mode)
- Zoom Range: 2.6° to 50.7° (Beam mode)
- Zoom Range: 2.8° to 57° (Wash mode)
- Lumens : 33587 lm
- Illuminance : (3.1 °) 154,697 lux @ 5 m (Spot mode)
- Illuminance : (55.5 °) 2,675 lux @ 5 m (Spot mode)
- Illuminance : (2.6°) 17,538 lux @ 15 m (Beam mode)
- Illuminance : (50.7 °) 295 lux @ 15 m (Beam mode)
- Illuminance : (2.8°) 146,171lux @5 m (Wash mode)
- Illuminance : (57 °) 2478 lux @ 5 m (Wash mode)
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 + white, split colors, continuous scroll at variable speeds

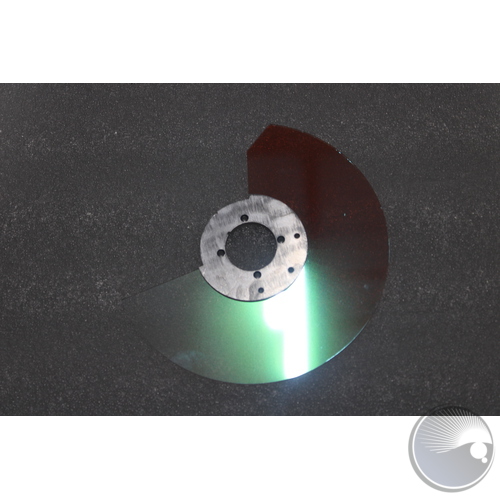

- Colors: CMY + CTO flags

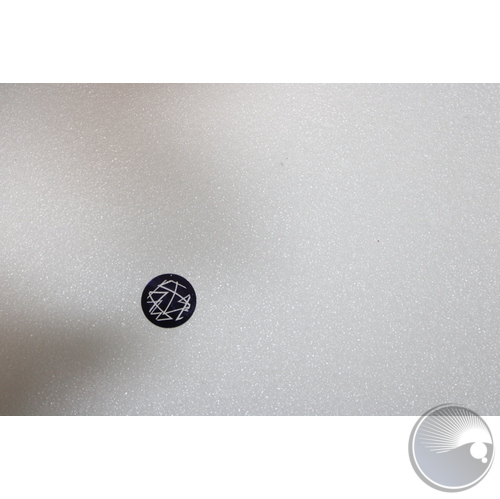

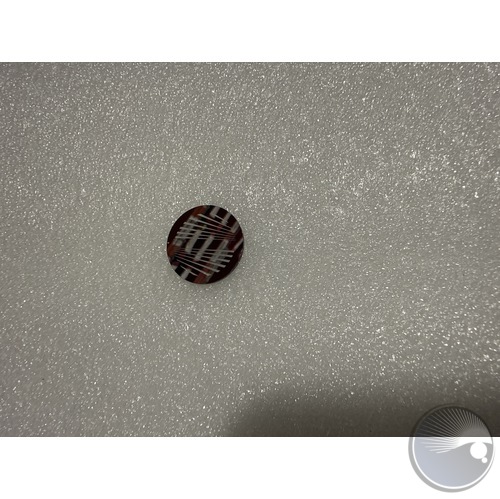

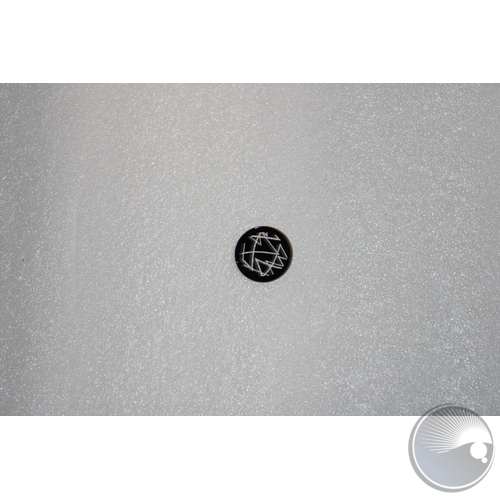

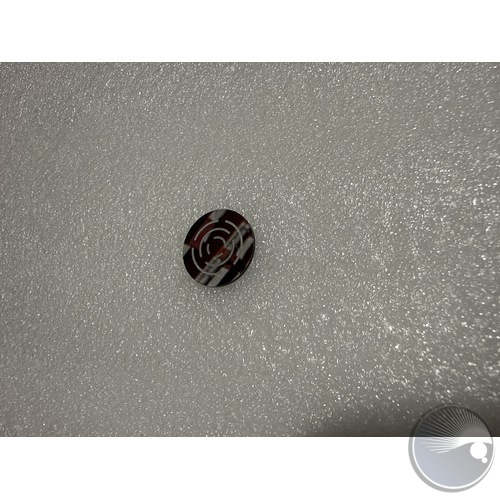

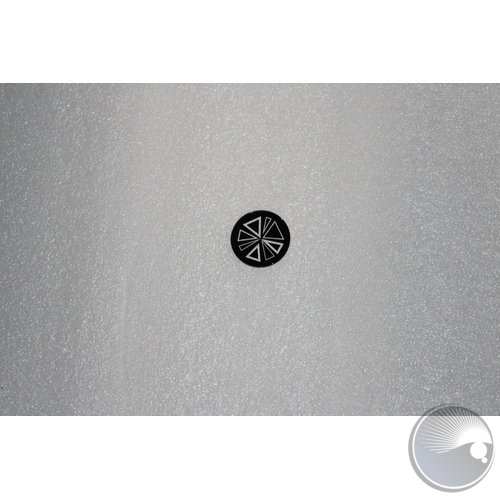

- Gobos (1): 7+ open (1 empty slot + 6 glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds) and (1) steel dual layer non-removable rotating, continuous scroll at variable speeds)

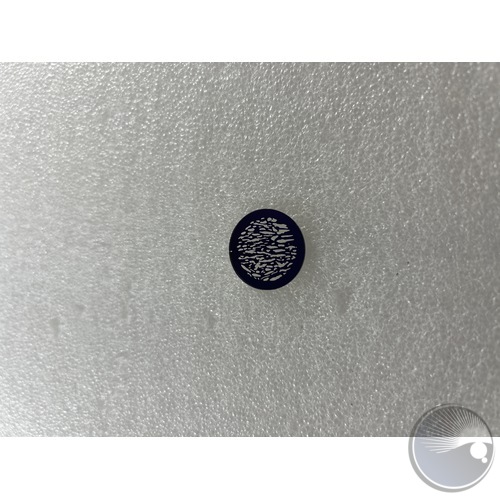

- Gobos Static: 10 + open (11 metal), rotating, continuous scroll at variable speeds
- Gobo Size (1): Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
- Animation Wheel: 1
- Dimmer: Electronic
- Shutter/Strobe: Electronic

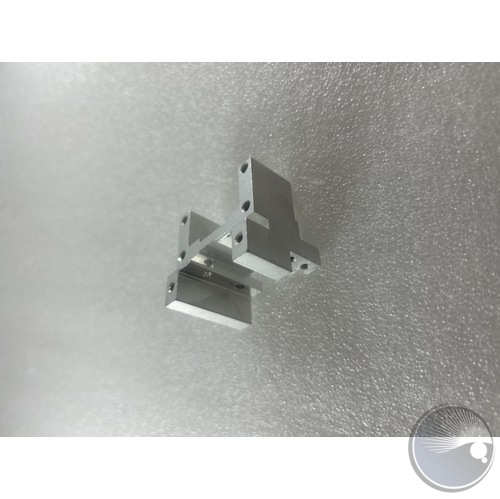

- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Prism (1): 6 Facets, motorized, rotating
- Prism (2): 8 Facets, motorized, rotating
- Move-in-Black: Yes
- Built in Sky Tracker Mode: Yes
Construction / Physical
- Dimensions: 15.27 x 10.55 x 29 in (388 x 268 x 738 mm)
- Weight: 63.5lb (28.8 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Connections
- Power Connection: Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65

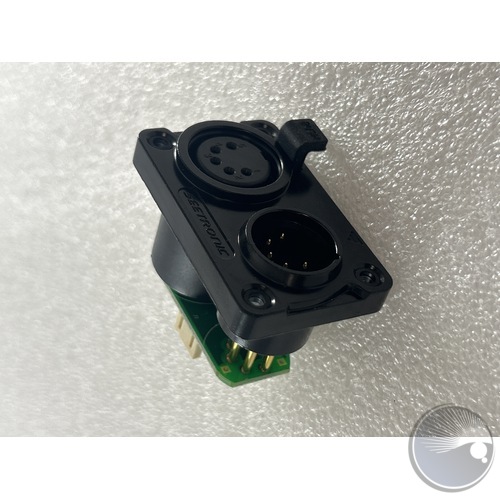

- Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: Type-C USB
Control
- Control Protocol: Art-Net, sACN, RDM, DMX, CRMX
- DMX Channels: 26 or 33
- Art-Net/sACN Channels: 26 or 33
- Modes/Personalities: 2 personalities (26, 33)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 754 W, 6.25 A @ 120 V, 60 Hz
- Power and Current: 734 W, 3.60 A @ 208 V, 60 Hz
- Power and Current: 738 W, 3.30 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, CB, UKCA
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Maverick Storm 1 Flex
- Seetronic Powerkon IP65 power cord to Edison Plug
- (2) 140 Omega brackets with mounting hardware
Optional Accessories
- Clamps - CTC-50HC, CTC-50G, CTC-50HCBLK, CTC-50HCN, CTC-50FCNBLK
- Rig Link PowerKon IP65 cables
- Rig Link etherCON cables
- Rig Link 5 Pin DMX Cables
- Flight Cases - CP2CASELARGE
