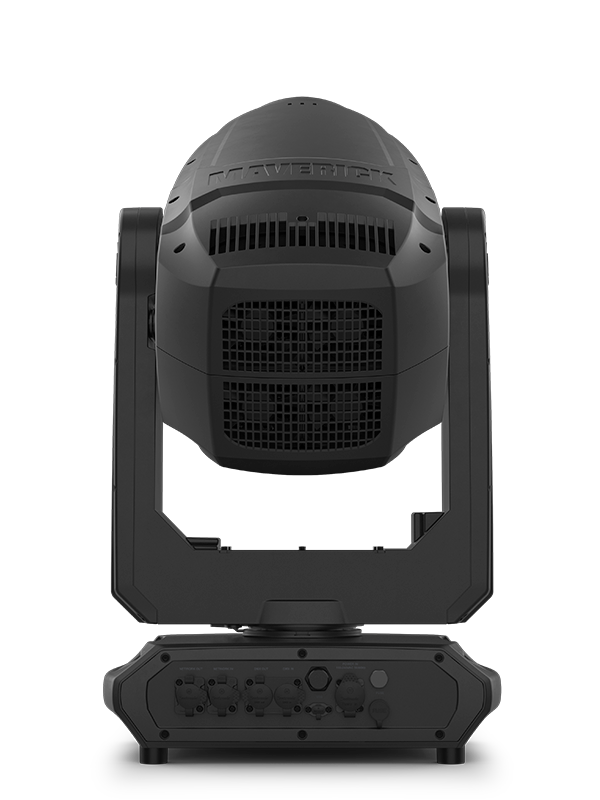

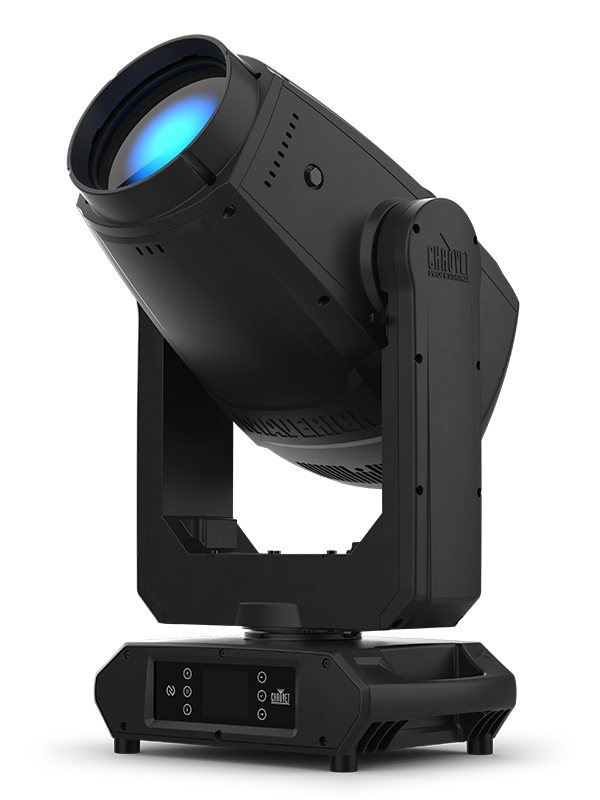

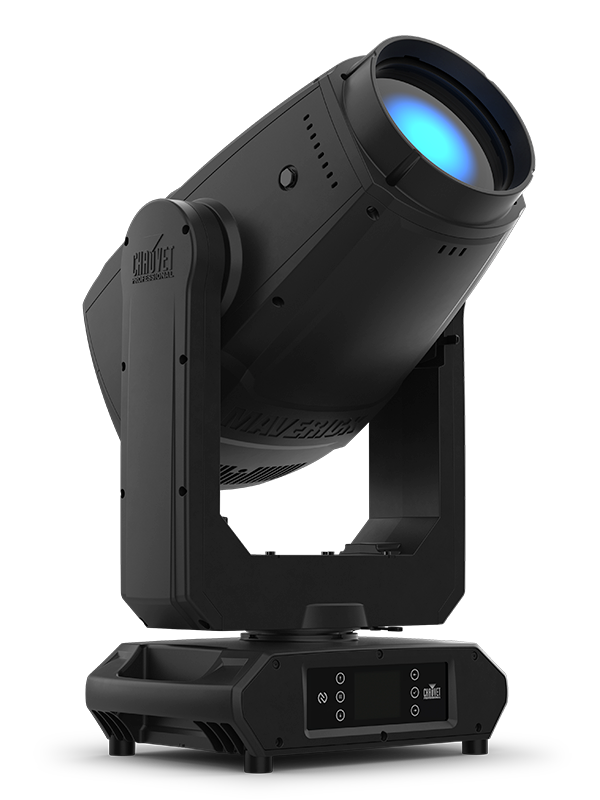

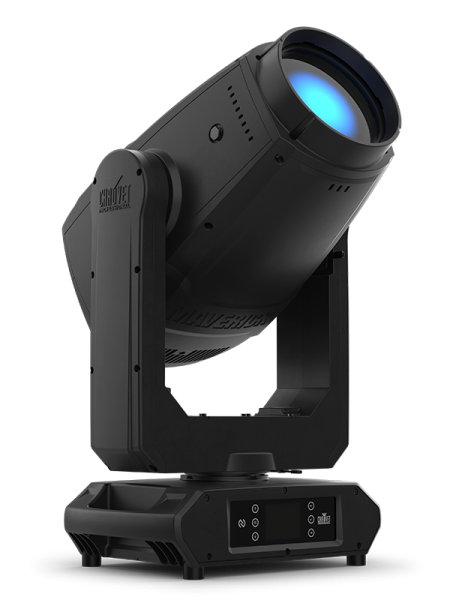

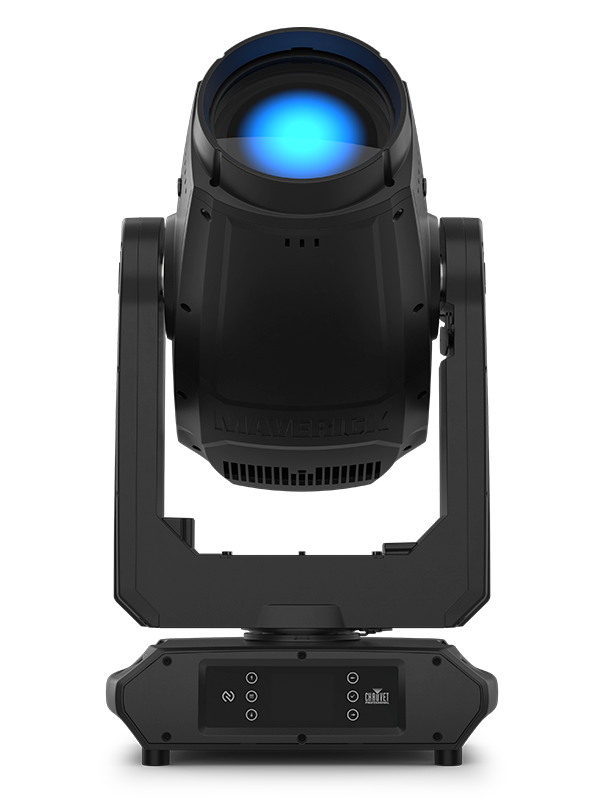

Maverick Storm 3 Profile
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: MAVERICKSTORM3PROFILE
At a Glance
Fully-featured, compact, and lightweight IP65 620 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 18:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, and integrated sun shield
16-bit dimming of master dimmer for smooth control of fades
65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
Variable CMY + CTO color mixing system to create a wide pallet of colors
CRI and CTB filters on color wheel for added flexibility
One rotating, indexing, and interchangeable slot and lock gobo wheel
One static gobo wheel
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
RDM control over DMX for fixture reporting
3.5° to 57.7° (18:1) zoom range for variable beam sizes
Iris, 5-facet prism and frost for beam control
True 1 compatible power input
Integrated sun shield for protecting the optical path from sunlight when the fixture is off
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation
Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
NFC for quick and easy fixture setup in the shop or in the field
Specifications
Optical
- Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
- Color Temperature (at full): 7062 K
- CRI: 72.3
- CRI with CRI Filter: 90.2
- Front Lens Diameter: 165 mm
- Beam Angle: 3.5° to 51.5°
- Field Angle: 4.1° to 54.3°
- Cutoff Angle: 4.3° to 57.7°
- Zoom Range: 3.5° to 57.7°
- Lumens – Output: 34,500 lm
- Illuminance (3.5°) 165,664 lux @ 5 m
- Illuminance (56.7°) 2,173 lux @ 5 m
- PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY wheel, CTO wheel

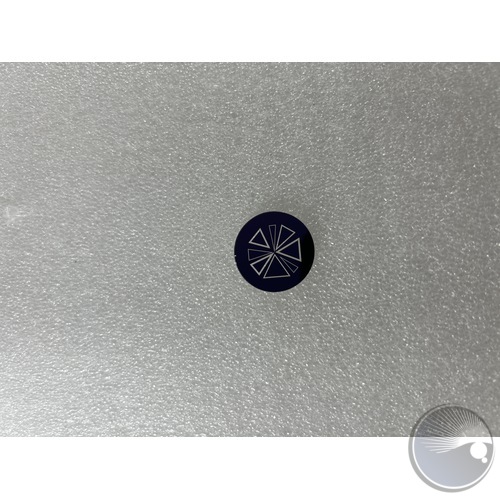

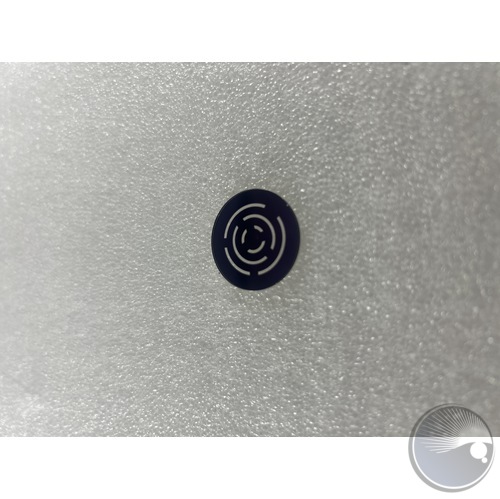

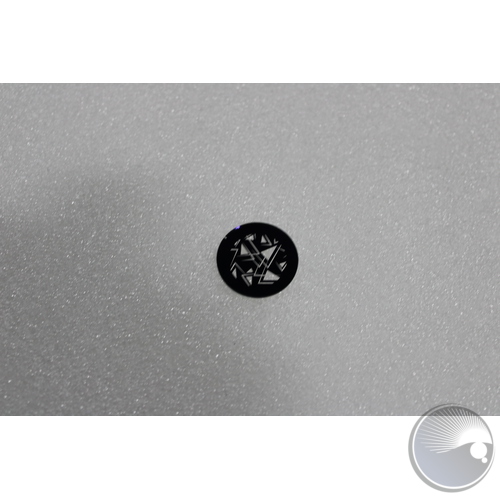

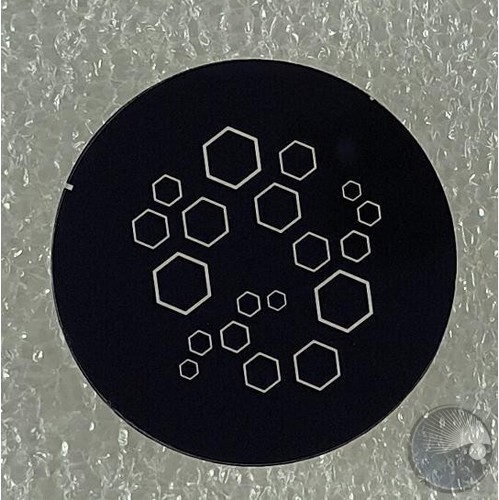

- Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9 + open (glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
- Framing Shutter rotation: +/- 60° rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Animation: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 25 Hz
- Move-in-Black: Yes
- Dim Curves: 4
Construction / Physical
- Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
- Weight: 69 lb (31.3kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel
Connections
- Power Connection: Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 34 or 50
- Art-Net Channels: 34 or 50
- Modes/Personalities: 2 personalities (34, 50)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 1020 W, 8.5 A @ 120 V, 60 Hz
- Power and Current: 1020 W, 4.82 A @ 208 V, 60 Hz
- Power and Current: 1010 W, 4.39 A @ 230 V, 50 Hz
- Fuse: F15 AL, 250 V
Battery
Certifications / Qualifications
- CE, MET, FCC, CB, UKCA
- IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
What's Included
- Maverick Storm 3 Profile
- Seetronic Powerkon IP65 power cord to Edison
- Omega bracket with mounting hardware
Optional Accessories
- Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
- RigLink powerCON cables
- RigLink etherCON cables
- RigLink DMX Cables
- Flight Cases
- CP Rack
- IP tester
