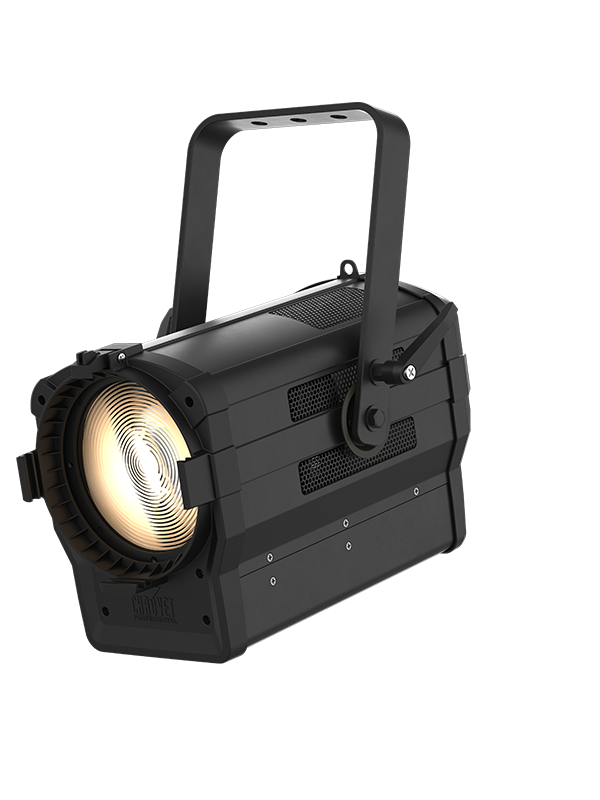

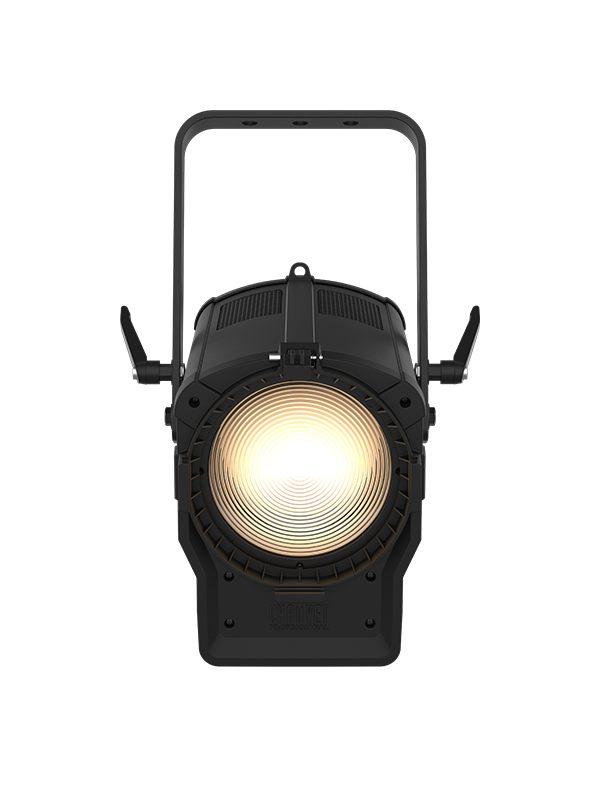

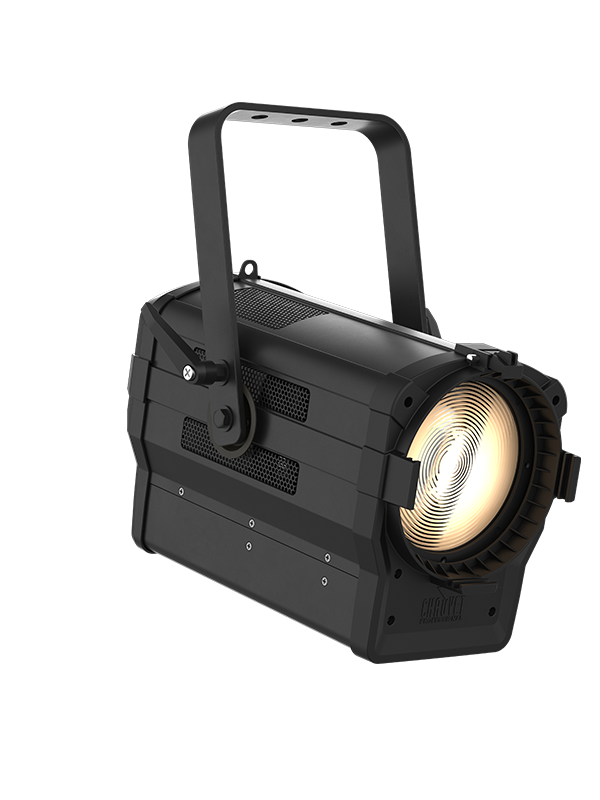

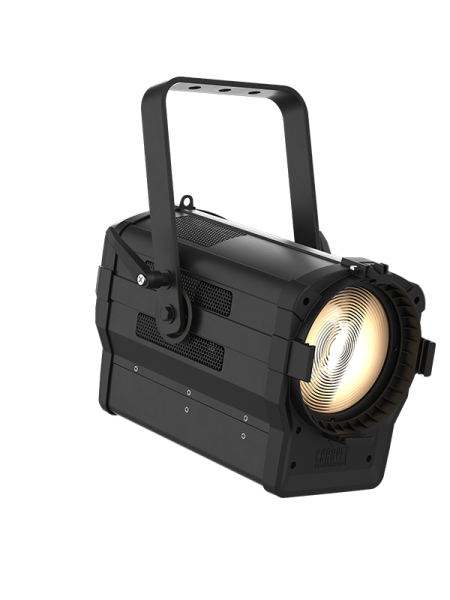

Ovation F-415 VW
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: OVATIONF415VW-2
At a Glance
Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 14° to 68°
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
28 VDC power input via 3-pin XLR to power the fixture from an external battery pack
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
Specifications
Optical
- Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- CRI: 89 to 93
- Beam Angle: 14° to 43°
- Field Angle: 27° to 68°
- Zoom Range: 14° to 68°
- Lumens (27°) : 1,631
(68°) : 2,408 - Illuminance (27°) : 800 lux @ 5 m
(68°): 152 lux @ 5 m - Illuminance drop percentage (fan silent) : 23%
(fan off) : 59% - Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: No
Construction / Physical
- Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
- Weight: 12.79 lb (5.8 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
- Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

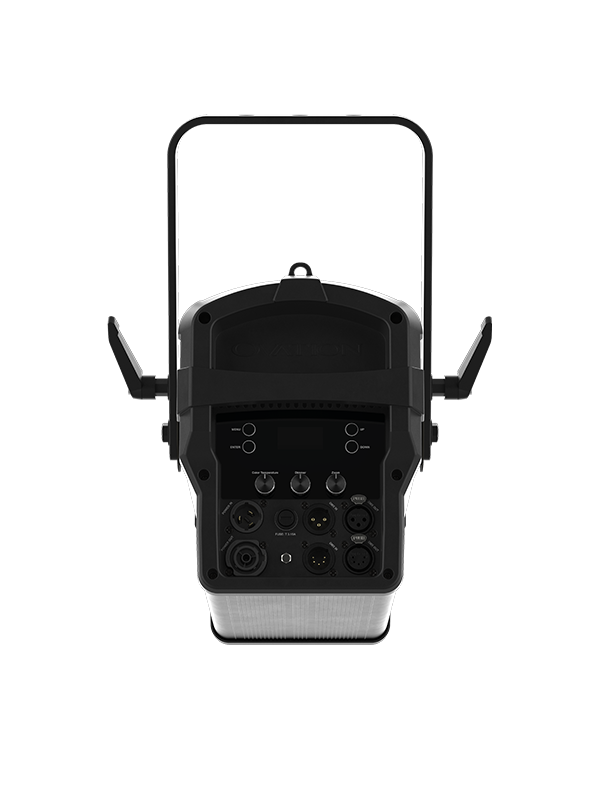

Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Power Connection: 3-pin XLR
- Power Input: 28 VDC, 3-pin XLR
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 2, 5, 7, 10, 14, 17 or 19
- Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Input Voltage: 28 VDC
- Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
- Power and Current: 125 W, 1.054 A @ 120 V, 60 Hz
- Power and Current: 122 W, 0.613 A @ 208 V, 60 Hz
- ower and Current: 121 W, 0.569 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- Noise Level (Idle): 3.1 dB(A) @ 1 m
- Noise Level (Auto): 17.0 dB(A) @ 1 m
- Noise Level (On): 28.3 dB(A) @ 1 m
- Noise Level (Off): 4.4 dB(A) @ 1 m
- Noise Level (silent): 20.9 dB(A) @ 1 m
What's Included
- Ovation F-415VW
- Seetronic Powerkon IP65 power cord
- Gel frame holder (6.25 in/158.75 mm accessories)
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon IP65 cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 6.25″ Barndoor V1
ORDERING INFO
- Item Code: 03031481
