Ovation F-915 VW
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: OVATIONF915VW-2
At a Glance

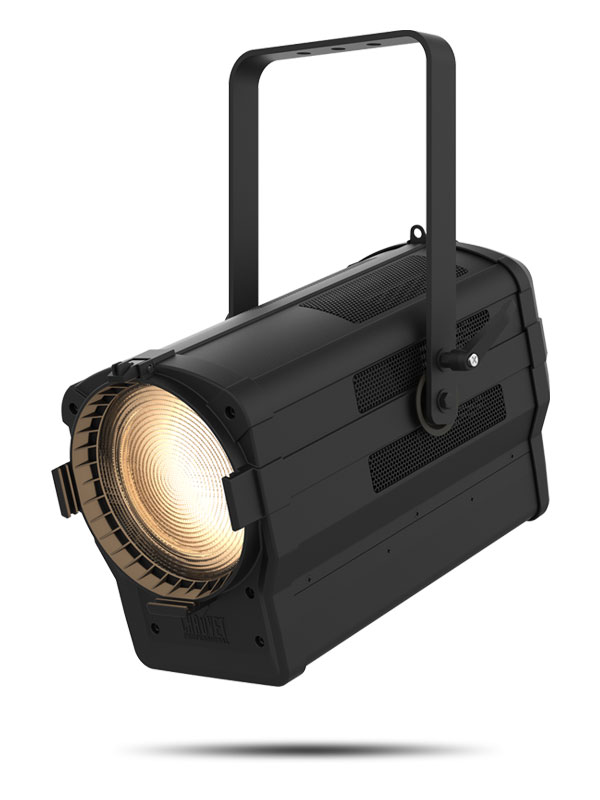

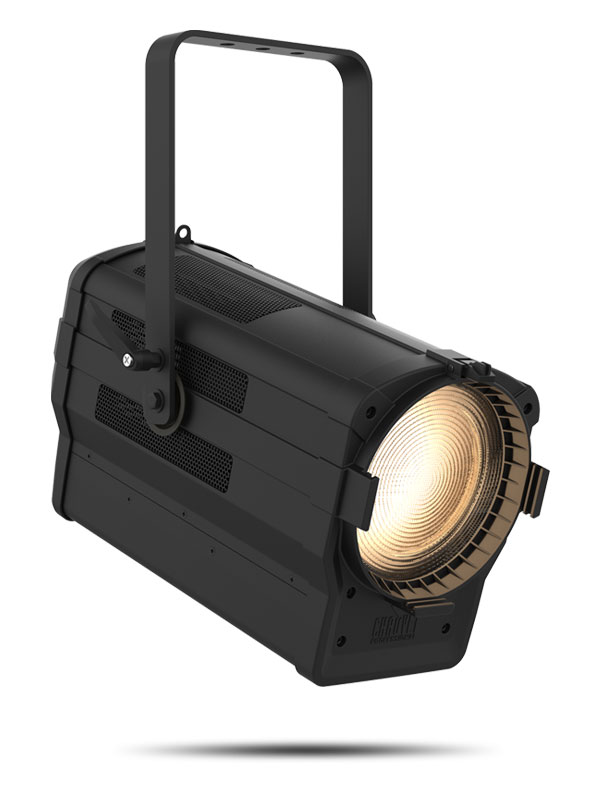

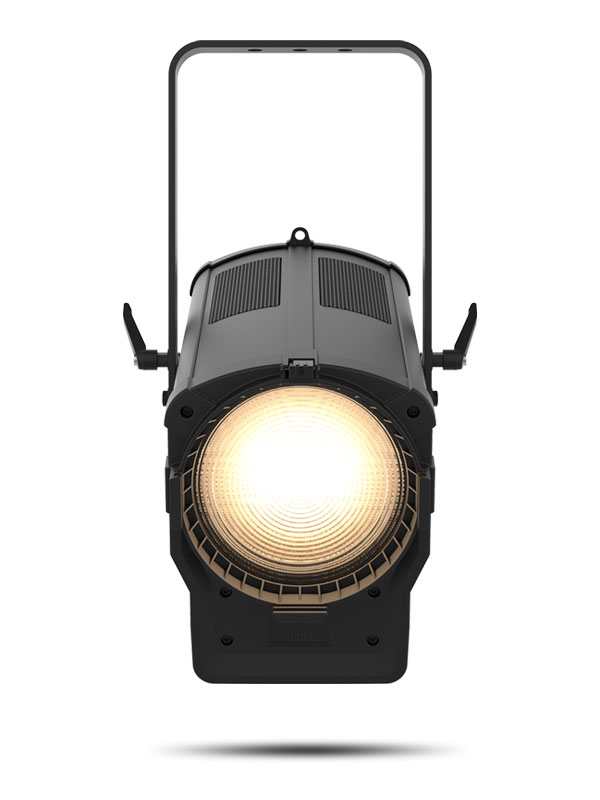

Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 17° to 85° beam range
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
Specifications
Optical

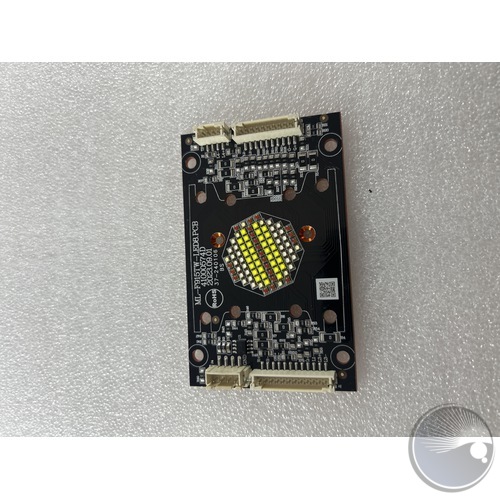

- Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- CRI: 88-92
- Beam Angle: 17° to 54°
- Field Angle: 30° to 85°
- Zoom Range: 17° to 85°
- Lumens (30°): 4,143
- Lumens (85°): 6,792
- Illuminance (30°): 1,748 lux @ 5 m
- Illuminance (85°): 414 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: No
Construction / Physical
- Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
- Weight: 18.6 lb (8.5 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast

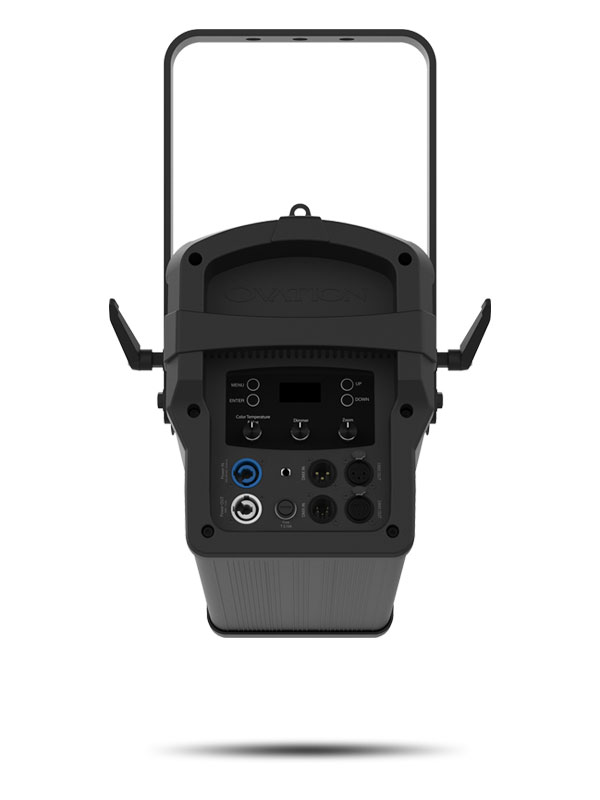

Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 19
- Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 19)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
- Power and Current: 271 W, 2.3 A @ 120 V, 60 Hz
- Power and Current: 262 W, 1.433 A @ 208 V, 60 Hz
- Power and Current: 258 W, 1.209 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
What's Included
- Ovation F-915VW
- Seetronic Powerkon IP65 power cable
- Gel frame (7.5 in/191 mm accessories)
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extensions Cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5” Barndoor V2
- Ovation 8" Pole Operated Yoke
ORDERING INFO
- Item Code: 03031392
