FLEXstand FX ILS

Auf Anfrage!

  • FLEXSTANDFXILS
FLEXstand FX ILS Simplify setups and get the party started faster with FLEXstand... mehr
Produktinformationen "FLEXstand FX ILS"

FLEXstand FX ILS

Simplify setups and get the party started faster with FLEXstand FX ILS, the multi-purpose stand that doubles as a lightshow. This heavy-duty timesaver has 68 built-in LEDs and auto programs that can be resized to fit the chosen stand height. Its trigger-style safety release enables DJs, performers, and event managers to make smooth and secure height adjustments on the fly. ILS, RF, and DMX control options mean this stand can be operated just like any other lighting fixture for flawlessly synced shows every time. Quickly achieve eye-catching mobile entertainment setups with FLEXstand FX ILS.

Highlights

  • Multi-purpose, telescoping stand safely supports lighting and audio gear

  • Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups

  • Auto programs can be resized to fit the chosen height of the stand

  • Built-in RF receiver and compatible with the RFC and RFC-XL remotes (sold separately)

  • Compatible with the ILS ecosystem (DFI-USB sold separately)

  • Different pole diameters accommodate clamps and taper into a speaker mount on top

  • Trigger-style safety release allows the pole to descend safely

  • Toolless design allows for fast and easy setup and tear down

  • Threaded pole can be inserted into multiple positions for different applications

  • Cast iron base includes rubber feet that won’t scratch delicate floors and allows for quick retrieval

Spezifikationen

  • DMX-Kanäle:4, 15, 18, 34, 66, or 94
  • DMX-Anschlüsse:3-pin XLR
  • Lichtquelle:68 LEDs (quad-color RGB+WW) 0.8W, 50,000 hours life expectancy
  • Strobe-Rate:0 to 20 Hz
  • Operating Frequency:2.412 to 2.48 GHz
  • Power Linking:34 units @ 120 V; 47 units @ 230 V
  • Eingangsspannung:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Zulassungen:CE, FCC
  • Load Capacity: 132 lb (60 kg)
  • Cable Length: 5 ft (1.52 m)
  • Power and Current: 15 W, 0.2 A @ 230 V, 50 Hz
  • Power and Current: 15 W, 0.3 A @ 120 V, 60 Hz
  • Weight (pole): 8.2 lbs (3.7 kg)
  • Weight (base): 34.2 lbs (16 kg)
  • Weight (combined): 42.4 lbs (19.2 kg)
  • Threaded inserts (bottom): M10-1.0 TPI
  • Threaded insert (top): M10-1.5 TPI
  • Pole Height: 4.8 to 8 ft (1.5 to 2.4 m)
  • Pole Diameter (Top): 1.34 in (34 mm)
  • 1.7 in (44 mm) : Pole Diameter (Bottom)
  • 2 in (50 mm): Optional Controllers

Im Lieferumfang enthalten

  • FLEXstand FX ILS
  • FLEXstand FX ILS
  • Power cord
  • Base
  • Extension pole
  • Carry Bag
  • Cable clips (x2)
  • QRG
Weiterführende Links zu "FLEXstand FX ILS"

PTK121010001IEC socket (IN) (BOM#)19)
PTK121010002IEC socket(OUT) (BOM#)20)
PTK129010002Fuse 1A_250V
PTK130010021Power supply (BOM#25)
PTK131010001Power cable (BOM#)24)
PTK132010011Wire Harness_3 Pin_14AWG
PTK132010014WIre harness with flag terminal_14AWG _cable length 100mm_Black (BOM#)41)
PTK132010017Wire Harness_2 Pin_18AWG_150mm_Green /Yellow
PTK132010018Wire Harness_2 Pin_18AWG
PTK132010022Wire Harness_2 Pin_18AWG_100mm_Green and Yellow
PTK132020001Z3Pin Wire / harness which connects the MPCB and DMX (BOM#38)
PTK132020009Wire Harness_XH-2Y_2 Pin_22AWG_200mm
PTK132020026Wire Harness_6 Pin_26AWG_150mm
PTK132020027Wire Harness_3 Pin_22AWG_300mm
PTK132020028Wire Harness_3 Pin_22AWG_450mm
PTK132020057Wire Harness_4 Pin_22AWG_200mm
PTK201050003Top cover for the control box (BOM#30)
PTK201050004Base plate _L550*W547.2*H8mm (BOM#38)
PTK201120026Fixing plate for the tension spring (BOM#35)
PTK202020004Pressing plate _L24*W16*H5.3mm (BOM#17)
PTK202020008Connecting adapter_L64*W20*H14mm (BOM#16)
PTK202020009Fixed column_?20*H19mm (BOM#15)
PTK202020010AIndex pin_?20*H19mm (BOM#13)
PTK202020011Wire pressing plate A_L13*W13*H6mm (BOM#6)
PTK202020012Fixing plate_L13*W6*H5mm (BOM#24)
PTK202020013Wire pressing plate C_L13*W6*H5mm (BOM#5)
PTK202020014Strengthen tube (BOM#36)
PTK202020016Fixing plate_L44.7*W20*H13mm (BOM#21)
PTK202020017Fixing plate_L50*W15*H10mm (BOM#26)
PTK202020018Side plate for the inner tube (BOM#8)
PTK203010011Outer tube (BOM#20)
PTK203010012Inner tube (BOM#4)
PTK203010013Extension pole (BOM#1)
PTK203010014Main casing for the control box (BOM#32)
PTK204020001Adapter_L85.4*W68.2*H45.5mm (BOM#11)

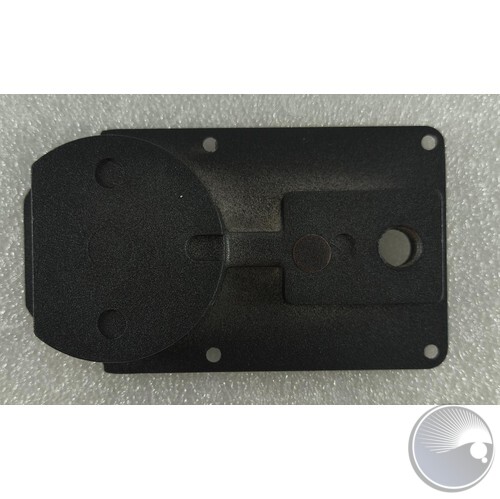

PTK204020002ASide plate for the outer tube (BOM#37)
PTK206050012Protection plate_L47.6*W29.5*H9mm (Control Box BOM#14)
PTK206050018Adapter_L56.7*W56.2*H20mm_ (BOM#10)
PTK206050019APlastic clip (BOM#7)
PTK207010001Clear PC cover (outer tube) (BOM#18)
PTK207010002Clear PC cover (inner tube) (BOM#2)
PTK209010034Screw_PM3x8mm
PTK209010035Screw_PM3x10mm
PTK209010037Screw_PM3x14mm
PTK209010038Screw_PM3x14mm
PTK209010055Cross recessed round head Screw_PM3x14mm_Silver (BOM#)31)
PTK209010071Screw_PM_3x5mm
PTK209010096Screw_PA3x8mm
PTK209010101Screw_PA3x10mm
PTK209010128Screw_PM3x6mm
PTK209020005Cross recessed flat head Screw_KM_3x6mm_Black (BOM#)28)
PTK209020012Screw_KM3x14m
PTK209020016Screw KM4x8mm
PTK209020039Screw_KM3x10mm
PTK209020043Screw_KM3x8mm
PTK209020044Cross recessed flat head self-tapping Screw_KB3x6mm_Black (BOM#)29)
PTK209030004Screw_M5x6mm
PTK209030005Screw_M5x8mm
PTK209030006Screw_M5x35mm
PTK209030042Screw_M4x6mm
PTK209050015Bracket screw (BOM#39)
PTK209050024Bracket screw (Assembled Par BOM#3)
PTK209050033Bracket screw_L65xH30_M10x15mm (BOM#41)
PTK209070002Hexagon nylon Screw M5_8.8x5mm (BOM#)56)
PTK209070011Hexagon Screw M3_5.5x2.4mm (BOM#)37)
PTK209070015Hexagon nylon Screw M3_5.5x4mm (BOM#)38)
PTK209080001Rubber washer (BOM#9)
PTK209080002Lock washer_ID3xOD6mm (BOM#)35)
PTK209080032spring washer ?3 (BOM#)36)
PTK209080040Washer_?4
PTK209100043ABS pillar_ID3xOD7xH2
PTK209110003ATension spring (BOM#14)
PTK209120007Knob cap (BOM#)23)
PTK209120009Rubber feet (BOM#40)
PTK209120010USB cover (BOM#)22)
PTK301010042Allen key
PTK302050003Lamination Film
PTK302050004Silica gel pack (BOM#)62)
PTK401020003Spec sticker
PTK401820001Warranty sticker (BOM#)64)
PTK401820002Square sticker_L139xW40mm (BOM#)65)
PTK401820003Square sticker_L139xW32mm (BOM#)66)
PTK402020002QRG
PTK403020013Outer box
PTK404020002Foam
PTK406020002Carry bag
PTK406020004Carry bag (Base plate)
PTK406820005Plastic bag_L2500xW200xT0.04mm
PTK406820006Plastic bag_L800xW650xT0.04mm
PTK406820014Plastic bag_L300xW250xT0.04mm
PTK406820023Plastic bag_L70xW50mmxT0.04mm
PTK406820028Plastic bag_L600xW450xT0.04mm
PTK408020001Honeycomb board_L1363xW563xH20mm
PTK408020002Honeycomb board_L1363xW123xH20mm
PTK408820001Sharing card (BOM#)67)
PTK408820002ILS flyer (BOM#)68)
PTK5101010008MPCB (BOM#22)
PTK5101020001LED PCB (inner tube) (BOM#3)
PTK5101020002LED PCB (outer tube) (BOM#19)
PTK5101070003DMX & USB board (BOM#27)
PTK5102010002433MHZ wirless receive module (Control Box BOM#13)
