COLORband Spectra ILS

593,81 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • COLORBANDSPECTRAILS
COLORband Spectra ILS Don’t just light a space, animate it. COLORband Spectra ILS... mehr
Produktinformationen "COLORband Spectra ILS"

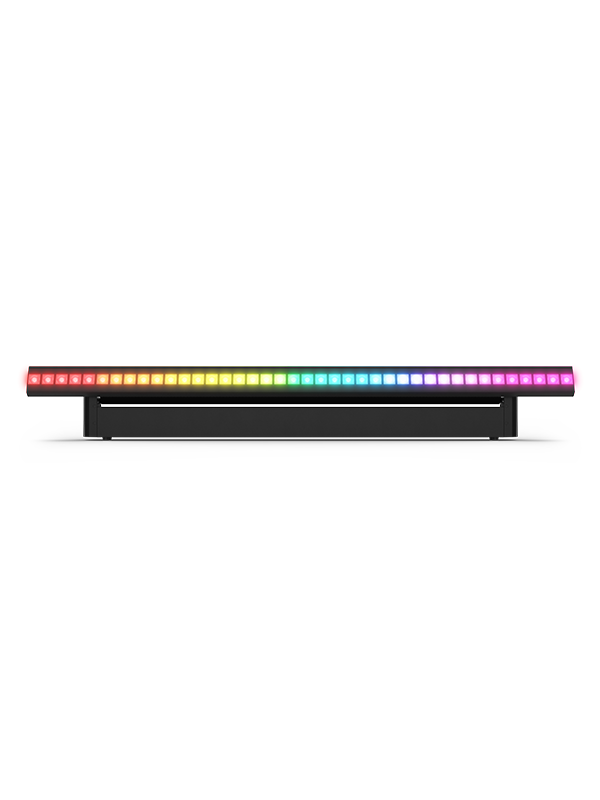

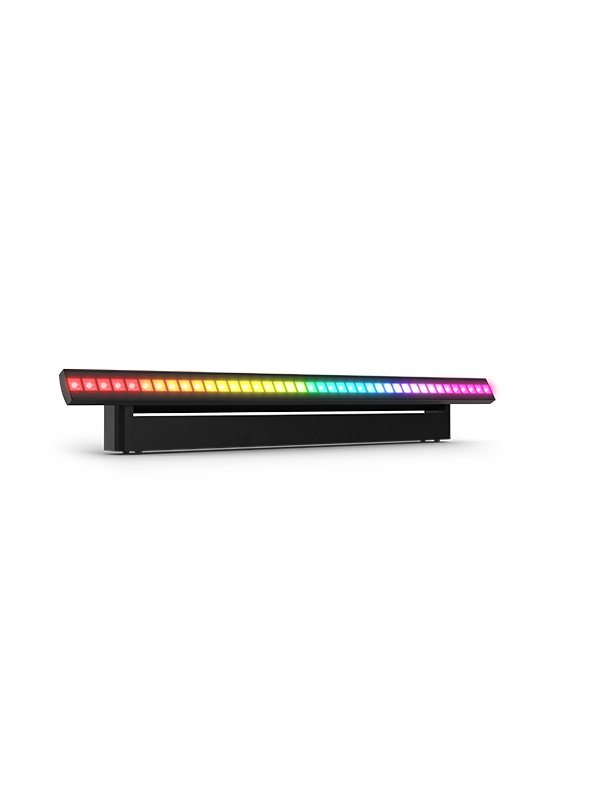

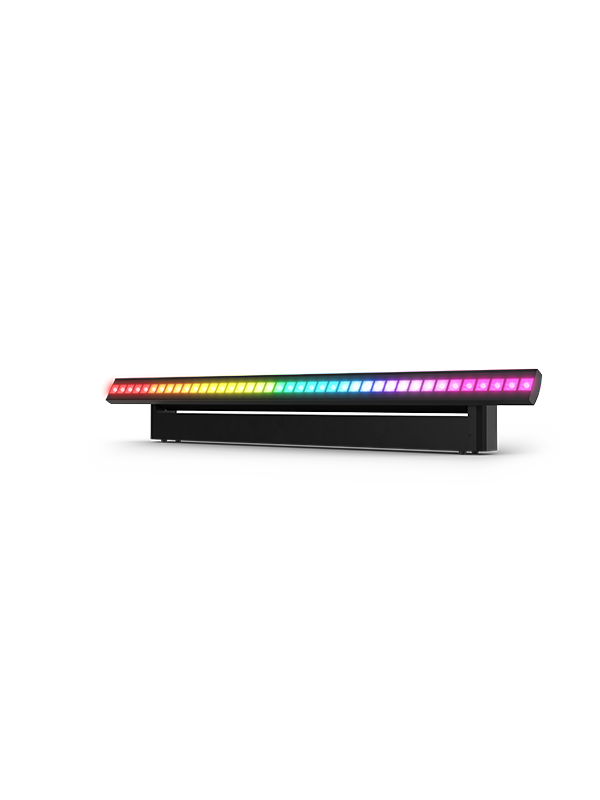

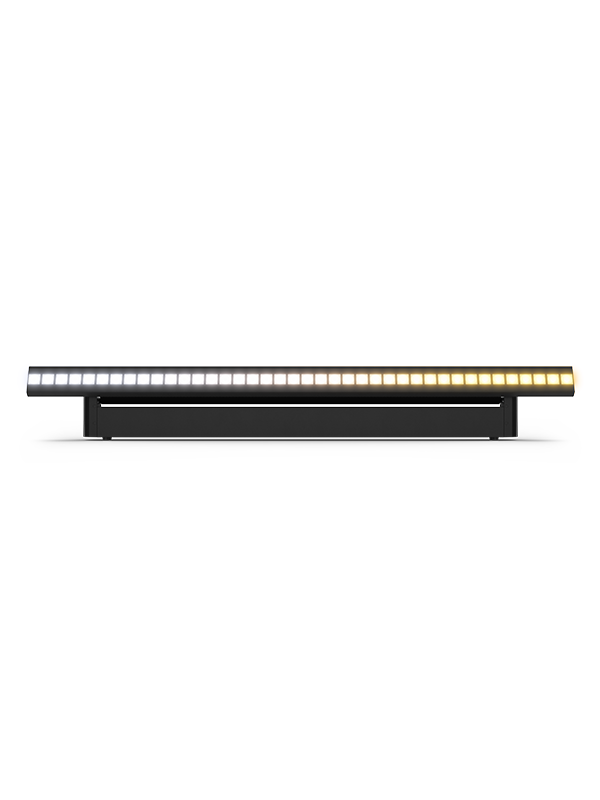

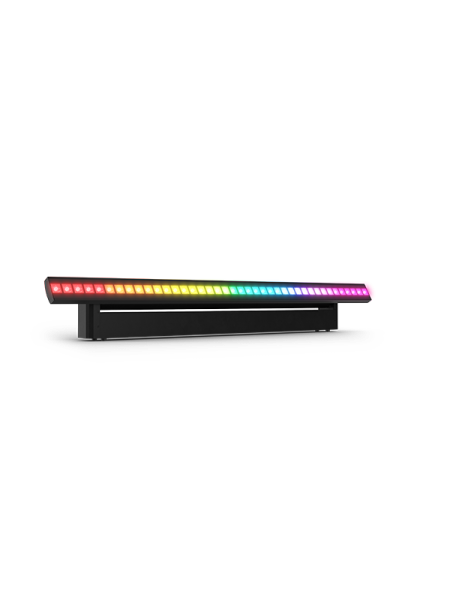

COLORband Spectra ILS

Don’t just light a space, animate it. COLORband Spectra ILS is a low-profile motorized strip light that slides into event spaces like it was made to disappear. Till it lights up and steals the show with high-energy motion, sweeping beams, bright blinder blasts and eye-catching pixel chases. Mix elegant, tunable warm white or vibrant electric color with 40 mappable LEDs. Own the room with 180 degrees of tilt. Unleash a new level of control with a sleek ILS powerhouse that triggers synchronized shows across your CHAUVET DJ rig. Whether you’re building a wedding vibe, a club throwdown, or a rooftop set, COLORband Spectra ILS puts you in command of a mind-blowing creative arsenal.

Highlights

  • Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer

  • Built-in motors ensure the light can be angled anywhere

  • Create eye-catching animations and effects with individual pixel control

  • Multiple control options such as DMX, ILS, RF, or master/slave for complete flexibility

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Flexible control options with onboard 3 and 5-pin DMX connectors

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the CHS-60 VIP Gear Bag

Spezifikationen

  • DMX-Kanäle:6, 11, 17, 19 or 164
  • DMX-Anschlüsse:3- and 5-pin XLR
  • Pan und Tilt:180°
  • Lichtquelle:40 LEDs (quad-color RGB+WW), 0.7A, 50,000 hours life expectancy.
  • Strobe-Rate:0 to 20 Hz
  • Abstrahlwinkel:15°
  • Feldwinkel:26°
  • Beleuchtungsstärke:3,872 lux @ 2 m
  • Power Linking:9 units @120 V; 16 units @230 V
  • Eingangsspannung:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Leistung und Strom:
    86 W, 1.3 A @ 120 V, 60 Hz
    72 W, 0.8 A @ 230 V, 50 Hz
  • Gewicht:10 lbs (4.6 kg)
  • Größe:39.4 x 2.4 x 5.6 in (1000 x 60 x 142 mm)
  • Zulassungen:CE, ROHS
  • Color Temperature Range: 3,000K-14,000K
  • Optional Controllers: RFC, RFC-XL, ILS Command

Im Lieferumfang enthalten

  • COLORband Spectra ILS
  • COLORband Spectra ILS
  • Power cable
  • Omega Bracket
  • Quick Reference Guide
Weiterführende Links zu "COLORband Spectra ILS"

PTK118040002OLED display (BOM#17)
PTK121010004Power output socket (Control Box BOM#16)
PTK121010005Power input socket (Control Box BOM#4)
PTK121010006PowerCON connector
PTK126010021Step motor_L42xW42xH58mm (Side Plate Left BOM#8)
PTK129010004fuse 2.5A (BOM#)18)
PTK129060001Fuse holder (Control Box BOM#1)
PTK130010076Power supply (Control Box BOM#8)
PTK132010017Wire Harness_2 Pin_18AWG_150mm_Green /Yellow
PTK132010247Wire Harness_2 Pin_14AWG_900mm / 100mm_Black
PTK132010248Wire Harness_2 Pin_14AWG_900mm / 250mm_White
PTK132010250Wire Harness_2 Pin_18AWG_900mm_Green /Yellow
PTK132010304Wire Harness_2 Pin_14AWG_900mm/150mm_Green/Yellow
PTK132020008Wire Harness_3 Pin_26AWG_200mm_Black
PTK132020018Wire Harness_2 Pin_22AWG_300mm_Black
PTK132020068Wire Harness_4 Pin_26AWG_600m_Black
PTK132020152Wire Harness_2 Pin_26AWG_150mm_Black
PTK132020471Wire Harness_3 Pin_26AWG_600mm/100mm_Black
PTK132020472Wire Harness_6 Pin_26AWG_600mm_Black
PTK132020473Wire Harness_4 Pin_26AWG_700mm_Black
PTK132020474Wire Harness_4 Pin_22AWG_700mm_Black
PTK132020475Wire Harness_2 Pin_26AWG_1300mm_Black
PTK132020476Wire Harness_2 Pin_16AWG_700mm/1200mm_Red
PTK132020477Wire Harness_2 Pin_16AWG_900mm/1200mm_Black
PTK201010062AFront panel_L750xW49xH8xT1.2 (Control Box BOM#3)
PTK201010063AMain casing (control box)_L750xW60xH56xT0.8 (Control Box BOM#7)
PTK201020003Optical code disk_?37*0.5mm (Side Plate Left BOM#9)
PTK201020048Side plate (left)_L105.2xW57xH9xT2 (Side Plate Left BOM#5)
PTK201020049Motor holder_L49xW42xH26xT2 (Side Plate Left BOM#6)
PTK201020050Side plate (right)_L105.2xW57xH9xT2 (Side Plate Right BOM#5)
PTK201040150Side plate (right)_L55.5*W23.7*T0.8 (Moving Head BOM#12)
PTK201040151Protection plate_L740*W51*H35*T1.0 (Moving Head BOM#10)
PTK201090001ZSide plate_L55.5*W24.5*T0.8 (BOM#5)
PTK202010099Limited ring (left)_?27xH7 (Side Plate Left BOM#4)
PTK202010100Limited ring (right)_?32xH7 (Side Plate Right BOM#4)
PTK202020101Fixing plate_L49.8xW33xT6 (Moving Head BOM#9)
PTK202020102Fixing plate_L49.8xW33xT6 (Moving Head BOM#13)
PTK202040012Synchronous pulley_?18xH23.5 (Side Plate Left BOM#10)
PTK205010051Main casing_L998*W55.5*H24.5 (Moving Head BOM#8)
PTK206020023Side plate_L108.5xW60.2xH27 (Side Plate Left BOM#1)
PTK206050012Protection plate_L47.6*W29.5*H9mm (Control Box BOM#14)
PTK208040001ZIntegrated lens (BOM#2)
PTK2080400025 in 1 integrated lens A (left side) (Moving Head BOM#3)
PTK2080400035 in 1 integrated lens B (right side) (Moving Head BOM#5)
PTK208060096Black square cover_124.9*45*14.8 (Moving Head BOM#2)
PTK208060097Frost filter (clear)_L998.8xW50.3xT0.2mm (Moving Head BOM#1)
PTK208060098Clear PC_L40xW20xT1 (Control Box BOM#15)
PTK209010014Screw_PB_3x8mm
PTK209010022Screw_PM3x4mm
PTK209010033Cross recessed round head Screw_PM3x6mm_Black (BOM#)27)
PTK209010034Screw_PM3x8mm
PTK209010035Screw_PM3x10mm
PTK209010037Screw_PM3x14mm
PTK209010038Screw_PM3x14mm
PTK209010051Screw_PM4x8mm
PTK209010075Screw_PM2x3mm
PTK209010095Screw_PA3x8mm
PTK209010132Screw_PM4x8mm
PTK209010140Screw_PM3x8mm
PTK209020005Cross recessed flat head Screw_KM_3x6mm_Black (BOM#)28)
PTK209020006Screw_KB3x8mm
PTK209020012Screw_KM3x14m
PTK209020029Screw_KM4x8mm
PTK209020032Screw_KM3x4mm
PTK209030042Screw_M4x6mm
PTK209040050Cross recessed round head Screw with collar_PWM3x6_Black (BOM#)26)
PTK209070011Hexagon Screw M3_5.5x2.4mm (BOM#)37)
PTK209070015Hexagon nylon Screw M3_5.5x4mm (BOM#)38)
PTK209080002Lock washer_ID3xOD6mm (BOM#)35)
PTK209080019Flat washer_ID3xOD8xH1
PTK209080030Lock washer_ID4xOD7.8mm
PTK209080032spring washer ?3 (BOM#)36)
PTK209080033Flat washer_?4
PTK209080047Flat washer_ID3xOD8xH1
PTK209100043ABS pillar_ID3xOD7xH2
PTK209100151Hexagon copper pillar_H5xM3x33 (Moving Head BOM#11)
PTK209110064Waterproof cap for the Omega bracket (Control Box BOM#19)
PTK209110065Lock for the Omega bracket (Control Box BOM#20)
PTK209120007Knob cap (BOM#)23)
PTK209120010USB cover (BOM#)22)
PTK209120169Synchronous belt_HTD-210-3M-06 (Side Plate Left BOM#2)
PTK209120170Rubber feet_?13xH6 (Control Box BOM#18)
PTK210010006Bearing (left)_?47.8xH16.5 (Side Plate Left BOM#3)
PTK210010007Bearing (right)_?46xH12 (Side Plate Right BOM#3)
PTK302030005Protective tube_?8.0mm
PTK302030025Protective tube (Side Plate Right BOM#2)
PTK302050004Silica gel pack (BOM#)62)
PTK302050092EVA foam (Control Box BOM#11)
PTK401020020Spec sticker
PTK401820002Square sticker_L139xW40mm (BOM#)65)
PTK401820003Square sticker_L139xW32mm (BOM#)66)
PTK402020024QRG
PTK403020056Outer box
PTK404020020Foam
PTK406820004Plastic bag_L1200xW250
PTK408820001Sharing card (BOM#)67)
PTK408820002ILS flyer (BOM#)68)
PTK5101030064LED driver PCB (Moving Head BOM#6)
PTK5101070008DMX output PCB (Control Box BOM#17)
PTK5101070009DMX & USB input PCB (Control Box BOM#6)
PTK5101090001Auxiliary board_AS_PB_PH-SMD-4W_A_V1.0 (Side Plate Left BOM#7)
PTK5102010002433MHZ wirless receive module (Control Box BOM#13)
PTK5483020001Power cord
PTK5500000002Omega bracket (Control Box BOM#21)
PTK5701010059MPCB (Control Box BOM#9)
