Cloud  9 Cloud 9 is an impressive, low-lying fogger that creates thick, cloud-like... mehr
Produktinformationen "Cloud 9"

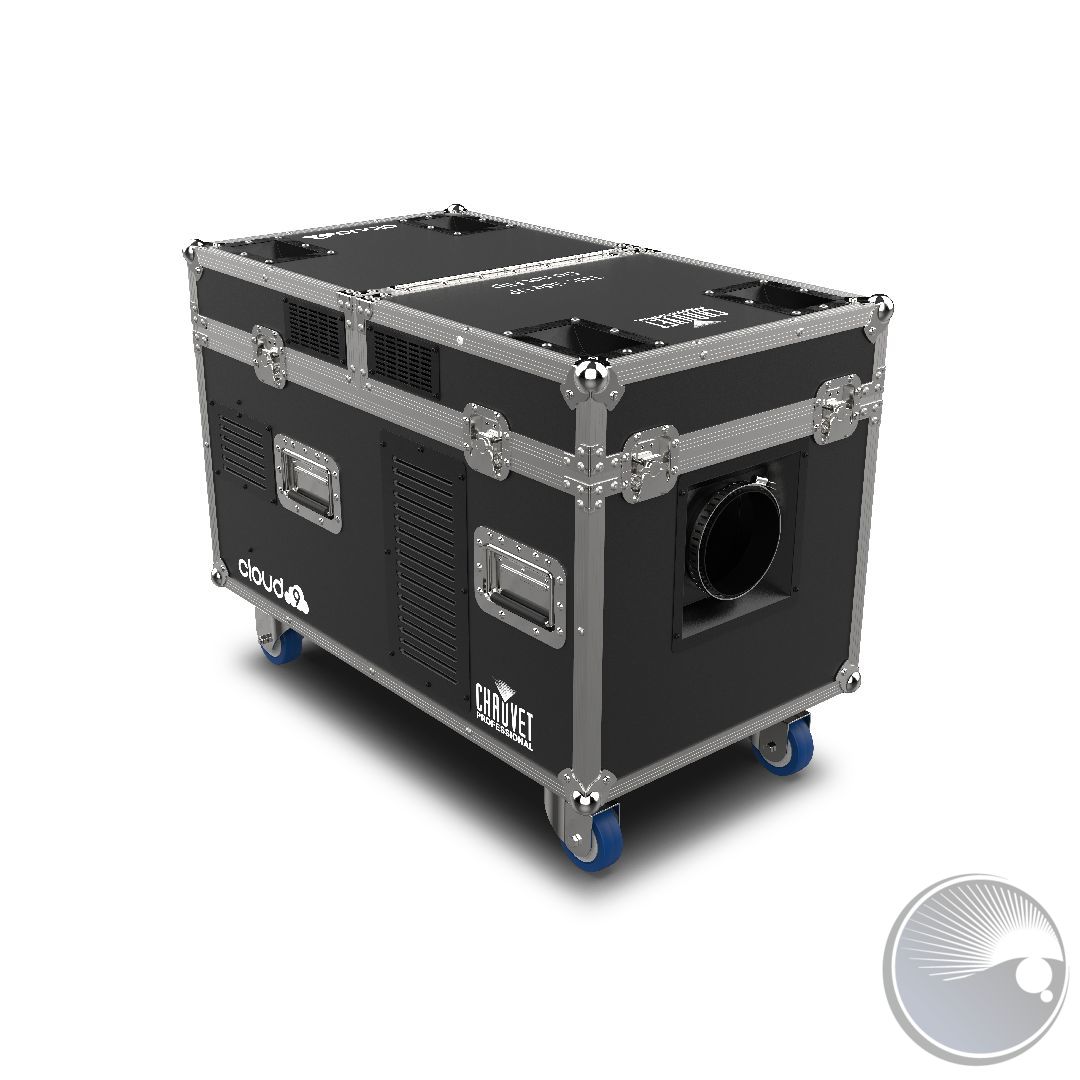

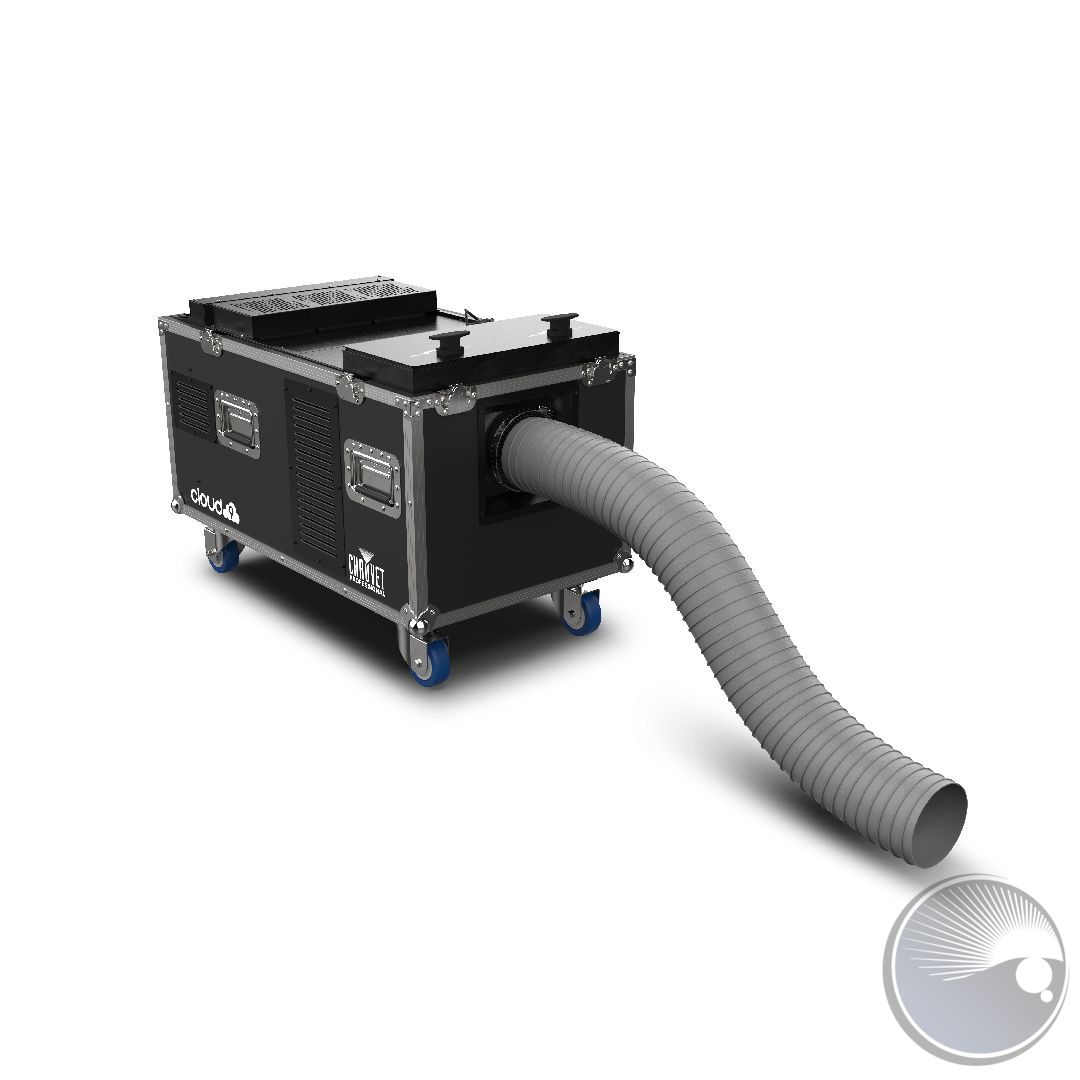

Cloud 9

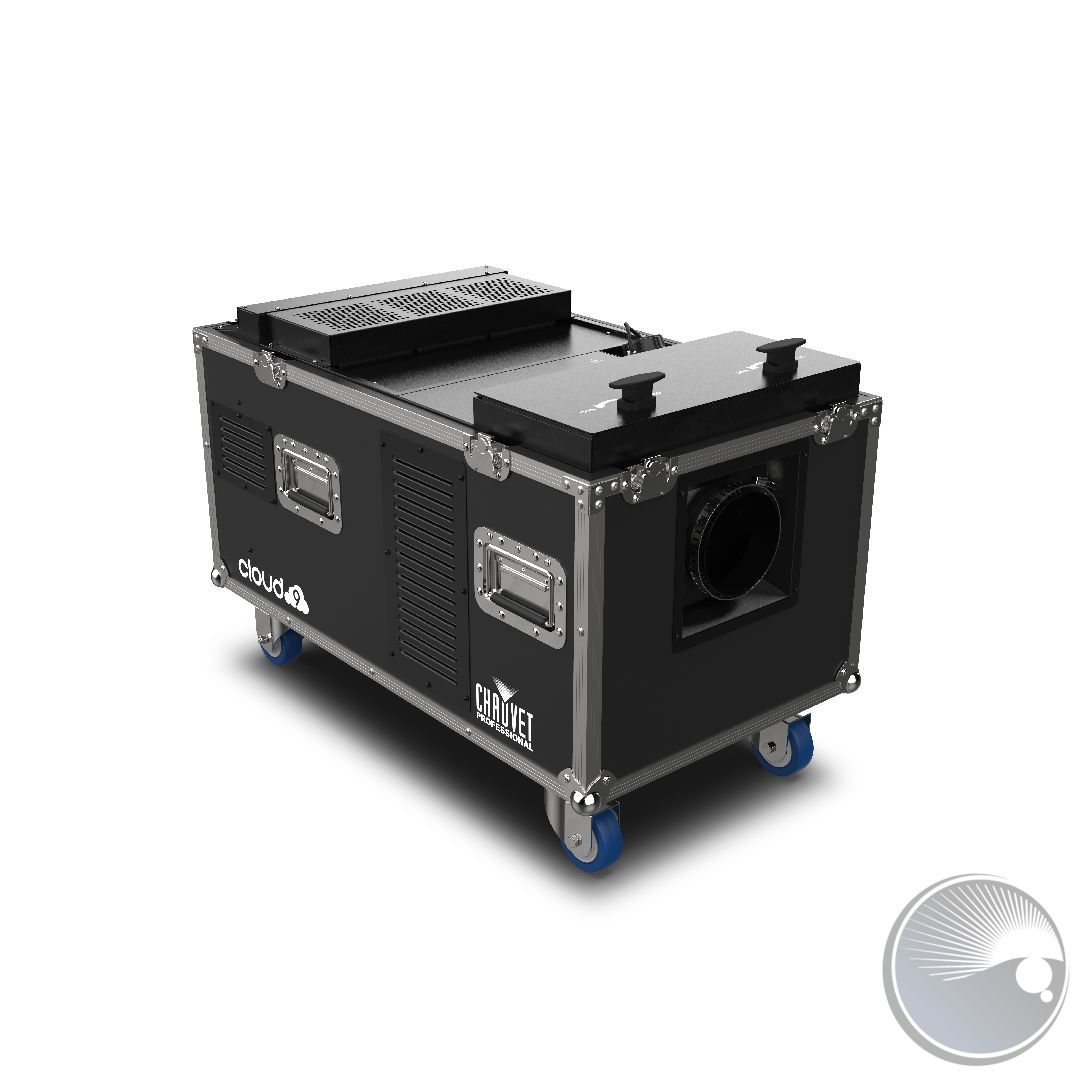

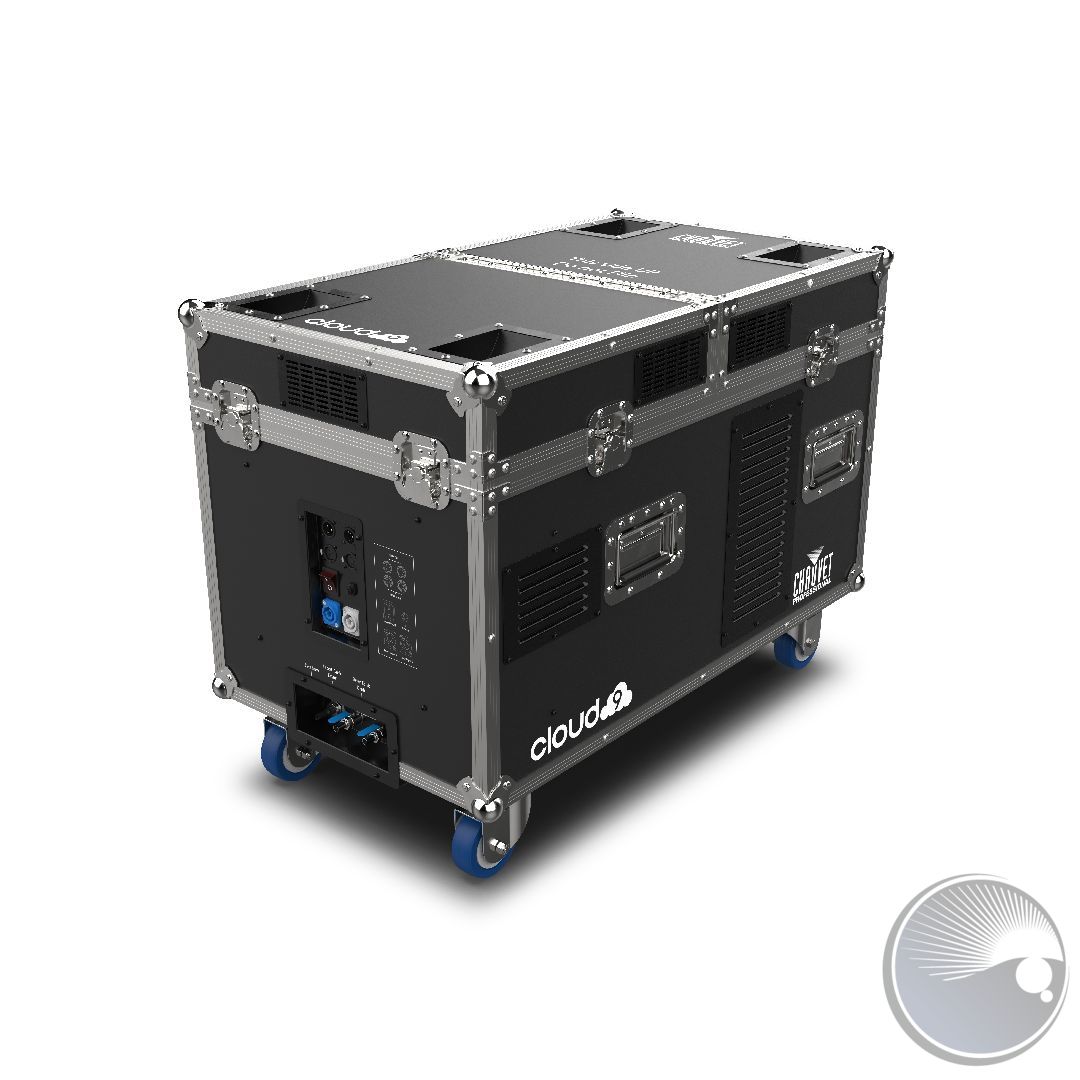

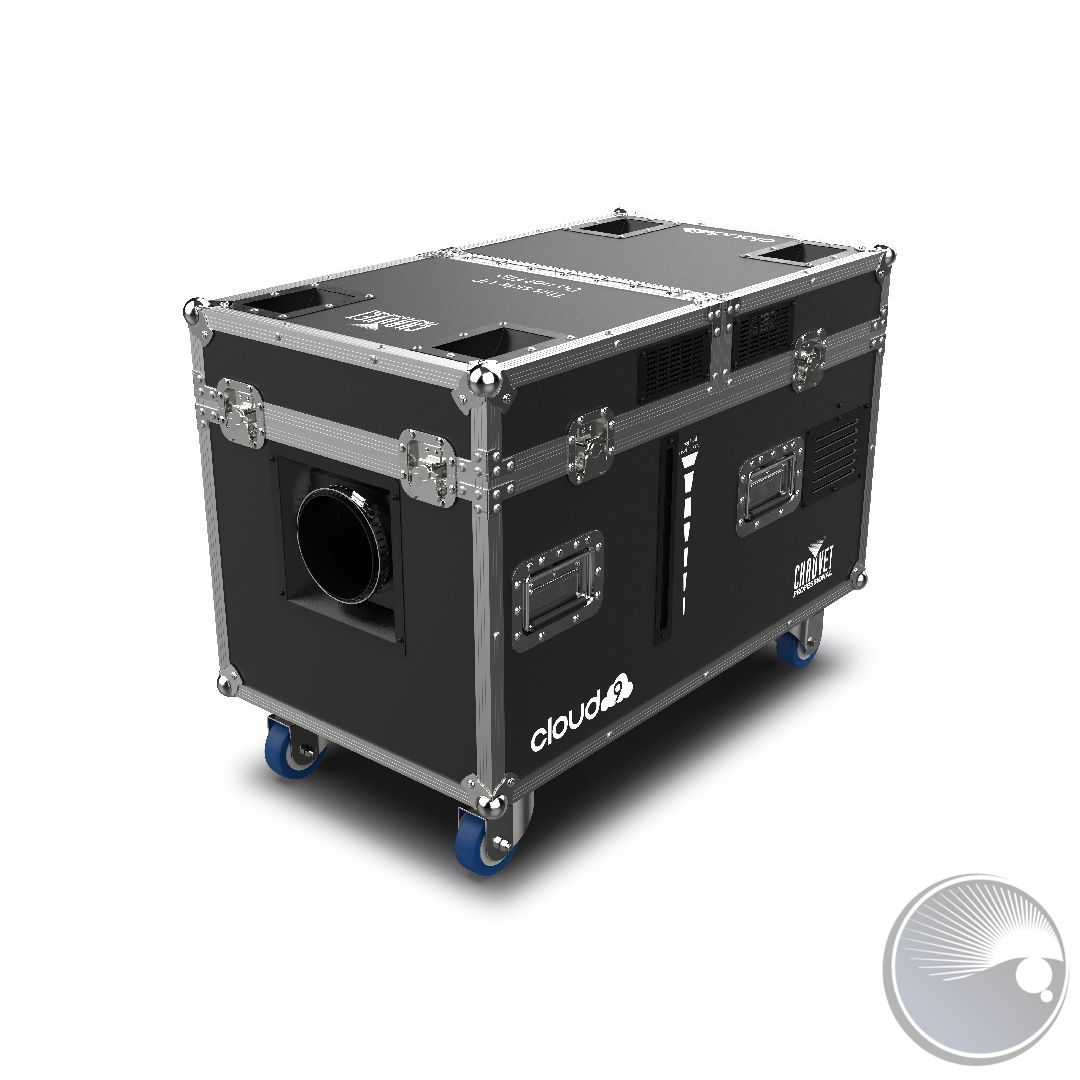

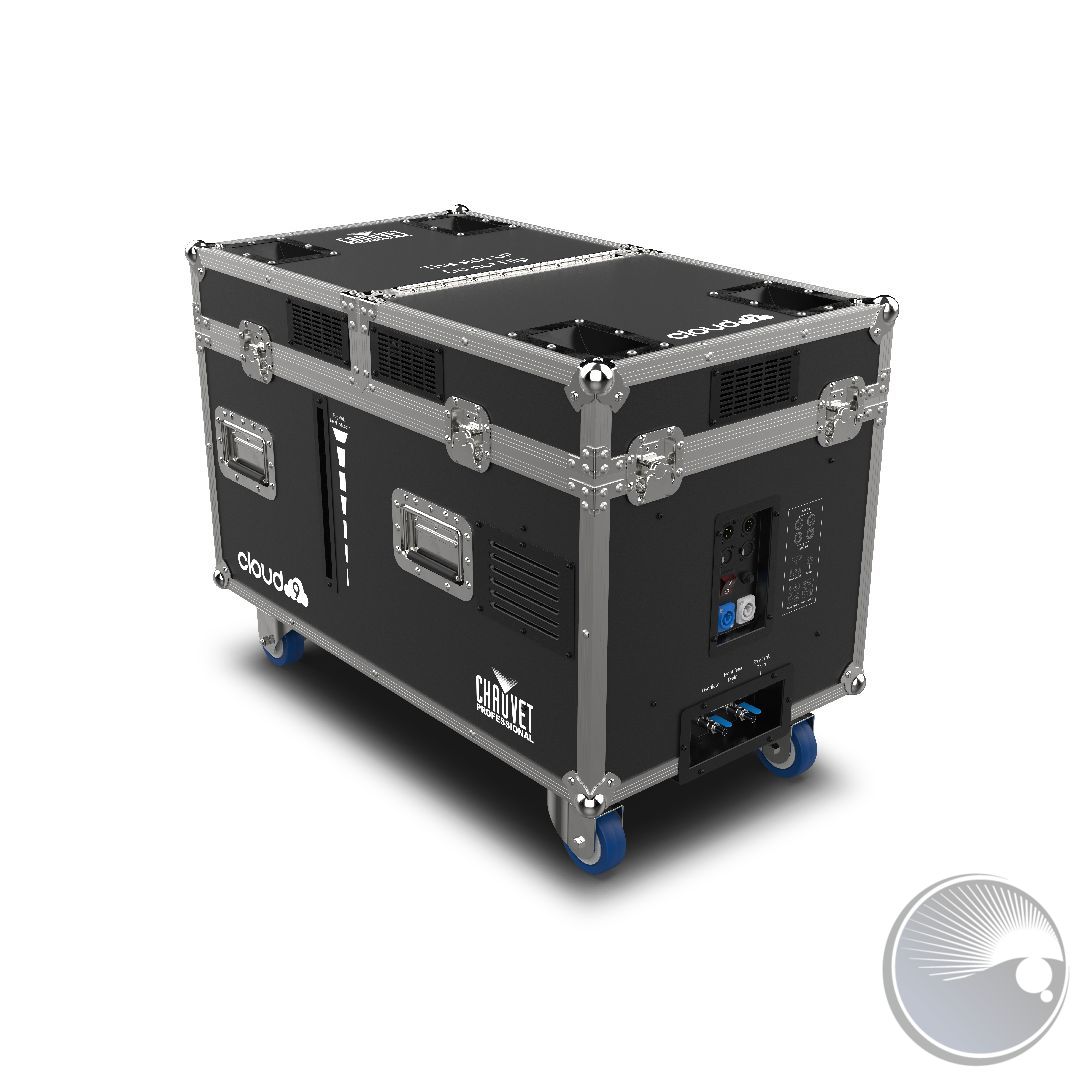

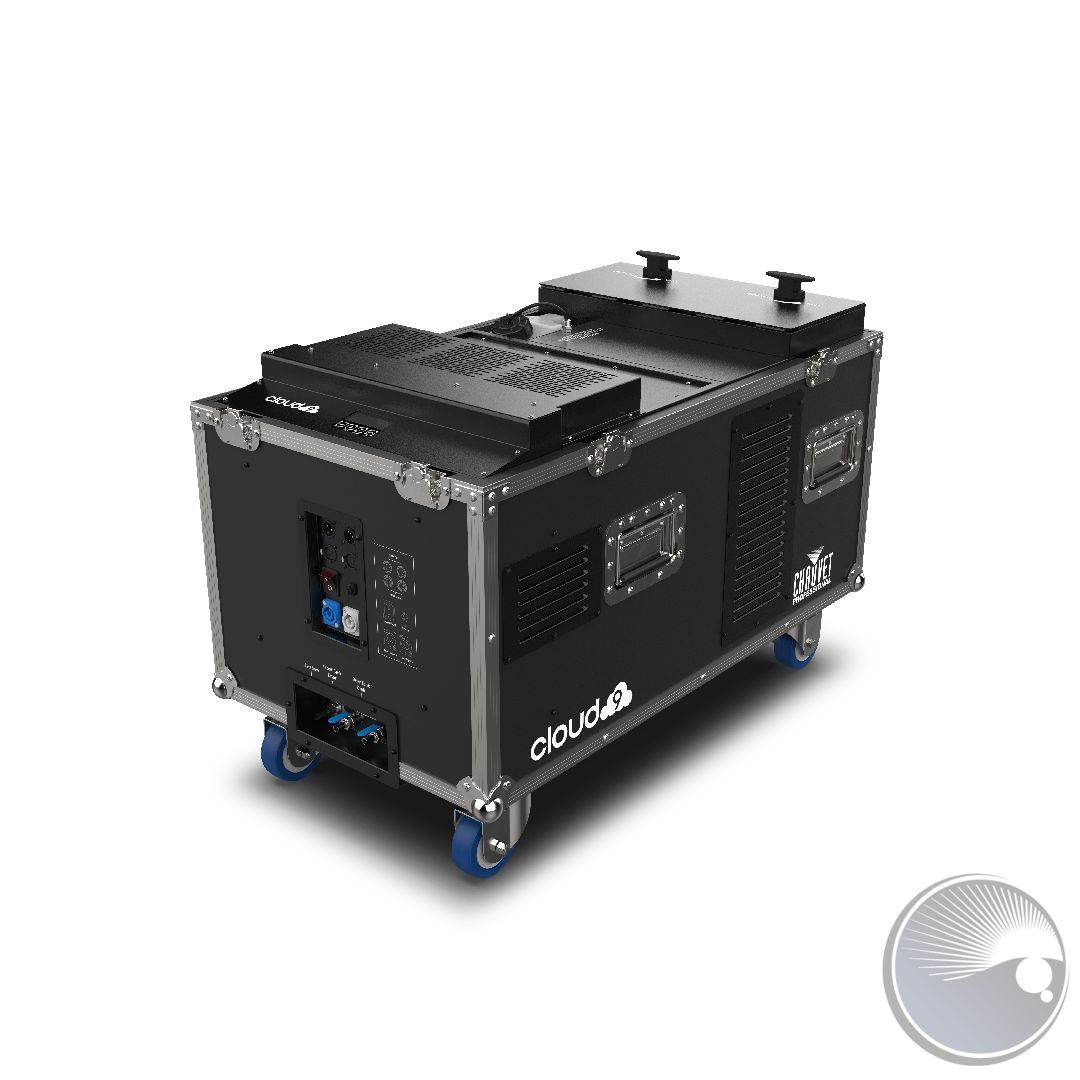

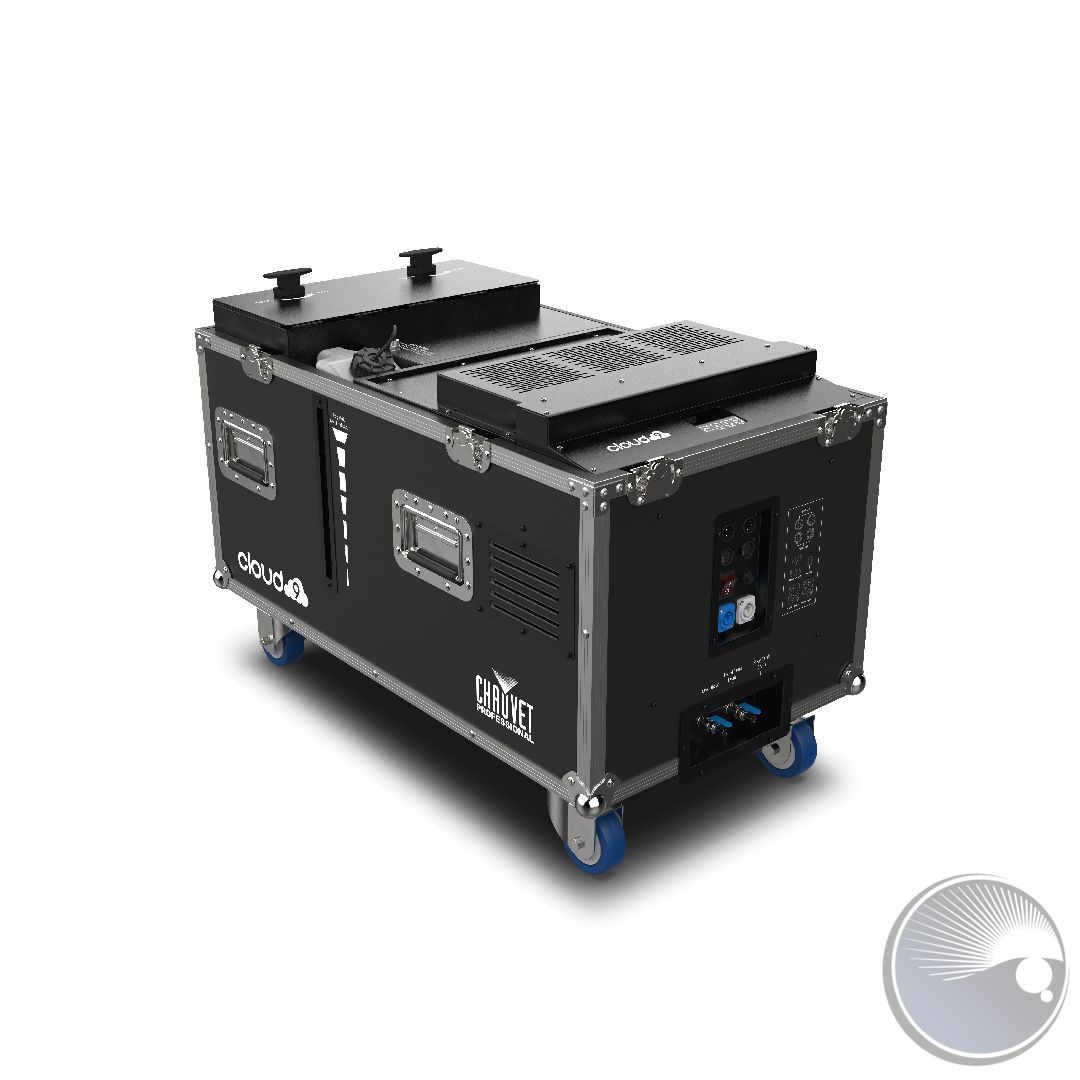

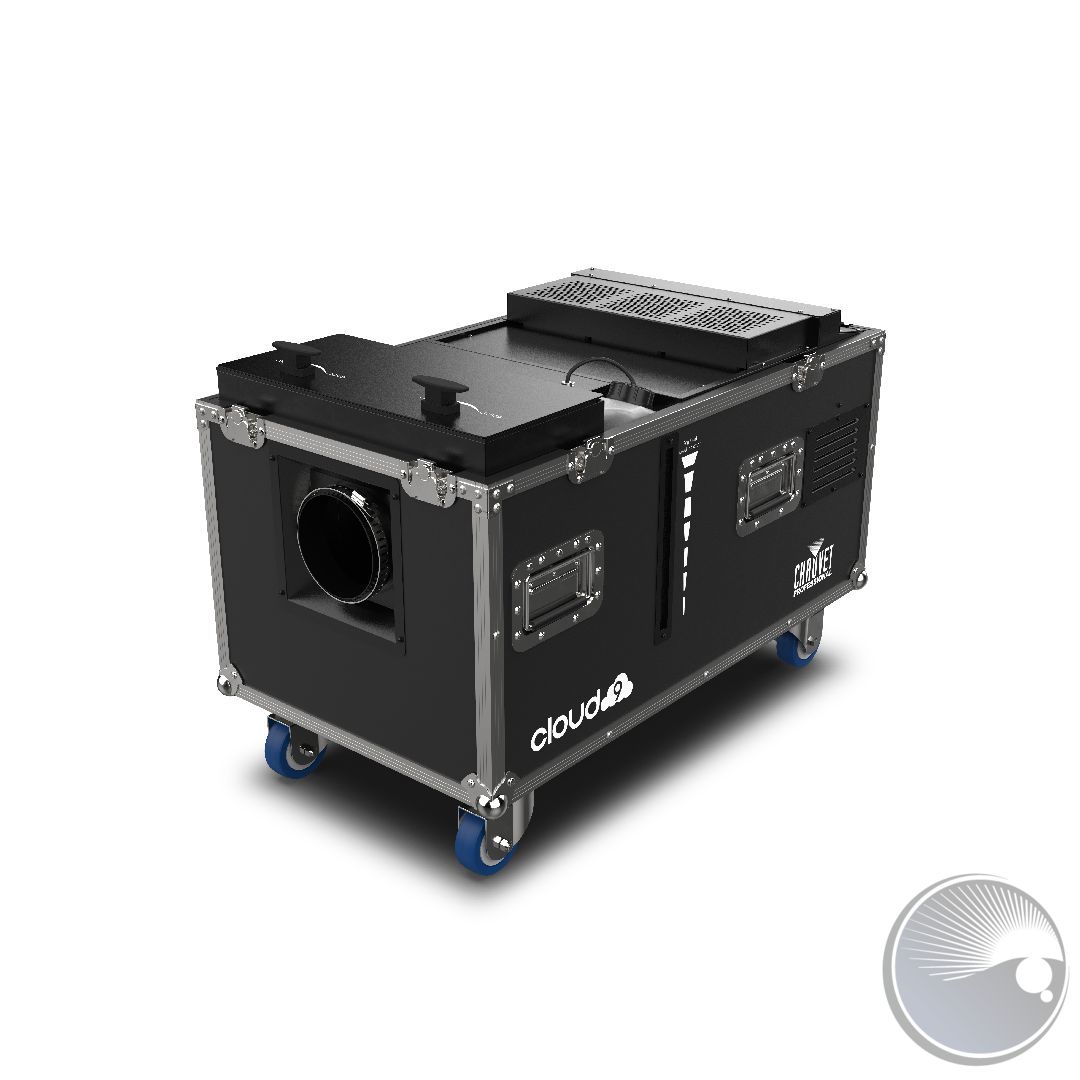

Cloud 9 is an impressive, low-lying fogger that creates thick, cloud-like effects with a high-impact output ideal for use on large-scale stages, theatres, live performances and theme parks. The robust unit has a best in class heat-up time of 4 minutes and no dry ice or CO2 is needed, which means no special licensing/training is required. Because it works without a special coolant or compressor, only water and fog fluid is needed for continuous output. The powerful unit weighs in at 121 lbs and is equipped with several handy transport features such as its road case housing, metal handles and wheels to easily glide across any stage. Control it on the LCD display or via DMX.

AT A GLANCE

  • Professional fogger gives high-impact low-lying fog effect on stage or in ballrooms

  • Continuous operation produces fog to cover 3,230 ft2 (300 m2) area

  • Ultrasonic agitator combines distilled water with fog to produce low-lying fog effect

  • Ships in rugged flight case with locking casters with hinged top cover to allow for operation even when closed

  • Control via on board digital display or DMX

  • Integrated water drain system makes cleanup fast and easy

  • Use the low-lying fog fluid (LLG) to product the CO2 effect, which lasts for several minutes before dissipating

  • Use without dry ice or CO2, so no special licensing/training required

SPECIFICATIONS

DYNAMIC EFFECTS

  • Output: 15,000 cfm
  • Low Fluid Shutdown: Yes
  • HDF- Best overall performance for a medium to large coverage area. Fog dissipates after lifting into the air.
  • PHF- Great dual-purpose effect. Good coverage area. Fog lifts into the air to become haze.

CONSTRUCTION / PHYSICAL

  • Dimensions: 33.85 x 19.29 x 24.80 in (860 x 490 x 630 mm)
  • Output Nozzle (outer diameter): 4.76 in (121 mm)
  • Hose Length (fully extended): 8 ft (2.44 m)
  • Weight: 121.3 lb (55.8 kg)
  • Exterior Color: Black
  • Fluid Tank Capacity: 0.92 gal (3.5 l)
  • Water tank Capacity: 5.3 gal (20 l)
  • Fluid Consumption: 29 ml/min (0.007 gal/min)
  • Water Consumption (distilled): 165 ml/min (0.044 gal/min)
  • Maximum Run Time: 2 hours max runtime @ 100% output

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65 (2x 120 V, 1x 230 V)
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX,
  • DMX Channels: 2
  • Modes/Personalities: 1 personalities (2)
  • On-Board Control: Yes

ELECTRICAL

  • Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
  • Power and Current (input A): 1000 W, 8.36 A @ 120 V, 60 Hz (120 V version)
  • Power and Current (input B): 1130 W, 9.40 A @ 120 V, 60 Hz (120 V version)
  • Power and Current: 2,600 W, 11.3 A @ 230 V, 50 Hz (230 V version)
  • Heat-up Time: 3 min
  • Breaker Size: 15 A (Input A, 120 V version)
  • Breaker Size: 20 A (230 V version)

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Thermal Dissipation @ 120V: 7,265 BTU per hour (max)
  • Thermal Dissipation @ 230V: 8,870 BTU per hour (max)

WHAT'S INCLUDED

  • Cloud 9
  • 2 Seetronic Powerkon IP65

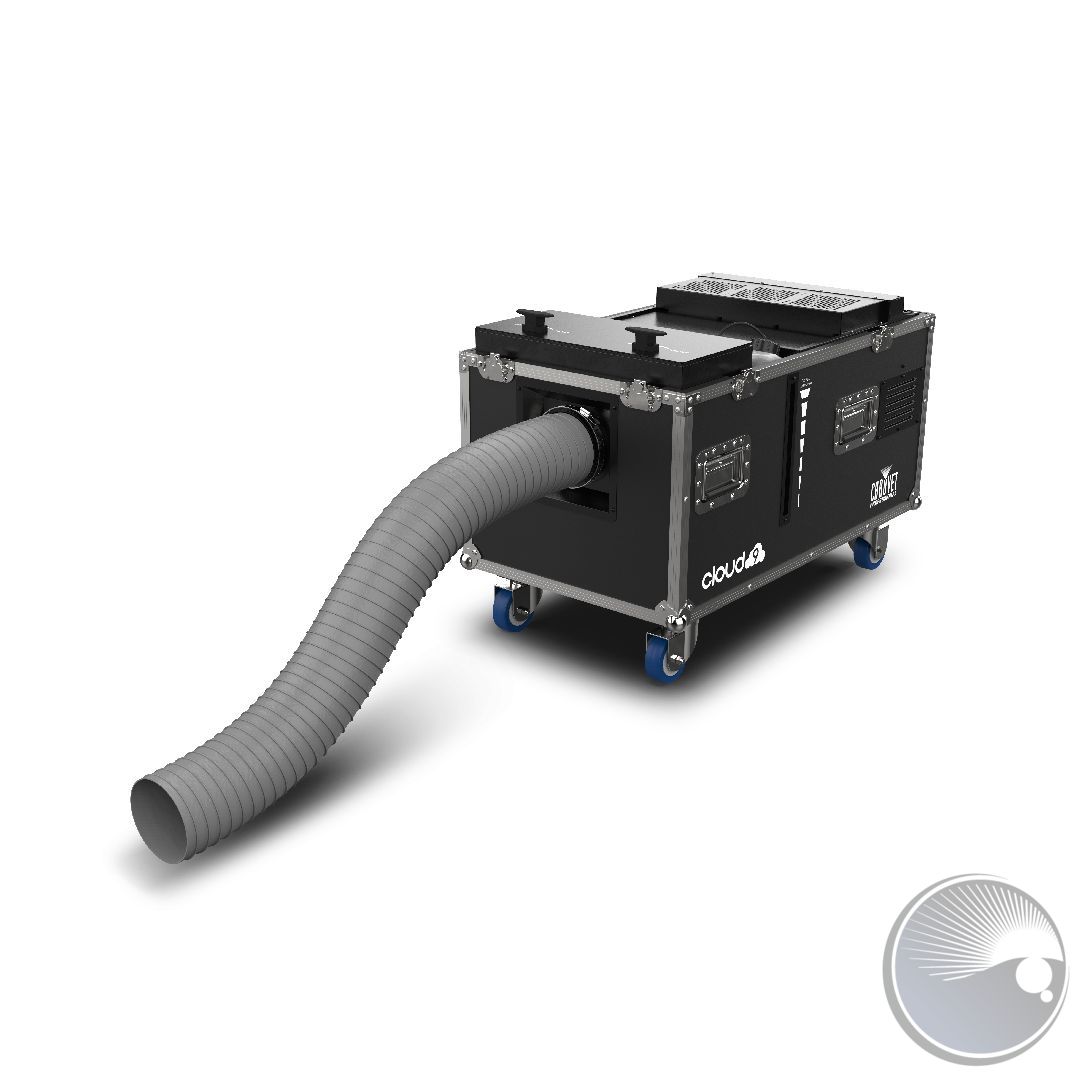

  • Directional hose and hose clamp
  • Overflow polyurethane tubing, 8.5 mm, 3ft (0.9 m)

REQUIRED ACCESSORIES

  • LLG



Weiterführende Links zu "Cloud 9"

PT104030019Nut and brass seal (BOM#49)
power con SAC3MPX  (BOM#6)PTF1100000469power con SAC3MPX (BOM#6)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
POWER CABLE (BOM#63)PTFX20147POWER CABLE (BOM#63)
power switch red with LED  RK1-01(w/UL certificate) (BOM#16)PTGK065power switch red with LED RK1-01(w/UL certificate) (BOM#16)
PTGQTYZ004Copper Filter
ROTARY BOLT LOCK PVC MS309-2 PVC (BOM#4)PTI019043ROTARY BOLT LOCK PVC MS309-2 PVC (BOM#4)
PTI055100FLUID SENSOR PPL35A1H-0B23CM 4 (BOM#62)
3-PIN DMX PCB DMX-70 DFZ-6001\700\1800 (BOM#11)PTI0559553-PIN DMX PCB DMX-70 DFZ-6001\700\1800 (BOM#11)
Panel for LCD screen LCD-4 (BOM#39)PTI101011300Panel for LCD screen LCD-4 (BOM#39)

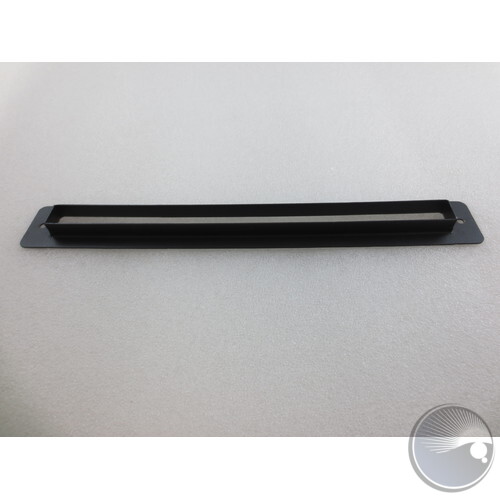

PTI101011584Mesh X-SW2000 (BOM#38)

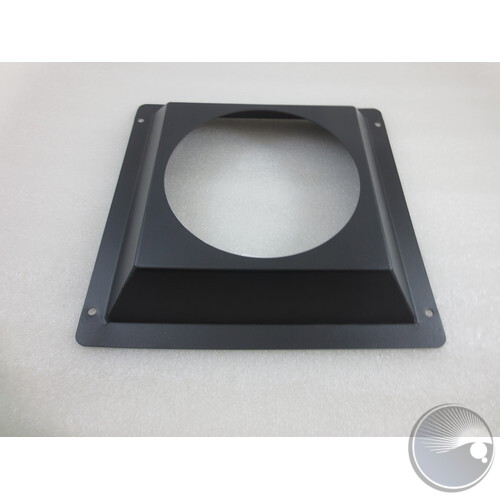

PTI101011587Protection plate for Nozzle X-SW2000 (BOM#1)
PTI101011591Heater bottom cover D1 (BOM#2)
PTI101011592HEATER TOP COVER D1 (BOM#54)
PTI101011725Back cover for flight case (BOM#71)

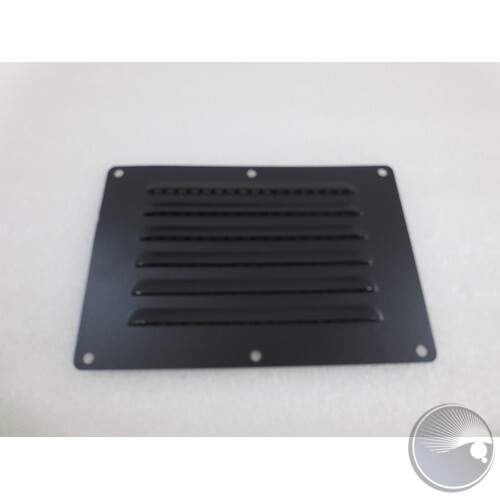

PTI101011726Outlet plate X-SW2000 V2 (BOM#40)
PTI101011727Connector fittings X-SW2000 V2 (BOM#36)
PTI101011729Fan panel X-SW20002 V2 (BOM#5)
PTI101011730Fan housing X-SW2000 V2 (BOM#7)
PTI101011731Control panel X-SW2000 V2 (BOM#19)

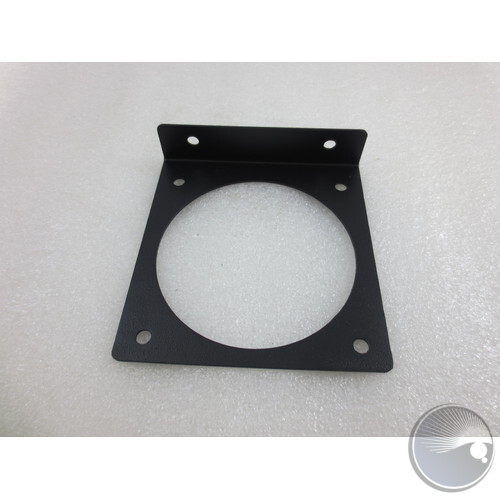

PTI101011732Fan Supporting X-SW2000 (BOM#24)
PTI101011734Housing for the electronic components X-SW2000 V2 (BOM#26)
PTI101011735Pump supporting X-SW2000 V2 (BOM#46)
PTI101011736Aluminum heater sink X-SW2000 V2 (BOM#22)
PTI101011737Air baffle X-SW2000 V2 (BOM#8)
PTI101011738Separate plate for fluid contianer X-SW2000 (BOM#9)

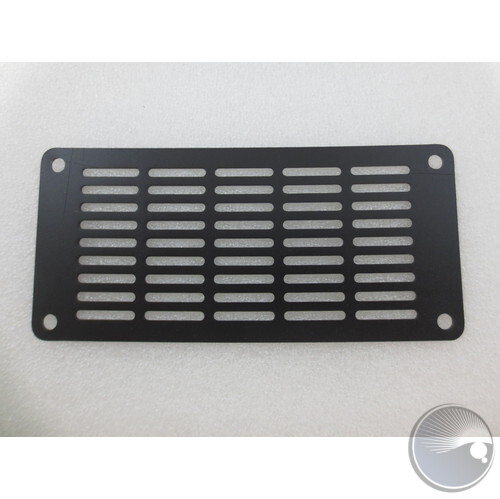

PTI101011740Inlet plate X-SW2000 V2 (BOM#35)

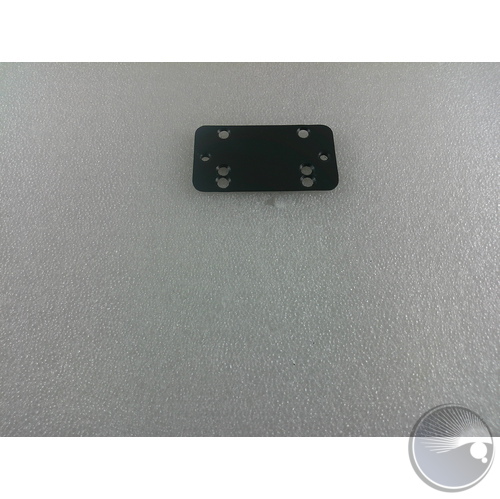

PTI101011878Dead plate for water plate X-SW1500 (BOM#44)

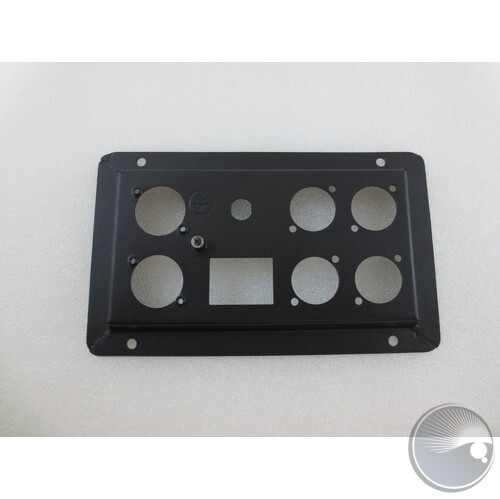

PTI101012037Power supply panel X-SW2000CH 120V (BOM#28)
PTI101012038Isolating plate X-SW2000CH (BOM#70)

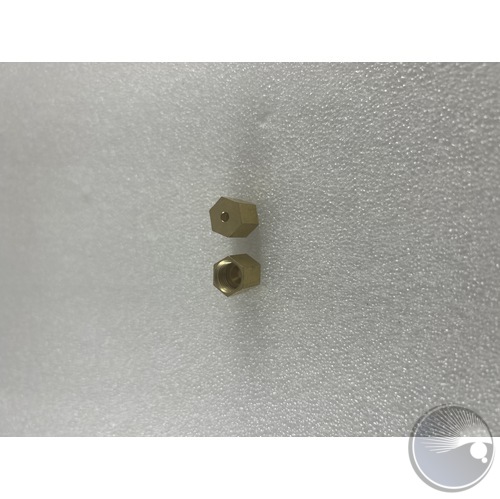

PTI103010135COPPER CAP 3.2X11MM (BOM#50)

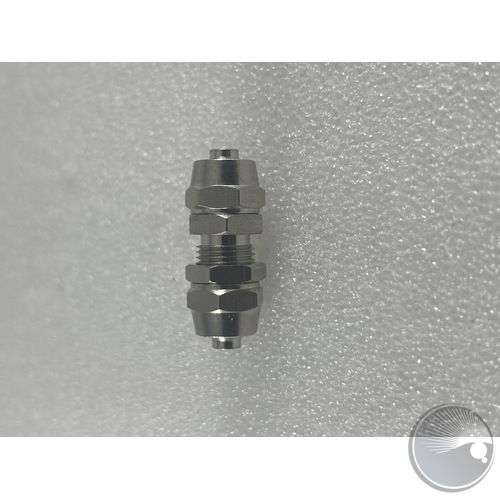

PTI103010167Copper connector φ8MM φ8MM (BOM#13)

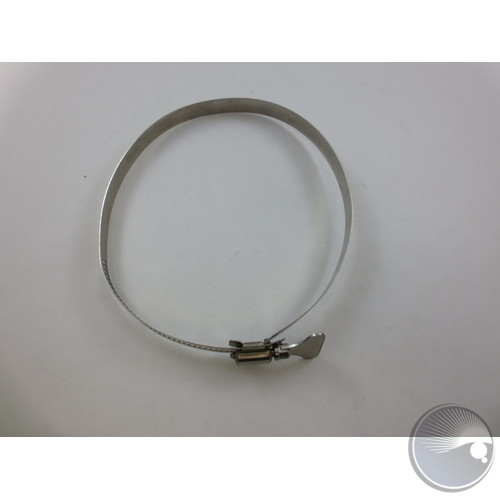

Clamp 118-140 (304) (BOM#60)PTI103050009Clamp 118-140 (304) (BOM#60)
Washer  G1/4 (BOM#67)PTI103060039Washer G1/4 (BOM#67)
Copper connector for drainage tube  43375 (BOM#61)PTI103090012Copper connector for drainage tube 43375 (BOM#61)
Connector  (BOM#19)PTI103090062Connector (BOM#19)

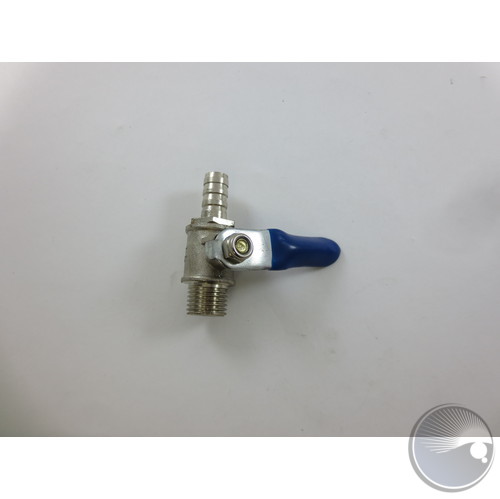

Drainage valves G14 (BOM#34)PTI103090075Drainage valves G14 (BOM#34)

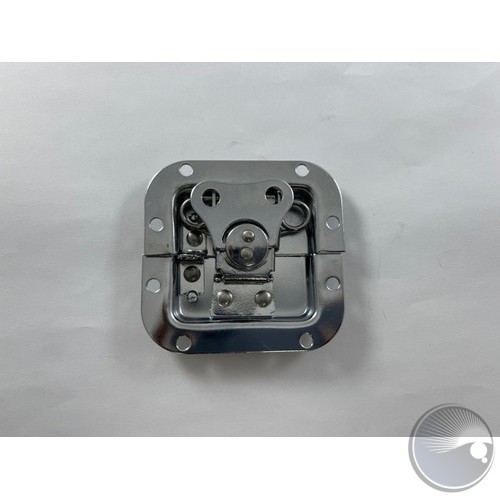

Latch for CasePTI103990267Latch for Case

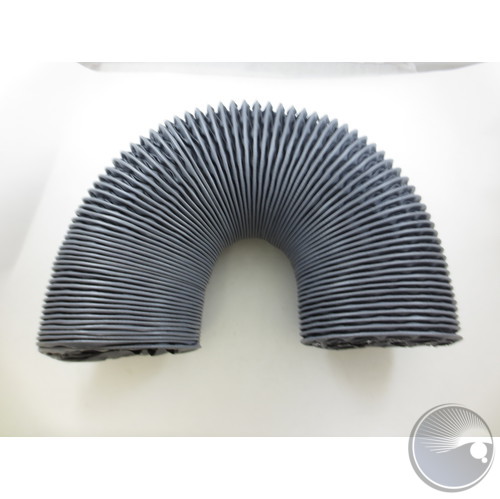

Pipe 125MM 10 (BOM#59)PTI104010025Pipe 125MM 10 (BOM#59)
Plastic cylinder 9X7X3.2MM (BOM#37)PTI104020063Plastic cylinder 9X7X3.2MM (BOM#37)

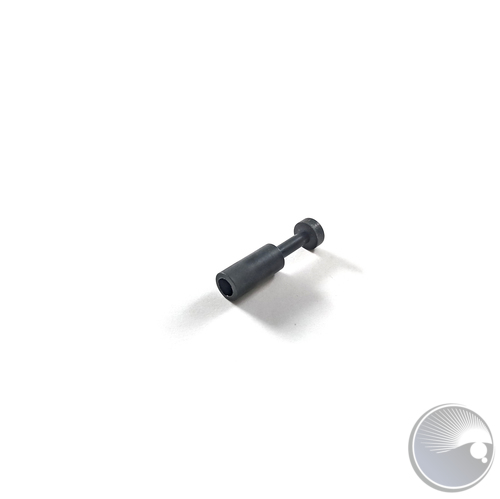

Cap for overflow port  PP8  (BOM#38)PTI104020157Cap for overflow port PP8 (BOM#38)
Hyaloid/Silicone tube 6512X8 - 7PTI104030058Hyaloid/Silicone tube 6512X8 - 7' length (BOM#33)

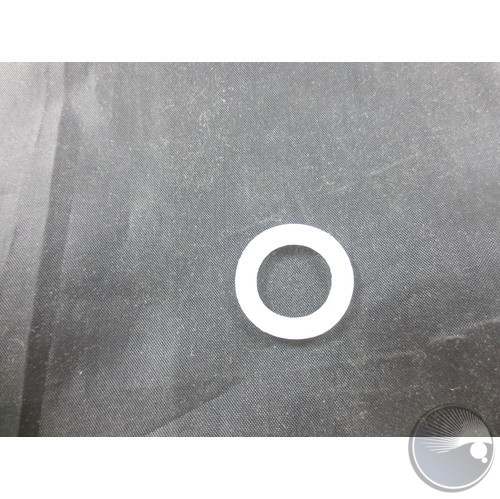

Silicone gasket 16X20X2MM (BOM#56)PTI104030118Silicone gasket 16X20X2MM (BOM#56)

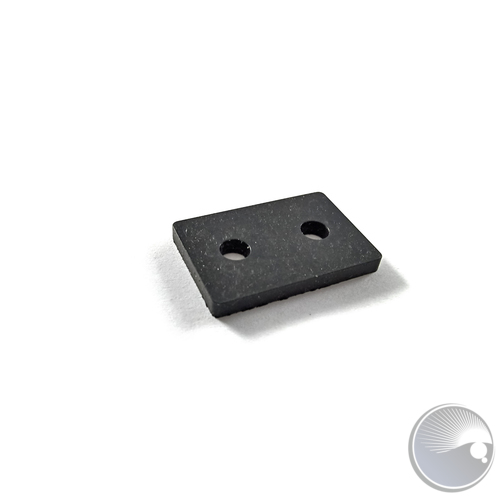

PLASTIC GASKET 30x20x3mm  Φ5x2 (BOM#47)PTI104030119PLASTIC GASKET 30x20x3mm Φ5x2 (BOM#47)

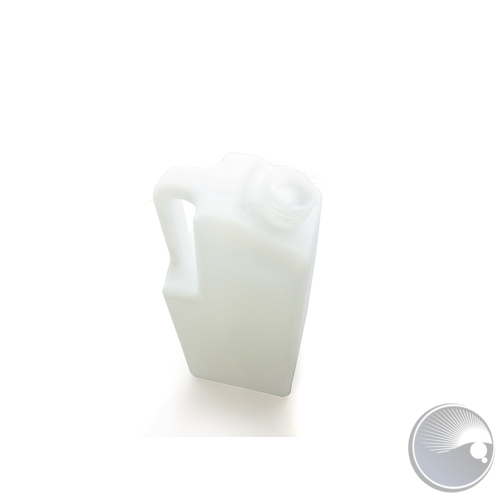

TANK (BOM #39) 3.5L340g±5 (BOM#10)PTI104050036TANK (BOM #39) 3.5L340g±5 (BOM#10)
Fluid container cap 57X8.3MM (BOM#33)PTI104050039Fluid container cap 57X8.3MM (BOM#33)
Plastic cover 63.5X27X2.6MM (BOM#38)PTI104060010Plastic cover 63.5X27X2.6MM (BOM#38)
LCD SCREEN (BLUE) LCD-4 84X62MM  (BOM#40)PTI104070009LCD SCREEN (BLUE) LCD-4 84X62MM (BOM#40)
CABLE JOINT PG9  (BOM#37)PTI104080011CABLE JOINT PG9 (BOM#37)
Copper connector for drainage tube  (BOM#16)PTI104080016Copper connector for drainage tube (BOM#16)

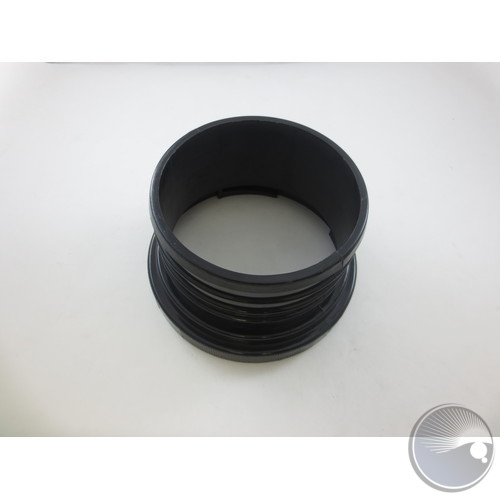

Quick connect for hosePTI104080021Quick connect for hose
(BLACK) RUBBER TUBING    0.4/meter    8X4 MM (BOM#11)PTI104120009(BLACK) RUBBER TUBING 0.4/meter 8X4 MM (BOM#11)
Ac fan (BOM#2)PTI106050027Ac fan (BOM#2)

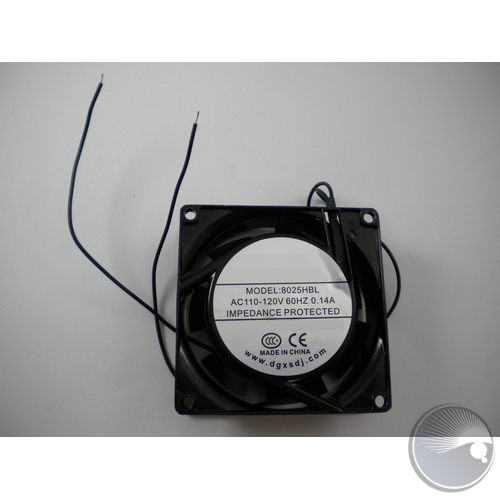

120V AC fan YAH8025B1 AC 100-125V 0.12/0.11A Length30CM (BOM#23)PTI106050034120V AC fan YAH8025B1 AC 100-125V 0.12/0.11A Length30CM (BOM#23)
Cable Assembly (BOM#74)PTI106060008Cable Assembly (BOM#74)
Power supply   (AC100-240 output12V5A) VHN65F12A568-DAC100-24012V5A (BOM#41)PTI106080028Power supply (AC100-240 output12V5A) VHN65F12A568-DAC100-24012V5A (BOM#41)

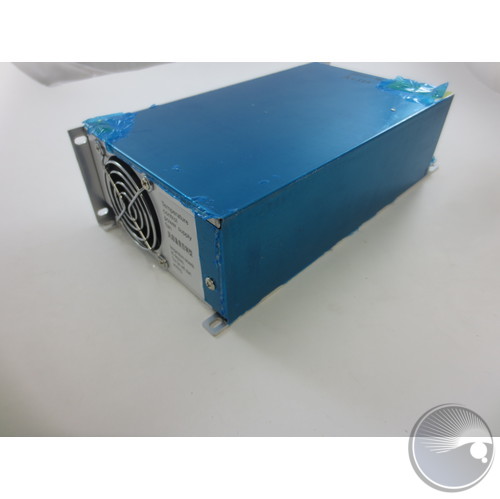

Power supply  (input: 100-240V 50/60HZ output: 45V 25A) (BOM#25)PTI106080047Power supply (input: 100-240V 50/60HZ output: 45V 25A) (BOM#25)

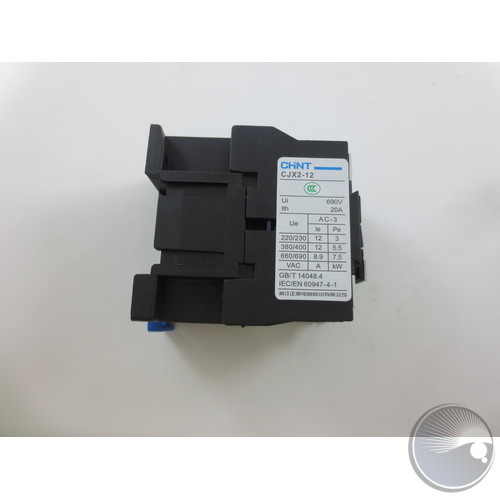

Power switch 110V 10 A CJX2 1210 (BOM#39)PTI106090043Power switch 110V 10 A CJX2 1210 (BOM#39)

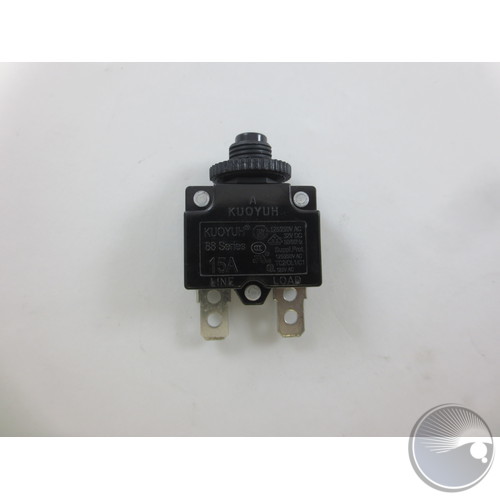

Overloaded protector KUOYUH 88 Seties 15A (BOM#27)PTI106120017Overloaded protector KUOYUH 88 Seties 15A (BOM#27)
210° celsius degree thermostat(16A/125V)AUTO (BOM#46)PTI106130021210° celsius degree thermostat(16A/125V)AUTO (BOM#46)
Fluid pump SPM AC120V60HZ 20W 2M4 (BOM#48)PTI117020068Fluid pump SPM AC120V60HZ 20W 2M4 (BOM#48)

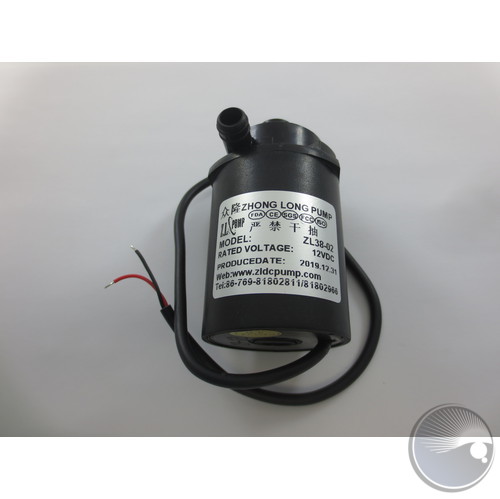

Water pump  ZL38-02 12VDC 1.8M 6.2Lmin 30CM (BOM#45)PTI117020077Water pump ZL38-02 12VDC 1.8M 6.2Lmin 30CM (BOM#45)
Atomizer M1007 (BOM#42) Version 1PTI117030007Atomizer M1007 (BOM#42) Version 1
Atomizer  M1007 (BOM#42) Version 2 M0608 DC45V 5.6A ALPTI117030008Atomizer M1007 (BOM#42) Version 2 M0608 DC45V 5.6A AL

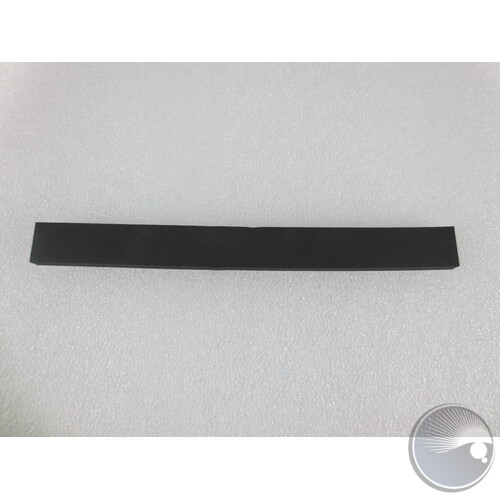

PTI118020103Foam 155X15X5MM PORON (3M) (BOM#66)
PTI118020111Seal ring 405*15*3MM(black) 405X15X3MM 3M (BOM#63)
PTI118020115Seal ring 265*15*3MM(black) 265X15X3MM 3M (BOM#64)

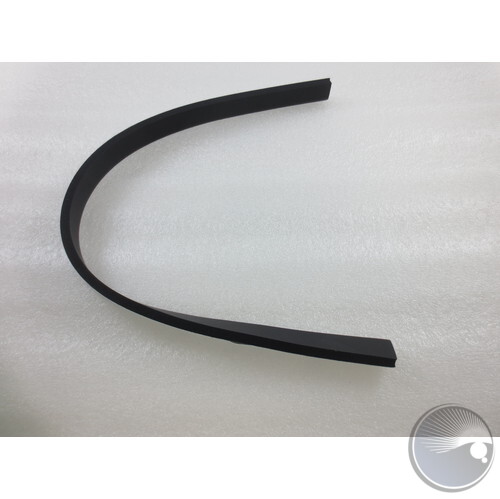

PTI118020116Foam 430X15X5MM PORON (3M) (BOM#65)

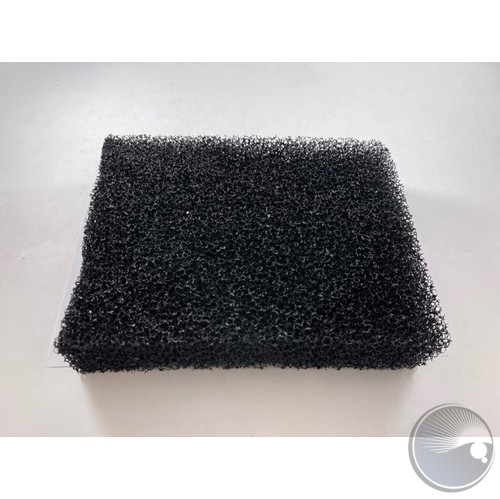

Absorbent sponge 235X180X50MM (BOM#69)PTI118020151Absorbent sponge 235X180X50MM (BOM#69)

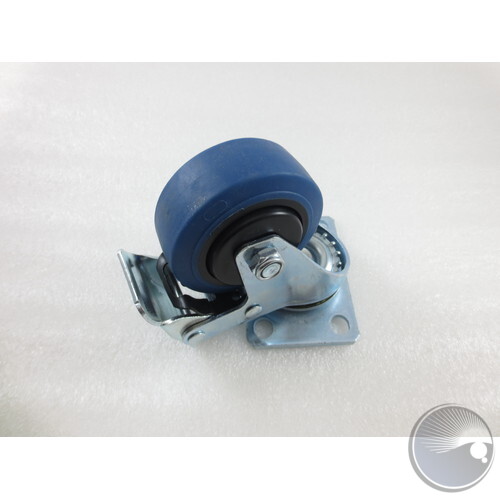

PTI118990031Locking wheels for flight case

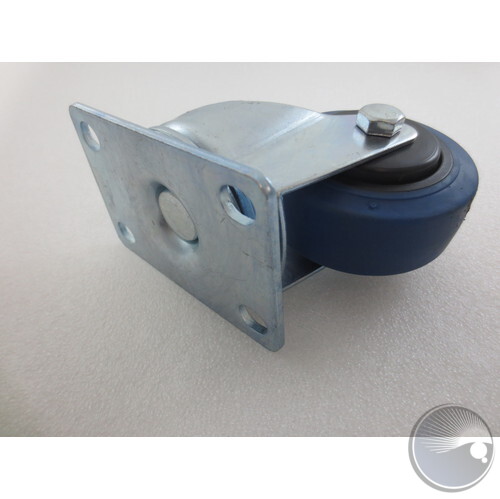

PTI118990032Non-locking wheels for flight case
PTI201011016Core of Heater (BOM#52)
120V complete heater core with metal housing 311201300130001 (BOM#52,58)PTI201021017120V complete heater core with metal housing 311201300130001 (BOM#52,58)
PTI202030088Flightcase assembly DJ X-SW2000CH V1 (BOM#43)

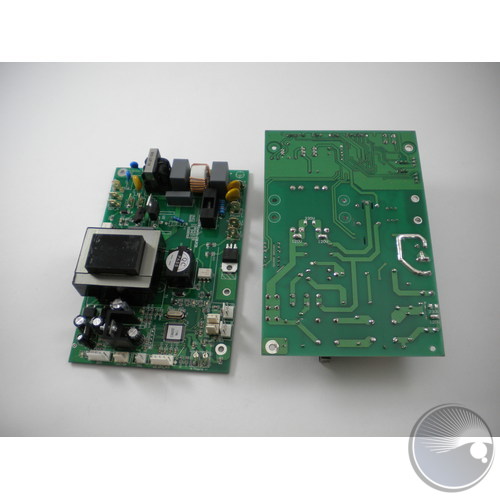

120V MPCB  M-2120V (BOM#20) New Ver - compatible with oldPTI203011222120V MPCB M-2120V (BOM#20) New Ver - compatible with old

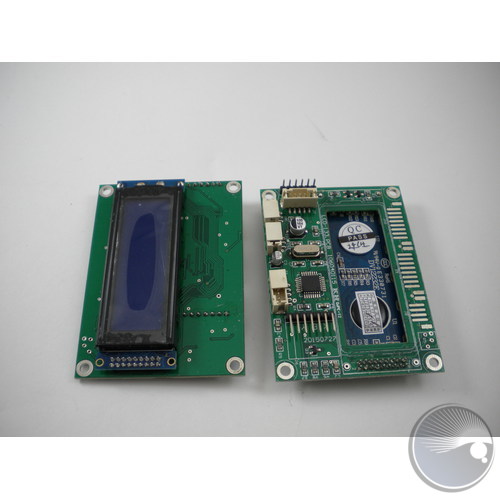

Display PCB M-2120V (BOM#18)PTI203021101Display PCB M-2120V (BOM#18)
5-pin DMX PCB DMX-38-1 (BOM#13)PTI2030420015-pin DMX PCB DMX-38-1 (BOM#13)

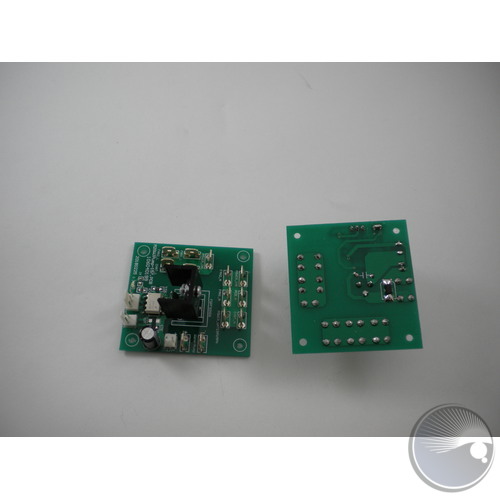

Driver board (M2SWJPUMP-157)  (BOM#21)PTI203052014Driver board (M2SWJPUMP-157) (BOM#21)

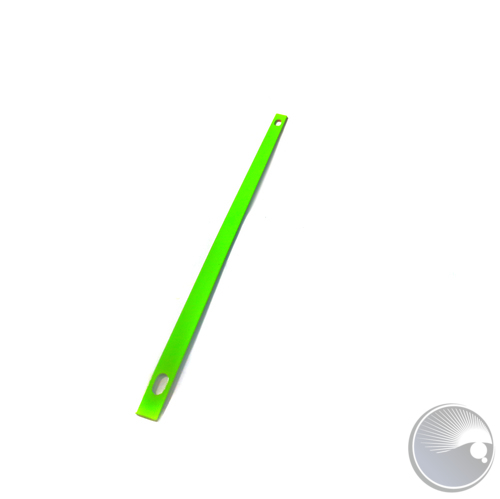

Max-fill indicator for distilled water compartmentPTI4400014Max-fill indicator for distilled water compartment
