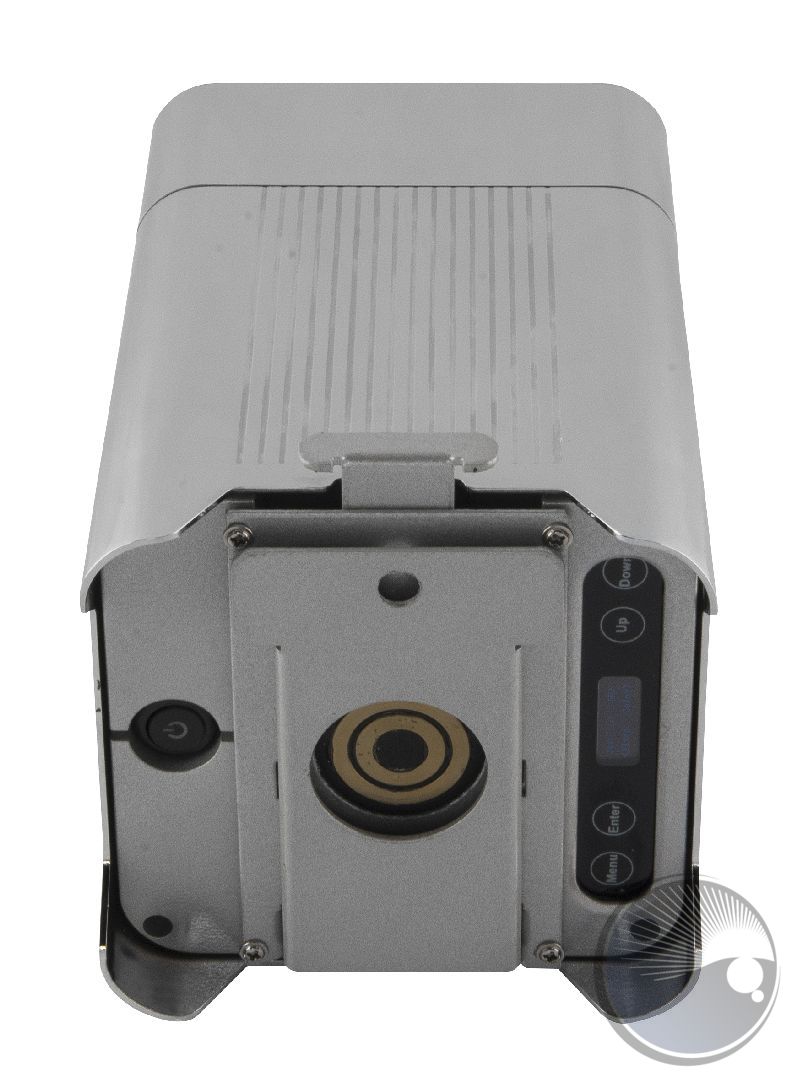

WELL Fit 6-pack (chrome) in charging case

Auf Anfrage!

  • WELLFITX6
WELL Fit WELL Fit  is a must for event lighting. A discrete, high powered LED... mehr
Produktinformationen "WELL Fit 6-pack (chrome) in charging case"

WELL Fit

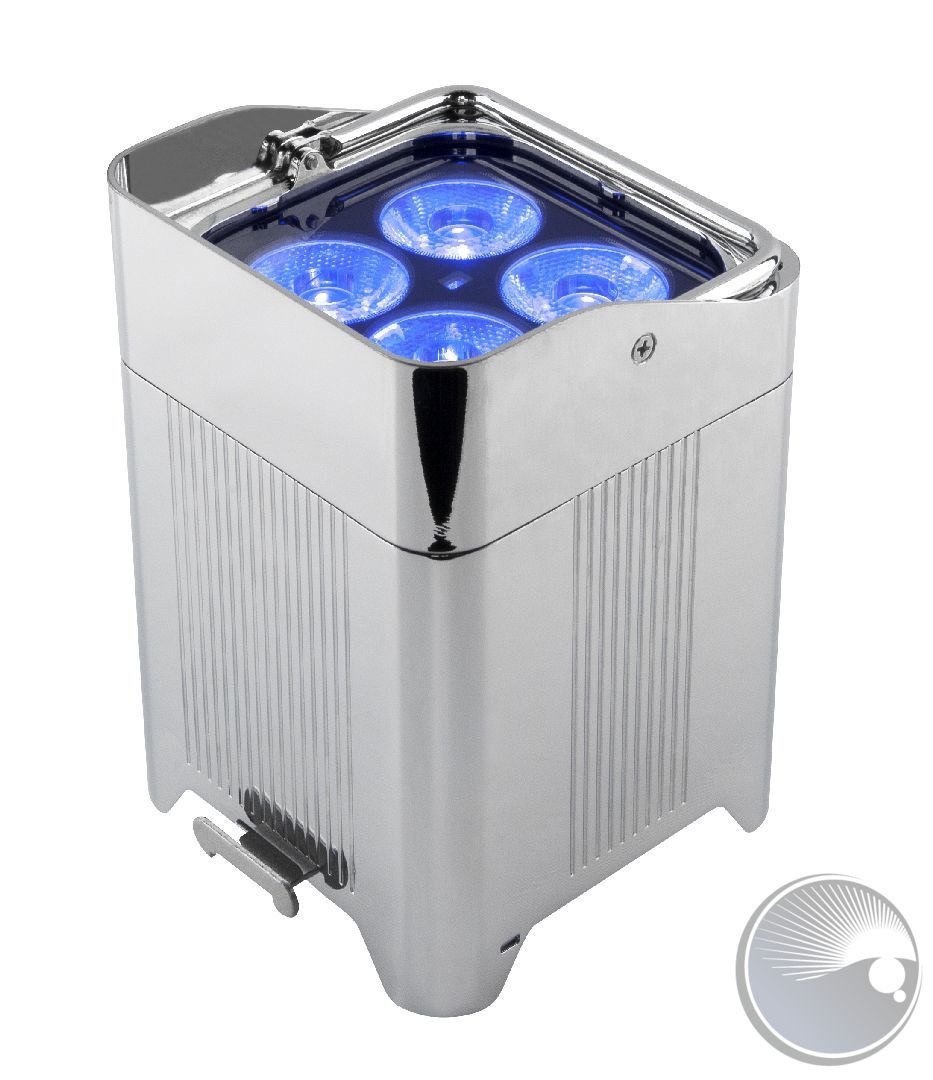

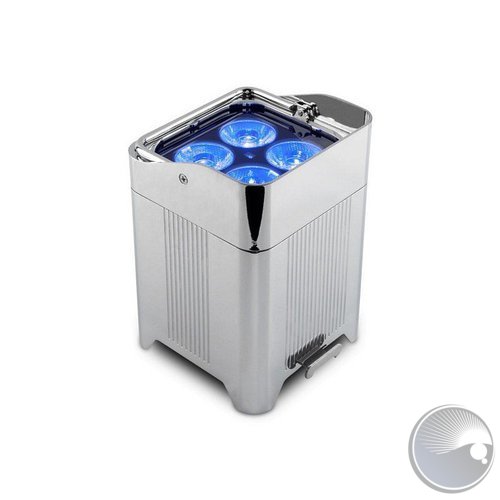

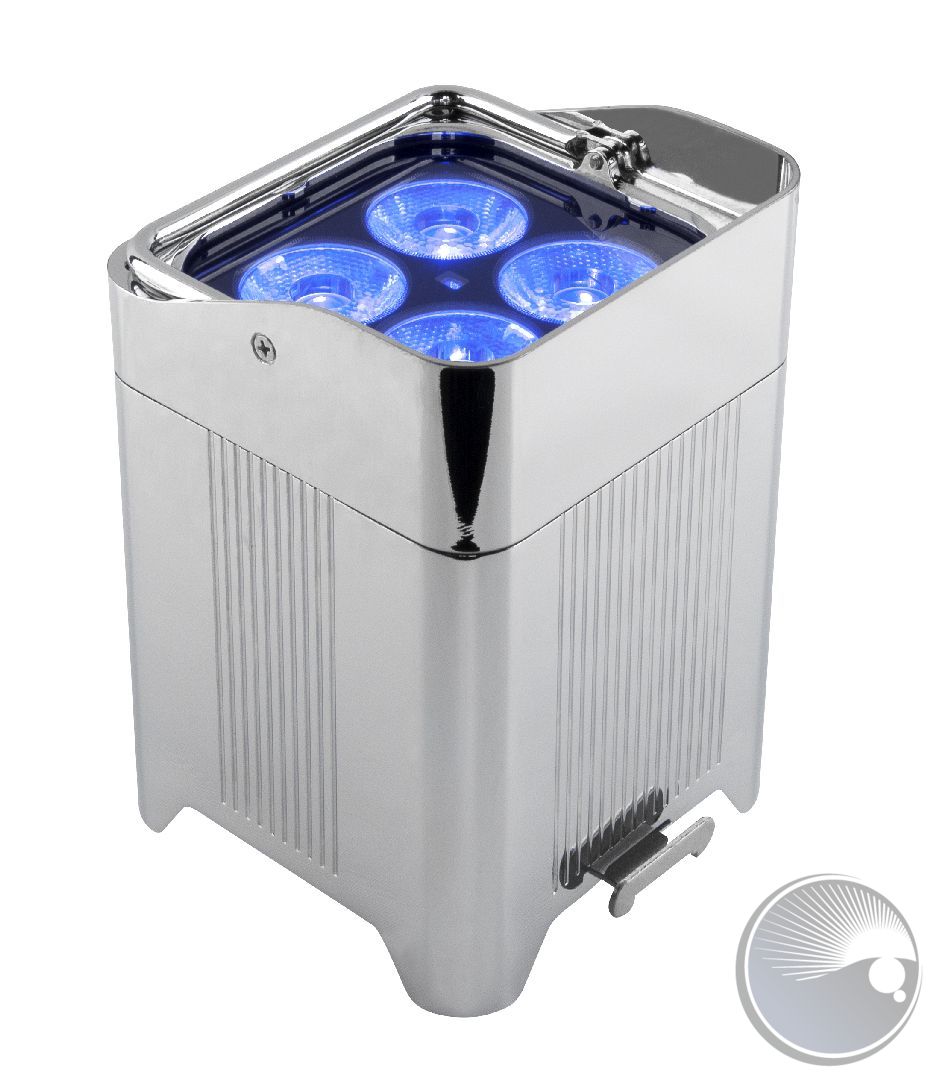

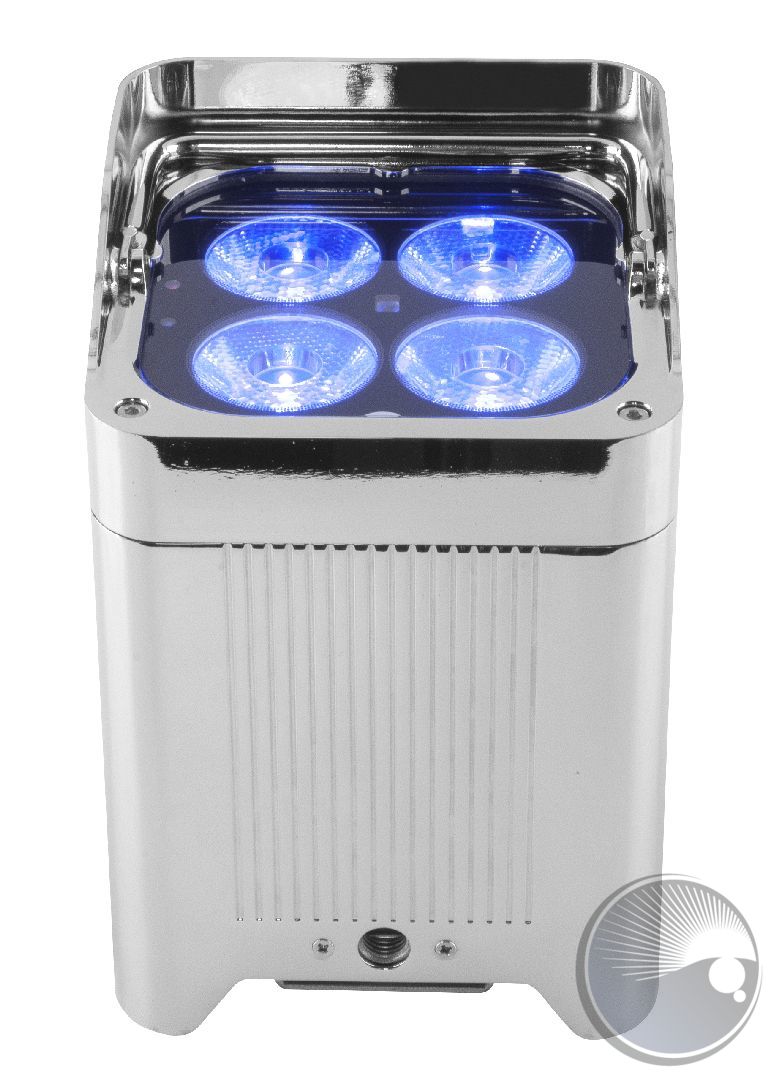

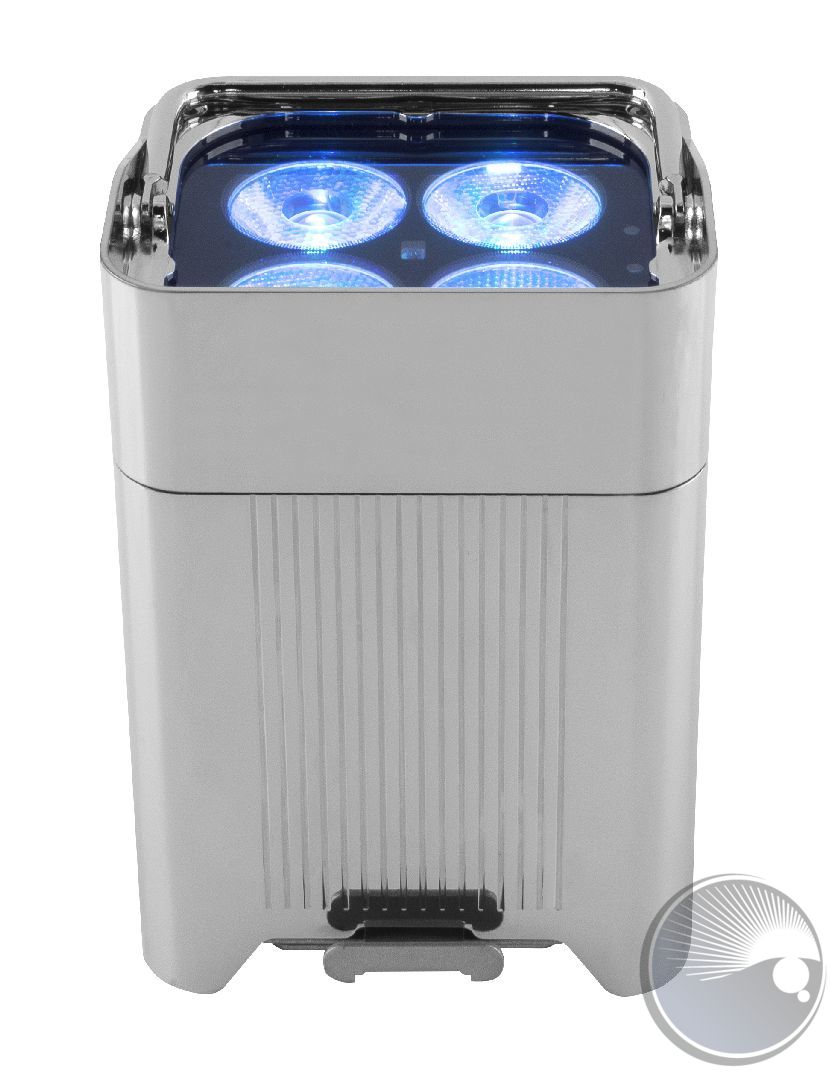

WELL Fit is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any decor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.



AT A GLANCE

  • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.

  • Chrome exterior for blending into its surroundings.

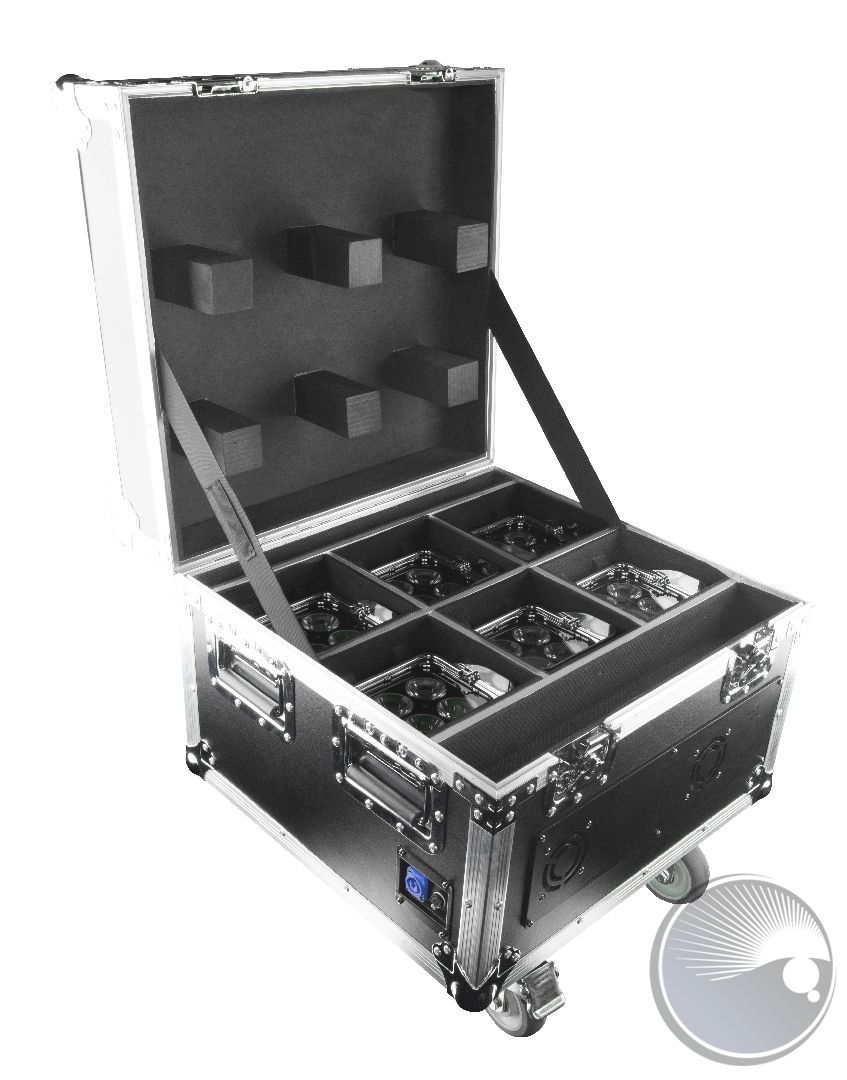

  • Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.

  • 8 hours of operation at full and a quick 5 hours charging time for frequent use.

  • Built in automated programs recallable by IR, WDMX or manually.

  • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.

SPECIFICATIONS

OPTICAL

  • Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).
  • Beam Angle: 10.8°
  • Field Angle: 19.6°
  • Illuminance (19.6°): 988 lux @ 5 m
  • PWM Frequency: 1200 Hz

DYNAMIC EFFECTS

  • Color Macros: 5 macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 24 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)
  • Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
  • Weight (single unit) 7.4 LB (3.4 kg)
  • Weight (charging case): 103.6 lb (47 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON
  • Power Input: Neutrik® powerCON®
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: W-DMX™, IRC
  • DMX Channels: 3, 4, 6 or 10
  • Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V: 8 units @ 208 V: 9 units @230 V
  • Power and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 Hz
  • Power and Current (charging case): 318 W, 2.62 A @ 120 V, 60 Hz
  • Power and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 Hz
  • Power and Current (charging case): 300 W, 1.51 A @ 208 V, 60 Hz
  • Power and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 Hz
  • Power and Current (charging case): 303 W, 1.38 A @ 230 V, 50 Hz

BATTERY

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: (all on) 8 hours, (single LED) 20 hours
  • Battery Power: 14.8 V, 11 Ah

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED

  • WELLFITX6
  • (6) WELL FIT
  • (1) Charging case
  • (1) IR remote
  • (1) powerCON power cable with Edison plug
  • (1) QRG
  • (1) Warranty card

OPTIONAL ACCESSORIES

Weiterführende Links zu "WELL Fit 6-pack (chrome) in charging case"

PTF1001002302POWER IN SOCKET (MALE)(BOM#2B)
PTF2700003804NEUTRIK US POWER CABLE 1.5M - 5FT (POWERCON TO EDISON) 14 AWG

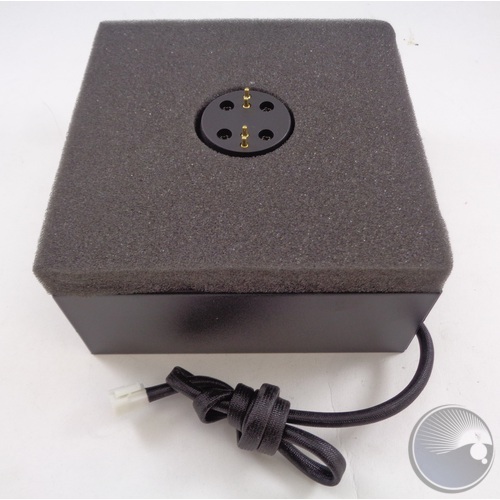

Charging Station inside Roadcase (BOM#5,6,7,24,25)PTJ1020100199Charging Station inside Roadcase (BOM#5,6,7,24,25)

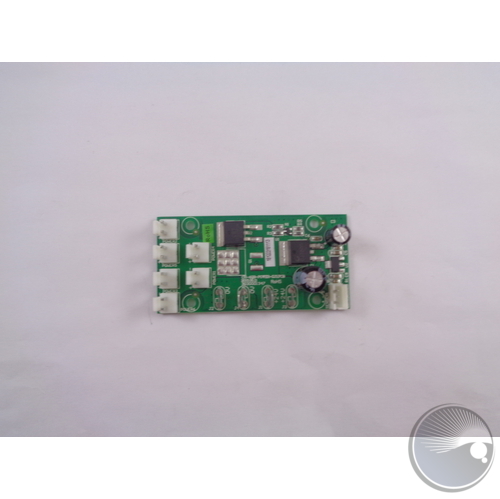

CONNECTING PLATE (BOM#19)PTJ2020200431CONNECTING PLATE (BOM#19)

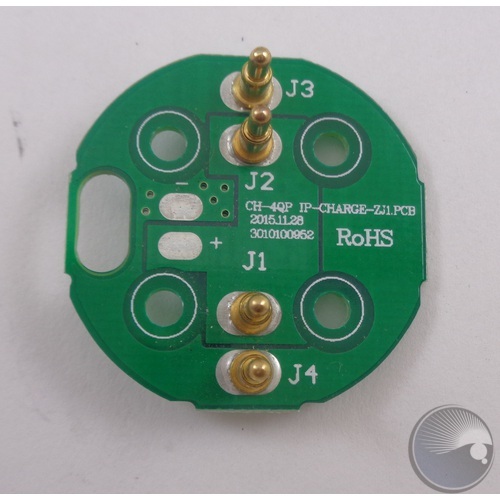

4-PIN EPSU ADAPTER CHARGING PLATE (BOM#5)PTJ20202013604-PIN EPSU ADAPTER CHARGING PLATE (BOM#5)

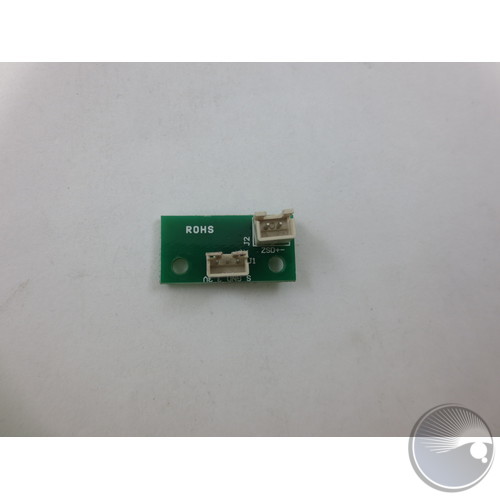

HALL ELEMENT  LOCATER E (BOM#9)PTJ2020201377HALL ELEMENT LOCATER E (BOM#9)

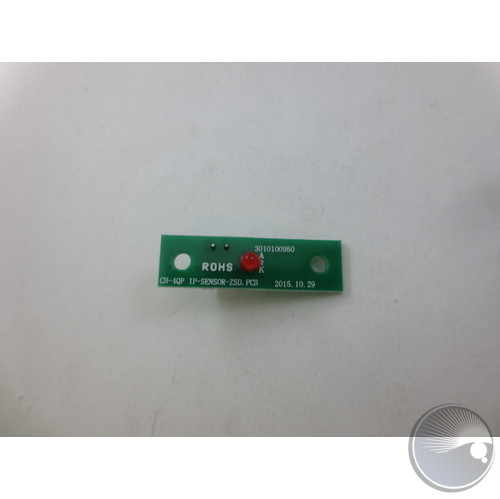

SIGNAL LIGHT (BOM#12)PTJ2020201379SIGNAL LIGHT (BOM#12)
MPCBPTJ2020202806EMPCB

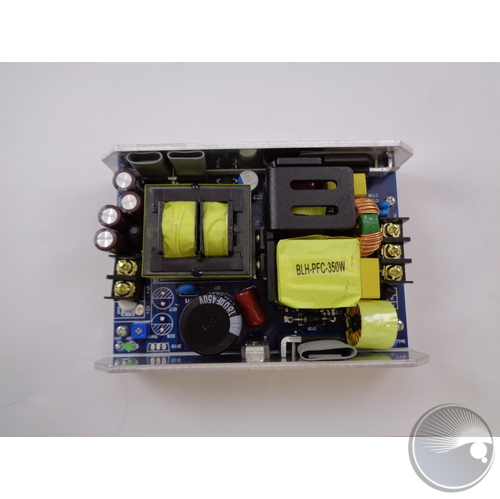

POWER SUPPLY 24V⎓14.6A (BOM#17)PTJ3020400198APOWER SUPPLY 24V⎓14.6A (BOM#17)

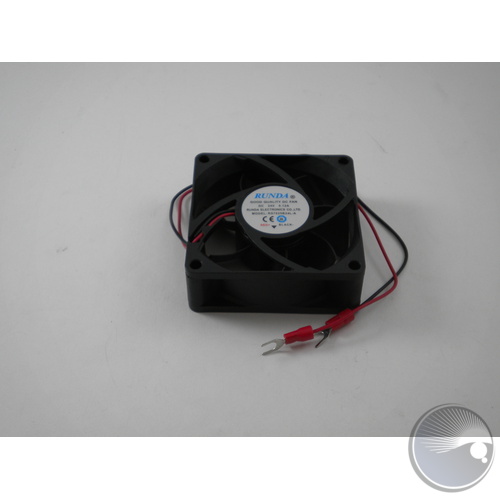

FAN 24V 0.12A RS7025B24L-A (BOM#15)PTJ3020900032FAN 24V 0.12A RS7025B24L-A (BOM#15)
HM SCREW (BOM#19)PTJ3021700154HM SCREW (BOM#19)

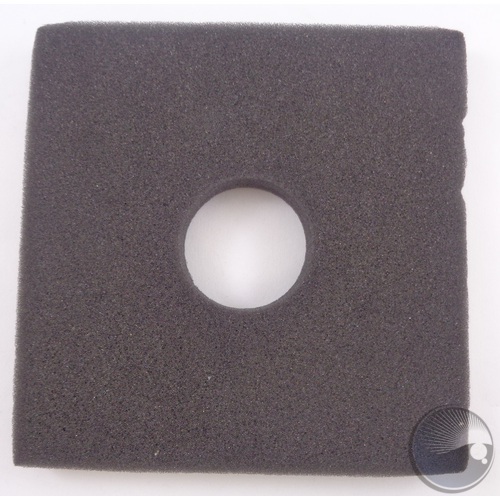

FOAM (BOM#25)PTJ3021700646FOAM (BOM#25)

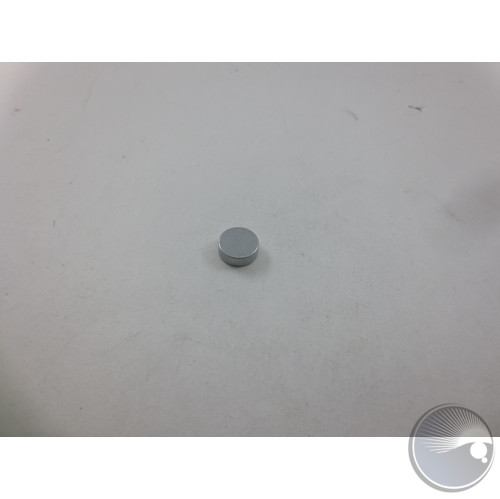

MAGNET (BOM#3)PTJ3022200004MAGNET (BOM#3)
FUSE HOLDER (BOM#18)PTJ3027001001FUSE HOLDER (BOM#18)
PTJ3050500091EMPTY FLIGHTCASE (BOM#1)
IRC REMOTE (BOM#15)PTJ3080100078IRC REMOTE (BOM#15)
PTJ4010301689LOCATER BOX (BOM#20)

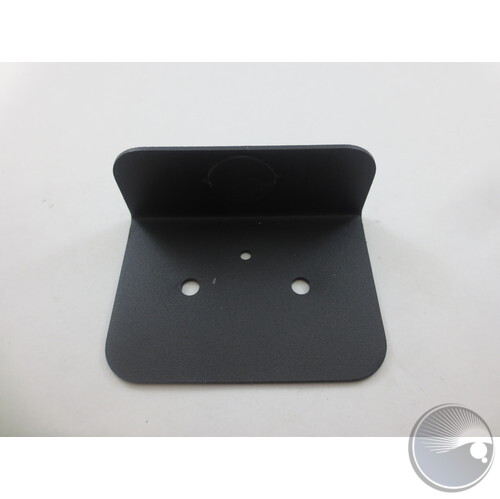

PTJ4010301690MAGNET HOLDER (BOM#2)
PTJ4010301691METAL PLATE (BOM#8)

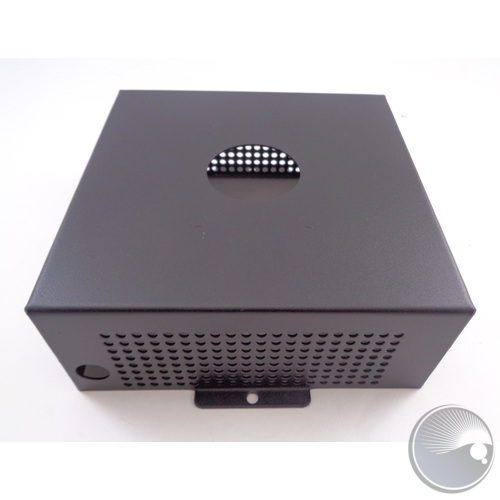

Metal casing for charging station (BOM#7)PTJ4010302650Metal casing for charging station (BOM#7)
PTJ4010302652POWER SUPPLY HOLDER (BOM#18)

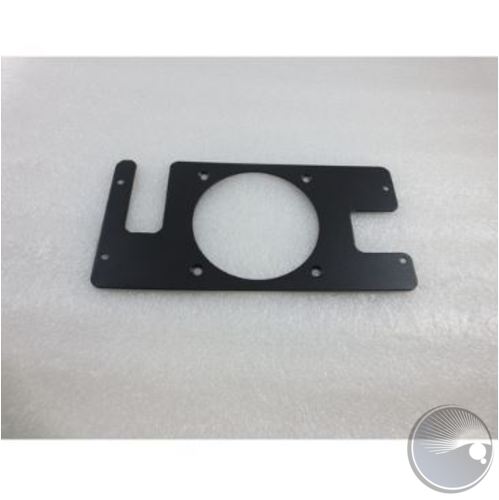

PTJ4010302653FUSE HOLDER (BOM#16)
PTJ4010302715CHARGING HOLDER (BOM#26)

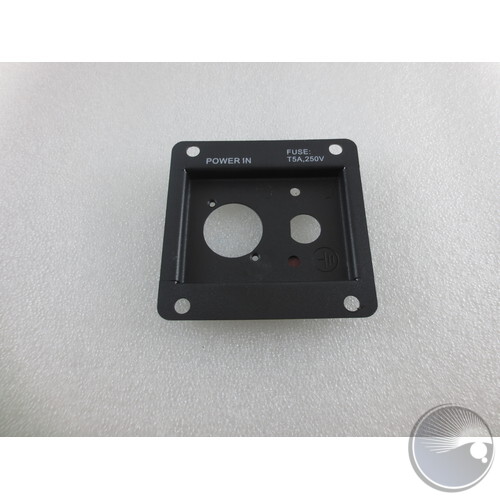

PTJ4010401448POWER SOCKET HOLDER (BOM#11)

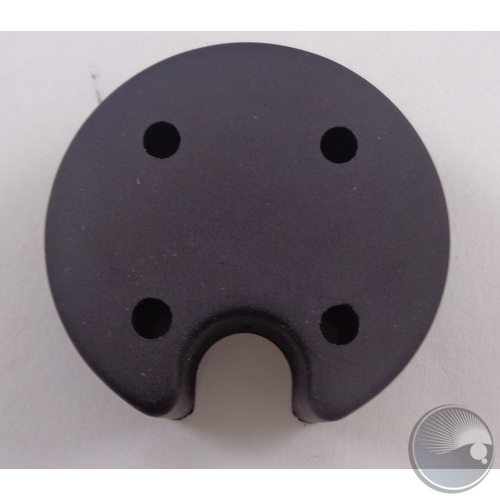

CHARGING HOLE PLATE (BOM#6)PTJ4020200261CHARGING HOLE PLATE (BOM#6)

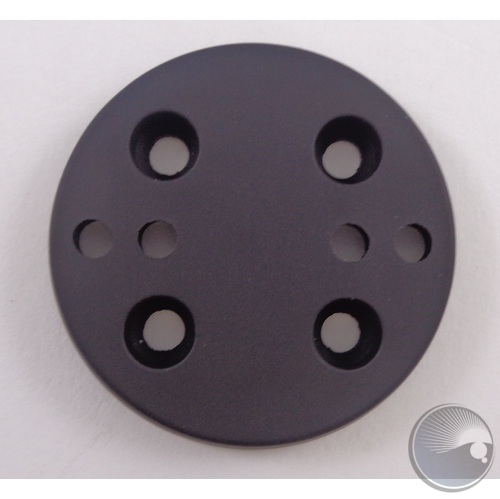

TOP COVER OF POWER SUPPLY (BOM#24)PTJ4020200262TOP COVER OF POWER SUPPLY (BOM#24)

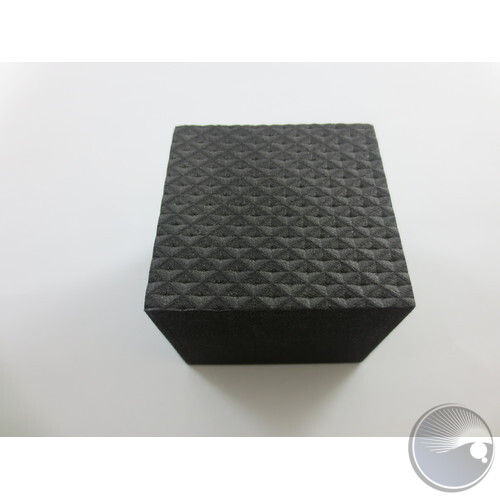

PTJ5000000051CUBE FOAM (3.LID)

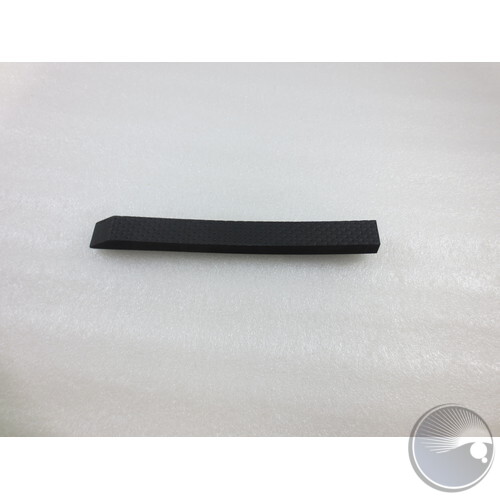

PTJ5000000052NARROW FOAM (2.FIXTURE SLOT)

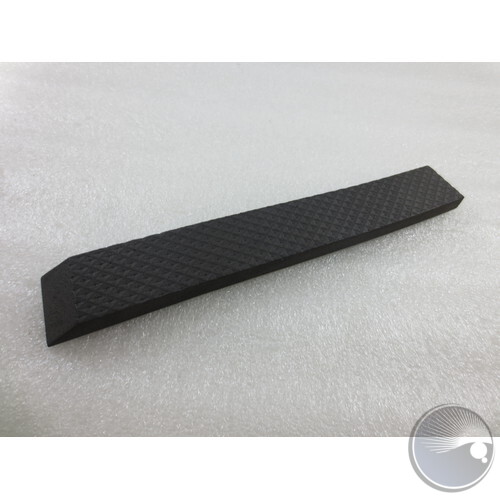

PTJ5000000076WIDE FOAM (1.FIXTURE SLOT)
PTJ5000000118CUBOID FOAM W/ CUBE CUT-OUTS (4.LID)
PTJ5000000175FOAM

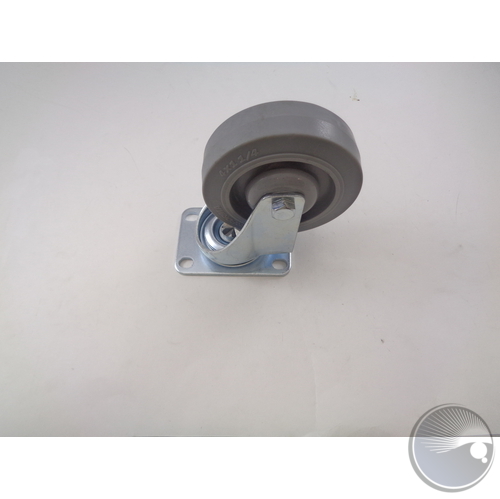

Non-locking Caster/Wheel 4x1 (1/4)PTJL160217003Non-locking Caster/Wheel 4x1 (1/4)

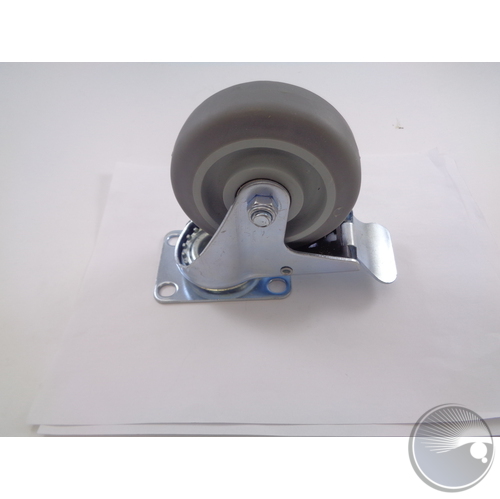

Locking Caster/Wheel 4x1 (1/4)PTJL160217004Locking Caster/Wheel 4x1 (1/4)
