At a Glance
Fully featured IP65 rated with single (120W) RGBW LED and two linear four cell CW and WW Strobe LEDs wash and beam fixture with pan and tilt functionality with the ability to maintain pixel pitch when using multiple fixtures together
Quick and quiet operation of 200° of tilt and 60° of pan
8 section control of Warm White and Cool White strobe cells.
Lightweight and compact makes fixtures easily rigged together in any environment
DMX, SACN, and Art-Net, control for full flexibility
RDM and NFC Enabled for remote addressing and trouble shooting
IP65-rated 5 pin DMX and TCP/IP input/output ports
IP65-rated USBc software upload port
Slotted Omega bracket for easy hanging on truss
Specifications
Optical
- Light Source: 1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
- Light Source: 160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
Dynamic Effects
- Pan and Tilt: 60°/190°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized/Manual
- Strobe Rate: 0 to 25 Hz
- Color Temperature Presets: Yes
- Move-in-Black: Yes
- Dim Modes: 2
- Dim Curves: 4
Construction / Physical
- Dimensions: 7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
- Weight: 15 lb (6.8 kg)

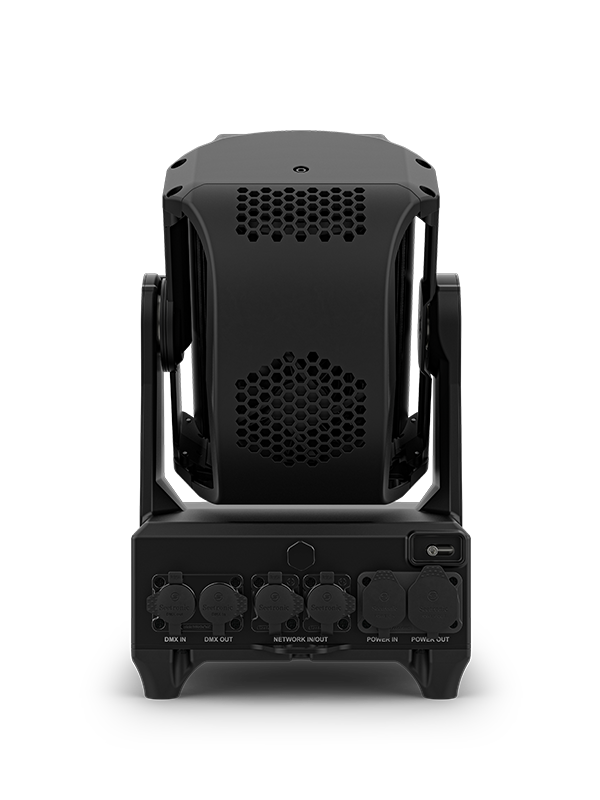

Connections
- Power Input: Seetronic Powerkon
- Power Output: Seetronic Powerkon
- Data Connectors: 5-pin IP65 XLR, etherCON
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: [Art-Net, sACN, DMX, RDM, NFC]
- DMX Channels: 24 or 45
- Art-Net Channels: 24 or 45
- Modes/Personalities: 2 personalities (24, 45)
