COLORado 1-Quad

Auf Anfrage!

  • COLORADO1QUAD
COLORado  1 Quad COLORado 1 Quad is an excellent indoor/outdoor robust wash light with... mehr
Produktinformationen "COLORado 1-Quad"

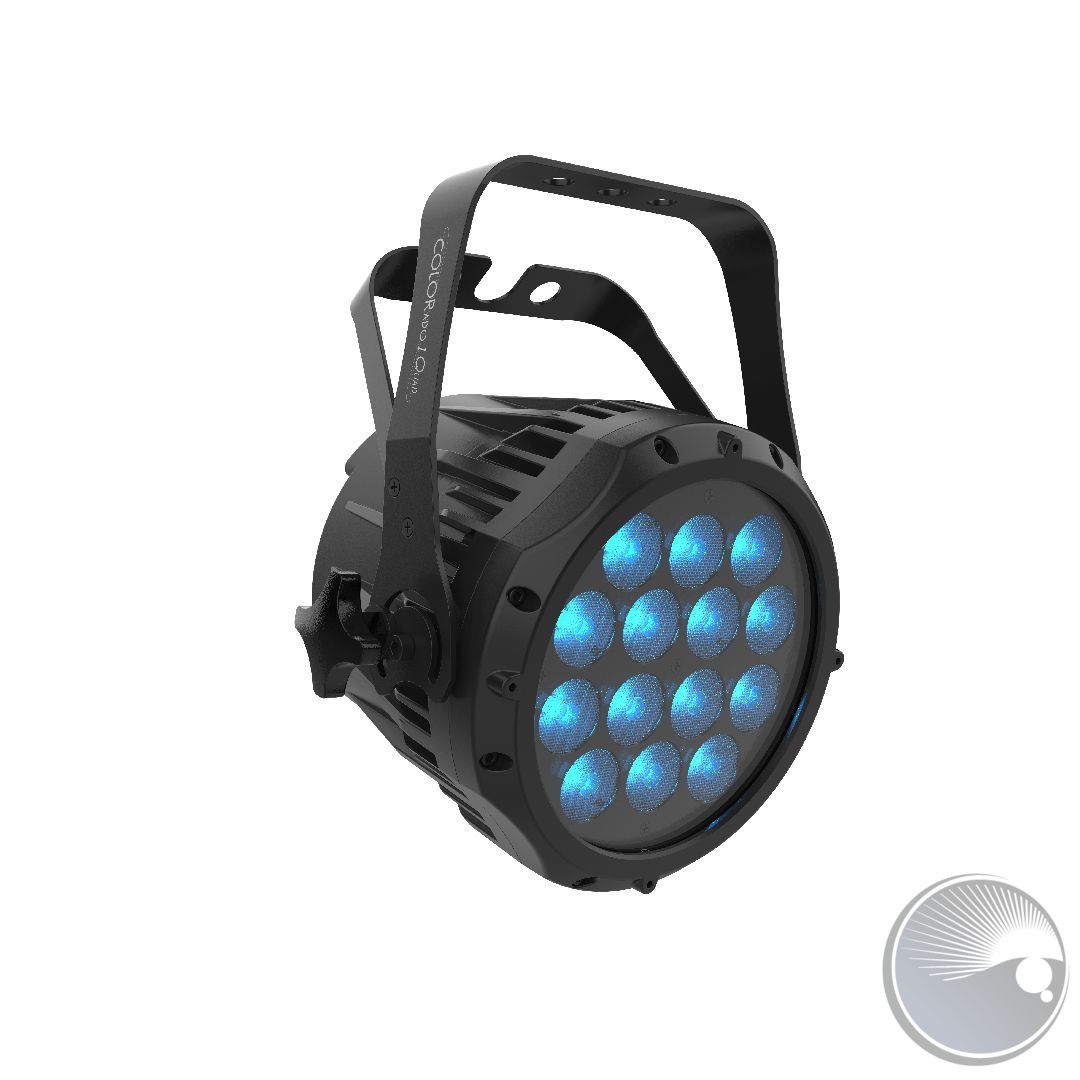

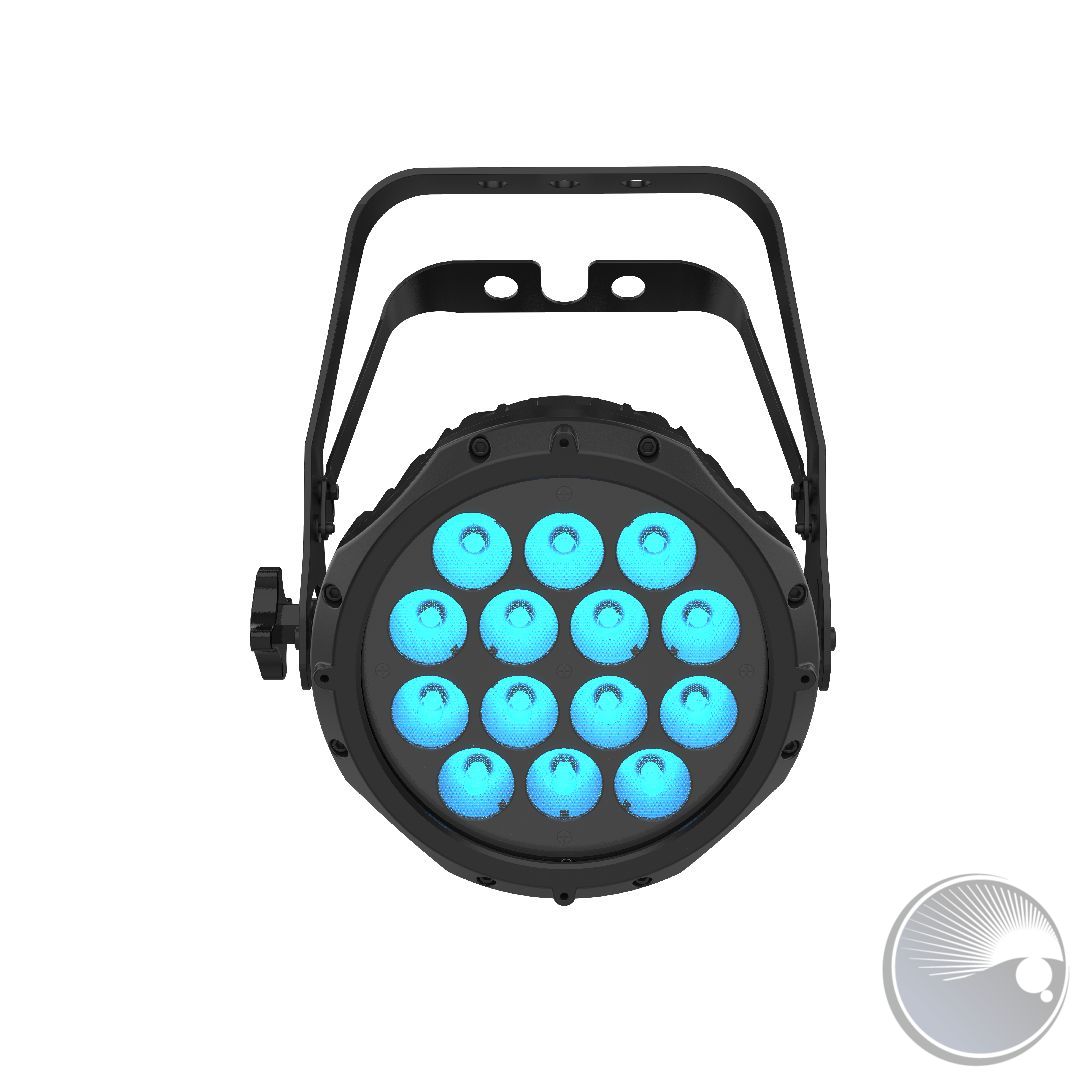

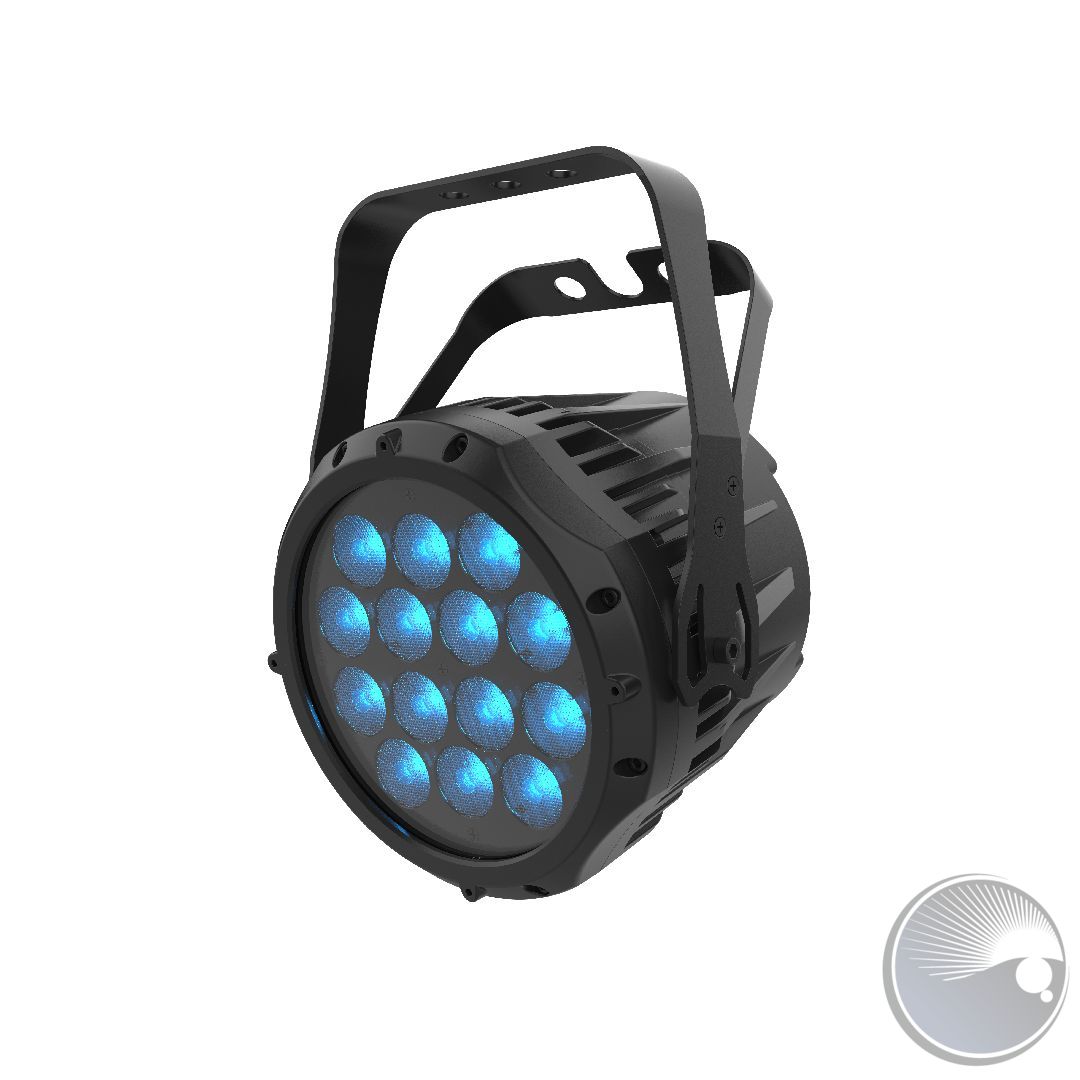

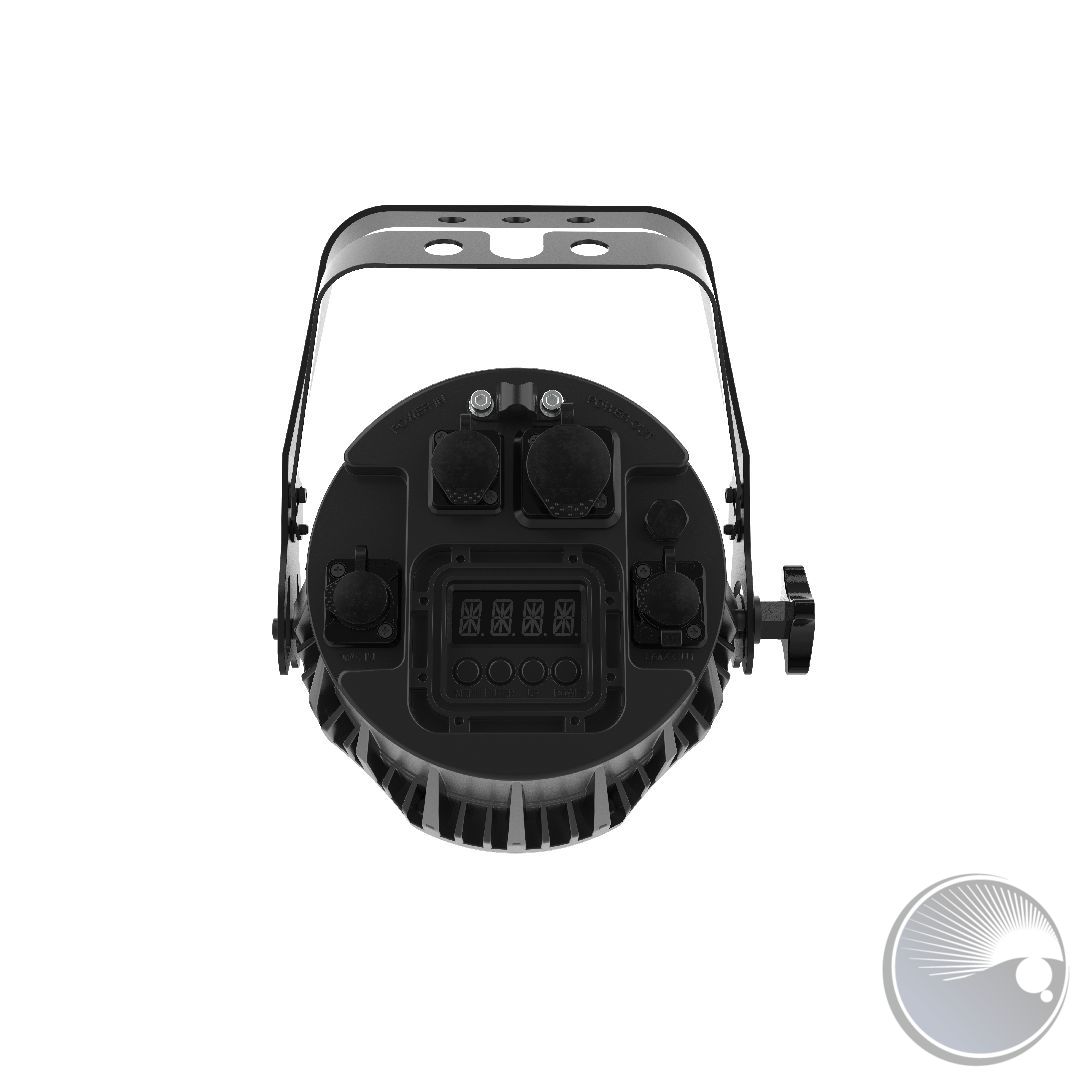

COLORado 1 Quad

COLORado 1 Quad is an excellent indoor/outdoor robust wash light with 14 5 W RGBW LEDs that deliver big power from a compact, yet solid IP65 housing. A 13° beam angle gives you ample control over the beam and selectable dimming curves facilitate the integration of the fixtures into existing rigs.  And outdoor rated power and data connectors allow for easy connections without propriety cabling.



AT A GLANCE

  • RGBW LED wash for touring, rental, and production, indoors or out

  • All environment operation with IP rated power and DMX connections

  • Color temperature presets, from 3200 K to 10000 K

  • Selectable, smooth dimming curves for programming versatility

  • LED display with password protection

  • M12 GORE® valve for assured internal equalization

  • Simple and complex DMX channel profiles for programming versatility

  • Double-bracket yoke doubles as floor stand

SPECIFICATIONS

OPTICAL

  • Light Source: 14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10,000 K
  • Beam Angle: 13°
  • Field Angle: 26°
  • Lumens: 1,633
  • Illuminance (total): 1510 lux @ 5 m

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 14 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)
  • Weight: 9.8 lb (4.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol:DMX, RDM
  • DMX Channels: 4, 5, 6, 7, 9, 10, 13 or 15
  • Modes/Personalities (RGB): 3 personalities (TOUR, TR16, AR1.D)
  • Modes/personalities (RGBW): 6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
  • Power and Current: 109 W, 0.892 A @ 120 V, 60 Hz
  • Power and Current: 110 W, 0.529 A @ 208 V, 60 Hz
  • Power and Current: 112 W, 0.492 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • COLORado 1 Quad
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder (7.5 in/191 mm accessories)

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado 1-Quad"

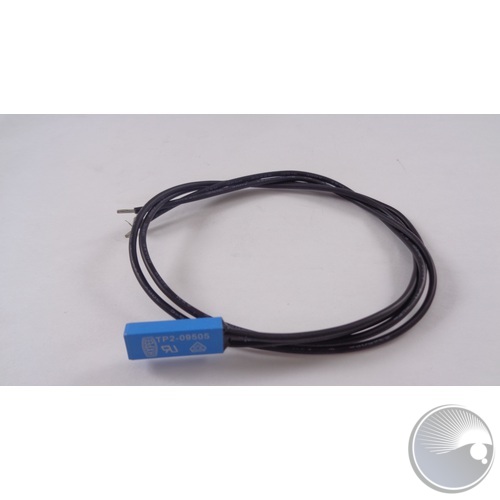

THERMAL SWITCH (BOM#10)PTF1080000101THERMAL SWITCH (BOM#10)
DMX CONNECTOR(5PIN,FEMALE) (BOM#38)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#38)
IP POWER OUT SOCKET(BOM#30)PTF1100000468IP POWER OUT SOCKET(BOM#30)
Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)PTF1100000469Power In (M) TRUE1 (IP65) Neutrik connecter with cover (BOM#24)
IP SOCKET(3PIN MALE) (BOM#44)PTF1100000500IP SOCKET(3PIN MALE) (BOM#44)

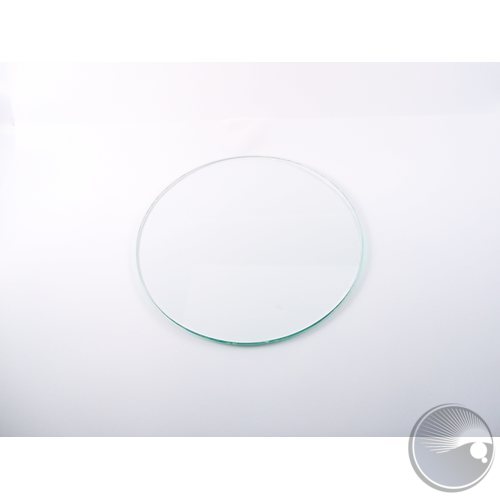

CLEAR FRONT GLASSPTF1120000087CLEAR FRONT GLASS
Nylon gasket (BOM#1)PTF1180000079Nylon gasket (BOM#1)
Power socket cover (out) (BOM#55)PTF1180000375Power socket cover (out) (BOM#55)
Power socket cover (in) (BOM#53)PTF1180000376Power socket cover (in) (BOM#53)
PTF1340100036THERMAL SWITCH HOLDER (BOM#7)
PTF1340103101POWER CONNECTION BOARD (BOM#16)
PTF1340103104PS HEAT DISSIPATION PAD (BOM#32)
PTF1340110078INTERIOR BRACKET A (BOM#31)

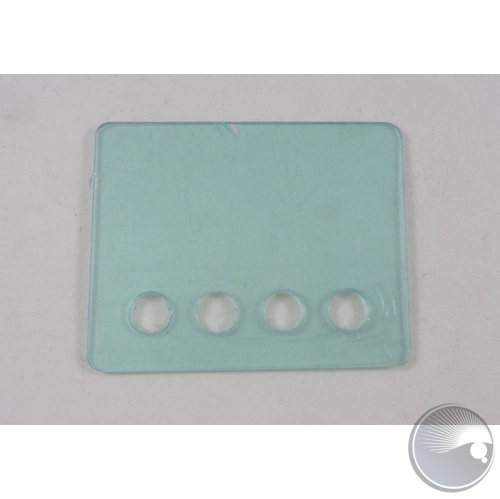

Sreen lens for display (BOM#40)PTF1340600591Sreen lens for display (BOM#40)

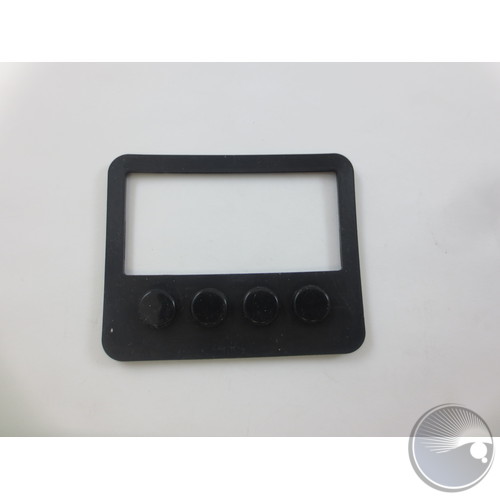

Button sealing ring (BOM#39)PTF1340600599Button sealing ring (BOM#39)

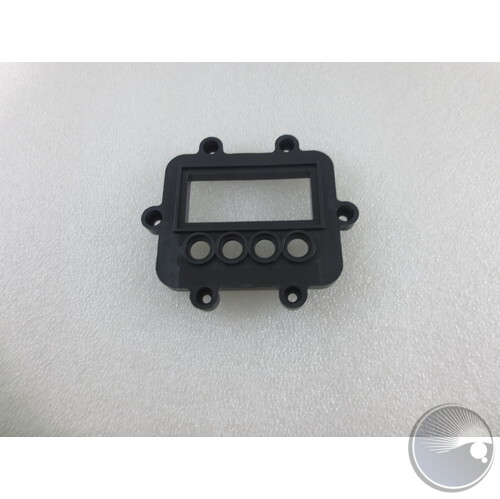

PTF1340600603button lock plate (BOM#41)

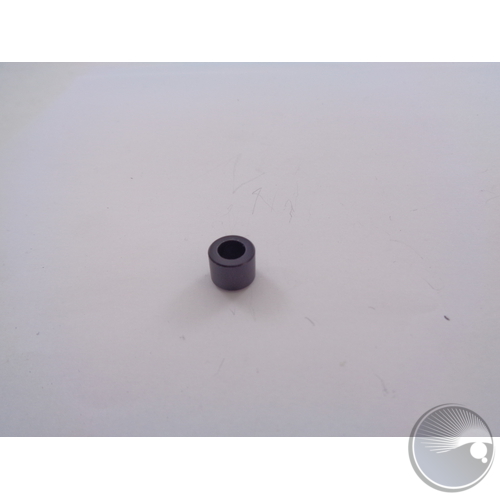

HANGING BRACKET SUPPORT PILLAR - BUSHING - to replace PTF1340600608HANGING BRACKET SUPPORT PILLAR - BUSHING - to replace
PTF1340600701LENS FRAME FRONT COVER (BOM#4)

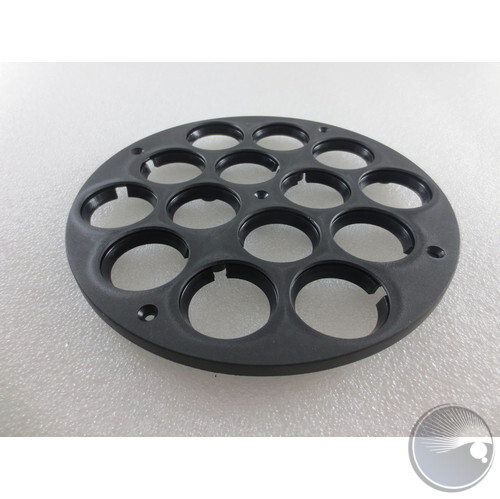

PTF1340600707LENS FRAME BACK COVER (BOM#7)
PTF1340600713WIRING BOARD ISOLAATION SHEET (BOM#13)

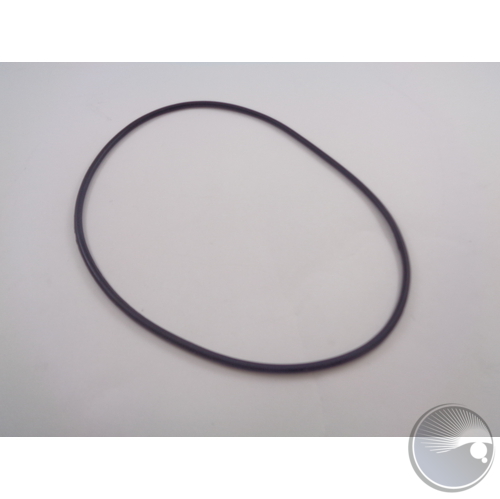

HEAT SINK WATERPROOF SEAL (BOM#10)PTF1340601836HEAT SINK WATERPROOF SEAL (BOM#10)
KM SCREW FOR GEL FRAME HOLDERPTF1490400024KM SCREW FOR GEL FRAME HOLDER
PTF1491000196Light cup holder (BOM#5)

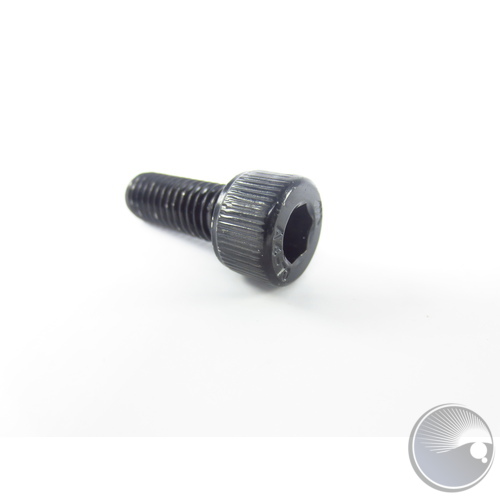

Inner screwPTF1491400115Inner screw
PRESSURE COMPENSATION VALVE (BOM#13)PTF1491700004PRESSURE COMPENSATION VALVE (BOM#13)
PTF1603004301POWER SUPPLY (BOM#11)

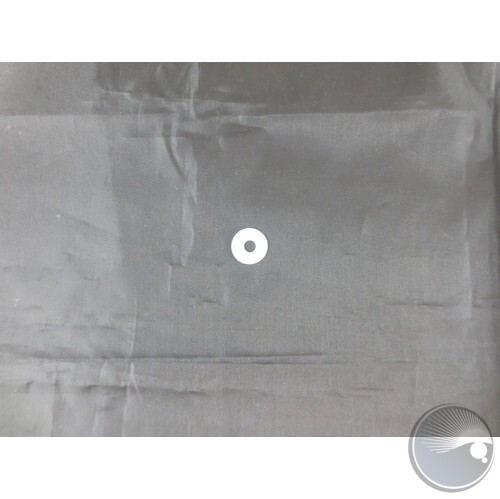

PTF1804001400Bracket washer (BOM#19)

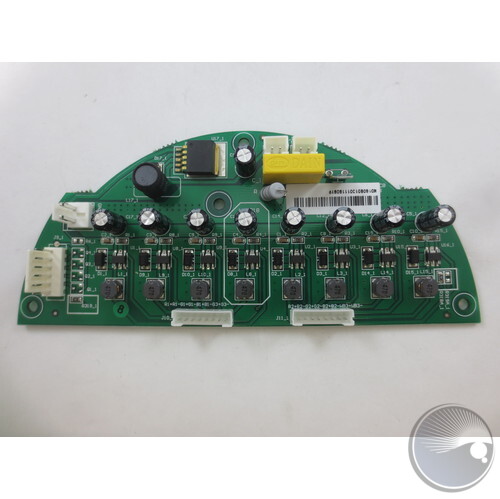

PTF22600002276Drive board (BOM#13)

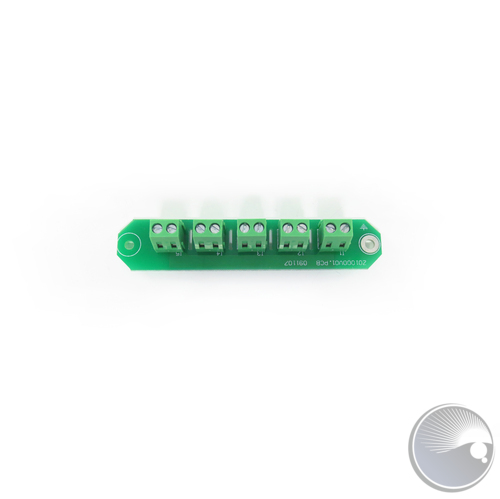

power connection board (BOM#7)PTF2260001288power connection board (BOM#7)

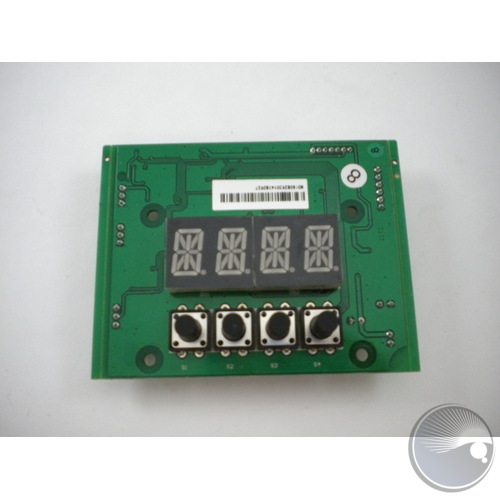

display PCB (BOM#39)PTF2260001629display PCB (BOM#39)

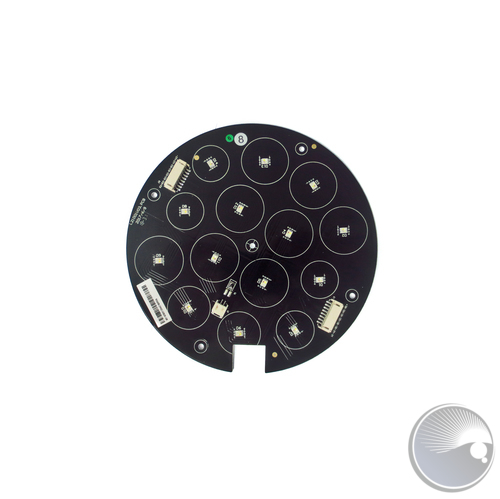

LED board (BOM#7)PTF2260002465LED board (BOM#7)

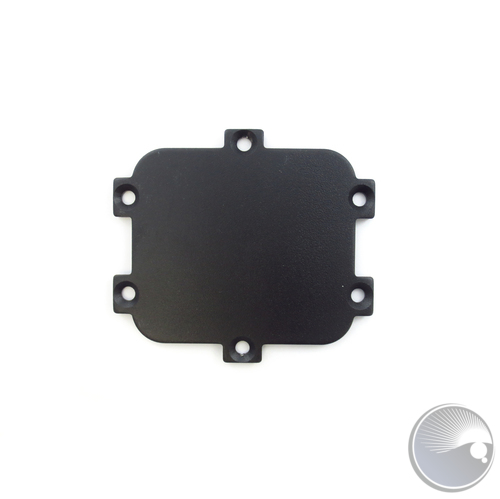

DISPLAY PROTECTION METAL PLATEPTF2440100422DISPLAY PROTECTION METAL PLATE

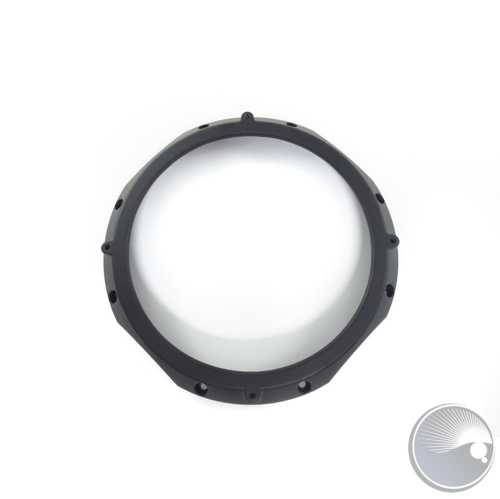

FRONT COVER (BOM#1)PTF2440100529FRONT COVER (BOM#1)

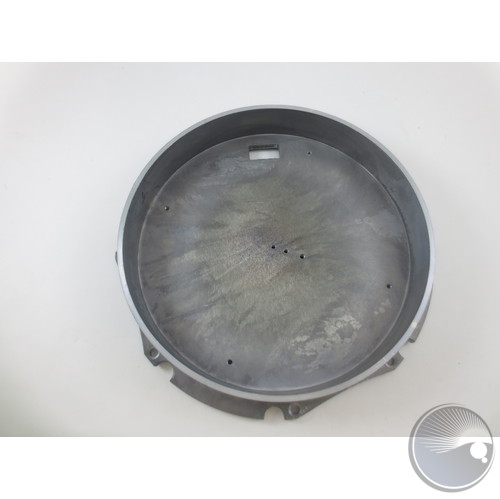

HEAT SINK (BOM#9)PTF2440100534HEAT SINK (BOM#9)
PTF2440100549safety rope lcok plate (BOM#38)

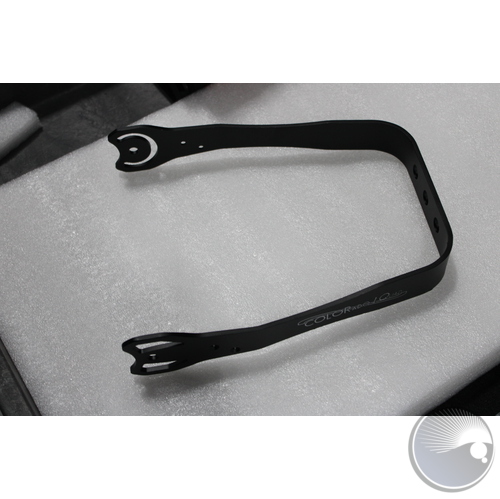

PTF2440104249hanging bracket2-P (BOM#29)

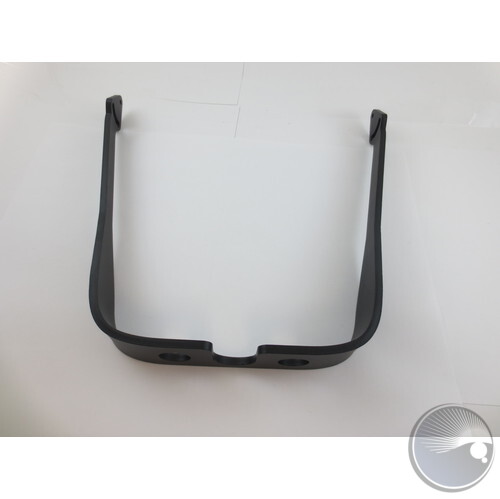

PTF2440104252support barcket 2-P (BOM#33)
PTF2440104476Base cover (BOM#21)

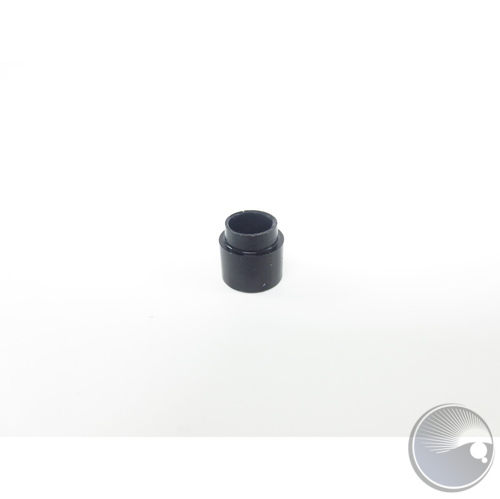

HANGING BRACKET FIXED WASHER (SPACER)PTF2440800058HANGING BRACKET FIXED WASHER (SPACER)
PTF3406LED304A049B0DISPLAY RUBBER SEAL
PTF3406LED318004A0UPPER HOLDER WATERPROOF SEAL
PTF49132006B1ADJUSTING BLACK STEEL BRACKET KNOB
UPLOAD01PTFUPLOAD01UPLOAD01

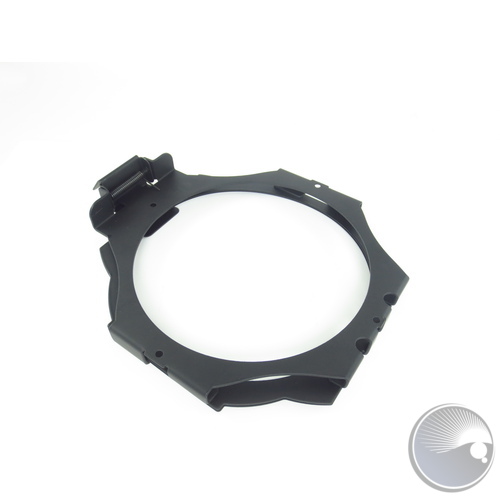

GEL FRAME AND HOLDER (COMPLETE)PTFX40116GEL FRAME AND HOLDER (COMPLETE)
LENS (BOM#77)PTK127090016LENS (BOM#77)
