COLORado 1-Quad Zoom

Auf Anfrage!

  • COLORADO1QUADZOOM
COLORado  1-Quad Zoom COLORado 1-Quad Zoom  is an excellent indoor/outdoor wash... mehr
Produktinformationen "COLORado 1-Quad Zoom"

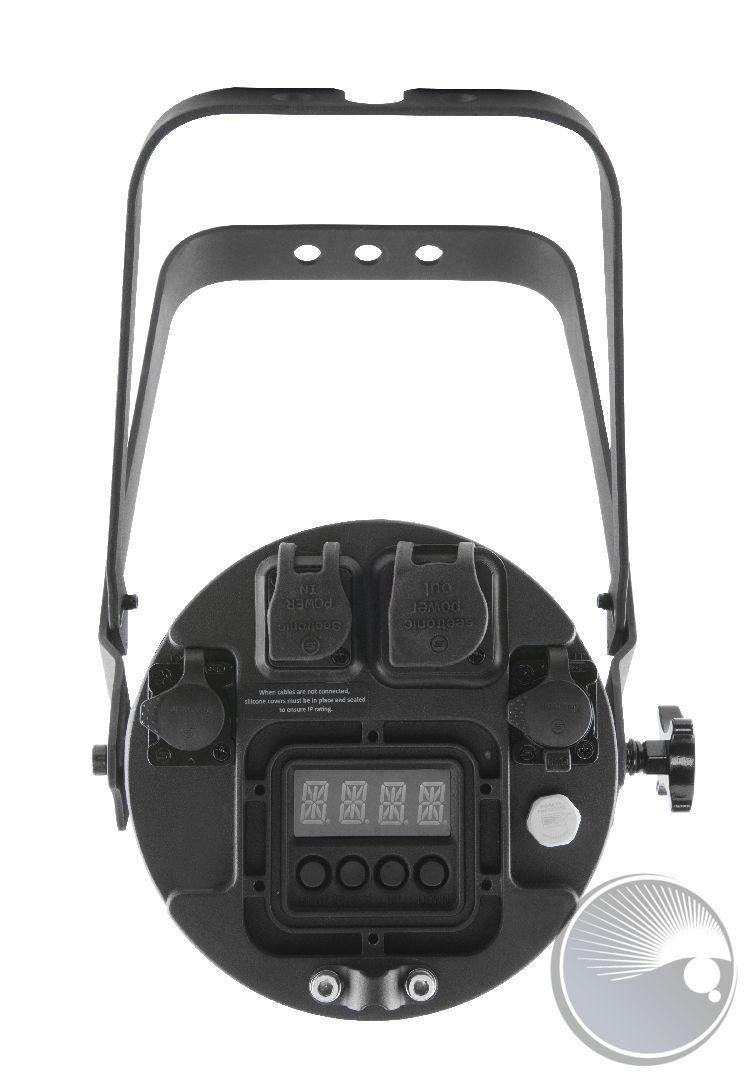

COLORado 1-Quad Zoom

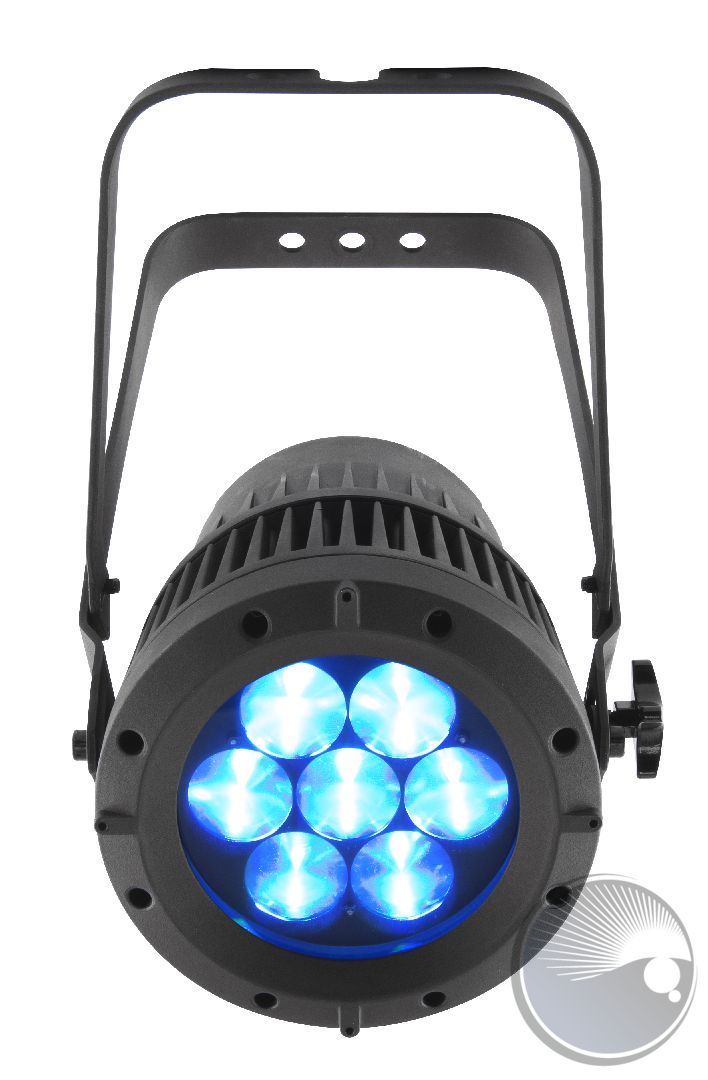

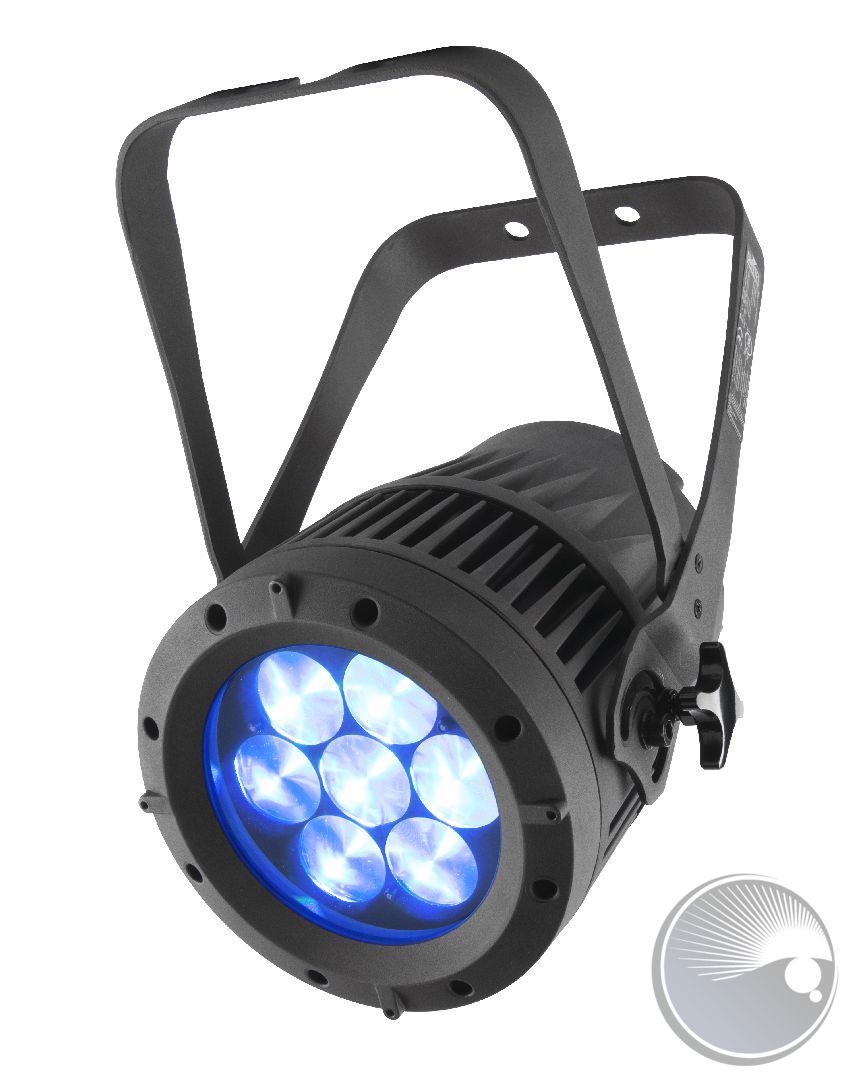

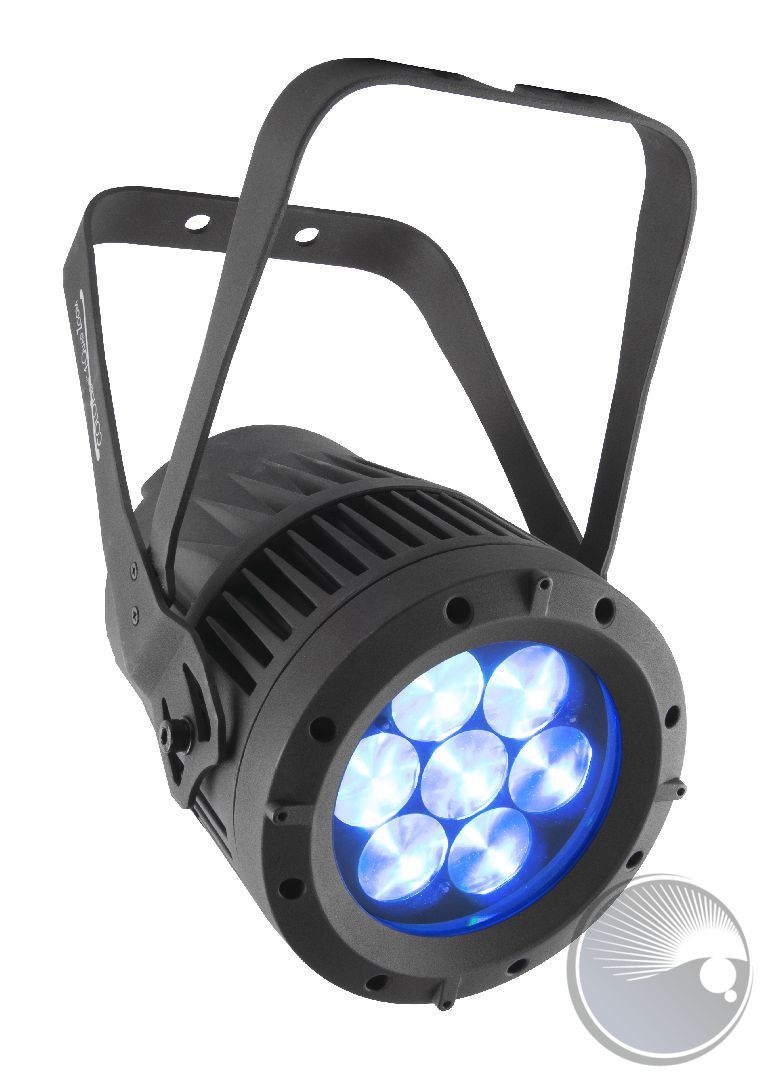

COLORado 1-Quad Zoom is an excellent indoor/outdoor wash light with seven Osram RGBW LEDs delivering big time power from a compact, yet solid housing. It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. A 7° to 45° zoom gives you ample control over the beam, and selectable dimming curves facilitate the integration of the fixtures into an existing rig. Center pixel control provides even more dynamic effects with full 16-bit dimming. Outdoor rated power and data connectors allow for easy connections without proprietary cabling.

AT A GLANCE

  • Built-in auto and custom programs recalled via DMX and Master/Slave

  • RGBW color mixing via DMX or manually

  • Zoomable, with a wide zoom range for design versatility

  • Tough road-ready construction

  • Individual control of outer pixel ring and center pixel

  • Selectable, smooth dimming curves for programming versatility

  • 16-bit dimming of individual colors as well as master dimmer

  • All environment operation with IP rated power and DMX connections

  • 5-pin DMX input/output connections

SPECIFICATIONS

OPTICAL

  • Light Source: 7 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
  • Beam Angle: 7° to 32°
  • Field Angle: 13° to 45°
  • Zoom Range: 7° to 45°
  • Illuminance (13°): 3,280 lux @ 5 m
  • Illuminance (45°): 296 lux @ 5 m
  • PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.07 x 9.3 x 7.48 in (357 x 236 x 190 mm)
  • Weight: 15.4 lb (7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 4, 5, 6, 7, 10, 12, 17 or 25
  • Modes/Personalities: 12 personalities (AR1D, AR2Z, ARC1, ARC2, ARC2D, ARC2S, C1Q, FULL, HSV, STD.Y, TOUR, TR16)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 27 units @ 208 V; 28 units @ 230 V
  • Power and Current: 101 W, 0.861 A @ 120 V, 60 Hz
  • Power and Current: 104 W, 0.501 A @ 208 V, 60 Hz
  • Power and Current: 106 W, 0.472 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED

OPTIONAL ACCESSORIES



Weiterführende Links zu "COLORado 1-Quad Zoom"

PTF0807002900THERMAL SWITCH - BLUE TP2-08505 (BOM#21)
DMX CONNECTOR(5PIN,MALE) (BOM#60)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#60)
DMX CONNECTOR(5PIN,FEMALE) (BOM#59)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#59)
IP POWER OUT SOCKET (BOM#13)PTF1100000468IP POWER OUT SOCKET (BOM#13)
power con SAC3MPX  (BOM#6)PTF1100000469power con SAC3MPX (BOM#6)

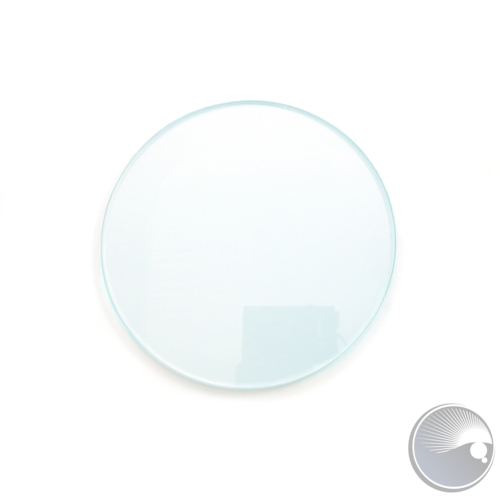

Tempered glass (BOM#11)PTF1120000158Tempered glass (BOM#11)
PTF1120300115Reflective bowl (BOM#42)

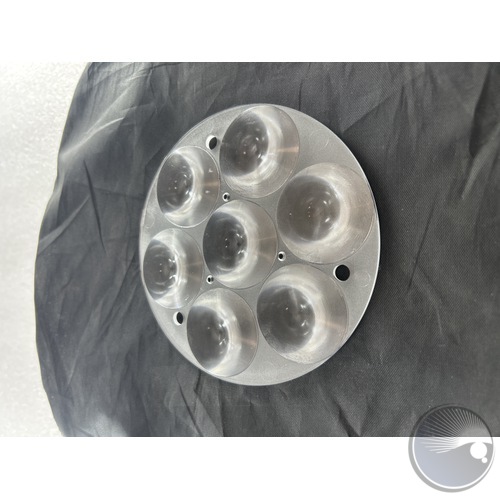

PTF1120300116Focus lens frame (BOM#44)

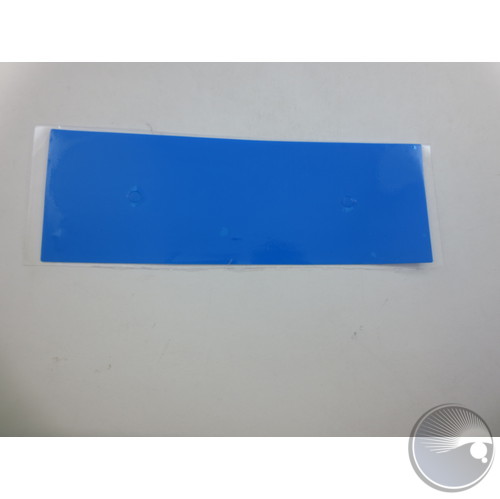

Driver insulating heat conduction pad (BOM#40)PTF1140000178Driver insulating heat conduction pad (BOM#40)

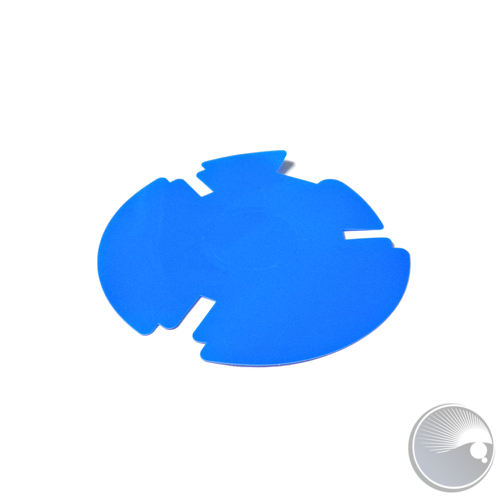

Thermal sleeve under led pcbPTF1140000197Thermal sleeve under led pcb

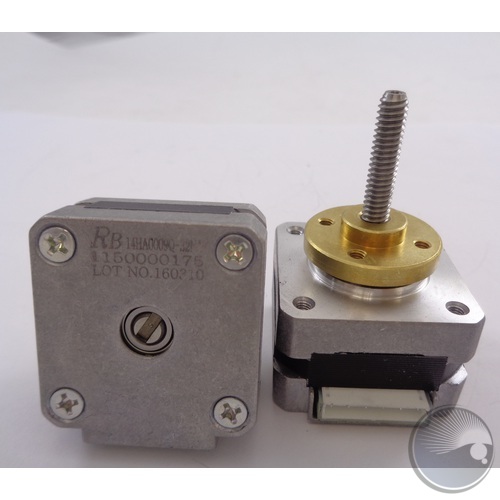

Motor 14HA0009Q-32N (BOM#41)PTF1150000175Motor 14HA0009Q-32N (BOM#41)

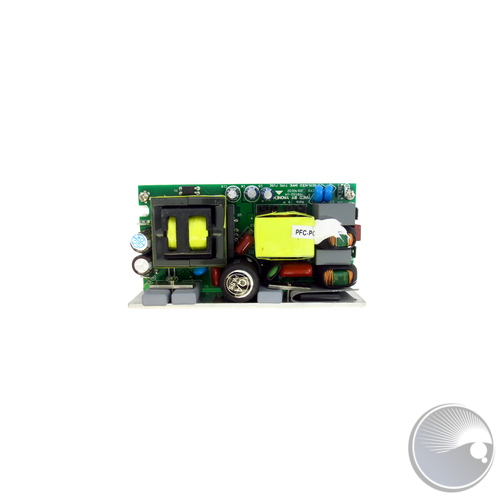

POWER SUPPLY (BOM#27)PTF1160000488POWER SUPPLY (BOM#27)

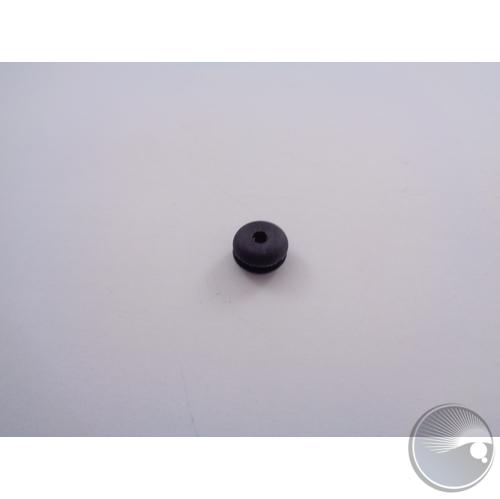

Rubber stop/anti-vibrate seal for lens frame (BOM#14)PTF1180000039Rubber stop/anti-vibrate seal for lens frame (BOM#14)
washer (BOM#22)PTF1180000079washer (BOM#22)
Rubber Cover for PTF1100000469 (Male Power-In)PTF1180000375Rubber Cover for PTF1100000469 (Male Power-In)
Rubber Cover for PTF1100000468 (Female Power-Out)PTF1180000376Rubber Cover for PTF1100000468 (Female Power-Out)
PTF1340100036thermal switch holder (BOM#22)
PTF1340110394Adaptor fixing plate (BOM#26)
PTF1340110641Power fixing plate (BOM#24)
PTF1340110791Motor fixing plate (BOM#22)

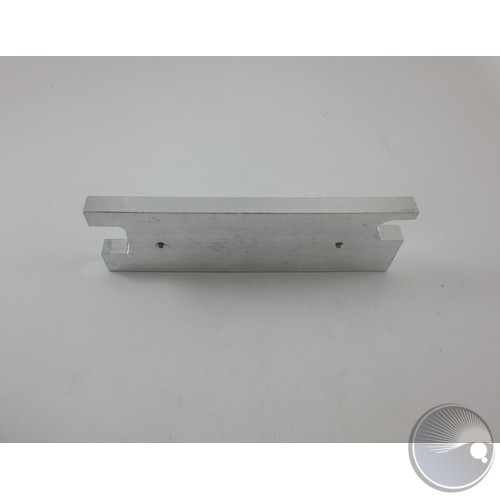

Insulating heat conduction pad (BOM#27)PTF1340110792Insulating heat conduction pad (BOM#27)

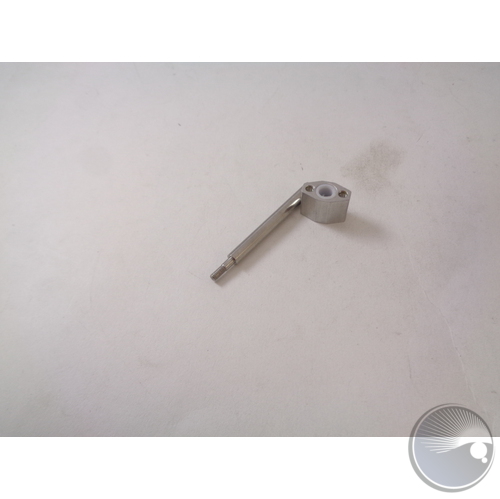

PTF1340500763Bearings component (BOM#19)
Button waterproof ring (BOM#20)PTF1340600599Button waterproof ring (BOM#20)
PTF1340600603Key plate (BOM#18)

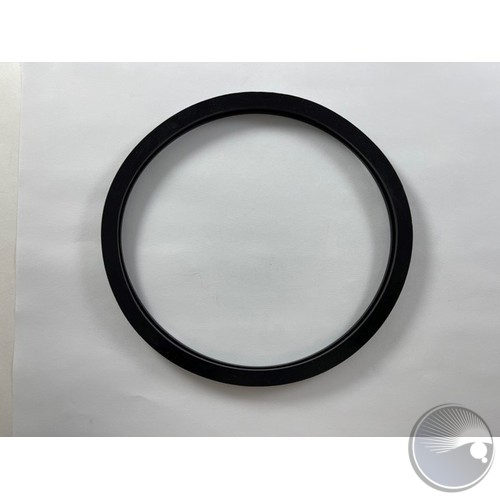

Head waterproof rubber ring (BOM#10)PTF1340601970Head waterproof rubber ring (BOM#10)
KBM SCREW (BOM#1)PTF1490400024KBM SCREW (BOM#1)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
M8 screw (BOM#21)PTF1491300079M8 screw (BOM#21)
Inner screw (BOM#47)PTF1491400096Inner screw (BOM#47)
PTF1804001400Hard pad (BOM#31)

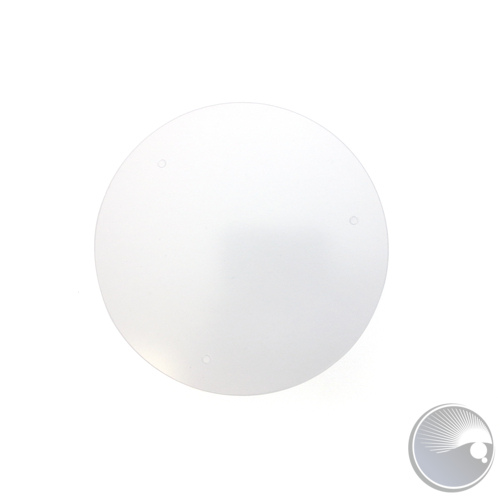

3.5° frosted lens (BOM#13)PTF22200000663.5° frosted lens (BOM#13)

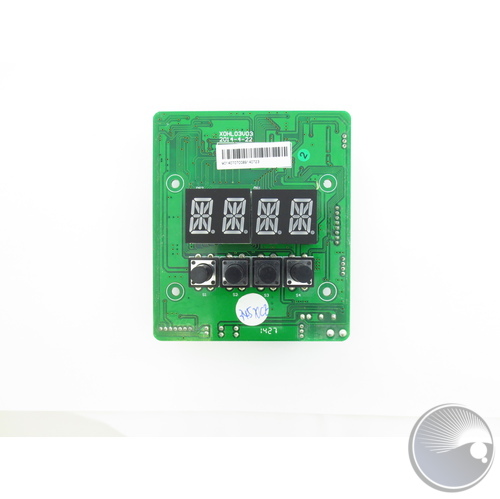

Display board/MPCB - SS345XCEM (BOM#30)PTF2260001861Display board/MPCB - SS345XCEM (BOM#30)

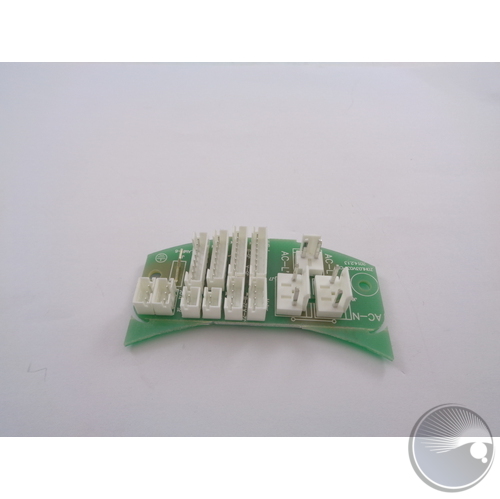

Adaptor PCB (BOM#25)PTF2260001862Adaptor PCB (BOM#25)
PTF2260001865Driver board (BOM#28)

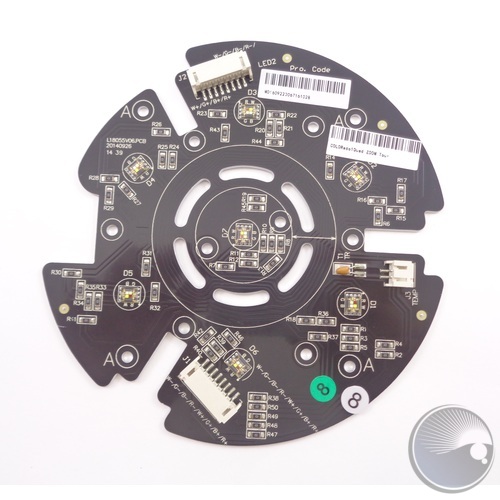

LED board (BOM#15)PTF2260002235LED board (BOM#15)
Waterproof cover (BOM#43)PTF2440100422Waterproof cover (BOM#43)
PTF2440100549Safety rope lock plate (BOM#26)

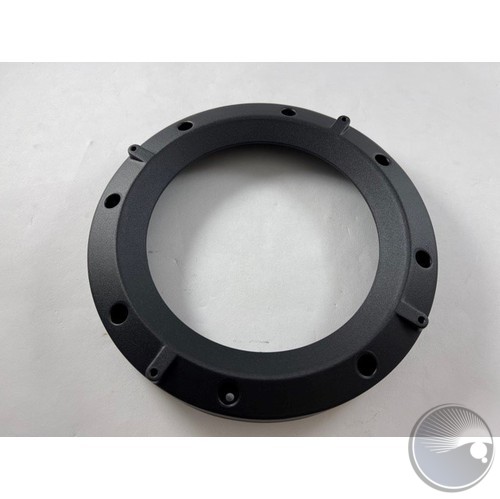

Front cover (BOM#9)PTF2440103016Front cover (BOM#9)
PTF2440103020barn doors (BOM#12)

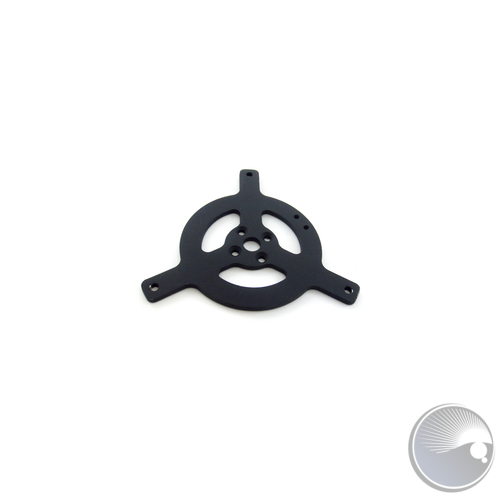

Connecting bracket (BOM#21)PTF2440103295Connecting bracket (BOM#21)

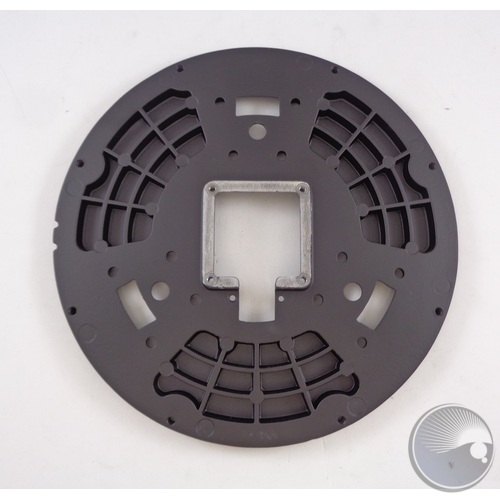

Connecting bracket (BOM#22)PTF2440103297Connecting bracket (BOM#22)

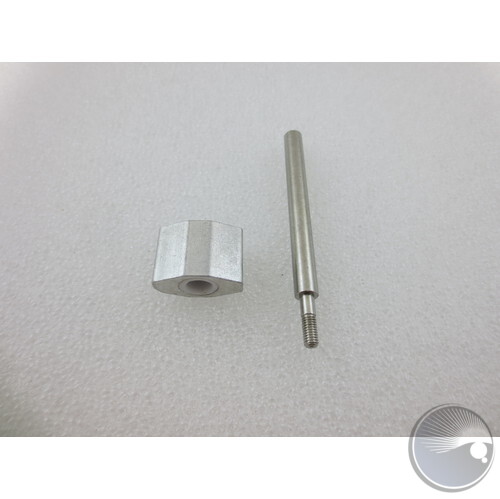

PTF2440103470Pillar/Standoff (BOM#20)
PTF2440104131Housing (BOM#18)

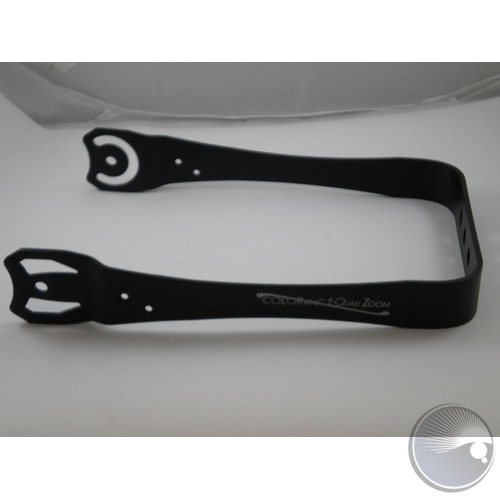

Big Hanging bracket (BOM#1)PTF2440104132Big Hanging bracket (BOM#1)

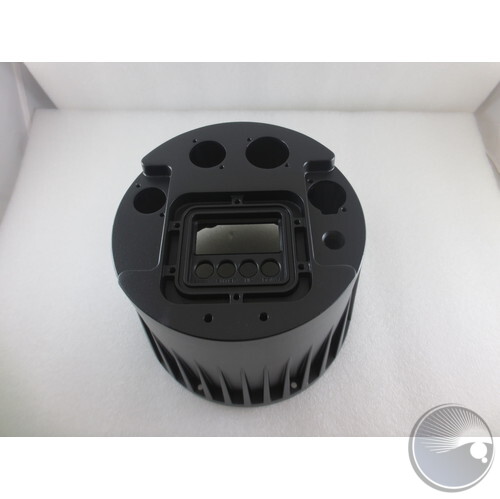

PTF2440104404Back cover (BOM#29)
Small Hanging bracket (BOM#2)PTF2440104432Small Hanging bracket (BOM#2)
PTF2440800273Baffling barrel (BOM#43)
PTF3406LED304A049B0DISPLAY RUBBER SEAL (BOM#29)
UPLOAD01PTFUPLOAD01UPLOAD01
POWER CABLE (BOM#63)PTFX20147POWER CABLE (BOM#63)

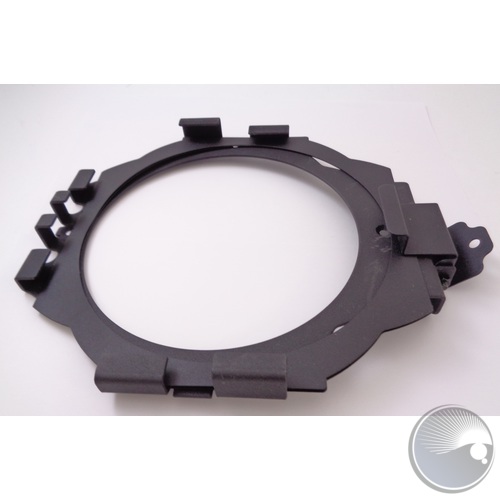

Gel Frame holder (BOM#29)PTFX40053Gel Frame holder (BOM#29)
