COLORado 2-Quad Zoom

Auf Anfrage!

  • COLORADO2QUADZOOM
COLORado  2-Quad Zoom COLORado 2-Quad Zoom  is a solid indoor/outdoor wash light... mehr
Produktinformationen "COLORado 2-Quad Zoom"

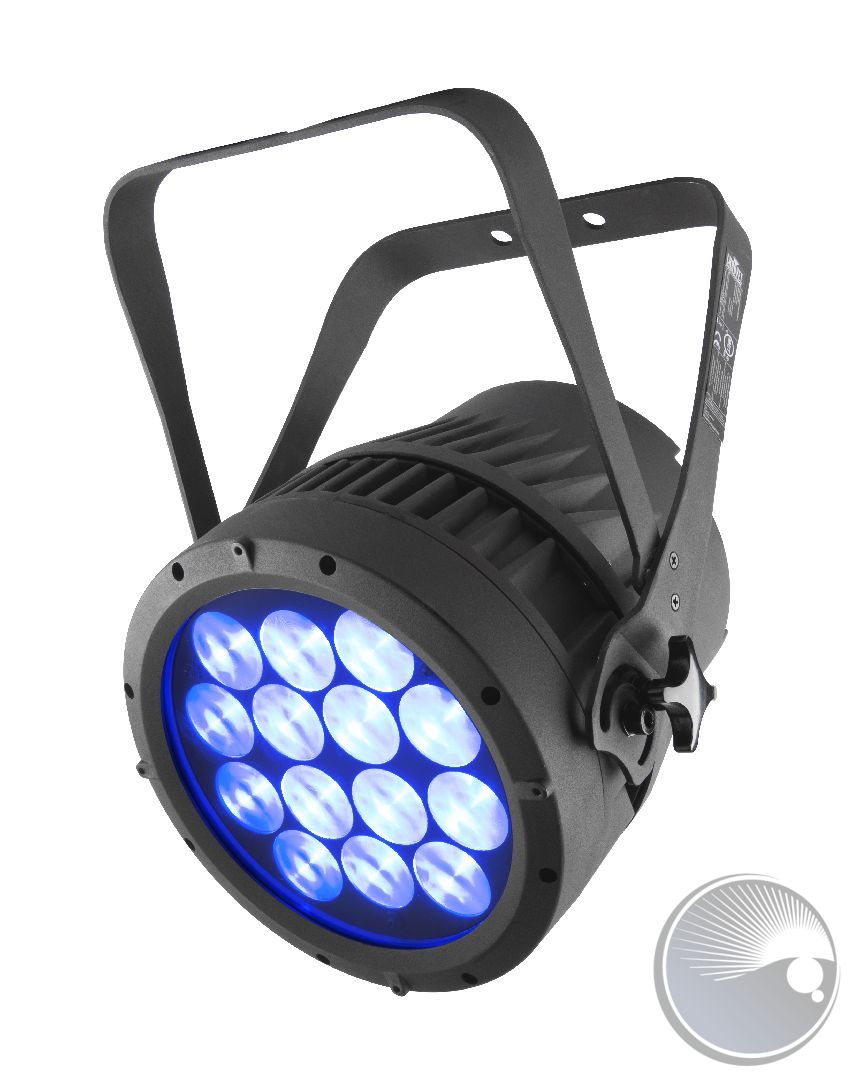

COLORado 2-Quad Zoom

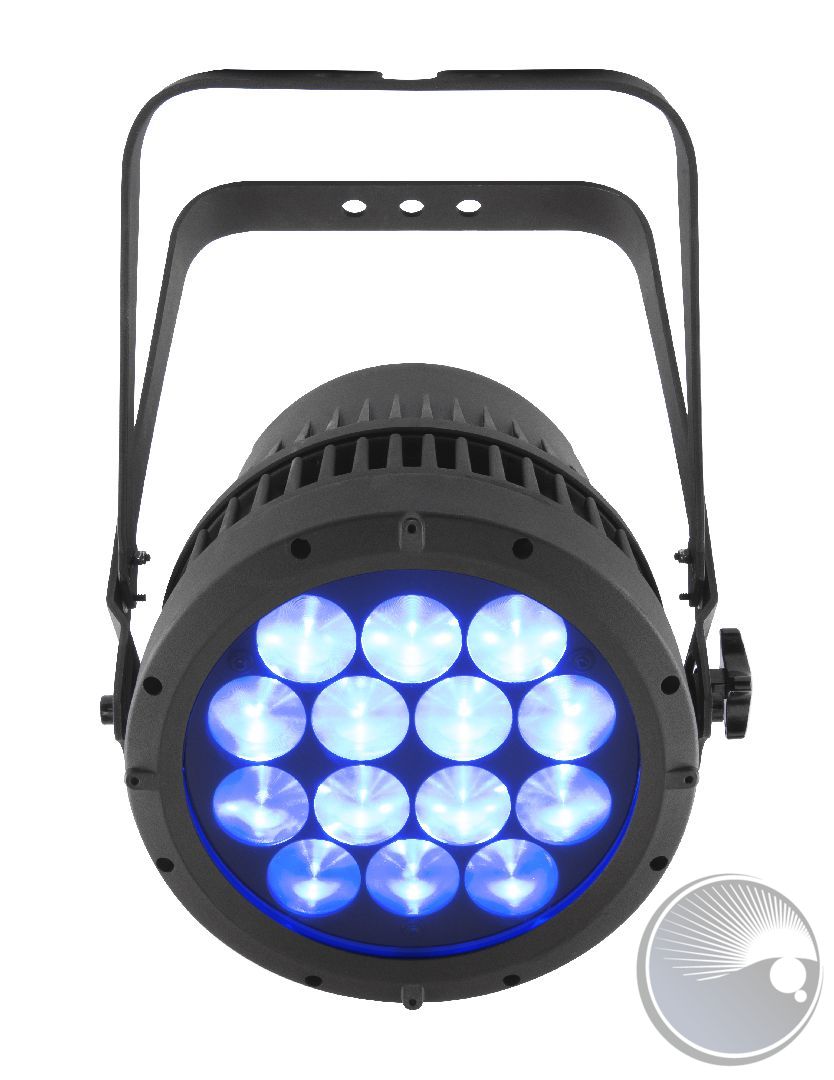

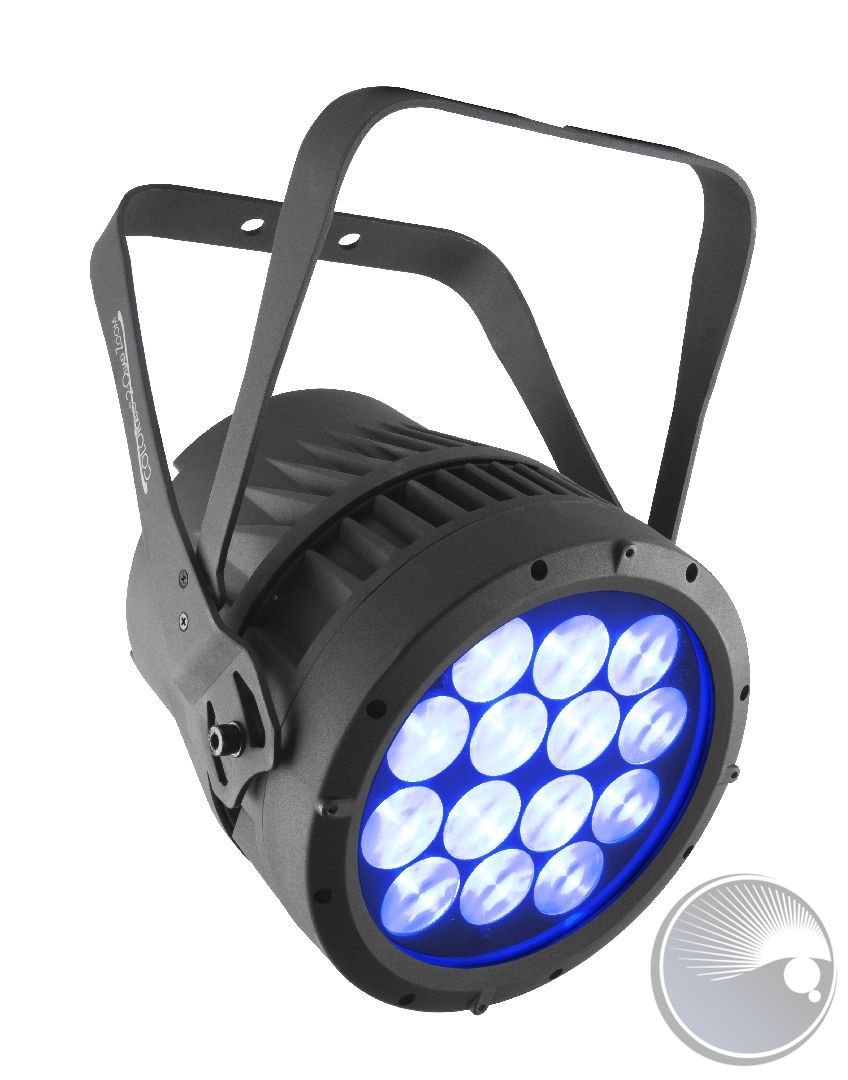

COLORado 2-Quad Zoom is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 7° to 45° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allow for easy connections without the need for proprietary cabling.

AT A GLANCE

  • RGBW color mixing via DMX or manually

  • Zoom control via DMX or manually

  • Color temperature presets 3,200 to 10,000 K

  • Built-in auto and custom programs recalled via DMX and Master/Slave

  • 16-bit dimming of individual colors as well as master dimmer

  • Selectable, smooth dimming curves for programming versatility

  • Color macros with included speed adjustment

  • Double-bracketed yoke doubles as a floor stand

  • All environment operation with IP rated power and DMX connections

  • 3- and 5-pin DMX input/output connections

  • LED display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 7° to 29°
  • Field Angle: 14° to 44°
  • Zoom Range: 7° to 45°
  • Illuminance (14°): 8,780 lux @ 5 m
  • Illuminance (44°): 921 lux @ 5 m
  • PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

  • Color Macros: 20 macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.9 x 11.1 x 9.2 in (330 x 284 x 236 mm)
  • Weight: 18.8 lb (8.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 9 in (229 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 4, 5, 6, 7, 12 or 17
  • Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and Current: 201 W, 1.668 A @ 120 V, 60 Hz
  • Power and Current: 208 W, 1.02 A @ 208 V, 60 Hz
  • Power and Current: 208 W, 0.932 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED

OPTIONAL ACCESSORIES



Weiterführende Links zu "COLORado 2-Quad Zoom"

3 pin XLR socket (male) (BOM#37)PTF10020014003 pin XLR socket (male) (BOM#37)
3 pin XLR socket (female) (BOM#36)PTF10020015003 pin XLR socket (female) (BOM#36)

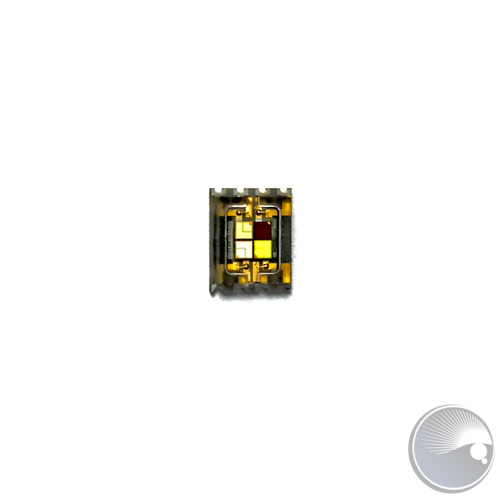

Single LEDPTF1070000487Single LED
DMX CONNECTOR(5PIN,MALE) (BOM#60)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#60)
DMX CONNECTOR(5PIN,FEMALE) (BOM#59)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#59)
IP POWER OUT SOCKET (BOM#13)PTF1100000468IP POWER OUT SOCKET (BOM#13)
power con SAC3MPX  (BOM#6)PTF1100000469power con SAC3MPX (BOM#6)

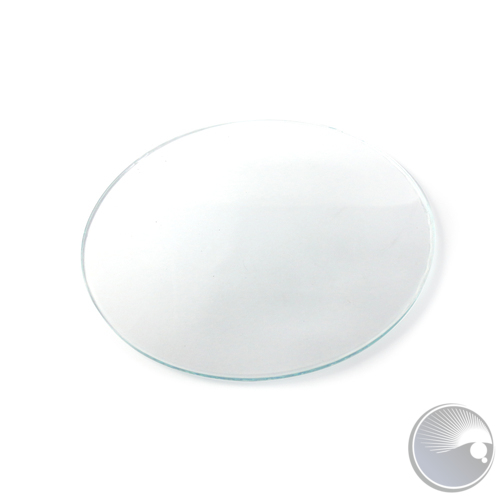

tempered glass (BOM#4)PTF1120000155tempered glass (BOM#4)

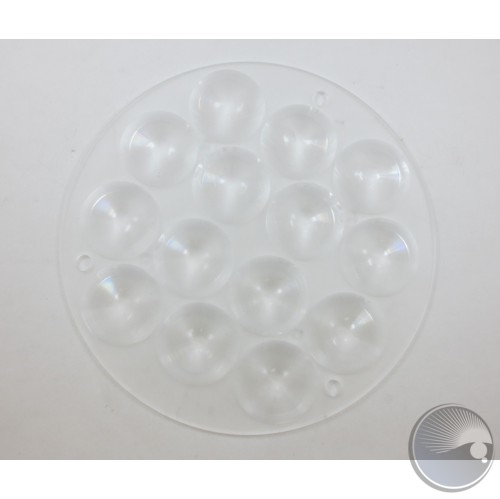

focus lens frame (BOM#8)PTF1120300111focus lens frame (BOM#8)

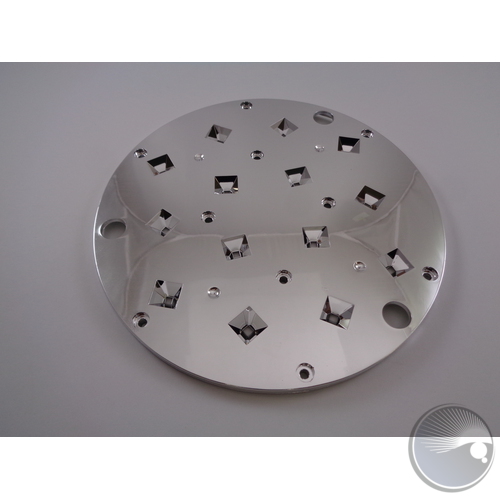

reflective bowl (BOM#9)PTF1120300112reflective bowl (BOM#9)

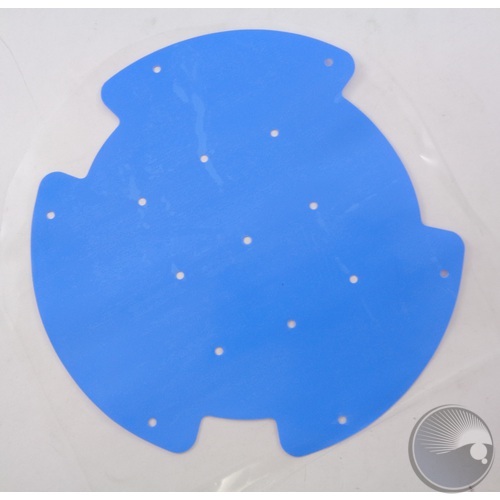

LED board insulating thermal conductive pad (BOM#11)PTF1140000174LED board insulating thermal conductive pad (BOM#11)

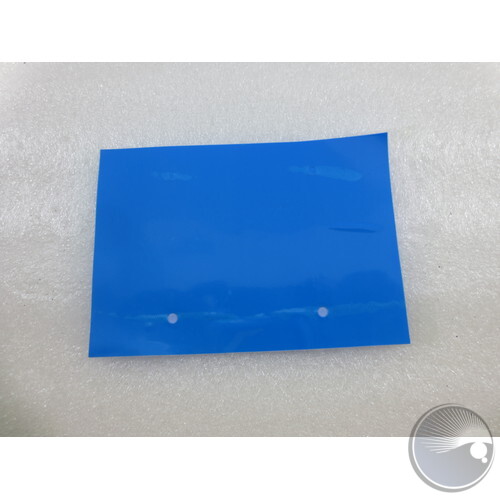

PTF1140000180Insulating heat conduction pad (BOM#40)

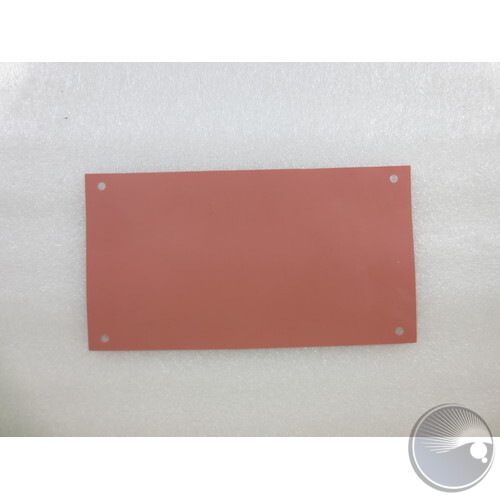

PTF1140000182insulation for POWER SUPPLY (BOM#42)

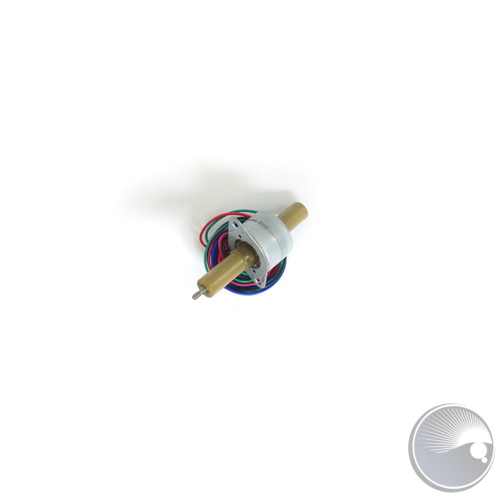

MOTOR 20PM23001-01N (BOM#43)PTF1150000174MOTOR 20PM23001-01N (BOM#43)

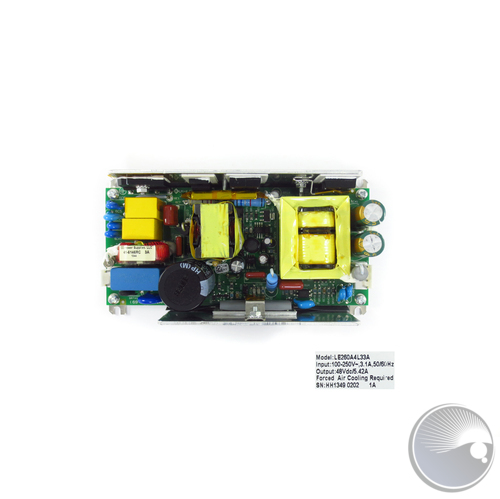

POWER SUPPLY (BOM#22)PTF1160000470POWER SUPPLY (BOM#22)
washer (BOM#22)PTF1180000079washer (BOM#22)
Rubber Cover for PTF1100000469 (Male Power-In)PTF1180000375Rubber Cover for PTF1100000469 (Male Power-In)
Rubber Cover for PTF1100000468 (Female Power-Out)PTF1180000376Rubber Cover for PTF1100000468 (Female Power-Out)
PTF1340110298Switch stents (BOM#41)

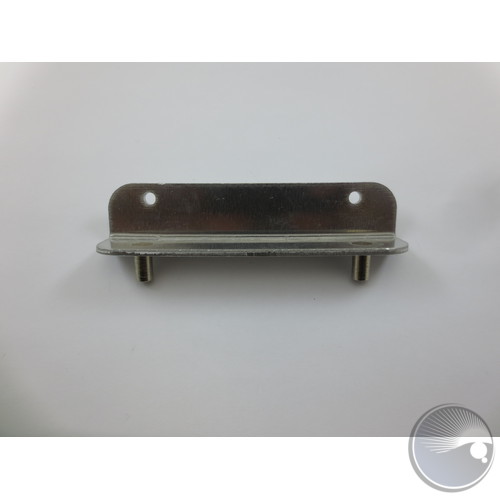

Connection board holder (BOM#24)PTF1340110299Connection board holder (BOM#24)
PTF1340110303Fixed line borad (BOM#21)
Display lens (BOM#19)PTF1340600591Display lens (BOM#19)
Button waterproof ring (BOM#20)PTF1340600599Button waterproof ring (BOM#20)
PTF1340600603Key plate (BOM#18)

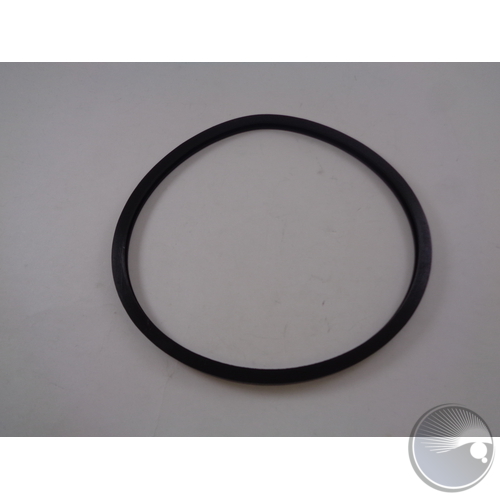

haed waterproof rubber ring (BOM#5)PTF1340601912haed waterproof rubber ring (BOM#5)
Rubber stop/anti-vibrate seal for lens frame (BOM#45)PTF1340601920Rubber stop/anti-vibrate seal for lens frame (BOM#45)

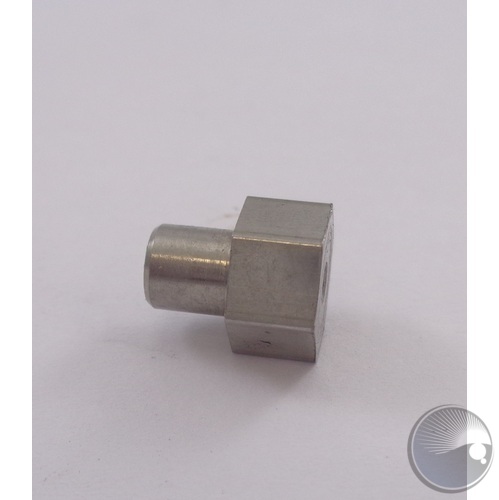

Nut (BOM#44)PTF1340802590Nut (BOM#44)
bolt(cross/facial) (BOM#6)PTF1490200002bolt(cross/facial) (BOM#6)
Countersunk cross screw (BOM#17)PTF1490400052Countersunk cross screw (BOM#17)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
M8 screw (BOM#21)PTF1491300079M8 screw (BOM#21)
PTF1491400038Inner screw (BOM#30)
Inner screw (BOM#47)PTF1491400096Inner screw (BOM#47)

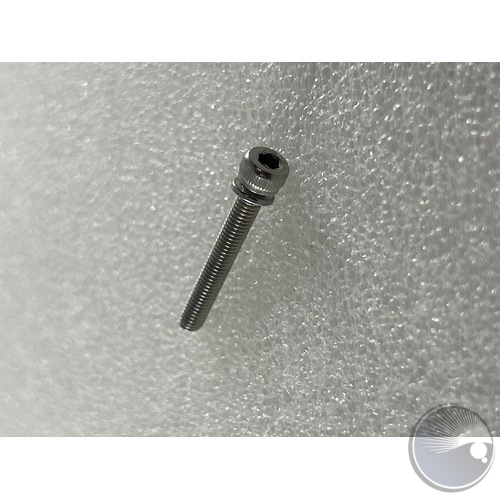

PTF1491400147inner screw (BOM#1)
Stainless steel gasket (BOM#33)PTF1491600014Stainless steel gasket (BOM#33)
ELASTIC MEDIUM (BOM#11)PTF1491600019ELASTIC MEDIUM (BOM#11)
PTF1804001400Hard pad (BOM#31)

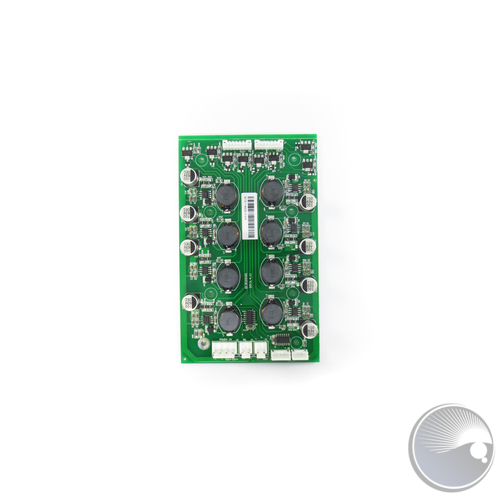

Driver board (BOM#25)PTF2260001702Driver board (BOM#25)

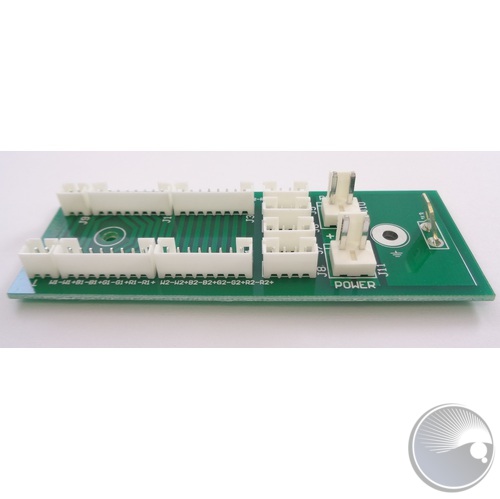

Adaptor PCB (BOM#23)PTF2260001729Adaptor PCB (BOM#23)

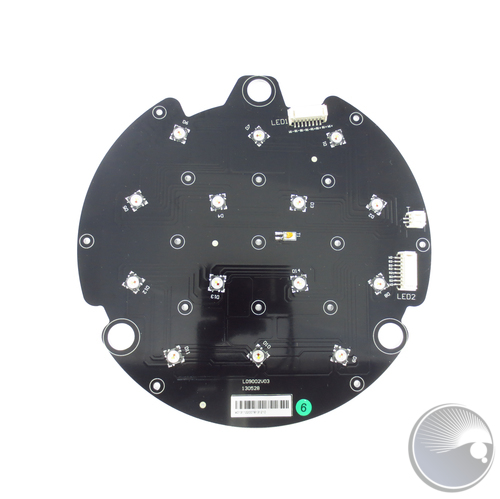

LED PCB L19038V05.PCB (150506) (BOM#10)PTF2260001757LED PCB L19038V05.PCB (150506) (BOM#10)

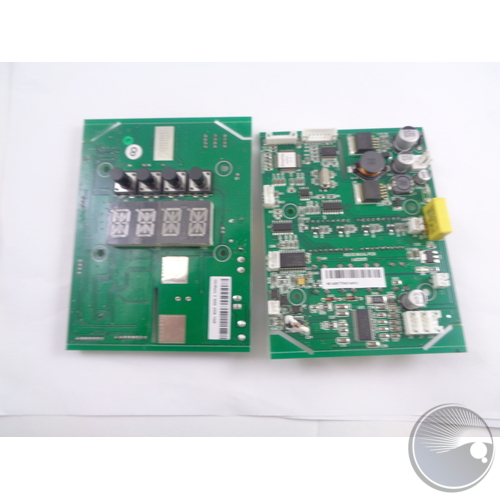

Display board (BOM#26)PTF2260002190Display board (BOM#26)
PTF2440100549Safety rope lock plate (BOM#26)

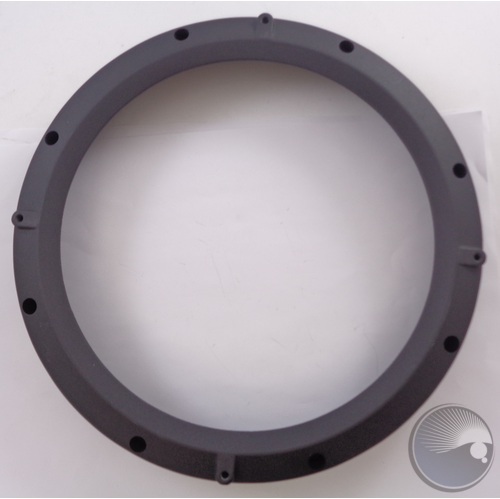

front cover SS342C1W (BOM#3)PTF2440102696front cover SS342C1W (BOM#3)

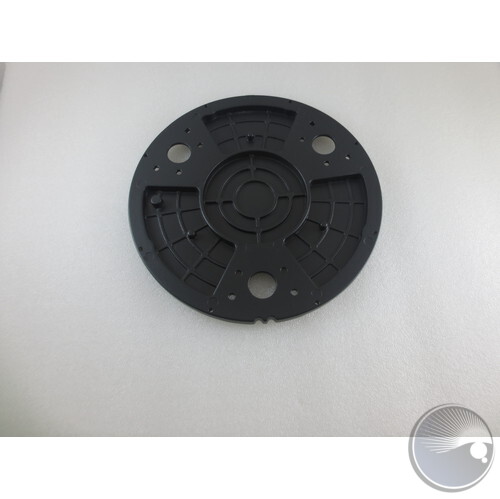

PTF2440102698Connecting bracket (BOM#20)

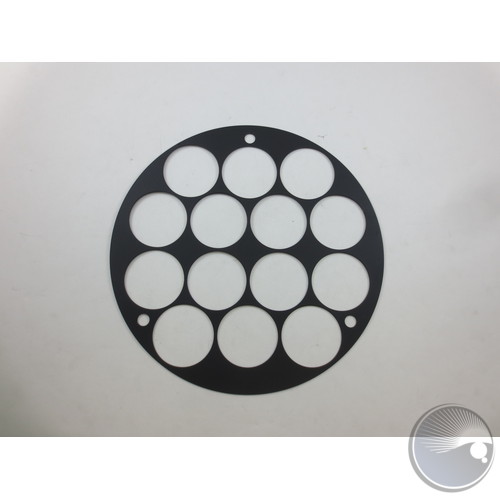

lens pressure ring (BOM#7)PTF2440102702lens pressure ring (BOM#7)

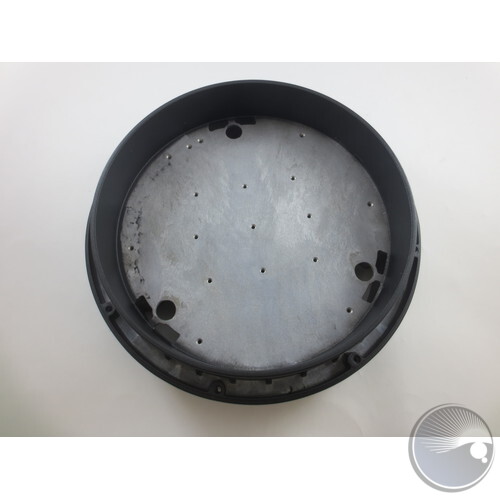

PTF2440104133Heat sink (BOM#46)

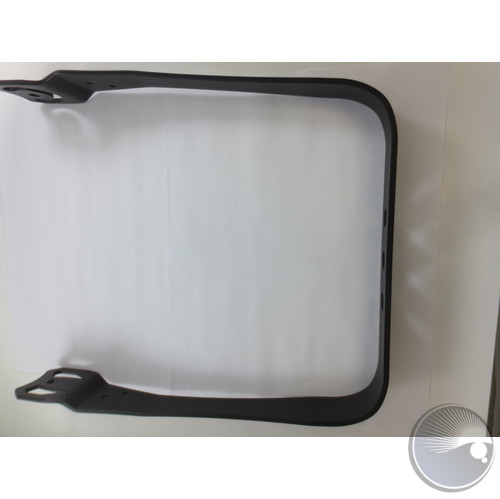

hanging bracket (BOM#12)PTF2440104134hanging bracket (BOM#12)

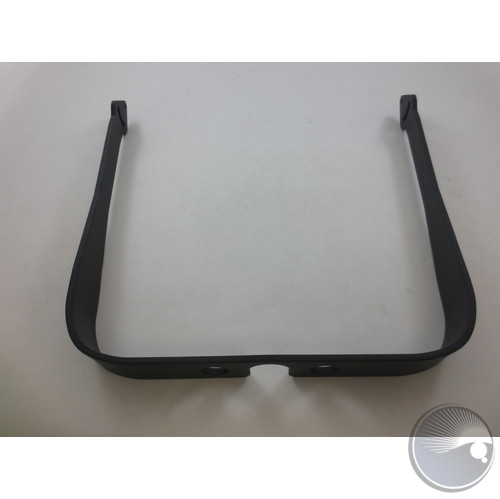

Bracket (BOM#13)PTF2440104430Bracket (BOM#13)

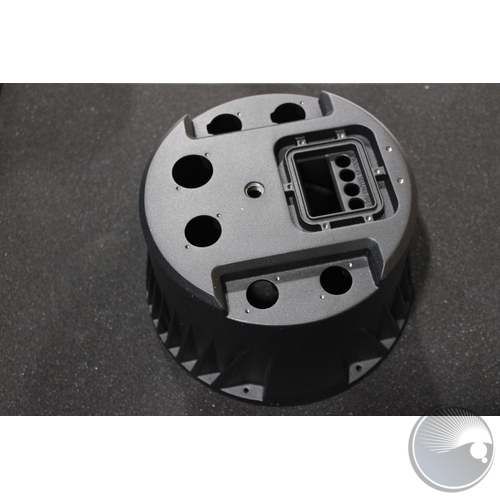

PTF2440104431Back cover (BOM#29)
PTF3406LED304A049B0DISPLAY RUBBER SEAL (BOM#29)
UPLOAD01PTFUPLOAD01UPLOAD01
POWER CABLE (BOM#63)PTFX20147POWER CABLE (BOM#63)

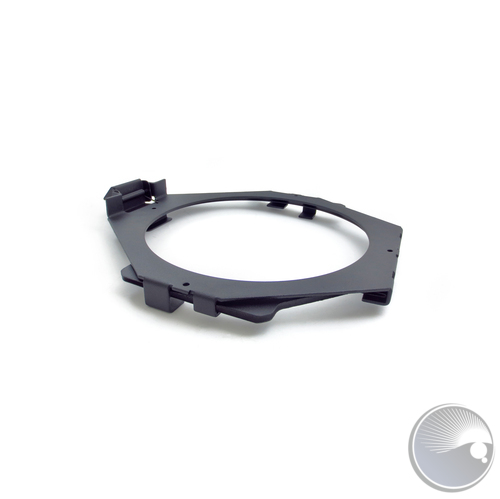

Gel framePTFX40254Gel frame
