COLORado 1-SOLO

Auf Anfrage!

  • COLORADO1SOLO
COLORado  1 Solo COLORado 1 Solo  builds on the pedigree of our Colorado line of... mehr
Produktinformationen "COLORado 1-SOLO"

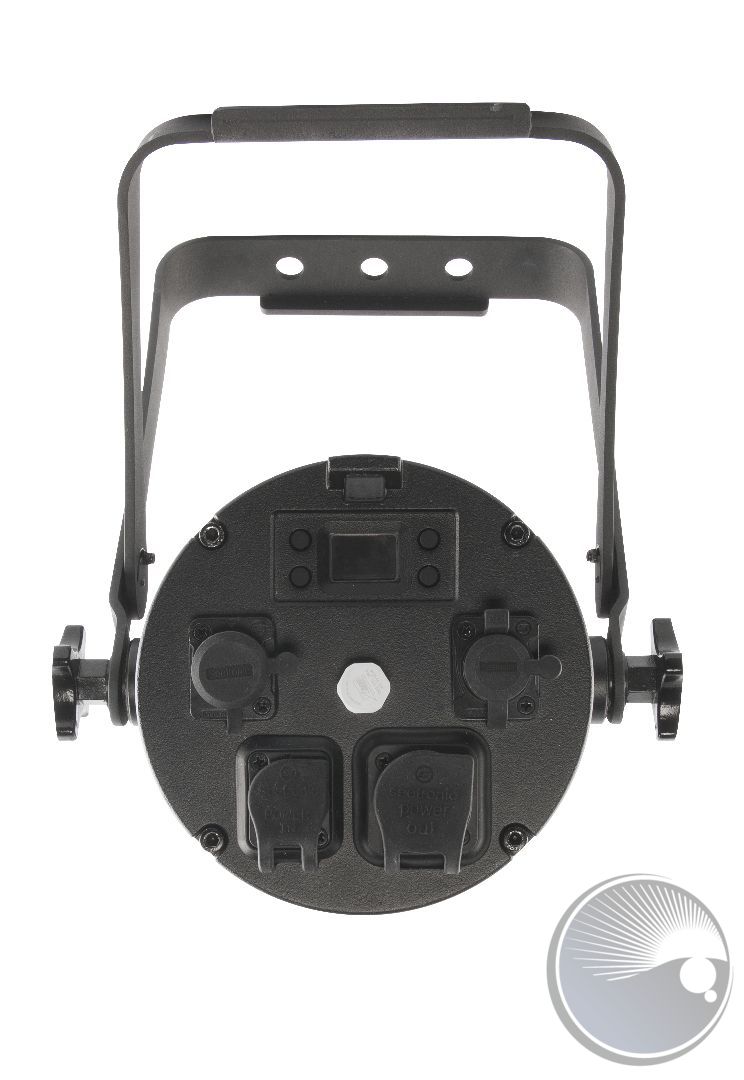

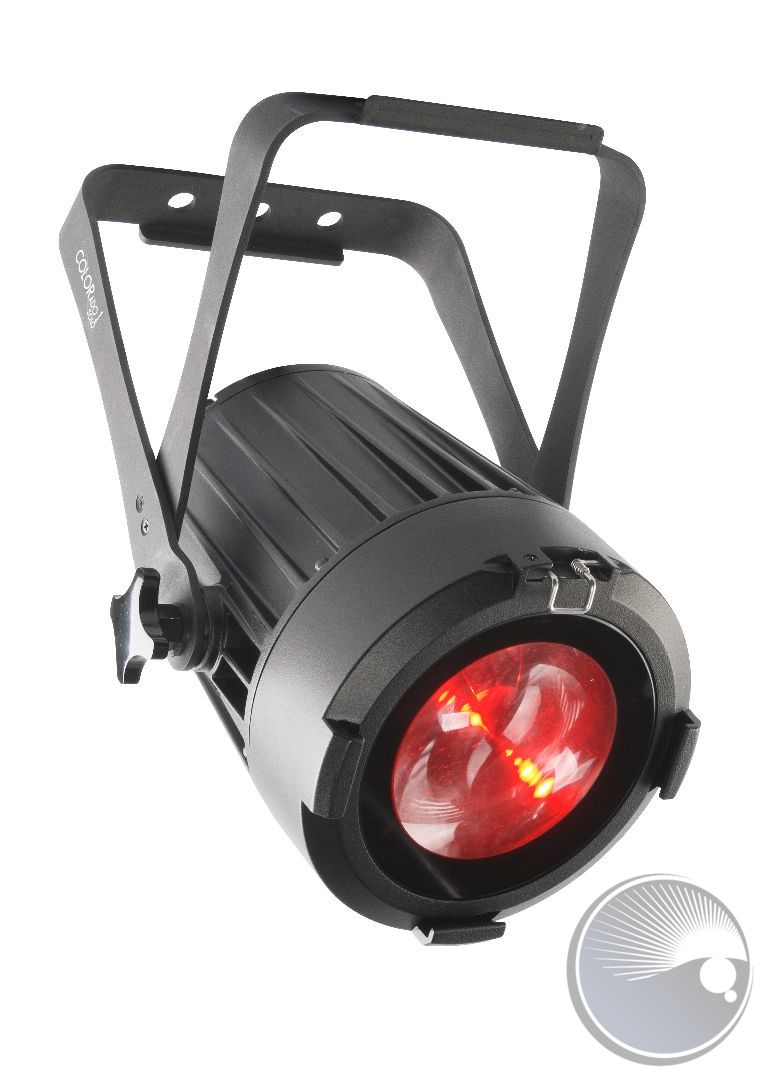

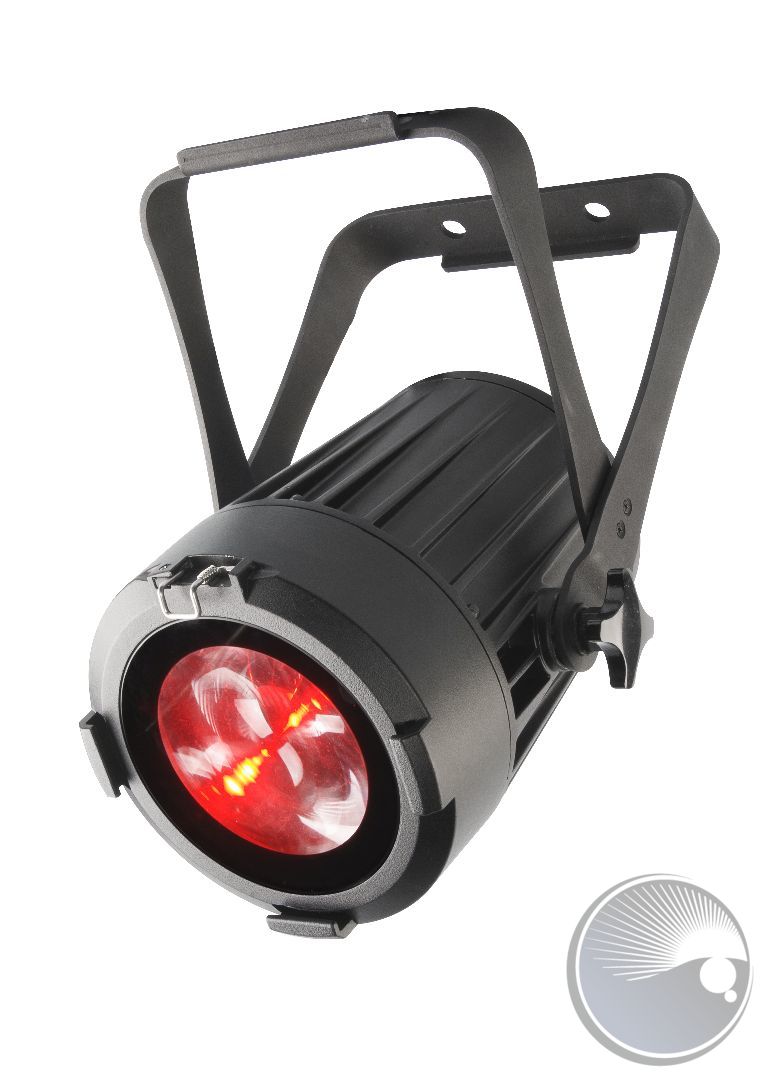

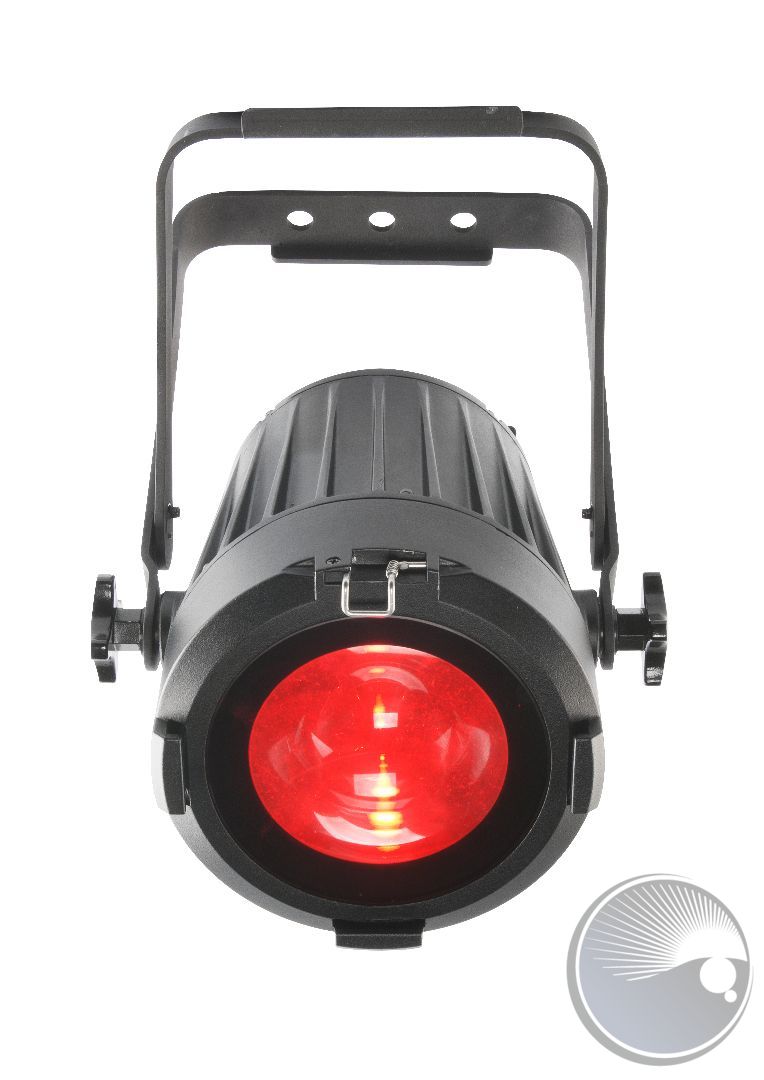

COLORado 1 Solo

COLORado 1 Solo builds on the pedigree of our Colorado line of fixtures with advanced optics and superb performance in any environment, from indoor stages to outdoor festivals. This powerful IP65 outdoor-rated RGBW LED wash projects an even, fully homogenized beam through fast and smooth zoom and precision optics. It utilizes IP rated power and data connectors as well as full convection cooling for a silent and reliable operation, indoors and outdoors.



AT A GLANCE

  • Zooming RGBW LED wash for touring, rental and production indoors or out

  • Completely homogenized wash with superior color mixing and zoom

  • 4° to 55° smooth and fast zoom

  • All environment operation with IP rated power and DMX connections

  • Color temperature presets, from 3,200 K to 10,000 K

  • Selectable, smooth dimming curves for programming versatility

  • OLED display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (quad-color RGBW) 60 W, (4 A), 50,000 hours life expectancy
  • Beam Angle: 4° to 40°
  • Field Angle: 8° to 55°
  • Zoom Range: 4° to 55°
  • Illuminance (4°): 5,370 lux @ 5 m
  • Illuminance (40°): 97 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 2,400 Hz, 6,000 Hz, 18,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 13.62 x 6.93 x 9.53 in (346 x 176 x 242 mm)
  • Weight: 11.8 lb (5.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR IP65
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 9, 12 or 17
  • Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
  • Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
  • Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
  • Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

WHAT'S INCLUDED

  • COLORado 1 SOLO
  • Seetronic Powerkon IP65 power cord

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado 1-SOLO"

DMX CONNECTOR(5PIN,MALE) (BOM#60)PTF1100000464DMX CONNECTOR(5PIN,MALE) (BOM#60)
DMX CONNECTOR(5PIN,FEMALE) (BOM#59)PTF1100000465DMX CONNECTOR(5PIN,FEMALE) (BOM#59)
IP POWER OUT SOCKET (BOM#13)PTF1100000468IP POWER OUT SOCKET (BOM#13)
power con SAC3MPX  (BOM#6)PTF1100000469power con SAC3MPX (BOM#6)

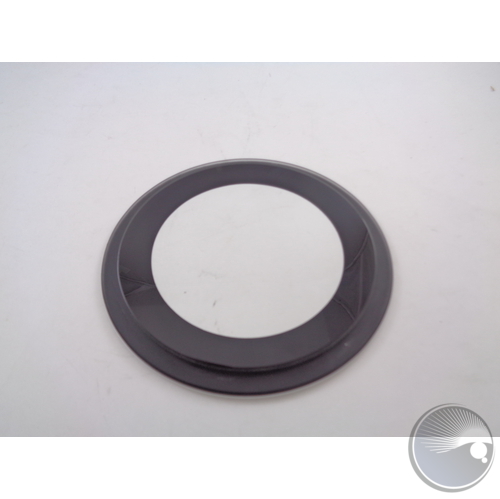

top glass SS349XCEM (BOM#4)PTF1120000169top glass SS349XCEM (BOM#4)

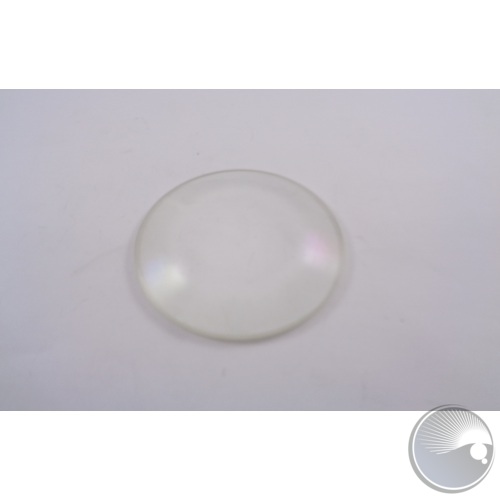

PTF1120200216protrude glass (BOM#8)

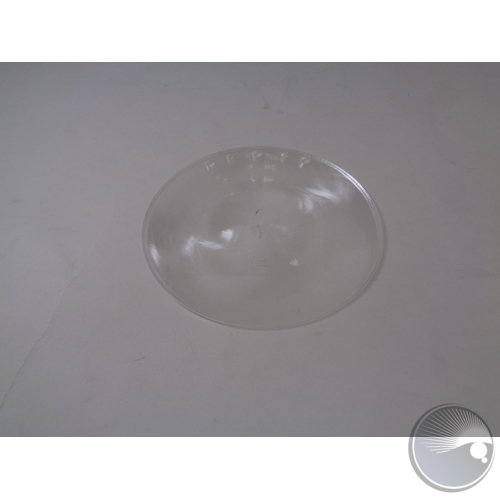

small glass (BOM#5)PTF1120200223small glass (BOM#5)

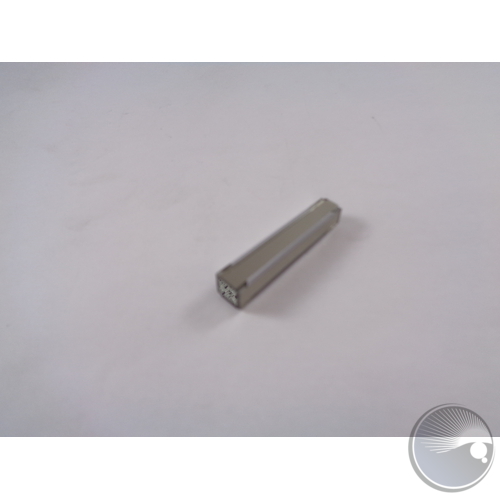

Light Tube/PIpe (Glass for BOM#10)PTF1120300130Light Tube/PIpe (Glass for BOM#10)

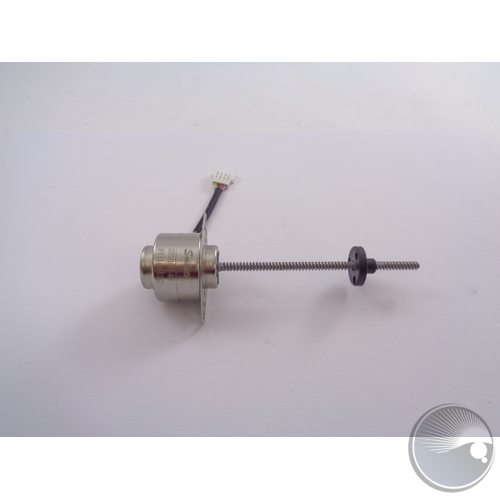

PM Linear Driver - Zoom Motor (BOM#30)PTF1150000187PM Linear Driver - Zoom Motor (BOM#30)

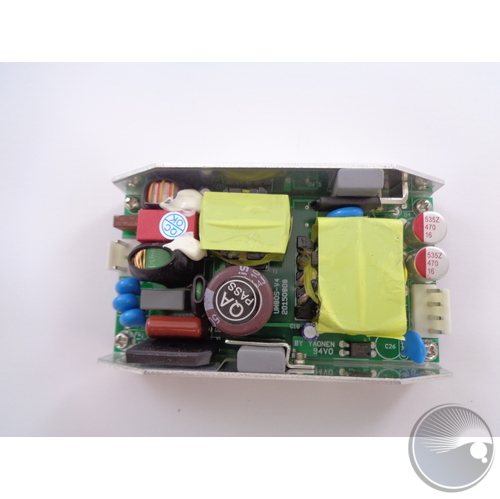

POWER SUPPLY +12V⎓6.0A (BOM#14)PTF1160000505POWER SUPPLY +12V⎓6.0A (BOM#14)

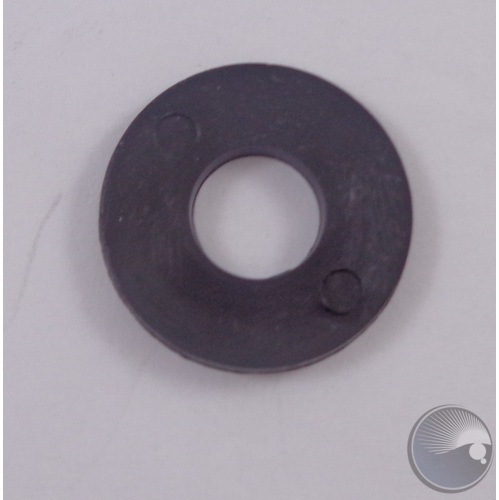

washer (BOM#22)PTF1180000079washer (BOM#22)

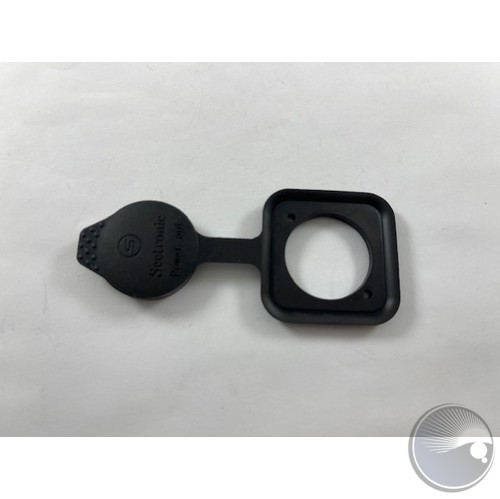

Rubber Cover for PTF1100000469 (Male Power-In)PTF1180000375Rubber Cover for PTF1100000469 (Male Power-In)

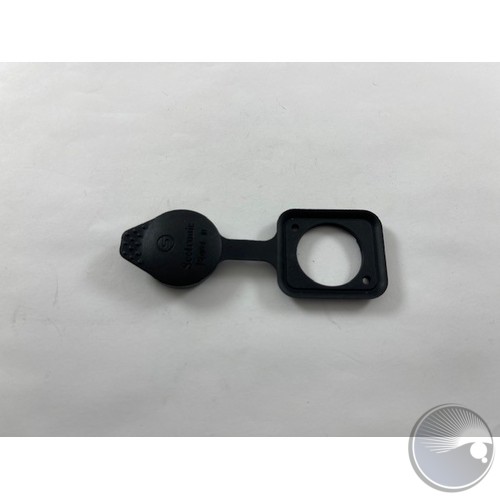

Rubber Cover for PTF1100000468 (Female Power-Out)PTF1180000376Rubber Cover for PTF1100000468 (Female Power-Out)

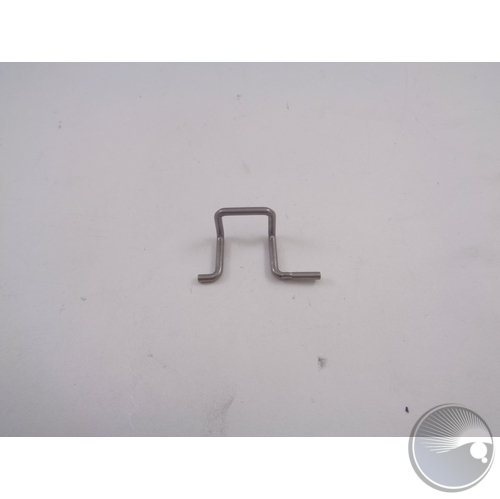

spring (BOM#1)PTF1340300254spring (BOM#1)

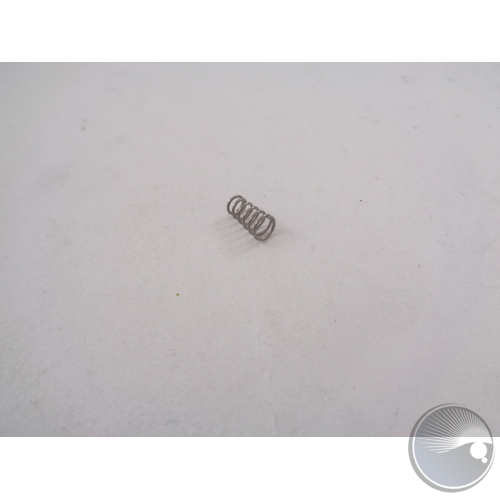

Conical Spring (BOM#3)PTF1340300255Conical Spring (BOM#3)

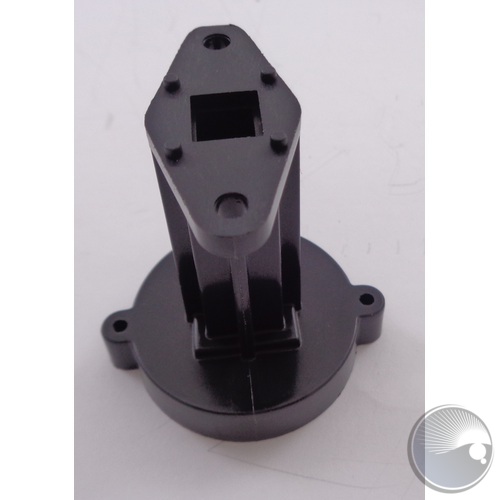

pole C (BOM#9)PTF1340602105pole C (BOM#9)

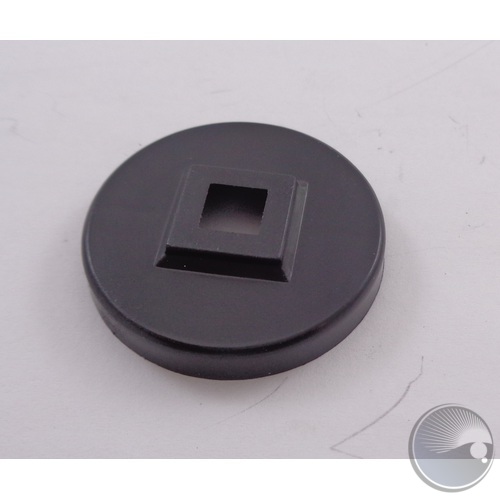

pole A (BOM#10)PTF1340602107pole A (BOM#10)

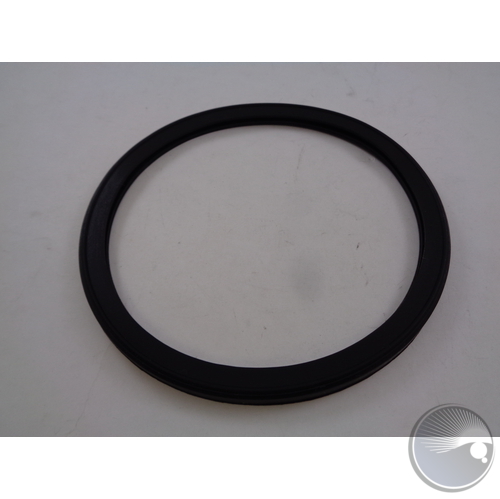

water profe seal for top glass (BOM#3)PTF1340602108water profe seal for top glass (BOM#3)

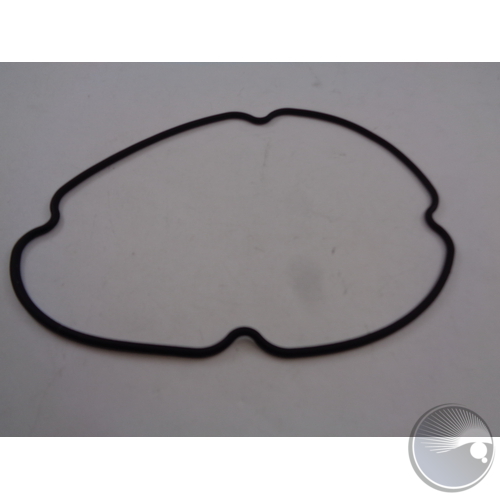

water proof seal for back cover (BOM#13)PTF1340602109water proof seal for back cover (BOM#13)

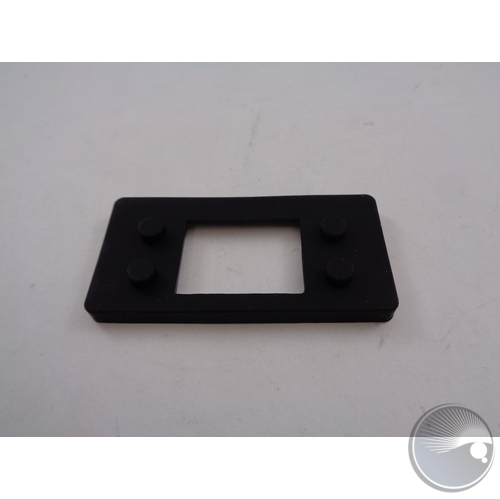

water profe seal for display (BOM#18)PTF1340602110water profe seal for display (BOM#18)
PTF1340602112display plate (BOM#17)
ZOOM ASSEMBLY (BOM#6,29)PTF1340802773ZOOM ASSEMBLY (BOM#6,29)
PTF1340802780zoom piece (BOM#6)
Countersunk cross screw (BOM#LensTube.1)PTF1490400012Countersunk cross screw (BOM#LensTube.1)

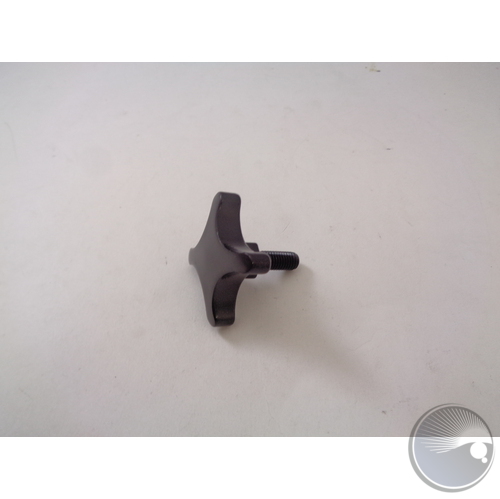

M8 screw (BOM#21)PTF1491300079M8 screw (BOM#21)

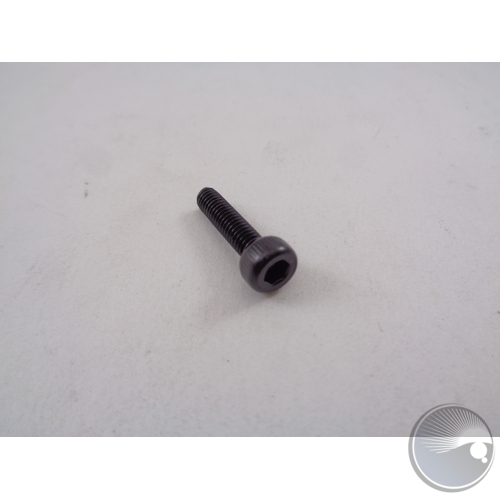

inner screw (BOM#25)PTF1491400080inner screw (BOM#25)
PRESSURE COMPENSATION VALVE (BOM#42)PTF1491700004PRESSURE COMPENSATION VALVE (BOM#42)
20° filter (BOM#7)PTF222000009620° filter (BOM#7)

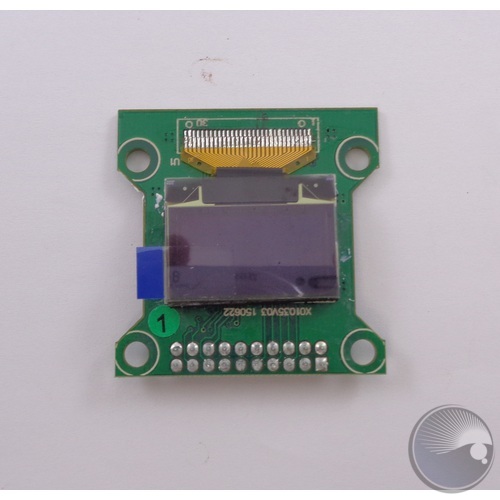

DISPLAY PCB (BOM#16)PTF2260002132DISPLAY PCB (BOM#16)

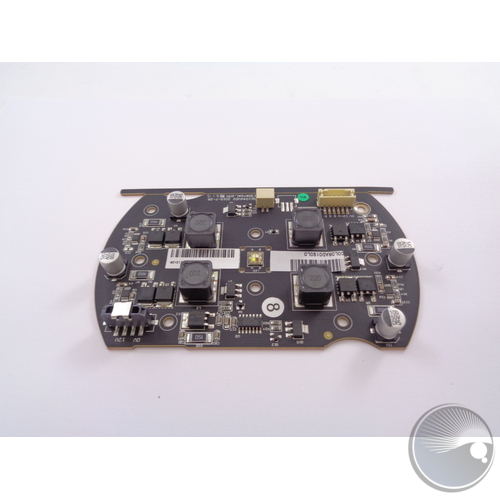

DRIVER/LED PCB (BOM#11)PTF2260002134DRIVER/LED PCB (BOM#11)

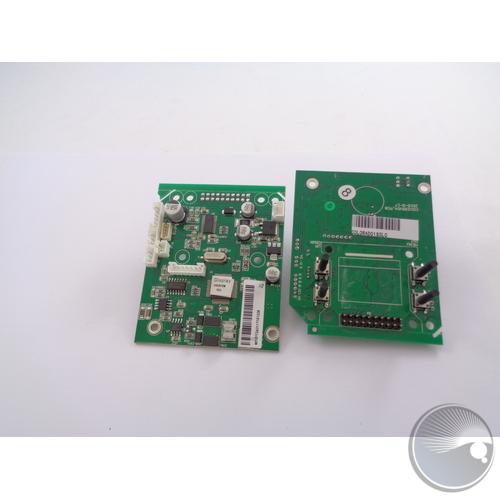

Control/MPCB (BOM#15)PTF2260002158Control/MPCB (BOM#15)

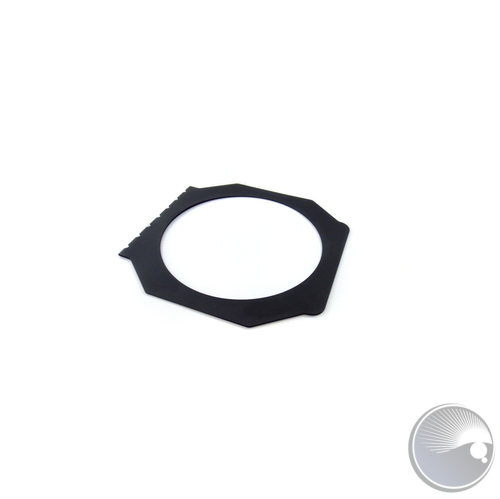

COLOR/GEL FRAME PTF2440102703COLOR/GEL FRAME

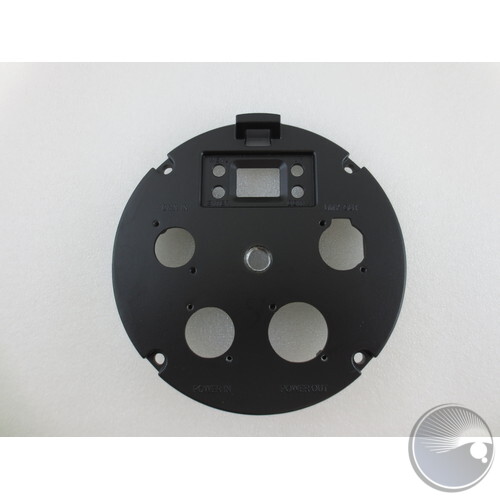

PTF2440103773back cover (BOM#19)

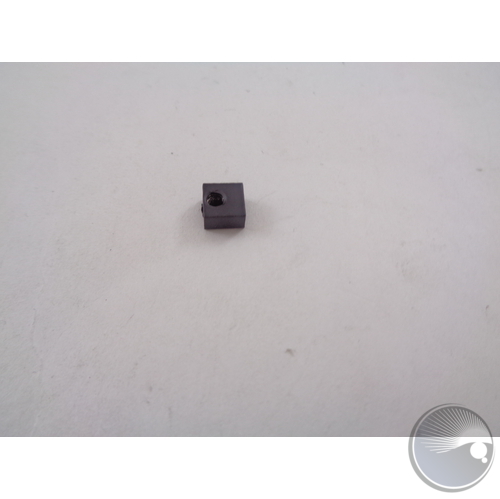

Spring fixed block (BOM#1)PTF2440103848Spring fixed block (BOM#1)

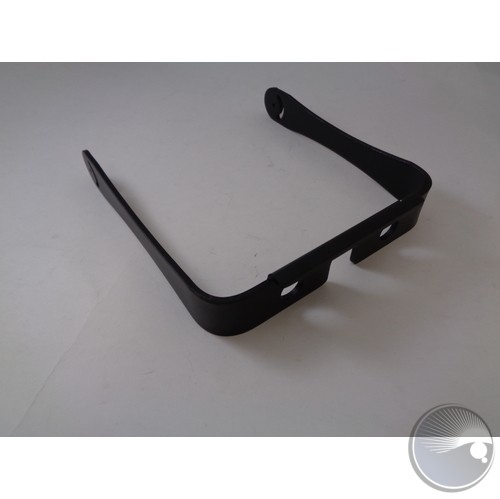

support hanging bracket (BOM#24)PTF2440103884support hanging bracket (BOM#24)
PTF2440103885main hanging bracket (BOM#23)

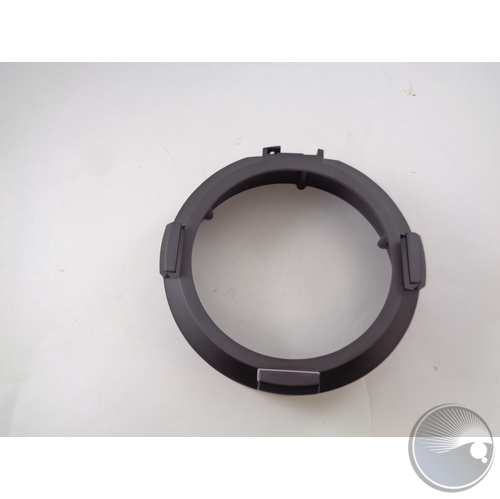

top cover SS349XCEM (BOM#2)PTF2440103894top cover SS349XCEM (BOM#2)
PTF2440103895body (BOM#12)

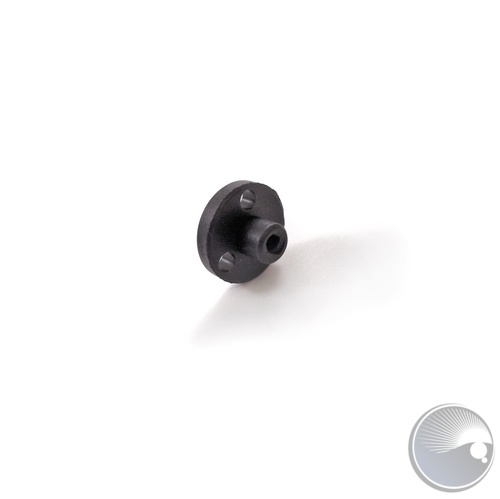

Anti-backlash Nut for Zoom MotorPTF4400023Anti-backlash Nut for Zoom Motor
UPLOAD01PTFUPLOAD01UPLOAD01
POWER CABLE (BOM#63)PTFX20147POWER CABLE (BOM#63)

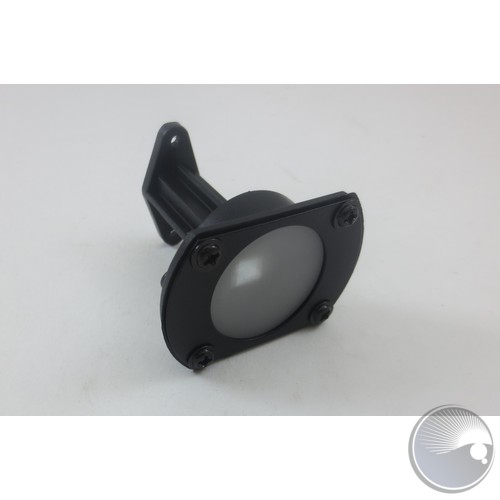

LED lens assemblyPTFX40513LED lens assembly
