COLORado 3-SOLO

Auf Anfrage!

  • COLORADO3SOLO
COLORado  3 Solo COLORado 3 Solo  uses an advanced fast and smooth zoom and... mehr
Produktinformationen "COLORado 3-SOLO"

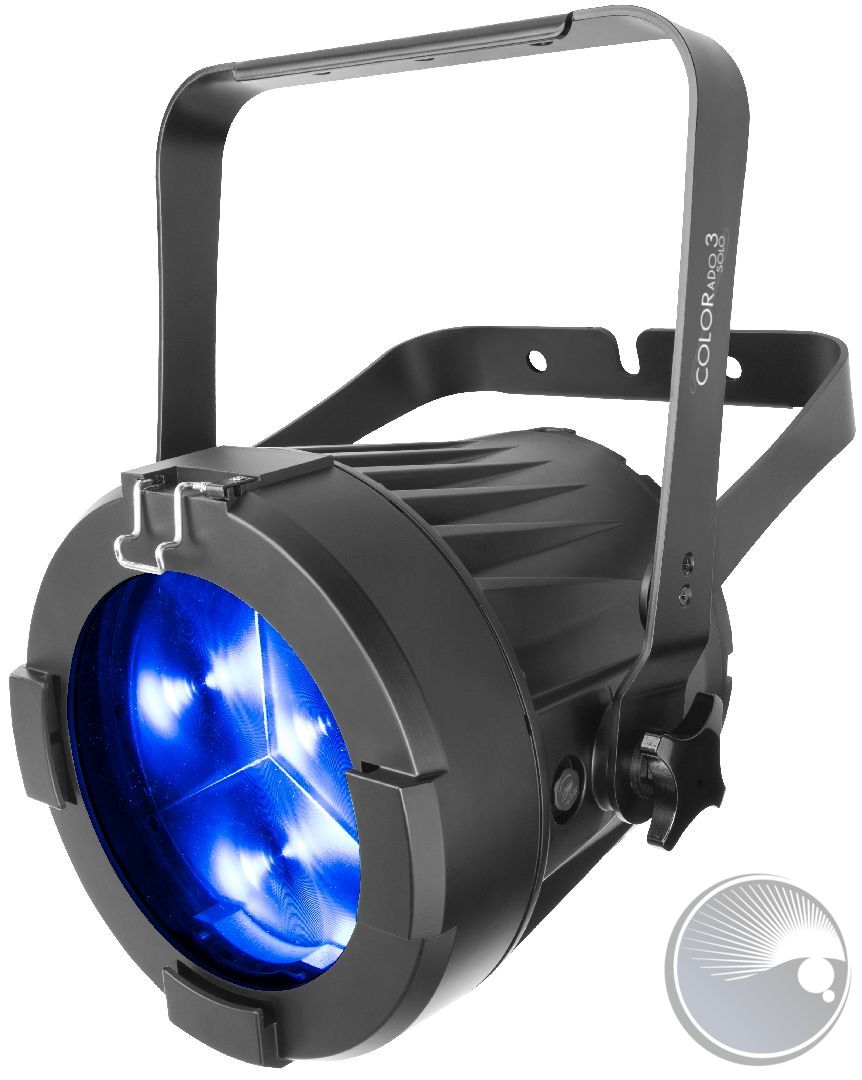

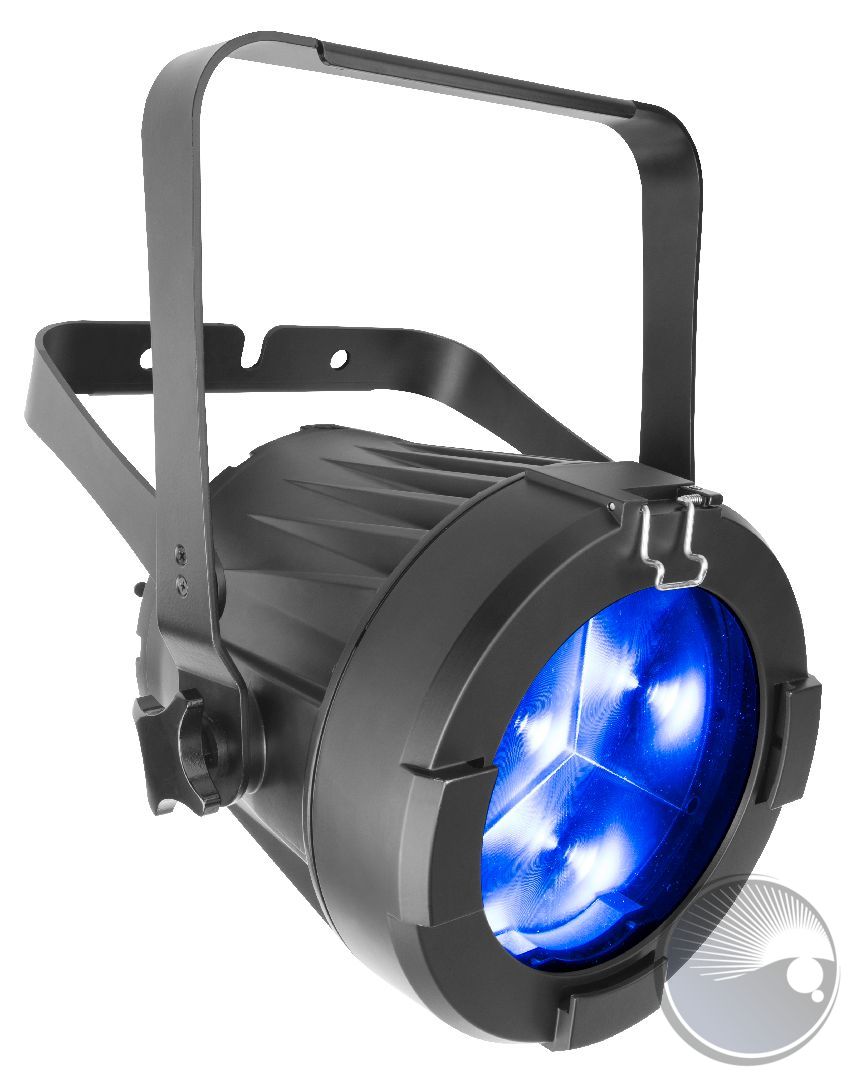

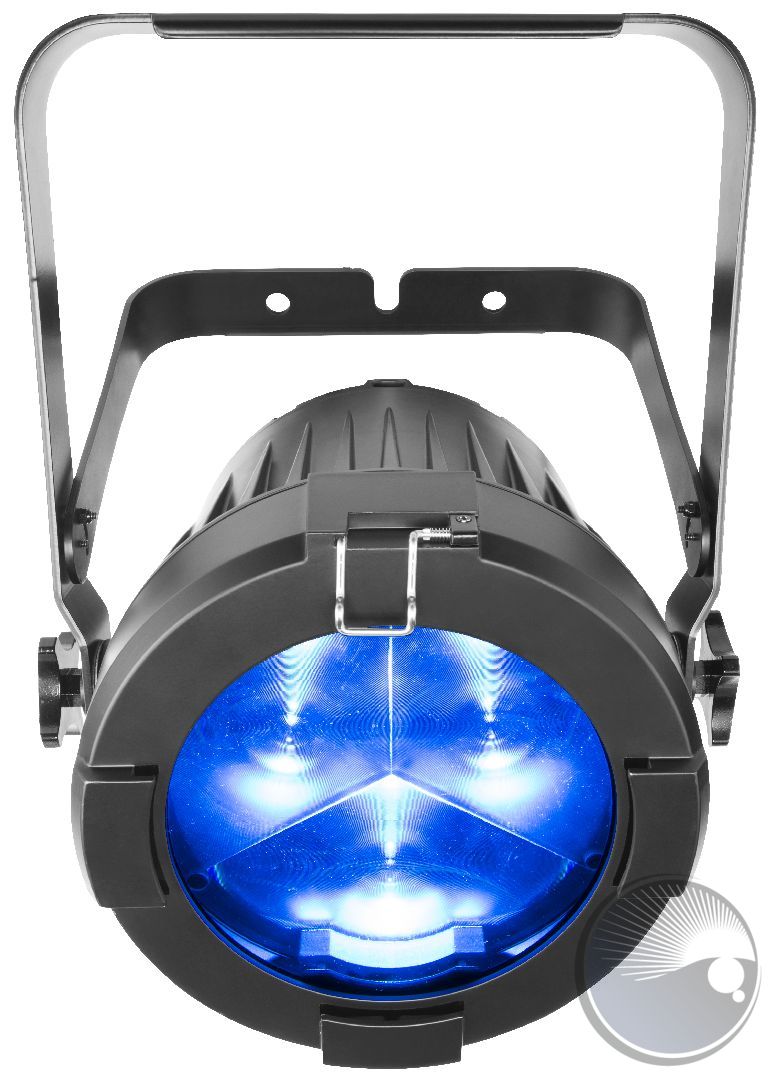

COLORado 3 Solo

COLORado 3 Solo uses an advanced fast and smooth zoom and three 60 W RGBW LEDs to project an intense and fully homogenized beam through precision optics. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.



AT A GLANCE

  • Zooming RGBW LED wash for touring, rental, and production, indoors or out

  • Completely homogenized wash with superior color mixing and zoom

  • 4° to 45° smooth and fast zoom

  • All environment operation with IP rated power and DMX connections

  • Color temperature presets, from 3200 K to 10000 K

  • Selectable, smooth dimming curves for programming versatility

  • OLED display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 3 LEDs (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
  • Beam Angle: 4° to 34°
  • Field Angle: 8° to 45°
  • Zoom Range: 4° to 45°
  • Illuminance (4°): 15,280 lux @ 5 m
  • Illuminance (34°): 313 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 9.84 x 12.36 x 16.25 in (250 x 314 x 413 mm)
  • Weight: 19.8 lb (9 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

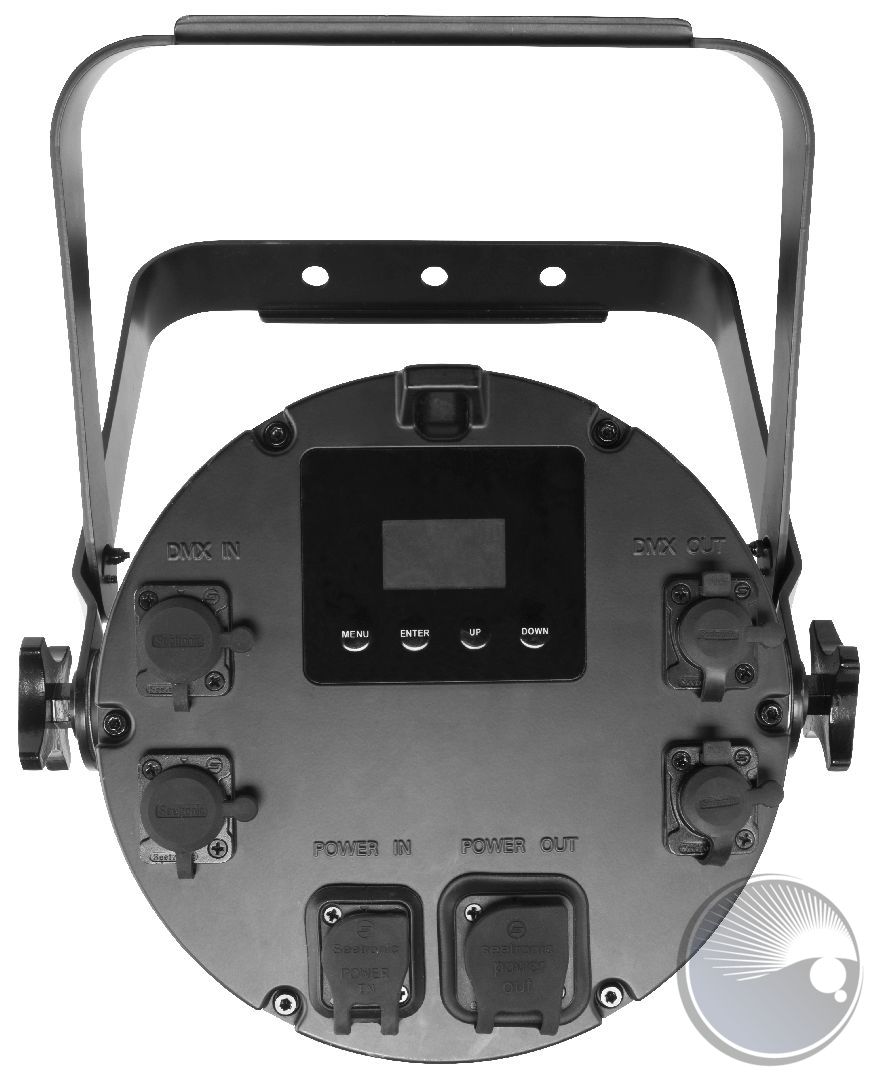

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 9, 12, or 17
  • Modes/Personalities: 4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
  • Power and Current: 187 W, 1.580 A @ 120 V, 60 Hz
  • Power and Current: 181 W, 0.909 A @ 208 V, 60 Hz
  • Power and Current: 175 W, 0.869 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado 3-SOLO"

PTF0807002900Thermal protector (BOM#17)
NTC temperature sensors (BOM#57)PTF1060000106NTC temperature sensors (BOM#57)
3 pin XLR IP connecter(M) (BOM#38)PTF11000004603 pin XLR IP connecter(M) (BOM#38)
IP SOCKET(3PIN FEMALE) (BOM#30)PTF1100000461IP SOCKET(3PIN FEMALE) (BOM#30)
5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)

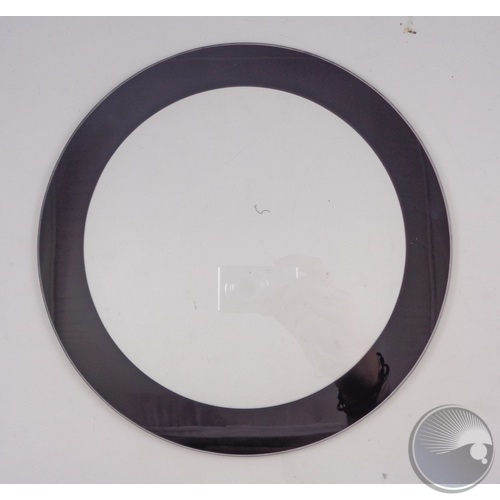

Transmitting Lens (BOM#5)PTF1120000177Transmitting Lens (BOM#5)
30°Mirror (BOM#19)PTF112020021630°Mirror (BOM#19)

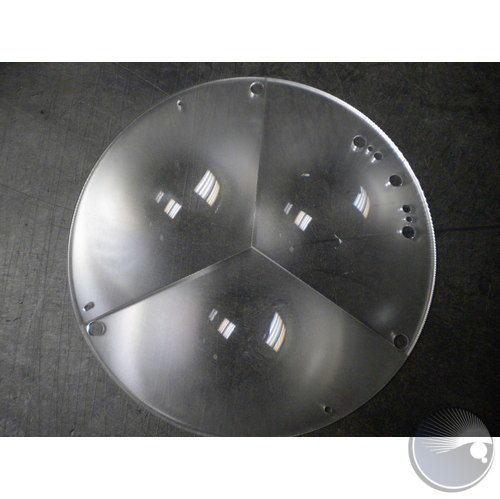

3 in 1 Thread mirror (BOM#8)PTF11202002353 in 1 Thread mirror (BOM#8)
Light Tube (BOM#59)PTF1120300130Light Tube (BOM#59)

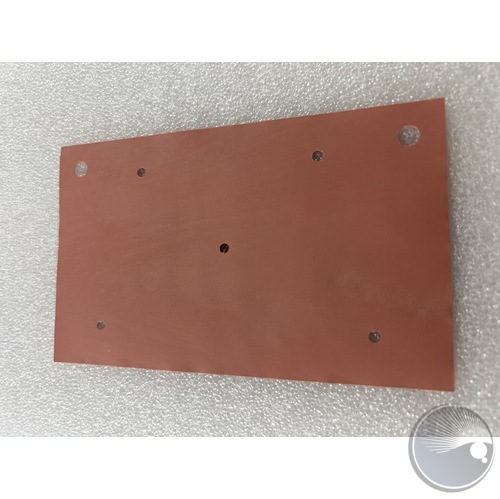

PTF1140000245isolation sheet (BOM#28)
PM Linear Driver - Zoom Motor(outside drive type) (BOM#14)PTF1150000187PM Linear Driver - Zoom Motor(outside drive type) (BOM#14)
battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)PTF1160000482battery - lithium 2000mAh 3.7V 7.4wh (BOM#44)

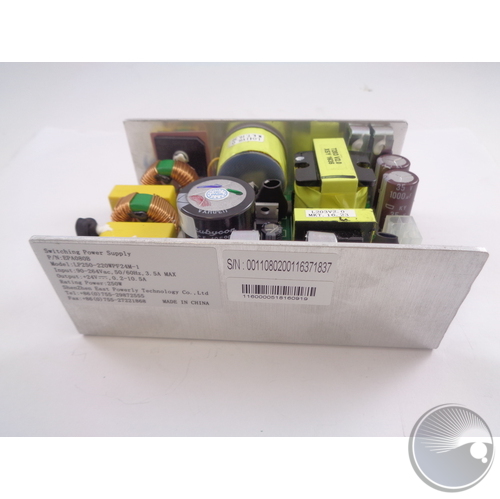

SWITCHING POWER SUPPLY +24V⎓0.2-10.5A (BOM#32)PTF1160000518SWITCHING POWER SUPPLY +24V⎓0.2-10.5A (BOM#32)
PTF1180000006Micelle (BOM#15)
RUBBER COVER Power socket cover (out) (BOM#27)PTF1180000375RUBBER COVER Power socket cover (out) (BOM#27)
RUBBER COVER Power socket cover (in) (BOM#29)PTF1180000376RUBBER COVER Power socket cover (in) (BOM#29)
PTF1180000386Spongy Cushion (BOM#58)
PTF1180000392EVA mat (BOM#33)
PTF1340100036fixing bracket (BOM#11)

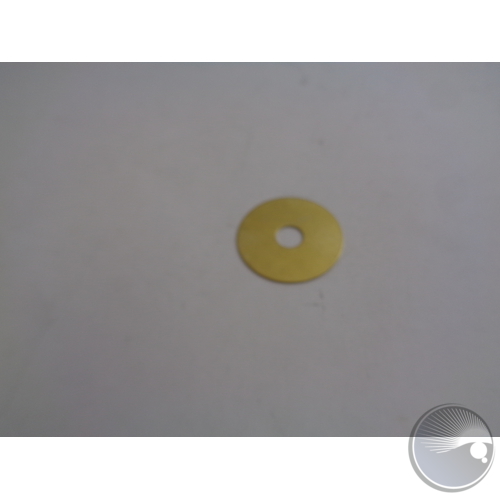

hanger gasket (BOM#45)PTF1340111585hanger gasket (BOM#45)

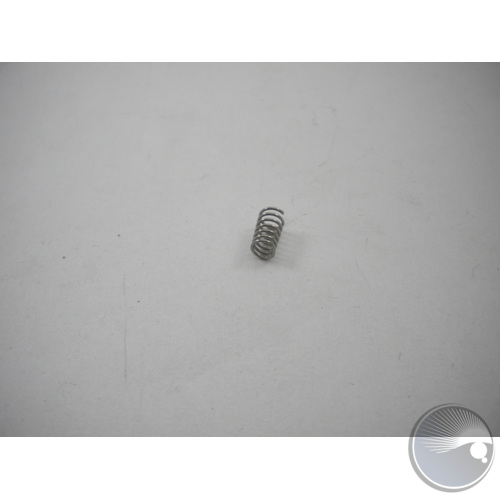

Conical Spring (BOM#4)PTF1340300258Conical Spring (BOM#4)

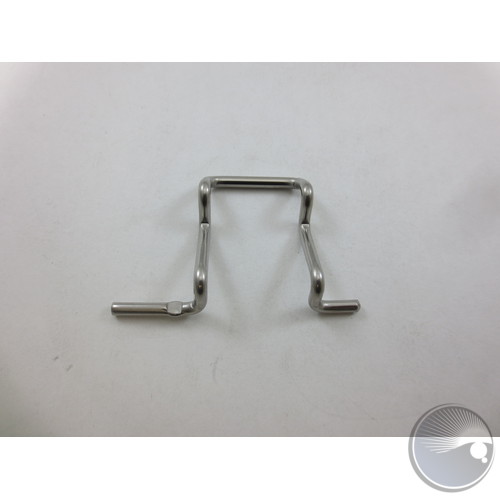

Snap Spring (BOM#2)PTF1340300260Snap Spring (BOM#2)
Zoom Assembly (BOM#7,9,11,12,13)PTF1340500873Zoom Assembly (BOM#7,9,11,12,13)
PTF1340601967battery holder (BOM#45)
Nylon gasket (BOM#46)PTF1340601997Nylon gasket (BOM#46)

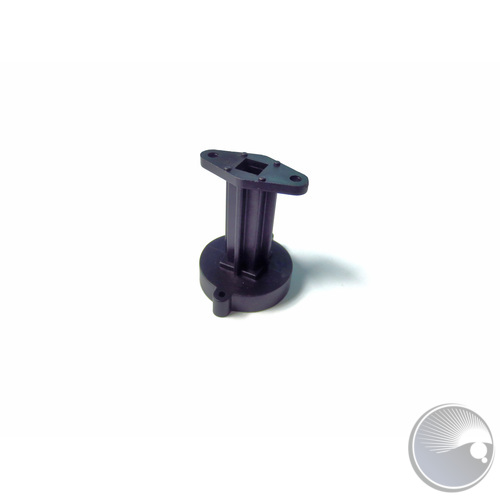

Pole-A (BOM#21)PTF1340602163Pole-A (BOM#21)

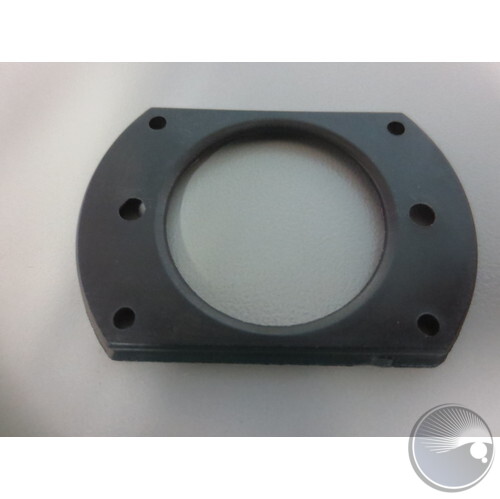

Pole-B (BOM#18)PTF1340602164Pole-B (BOM#18)

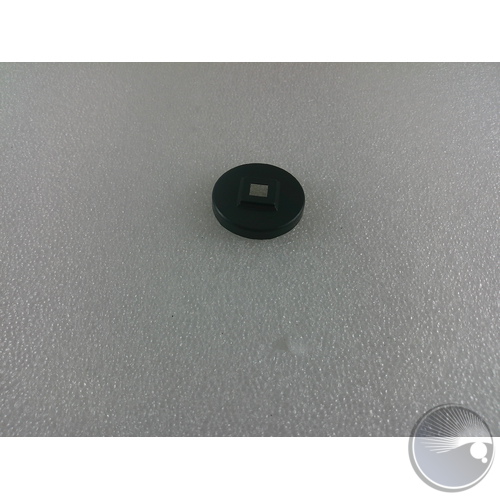

PTF1340602165Pole-C (BOM#20)

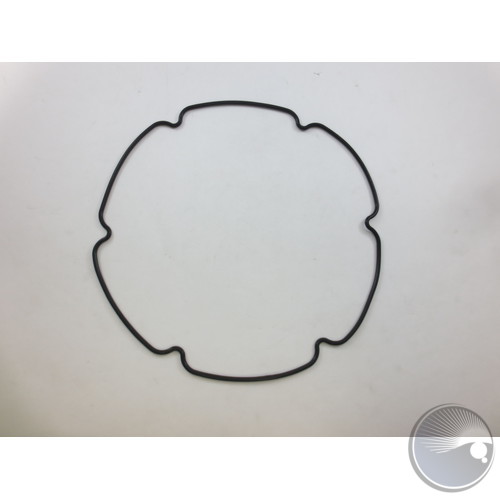

holder waterproof lap (BOM#30)PTF1340602203holder waterproof lap (BOM#30)
Membrane Keypad (BOM#53)PTF1340602204Membrane Keypad (BOM#53)

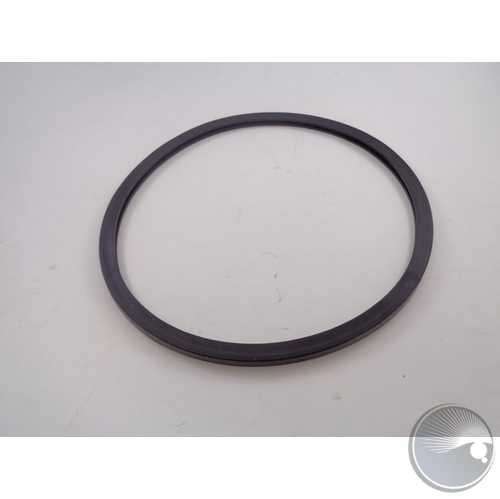

Glass Waterproof Circle (BOM#6)PTF1340602205Glass Waterproof Circle (BOM#6)

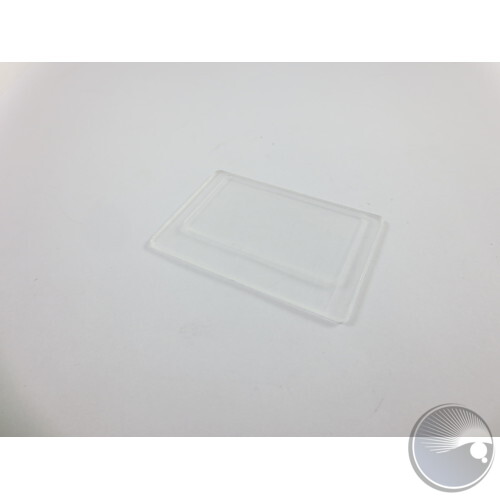

PTF1340602222Display lens (BOM#54)
PTF1340802715Display screen holder (BOM#41)
PTF1340802839Focus Slider (BOM#11)
PTF1340802840Focus Slider (BOM#9)
Pole (BOM#13)PTF1340802852Pole (BOM#13)
black betal thin mat (BOM#64)PTF1490500045black betal thin mat (BOM#64)
PTF1491000190Hexagon copper cylinder (BOM#37)
handing screw (BOM#43)PTF1491300093handing screw (BOM#43)
Screw for Front HousingPTF1491400080Screw for Front Housing
Pressure valve (BOM#18)PTF1491700004Pressure valve (BOM#18)
20°Frosted Flake (BOM#17)PTF222000009620°Frosted Flake (BOM#17)

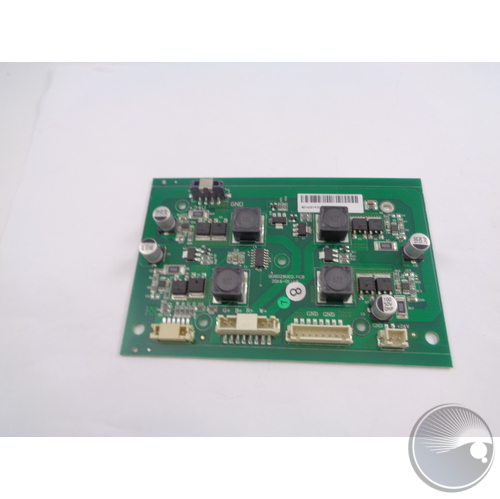

drive board (BOM#26)PTF2260002218drive board (BOM#26)

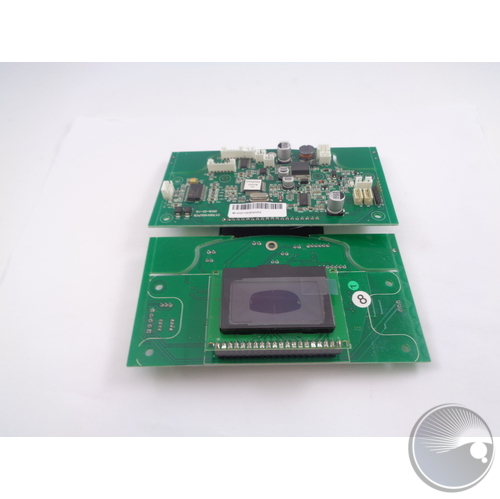

Display Board (BOM#56)PTF2260002219Display Board (BOM#56)

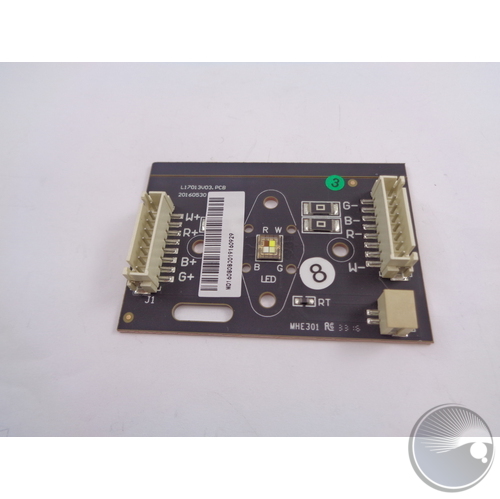

LED Board (BOM#22) showing two connectorsPTF2260002220LED Board (BOM#22) showing two connectors

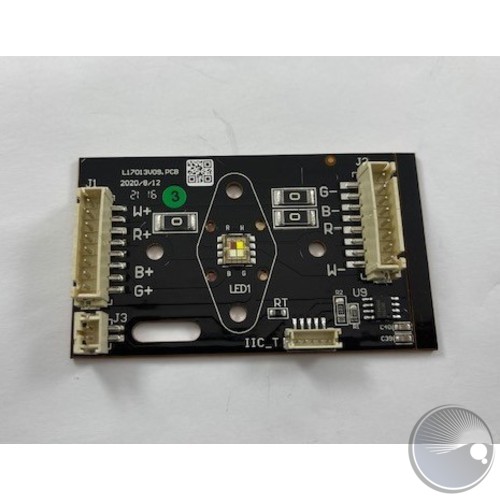

LED Board w/ four connectors (BOM#22)PTF2260002561LED Board w/ four connectors (BOM#22)
gaskets-P (BOM#P2.59)PTF2440100882gaskets-P (BOM#P2.59)

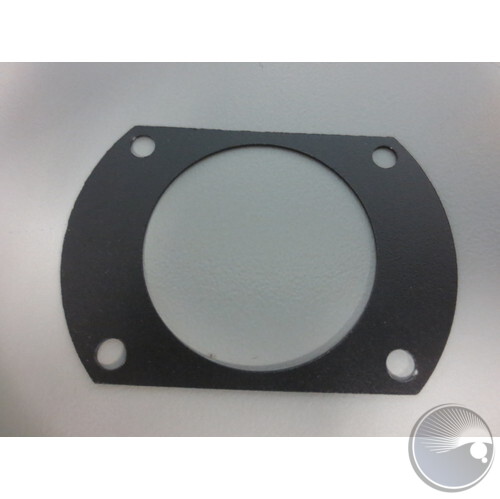

Frosted Flake Fixed Plate (BOM#16)PTF2440103769Frosted Flake Fixed Plate (BOM#16)
PTF2440103952Pole with Fixed Plate (BOM#7)
PTF2440104072Housing (BOM#24)

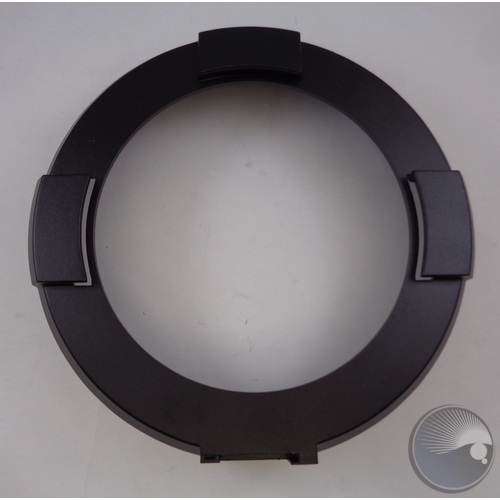

Top Cover (BOM#1)PTF2440104073Top Cover (BOM#1)

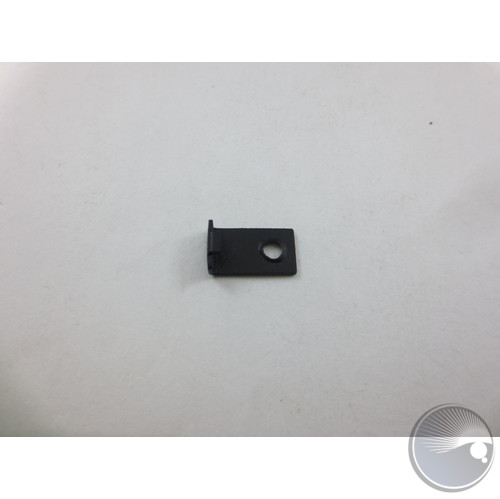

Spring Clamp (BOM#3)PTF2440104075Spring Clamp (BOM#3)
PTF2440104076battery support plate (BOM#36)

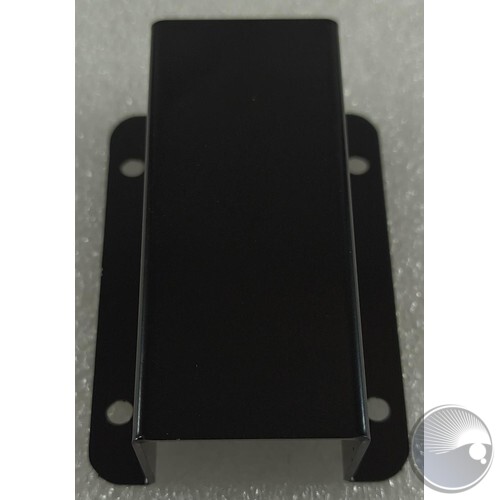

PTF2440104077battery lock plate (BOM#31)

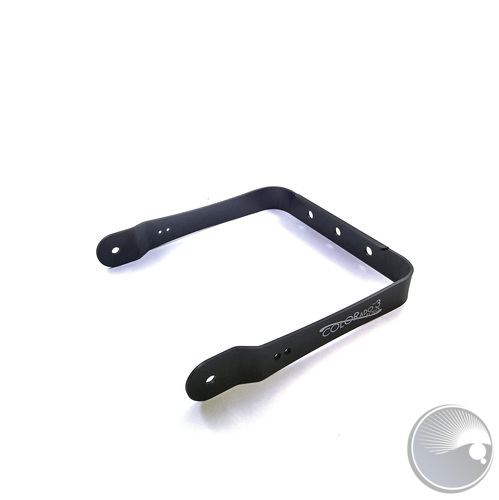

Hanger1-P (BOM#47)PTF2440104078Hanger1-P (BOM#47)

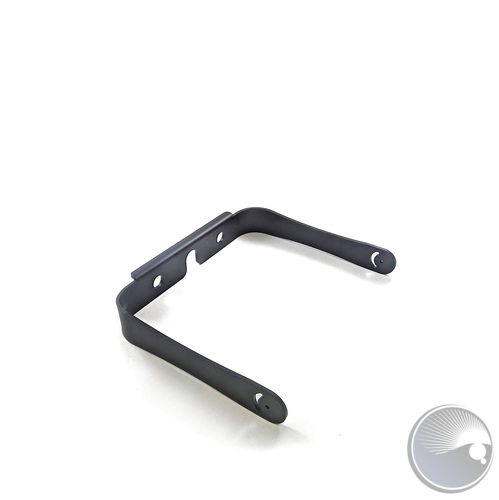

Hanger2-P (BOM#48)PTF2440104079Hanger2-P (BOM#48)
Focusing Base (BOM#12)PTF2440104087Focusing Base (BOM#12)
PTF2440104120Base cover (BOM#42)

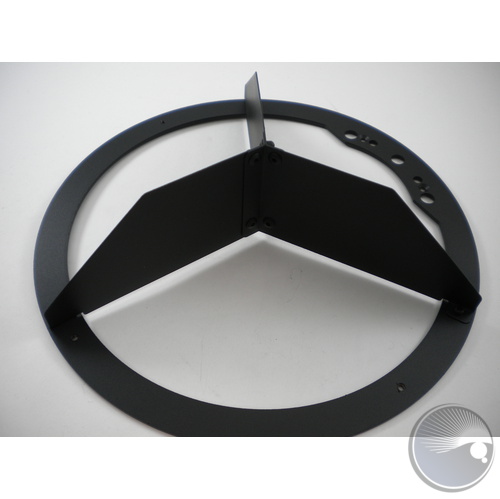

Lens barndoor (BOM#10)PTF2440500214Lens barndoor (BOM#10)
Anti-backlash Nut for Zoom MotorPTF4400023Anti-backlash Nut for Zoom Motor
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
Gel FramePTFX40270Gel Frame
LED lens assemblyPTFX40513LED lens assembly
