COLORdash Par Quad 7

Auf Anfrage!

  • COLORDASHPARQUAD7
COLORdash  Par-Quad 7 COLORdash Par-Quad 7   is an ultra compact and durable... mehr
Produktinformationen "COLORdash Par Quad 7"

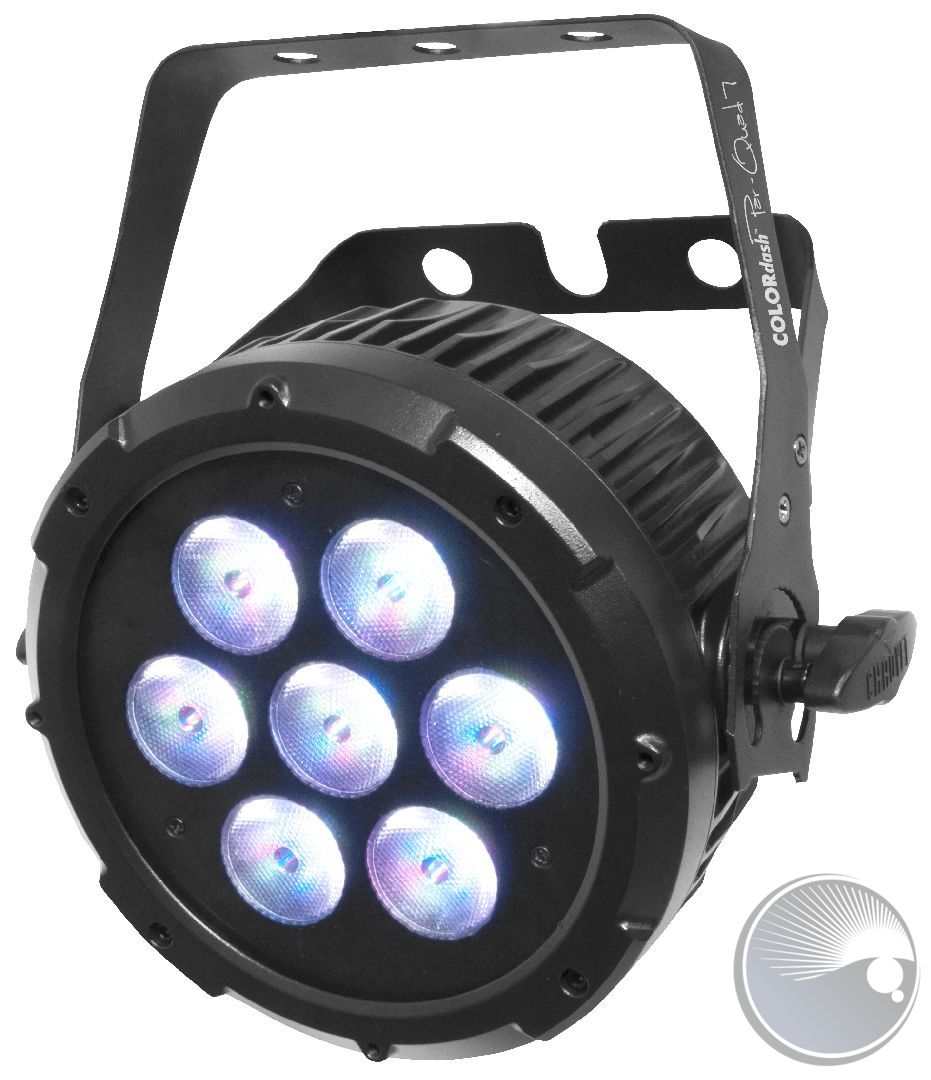

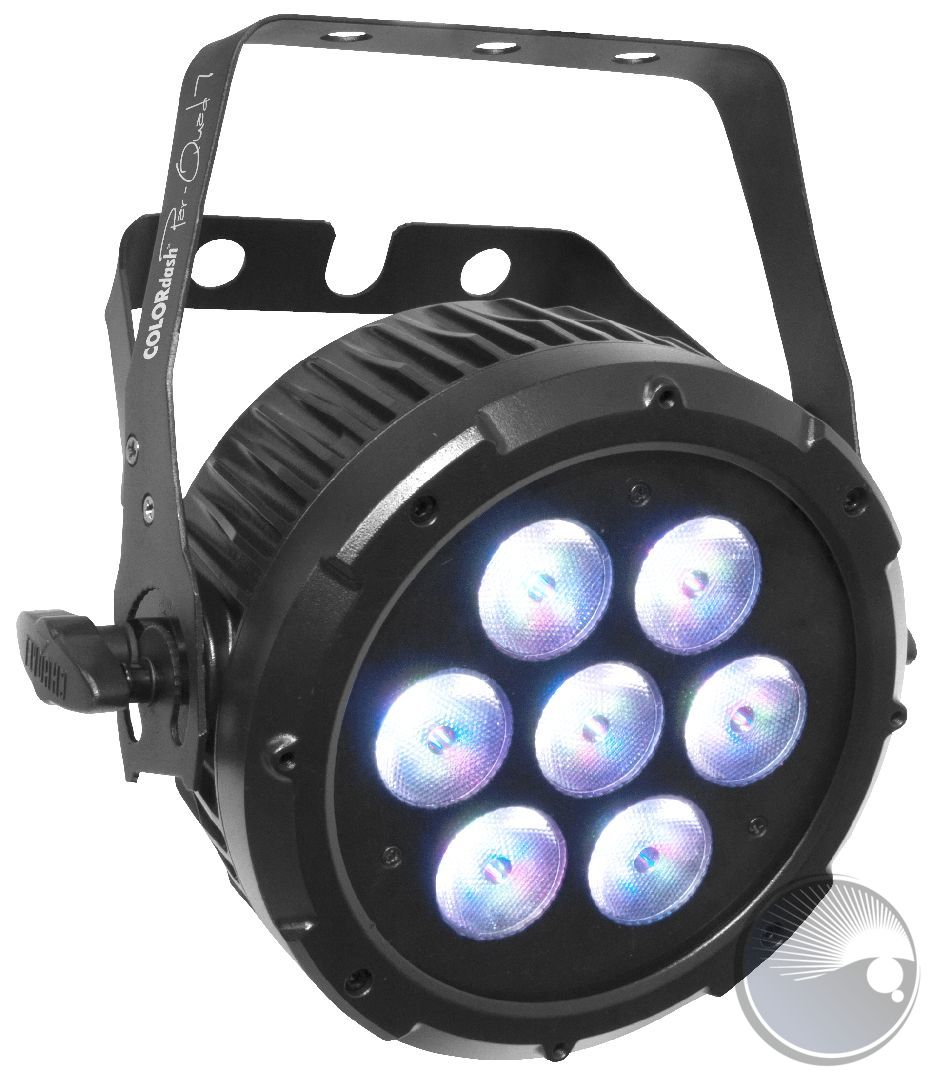

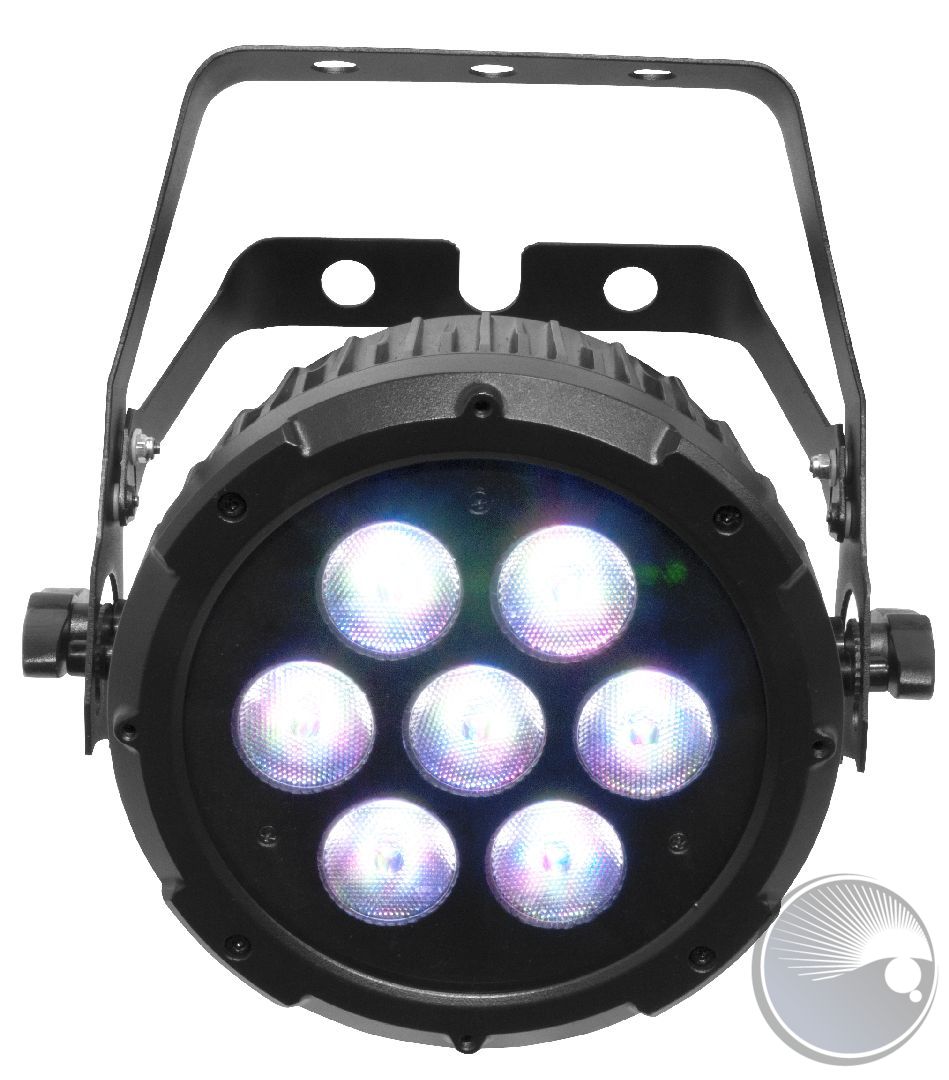

COLORdash Par-Quad 7

COLORdash Par-Quad 7 is an ultra compact and durable wash light that fits in places where other fixtures cannot. Seven quadcolored RGBA LEDs project deeply saturated colors and variations of white at a variety of preset Color Temperatures and without multi-colored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors ease connections and setup. COLORdash Par-Quad 7 also includes a gel frame holder and gel frame.

AT A GLANCE

  • 4, 6 or 10 DMX channels

  • Silent flicker-free operation

  • Lightweight, easy to install

  • Metal construction for added durability

SPECIFICATIONS

OPTICAL

  • Light Source: 7 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Installed Optics: 20°
  • Beam Angle: 18°
  • Field Angle: 32.5°
  • Illuminance: 434 lux @ 5 m
  • PWM Frequency: 600 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 9.59 x 4 x 9.93 in (243 x 101 x 252 mm)
  • Weight: 5.4 lb (2.5 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in/191 mm accessories

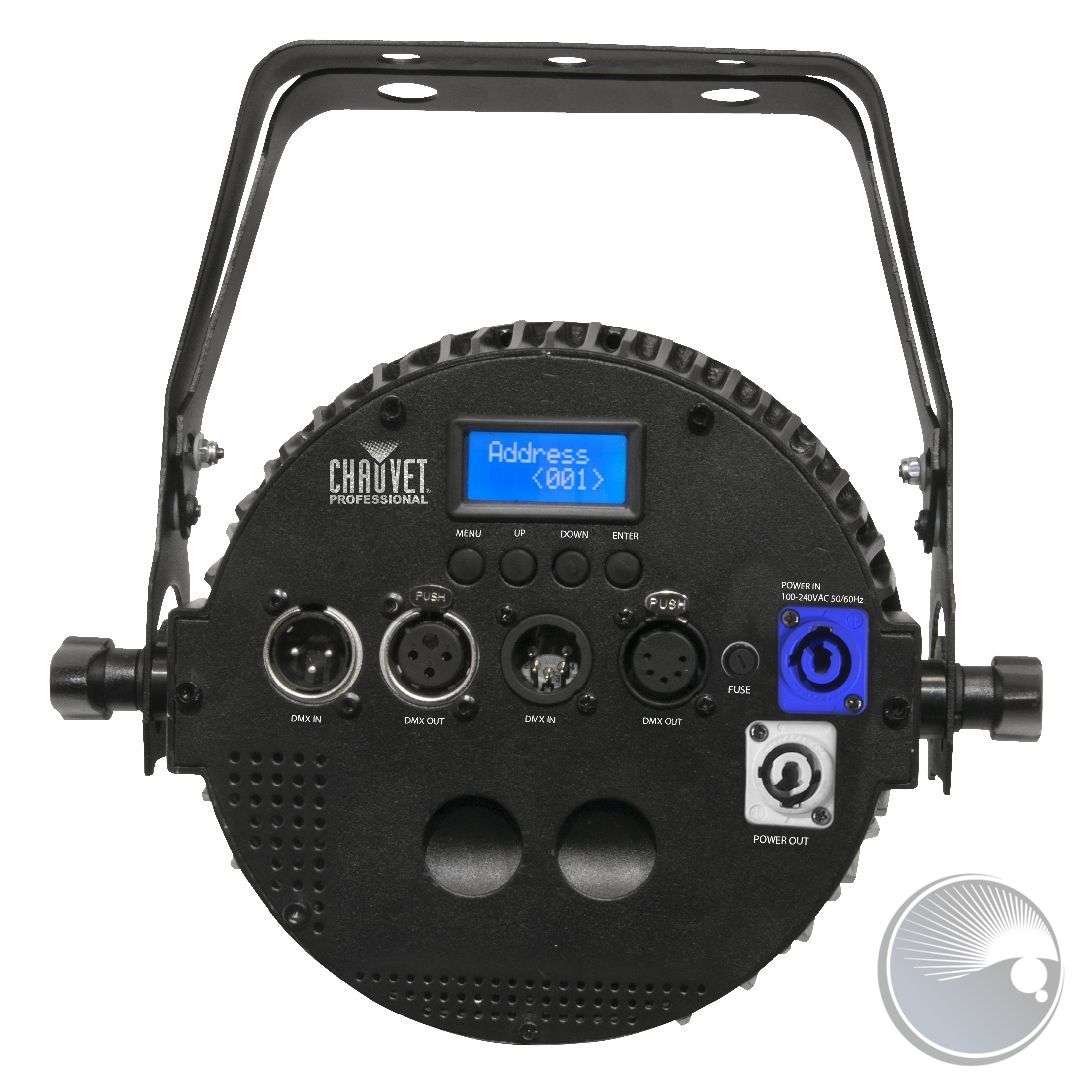

CONNECTIONS

  • Power Connection: Local plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 4, 6 or 10
  • Modes/Personalities: 3 personalities (4, 6, 10)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 21 units @ 120 V; 36 units @ 208 V; 39 units @ 230 V
  • Power and Current: 73 W, 0.60 A @ 120 V, 60 Hz
  • Power and Current: 73 W, 0.36 A @ 208 V, 50 Hz
  • Power and Current: 74 W, 0.35 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES



Weiterführende Links zu "COLORdash Par Quad 7"

PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
Hexagon nynon nut M4 7x5mm Fe (T-Bar)PTF1491100043Hexagon nynon nut M4 7x5mm Fe (T-Bar)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
METAL DMX XLR SOCKET 3-PIN - INPUT/OUTPUT (BOM#26)PTJ2010040000METAL DMX XLR SOCKET 3-PIN - INPUT/OUTPUT (BOM#26)

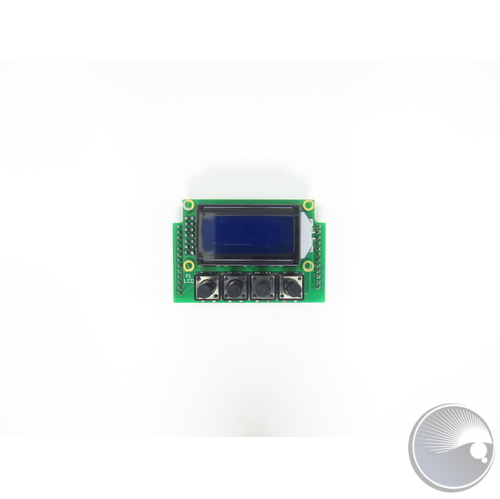

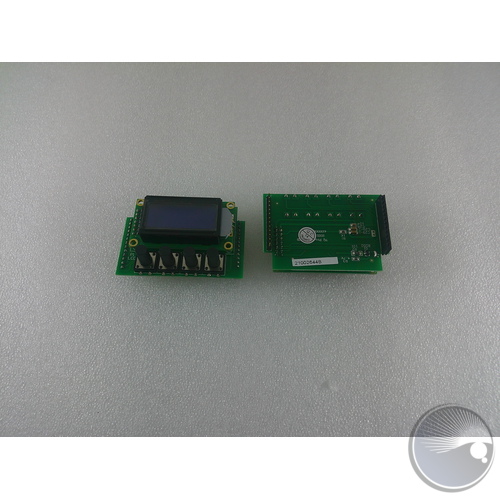

DISPLAY PCB (BOM#27)PTJ2010119000DISPLAY PCB (BOM#27)

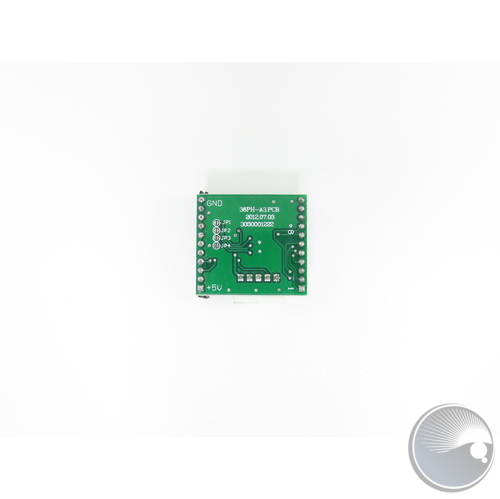

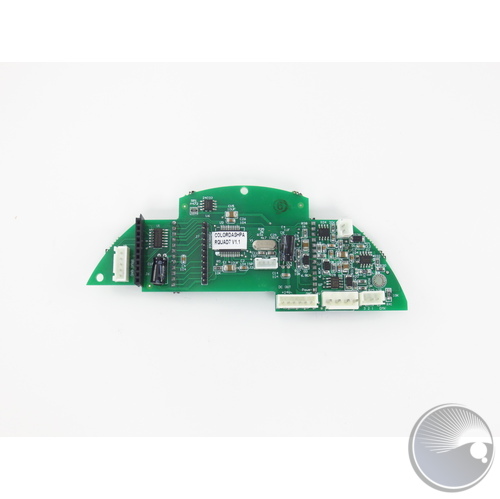

DRIVER ON MASTER BOARD (BOM#28)PTJ2010120000DRIVER ON MASTER BOARD (BOM#28)
LED PCB (BOM#8)PTJ2010142000LED PCB (BOM#8)
PTJ2020201645MPCB (BOM#10)
METAL-RING (BOM#21)PTJ3001001039METAL-RING (BOM#21)
METAL-RING (BOM#22)PTJ3001001040METAL-RING (BOM#22)
STANDOFF (BOM#6)PTJ3001001090STANDOFF (BOM#6)
LENS (BOM#5)PTJ3002003024LENS (BOM#5)
PTJ3003003029DISPLAY LENS (BOM#13)

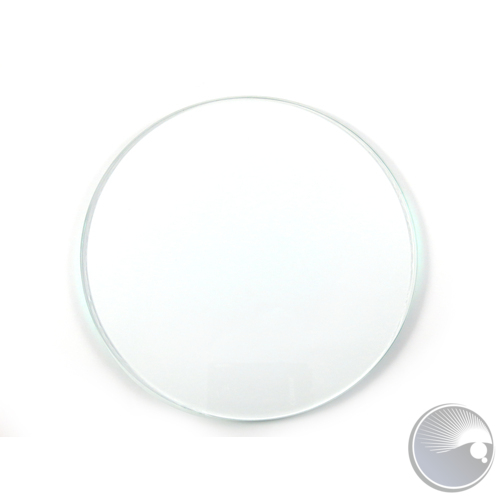

FRONT GLASS (BOM#2)PTJ3003004018FRONT GLASS (BOM#2)
POWER SUPPLY 24VDC 2.5A (BOM#20)PTJ3013001005POWER SUPPLY 24VDC 2.5A (BOM#20)
PTJ3019001043BUTTON COVER (BOM#28)
LENS HOLDER (BOM#7)PTJ3019001102LENS HOLDER (BOM#7)
PTJ3019001103DISPLAY COVER (BOM#14)
PTJ3020016005CM SCREW6*25 (BOM#24)

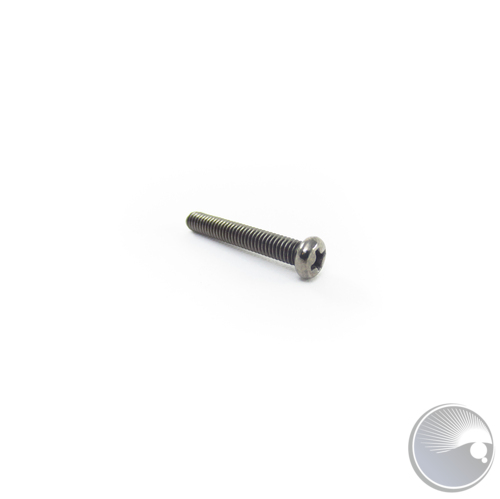

FRONT COVER SCREWPTJ3020016013FRONT COVER SCREW
PTJ3021700204KM 4*12 SCREW - For Hanging bracket
KM 4*8 SCREW - For Hanging bracketPTJ3021700208KM 4*8 SCREW - For Hanging bracket
CM SCREW - For Hanging BracketPTJ3021700289CM SCREW - For Hanging Bracket
PTJ3021700444PLASTIC RING - For Hanging BRacket
PLASTIC RING - For Hanging BracketPTJ3021700505PLASTIC RING - For Hanging Bracket
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3027002001Socket(DCZ-04) 15A 125V 24x21 (BOM#11)
PTJ3027002015POWER IN SOCKET (BOM#20)
METAL-RING-1 - For Hanging BracketPTJ3030500006METAL-RING-1 - For Hanging Bracket
METAL-RING-2 - For Hanging bracketPTJ3030500008METAL-RING-2 - For Hanging bracket
PTJ30404006855-PIN WIRE HARNESS FOR LED
FRONT GLASS PRESSURE PLATE (BOM#3)PTJ40109901000400FRONT GLASS PRESSURE PLATE (BOM#3)
HANGING BRACKET KNOB (BOM#24)PTJ5011120010HANGING BRACKET KNOB (BOM#24)

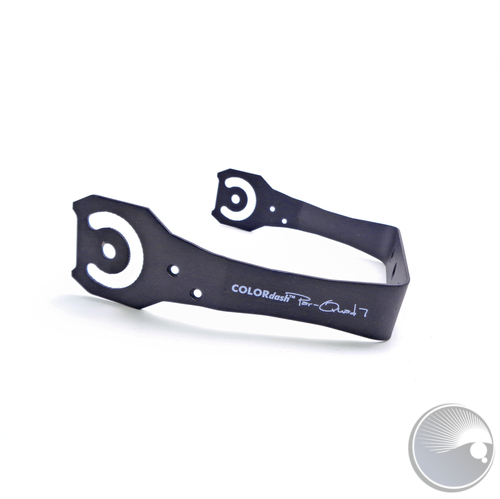

HANGING BRACKET-OUTER (BOM#25)PTJ5014910030HANGING BRACKET-OUTER (BOM#25)

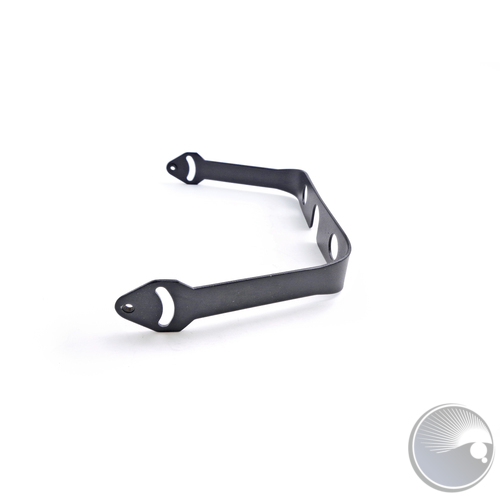

HANGING BRACKET - IN (BOM#26)PTJ5014910040HANGING BRACKET - IN (BOM#26)

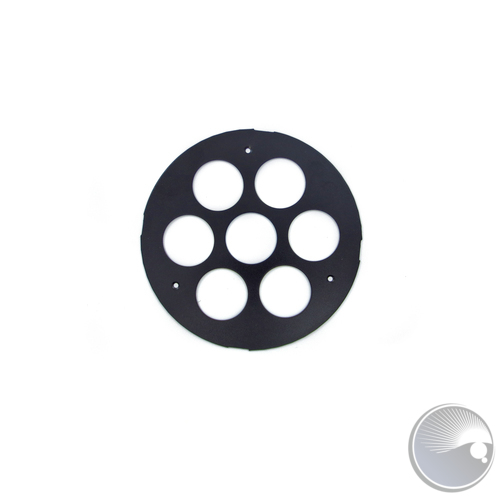

LENS COVER (BOM#4)PTJ5014910050LENS COVER (BOM#4)

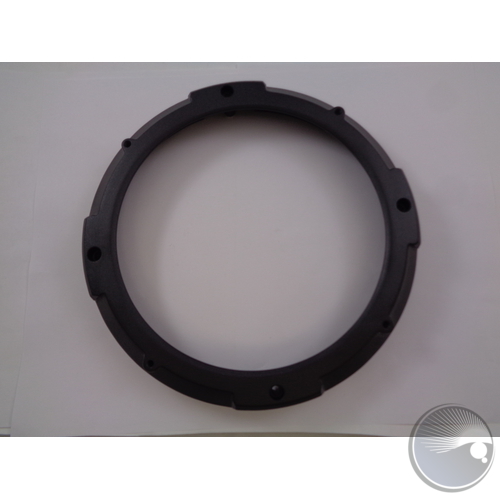

FRONT COVER (BOM#1)PTJ5014910070FRONT COVER (BOM#1)

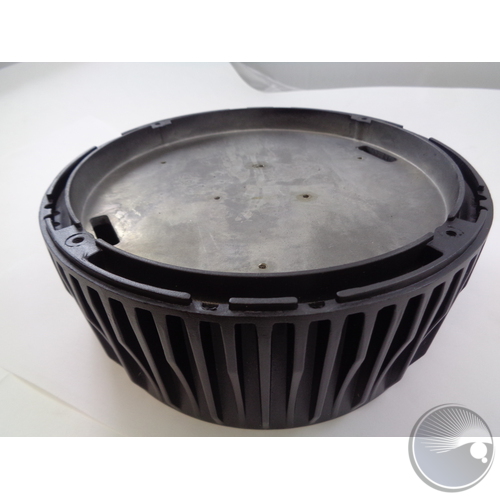

BASE HOUSING (BOM#9)PTJ5014910080BASE HOUSING (BOM#9)
PTJ5015040010REAR (BOM#12)
PTJ60010018POWERCON (NEUTRIK) CONVERSION BACK PLATE UPGRADE KIT, WITH CABLE

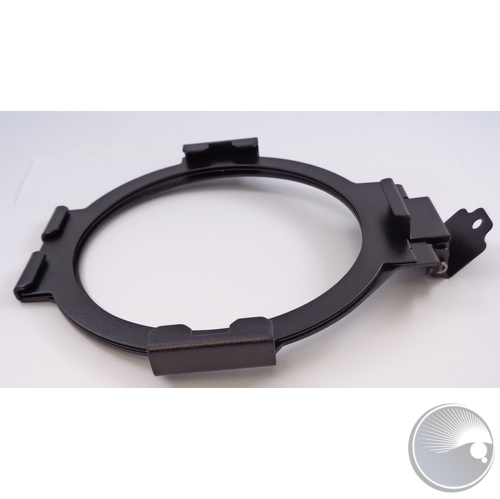

COMPLETE GEL FRAME & HOLDER PTJ60010023COMPLETE GEL FRAME & HOLDER
UPLOAD03PTJUPLOAD03UPLOAD03
