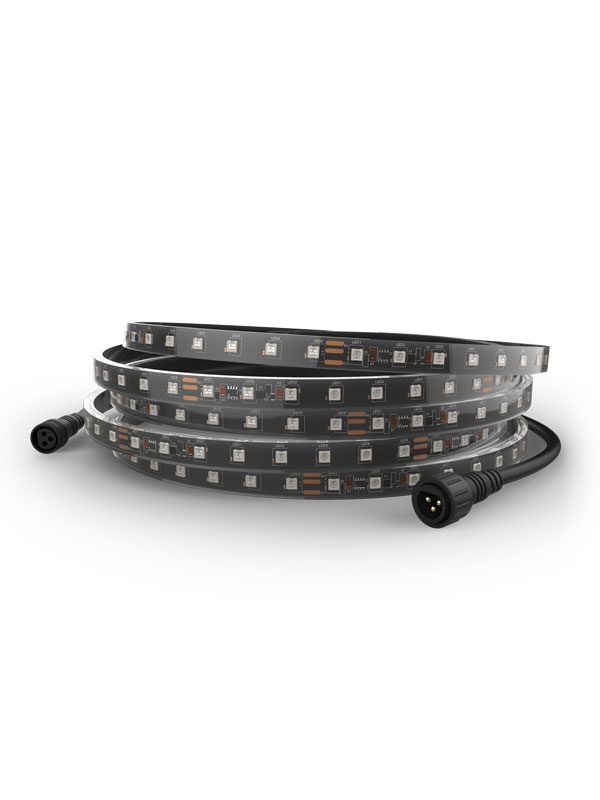

EPIX Flex 20
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: EPIXFLEX20
At a Glance

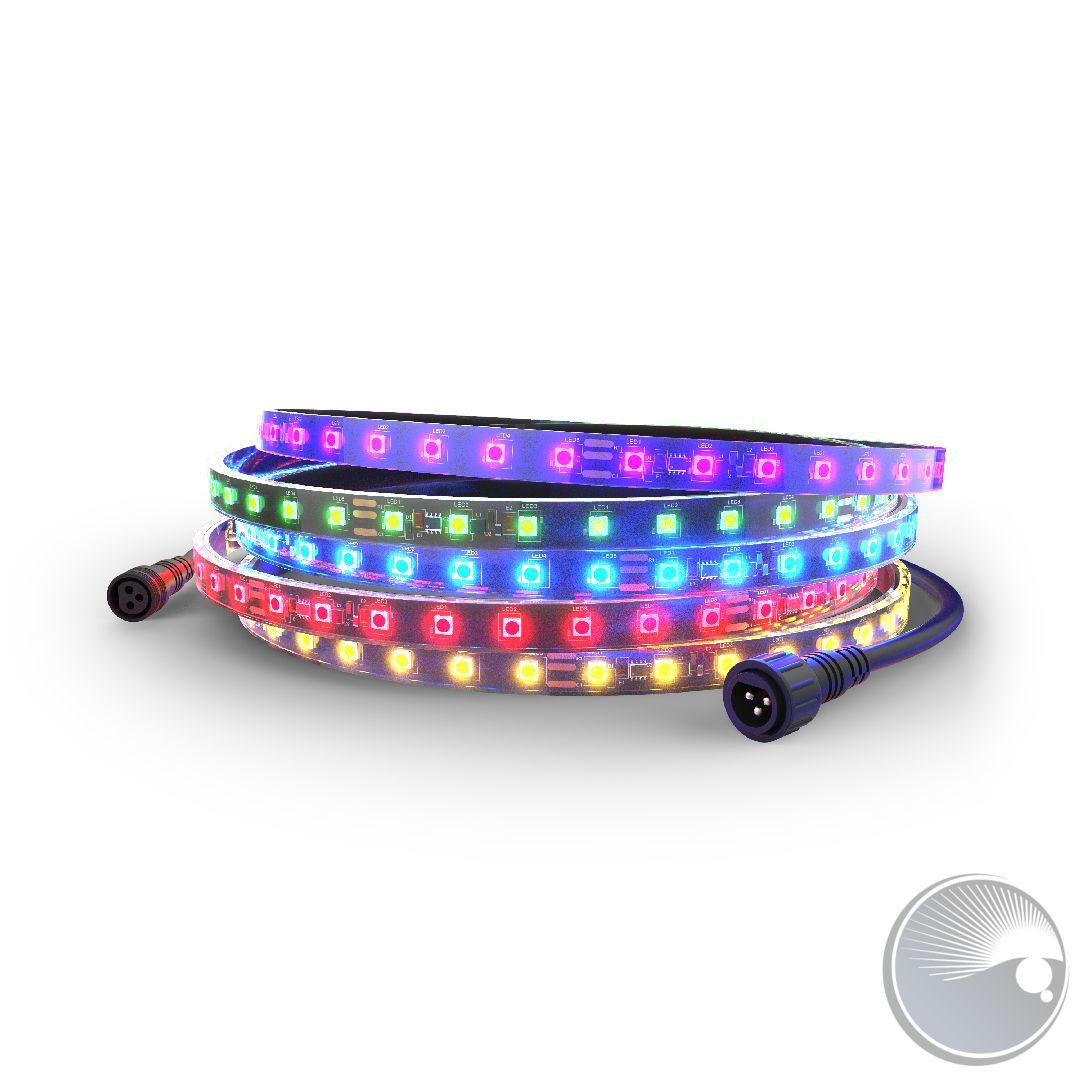

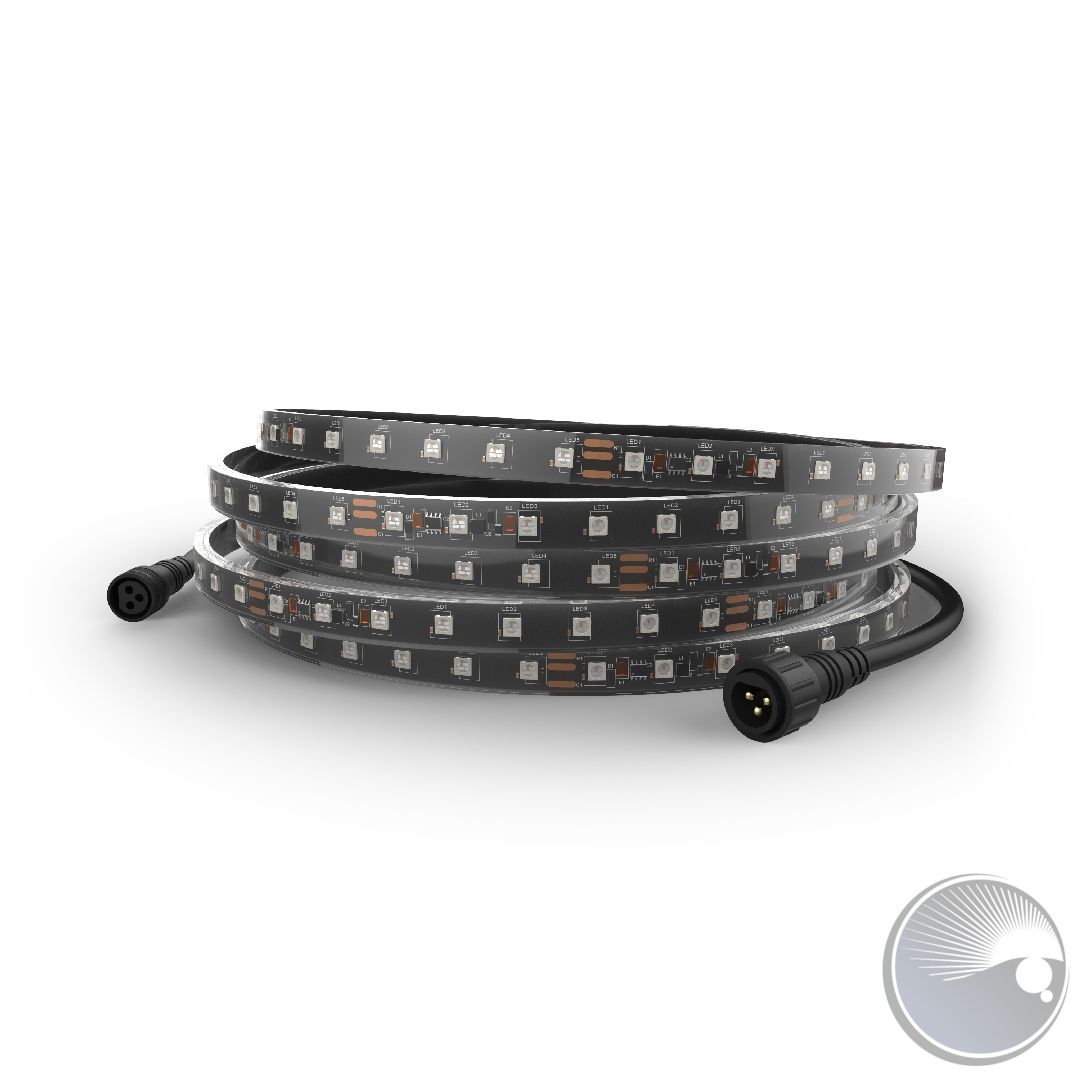

Outdoor pixel-mapping LED strip that is flexible and can be used in various applications
Includes 10 sets of mounting brackets and screws for permanent installations
Reduce programming time and increase application by using the alternate personalities of 17 or 34 channel, or use the pixel personality for use with video servers
Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring, rental, and installation markets
RDM supported for remote configuration

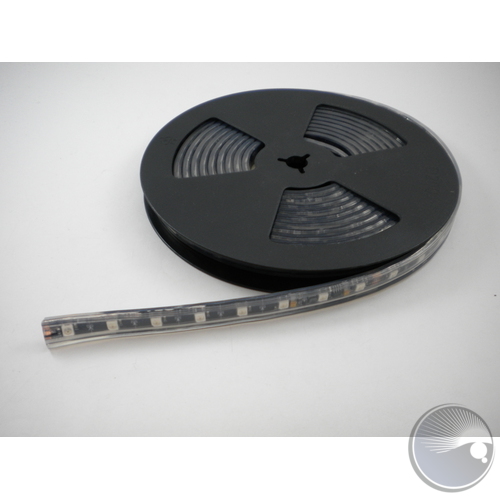

Sold in 5 meter rolls, each roll can be cut to length to accommodate custom installations
ÉPIX Flex Drive required for operation
Specifications
Optical

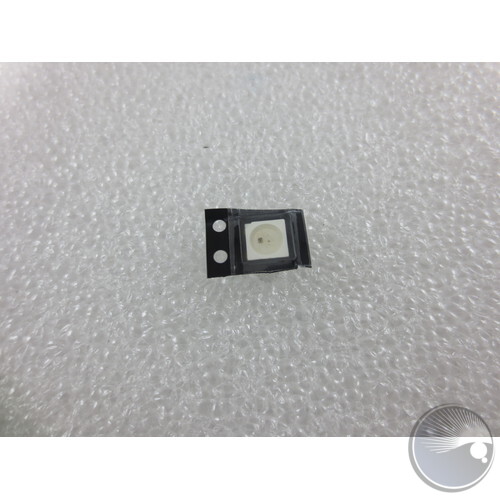

- Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
- Lumens: 140 lm/ft
- Viewing Angle: 160°
- Pixels: 240 x 1
- Pixel Pitch: 20 mm
Construction / Physical
- Dimensions: 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm)
- Weight: 1.2 lb (0.6 kg)
- Exterior Color: Clear
- Housing Material: high temperature silicone with UV protection
Connections

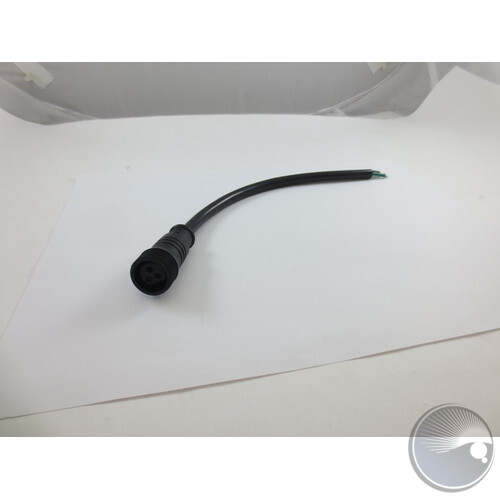

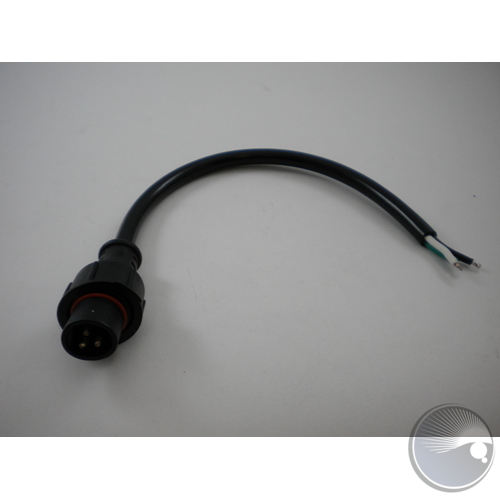

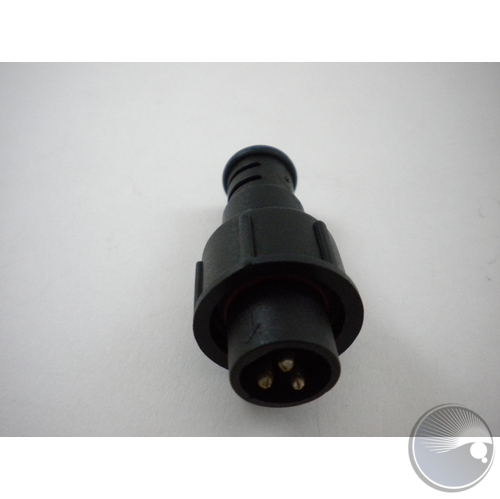

- Data Connectors: 3-pin IP65 FLEX cable
- Physical Linking: 2 ÉPIX Flex 20 (per output) (4 total) (without ÉPIX Flex Boost); 2 additional ÉPIX Flex 20 with ÉPIX Flex Boost (per output) (8 total)
Control
- Control Protocol: Art-Net, sACN, DMX
- DMX Channels: 17, 34 or PIXEL
- Art-Net Channels: 17, 34 or PIXEL
Electrical
- Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
- Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
- Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET
- IP Rating: IP67, temporary outdoor/wet use
- Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- ÉPIX Flex 20
- Installation kit with 10 bracket sets

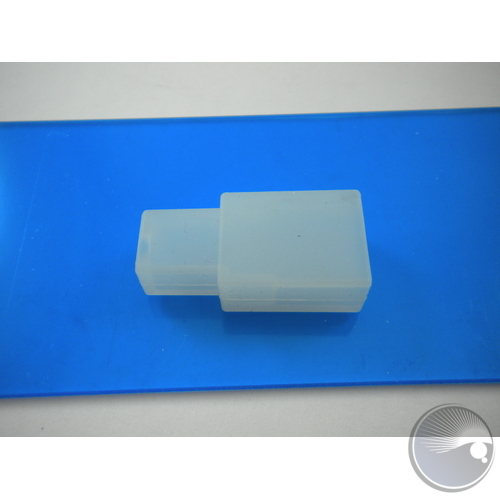

- Termination kit with end cap and silicone glue
Required Accessories
- Controller (required): ÉPIX Flex Drive
Optional Accessories
- ArKaos Media Master Express + KN software
- IPFLEXEXT5FT
- IPFLEXEXT15FT
- IPFLEXEXT25FT
- IPFLEXEXT50FT
Es sind leider keine Geräte verfügbar.
Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!
