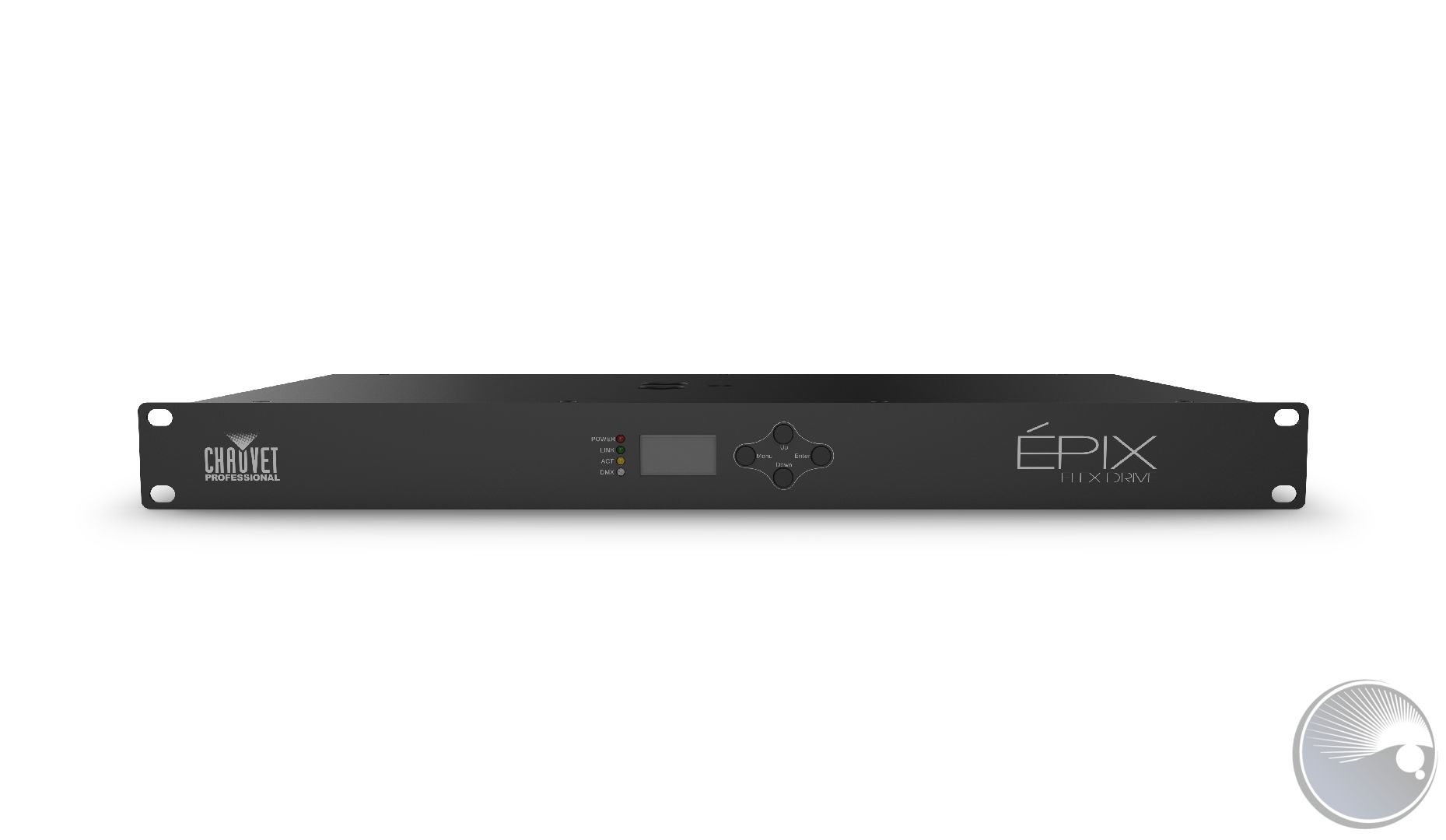

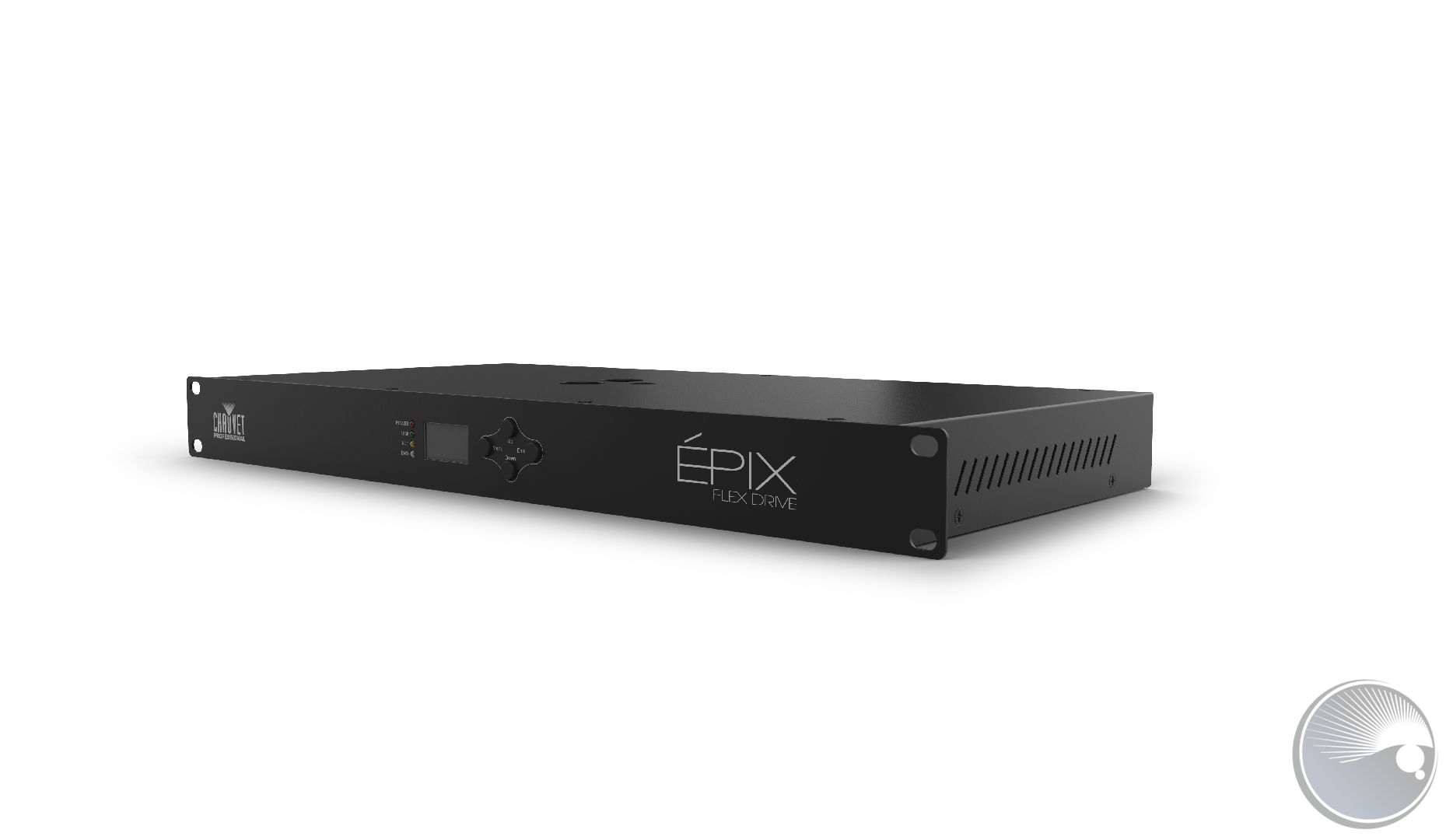

EPIX Flex Drive
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: EPIXFLEXDRIVE
- Hersteller-Nummer: 781462217914
At a Glance

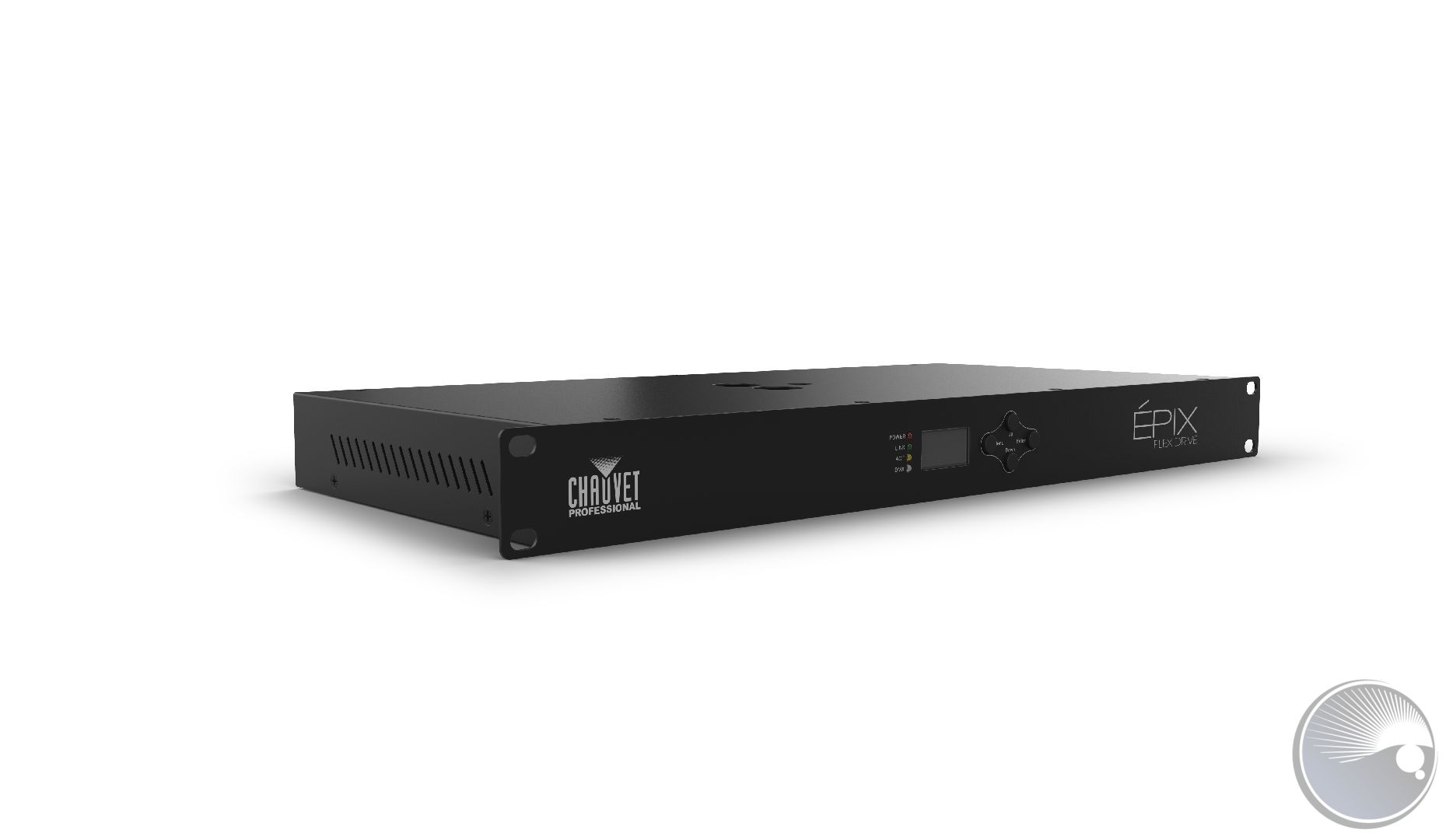

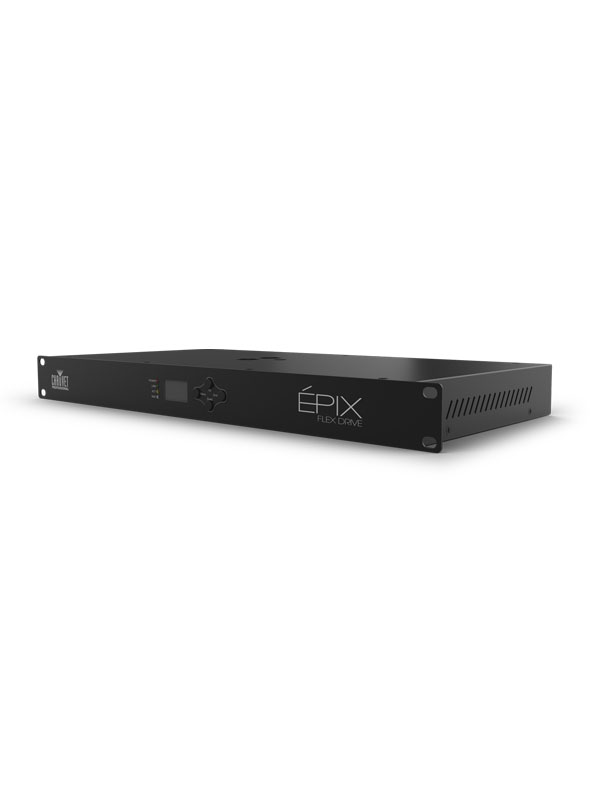

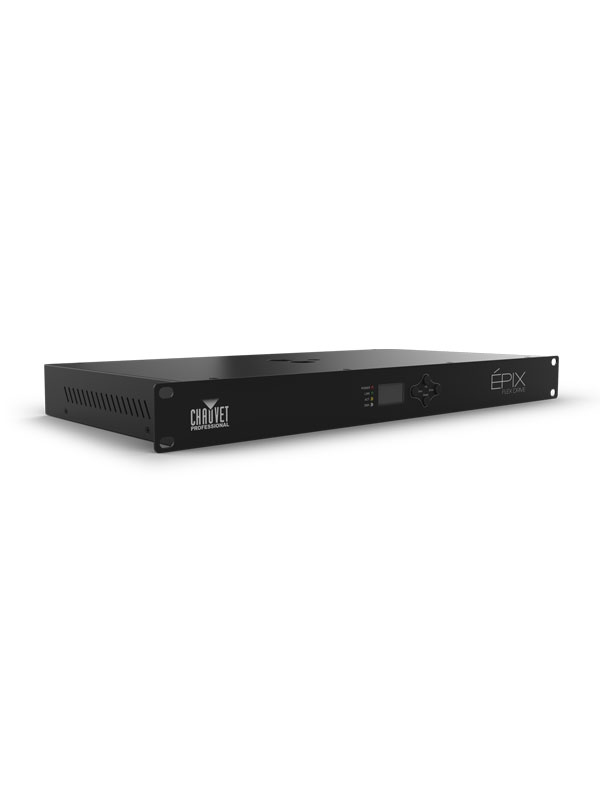

The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring/rental/installation markets

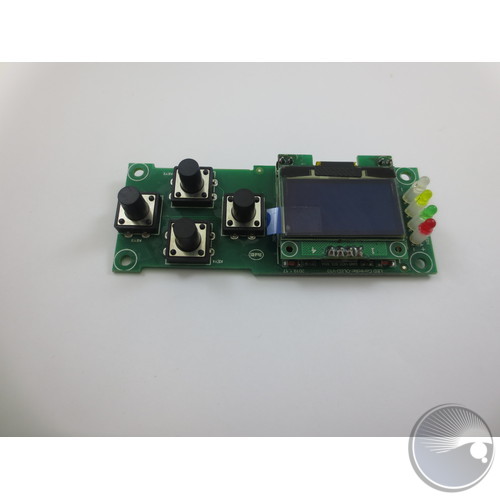

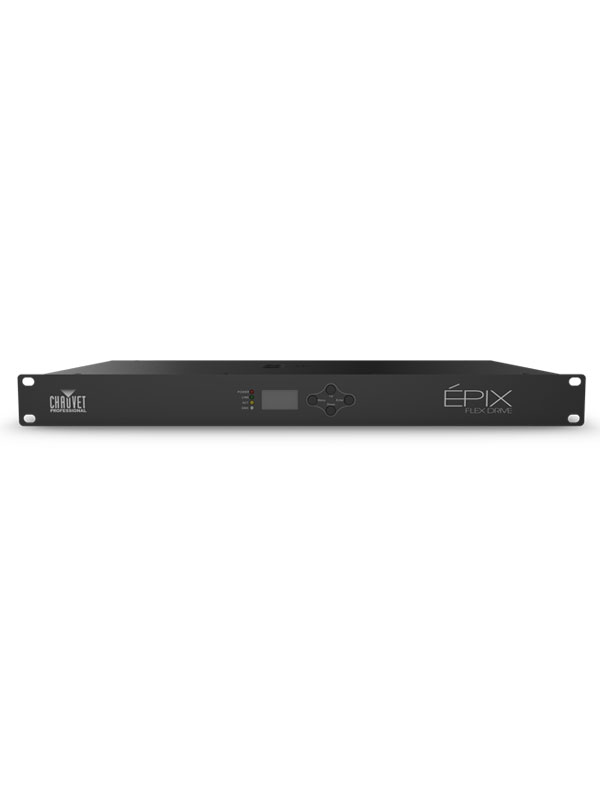

Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
Supports up to 4 ÉPIX Flex 20 5 meter rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
Easily daisy chain fixtures directly from the 2 outputs of the Flex Drive
Advanced power management design allows you to position the Flex Drive up to 75 ft away from your first Flex 20
Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
Multiple control personalities offers flexibility for detailed pixel-level control or simplified plug and play options using the 17/34 channel modes
Specifications
Dynamic Effects
- Standalone Color Mixing: Yes
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
- Weight: 6 lb (2.7 kg)
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U

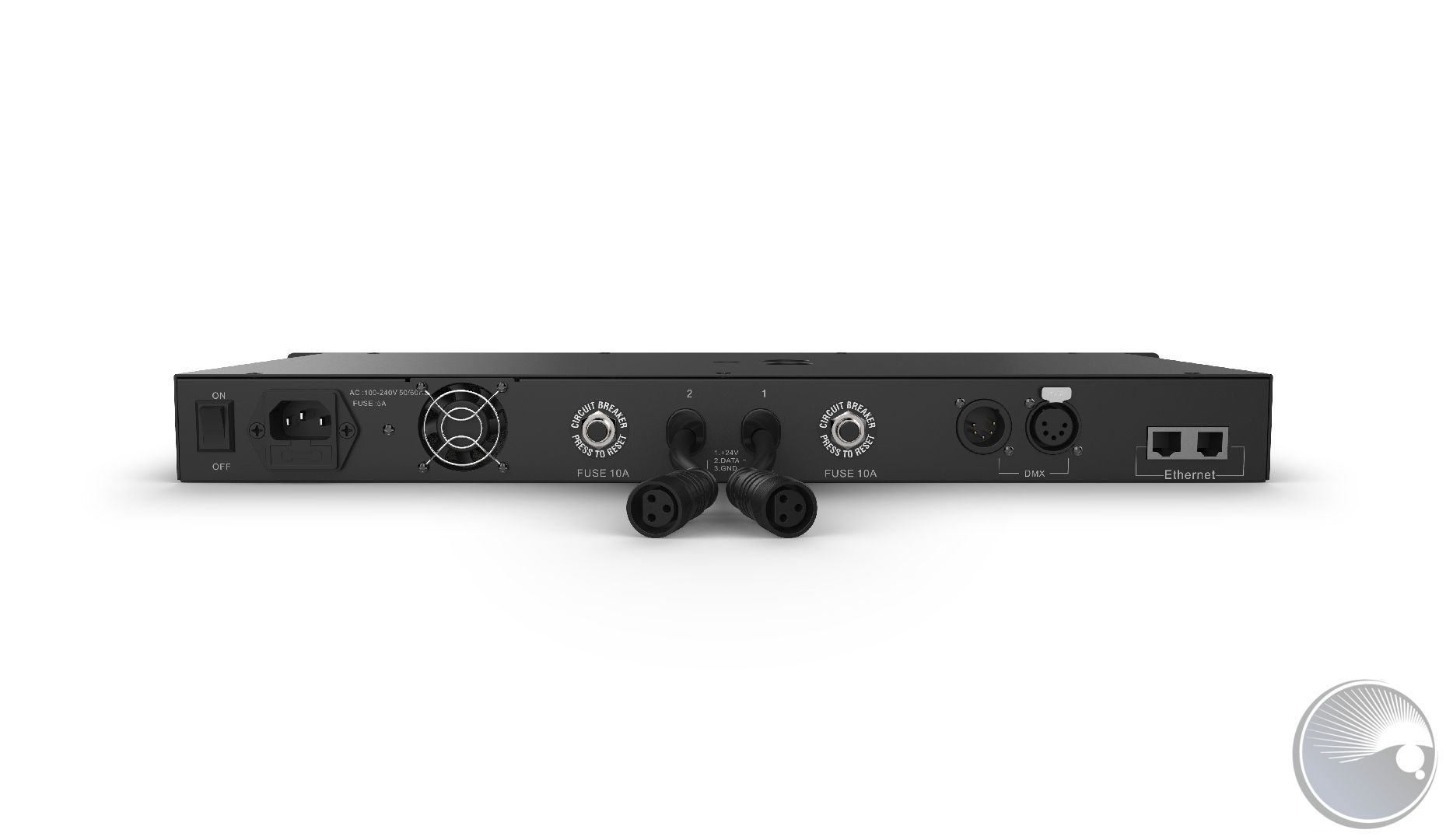

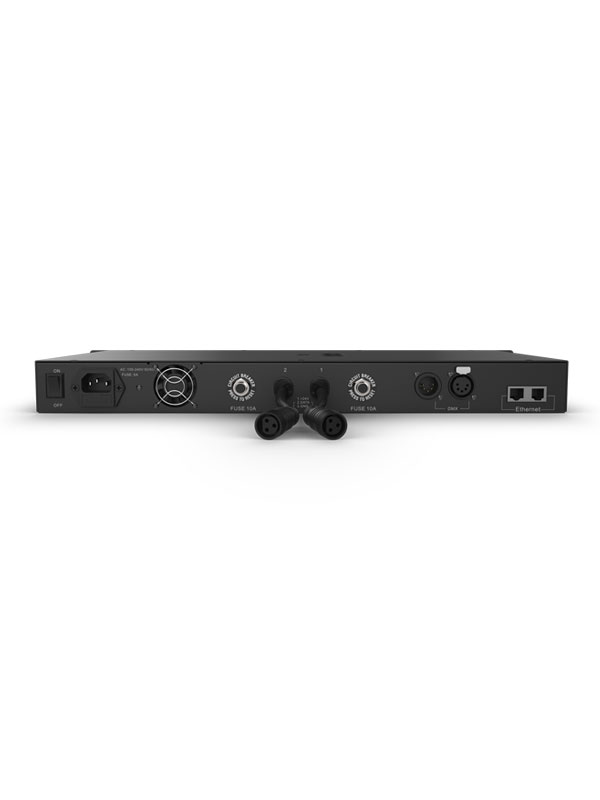

Connections
- Power Connection: Edison (local) plug to IEC
- Power Input: IEC
- Cable Length (power): 5 ft (1.5 m)

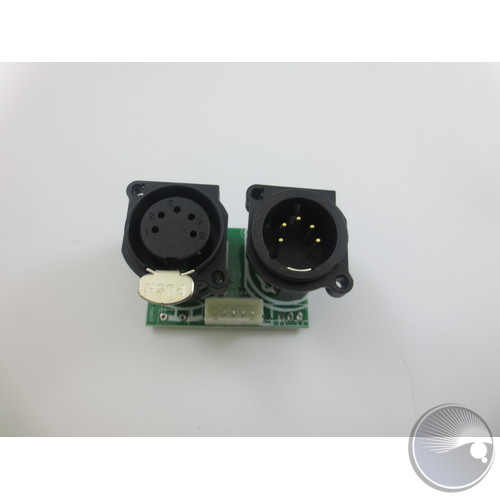

- Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
- Device Outputs (3-pin IP65 ports): 2
- Physical Linking per port (without Flex Boost): 2 inline ÉPIX Flex 20
(with Flex Boost): 4 inline ÉPIX Flex 20 - Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20: 75 ft (22.9 m)
(with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20: 10 ft (3 m) - Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20: 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, sACN, DMX
- DMX Channels: 17, 34 or PIXEL
- Art-Net Channels: 17, 34 or PIXEL
- Modes/Personalities: 3 personalities (17ch, 34ch, PIXEL)
- Maximum Supported LEDs (per port): 960
- Maximum Supported LEDs (total): 1920
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz
314 W, 1.64 A @ 208 V, 60 Hz
312 W, 1.50 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- MET Listing Number: E114016-1144
- US Safety: UL 8750
- Canadian Safety: CSA C22.2 No. 250.13-12
What's Included
- ÉPIX Flex Drive
- IEC power cord
Optional Accessories
- ArKaos Media Master Express + KN software
