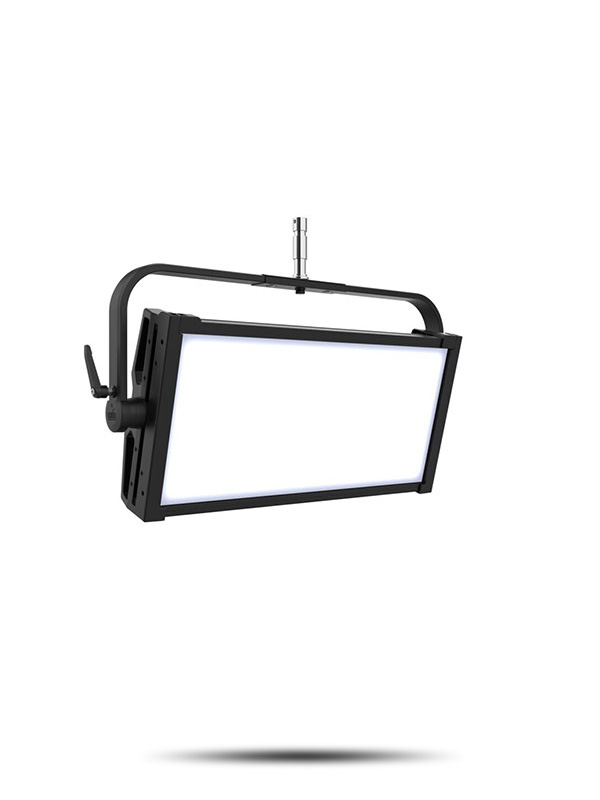

onAir Panel 2 IP (IP65 rated)

3.272,50 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • ONAIRPANEL2IP
  • LW-CH-ONAIRPANEL2IP
onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is... mehr
Produktinformationen "onAir Panel 2 IP (IP65 rated)"

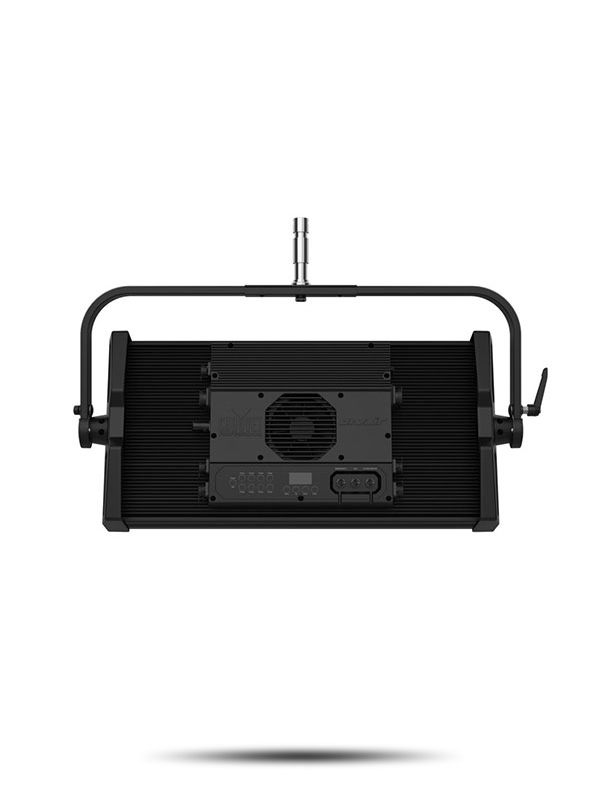

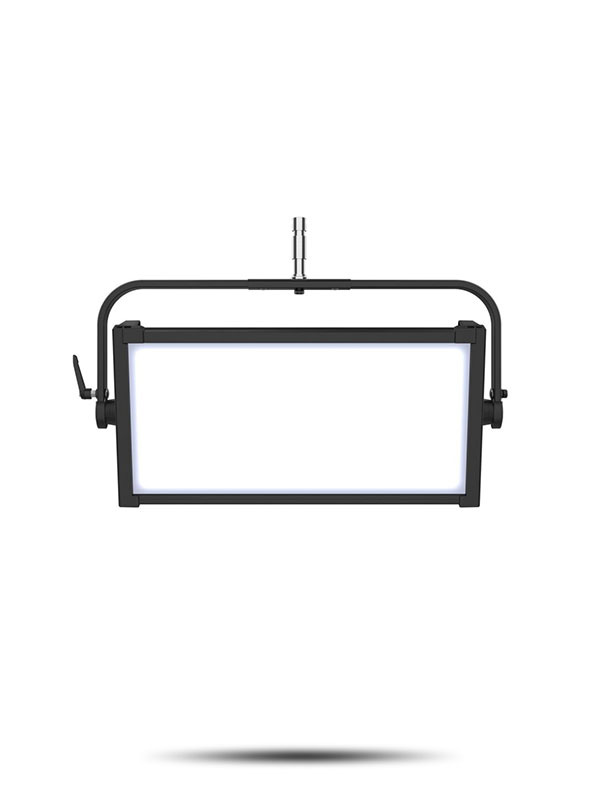

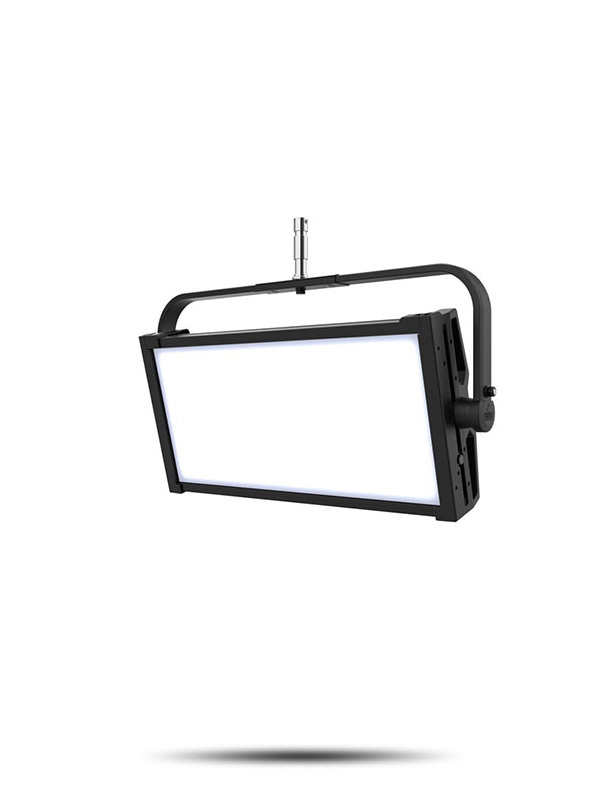

onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

At a Glance

  • Full-spectrum LED 2x1 format soft light panel style fixture for broadcast, film, and special events

  • IP65 rating for all weather use indoors or out.

  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

  • Virtual color wheel with color matched to popular gel colors

  • +/- Green adjustment and emulated red-shift via DMX or on-board control

  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio applications

  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

  • Easily switch mounting options from Jr Pin to Omega Bracket

  • Drop-in slot for diffusers and intensifier filter (sold separately)

  • Rugged design for years of rough use in the most extreme conditions.

  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.

  • USB port for fixture software updates

  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack



Weiterführende Links zu "onAir Panel 2 IP (IP65 rated)"

5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)

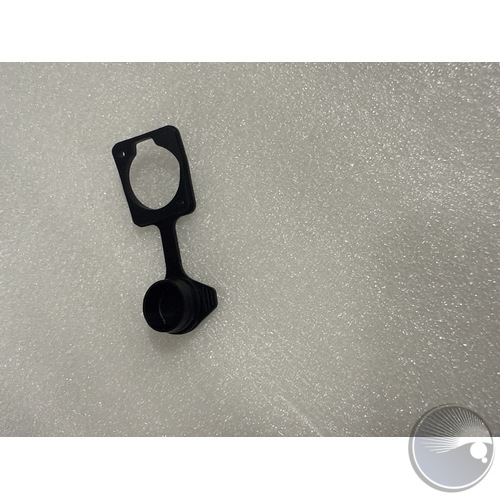

RUBBER COVER FOR DATA OUTPTJ14000081RUBBER COVER FOR DATA OUT

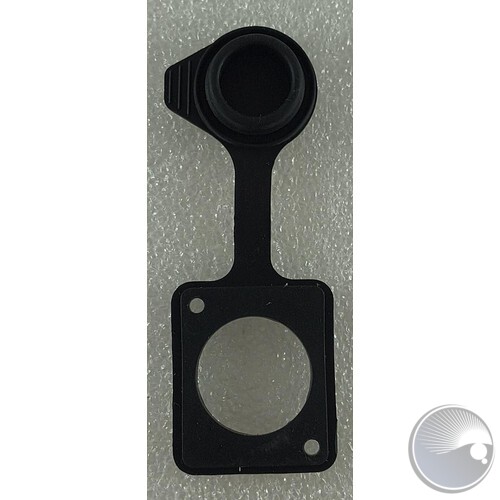

RUBBER COVER FOR DATA INPTJ14000082RUBBER COVER FOR DATA IN
RUBBER COVER FORUSBC INPTJ14000533RUBBER COVER FORUSBC IN

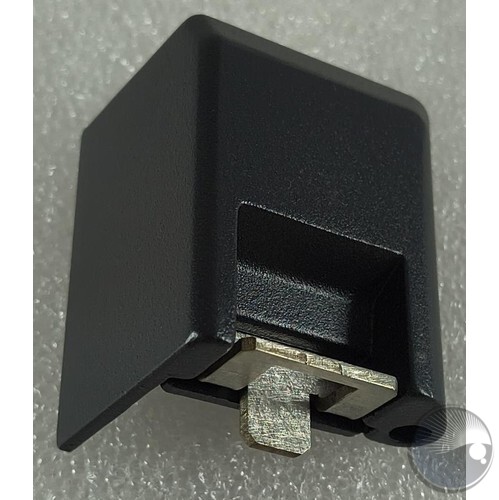

SIDE PANEL ASSEMBLYPTJ14000621SIDE PANEL ASSEMBLY
PTJ14000667Bracket EU
PTJ21000346LED B (BOM#74)
PTJ21000347LED A (BOM#8)

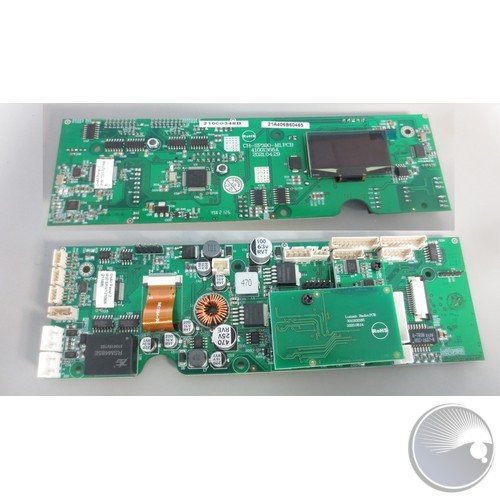

MPCB (BOM#55)PTJ21000348AMPCB (BOM#55)

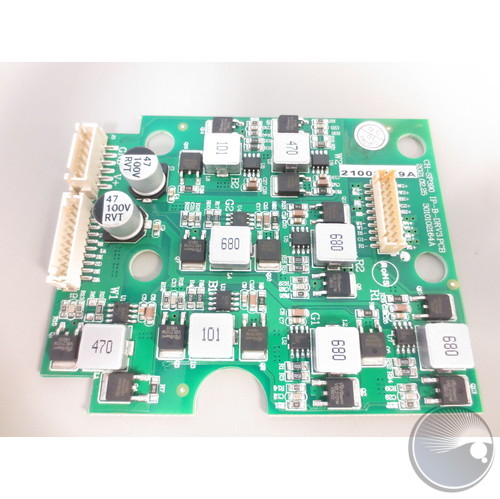

DRIVER PCB A (BOM#48)PTJ21000349ADRIVER PCB A (BOM#48)

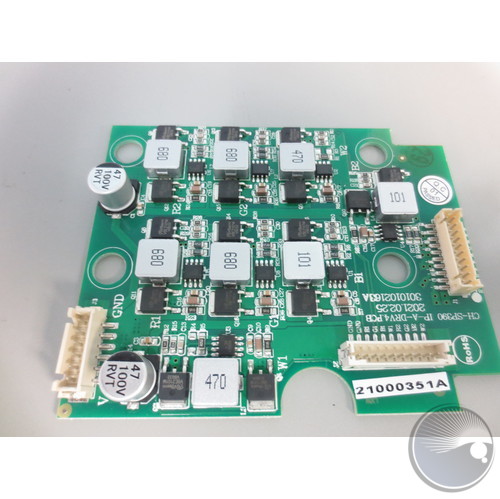

DRIVER PCB A (BOM#46)PTJ21000351ADRIVER PCB A (BOM#46)

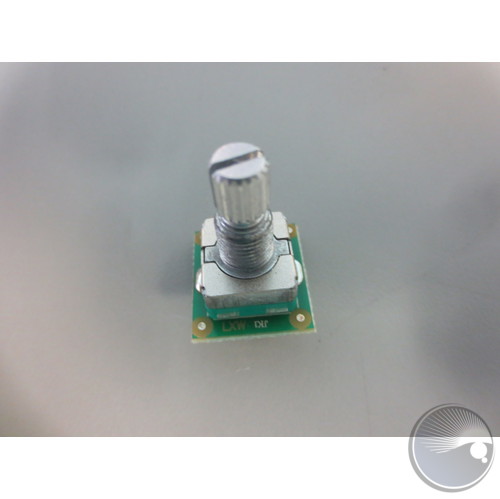

POTENTIOMETER PLATE (BOM#56)PTJ21000935APOTENTIOMETER PLATE (BOM#56)
POTENTIOMETER PLATE (BOM#56)PTJ21000935APOTENTIOMETER PLATE (BOM#56)
POTENTIOMETER PLATE (BOM#56)PTJ21000935APOTENTIOMETER PLATE (BOM#56)
POTENTIOMETER PLATE (BOM#56)PTJ21000935APOTENTIOMETER PLATE (BOM#56)
POTENTIOMETER PLATE (BOM#56)PTJ21000935APOTENTIOMETER PLATE (BOM#56)

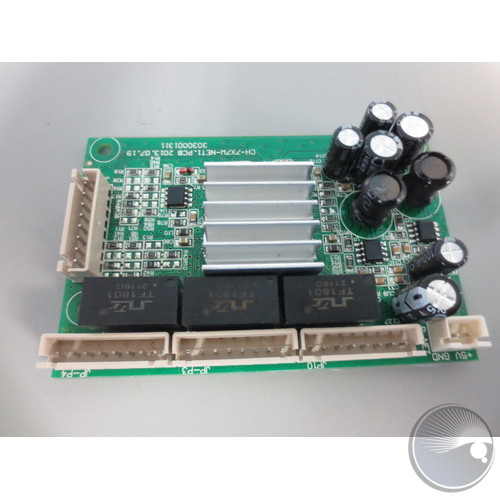

ETHERNET SIGNAL PCB (BOM#44)PTJ21002442ETHERNET SIGNAL PCB (BOM#44)
PTJ22100029Filter Assembly (2x BOM#2,3,4 and Screws)

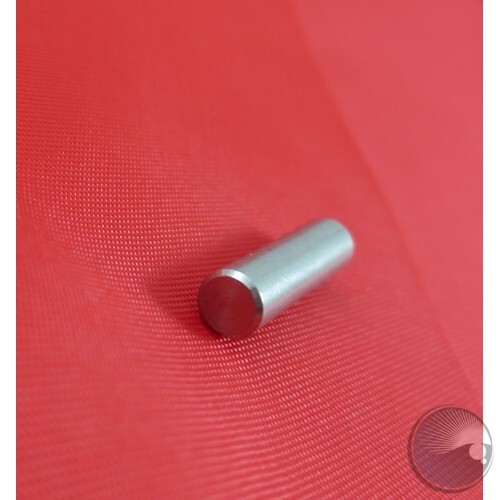

LOCATING PIN (BOM#66)PTJ31000519LOCATING PIN (BOM#66)

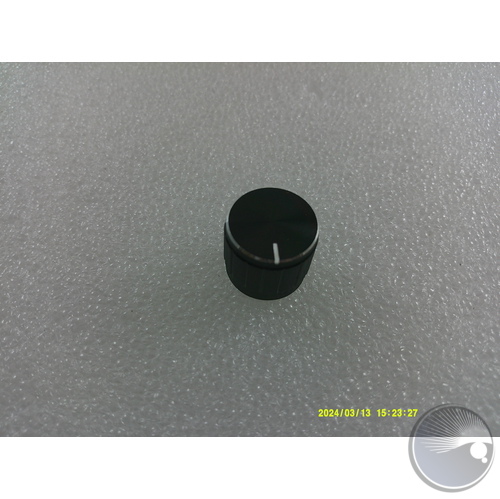

ROTARY KNOB (BOM#50)PTJ31000535BROTARY KNOB (BOM#50)

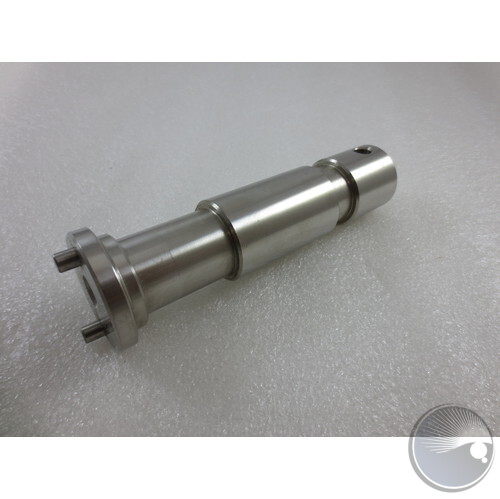

SPIGOT (BOM#24)PTJ31000659SPIGOT (BOM#24)

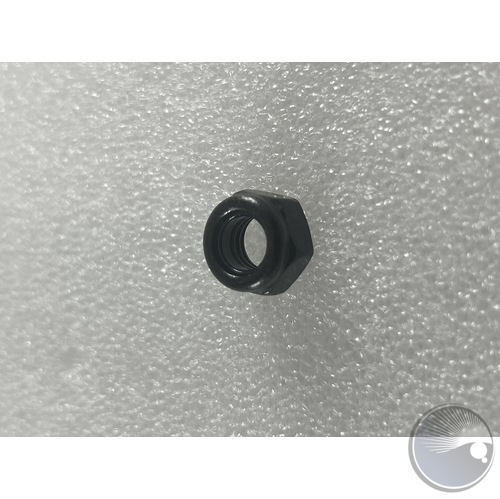

LOCKNUT FOR BRACKET FIXED BLOCK (BOM#27)PTJ32000517LOCKNUT FOR BRACKET FIXED BLOCK (BOM#27)

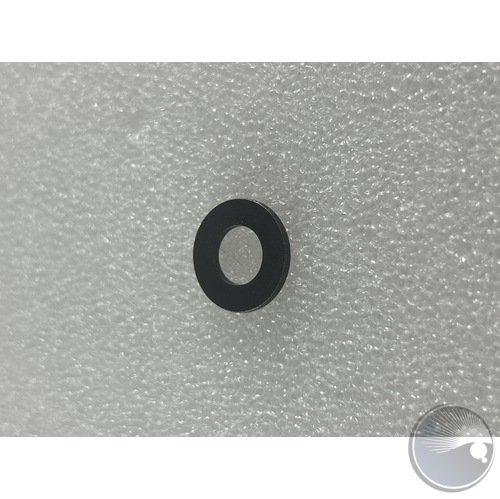

PLASTIC RING (BOM#23)PTJ32000645PLASTIC RING (BOM#23)
M10 RING (BOM#16)PTJ32000954M10 RING (BOM#16)
BRAKET ADJUSTMENT KNOB (BOM#14)PTJ32000956BRAKET ADJUSTMENT KNOB (BOM#14)
LOCKNUT FOR BRACKET SCREW (BOM#34)PTJ32000957LOCKNUT FOR BRACKET SCREW (BOM#34)

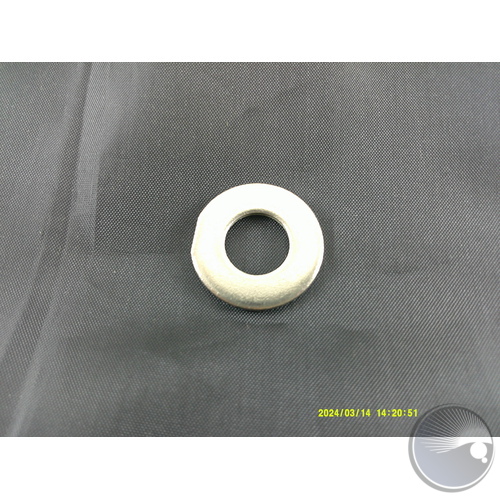

PLASTIC RING (BOM#15)PTJ32000977PLASTIC RING (BOM#15)
Washer Underneath Lock Hex NutPTJ32001009WWasher Underneath Lock Hex Nut

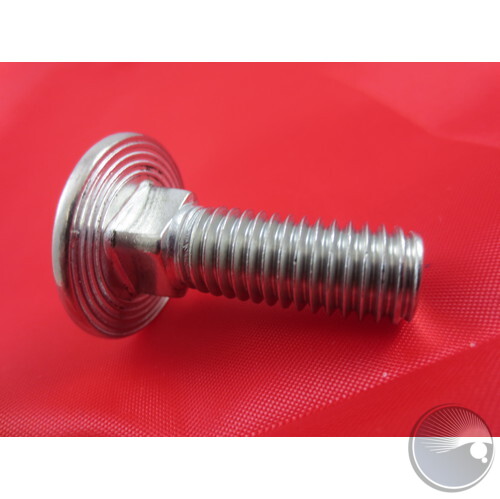

SCREW INSIDE HANGING BRACKET (BOM#21)PTJ32001089SCREW INSIDE HANGING BRACKET (BOM#21)
PTJ32001090FLEECE RING (BOM#68)

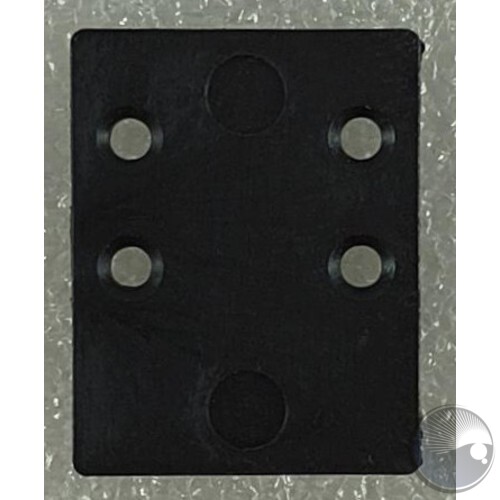

GASKET (BOM#11)PTJ32001091GASKET (BOM#11)

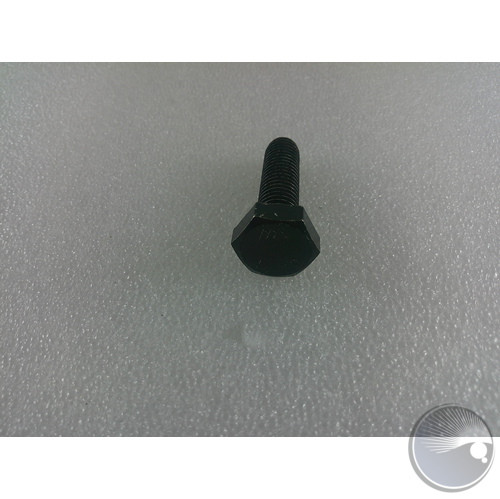

HM SCREW (BOM#30)PTJ32001099HM SCREW (BOM#30)

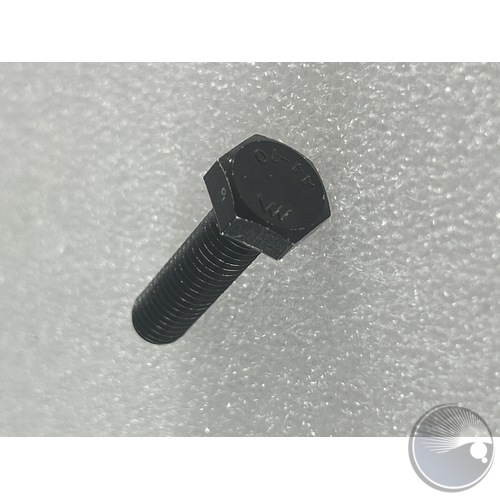

HM SCREW (BOM#19)PTJ32001100HM SCREW (BOM#19)
PTJ32100419STANDOFF (BOM#43)

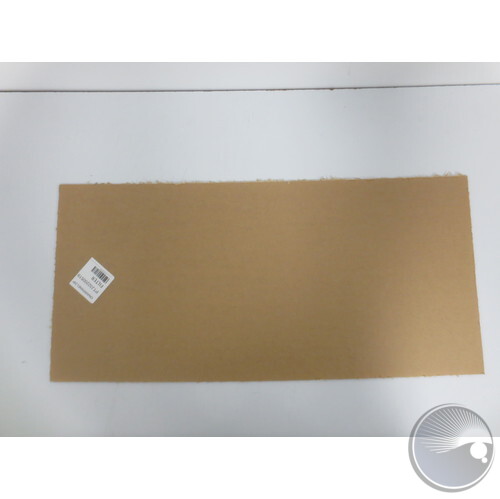

FILTER (BOM#3)PTJ32200519FILTER (BOM#3)

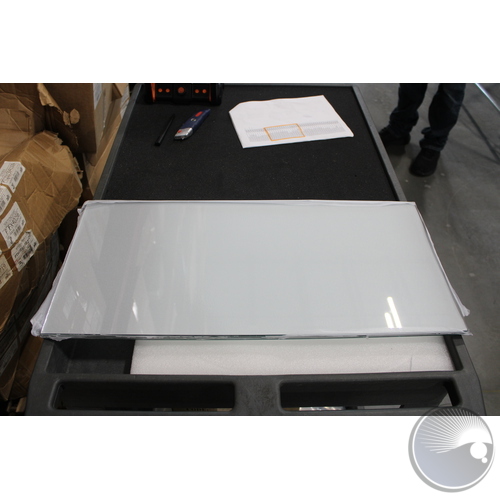

FRONT GLASS (BOM#1)PTJ32300618FRONT GLASS (BOM#1)
LOCK RING (BOM#67)PTJ32500105LOCK RING (BOM#67)

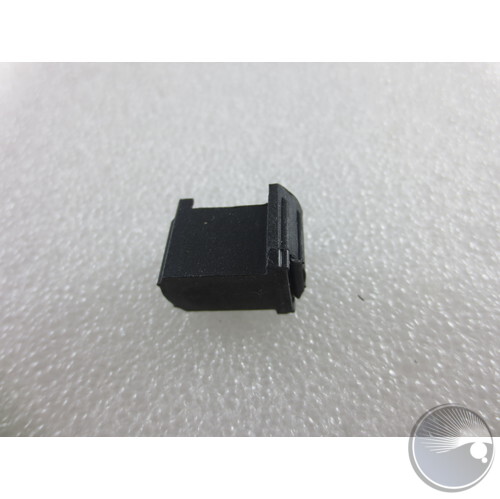

SILICA GEL PLUG (BOM#25)PTJ32600050SILICA GEL PLUG (BOM#25)
PTJ32600363CUSHION RUBBER (BOM#5)

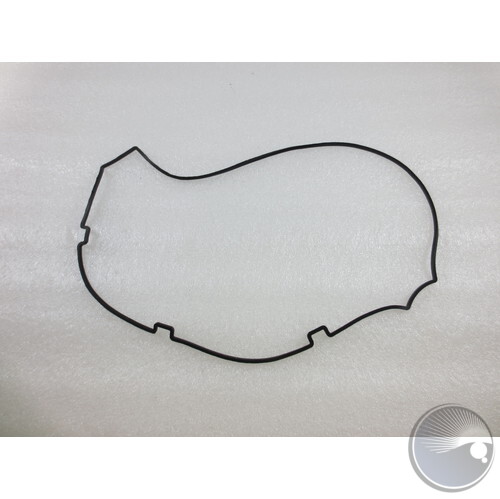

CUSHION RUBBER FOR SIDE PANEL (BOM#65)PTJ32600364CUSHION RUBBER FOR SIDE PANEL (BOM#65)
PTJ32600365CUSHION RUBBER (BOM#60)

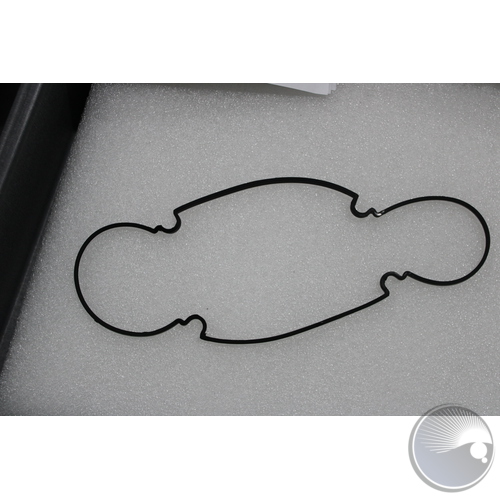

CUSHION RUBBER 1 FOR POWER PACK (BOM#62)PTJ32600366CUSHION RUBBER 1 FOR POWER PACK (BOM#62)
PTJ32600367CUSHION RUBBER 2 FOR POWER PACK (BOM#58)
PTJ32600368CUSHION RUBBER FOR FAN (BOM#59)

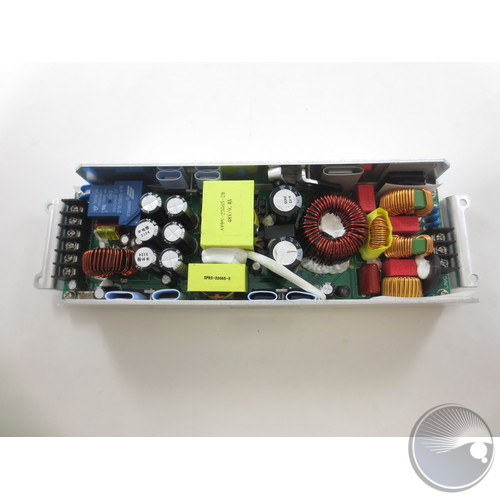

PSU - POWER SUPPLY (BOM#39)PTJ33000260PSU - POWER SUPPLY (BOM#39)

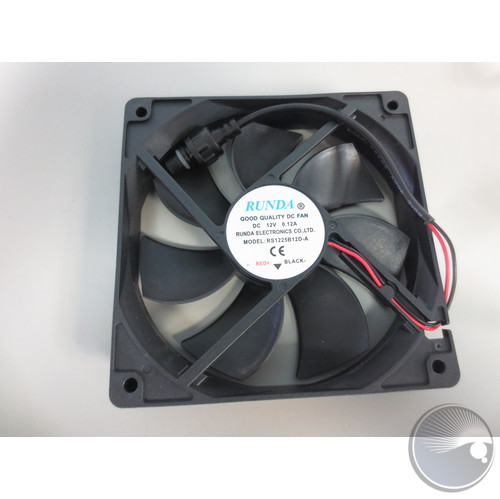

DC FAN (BOM#61)PTJ33200034DC FAN (BOM#61)
CUSHION RUBBER FOR IP POWER IN SOCKET (BOM#32)PTJ33300048BCUSHION RUBBER FOR IP POWER IN SOCKET (BOM#32)
PTJ33300049CUSHION RUBBER FOR IP POWER OUT SOCKET (BOM#46)

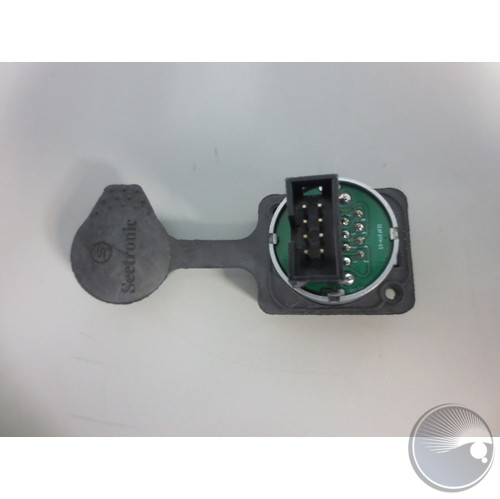

IP NEWORK SOCKET (BOM#51)PTJ33300060IP NEWORK SOCKET (BOM#51)
IP NEWORK SOCKET (BOM#51)PTJ33300060IP NEWORK SOCKET (BOM#51)
IP NEWORK SOCKET (BOM#51)PTJ33300060IP NEWORK SOCKET (BOM#51)
IP NEWORK SOCKET (BOM#51)PTJ33300060IP NEWORK SOCKET (BOM#51)
IP NEWORK SOCKET (BOM#51)PTJ33300060IP NEWORK SOCKET (BOM#51)
WATERPROOF USB SOCKET (BOM#43)PTJ33300063WATERPROOF USB SOCKET (BOM#43)
WATERPROOF USB SOCKET (BOM#43)PTJ33300063WATERPROOF USB SOCKET (BOM#43)
WATERPROOF USB SOCKET (BOM#43)PTJ33300063WATERPROOF USB SOCKET (BOM#43)
WATERPROOF USB SOCKET (BOM#43)PTJ33300063WATERPROOF USB SOCKET (BOM#43)
WATERPROOF USB SOCKET (BOM#43)PTJ33300063WATERPROOF USB SOCKET (BOM#43)
Thermal Interface SheetPTJ34000146Thermal Interface Sheet

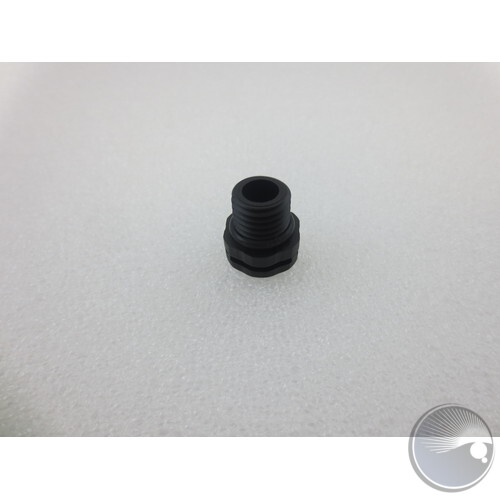

PRESSURE COMPANSATION VALVE (BOM#36)PTJ34100029PRESSURE COMPANSATION VALVE (BOM#36)

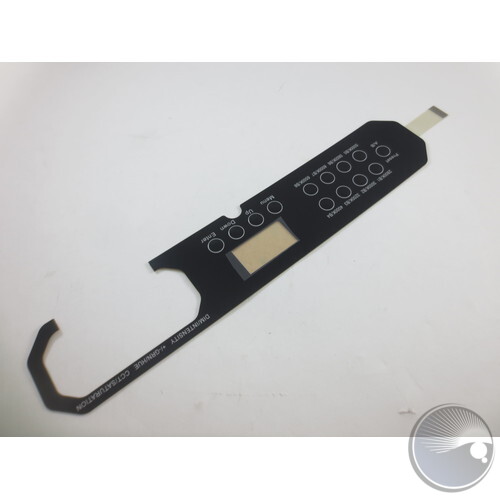

THIN-FILM SWITCH (BOM#52)PTJ49900112THIN-FILM SWITCH (BOM#52)
PTJ52001638OUTER BOX (BOM#78)

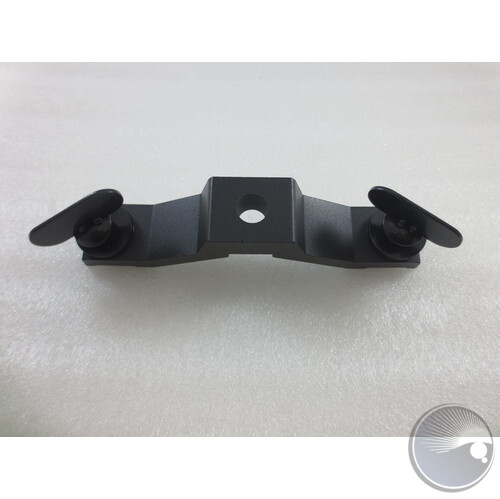

OMEGA BRACKET (BOM#79)PTJ61001311BOMEGA BRACKET (BOM#79)

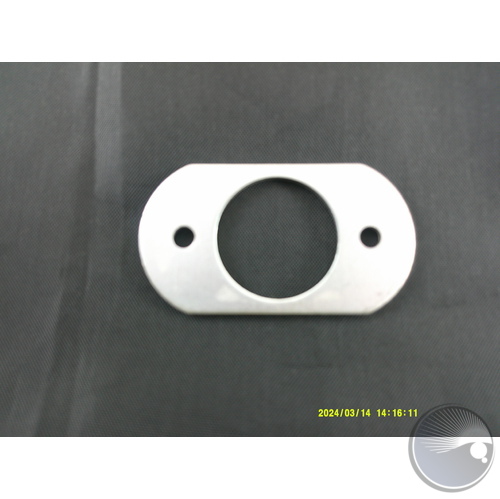

CLAMP LOCK PLATE (BOM#26)PTJ61003224CLAMP LOCK PLATE (BOM#26)

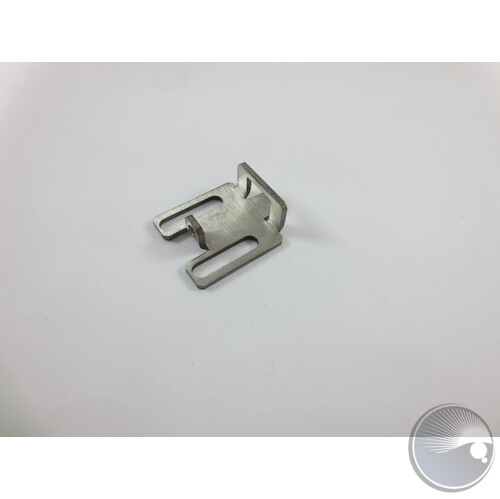

FLIP LOCK (BOM#71)PTJ61005646FLIP LOCK (BOM#71)
ROUND METAL PART (BOM#7)PTJ61101062ROUND METAL PART (BOM#7)

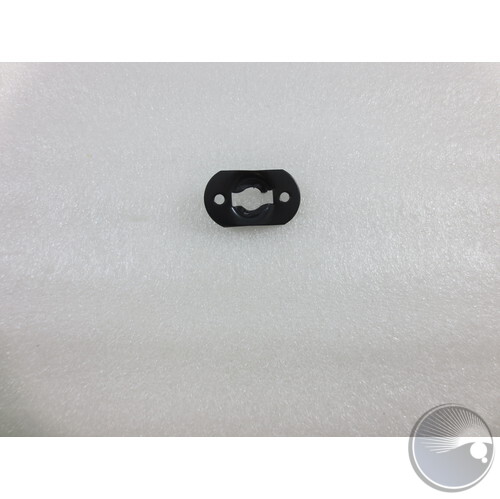

CLAMP LOCK (BOM#27)PTJ61101466CLAMP LOCK (BOM#27)

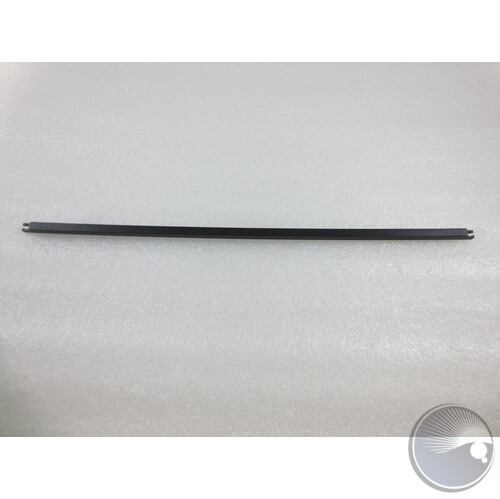

FILTER HOLDER B (BOM#2)PTJ61102963AFILTER HOLDER B (BOM#2)

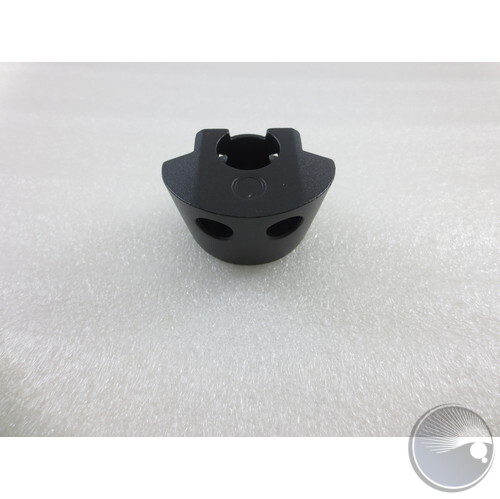

BRACKET FIXED BLOCK (BOM#22)PTJ61104692BRACKET FIXED BLOCK (BOM#22)

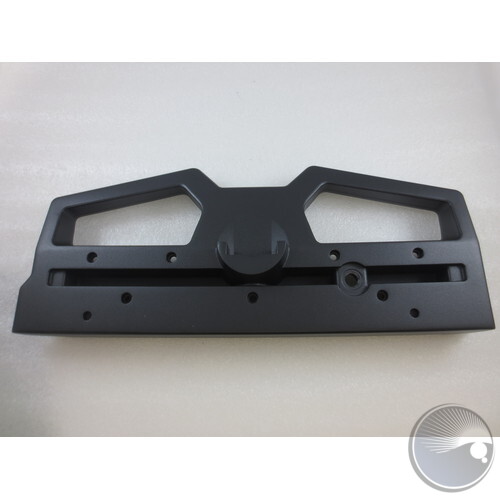

SIDE PANEL1 (BOM#64)PTJ61104707SIDE PANEL1 (BOM#64)

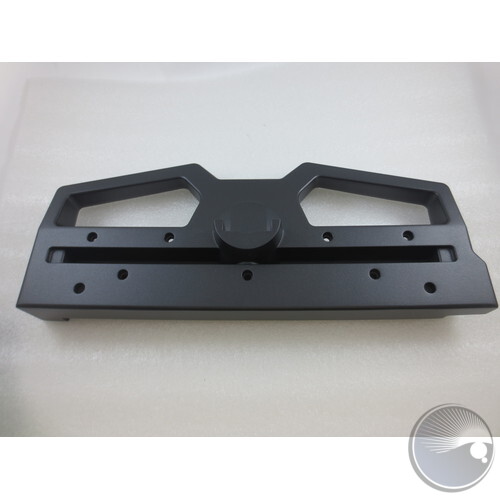

SIDE PANEL2 (BOM#7)PTJ61104708SIDE PANEL2 (BOM#7)
PTJ61104712POWER COVER (BOM#57)

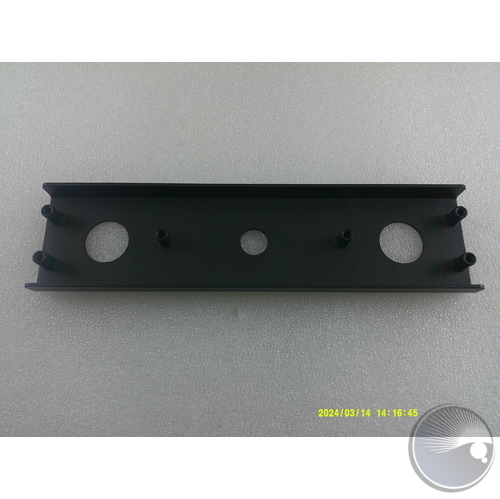

STIFFENING PLATE 2 FOR BRACKET (BOM#29)PTJ61104714STIFFENING PLATE 2 FOR BRACKET (BOM#29)

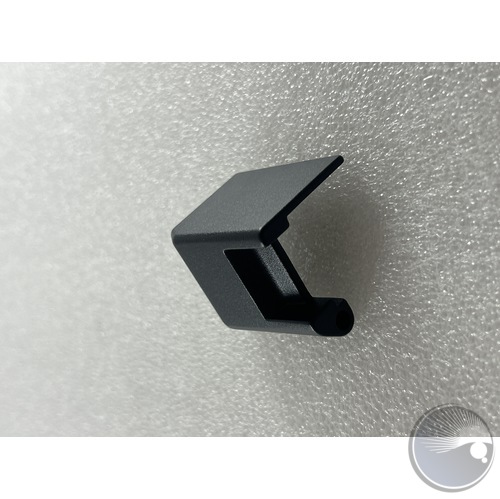

FIX BLOCK 1 (BOM#12)PTJ61104715FIX BLOCK 1 (BOM#12)

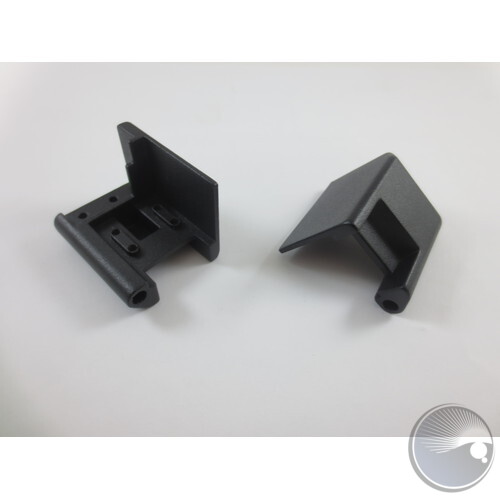

JHOLDER 2 (BOM#73)PTJ61104716JHOLDER 2 (BOM#73)
PTJ61104717AHOUSING (BOM#31)

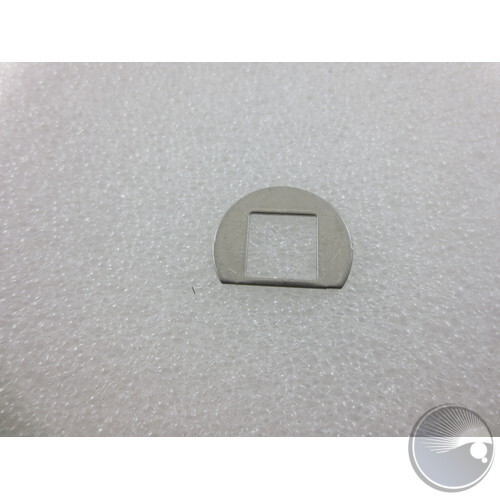

GASKET FOR BRACKET SCREW (BOM#19)PTJ61104718GASKET FOR BRACKET SCREW (BOM#19)
PTJ61104719HEAT SINK (BOM#33)
PTJ61104722BAR 1 (BOM#70)
PTJ61104723BAR 2 (BOM#9)
PTJ61104724BAR 3 (BOM#23)
PTJ61104725PLATE FOR BAR SCREW (BOM#72)

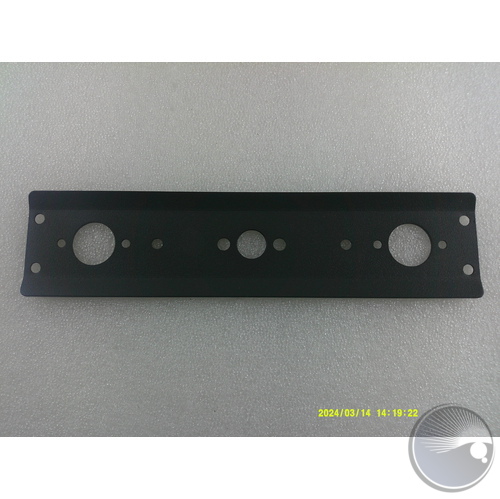

STIFFENING PLATE 1 FOR BRACKET (BOM#25)PTJ61104726STIFFENING PLATE 1 FOR BRACKET (BOM#25)

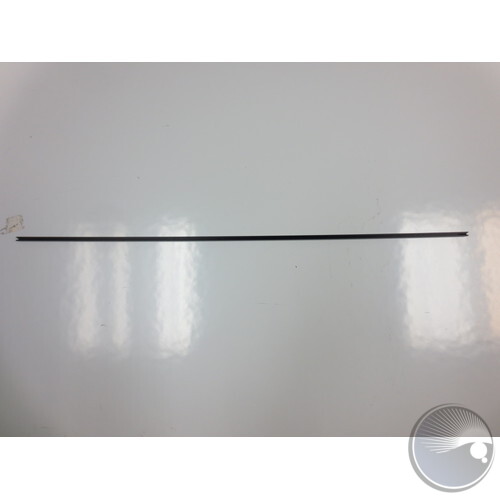

FILTER HOLDER A (BOM#4)PTJ61200021FILTER HOLDER A (BOM#4)
PTJ61201472POWER PACK (BOM#40)

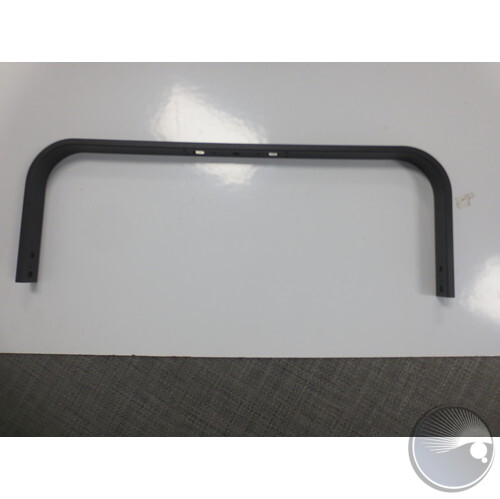

BRACKET (BOM#22)PTJ61201473BRACKET (BOM#22)

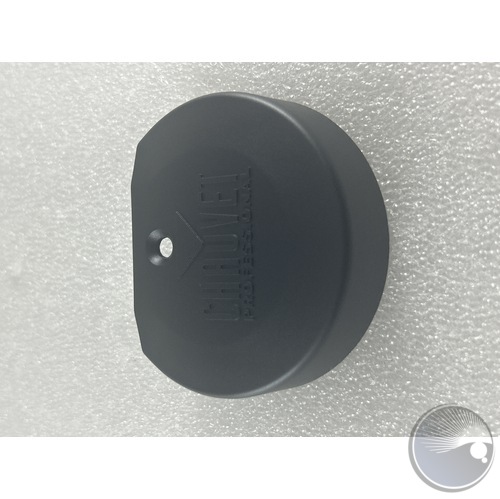

PLASTIC HOUSING (BOM#13)PTJ62000701PLASTIC HOUSING (BOM#13)

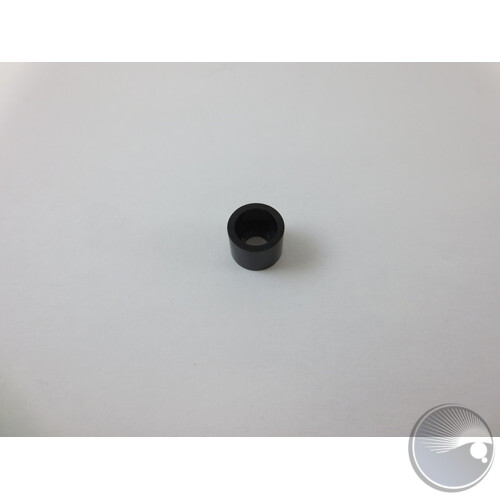

COVER (BOM#42)PTJ62100191COVER (BOM#42)
PTJ62100285REFLECTIVE SHEETING 1 (BOM#32)
PTJ62100286REFLECTIVE SHEETING 2 (BOM#63)
PTJ62100287REFLECTIVE SHEETING 3 (BOM#10)
REFLECTIVE SHEETING 4 (BOM#75)PTJ62100288AREFLECTIVE SHEETING 4 (BOM#75)

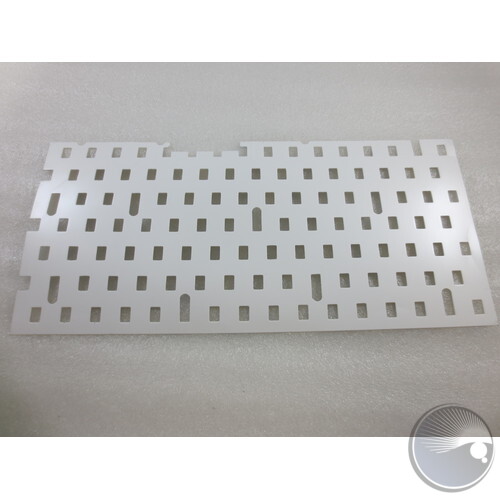

REFLECTIVE SHEETING A (BOM#6)PTJ62100289REFLECTIVE SHEETING A (BOM#6)

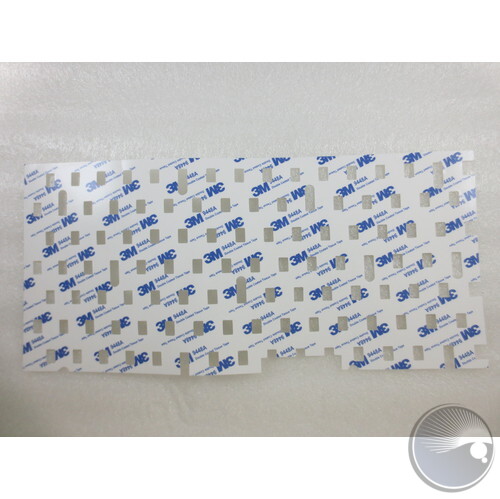

REFLECTIVE SHEETING B (BOM#76)PTJ62100290REFLECTIVE SHEETING B (BOM#76)
PTJ71003453ANetwork Out Ribbon Cable (15cm)

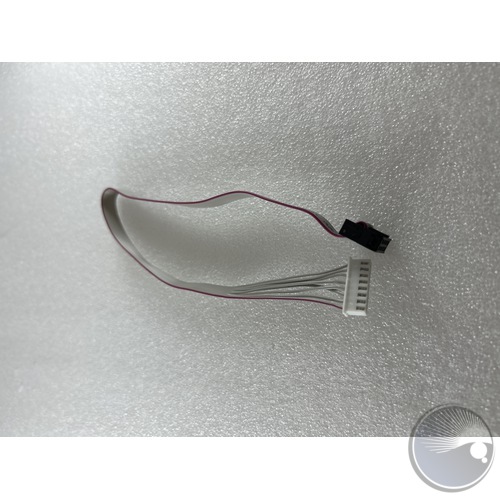

Network In Ribbon Cable (35cm)PTJ71003454ANetwork In Ribbon Cable (35cm)

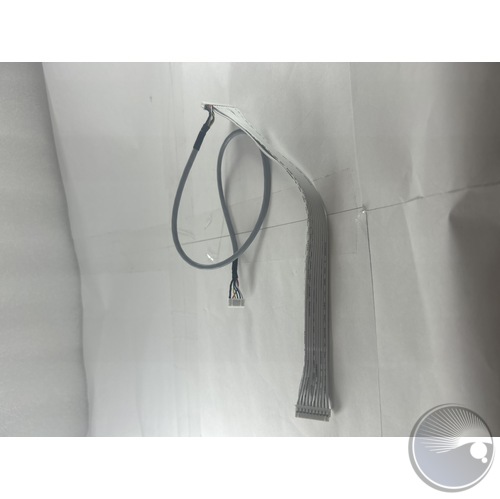

Ribbon wire harness from PCB to panel(26/45cm)PTJ71003512ARibbon wire harness from PCB to panel(26/45cm)

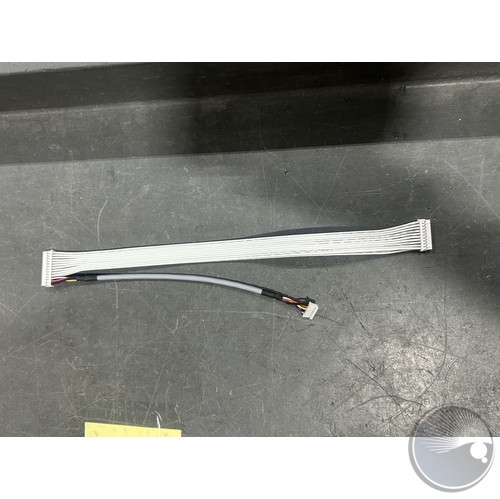

Ribbon wire harness from PCB to panel(28/20cm)PTJ71003513BRibbon wire harness from PCB to panel(28/20cm)

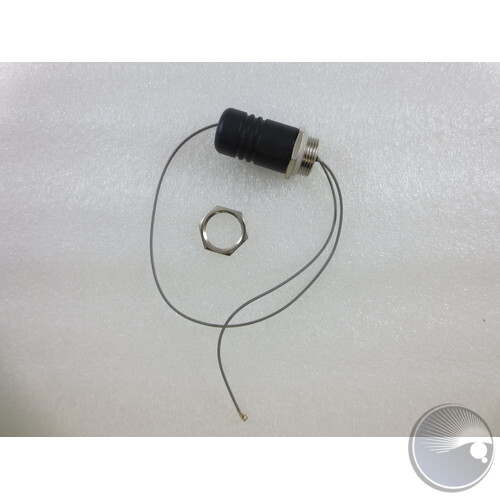

IP ANTENNA (BOM#53)PTJ72000122AIP ANTENNA (BOM#53)

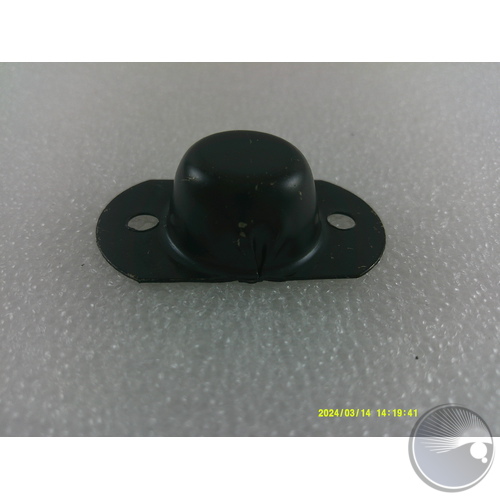

NUT FOR CLAMP LOCK (BOM#28)PTJ72000132ANUT FOR CLAMP LOCK (BOM#28)
