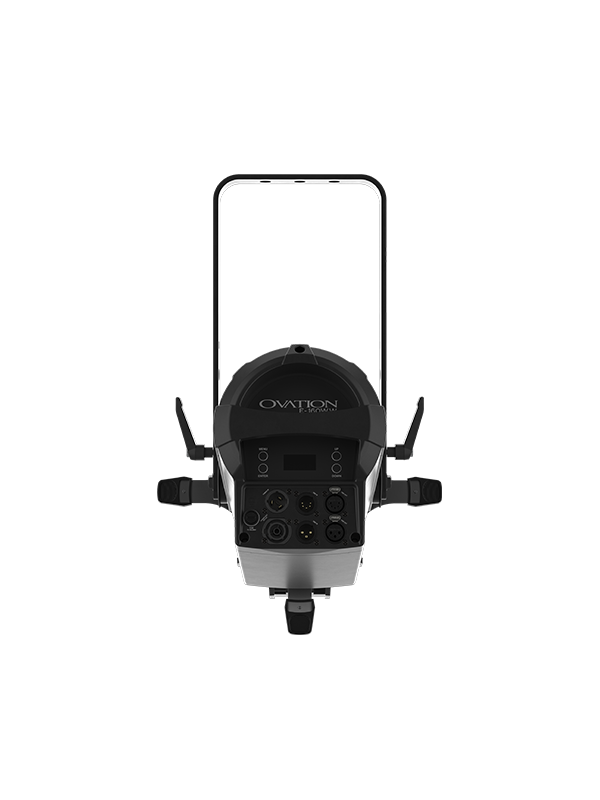

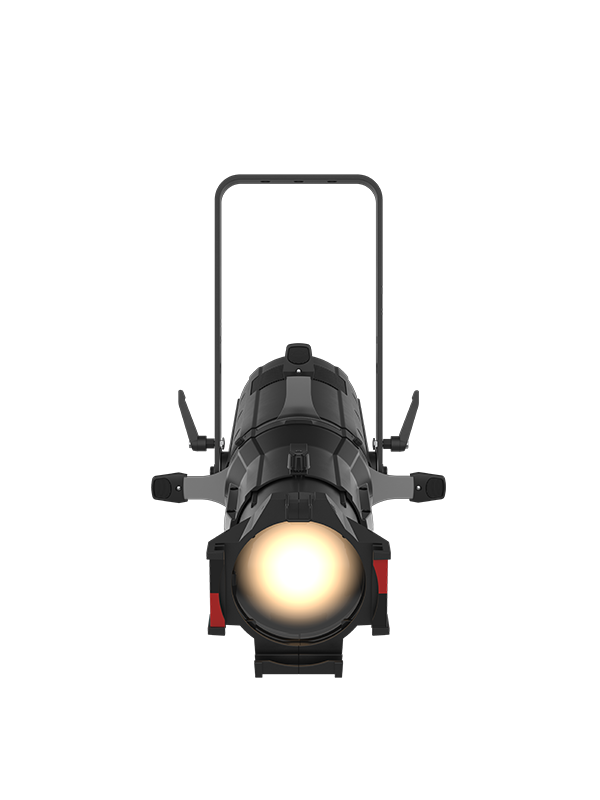

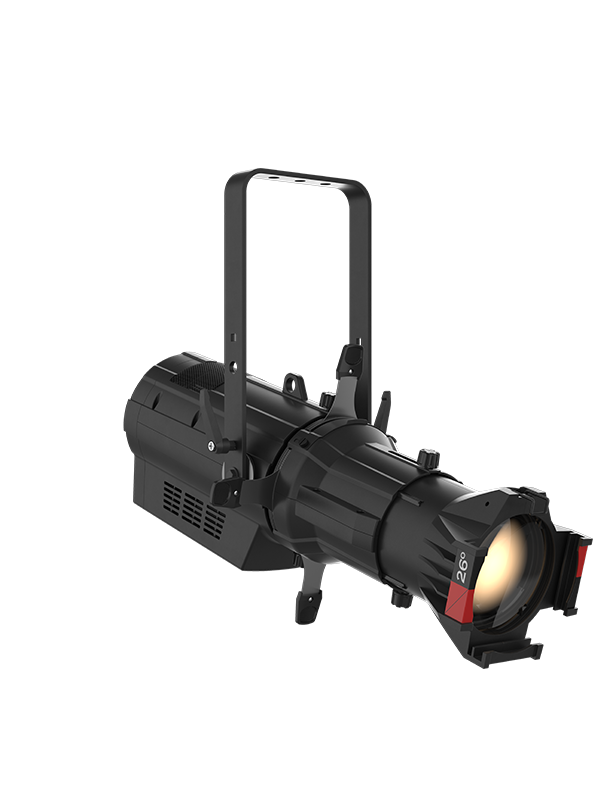

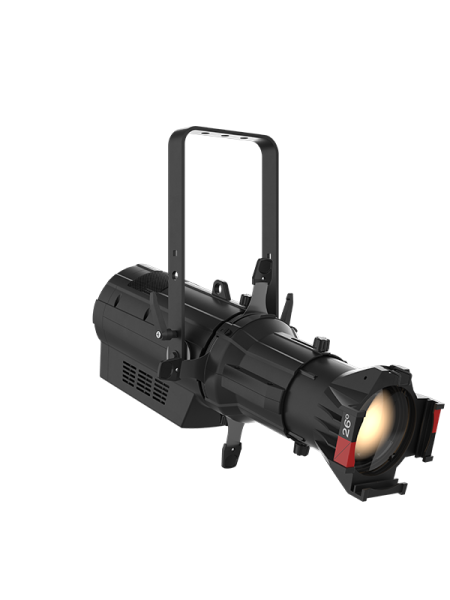

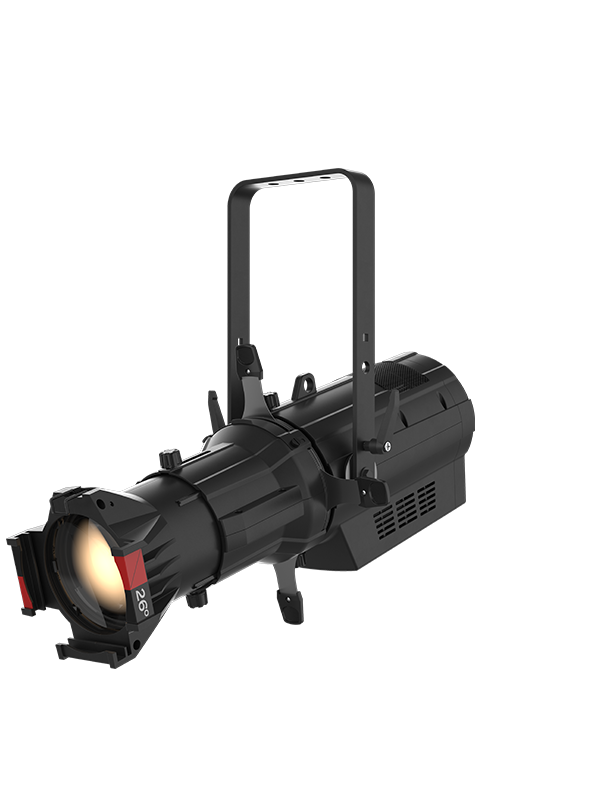

Ovation E-160WW
1.303,05 € *
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: OVATIONE160WW-2
At a Glance... mehr
Produktinformationen "Ovation E-160WW"
At a Glance
Warm white ERS style fixture with output similar to a tungsten 575 W source
Draws less than 100 W of power, a true electrical bill reducing fixture
Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theater applications
Specifications
Optical
- Light Source: 1 LED (WW) 86 W, (2.3 A), 3031 K, 50,000 hours life expectancy
- Color Temperature (at full): 3031 K
- CRI: 90
- Beam Angle (w/5° lens): 4°
- Beam Angle (w/10° lens): 6°
- Beam Angle (w/14° lens): 8°
- Beam Angle (w/19° lens): 12°
- Beam Angle (w/26° lens): 16°
- Beam Angle (w/36° lens): 20°
- Beam Angle (w/50° lens): 31°
- Beam Angle (w/15°–30° lens)(Narrow): 10°
- Beam Angle (w/15°–30° lens)(Wide): 15°
- Beam Angle (w/25°–50° lens)(Narrow): 18°
- Beam Angle (w/25°–50° lens)(Wide): 24°
- Field Angle (w/5° lens): 7°
- Field Angle (w/10° lens): 10°
- Field Angle (w/14° lens): 14°
- Field Angle (w/19° lens): 18°
- Field Angle (w/26° lens): 25°
- Field Angle (w/36° lens): 33°
- Field Angle (w/50° lens): 50°
- Field Angle (w/15°–30° lens)(Narrow): 16°
- Field Angle (w/15°–30° lens)(Wide): 29°
- Field Angle (w/25°–50° lens)(Narrow): 28°
- Field Angle (w/25°–50° lens)(Wide): 48°
- Dimming Modes: 4
- Illuminance (w/5° lens): 40,600 lux @ 5 m
- Illuminance (w/10° lens): 20,000 lux @ 5 m
- Illuminance (w/14° lens): 10,814 lux @ 5 m
- Illuminance (w/19° lens): 6,253 lux @ 5 m
- Illuminance (w/26° lens): 3,189 lux @ 5 m
- Illuminance (w/36° lens): 1,918 lux @ 5 m
- Illuminance (w/50° lens): 743 lux @ 5 m
- Illuminance (w/15°–30° lens)(Narrow): 11,201 lux @ 5 m
- Illuminance (w/15°–30° lens)(Wide): 3,739 lux @ 5 m
- Illuminance (w/25°–50° lens)(Narrow): 3,699 lux @ 5 m
- Illuminance (w/25°–50° lens)(Wide): 1,424 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Manual
- Strobe Rate: 0 to 29 Hz
- Color Temperature Presets: Yes
- Dim Curve: 4
- Dim Modes: 4
Construction / Physical
- Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
- Dimensions (w/5° lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
- Dimensions (w/10° lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
- Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
- Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
- Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
- Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
- Weight (fixture only): 14.2 lb (6.4 kg)
- Weight (w/5° lens): 20 lb (9.1 kg)
- Weight (w/10° lens): 18 lb (8.2 kg)
- Weight (w/14° lens): 19.6 lb (8.89 kg)
- Weight (w/26° lens): 18.4 lb (8.3 kg)
- Weight (w/15°–30° lens): 28.2 lb (12.7 kg)
- Weight (w/25°–50° lens): 25.8 lb (11.7 kg)
- Exterior Color: Black
- Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
- Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
- Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
- Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
- Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 2, 3 or 6
- Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 13 units @ 120 V; 23 units @ 208 V; 25 units @230V; 26 units @ 240 V
- Power and Current: 101 W, 0.86 A @ 120 V, 60 Hz
- Power and Current: 100 W, 0.51 A @ 208 V, 60 Hz
- Power and Current: 99 W, 0.47 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
What's Included
- Ovation E-160WW
- Seetronic Powerkon IP65
Required Accessories
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE 1 Style power extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- RDM2go
- Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
- Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
ORDERING INFO
- Item Code: 03121237
