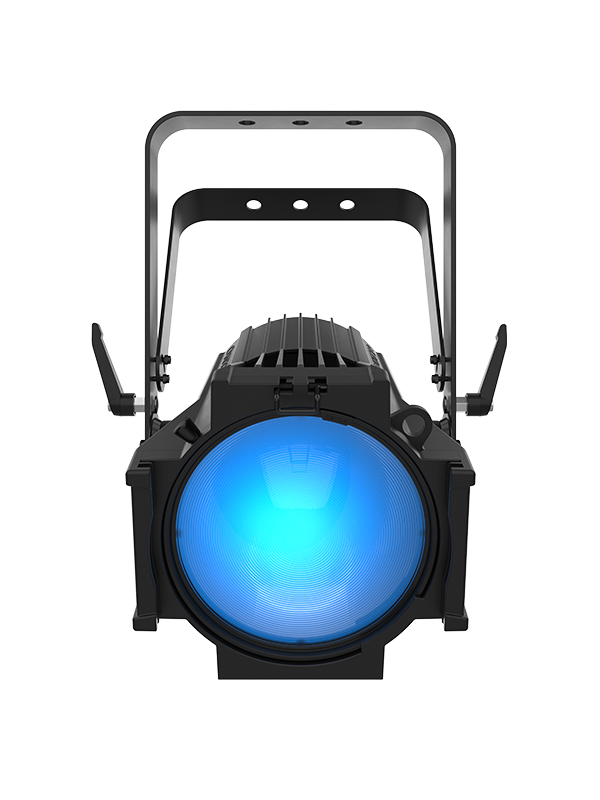

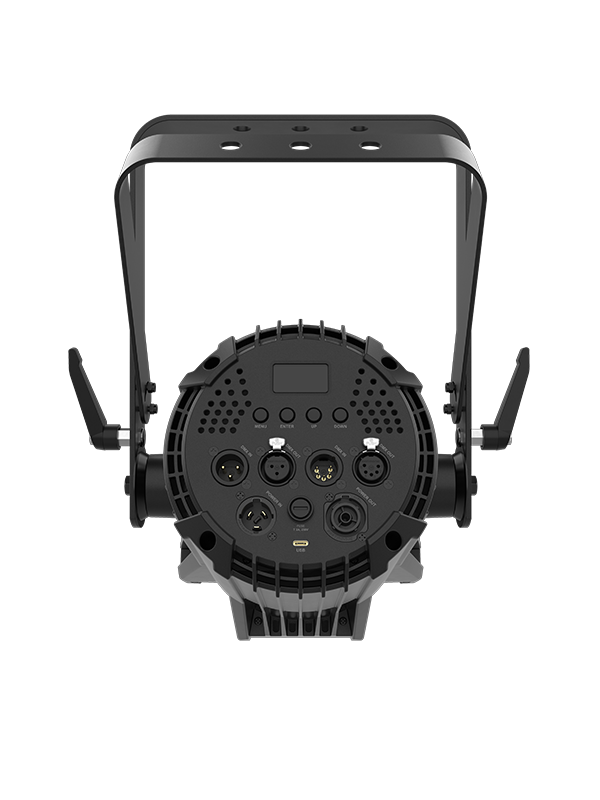

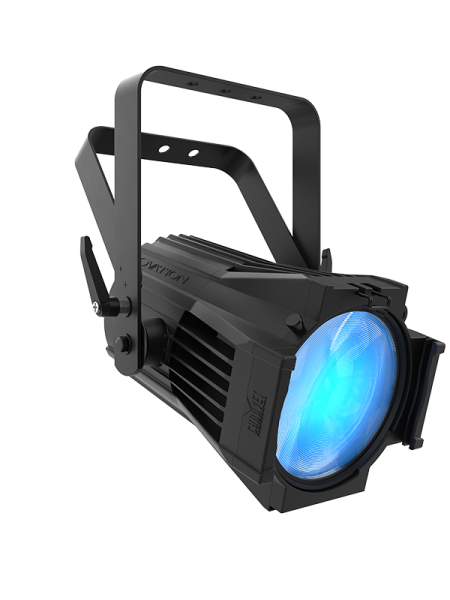

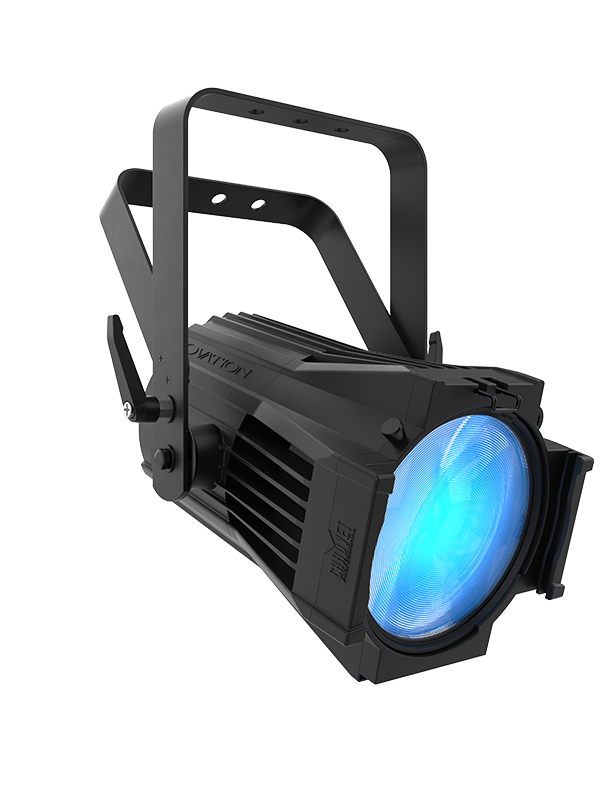

Ovation P-56 FC
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: OVATIONP56FC-2
At a Glance
Full color PAR style fixture with homogenized single source of light
Interchangeable lens plates included for medium and wide beam angles
Flat, even field of light
Quiet operation for use in any situation with fan speed control
RDM and variable Pulse Width Modulation for setup ease
Accepts standard 7.5” beam shaping accessories
16-bit dimming resolution for smooth fades
Specifications
Optical
- Light Source: 62 LEDs (12 red, 11 green, 11 blue, 14 amber, 14 lime) 6 to 8 W, (1 A), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 6500 K
- Color Temperature (at full): 6229 K
- CRI (3200): 87.9
- Field Angle (Narrow Lens): 24.7°
- Beam Angle (Narrow Lens):12.8°
- Beam Angle (Medium Lens): 23.2°
- Beam Angle (Wide Lens): 73.2°
- Field Angle (Medium Lens): 40.9°
- Field Angle (Wide Lens): 103.7°
- Iluminance (Narrow Lens) : 3,404 lux @ 5m
- Illuminance (Medium Lens): 1,251 lux @ 5 m
- Illuminance (Wide Lens): 197 lux @ 5 m
- Iluminance (Narrow Lens) : 3,404 lux @ 5m
- Illuminance (Medium Lens): 1251 lux @ 5 m
- Illuminance (Wide Lens): 197 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
- Weight: 12.2 lb (5.6 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
- Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
- Power and Current: 167 W, 1.68 A @ 100 V, 60 Hz [4.6 A inrush]
- Power and Current: 161 W, 1.36 A @ 120 V, 60 Hz [6.0 A inrush]
- Power and Current: 160 W, 0.80 A @ 208 V, 60 Hz [8.2 A inrush]
- Power and Current: 159 W, 0.75 A @ 230 V, 50 Hz [9.8 A inrush]
- Power and Current: 158 W, 0.73 A @ 240 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- Noise Level (Idle): 31.5 dB(A) @ 1 m
- Noise Level (Auto): 31.4 dB(A) @ 1 m
- Noise Level (On): 31.3 dB(A) @ 1 m
- Noise Level (Off): 4.0 dB(A) @ 1 m
- Noise Level (silent): 19.3 dB(A) @ 1 m
What's Included
- Ovation P-56FC
- Seetronic Powerkon IP65 power cord
- Gel frame (7.5 in/191 mm accessories)
- Narrow, Medium, and Wide Lens
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5” Barndoor V2
- Ovation 60 deg, 7.5” Honeycomb
ORDERING INFO
- Item Code: 03031500
