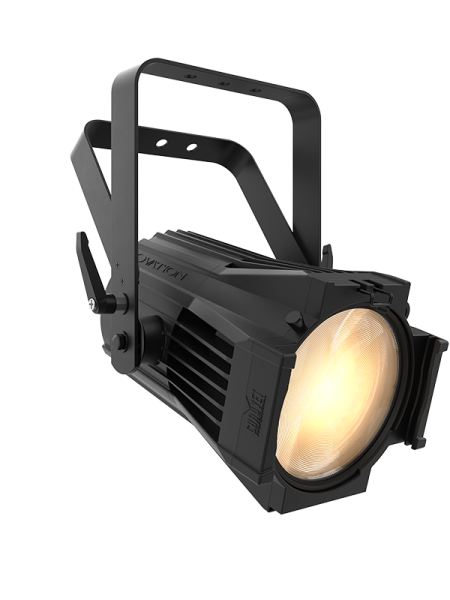

Ovation P-56 WW
1.041,25 € *
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: OVATIONP56WW-2
At a Glance... mehr
Produktinformationen "Ovation P-56 WW"
At a Glance
Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
16-bit dimming resolution for smooth fades
Compact design with homogenous single source of light
Flat, even field of light
Quiet operation for use in any situation
Interchange lens plates included for narrow, medium and wide beam angles
Specifications
Optical
- Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
- Color Temperature (at full): 3228 K
- CRI: 97.9
- Beam Angle (Narrow lens): 11.8°
- Beam Angle (Medium lens): 23.9°
- Beam Angle (Wide lens): 70.9°
- Beam Angle (Wide lens w/ egg crate) : 37°
- Field Angle (Narrow lens): 26.6°
- Field Angle (Medium lens): 40°
- Field Angle (Wide lens): 106°
- Field Angle (Wide lens w/egg crate): 68°
- Lumens (w/Narrow lens): 10,326
- Lumens (w/Medium lens): 10,728
- Lumens (w/Wide lens): 10,687
- Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
- Illuminance (w/Medium Lens): 2,264 lux @ 5 m
- Illuminance (w/Wide Lens): 363 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 29 Hz
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
- Weight: 11.6 lb (5.3 kg)
- Exterior Color: Black
- Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

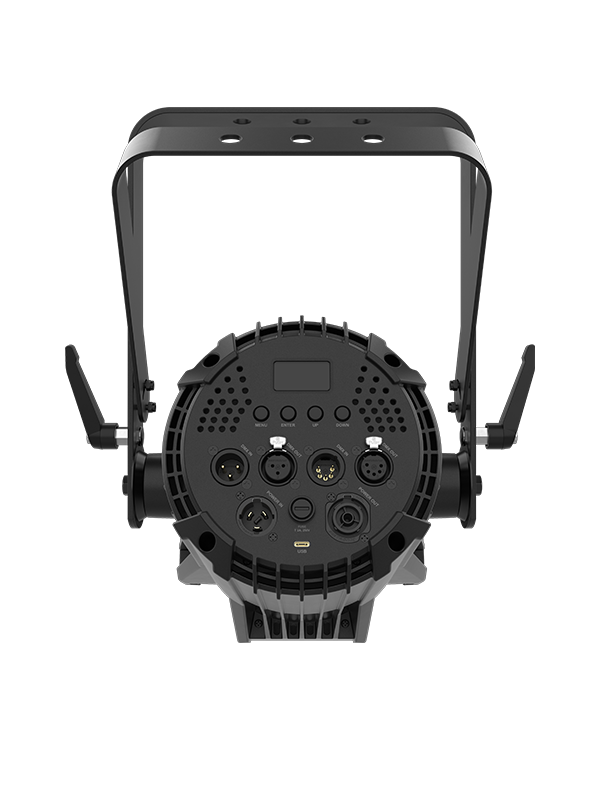

Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB-C
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 2, 3 or 6
- Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
- Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
- Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
- Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
- Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
- Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Ovation P-56WW
- Seetronic Powerkon IP65 power cord
- Gel Frame (7.5 in/191 mm accessories)
- Wide, medium and narrow lenses
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5″ Barndoor
- Ovation 60deg, 7.5” Honeycomb
ORDERING INFO
- Item Code: 03031475
