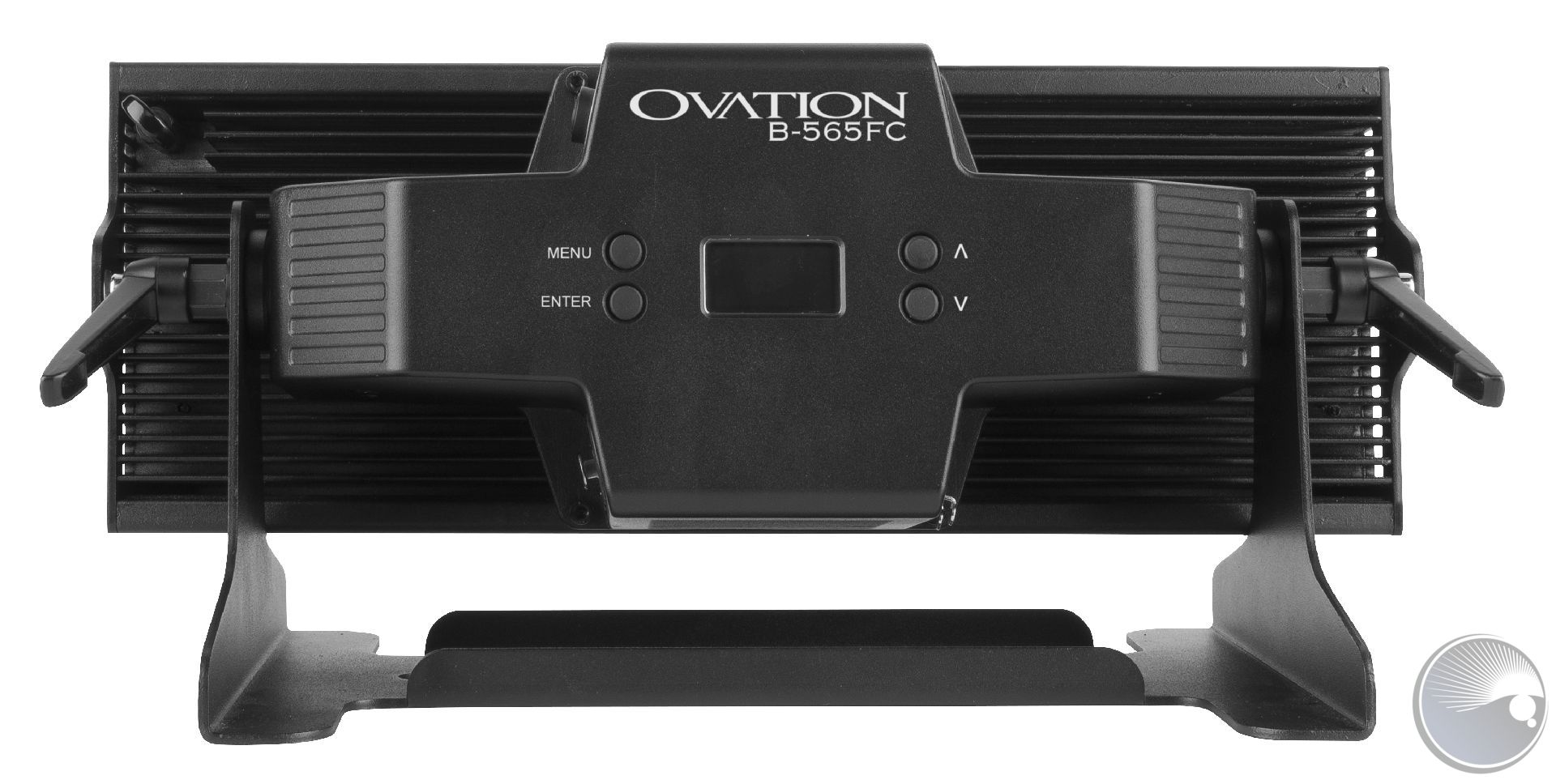

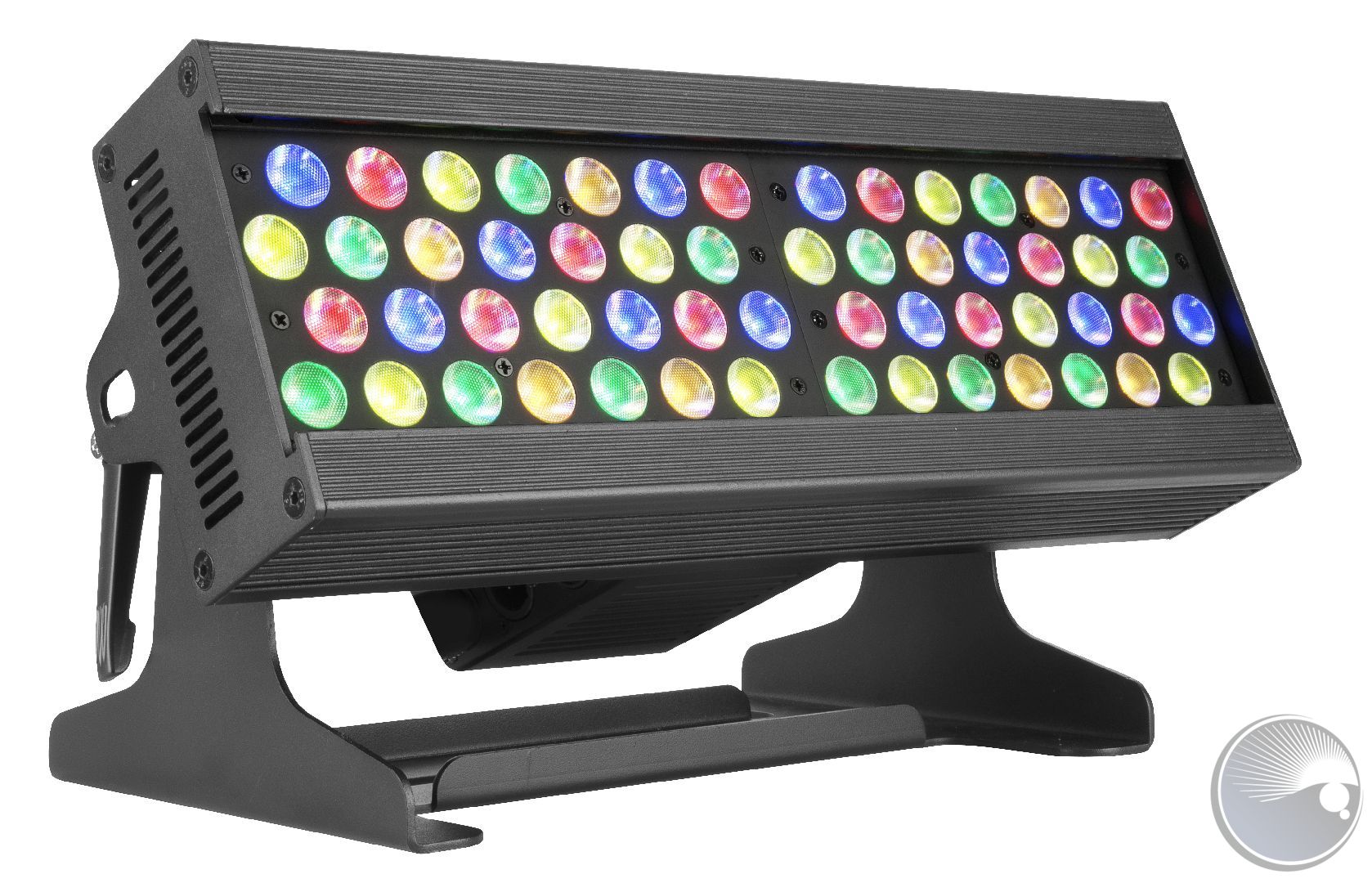

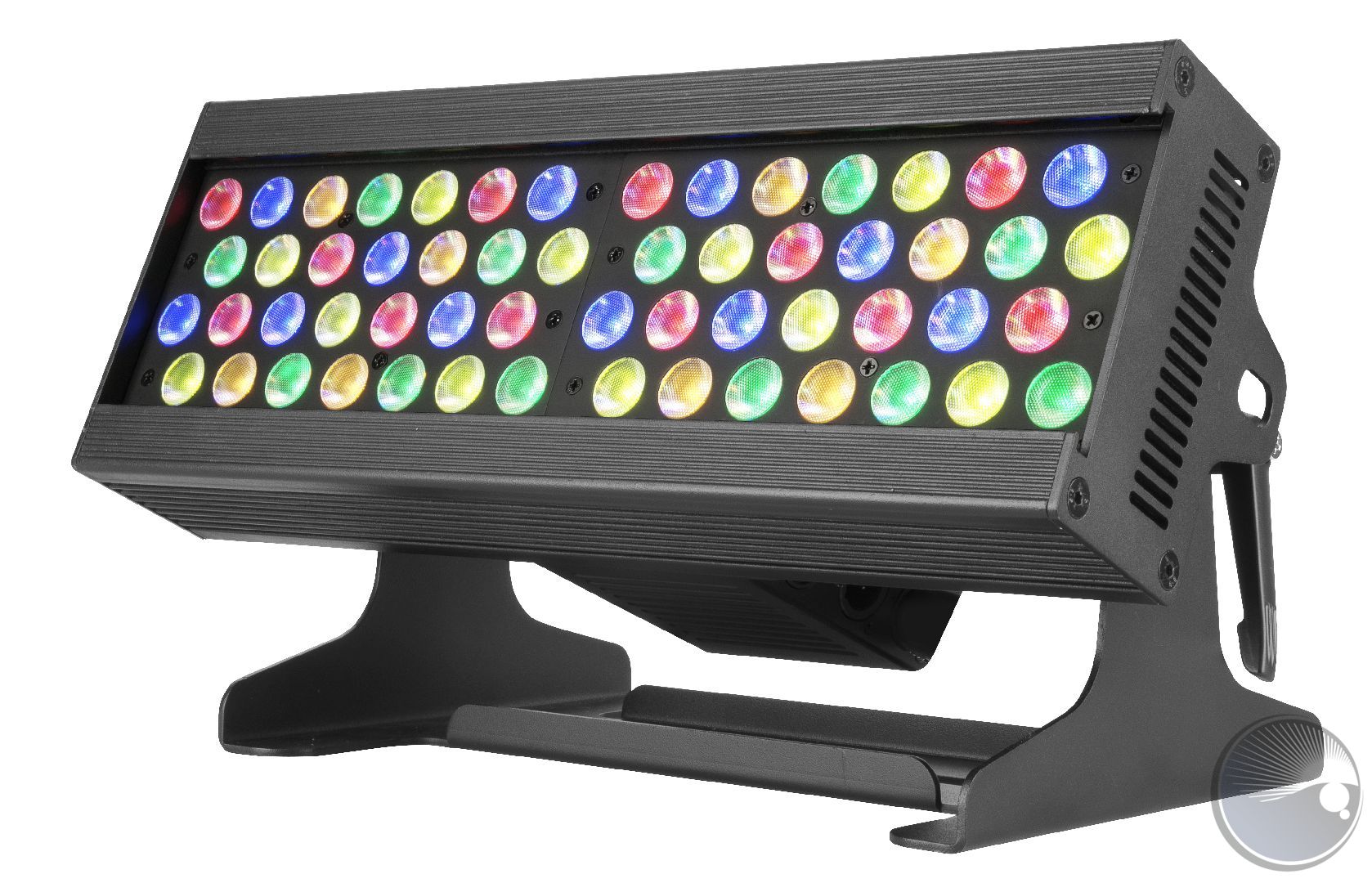

Ovation B-565FC

1.188,81 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONB565FC
Ovation  B-565FC Ovation B-565FC  boasts groundbreaking features such as an... mehr
Produktinformationen "Ovation B-565FC"

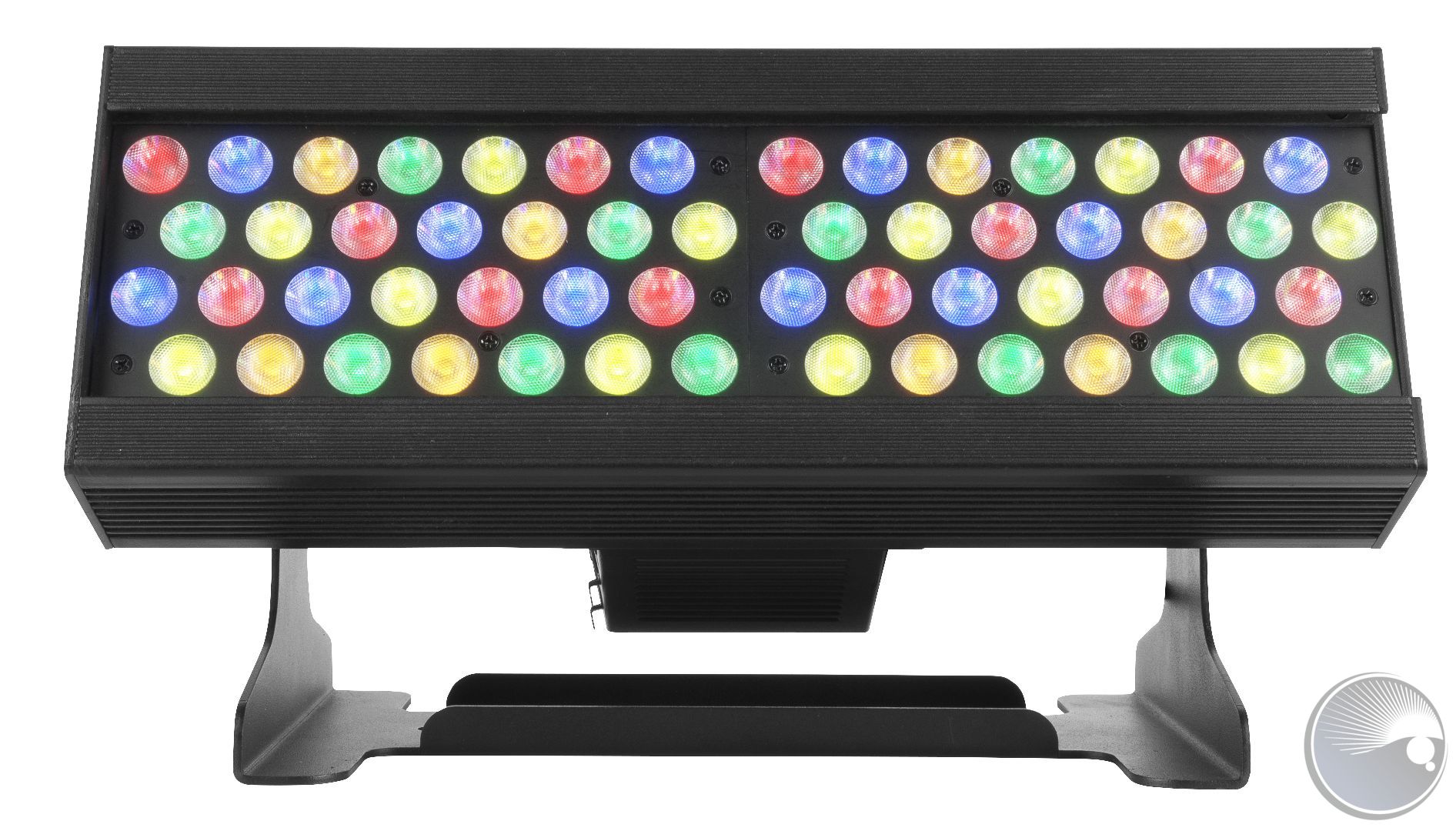

Ovation B-565FC

Ovation B-565FC boasts groundbreaking features such as an RGBA-Lime color system and the incorporation of RDM, Art-Net™ and sACN plus standard DMX for programming and networking options. This little powerhouse not only makes a great batten-style light, but is also a tremendous standard wash. A holographic filter is included and locks into place so the fixture can be used in any orientation with no worry about the filter sliding out.



AT A GLANCE

  • Full Color LED (RGBAL) batten fixture for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Multiple control personalities with one or two sections of control

  • Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern

  • Virtual Color wheel with color matched to popular gel colors

  • Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility

  • Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Nearly silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 K to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 20°
  • Beam Angle (horizontal): 19°
  • Beam Angle (vertical): 20°
  • Beam Angle (horizontal w/filter): 36°
  • Beam Angle (vertical w/filter): 20°
  • Field Angle (horizontal): 37°
  • Field Angle (vertical): 37°
  • Field Angle (horizontal w/filter): 66°
  • Field Angle (vertical w/filter): 40°
  • Lumens: 6,523
  • Illuminance: 1,637 lux @ 5 m
  • Illuminance (w/filter): 470° @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 13.9 x 7.48 x 8.14 in (355 x 190 x 207 mm)
  • Weight: 11.6 lb (5.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 13.86 x 3.66 in (352 x 93 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON® Compatible
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): Art-Net™, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
  • Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
  • Modes/Personalities: 16 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 13 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
  • Power and Current: 117 W, .995 A @ 120 V, 60 Hz
  • Power and Current: 119 W, 0.569 A @ 208 V, 60 Hz
  • Power and Current: 119 W, 0.519 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031236
Weiterführende Links zu "Ovation B-565FC"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
ETHERNET PCB (BOM#24)PTJ2010279000ETHERNET PCB (BOM#24)
ETHERNET CONNECTOR CH-B14W (BOM#15)PTJ2020200959ETHERNET CONNECTOR CH-B14W (BOM#15)
PTJ2020201490DMX SIGNAL INPUT CH-OB10 (BOM#25)
PTJ2020201491DMX SIGNAL OUTPUT CH-OB10 (BOM#16)
DISPLAY PCB ML-PD350 (BOM#12)PTJ2020201653DISPLAY PCB ML-PD350 (BOM#12)
PTJ2020201712MPCB CH-OB2 (BOM#11)

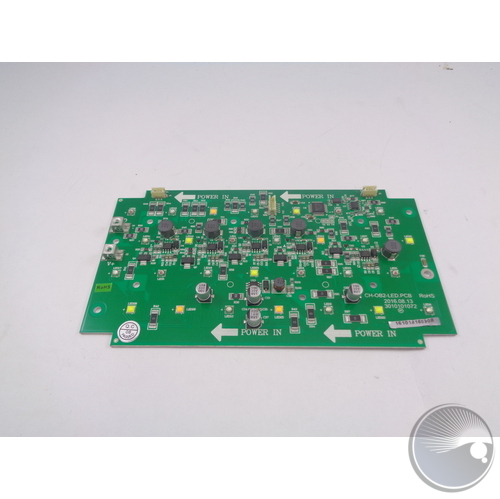

LED PCB CH-OB2 (BOM#5)PTJ2020201813LED PCB CH-OB2 (BOM#5)

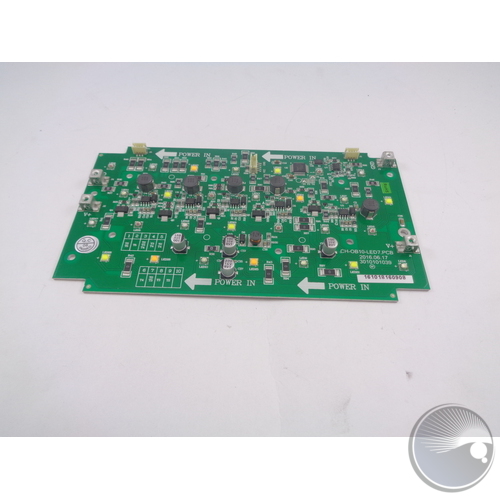

LED PCB 1 CH-OB2 (BOM#34)PTJ2020201853LED PCB 1 CH-OB2 (BOM#34)
PTJ2030100067FASTEN STANDOFF (BOM#27)
PTJ3019001043BUTTON COVER (BOM#12)
LENS (BOM#3)PTJ3020100330LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

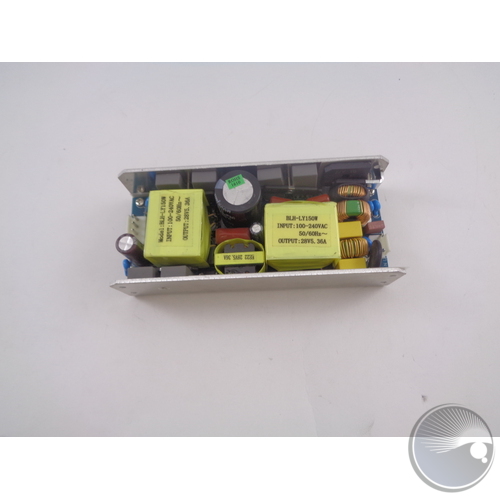

POWER SUPPLY (BOM#9)PTJ3020400230POWER SUPPLY (BOM#9)
PLASTIC RING (BOM#29)PTJ3021300095PLASTIC RING (BOM#29)
PTJ3021700607BM SCREW (BOM#19)
PTJ3021700710KCM SCREW (BOM#8)

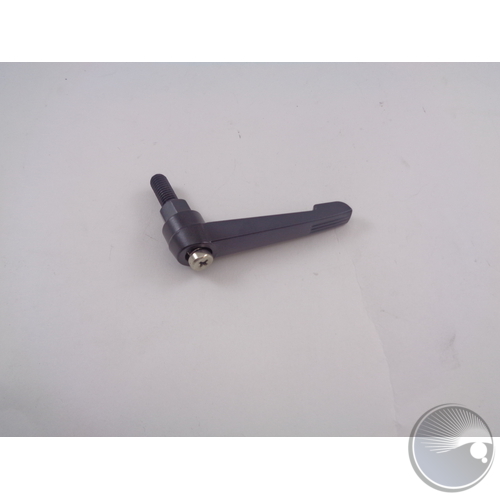

M8 BRACKET ADJUSTMENT HANDLE/SHANK (BOM#21)PTJ3021700729M8 BRACKET ADJUSTMENT HANDLE/SHANK (BOM#21)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ3030100109STAND OFF (BOM#4)
PTJ4010102900POWER HOLDER (BOM#10)
SIDE PANEL A (BOM#28)PTJ4010302922SIDE PANEL A (BOM#28)
SIDE PANEL B (BOM#7)PTJ4010302923SIDE PANEL B (BOM#7)
PTJ4010302984HEAT SINK (BOM#6)
PTJ4010302985STANDING BRACKET (BOM#22)
OUTER LOCK (BOM#20)PTJ4010303111OUTER LOCK (BOM#20)

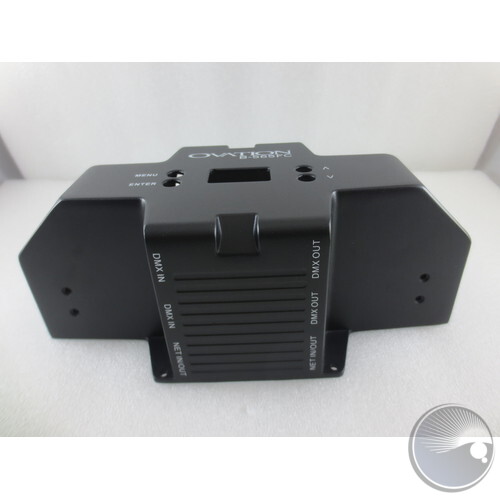

PTJ4010401613REAR (BOM#18)
PTJ4020200318LENS COVER A (BOM#2)

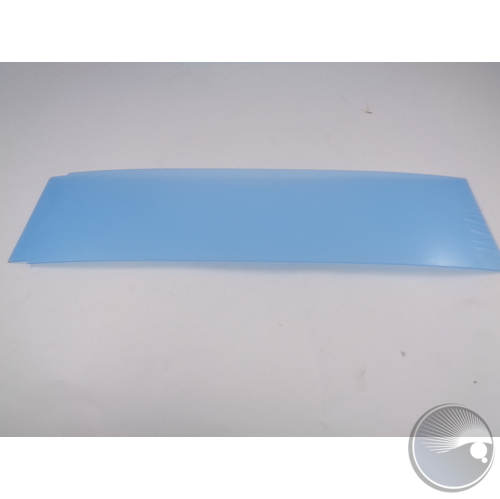

FILTER (BOM#1)PTJ4020200325FILTER (BOM#1)
