Ovation B-1965FC

2.735,81 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONB1965FC
Ovation  B-1965FC Ovation B-1965FC  takes advantage of the extended color... mehr
Produktinformationen "Ovation B-1965FC"

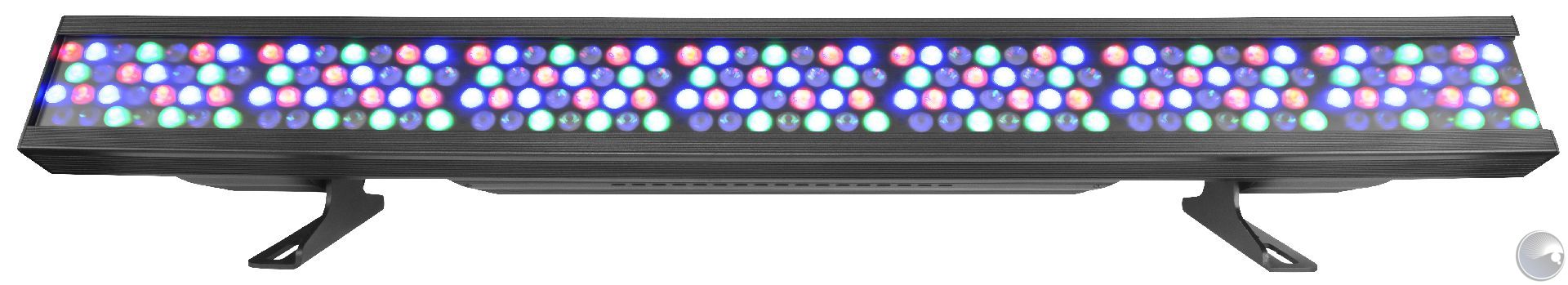

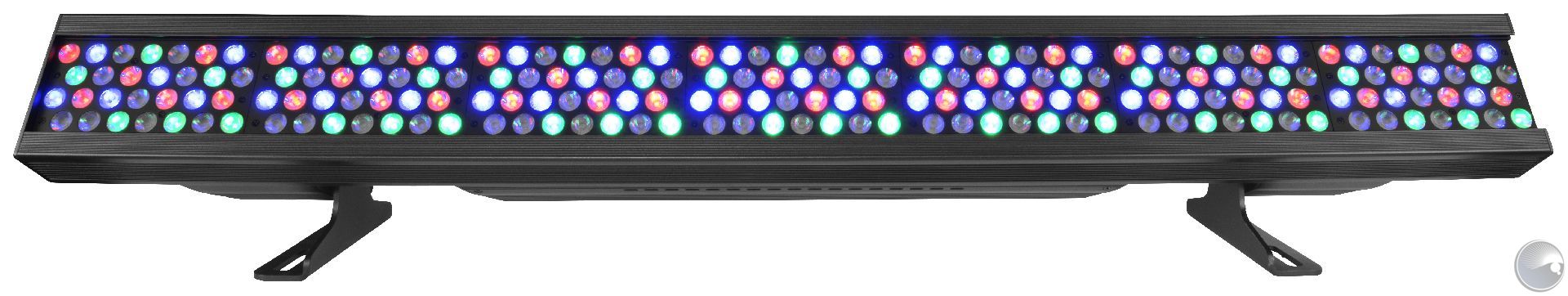

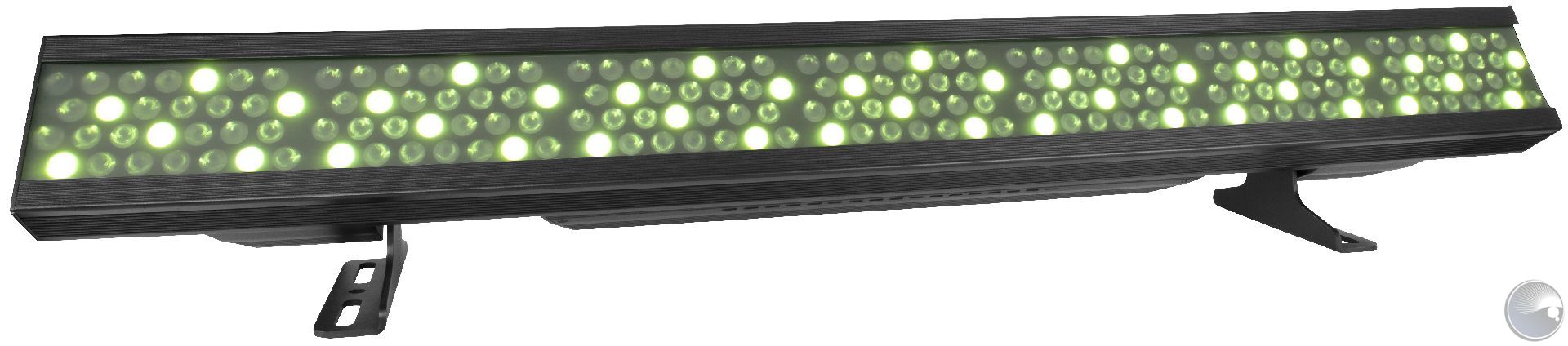

Ovation B-1965FC

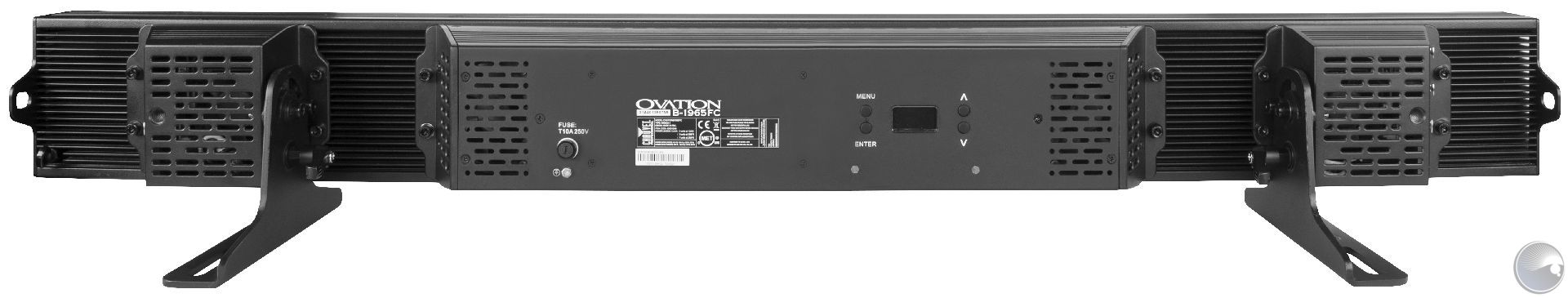

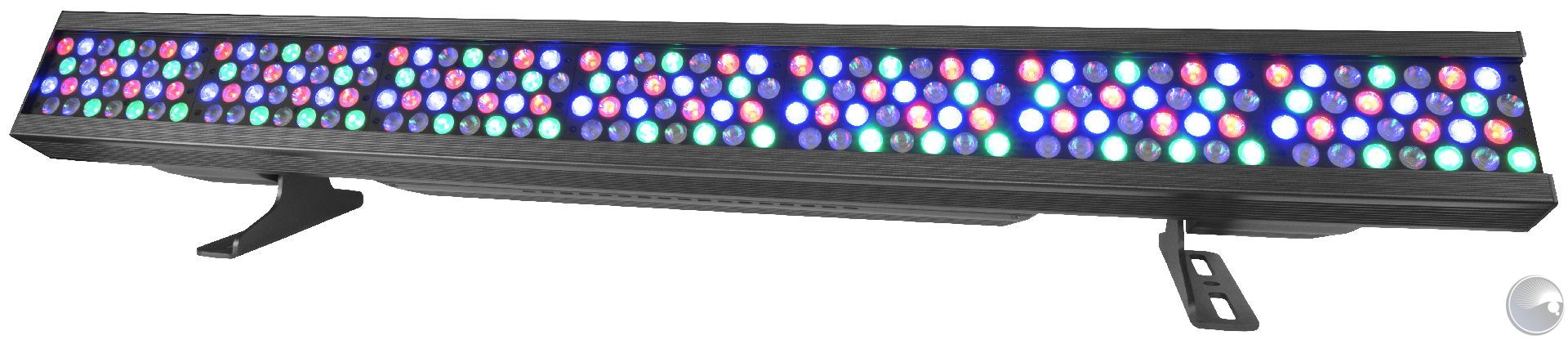

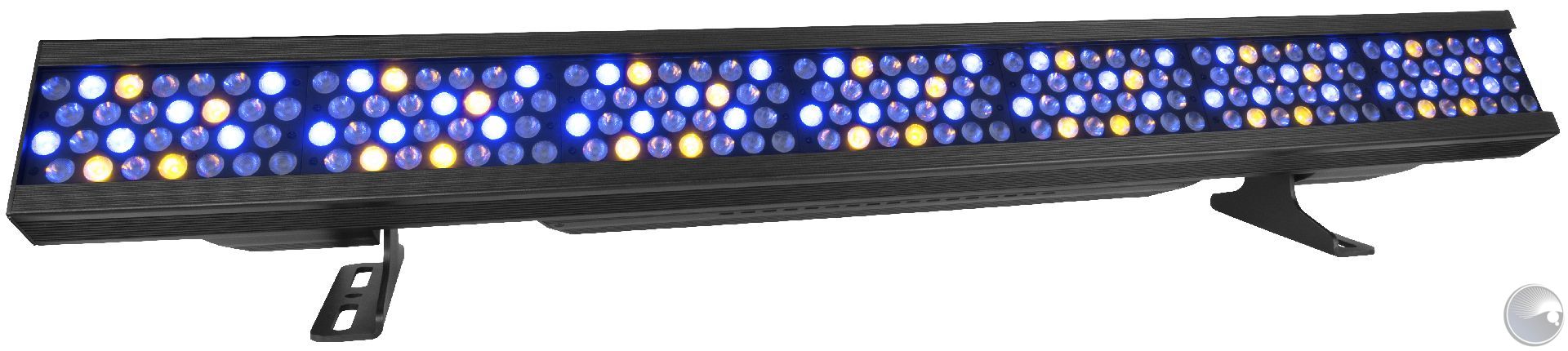

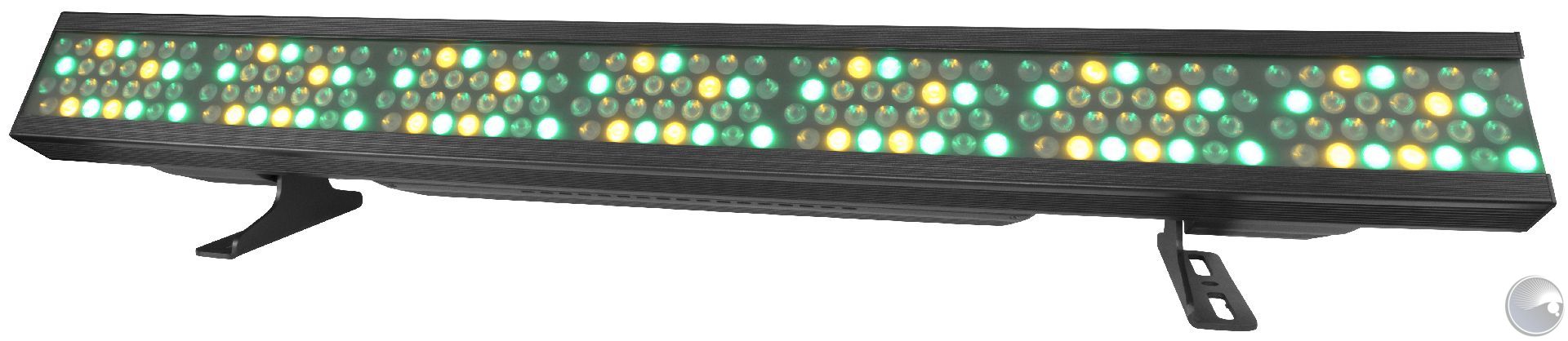

Ovation B-1965FC takes advantage of the extended color capabilities and superior color renderings of the RGBA-Lime color mixing system to offer an ideal 1.2 m batten for stage and theatre lighting. It responds to RDM, Art-Net™ and sACN in addition to standard DMX control. Up to seven sections can be controlled individually for maximum flexibility. An easily accessible Virtual Color Wheel and Color Temperature Presets make programming a breeze. It comes with a holographic filter that easily locks into place for enhanced wall/cyc grazing ability.



AT A GLANCE

  • Full Color LED (RGBAL) batten fixture for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Multiple control personalities for complex programming schemes up to 7 sections of control

  • Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing

  • Virtual Color wheel with color matched to popular gel colors

  • Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility

  • Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Nearly silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 196 LEDs (42 red, 42 green, 42 blue, 28 amber, 42 lime) 3 W (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 20°
  • Beam Angle (Horizontal): 24°
  • Beam Angle (Vertical): 21°
  • Beam Angle (Horizontal w/filter): 44°
  • Beam Angle (Vertical w/filter): 22°
  • Field Angle(Horizontal): 41°
  • Field Angle (Vertical): 37°
  • Field Angle (Horizontal w/filter): 75°
  • Field Angle (Horizontal w/filter): 41°
  • Lumens: 22,925
  • Illuminance: 5,000 lux @ 5 m
  • Illuminance (w/filter): 1,720 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 48.43 x 8.27 x 8.15 in (1230 x 210 x 207 mm)
  • Weight: 32 lb (14.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 47.5 x 3.66 in (1206 x 93 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): Art-Net™, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
    7 Cell: 21, 28, 35, 45, 52, 59, 70, 96
  • Art-Net Channels: 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
    7 Cell: 21, 28, 35, 45, 52, 59, 70, 96
  • Modes/Personalities: 17 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 421 W, 3.559 A @ 120 V, 60 Hz
  • Power and Current: 427 W, 2.066 A @ 208 V, 60 Hz
  • Power and Current: 429 W, 1.863 A @ 230 V, 50 Hz
  • Power and Current (resting): 26 W, 0.211 A @ 120 V, 60 Hz
  • Power and Current (resting): 46 W, 0.220 A @ 208 V, 60 Hz
  • Power and Current (resting): 47 W, 0.199 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031296
Weiterführende Links zu "Ovation B-1965FC"

PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)

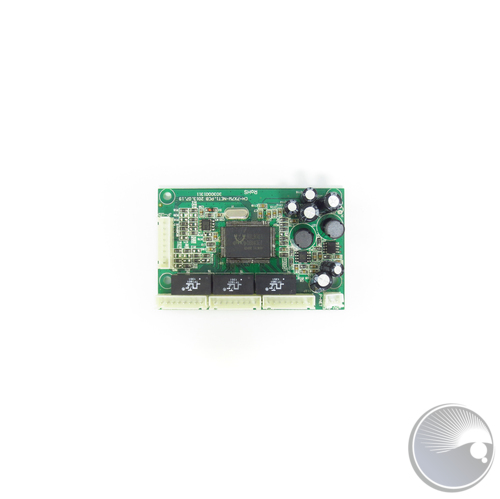

ETHERNET PCB (BOM#24)PTJ2010279000ETHERNET PCB (BOM#24)

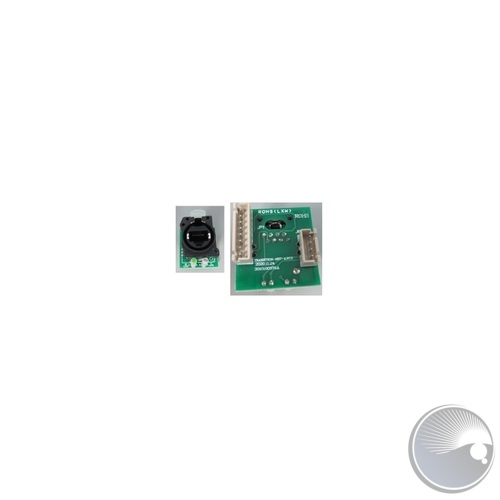

ETHERNET CONNECTOR CH-B14W (BOM#15)PTJ2020200959ETHERNET CONNECTOR CH-B14W (BOM#15)

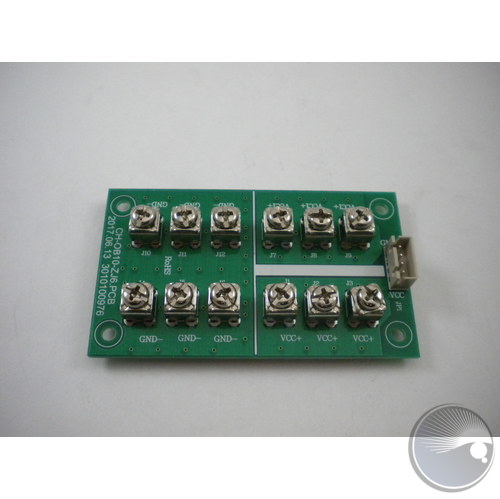

POWER XLR SOCKET (BOM#35)PTJ2020201488POWER XLR SOCKET (BOM#35)
PTJ2020201490DMX SIGNAL INPUT CH-OB10 (BOM#25)

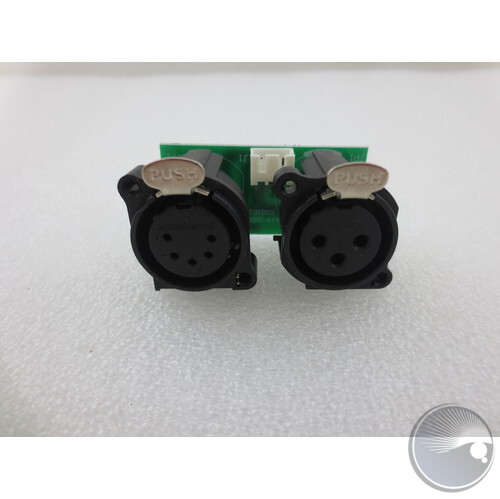

PTJ2020201491DMX SIGNAL OUTPUT CH-OB10 (BOM#16)

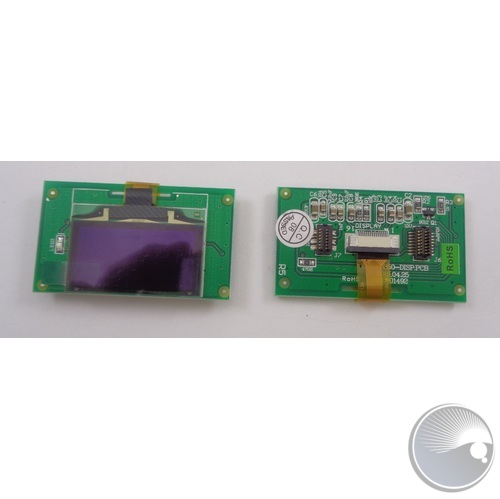

DISPLAY  PCB ML-PD350 (BOM#12)PTJ2020201653DISPLAY PCB ML-PD350 (BOM#12)

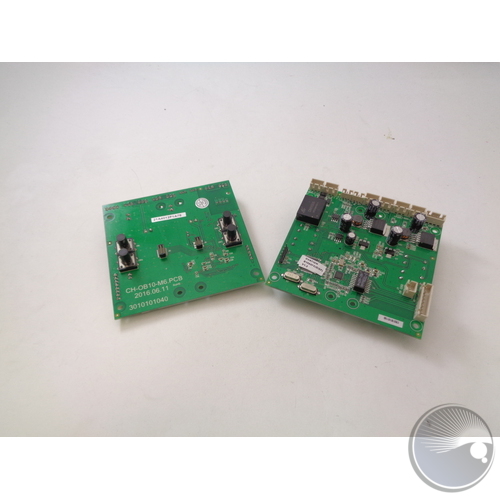

MPCB (BOM#31)PTJ2020201976MPCB (BOM#31)

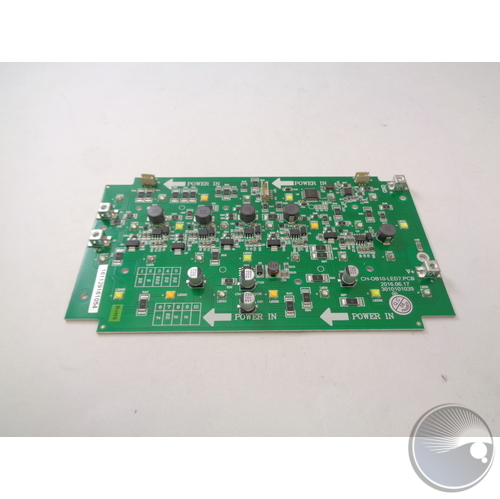

LED PCB 1 (BOM#4)PTJ2020201977LED PCB 1 (BOM#4)
PTJ2030100067FASTEN STANDOFF (BOM#27)
PTJ3019001043BUTTON COVER (BOM#28)

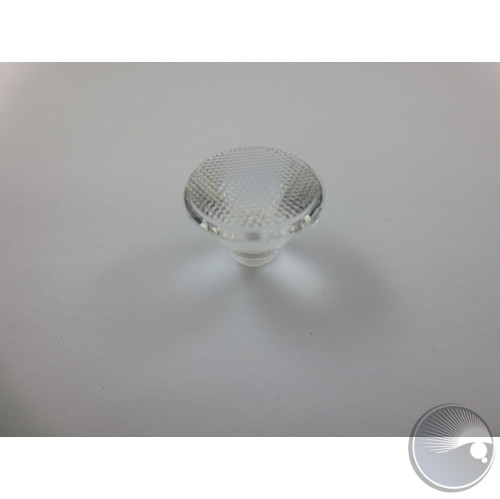

LENS (BOM#3)PTJ3020100330LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

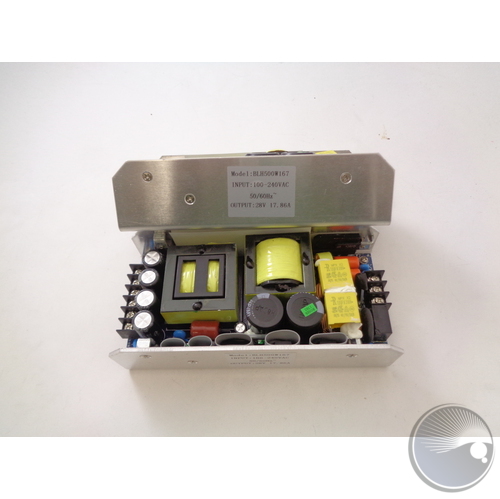

POWER SUPPLY (BOM#23)PTJ3020400245POWER SUPPLY (BOM#23)

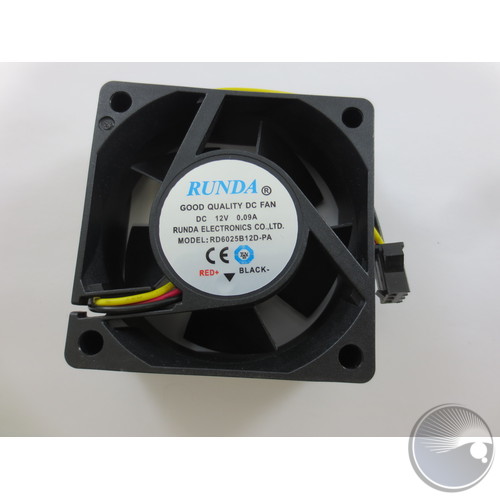

DC FAN (BOM#9)PTJ3020900044DC FAN (BOM#9)

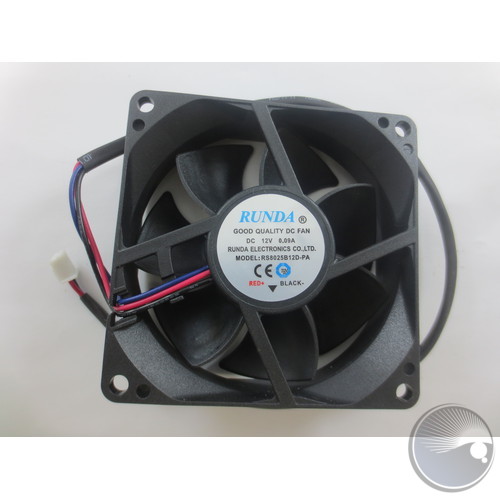

DC FAN (BOM#16)PTJ3020900045DC FAN (BOM#16)
PLASTIC RING (BOM#29)PTJ3021300095PLASTIC RING (BOM#29)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PTJ3021700710KCM SCREW (BOM#8)

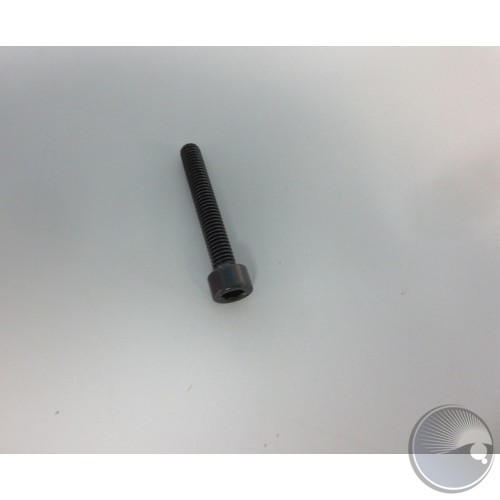

CM SCREW OF SINGEL COVER (BOM#11)PTJ3021700711CM SCREW OF SINGEL COVER (BOM#11)

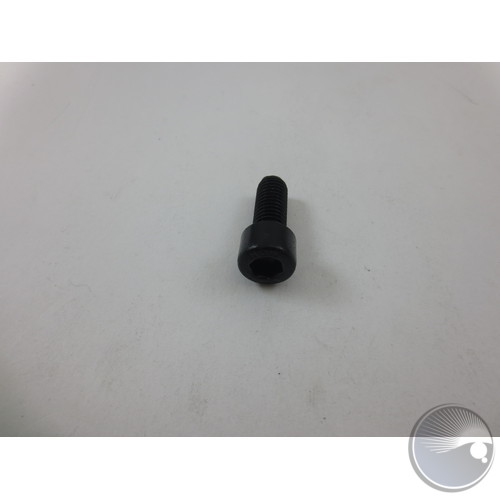

CM SCREW OF STANDING BRACKET (BOM#24)PTJ3021700786CM SCREW OF STANDING BRACKET (BOM#24)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100109STAND OFF (BOM#4)
PTJ3030100117STAND OFF 1 (BOM#32)
PTJ3030100126STAND OFF 2 (BOM#34)
PTJ4010302915HOUSING SIDE PANEL (BOM#15)

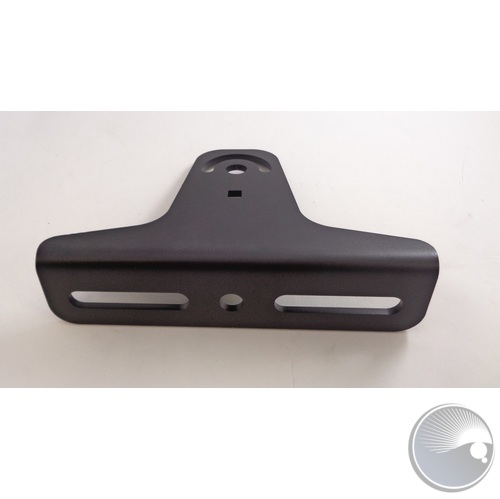

STANDING BRACKET (BOM#20)PTJ4010302917STANDING BRACKET (BOM#20)
PTJ4010302920FAN STAND (BOM#17)

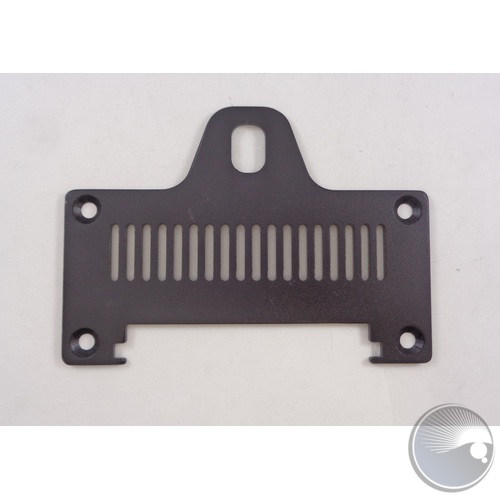

SIDE PANEL A (BOM#28)PTJ4010302922SIDE PANEL A (BOM#28)

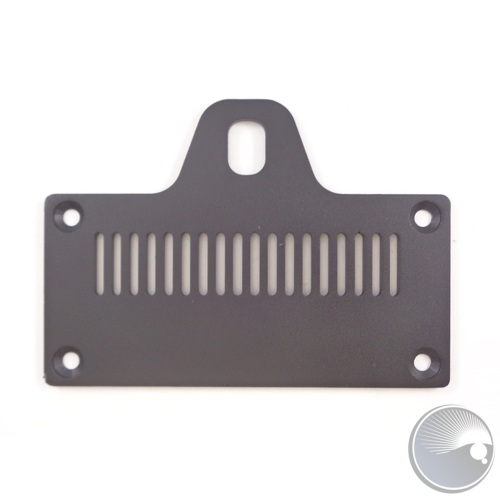

SIDE PANEL B (BOM#7)PTJ4010302923SIDE PANEL B (BOM#7)

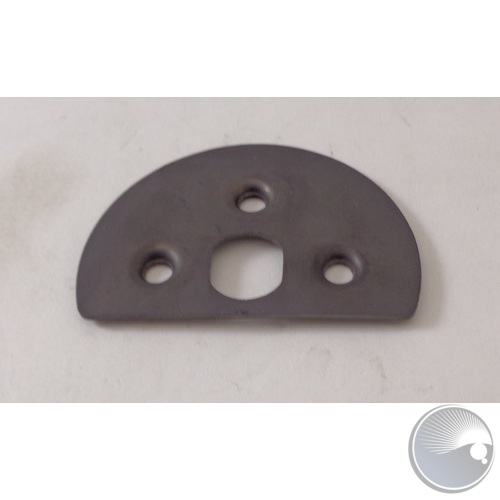

SEMI-CIRCLE  METAL PART (BOM#19)PTJ4010302924SEMI-CIRCLE METAL PART (BOM#19)
PTJ4010303261AALUMINUM HOUSING (BOM#5)

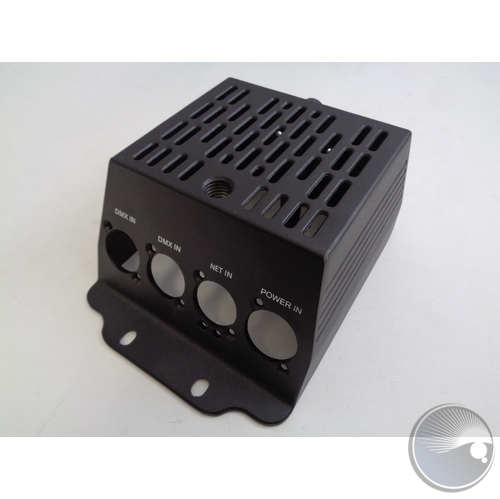

SIGNAL SOCKET COVER A (BOM#38)PTJ4010401564SIGNAL SOCKET COVER A (BOM#38)

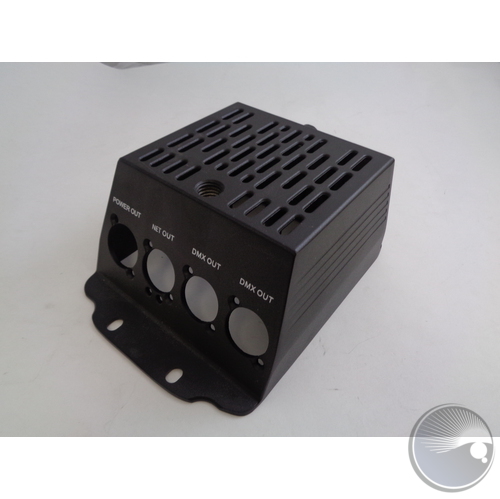

SINGEL COVER B (BOM#10)PTJ4010401565SINGEL COVER B (BOM#10)
PTJ4010401779HOUSING (BOM#27)
PTJ4020200318LENS COVER A (BOM#2)

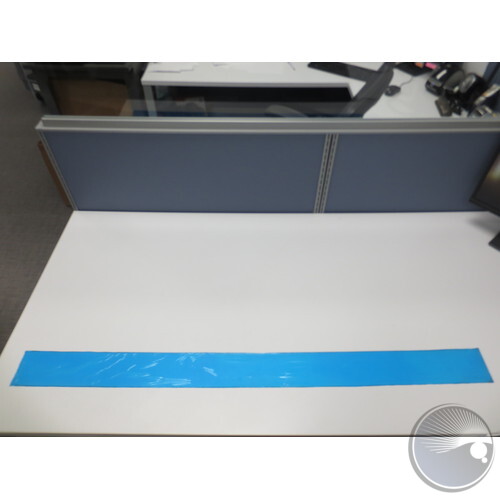

PTJ4020200335FILTER (BOM#2)
UPLOAD03PTJUPLOAD03UPLOAD03
