Ovation B-2805FC

3.516,45 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONB2805FC
Ovation  B-2805FC Ovation B-2805FC  is the first batten-style fixture to take... mehr
Produktinformationen "Ovation B-2805FC"

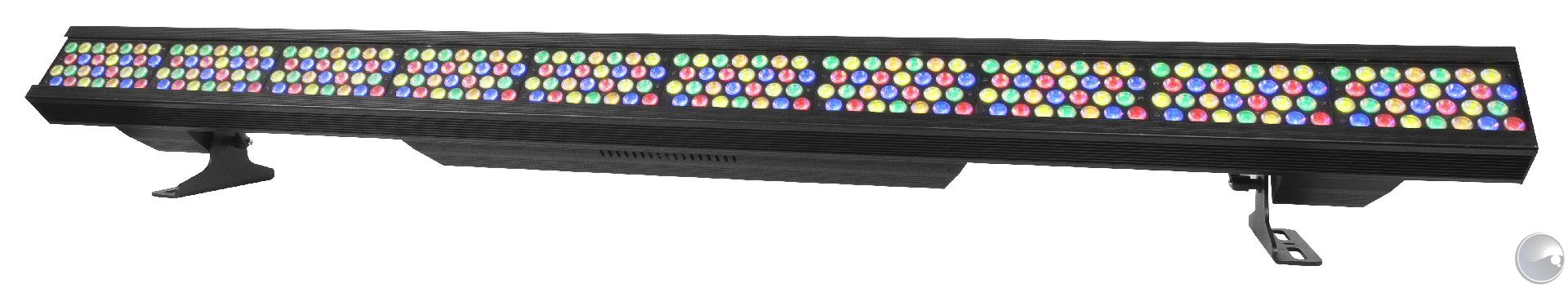

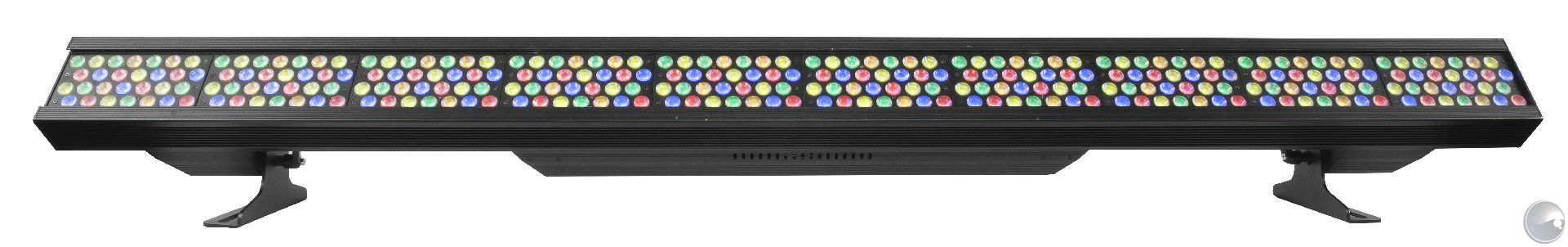

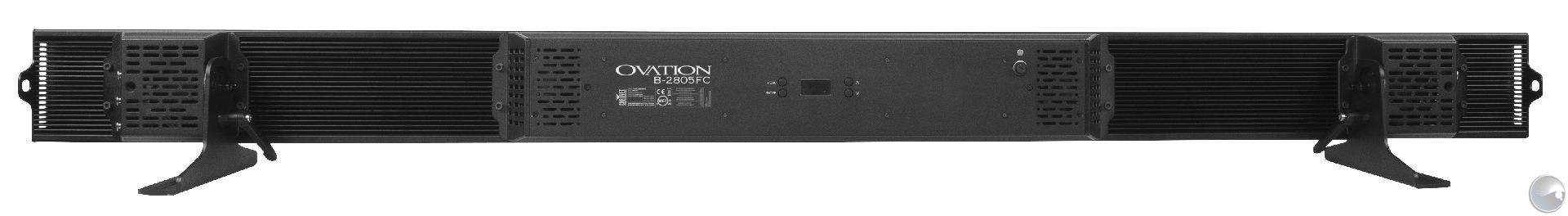

Ovation B-2805FC

Ovation B-2805FC is the first batten-style fixture to take advantage of the extended color capabilities of the RGBA-Lime color mixing system. Control is easier than ever thanks to the incorporation of RDM, Art-Net™ and sACN in addition to standard DMX control. For maximum flexibility, up to 10 sections can be controlled individually while its easily accessible Virtual Color Wheel and Color Temperature presets make programming a
breeze. An included holographic filter locks into place for enhanced wall/cyc grazing ability.



AT A GLANCE

  • Full Color LED (RGBAL) batten fixture for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Multiple control personalities for complex programming schemes up to 10 sections of control

  • Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing

  • Virtual Color wheel with color matched to popular gel colors

  • Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility

  • Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Nearly silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 3 W, (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 K to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 20°
  • Beam Angle (horizontal): 25°
  • Beam Angle (vertical): 20°
  • Beam Angle (horizontal w/filter): 52°
  • Beam Angle (vertical w/filter): 20°
  • Field Angle (horizontal): 42°
  • Field Angle (vertical): 40°
  • Field Angle (horizontal w/filter): 83°
  • Field Angle (vertical w/filter): 40°
  • Lumens: 32,673
  • Illuminance: 5,586 lux @ 5 m
  • Illuminance (w/filter): 2,320 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
  • Weight: 45.4 lb (20.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 68.90 x 3.66 in (1,750 x 93 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON® Compatible
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): Art-Net™, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
  • Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
  • Modes/Personalities: 32 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V; 5 units @240 V
  • Power and Current: 591 W, 4.92 A @ 120 V, 60 Hz
  • Power and Current: 565 W, 2.85 A @ 208 V, 60 Hz
  • Power and Current: 564 W, 2.57 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

ORDERING INFO

  • Item Code: 03031236
Weiterführende Links zu "Ovation B-2805FC"

PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
ETHERNET PCB (BOM#24)PTJ2010279000ETHERNET PCB (BOM#24)
ETHERNET CONNECTOR CH-B14W (BOM#15)PTJ2020200959ETHERNET CONNECTOR CH-B14W (BOM#15)
POWER XLR SOCKET (BOM#35)PTJ2020201488POWER XLR SOCKET (BOM#35)
PTJ2020201490DMX SIGNAL INPUT CH-OB10 (BOM#25)
PTJ2020201491DMX SIGNAL OUTPUT CH-OB10 (BOM#16)

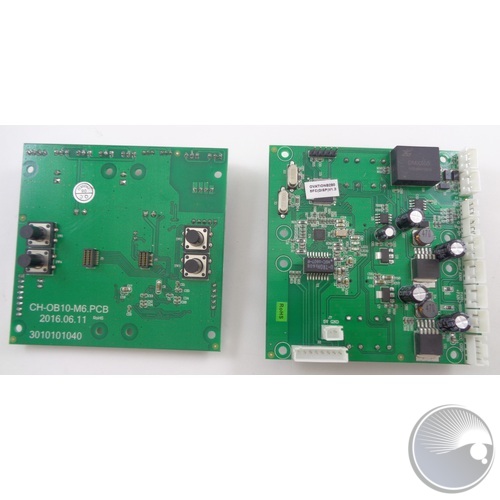

MPCB (BOM#31)PTJ2020201504MPCB (BOM#31)
DISPLAY  PCB ML-PD350 (BOM#12)PTJ2020201653DISPLAY PCB ML-PD350 (BOM#12)
LED PCB 1 (BOM#4)PTJ2020201977LED PCB 1 (BOM#4)
PTJ2030100067FASTEN STANDOFF (BOM#27)
PTJ3019001043BUTTON COVER (BOM#28)
LENS (BOM#3)PTJ3020100330LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

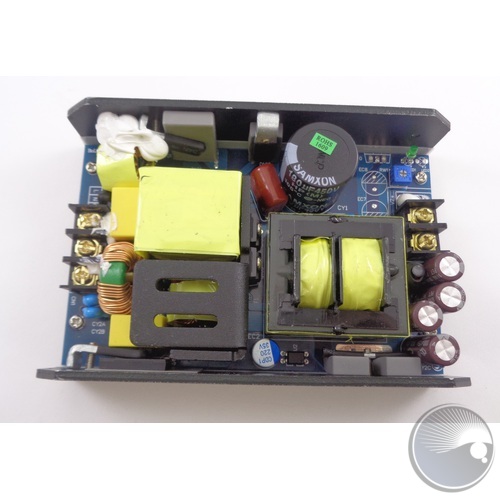

POWER SUPPLY (BOM#23)PTJ3020400187POWER SUPPLY (BOM#23)
DC FAN (BOM#9)PTJ3020900044DC FAN (BOM#9)
DC FAN (BOM#16)PTJ3020900045DC FAN (BOM#16)
PLASTIC RING (BOM#29)PTJ3021300095PLASTIC RING (BOM#29)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)

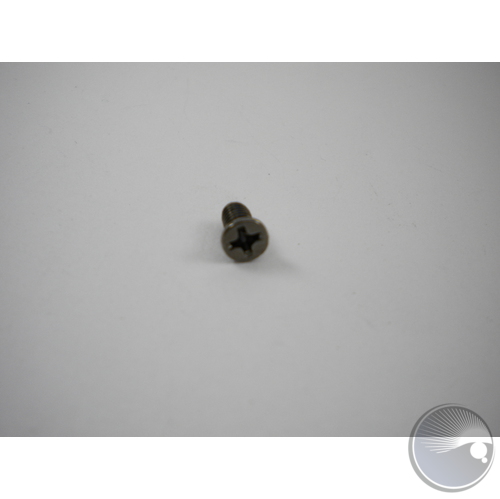

KM 4*8 SCREW - For Hanging bracketPTJ3021700208KM 4*8 SCREW - For Hanging bracket
screw M8×20 (BOM#176)PTJ3021700361screw M8×20 (BOM#176)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
RING (BOM#11)PTJ3021700452RING (BOM#11)
PLASTIC WASHER FOR KNOBPTJ3021700480PLASTIC WASHER FOR KNOB
PTJ3021700710KCM SCREW (BOM#8)
CM SCREW OF SINGEL COVER (BOM#11)PTJ3021700711CM SCREW OF SINGEL COVER (BOM#11)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100109STAND OFF (BOM#4)
PTJ3030100117STAND OFF 1 (BOM#32)
PTJ3030100126STAND OFF 2 (BOM#34)
PTJ4010302915HOUSING SIDE PANEL (BOM#15)
STANDING BRACKET (BOM#20)PTJ4010302917STANDING BRACKET (BOM#20)
PTJ4010302920FAN STAND (BOM#17)
PTJ4010302921ALUMINUM HOUSING (BOM#5)
SIDE PANEL A (BOM#28)PTJ4010302922SIDE PANEL A (BOM#28)
SIDE PANEL B (BOM#7)PTJ4010302923SIDE PANEL B (BOM#7)
SEMI-CIRCLE  METAL PART (BOM#19)PTJ4010302924SEMI-CIRCLE METAL PART (BOM#19)
PTJ4010401563HOUSING (BOM#27)
SIGNAL SOCKET COVER A (BOM#38)PTJ4010401564SIGNAL SOCKET COVER A (BOM#38)
SINGEL COVER B (BOM#10)PTJ4010401565SINGEL COVER B (BOM#10)
PTJ4020200318LENS COVER A (BOM#2)
PTJ4020200320Diffusion Lens/FILTER (BOM#2)
UPLOAD03PTJUPLOAD03UPLOAD03
