Ovation C-805FC

1.904,00 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONC805FC
Ovation  C-805FC Ovation C-805FC  uses its RGBA-Lime color palette to render... mehr
Produktinformationen "Ovation C-805FC"

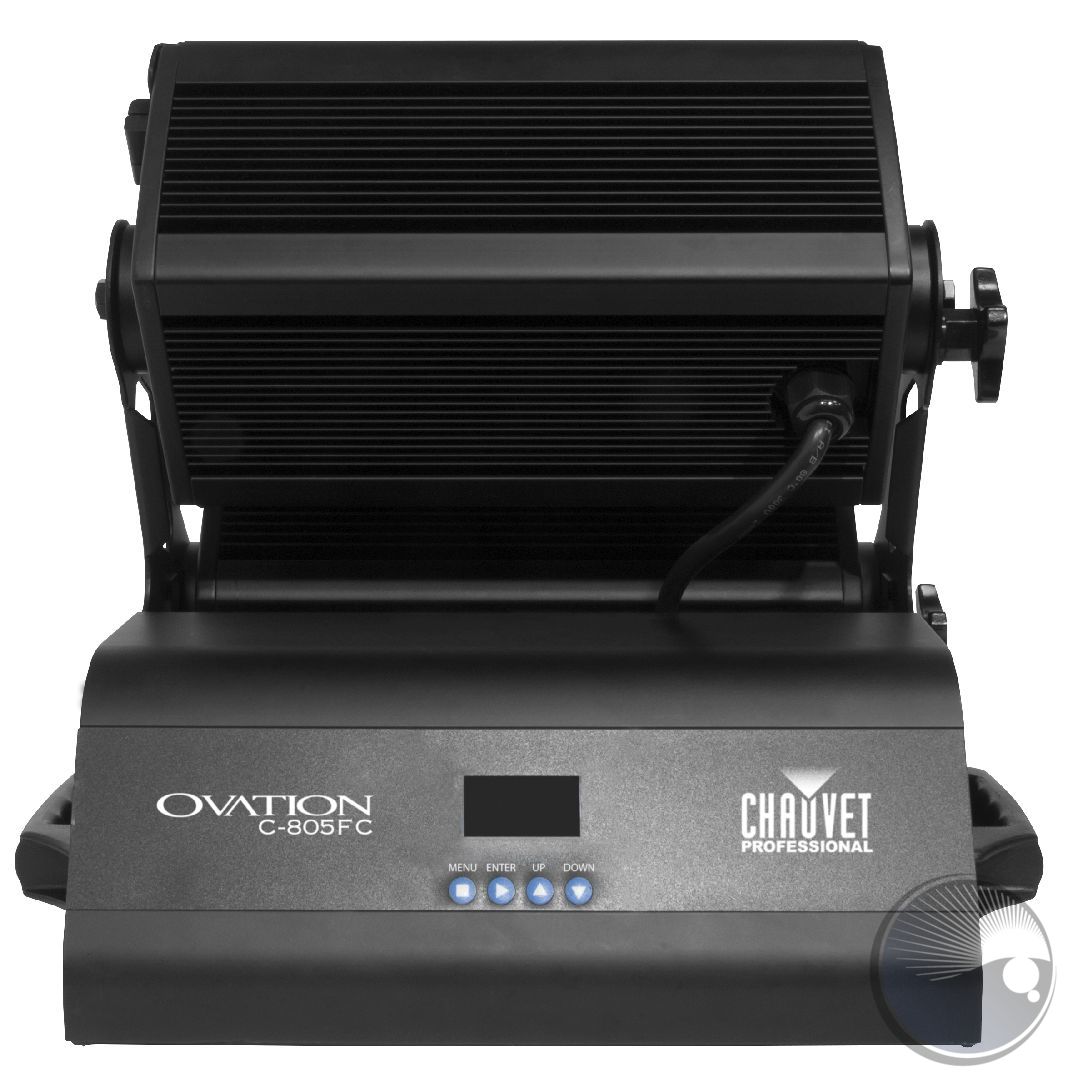

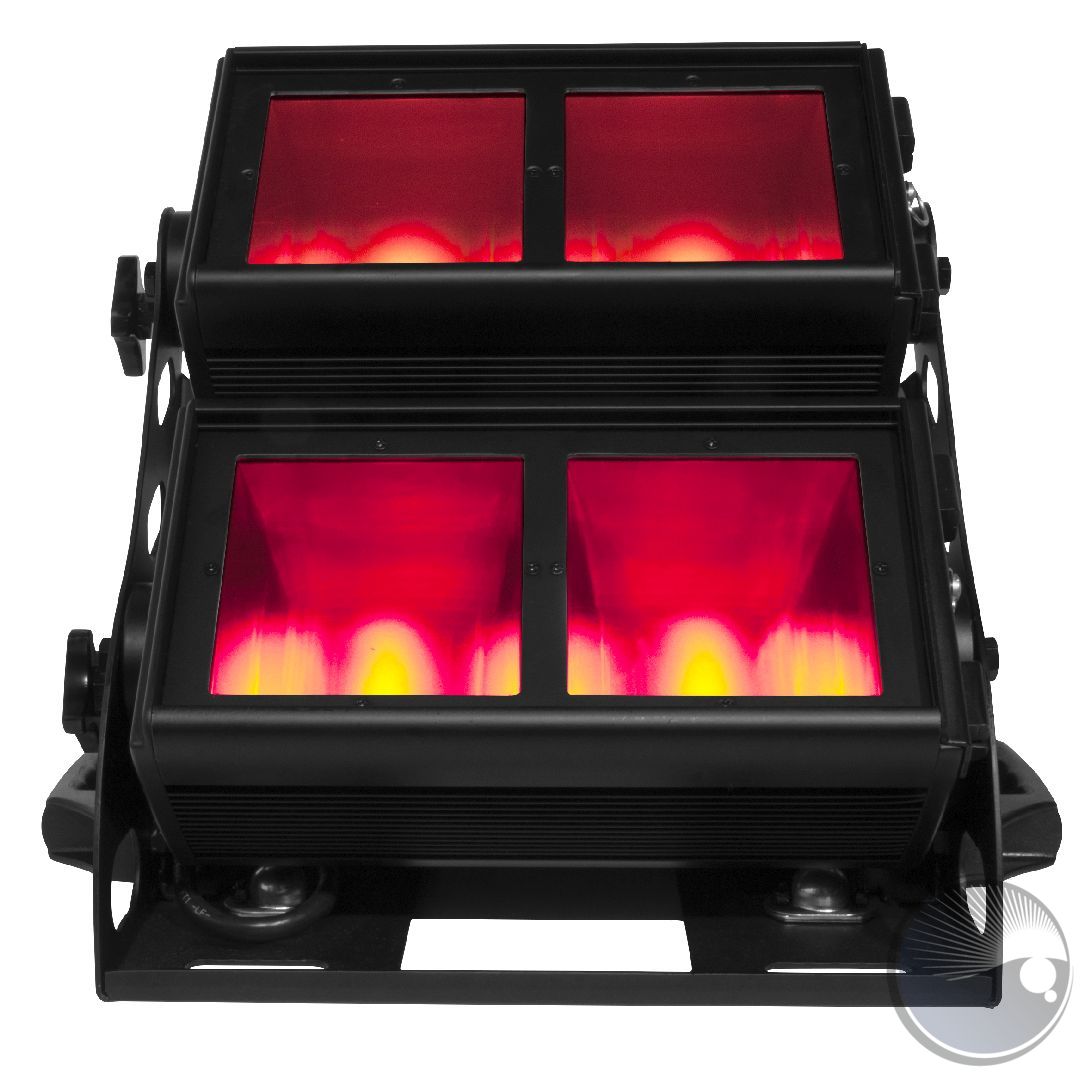

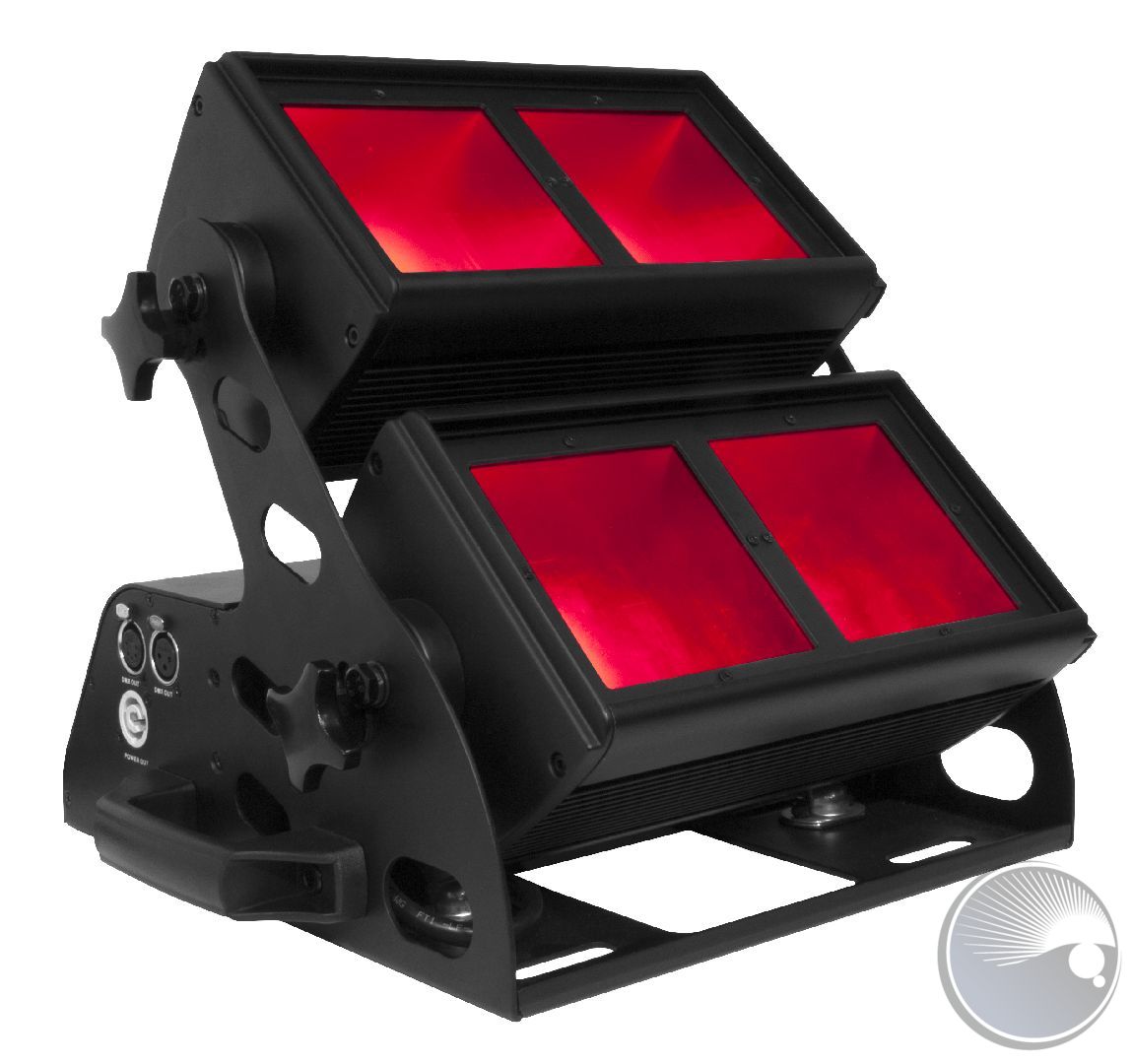

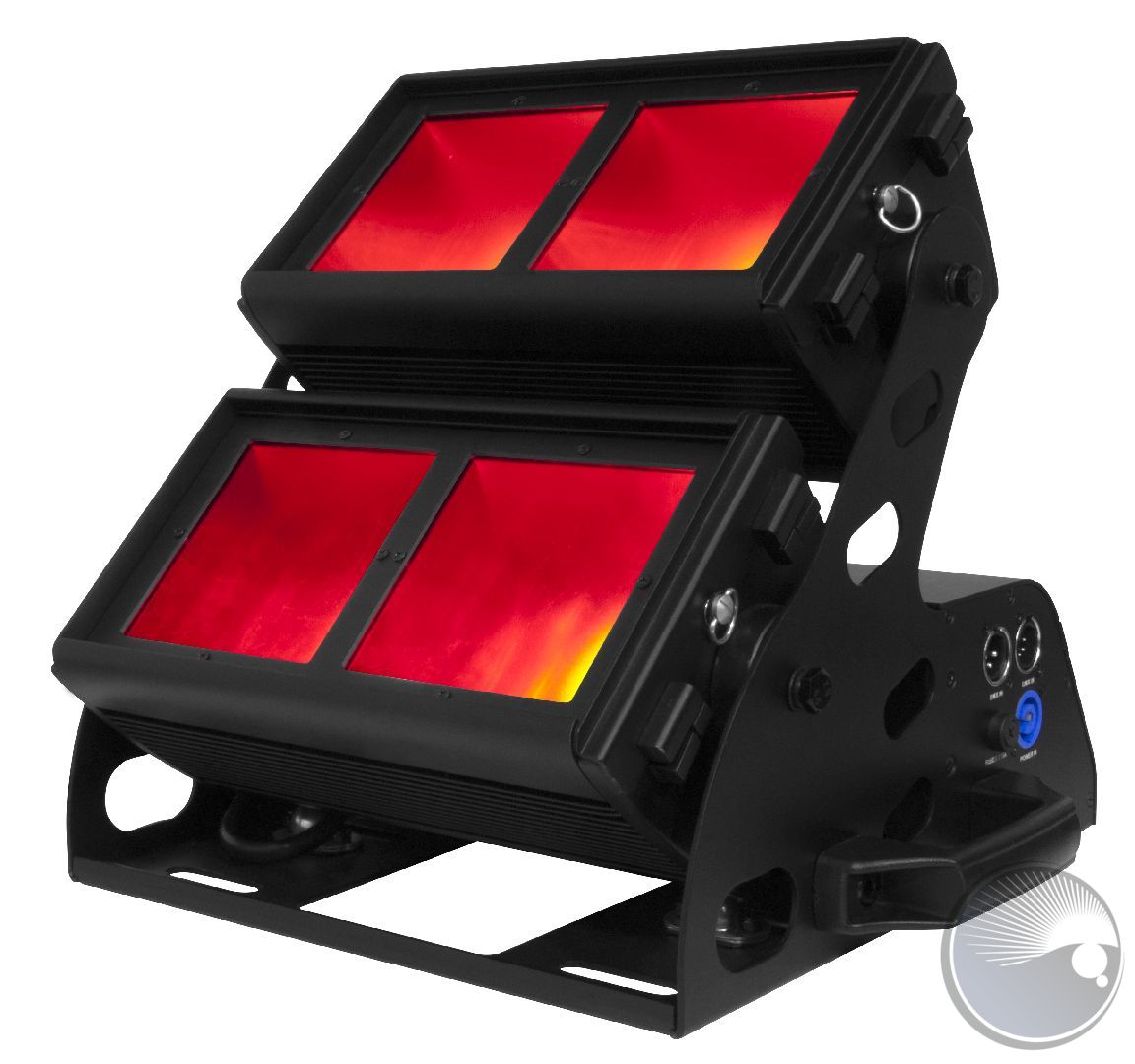

Ovation C-805FC

Ovation C-805FC uses its RGBA-Lime color palette to render nearly any color with tremendous realism and saturation. Its superb optics ensure an even output. Setup is easier than ever with the addition of RDM, adjustable PWM and an easy to navigate OLED full text display.



AT A GLANCE

  • Display a full spectrum of hues with RGBAL LEDs for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Better coverage with two individually adjustable heads, gives the ability to project split colors

  • Compact cyclorama wash lighting fixture

  • Flat, even field of light with superior color mixing

  • Virtual Color wheel with color matched to popular Rosco Gel colors

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 80 LEDs (20 red, 20 green, 20 blue, 12 amber, 8 lime) 2 to 4 W, (820 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • CRI (3200 K): 80
  • Beam Angle (Top Pod) (Horizontal): 41°
  • Beam Angle (Top Pod) (Vertical): 57°
  • Beam Angle (Bottom Pod) (Horizontal): 37°
  • Beam Angle (Bottom Pod) (Vertical): 54°
  • Beam Angle (Both Pods) (Horizontal): 40°
  • Beam Angle (Both Pods) (Vertical): 57°
  • Field Angle (Top Pod) (Horizontal): 64°
  • Field Angle (Top Pod) (Vertical): 80°
  • Field Angle (Bottom Pod) (Horizontal): 40
  • Field Angle (Bottom Pod) (Vertical): 78°
  • Field Angle (Both Pods) (Horizontal): 67°
  • Field Angle (Both Pods) (Vertical): 81°
  • Lumens (Top Pod): 3,287
  • Lumens (Bottom Pod): 2,850
  • Lumens (Both Pods) : 5,587
  • Illuminance (Top Pod): 175 lux @ 5 m
  • Illuminance (Bottom Pod): 169 lux @ 5 m
  • Illuminance (Both Pods): 310 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000Hz

DYNAMIC EFFECTS

  • Tilt: ± 30° manual adjustment per pod
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: No
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.3 x 12.2 x 11.7 in (390 x 310 x 298 mm)
  • Weight: 22 lb (10 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 5.32 x 9.65 in (135 x 245 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 3, 4, 5, 6, 7, 8, 12, 18 or 24
  • Modes/Personalities: 12 personalities (TOUR, TR16, ARC.1, AR1.D, ARC.2, ARC.3, ARC3.D, AR3.S, HSIC, PIXEL.1, PIXEL.3, PIXEL.16)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
  • Power and Current: 151 W, 1.254 A @ 120 V, 60 Hz
  • Power and Current: 151 W, 0.719 A @ 208 V, 60 Hz
  • Power and Current: 152 W, 0.660 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 01031218
Weiterführende Links zu "Ovation C-805FC"

PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
PTF1120300099Reflective bowl (BOM#2.4)

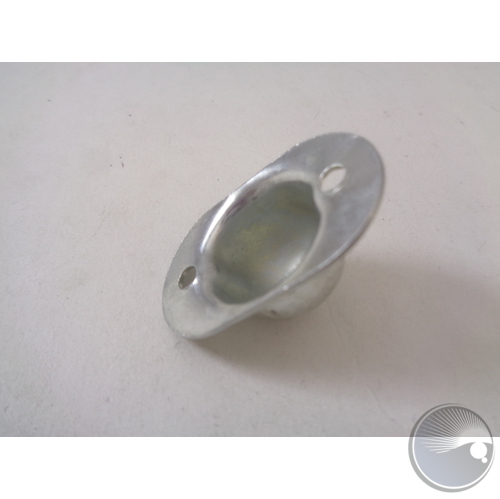

Quick-lock coverPTF1130003494Quick-lock cover

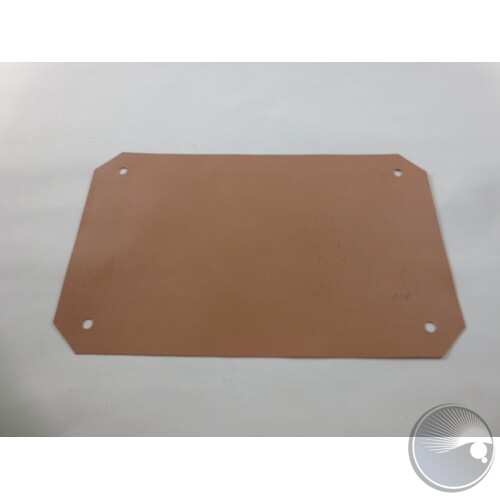

PTF1140000051PS insulating heat conduction sheet (BOM#1.8)
PTF1140000161Thermal ailica gel pad (BOM#1.2)

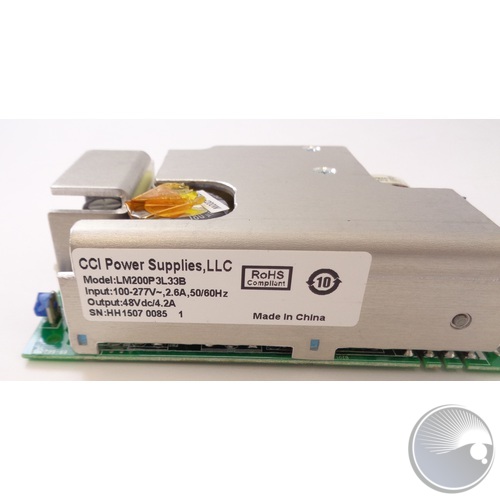

POWER SUPPLY - INPUT:100-277V~,2.6A OUTPUT:48V/4.2A (BOM#1.7)PTF1160000497POWER SUPPLY - INPUT:100-277V~,2.6A OUTPUT:48V/4.2A (BOM#1.7)
PTF1180000092LED833 gasket (BOM#2.11)
PTF1180000308Black nylon water joint (BOM#2.17)
PTF1340300009LED833 spring (BOM#2.12)
PTF1340600105Display screen lens (BOM#1.24)

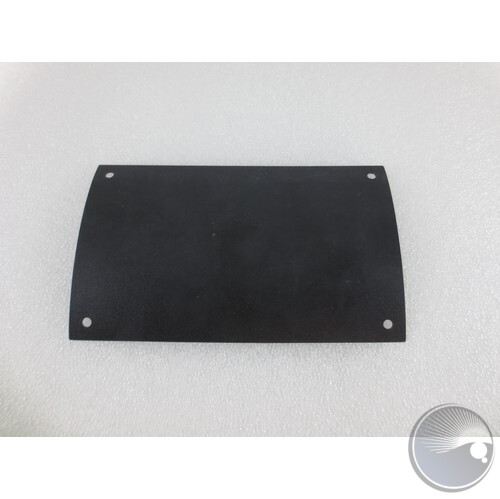

PTF1340600825PS isolation sheet (BOM#1.6)

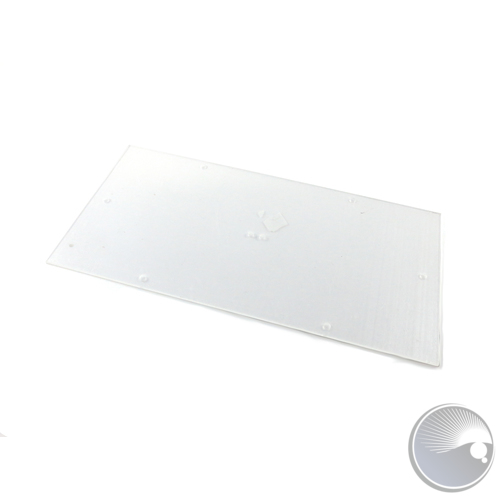

Front glass (BOM#2.2)PTF1340601872Front glass (BOM#2.2)
PTF1340800005LED833 bolt (BOM#2.10)
LED833 hasp (BOM#2.9)PTF1340800006LED833 hasp (BOM#2.9)
LED833 block circle (BOM#2.13)PTF1340800007LED833 block circle (BOM#2.13)
PTF1340801439HingeA (BOM#2.14)
PTF1340801440HingeB (BOM#2.8)

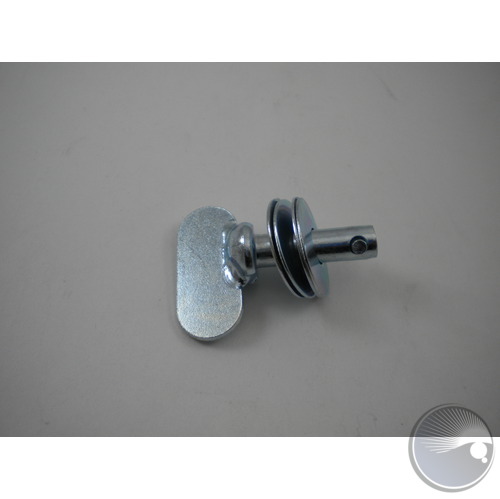

fast/quick installation lock/bolts (BOM#39)PTF1340802466fast/quick installation lock/bolts (BOM#39)
PTF1491300026Adjusting stainless steel knob (BOM#1.30)

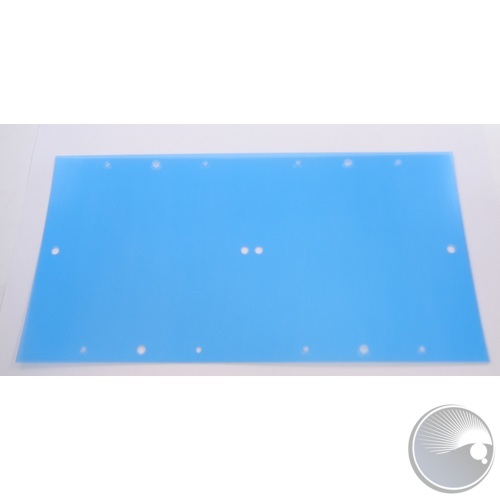

frosted glass (BOM#2.3)PTF2220000053frosted glass (BOM#2.3)
PTF2240100883Hinge cushion (BOM#2.15)

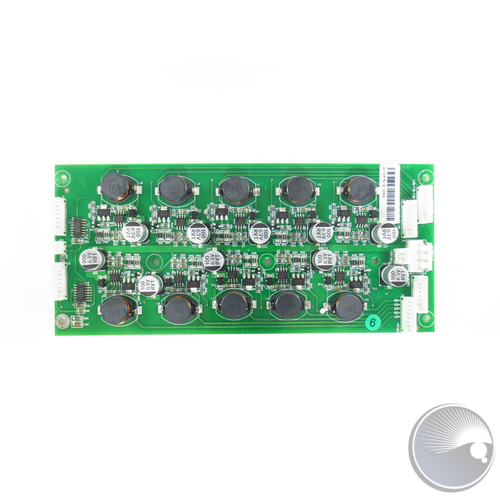

Dirver board (BOM#1.1)PTF2260001677Dirver board (BOM#1.1)

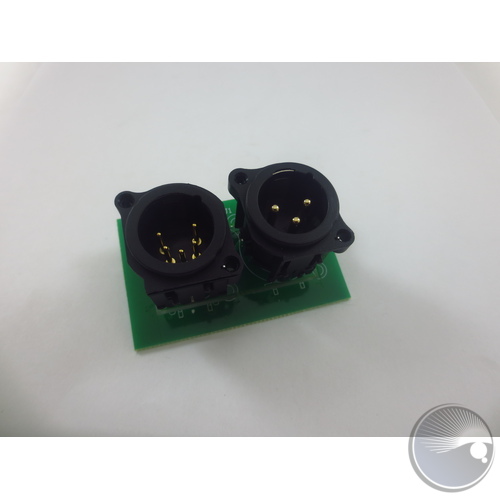

Male Adaptor PCB (BOM#1.17)PTF2260002108Male Adaptor PCB (BOM#1.17)

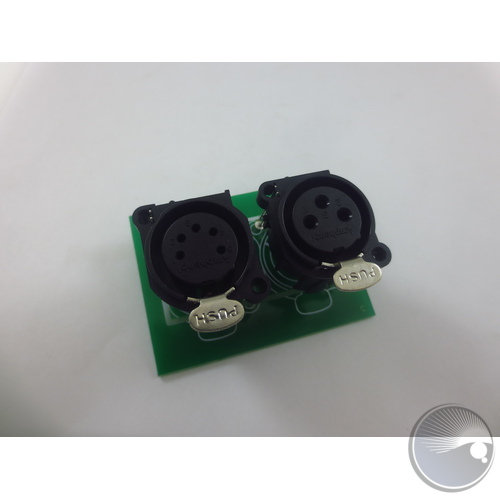

Female Adaptor PCB (BOM#1.28)PTF2260002109Female Adaptor PCB (BOM#1.28)

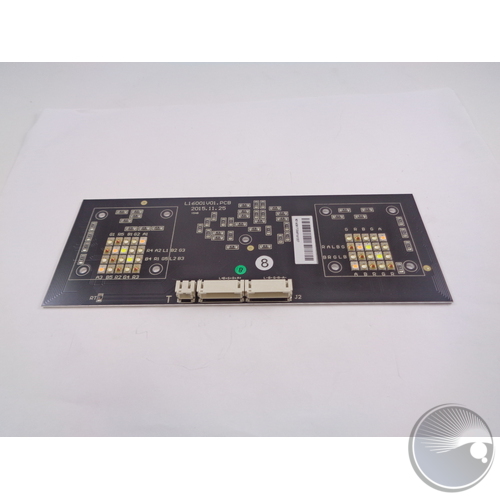

LED board (BOM#2.5)PTF2260002205LED board (BOM#2.5)

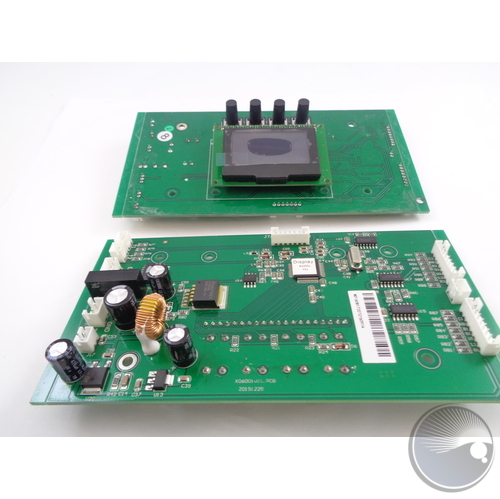

Display PCB (BOM#1.22)PTF2260002206Display PCB (BOM#1.22)
PTF2440100478Quick-lock cushion (BOM#1.26)

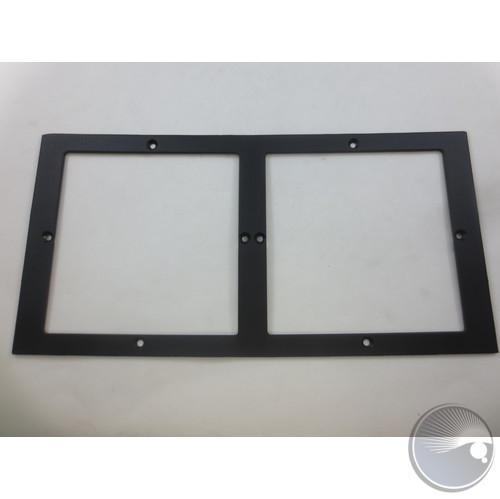

Gel FramePTF2440102539Gel Frame

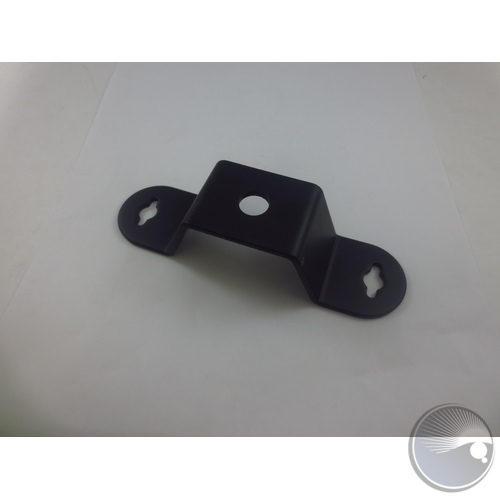

Omega bracket (120mm)PTF2440104143Omega bracket (120mm)
UPLOAD01PTFUPLOAD01UPLOAD01
PTFX10025Base handle(genera) (BOM#1.16)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
