Ovation E-160WW

1.237,60 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONE160WW
Ovation  E-160WW Ovation E-160WW  is an energy saving wonder with an output that... mehr
Produktinformationen "Ovation E-160WW"

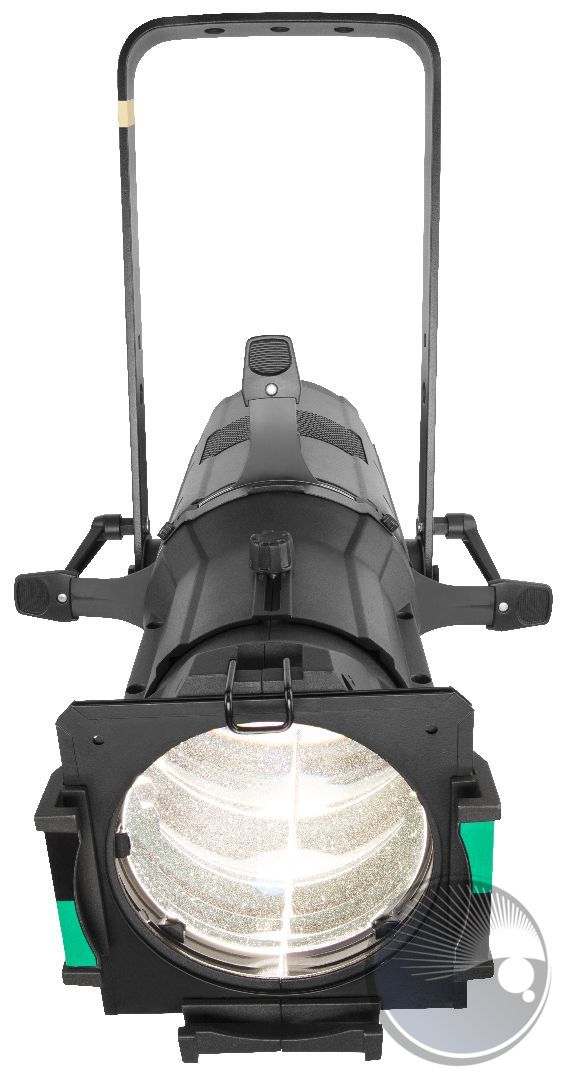

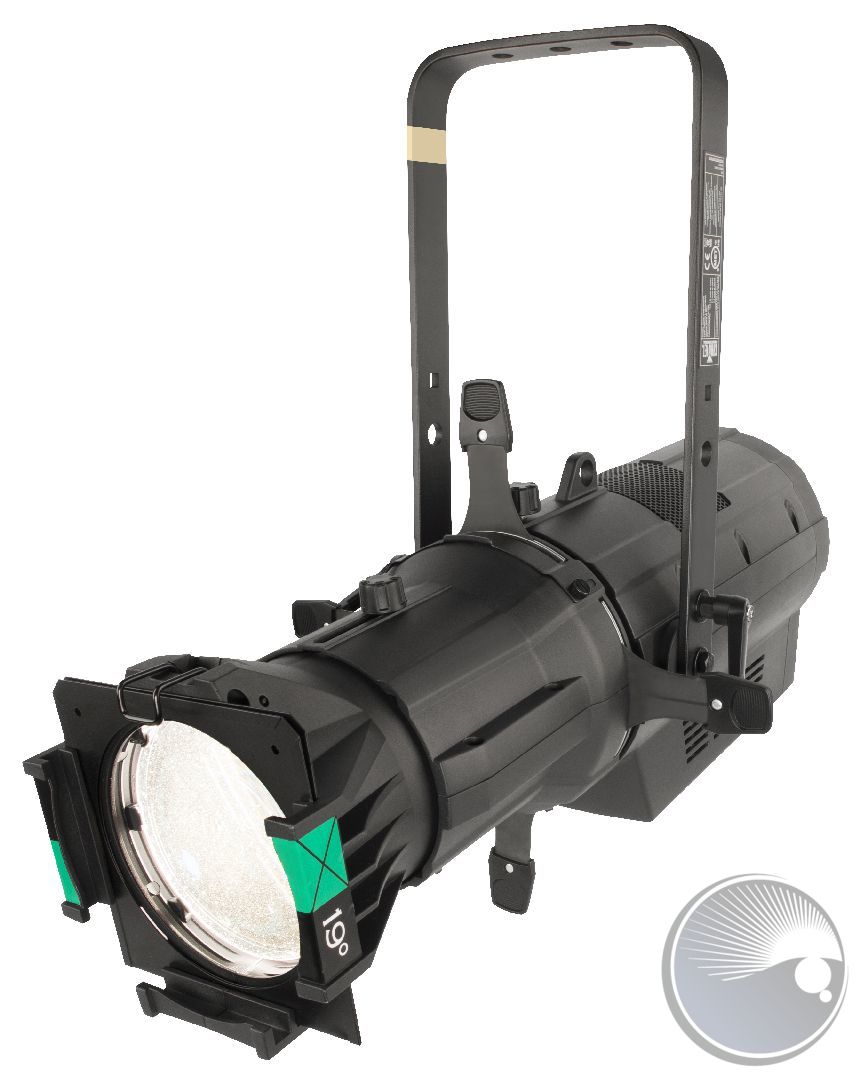

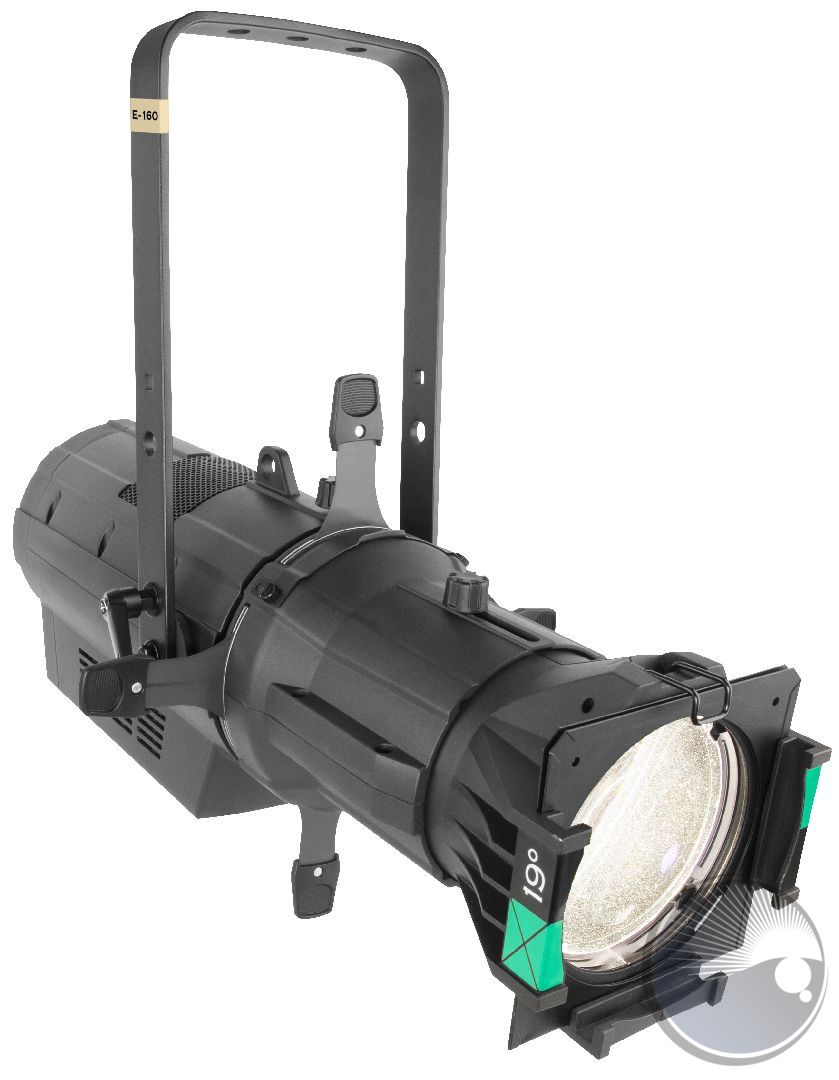

Ovation E-160WW

Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws only 100 W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.

AT A GLANCE

  • Warm white ERS style fixture with output similar to a tungsten 575 W source

  • Draws less than 100 W of power, a true electrical bill reducing fixture

  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme

  • Flat, even field of light for superior gobo projection

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theater applications

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 86 W, (2.3 A), 3031 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3031 K
  • CRI: 90
  • Beam Angle (w/5° lens): 4°
  • Beam Angle (w/10° lens): 6°
  • Beam Angle (w/14° lens): 8°
  • Beam Angle (w/19° lens): 12°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 31°
  • Beam Angle (w/15°–30° lens)(Narrow): 10°
  • Beam Angle (w/15°–30° lens)(Wide): 15°
  • Beam Angle (w/25°–50° lens)(Narrow): 18°
  • Beam Angle (w/25°–50° lens)(Wide): 24°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 33°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 16°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 28°
  • Field Angle (w/25°–50° lens)(Wide): 48°
  • Dimming Modes: 4
  • Illuminance (w/5° lens): 40,600 lux @ 5 m
  • Illuminance (w/10° lens): 20,000 lux @ 5 m
  • Illuminance (w/14° lens): 10,814 lux @ 5 m
  • Illuminance (w/19° lens): 6,253 lux @ 5 m
  • Illuminance (w/26° lens): 3,189 lux @ 5 m
  • Illuminance (w/36° lens): 1,918 lux @ 5 m
  • Illuminance (w/50° lens): 743 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 11,201 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 3,739 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 3,699 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 1,424 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to 29 Hz
  • Color Temperature Presets: Yes
  • Dim Curve: 4
  • Dim Modes: 4

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/5° lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 14.2 lb (6.4 kg)
  • Weight (w/5° lens): 20 lb (9.1 kg)
  • Weight (w/10° lens): 18 lb (8.2 kg)
  • Weight (w/14° lens): 19.6 lb (8.89 kg)
  • Weight (w/26° lens): 18.4 lb (8.3 kg)
  • Weight (w/15°–30° lens): 28.2 lb (12.7 kg)
  • Weight (w/25°–50° lens): 25.8 lb (11.7 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

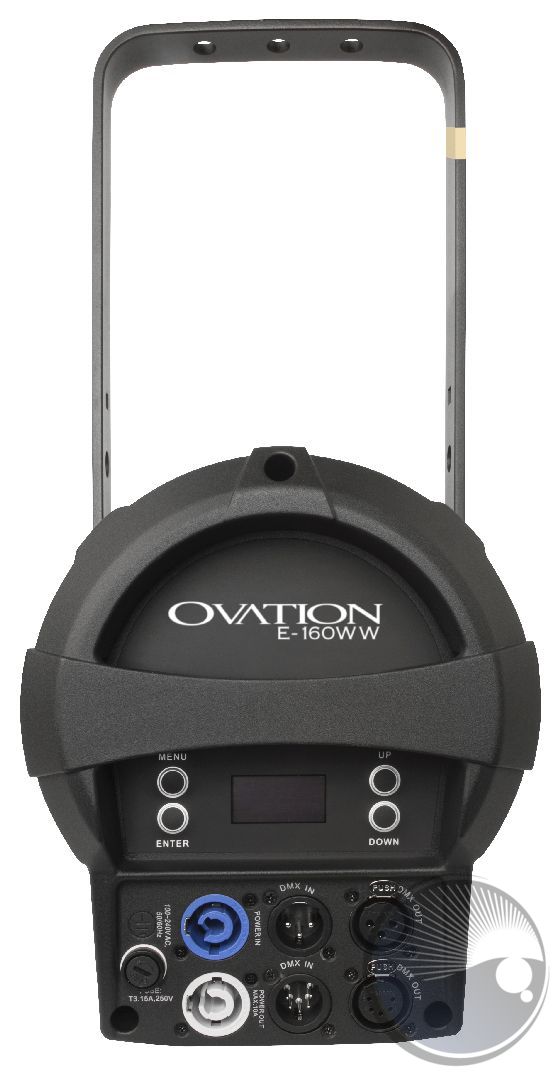

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V; 30 units @ 240 V
  • Power and Current: 101 W, 0.86 A @ 120 V, 60 Hz
  • Power and Current: 100 W, 0.51 A @ 208 V, 60 Hz
  • Power and Current: 99 W, 0.47 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03121237



Weiterführende Links zu "Ovation E-160WW"

2AMPGMAFUSE 2 AMP 250V (BOM#16)
*LOC1* OVATION B-SIZE GLASS GOBO HOLDEROVBGOBOGLASS*LOC1* OVATION B-SIZE GLASS GOBO HOLDER
*LOC1* OVATION B-SIZE METAL GOBO HOLDEROVBGOBOMETAL*LOC1* OVATION B-SIZE METAL GOBO HOLDER
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
THUMB SCREW/KNOB (BOM#11)PTF2440000125THUMB SCREW/KNOB (BOM#11)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
THERMAL SWITCHES (BOM#14)PTJ2020200739THERMAL SWITCHES (BOM#14)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

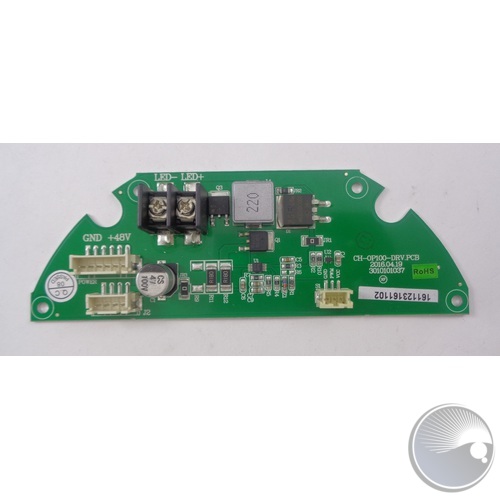

DRIVER PCB (BOM#22)PTJ2020201738DRIVER PCB (BOM#22)

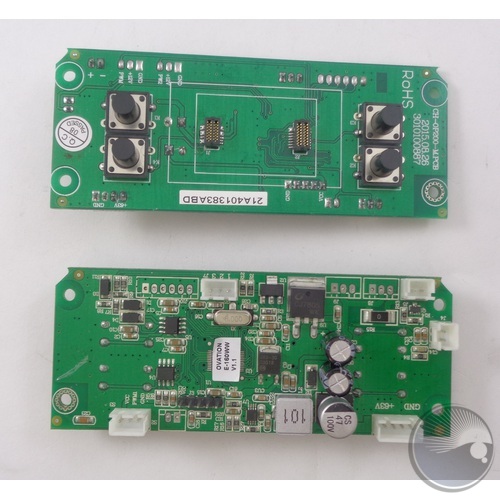

MPCB (BOM#19)PTJ2020201802MPCB (BOM#19)
BARREL ASSEMBLY W/ SHUTTERS PTJ2030100057BARREL ASSEMBLY W/ SHUTTERS
SHUTTER BLADE (BOM#35)PTJ2030100076SHUTTER BLADE (BOM#35)
Soft Focus Filter w/ HolderPTJ2030100091Soft Focus Filter w/ Holder

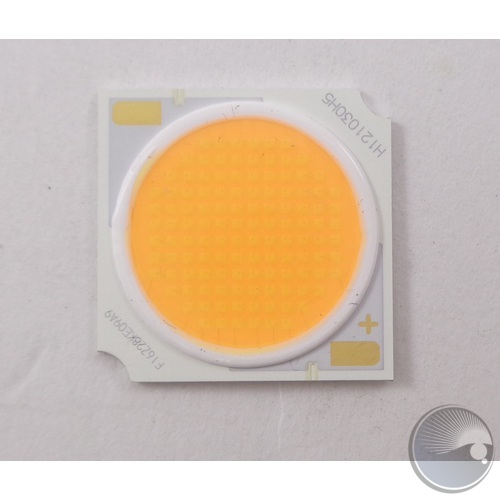

LED PCB (BOM#30)PTJ3010500199LED PCB (BOM#30)
PTJ3020100302Φ54 ASPHERIC LENS (BOM#31)
SPHERICAL MIRROR (BOM#35)PTJ3020100312SPHERICAL MIRROR (BOM#35)

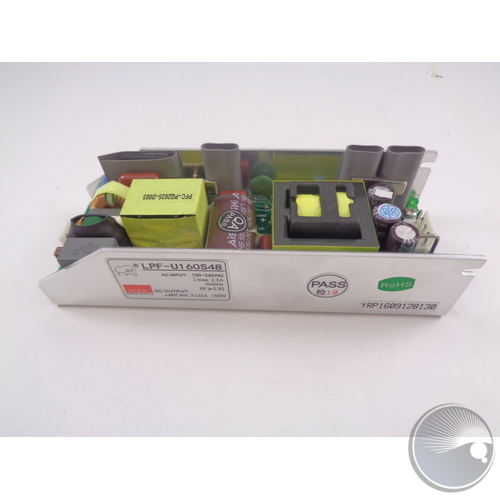

POWER SUPPLY (BOM#26)PTJ3020400127POWER SUPPLY (BOM#26)
FAN NET (BOM#23)PTJ3020900026FAN NET (BOM#23)
FAN (BOM#24)PTJ3020900035FAN (BOM#24)
PTJ3021600044SPRING (BOM#67)
HM SCREW (BOM# 2)PTJ3021700158HM SCREW (BOM# 2)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3040401222WIRE HARNESS FOR THERMAL SWITCH
PTJ3050801824DISPLAY STICKER (BOM#18)
GUIDE CHANNEL (BOM#37)PTJ4010102024GUIDE CHANNEL (BOM#37)
PTJ4010102584POWER SUPPLY HOLDER (BOM#9)

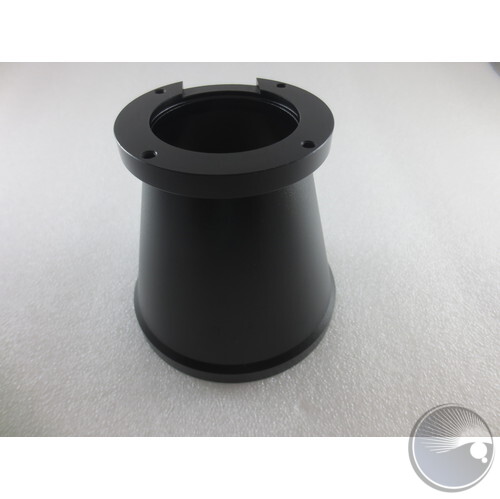

PTJ4010102899Mirror ASSEMBLY (BOM#34)
SHUTTER BLADE HOLDER 4 (BOM#40)PTJ4010200028SHUTTER BLADE HOLDER 4 (BOM#40)
SHUTTER BLADE HOLDER 3 (BOM#41)PTJ4010200029SHUTTER BLADE HOLDER 3 (BOM#41)
SHUTTER BLADE HOLDER 2 (BOM#23)PTJ4010200030SHUTTER BLADE HOLDER 2 (BOM#23)
SHUTTER BLADE HOLDER 1 (BOM#24)PTJ4010200031SHUTTER BLADE HOLDER 1 (BOM#24)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
HOUSING (BOM#3)PTJ4010302514HOUSING (BOM#3)
ROUND METAL PART (BOM#6)PTJ4010302516ROUND METAL PART (BOM#6)
HANGING BRACKET (BOM#1)PTJ4010302517HANGING BRACKET (BOM#1)
PTJ4010302519ALUMINIUM PLATE FOR THE REAR (BOM#20)
PTJ4010302524WIND DEFLECTOR (BOM#29)
SHUTTER TUBE 1 (BOM#28)PTJ4010302525SHUTTER TUBE 1 (BOM#28)
SHUTTER TUBE 2 (BOM#33)PTJ4010302526SHUTTER TUBE 2 (BOM#33)
SHADOW SHIELD (BOM#36)PTJ4010302527SHADOW SHIELD (BOM#36)
THUMB SCREW (BOM#51)PTJ4010302528THUMB SCREW (BOM#51)
VENTILATE NET (BOM#28)PTJ4010302529VENTILATE NET (BOM#28)
HOUSING COVER (BOM#25)PTJ4010302649HOUSING COVER (BOM#25)
PTJ4010302979HEAT SINK (BOM#27)
PTJ4010302980FAN HOLDER (BOM#26)
PTJ4010302981HEAT SINK HOLDER (BOM#31)
PTJ4010401619REAR (BOM#17)
PTJ4020100106LED STAND (BOM#8)
SHUTTER HANDLE (BOM#46)PTJ4020200211SHUTTER HANDLE (BOM#46)
ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)PTJ5000000015ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)
UPLOAD03PTJUPLOAD03UPLOAD03
