Ovation E-260WW

1.439,90 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONE260WW
Ovation  E-260WW  Ovation E-260WW  is powered by a single source 230 W LED... mehr
Produktinformationen "Ovation E-260WW"

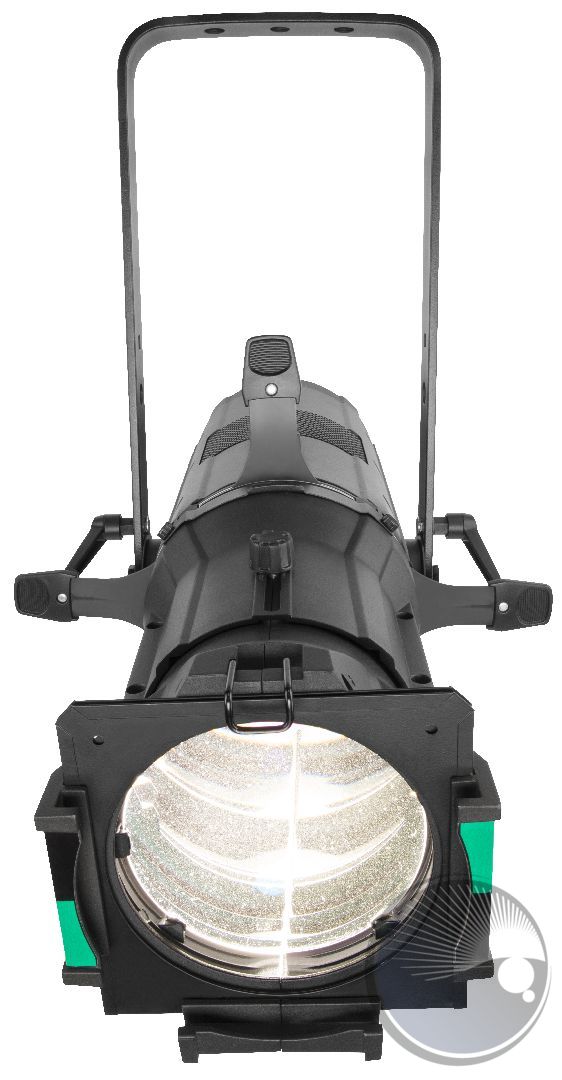

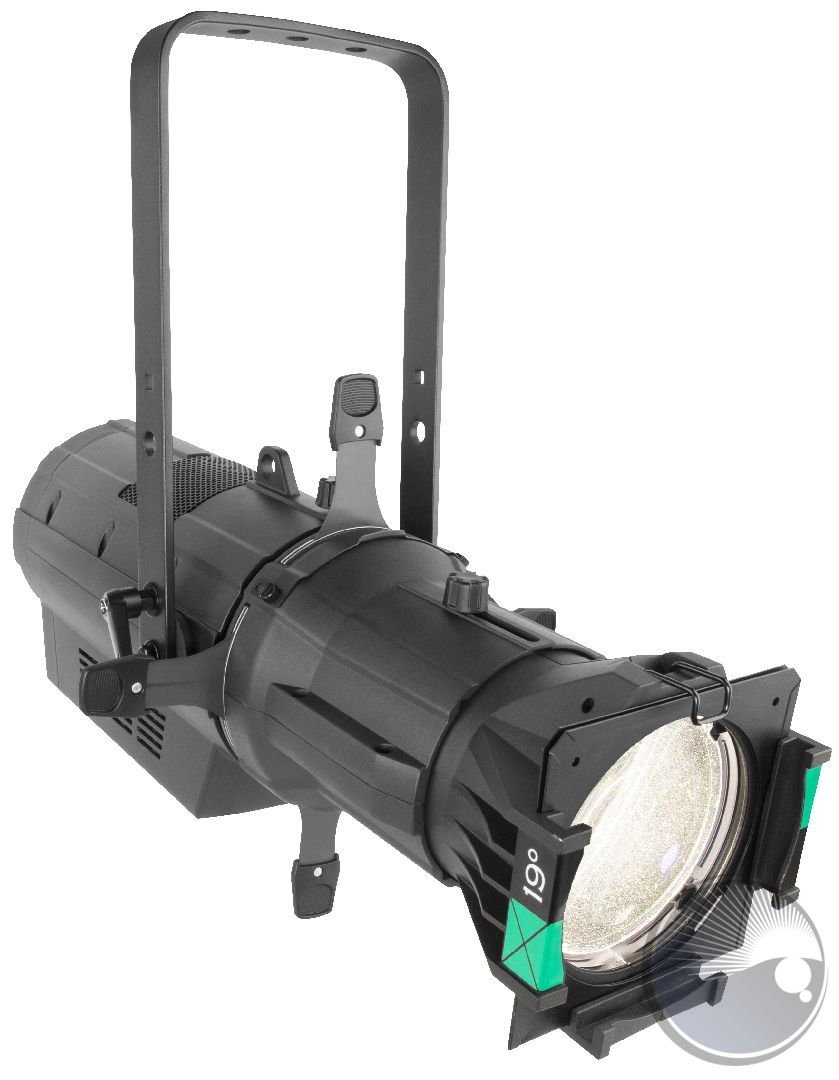

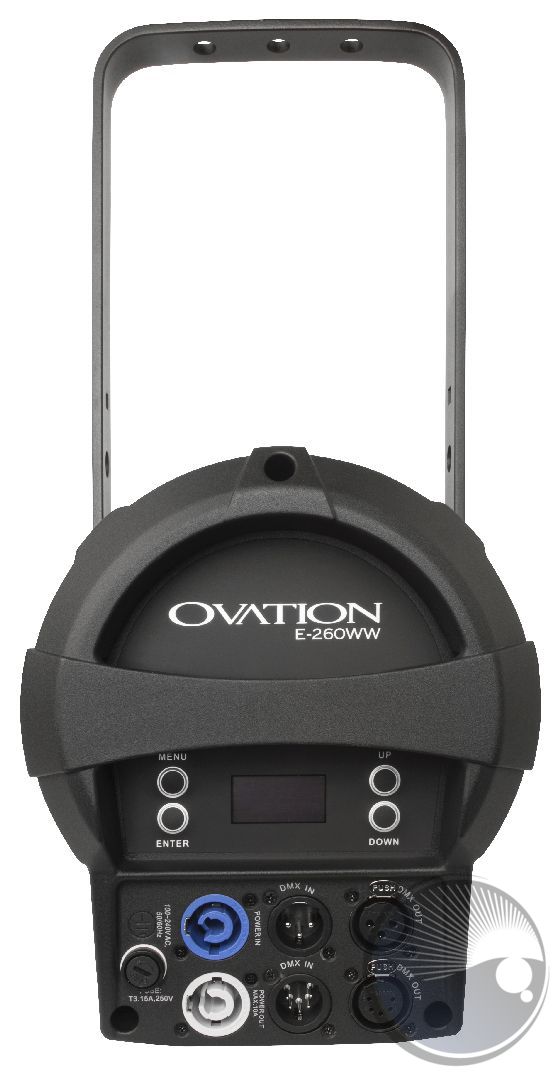

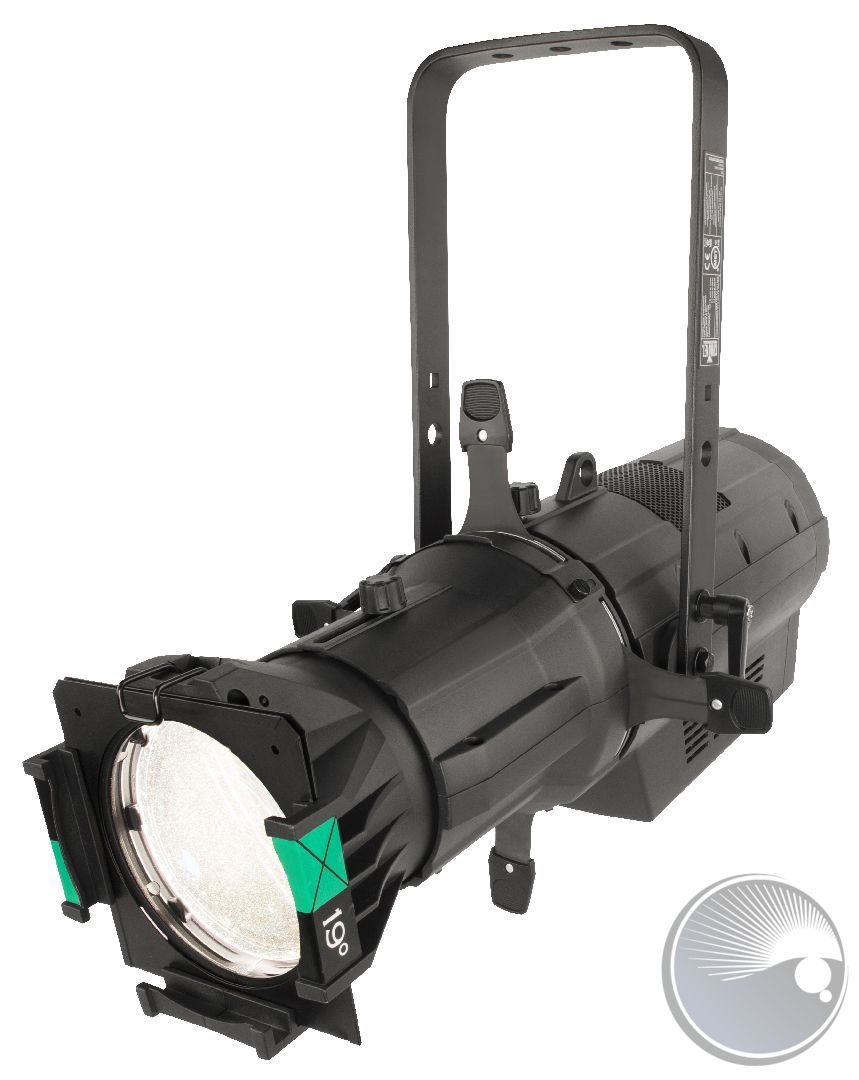

Ovation E-260WW

Ovation E-260WW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.



AT A GLANCE

  • Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source

  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme

  • Flat, even field of light for superior gobo projection

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

  • Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 230 W, (3.5 A), 5452 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
  • CRI: (WW) 96; (CW) 96
  • Beam Angle (w/5° lens): 6°
  • Beam Angle (w/10° lens): 8°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 13°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 28°
  • Beam Angle (w/15°–30° lens)(Narrow): 12°
  • Beam Angle (w/15°–30° lens)(Wide): 14°
  • Beam Angle (w/25°–50° lens)(Narrow): 21°
  • Beam Angle (w/25°–50° lens)(Wide): 22°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 46°
  • Dimming Modes: 4
  • Lumens (w/19° lens): (WW) 7,587; (CW) 9,530
  • Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
  • Lumens (w/36° lens): (WW) 10,121; (CW) 13,184
  • Lumens (w/50° lens): (WW) 9,655; (CW) 12,672
  • Illuminance (w/5° lens): (WW) 41,400 lux @ 5 m; (CW) 49,200 lux @ 5 m
  • Illuminance (w/10° lens): (WW) 23,300 lux @ 5 m; (CW) 26,600 lux @ 5 m
  • Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m
  • Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m
  • Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
  • Illuminance (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
  • Illuminance (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Color Temperature Presets: (CW) No

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/5° lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7 kg)
  • Weight (w/5° lens): 21.2 lb (9.7 kg)
  • Weight (w/10° lens): 19.2 lb (8.8 kg)
  • Weight (w/14° lens): 20.8 lb (9.43 kg)
  • Weight (w/26° lens): 19.4 lb (8.80 kg)
  • Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
  • Weight (w/25°–50° lens): 27 lb (12.25 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: (WW) DMX RDM; (CW) DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: (WW) 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: (WW) 236 W, 1.944 A @ 120 V, 60 Hz; (CW) 225 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: (WW) 244 W, 1.167 A @ 208 V, 60 Hz; (CW) 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: (WW) 243 W, 1.053 A @ 230 V, 50 Hz; (CW) 231 W, 1.0 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation E-260WW/Ovation E-260CW
  • Neutrik powerCON power cord

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Weiterführende Links zu "Ovation E-260WW"

3.15AMPGMAFUSE (BOM#14)
*LOC1* OVATION B-SIZE GLASS GOBO HOLDEROVBGOBOGLASS*LOC1* OVATION B-SIZE GLASS GOBO HOLDER
*LOC1* OVATION B-SIZE METAL GOBO HOLDEROVBGOBOMETAL*LOC1* OVATION B-SIZE METAL GOBO HOLDER
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
THUMB SCREW/KNOB (BOM#11)PTF2440000125THUMB SCREW/KNOB (BOM#11)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)

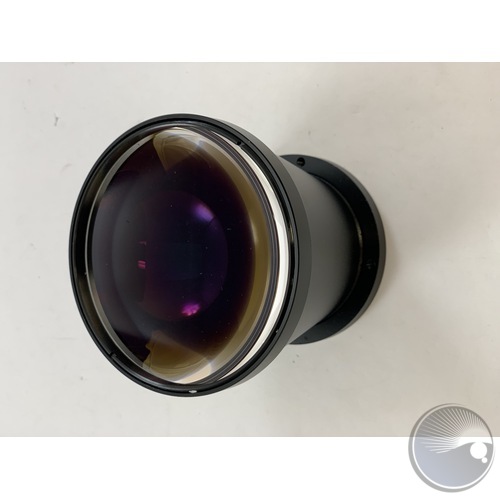

LENS ASSEMBLY (BOM#32,34,35)PTJ1020100396LENS ASSEMBLY (BOM#32,34,35)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
THERMAL SWITCHES (BOM#14)PTJ2020200739THERMAL SWITCHES (BOM#14)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
DRIVER PCB (BOM#19)PTJ2020201492DRIVER PCB (BOM#19)

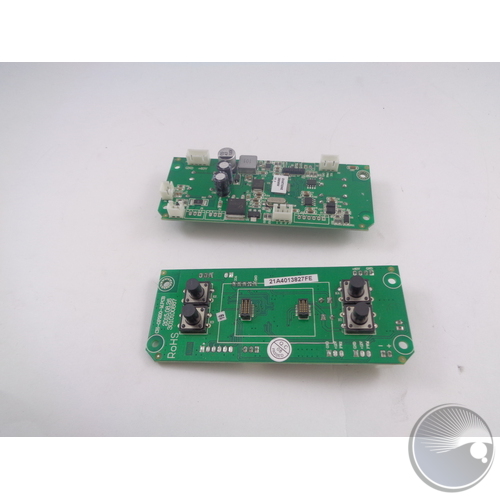

MPCB (BOM#19)PTJ2020201493MPCB (BOM#19)
BARREL ASSEMBLY W/ SHUTTERS PTJ2030100057BARREL ASSEMBLY W/ SHUTTERS
SHUTTER BLADE (BOM#35)PTJ2030100076SHUTTER BLADE (BOM#35)
Soft Focus Filter w/ HolderPTJ2030100091Soft Focus Filter w/ Holder

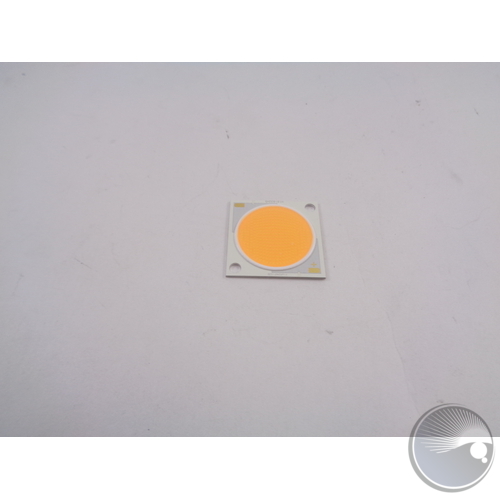

LED PCB (BOM#30)PTJ3010500175LED PCB (BOM#30)

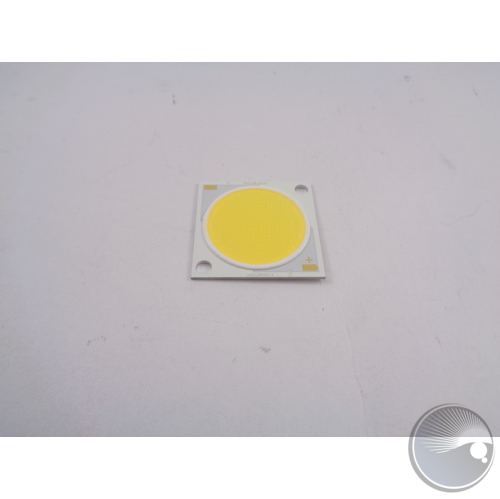

LED (BOM#30)PTJ3010500203LED (BOM#30)

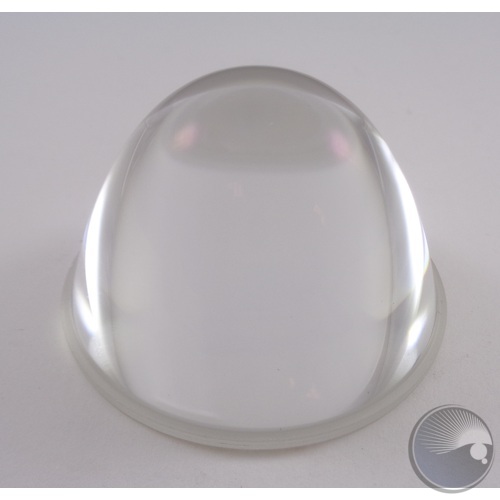

ASPHERIC SURFACE LENS (BOM#32)PTJ3020100051ASPHERIC SURFACE LENS (BOM#32)

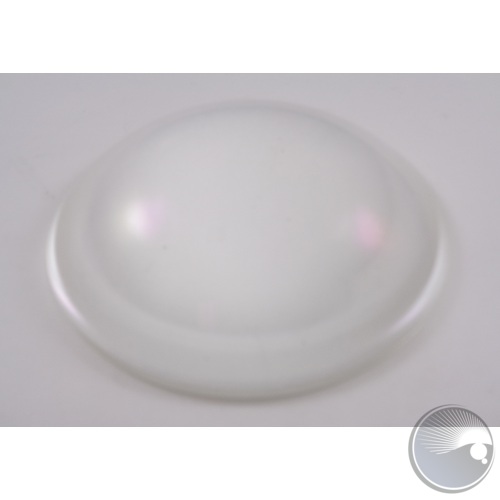

SPHERICAL MIRROR (BOM#35)PTJ3020100312SPHERICAL MIRROR (BOM#35)
POWER SUPPLY (BOM#60)PTJ3020400197POWER SUPPLY (BOM#60)
FAN NET (BOM#23)PTJ3020900026FAN NET (BOM#23)
FAN (BOM#24)PTJ3020900035FAN (BOM#24)
PTJ3021600044SPRING (BOM#67)
HM SCREW (BOM# 2)PTJ3021700158HM SCREW (BOM# 2)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3050801656DISPLAY STICKER (BOM#18)
GUIDE CHANNEL (BOM#37)PTJ4010102024GUIDE CHANNEL (BOM#37)

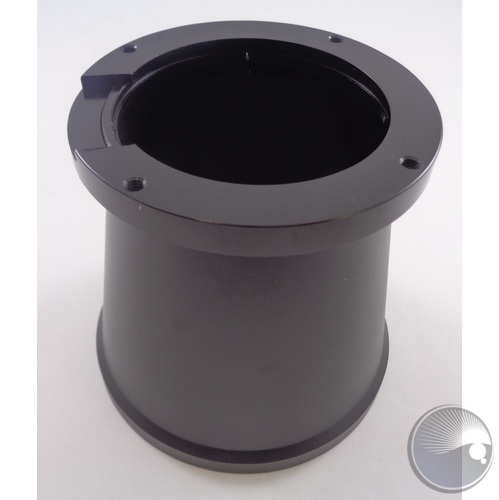

Mirror ASSEMBLY (BOM#34)PTJ4010102580Mirror ASSEMBLY (BOM#34)

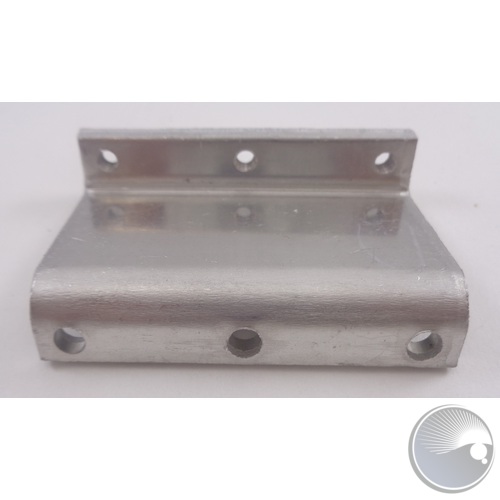

HEAT SINK HOLDER (BOM#33)PTJ4010102582HEAT SINK HOLDER (BOM#33)

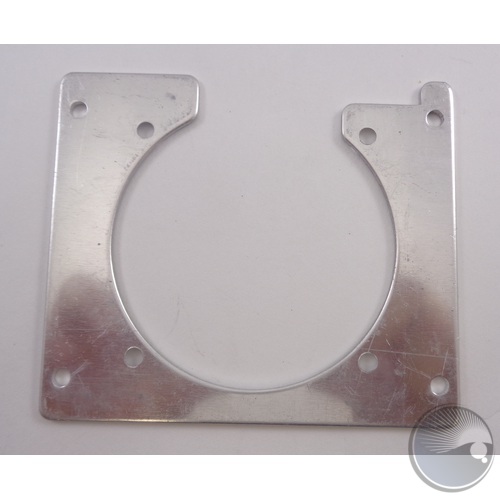

Mirror HOLDER (BOM#31)PTJ4010102583Mirror HOLDER (BOM#31)
PTJ4010102584POWER SUPPLY HOLDER (BOM#9)
SHUTTER BLADE HOLDER 4 (BOM#40)PTJ4010200028SHUTTER BLADE HOLDER 4 (BOM#40)
SHUTTER BLADE HOLDER 3 (BOM#41)PTJ4010200029SHUTTER BLADE HOLDER 3 (BOM#41)
SHUTTER BLADE HOLDER 2 (BOM#23)PTJ4010200030SHUTTER BLADE HOLDER 2 (BOM#23)
SHUTTER BLADE HOLDER 1 (BOM#24)PTJ4010200031SHUTTER BLADE HOLDER 1 (BOM#24)
PTJ4010200033HEAT SINK (BOM#27)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
HOUSING (BOM#3)PTJ4010302514HOUSING (BOM#3)
ROUND METAL PART (BOM#6)PTJ4010302516ROUND METAL PART (BOM#6)
HANGING BRACKET (BOM#1)PTJ4010302517HANGING BRACKET (BOM#1)
PTJ4010302519ALUMINIUM PLATE FOR THE REAR (BOM#20)
PTJ4010302524WIND DEFLECTOR (BOM#29)
SHUTTER TUBE 1 (BOM#28)PTJ4010302525SHUTTER TUBE 1 (BOM#28)
SHUTTER TUBE 2 (BOM#33)PTJ4010302526SHUTTER TUBE 2 (BOM#33)
SHADOW SHIELD (BOM#36)PTJ4010302527SHADOW SHIELD (BOM#36)
THUMB SCREW (BOM#51)PTJ4010302528THUMB SCREW (BOM#51)
VENTILATE NET (BOM#28)PTJ4010302529VENTILATE NET (BOM#28)
PTJ4010302648FAN HOLDER (BOM#26)

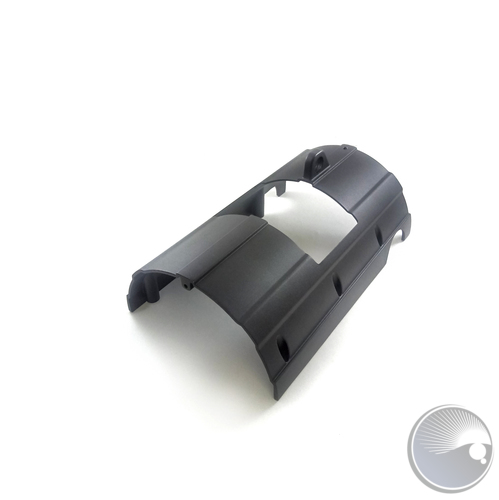

HOUSING COVER (BOM#25)PTJ4010302649HOUSING COVER (BOM#25)
REAR (BOM#17)PTJ4010401336REAR (BOM#17)
SHUTTER HANDLE (BOM#46)PTJ4020200211SHUTTER HANDLE (BOM#46)
ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)PTJ5000000015ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)
UPLOAD03PTJUPLOAD03UPLOAD03
