Ovation E-910FC IP

2.112,25 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONE910FCIP
Ovation  E-910FC IP Ovation E-910FC IP takes the high-performance, full RGBA-Lime... mehr
Produktinformationen "Ovation E-910FC IP"

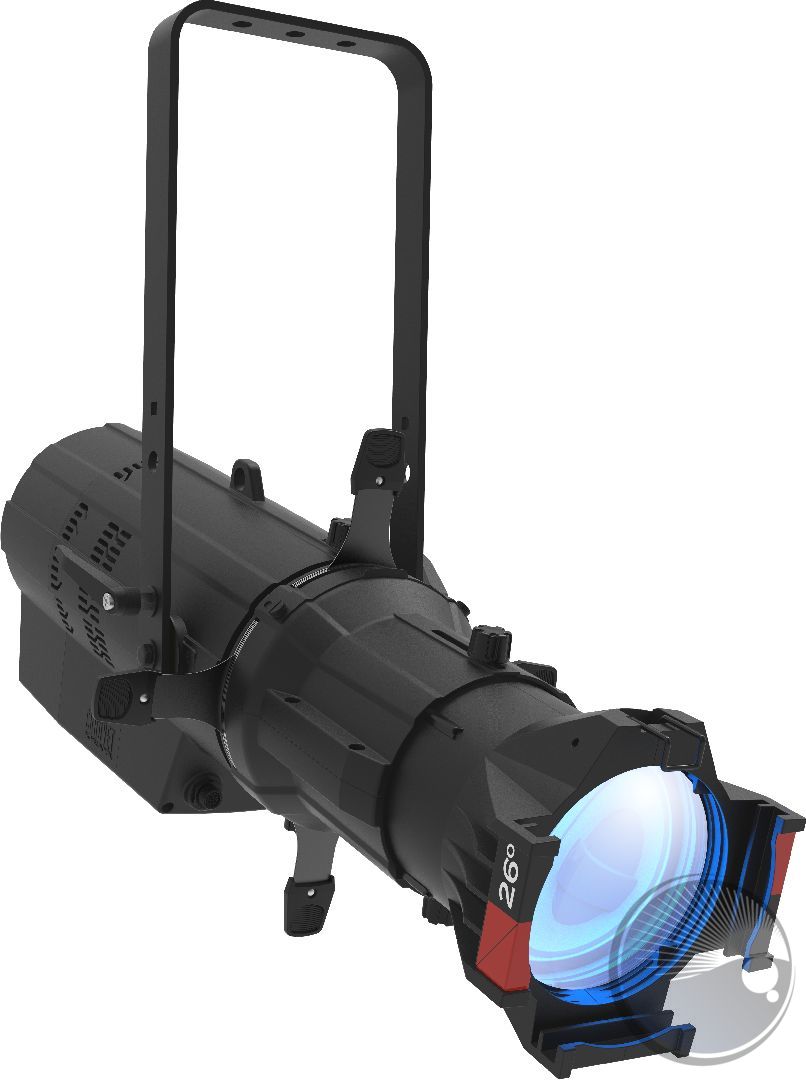

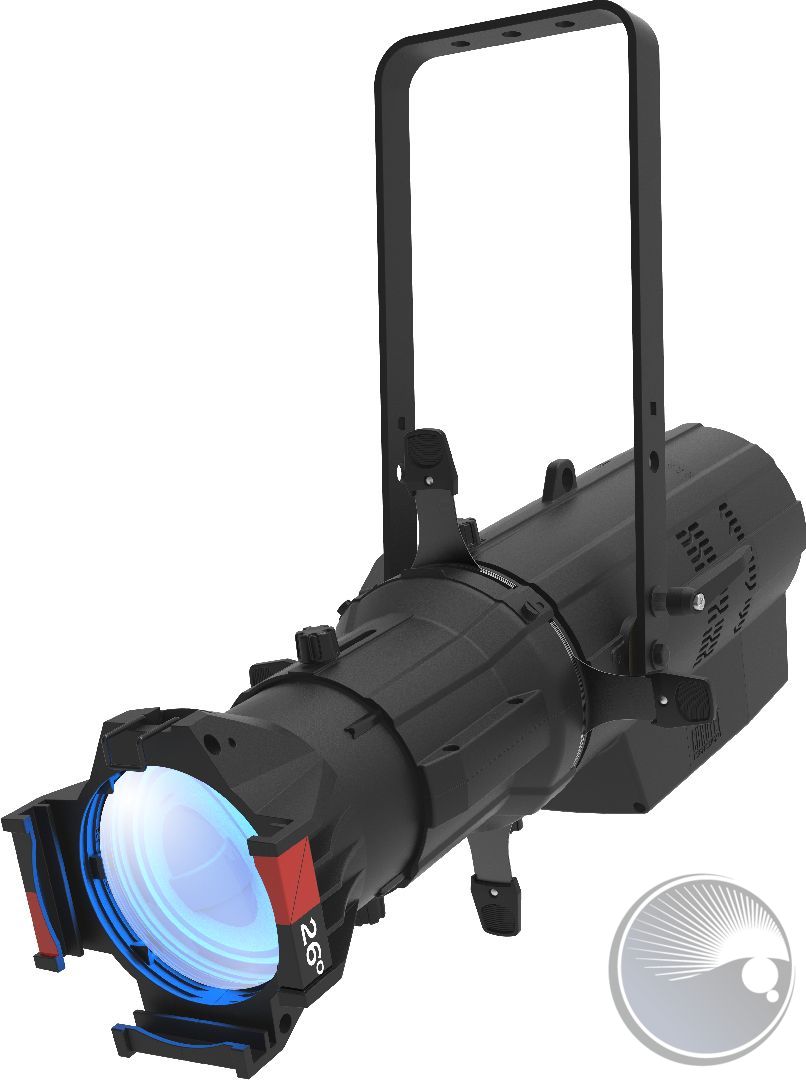

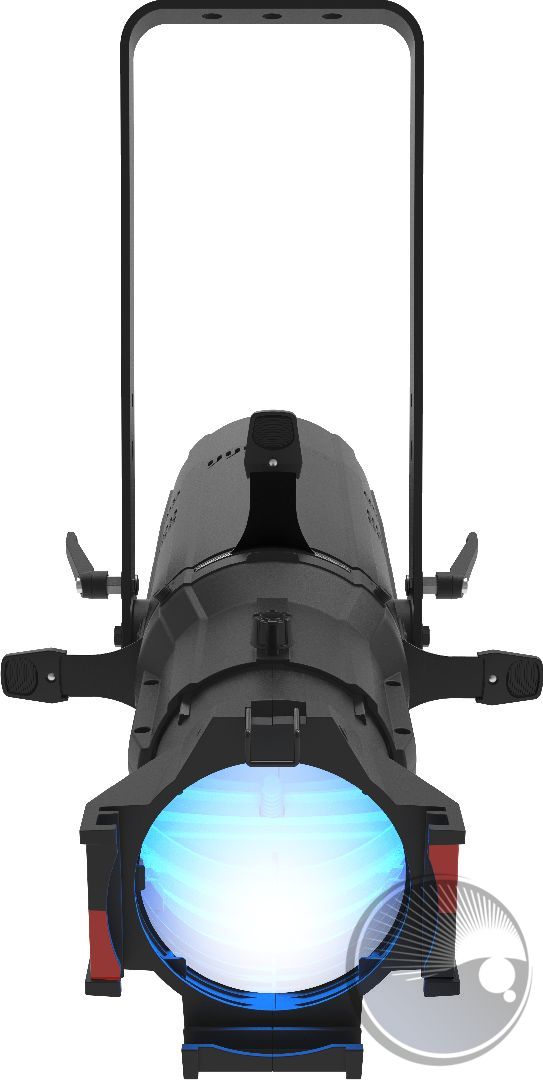

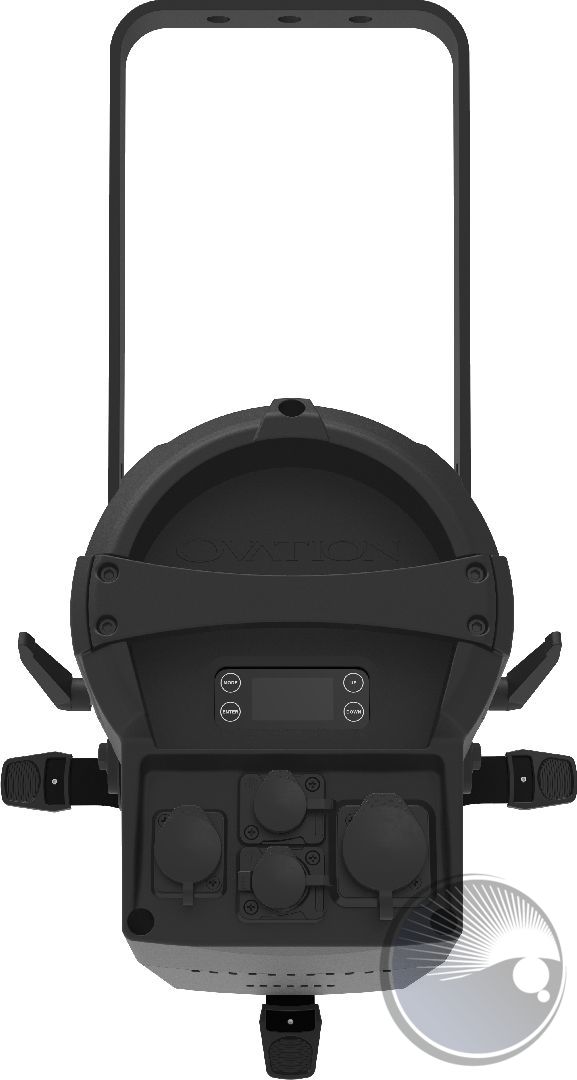

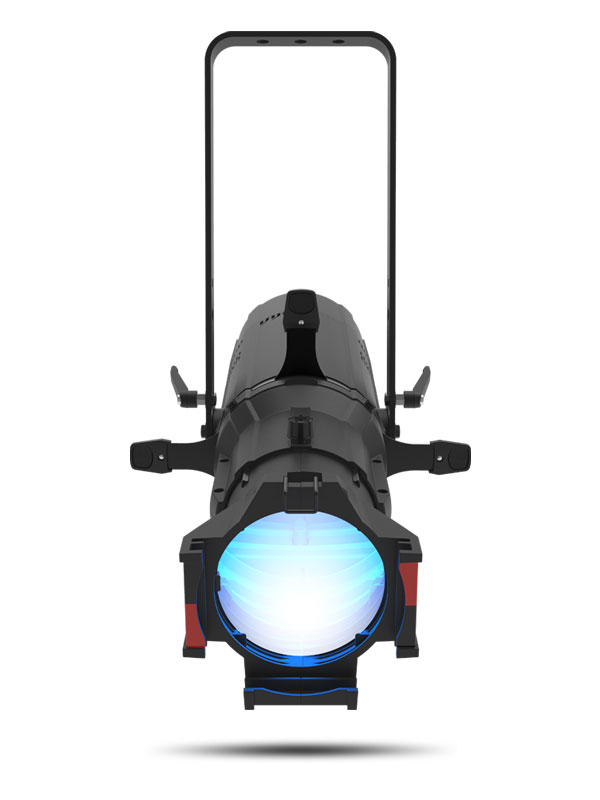

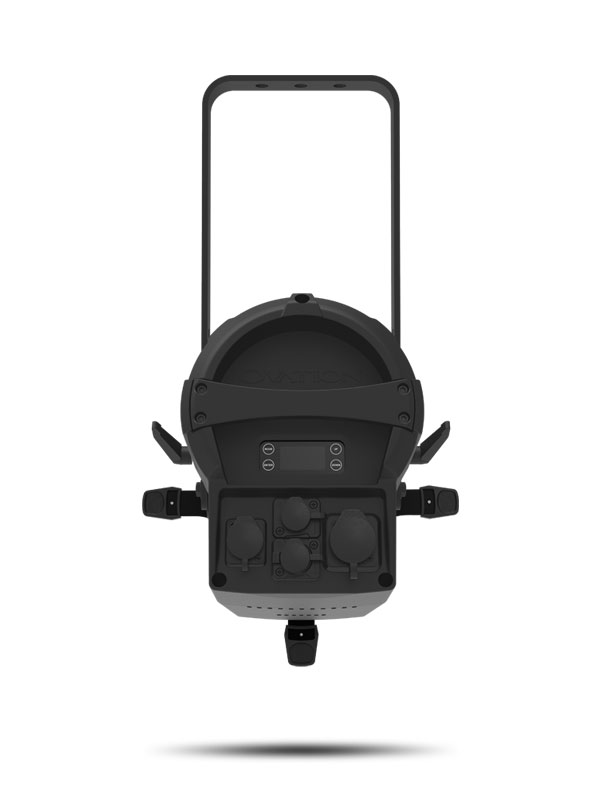

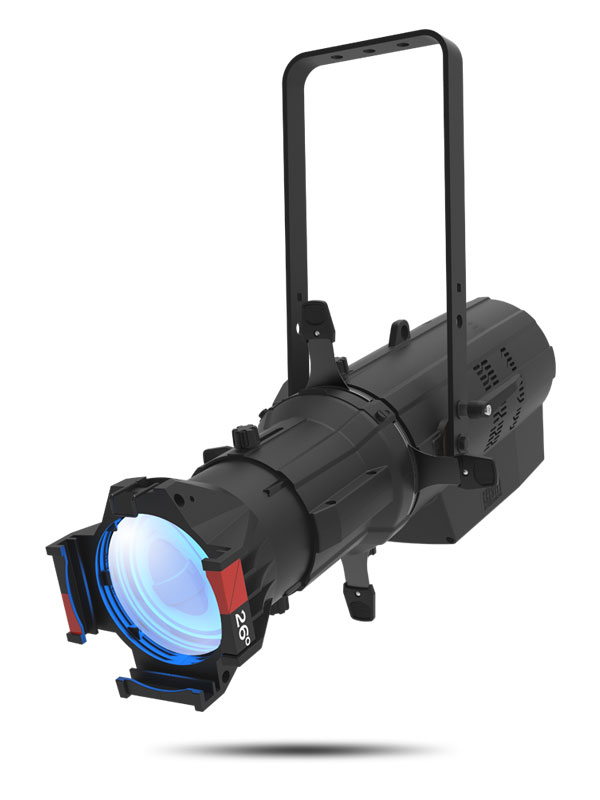

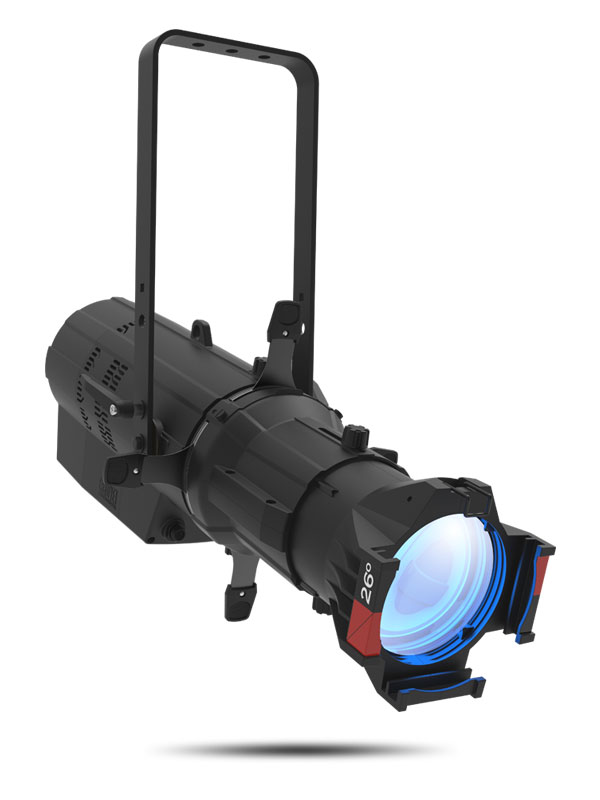

Ovation E-910FC IP

Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing marvel of the Ovation E-910FC outdoors. Our standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS style fixture that offers Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full bit dimming (per color and master), selectable PWM, RDM and onboard dimming curves selection. Also accessible is our virtual color wheel which matches popular color gels.



AT A GLANCE

  • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production

  • Fully IP65 rated for seasonal use indoors or out

  • Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS

  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme

  • Flat, even field of light for superior gobo projection

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATIONS

OPTICAL

  • Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 6031 K
  • CRI (3200 K): 86
  • Beam Angle (w/5° lens): 7°
  • Beam Angle (w/10° lens): 10°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 19°
  • Beam Angle (w/26° lens): 24°
  • Beam Angle (w/36° lens): 28°
  • Beam Angle (w/50° lens): 41°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 24°
  • Beam Angle (w/25°–50° lens)(Narrow): 23°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens):19°
  • Field Angle (w/26° lens): 26°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 51°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 50°
  • Lumens (w/19° lens): 3,236
  • Lumens (w/26° lens): 4,316
  • Lumens (w/36° lens): 3,918
  • Lumens (w/50° lens): 3,813
  • Illuminance (w/5° lens): 16,300 lux @ 5 m
  • Illuminance (w/10° lens): 7,430 lux @ 5 m
  • Illuminance (w/14° lens): 4,420 lux @ 5 m
  • Illuminance (w/19° lens): 2,530 lux @ 5 m
  • Illuminance (w/26° lens): 1,720 lux @ 5 m
  • Illuminance (w/36° lens): 1,020 lux @ 5 m
  • Illuminance (w/50° lens): 457 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 26 x 11.33 x 10.4 in (660 x 287.9 x 264.6 mm)
  • Dimensions (w/5° lens extended): 47.04 x 14.17 x 14.48 in (1195 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 38.3 x 12.16 x 12.48 in (973 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 35.2 x 11.33 x 10.4 in (894.2 x 287.9 x 264.6 mm)
  • Dimensions (w/26° lens extended): 32.37 x 11.33 x 10.4 in (822.3 x 287.9 x 264.6 mm)
  • Dimensions (w/15°–30° lens): 38.6 x 11.33 x 10.4 in (980.6 x 287.9 x 264.6 mm)
  • Dimensions (w/25°–50° lens): 31.3 x 11.33 x 10.4 in (795.1 x 287.9 x 264.6 mm)
  • Weight (fixture only): 23.2 lb (10.5 kg)
  • Weight (w/14° lens): 28.6 lb (12.9 kg)
  • Weight (w/26° lens): 27.4 lb (12.4 kg)
  • Weight (w/15°–30° lens): 35.8 lb (16.2 kg)
  • Weight (w/25°–50° lens): 32.8 lb ( 14.8 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
  • Power and Current: 225 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 236 W, 1.14 A @ 208 V, 60 Hz
  • Power and Current: 241 W, 1.05 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

REQUIRED ACCESSORIES

  • Lens Tube: 19°, 26°, 36°, 50°

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HCCTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin IP Rated DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • RDM2go
  • Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
  • Ovation Glass Gobo Holder
  • Ovation Metal Gobo Holder
  • Ovation Iris

ORDERING INFO

  • Item Code: 03121497
Weiterführende Links zu "Ovation E-910FC IP"

OVBGOBOGLASS*LOC1* OVATION B-SIZE GLASS GOBO HOLDER
OVBGOBOMETAL*LOC1* OVATION B-SIZE METAL GOBO HOLDER
5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
Pressure valve (BOM#18)PTF1491700004Pressure valve (BOM#18)
THUMB SCREW/KNOB (BOM#11)PTF2440000125THUMB SCREW/KNOB (BOM#11)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)

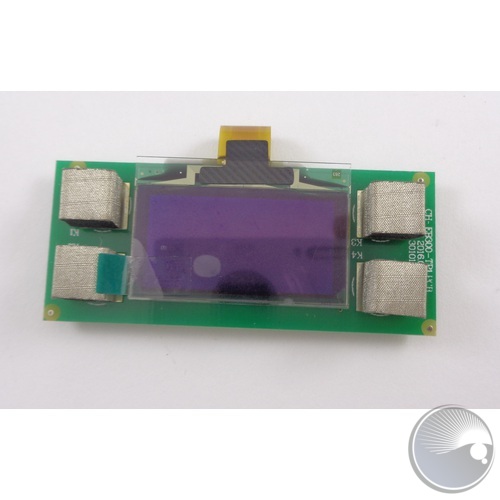

DISPLAY PCB\(BOM#22)PTJ2020201509DISPLAY PCB\(BOM#22)

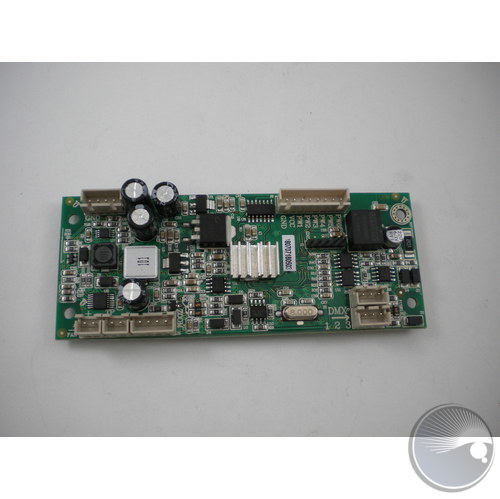

MPCB (BOM#50)PTJ2020202502AMPCB (BOM#50)

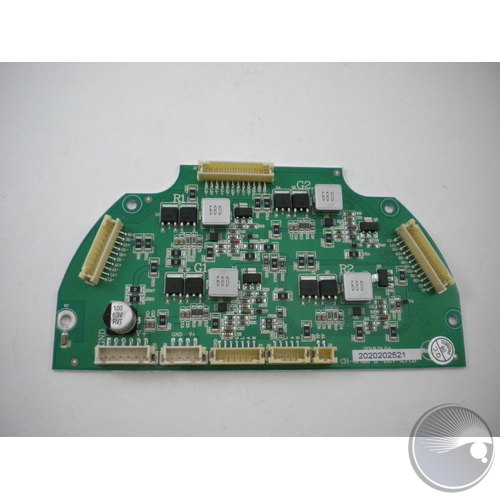

DRIVER PCB A (BOM#7)PTJ2020202521DRIVER PCB A (BOM#7)

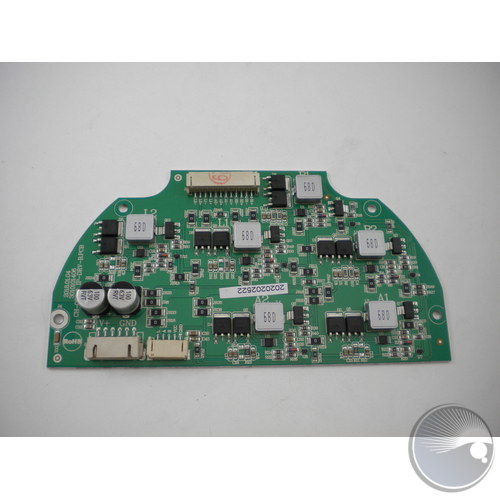

DRIVER PCB B (BOM#9)PTJ2020202522DRIVER PCB B (BOM#9)
PTJ2020202523POWER XLR SOCKET (BOM#52)

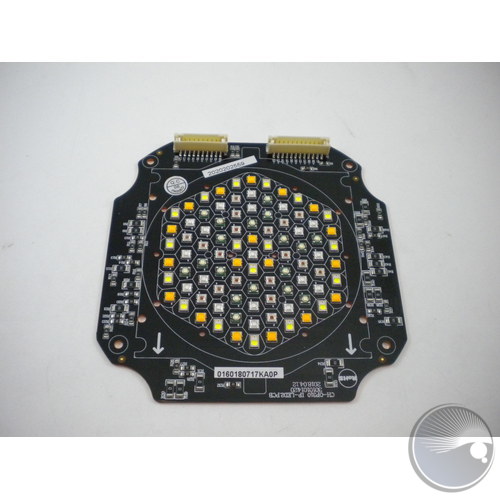

LED PCB (BOM#16)PTJ2020202559LED PCB (BOM#16)
BARREL ASSEMBLY W/ SHUTTERS (BOM#36,37,38,40,41,42,4344,45,46)PTJ2030100057BARREL ASSEMBLY W/ SHUTTERS (BOM#36,37,38,40,41,42,4344,45,46)
SHUTTER BLADE ASSEMBLY (BOM#45,46)PTJ2030100076SHUTTER BLADE ASSEMBLY (BOM#45,46)
Soft Focus Filter w/ HolderPTJ2030100091Soft Focus Filter w/ Holder
SPHERICAL CONDENSE (BOM#38)PTJ3020200213SPHERICAL CONDENSE (BOM#38)
DISPLAY GLASS LENS (BOM#22)PTJ3020200229DISPLAY GLASS LENS (BOM#22)
PTJ3020300266COLOR BLENDING FILTER

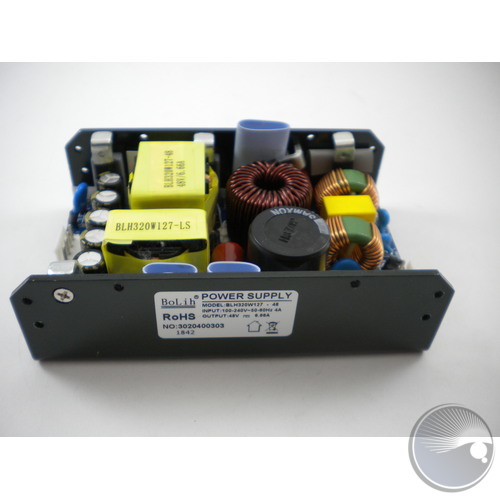

POWER SUPPLY (BOM#10)PTJ3020400303POWER SUPPLY (BOM#10)

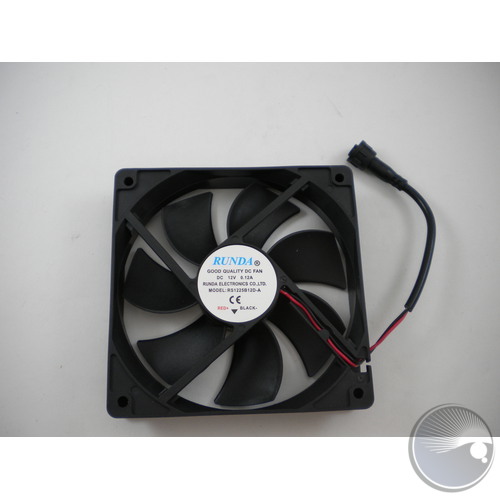

DC FAN (BOM#13)PTJ3020900048DC FAN (BOM#13)
DISPLAY CUSHION RUBBER (BOM#8)PTJ3021300070DISPLAY CUSHION RUBBER (BOM#8)

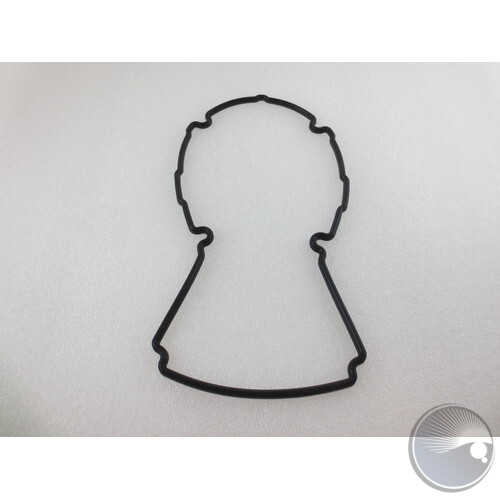

PTJ3021300105CUSHION RUBBER FOR FRONT COVER (BOM#44)

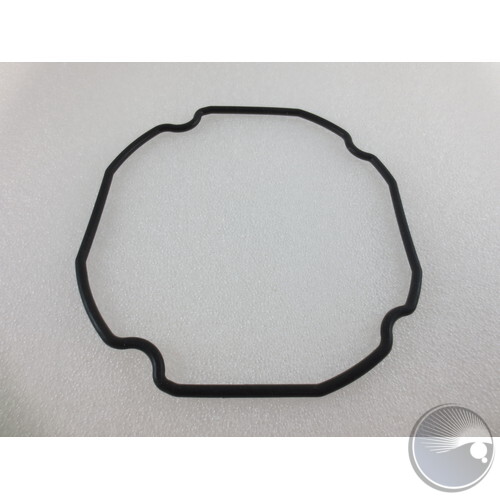

PTJ3021300106CUSHION RUBBER FOR HEAT SINK (BOM#48)

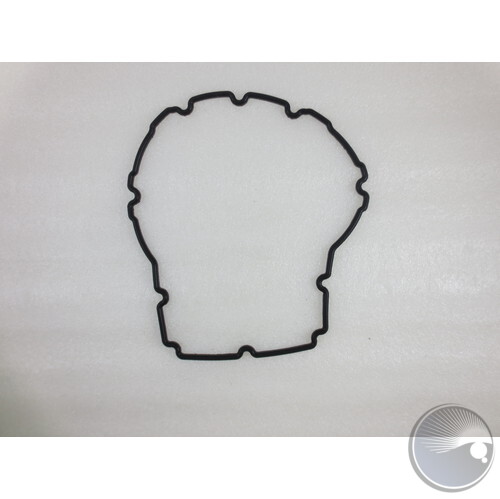

CUSHION RUBBER FOR REAR (BOM#12)PTJ3021300107CUSHION RUBBER FOR REAR (BOM#12)

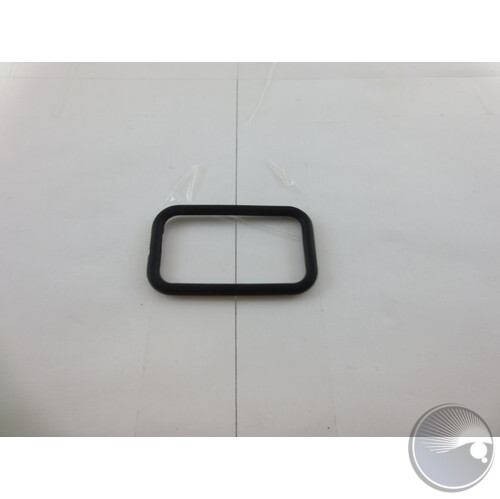

PTJ3021300108SILICA GEL RING (BOM#47)

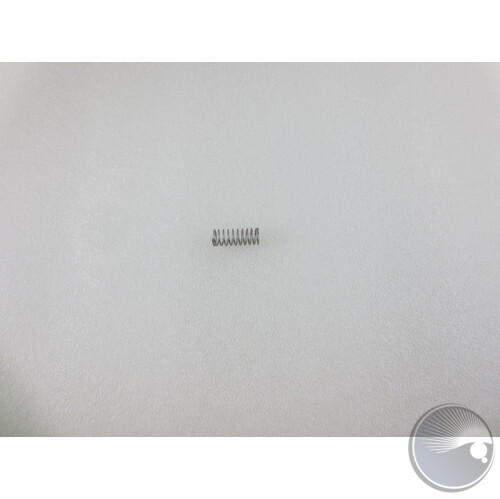

PTJ3021600079SPRING (BOM#36)
LARGE INSIDE SCREW HANGING BRACKET (BOM#27)PTJ3021700412LARGE INSIDE SCREW HANGING BRACKET (BOM#27)

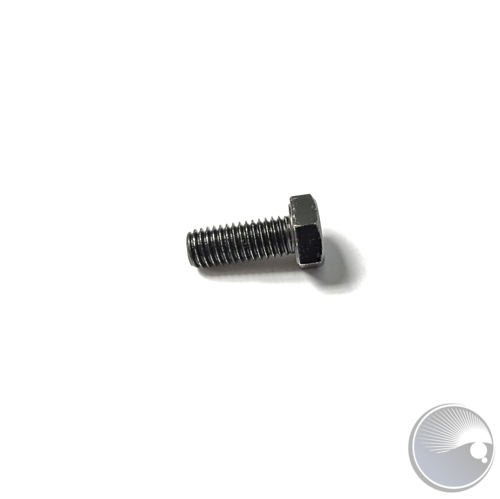

HM SCREW (BOM#43)PTJ3021700712HM SCREW (BOM#43)

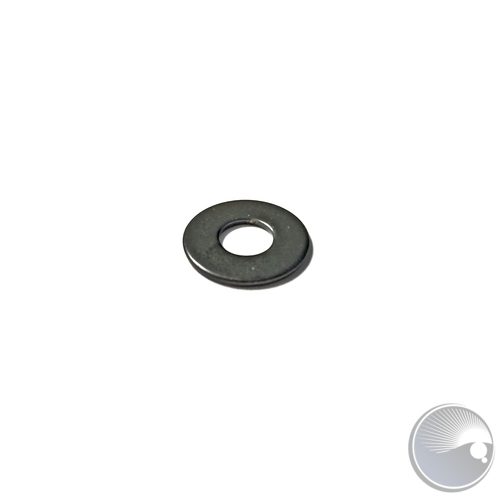

RING (BOM#21)PTJ3021700716RING (BOM#21)

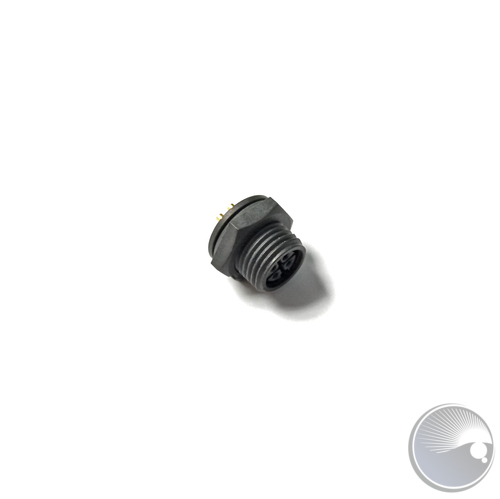

IP CONNECTOR (BOM#41)PTJ3022000015IP CONNECTOR (BOM#41)

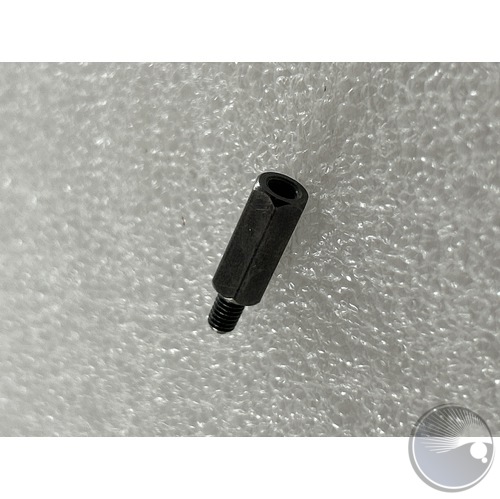

PTJ3030100070STAND OFF (BOM#5)
ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#4)PTJ4010102024ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#4)

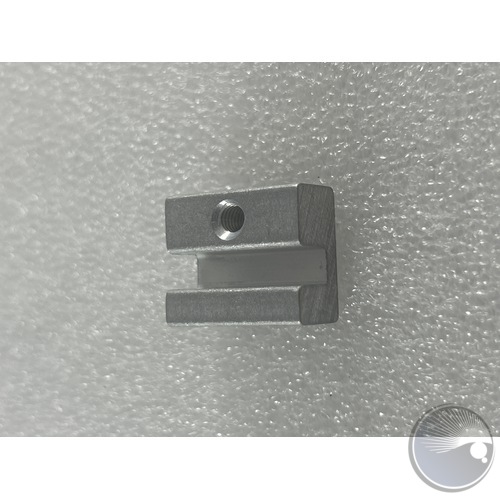

PTJ4010102937GUIDE CHANNEL1 (BOM#25)

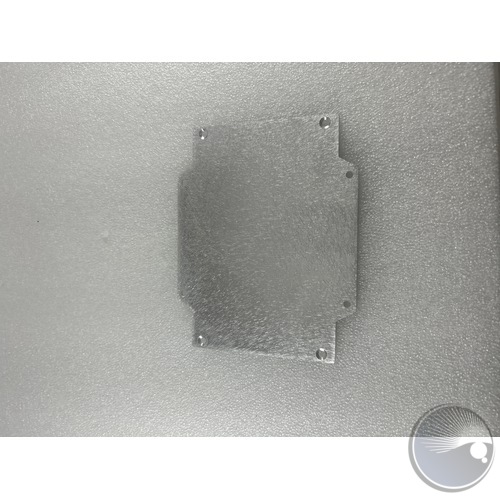

PTJ4010102945POWER HOLDER (BOM#11)
SHUTTER TUBE1 (BOM#38)PTJ4010302525SHUTTER TUBE1 (BOM#38)
SHUTTER TUBE 2 (BOM#44)PTJ4010302526SHUTTER TUBE 2 (BOM#44)

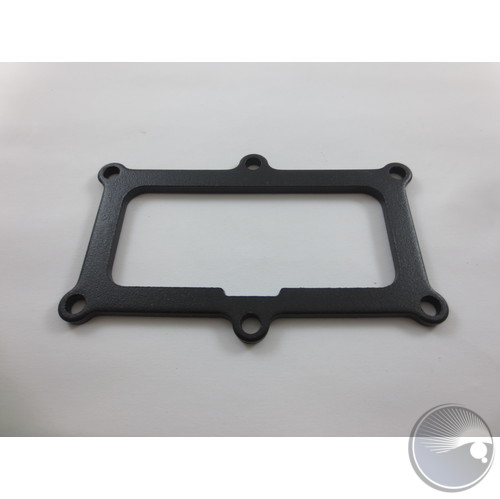

MASTER PCB HOLDER (BOM#53)PTJ4010302558MASTER PCB HOLDER (BOM#53)
PTJ4010303013HANDLE BARS (BOM#5)
PTJ4010303014WIND DEFLECTOR (BOM#14)
PTJ4010303015POWER SOCKET HOLDER (BOM#49)

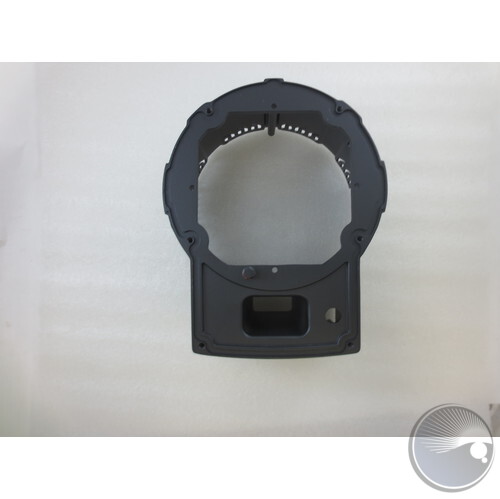

HEAT SINK HOLDER (BOM#46)PTJ4010303016HEAT SINK HOLDER (BOM#46)
PTJ4010303018SHADOW SHIELD (BOM#27)
PTJ4010303020SHUTTER BLADE HOLDER 4 (BOM#32)
PTJ4010303021SHUTTER BLADE HOLDER 3 (BOM#31)
PTJ4010303022SHUTTER BLADE HOLDER 2 (BOM#30)
PTJ4010303023SHUTTER BLADE HOLDER 1 (BOM#29)

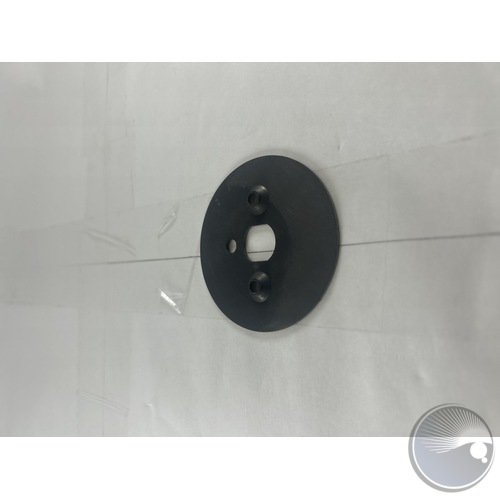

PTJ4010303024SEMI-CIRCLE METAL PART (BOM#23)

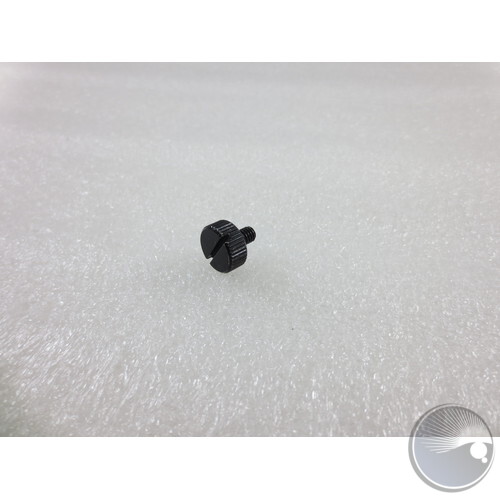

PTJ4010303035THUMB SCREW (BOM#26)
PTJ4010303505AFILTER FRAME-1 (BOM#59)
PTJ4010303506AFILTER FRAME-2 (BOM#61)

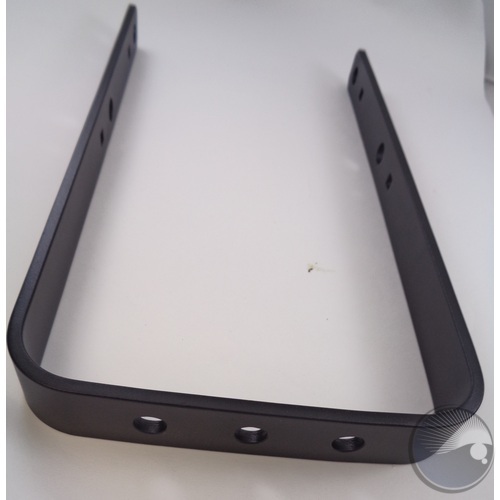

HANGING BRACKET (BOM#18)PTJ4010304483HANGING BRACKET (BOM#18)

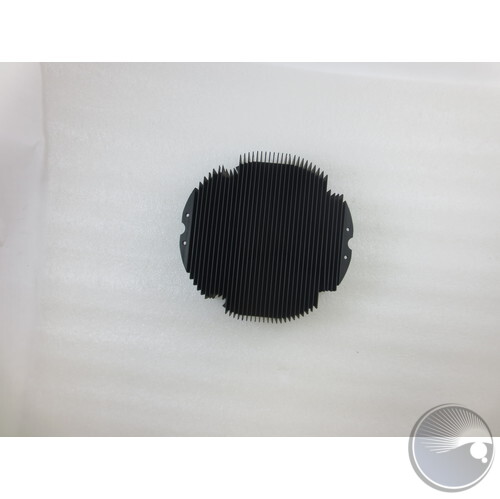

HEAT SINK (BOM#15)PTJ4010304484HEAT SINK (BOM#15)
PTJ4010304485AFRONT COVER FOR REAR (BOM#42)
PTJ4010304531REFLECT TUBE HOLDER 2 (BOM#40)
PTJ4010304532REFLECT TUBE HOLDER 1 (BOM#39)

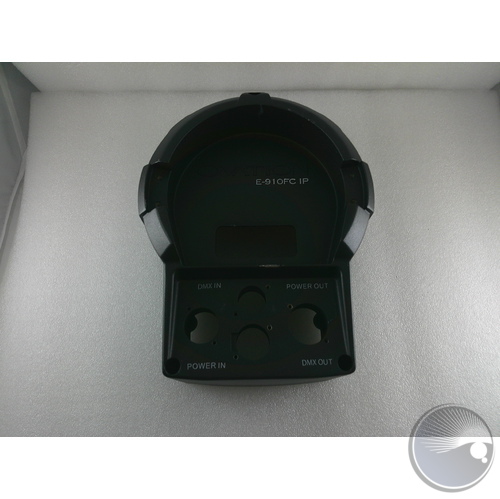

PTJ4010402174REAR (BOM#6)
FRAMING SHUTTER*4 (BOM#70)PTJ4020200211FRAMING SHUTTER*4 (BOM#70)
LENS (BOM#33)PTJ4020200303LENS (BOM#33)
PTJ4020200423AREFLECT TUBE (BOM#24)
