Ovation ETD-40WW

612,85 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONETD40WW
Ovation  ETD-40WW Ovation ETD-40WW is a best-in-class track-mountable 40W warm white... mehr
Produktinformationen "Ovation ETD-40WW"

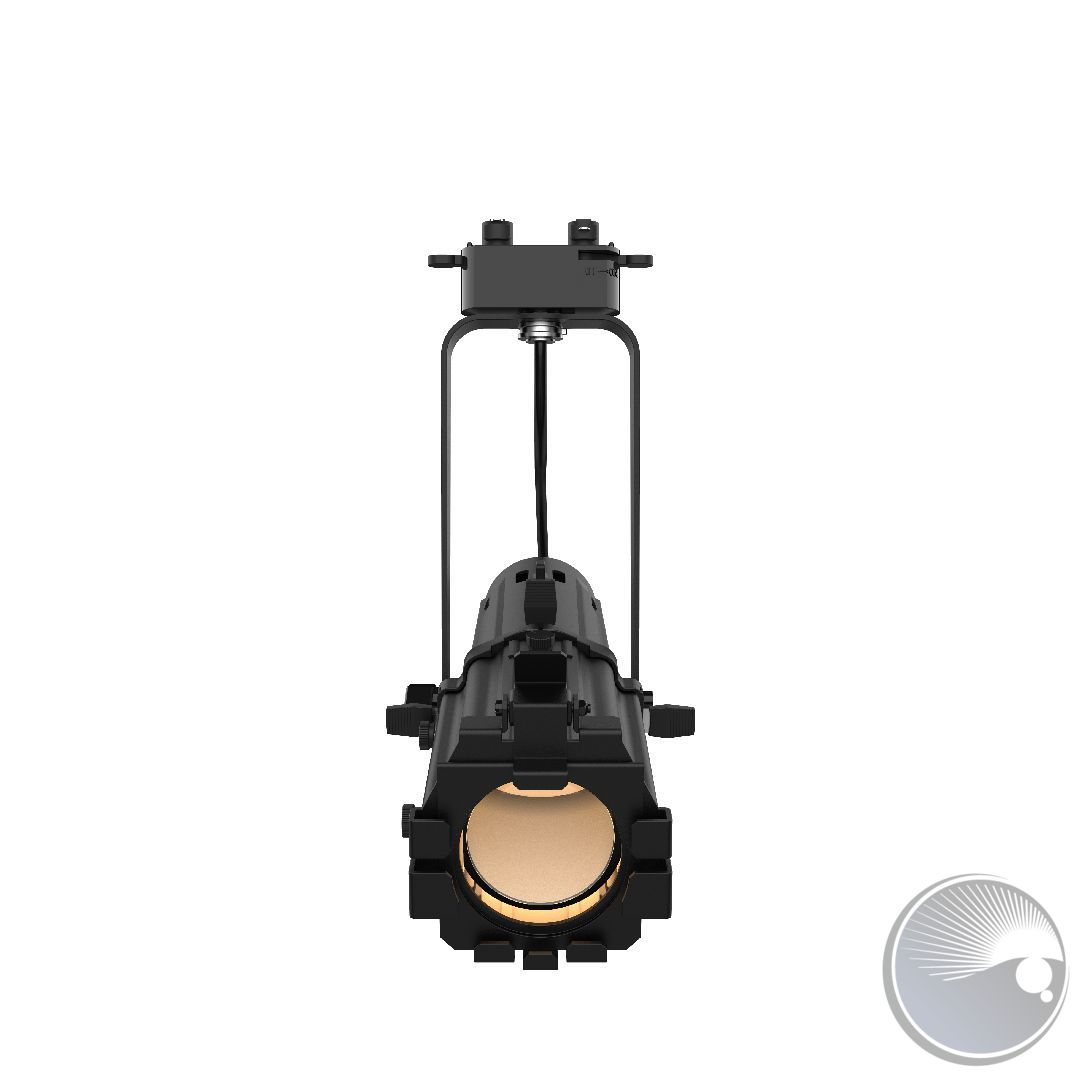

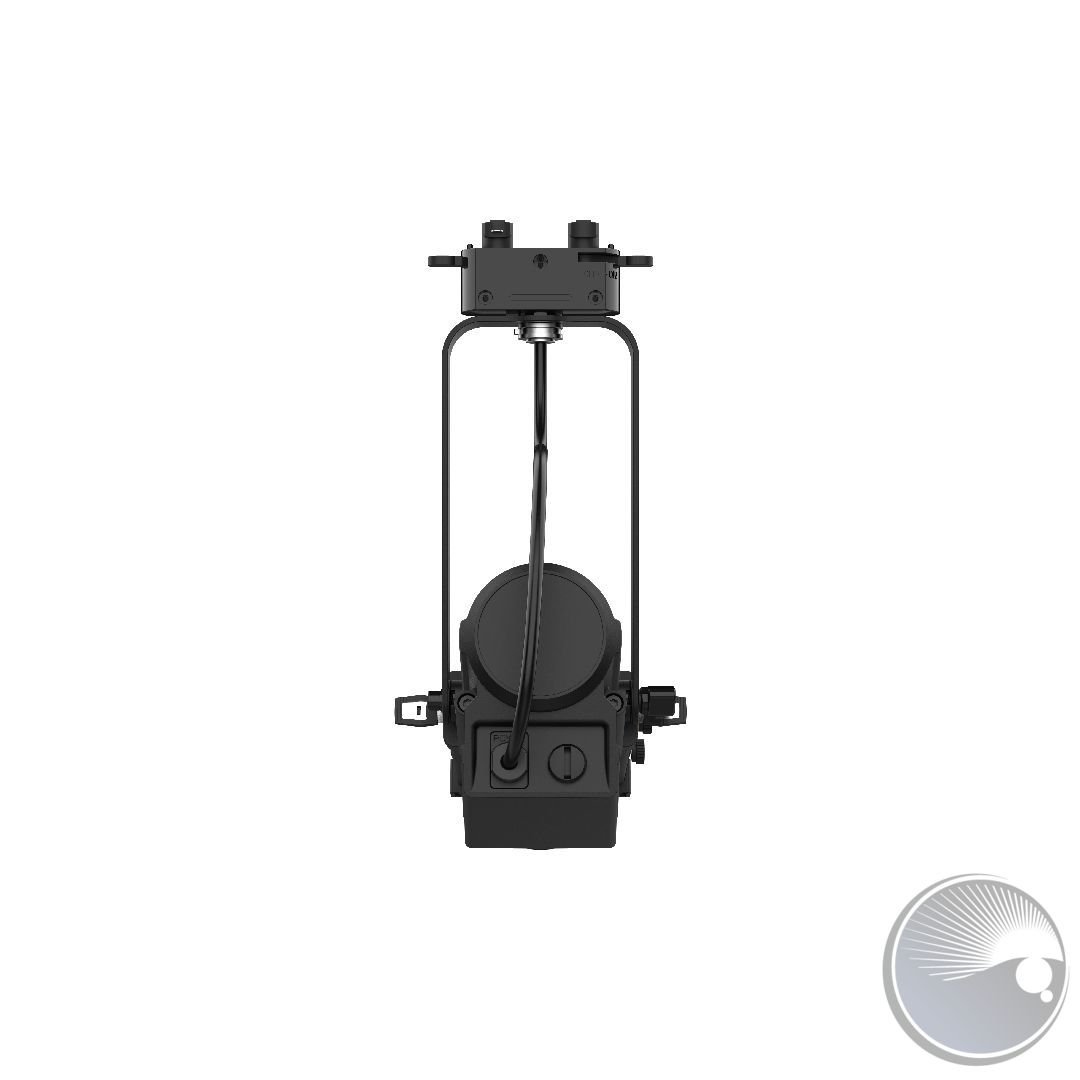

Ovation ETD-40WW

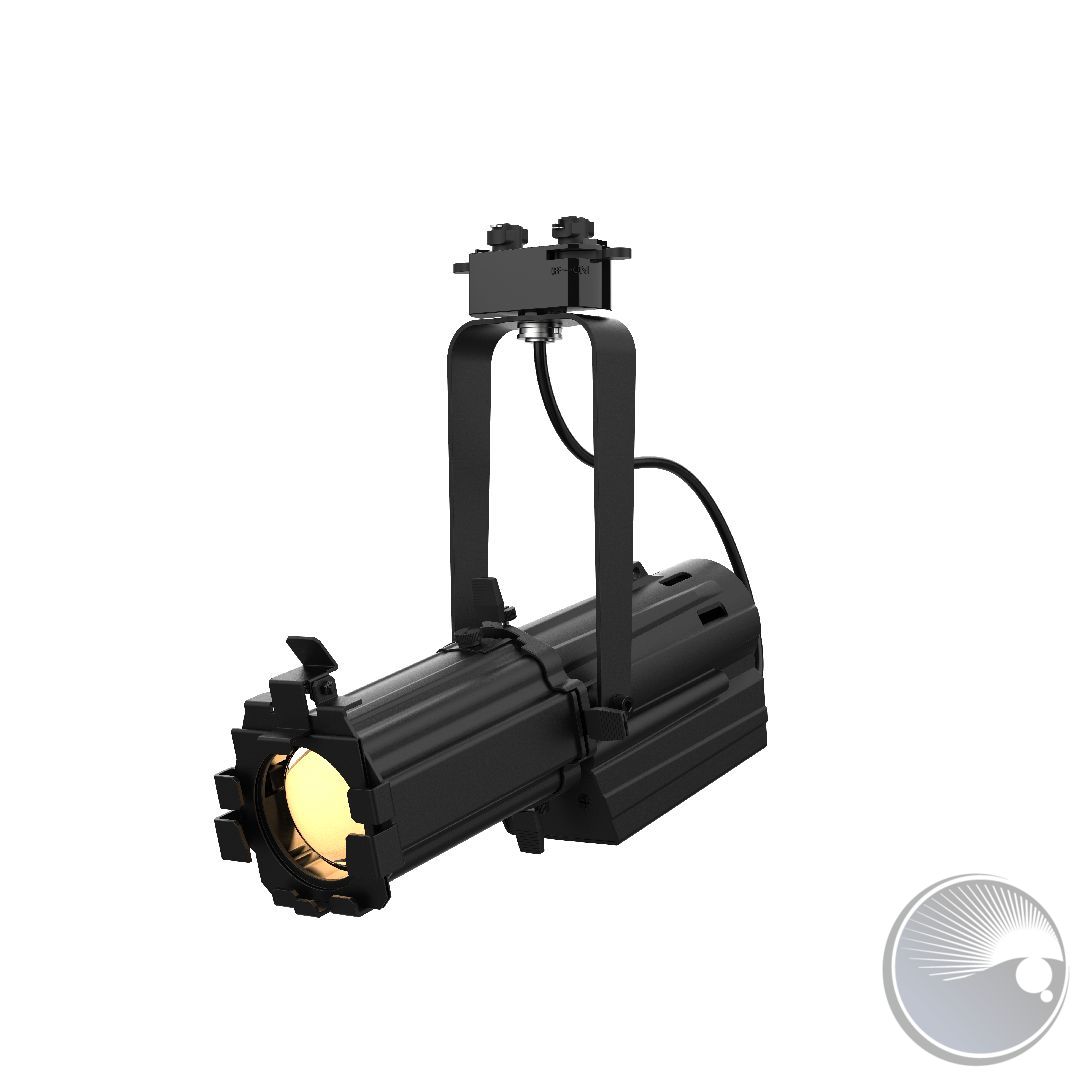

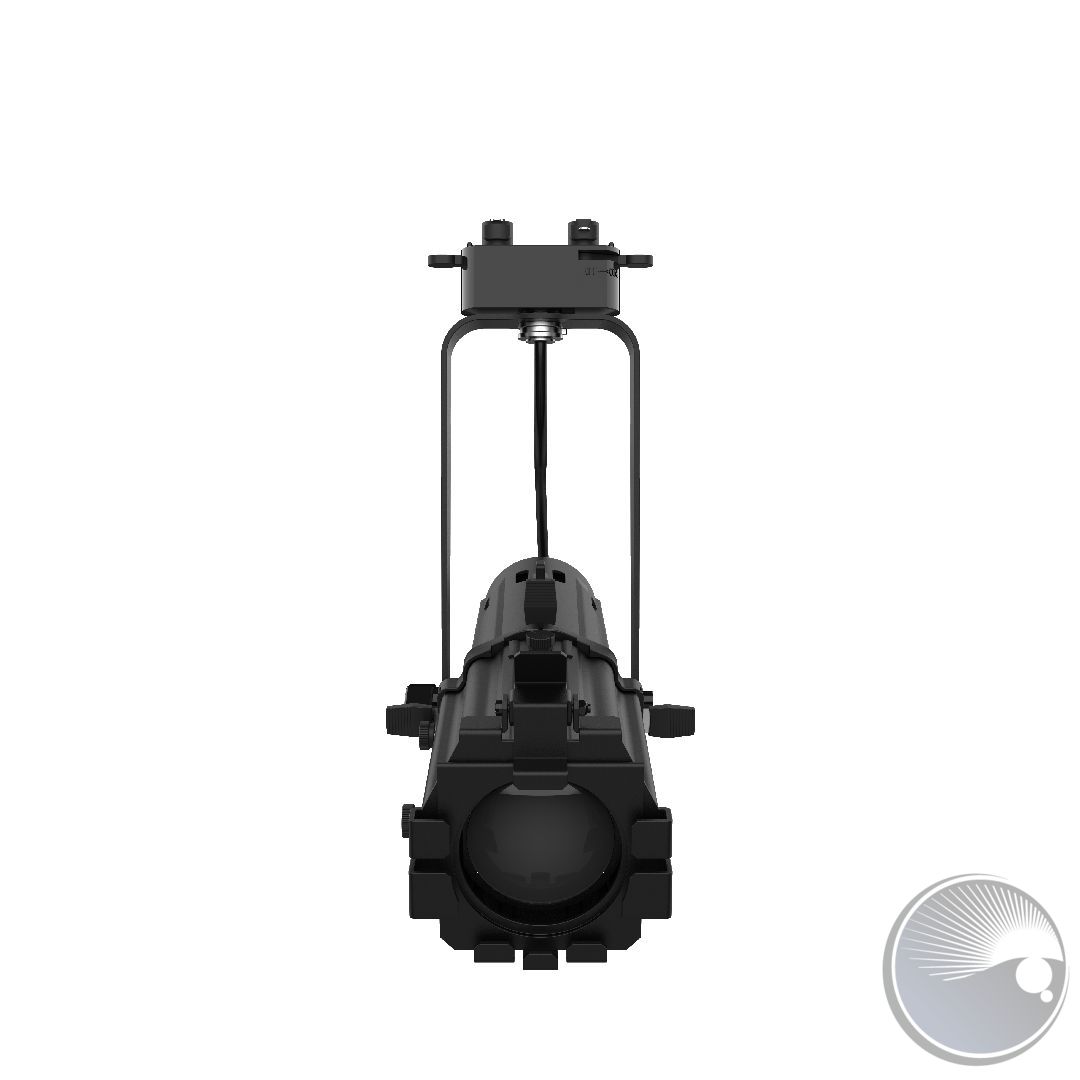

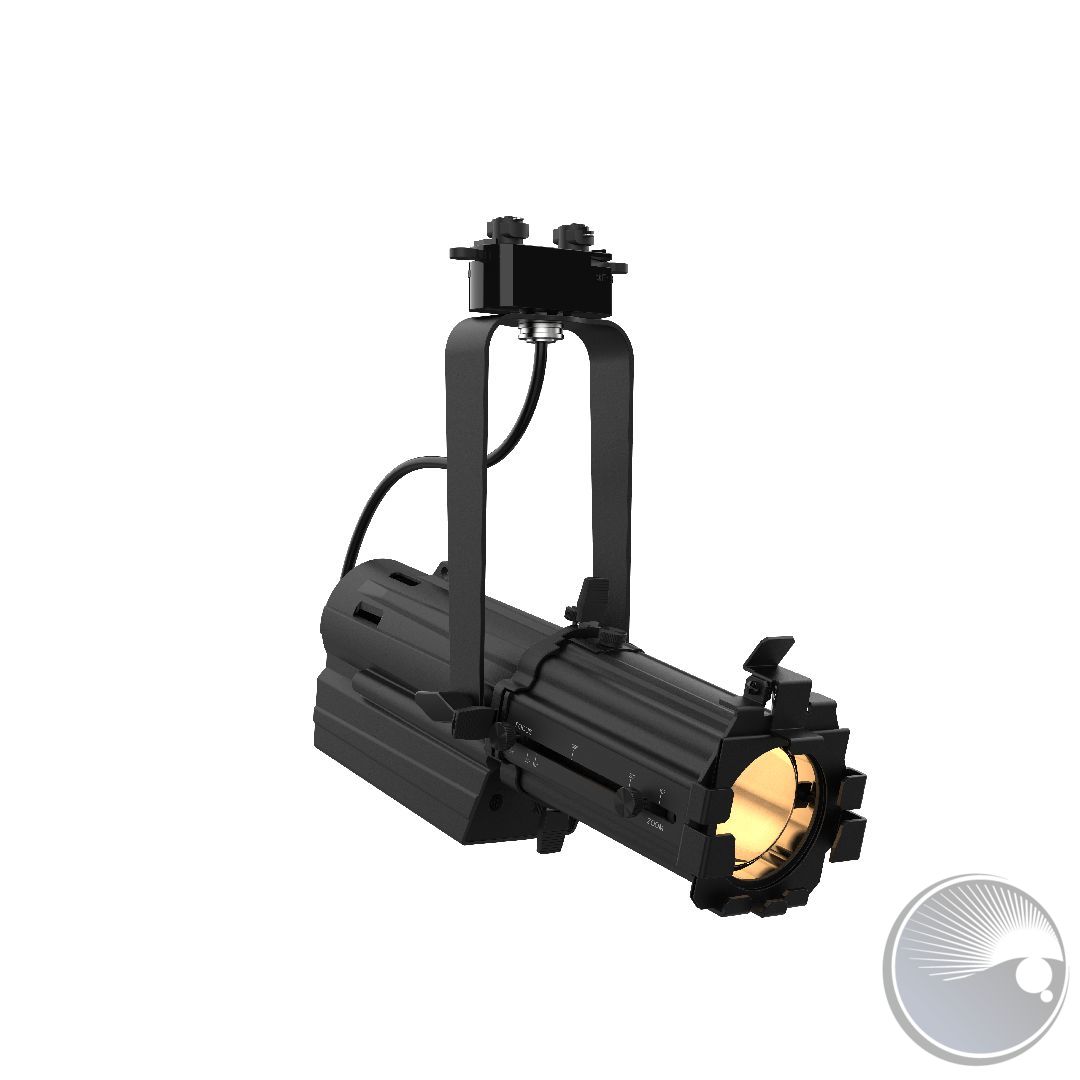

Ovation ETD-40WW is a best-in-class track-mountable 40W warm white LED ellipsoidal. This compact LED fixture has tremendous output with high CRI and creates a hard-edged beam for precise gobo projection. Designed for architectural and retail installations, this luminaire is equipped with fantastic zooming optics that provide a beam angle from 19° to 36° and can be adjusted with framing shutters to highlight desired areas.



AT A GLANCE

  • Compact LED ellipsoidal shines a hard-edged beam, perfect for gobo projection

  • Track-mountable to readily available track lighting rails

  • Tremendous output with high CRI

  • Highlight areas by altering the projected beam with framing shutters

  • Uses standard size E glass or metal gobos

  • Zooming optics provide a beam angle from 19° to 36°

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 40 W, (600 mA), 50,000 hours life expectancy.
  • Color Temperature (at full): 3255 K
  • CRI: 93
  • TLCI: 92.2
  • Beam Angle (w/19-36° lens)(19°): 16°
  • Beam Angle (w/19-36° lens)(26°): 17°
  • Beam Angle (w/19-36° lens)(36°): 18°
  • Field Angle (w/19-36° lens)(19°): 19°
  • Field Angle (w/19-36° lens)(26°): 25°
  • Field Angle (w/19-36° lens)(36°): 33°
  • Lumens (w/19-36° lens)(19°): 1,327
  • Lumens (w/19-36° lens)(26°): 1,260
  • Lumens (w/19-36° lens)(36°): 1,050
  • Illuminance (w/19-36° lens)(19°): 784 lux @ 5 m
  • Illuminance (w/19-36° lens)(26°): 526 lux @ 5 m
  • Illuminance (w/19-36° lens)(36°): 352 lux @ 5 m

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Focus: Manual

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.82 x 5.09 x 5.18 in (376.5 x 129.3 x 131.64 mm)
  • Weight: 3.4 lb (1.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Gobo Size (Optional): Gobo size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)

CONNECTIONS

  • Power Connection: Track Type H
  • Cable Length (power): 1.17 ft (0.36 m)

ELECTRICAL

  • Input Voltage: 120 VAC, 60 Hz
  • Input Voltage: 230 VAC, 50 Hz
  • Power and Current: 37 W, 0.291 A @ 120 V, 60 Hz
  • Power and Current: 39 W, 0.17 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation ETD-40WW
  • Track Adaptor
  • Gobo holder size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)
  • Gel frame (2.75 in/70 mm accessories)

ORDERING INFO

  • Item Code: 01121565
Weiterführende Links zu "Ovation ETD-40WW"

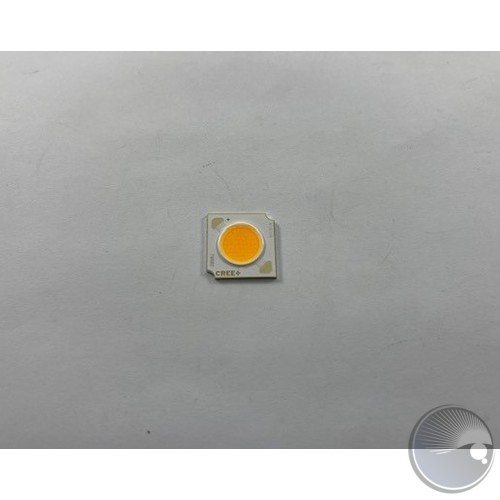

LED PCBPTF1070000625LED PCB

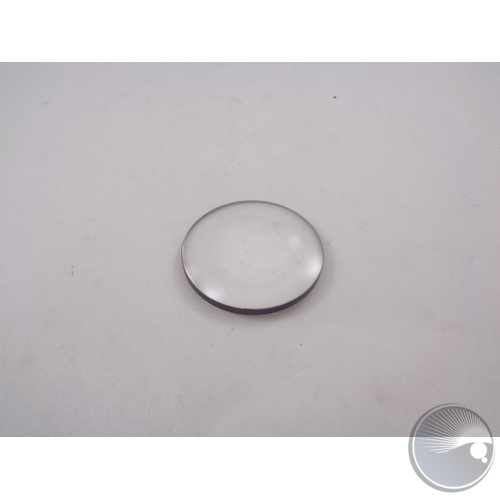

PTF112020021840 lens (ZOOMLENS BOM#20)
PTF112020026820 Flat convex mirror 1 (BOM#26)
PTF112020026936 Flat convex mirror 2 (BOM#23)
PTF1140000378Power insulation pad (BOM#3)

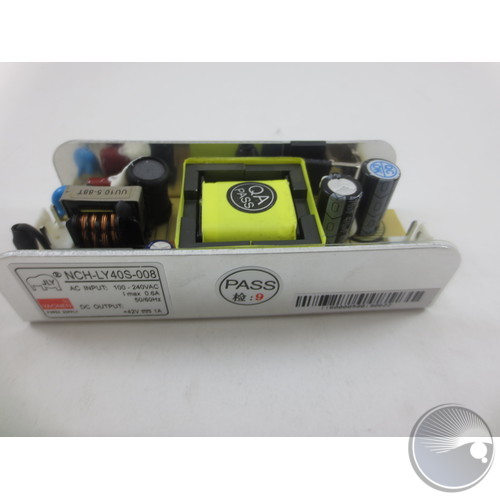

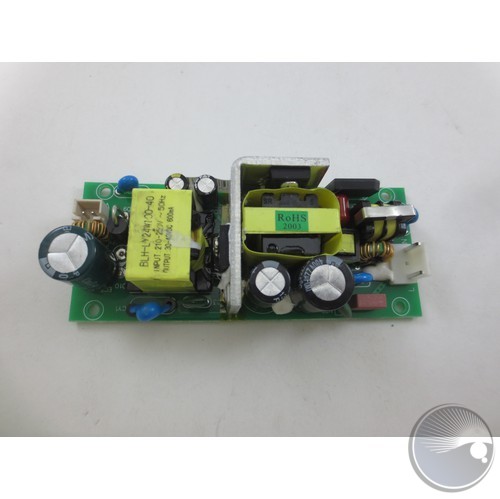

Power supply (BOM#2)PTF1160000594Power supply (BOM#2)
PTF1210000363wire button (BOM#2)
PTF1340111488baffle plate C (ZOOMLENS BOM#6)
PTF1340111489light barrier B (BOM#LensTube.7)
PTF1340111490light barrier A (BOM#LensTube.9)
PTF1340111492baffle plate A (ZOOMLENS BOM#4)
PTF1340111508Sliced baffle B (BOM#LensTube.5)
PTF1340112407Power supply board (BOM#1)
PTF1340300251spring (ZOOMLENS BOM#24)

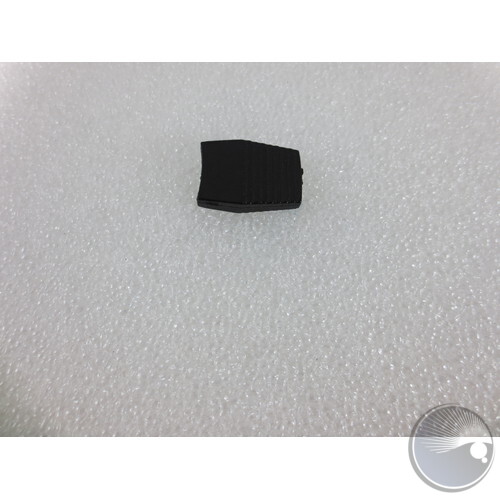

PTF1340602063shutter handle (ZOOMLENS BOM#8)
PTF1340602169slider A (BOM#LensTube.21)
Safety CablePTF1340700009Safety Cable
PTF1490300033Round head cross screw (BOM#LensTube.28)
PTF1490300062BOLT (CROSS/NORM)(BOM#10C)
PTF1490300117screw (ZOOMLENS BOM#23)
M3*6 BOLT (CROSS/SINK)(BOM#4C)PTF1490400012M3*6 BOLT (CROSS/SINK)(BOM#4C)
M8*16 Bolt (CROSS/SINK)(BOM#4A,10B)PTF1490400018M8*16 Bolt (CROSS/SINK)(BOM#4A,10B)
PTF1490400023BOLT (CROSS/SINK)(BOM#2A)
PTF1490400030Countersunk cross screw (BOM#31)
PTF1490400032Countersunk cross screw (BOM#LensTube.33)
PTF1490400042Countersunk cross screw (BOM#LensTube.19)
PTF1490500025Black metal thin gasket
PTF1490500044Stainless steel gasket (BOM#14)
PTF1491100005Black nut (BOM#20 Zoom Tube)
PTF1491100006self-locking nut (BOM#LensTube.13)
PTF1491100175M10*1.0 thin nut (BOM#16)
PTF1491300082knob (ZOOMLENS BOM#13)
PTF1491300089M3 plastic head hand screw (BOM#32)
PTF1491300096M5 hand screw (BOM#27)
PTF1491400046inner screw (BOM#LensTube.3)
PTF1491400082inner screw (BOM#11)
PTF1491400127inner screw (BOM#6)

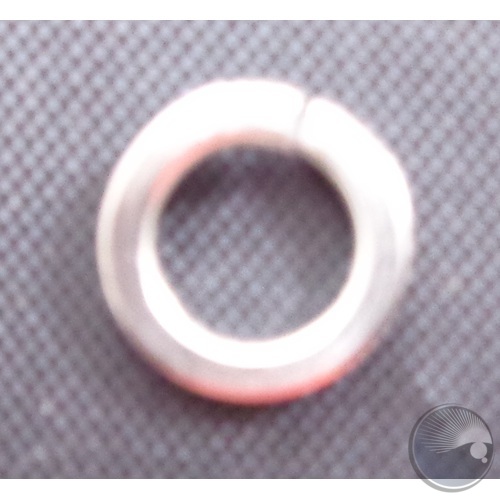

stainless steel washer (BOM#37.PG3)PTF1491600010stainless steel washer (BOM#37.PG3)

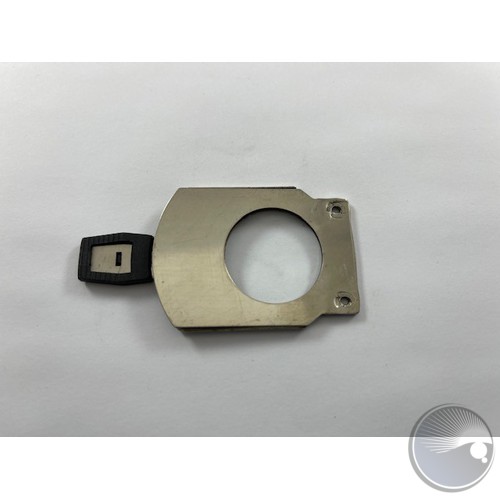

37.5mm Glass Gobo Holder (Pattern tray assembly (BOM#LensTube.14)PTF244001025737.5mm Glass Gobo Holder (Pattern tray assembly (BOM#LensTube.14)
PTF2440103341bracket A-P (BOM#12)
PTF2440103612support bracket (BOM#13)
PTF2440103915front cover (ZOOMLENS BOM#26)
PTF2440103916holder plate (ZOOMLENS BOM#25)
PTF2440103917baffle for gobo (ZOOMLENS BOM#14)
PTF2440103918block plate A (ZOOMLENS BOM#10)
PTF2440103919connect mold (ZOOMLENS BOM#2)

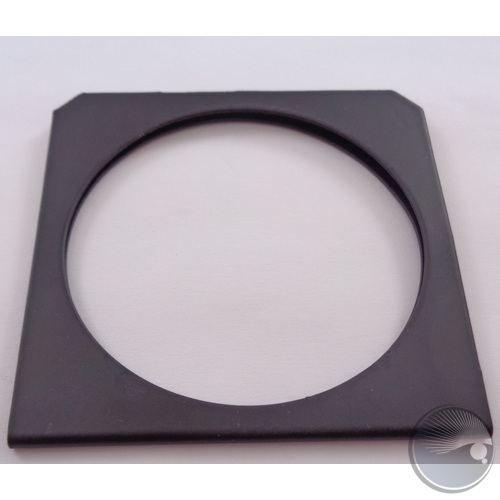

Color piece of clip (BOM#19)PTF2440103923Color piece of clip (BOM#19)
PTF2440103959block plate B (ZOOMLENS BOM#11)

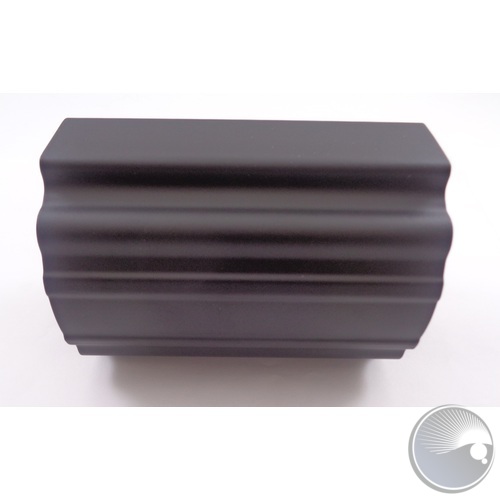

zoom body (BOM#15)PTF2440103960zoom body (BOM#15)
PTF244010399252 flat convex lens frame A (BOM#LensTube.25)
PTF244010399340 flat convex lens frame A (BOM#LensTube.23)
PTF2440104025connecting plate (BOM#LensTube.2)
PTF2440104968casing B-P (BOM#4)
PTF2440105521hinder-P (BOM#7)
PTF2440105785casing A-P (BOM#33)
PTF2440110894brass gasket (BOM#29)
PTF2440110939Rotating positioning ring (BOM#15)
PTF2440110940heat sink (BOM#10)
PTF2440111304LED mounting plate (BOM#18)
PTF244011150412°/24°Lens holder (BOM#19)
PTF2440800489Lens tube-P (BOM#21)
PTF2440805580Three-wire connector (BOM#13)
PTF2440805804Support column (BOM#9)
PTF2441206098Rotating fixed block (BOM#24)
PTF5320000306degree sticker (ZOOMLENS BOM#16)

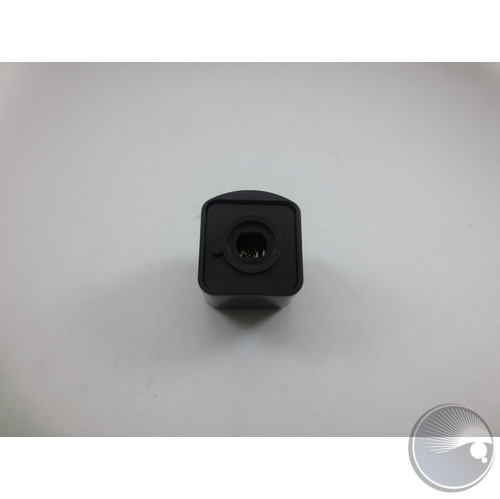

track adapter assembly (BOM#17)PTFX50087track adapter assembly (BOM#17)
