Ovation ED-200WW

1.558,90 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONED200WW
Ovation  ED-200WW Ovation ED-200WW brings a 750 W tungsten equivalent warm white... mehr
Produktinformationen "Ovation ED-200WW"

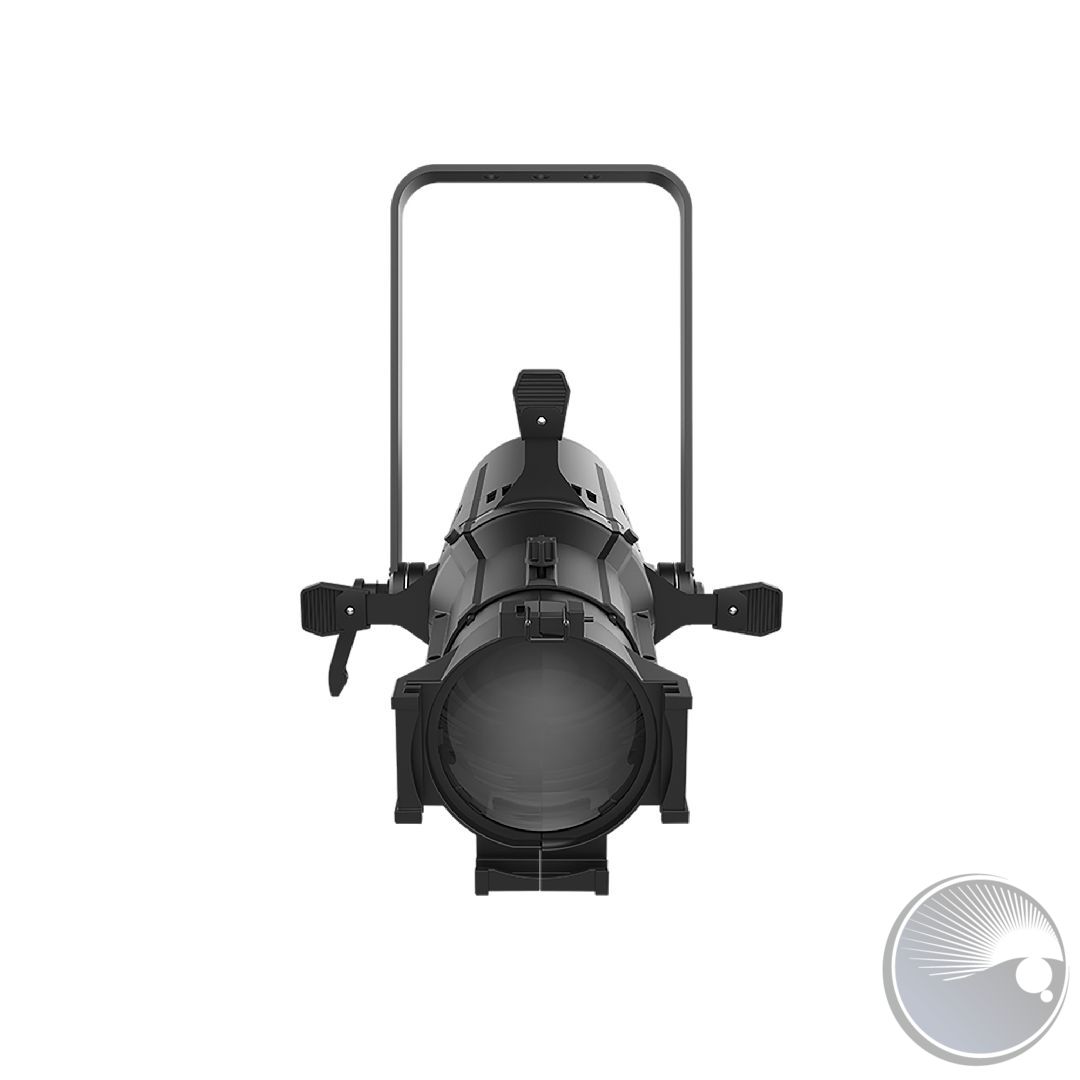

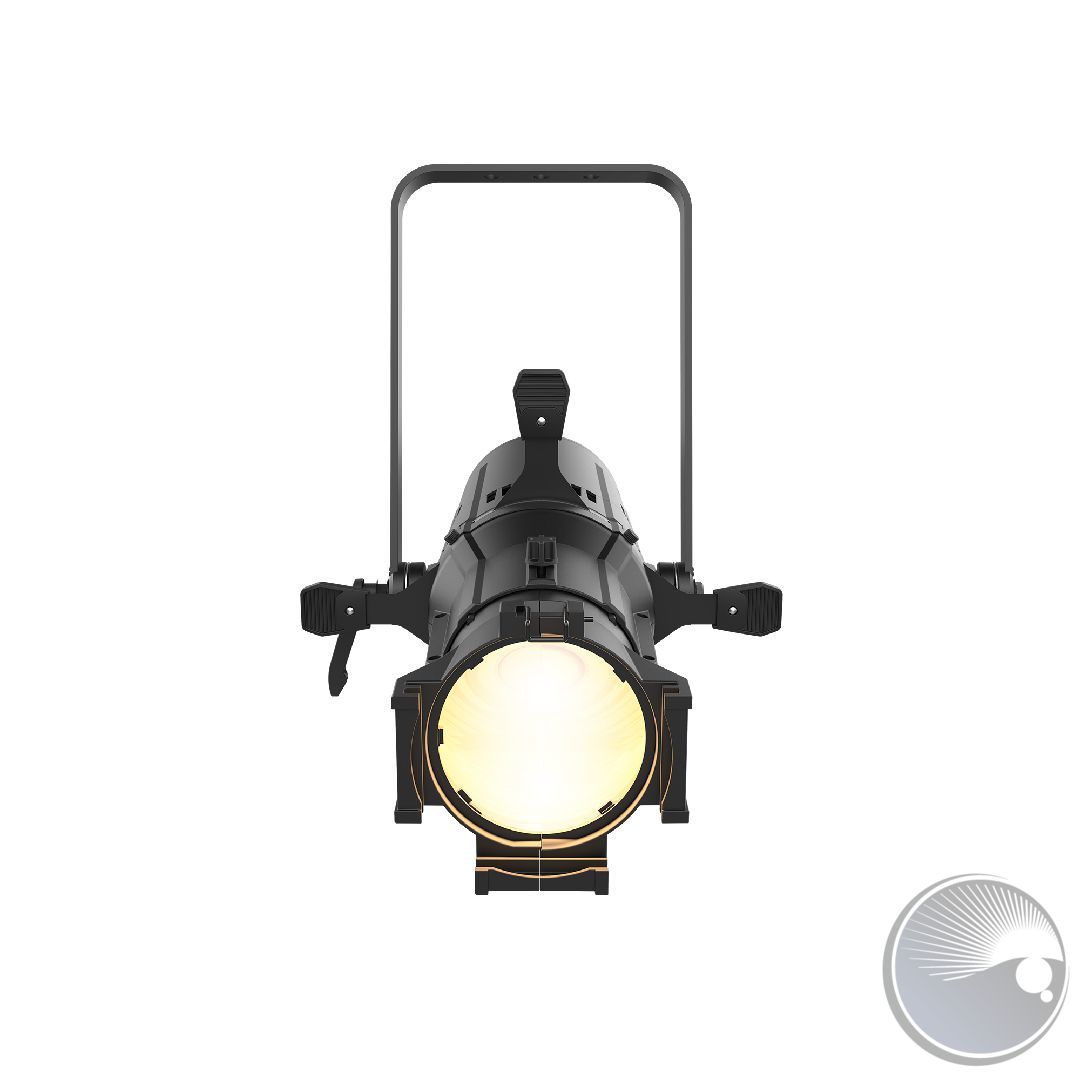

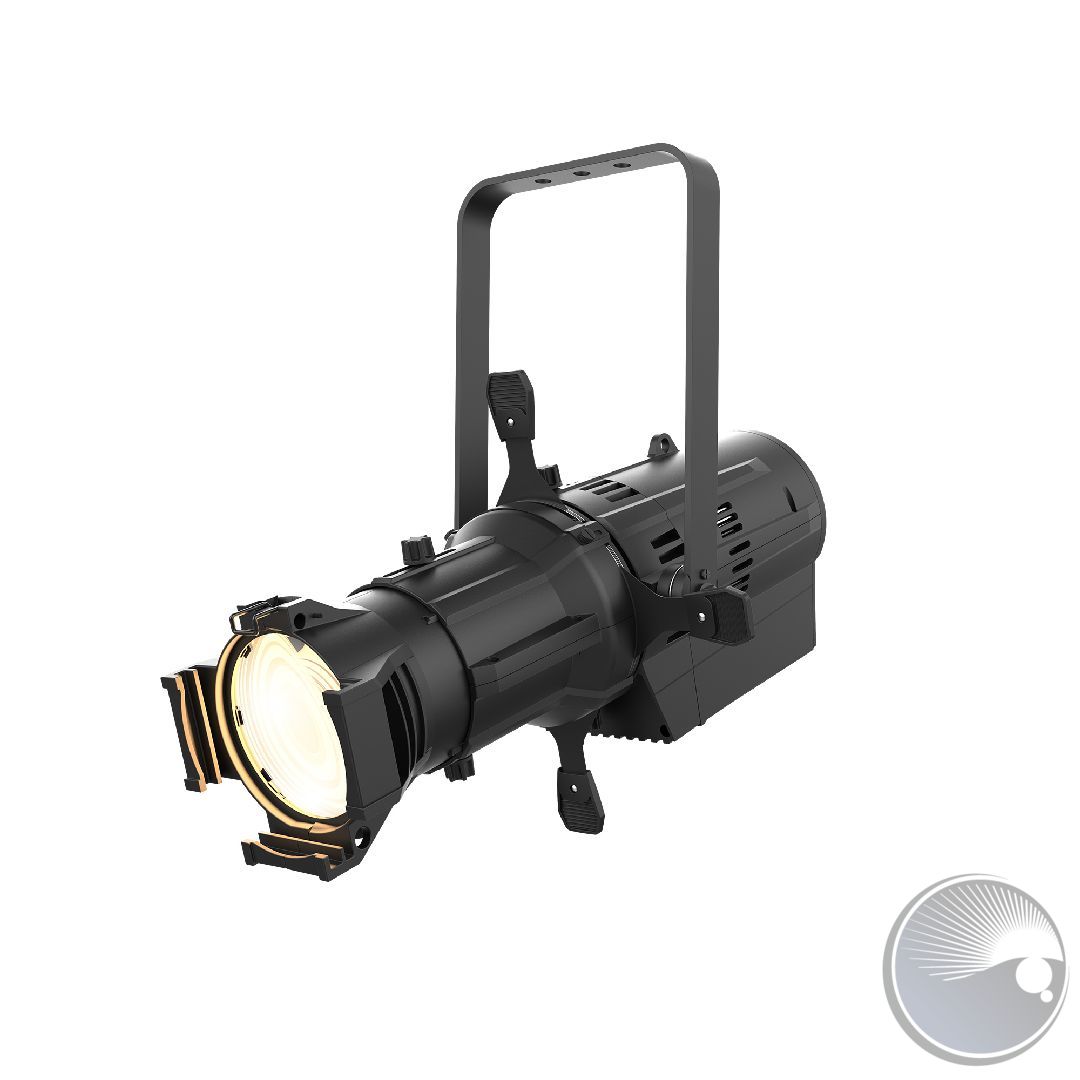

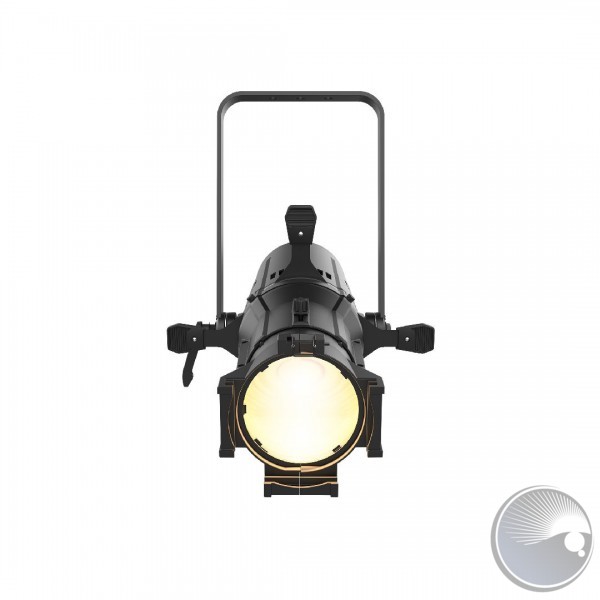

Ovation ED-200WW

Ovation ED-200WW brings a 750 W tungsten equivalent warm white intensity and 95 CRI to our exclusive, award-winning Ovation ED range of LED theatrical fixtures, making it the highest power LED ellipsoidal unit that can sense and respond to traditional dimming systems. This high performance ellipsoidal is equally as efficient running on constant power and DMX, as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives, and it responds accordingly. Retrofit and upgrade to the benefits of LED lighting without being held back by previous investments made in major dimming systems!



AT A GLANCE

  • Warm white ERS style fixture with output exceeding a tungsten 750 W source

  • Works on conventional dimmers or constant power with DMX

  • Auto-senses power/data and responds appropriately

  • Superior low end dimming whether using dimmers or constant power

  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly

  • 16-bit dimming resolution (DMX mode) for smooth fades

  • Flat, even field of light for superior gobo projection

  • Works perfectly with industry standard lens tubes and accessories

  • Virtually silent operation for use in any situation

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy
  • Color Temperature (at full): 3334 K
  • CRI: 97
  • Beam Angle (w/5° lens): 7°
  • Beam Angle (w/10° lens): 9°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 15°
  • Beam Angle (w/26° lens): 19°
  • Beam Angle (w/36° lens): 25°
  • Beam Angle (w/50° lens): 35°
  • Beam Angle (w/15°–30° lens)(Narrow): 11°
  • Beam Angle (w/15°–30° lens)(Wide): 17°
  • Beam Angle (w/25°–50° lens)(Narrow): 19°
  • Beam Angle (w/25°–50° lens)(Wide): 30°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 17°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 33°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 13°
  • Field Angle (w/15°–30° lens)(Wide): 28°
  • Field Angle (w/25°–50° lens)(Narrow): 23°
  • Field Angle (w/25°–50° lens)(Wide): 41°
  • Lumens (w/5° lens):
  • Lumens (w/10° lens):
  • Lumens (w/14° lens):
  • Lumens (w/19° lens): 11,534
  • Lumens (w/36° lens): 13,946
  • Lumens (w/50° lens): 12,754
  • Lumens (w/15°-30° lens): 11,739 (@15°), 11,315 (@30°)
  • Lumens (w/25°-50° lens): 14,243 (@25°), 12,834 (@50°)
  • Illuminance (w/5° lens): 43,100 lux @ 5 m
  • Illuminance (w/10° lens): 23,200 lux @ 5 m
  • Illuminance (w/14° lens): 15,092 lux @ 5 m
  • Illuminance (w/19° lens): 9,118 lux @ 5 m
  • Illuminance (w/26° lens): 6,028 lux @ 5 m
  • Illuminance (w/36° lens): 3,210 lux @ 5 m
  • Illuminance (w/50° lens): 1,445 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 15,879 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 15,879 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 5,958 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 2,283lux @ 5 m
  • PWM Frequency: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic or External Dimmer Rack
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 18 Hz
  • Dim Modes: 5
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
  • Dimensions: (w/5° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
  • Dimensions: (w/10° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
  • Dimensions: (w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)
  • Dimensions: (w/15°–30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
  • Dimensions: (w/25°–50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
  • Weight (fixture only): 17.6 lb (7.9 kg)
  • Weight (w/5° lens): 23.4 lb (10.6 kg)
  • Weight (w/10° lens): 21.4 lb (9.7 kg)
  • Weight (w/14° lens): 23 lb (10.4 kg)
  • Weight (w/26° lens): 21.6 lb (9.8 kg)
  • Weight (w/15°–30° lens): 30.2 lb (13.6 kg)
  • Weight (w/25°–50° lens): 27.2 lb (12.3 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

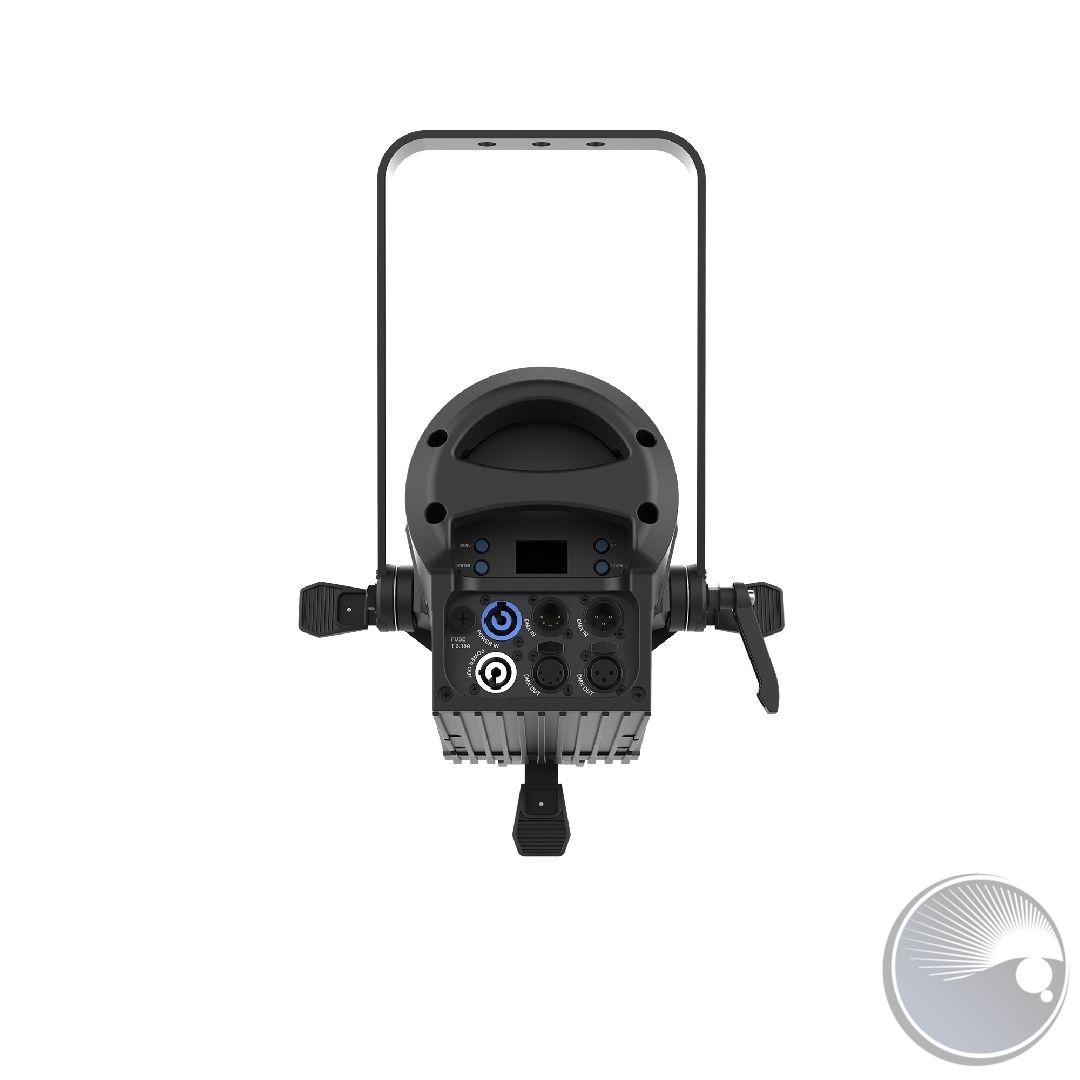

CONNECTIONS

  • Power Connection: Edison plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM, Dimmer
  • DMX Channels: 1, 2 or 3
  • Modes/Personalities: 3 personalities (UNO, DOS, STD.P)

ELECTRICAL

  • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
  • Power Linking: 6 units @ 120 V; 12 units @ 230 V
  • Power and Current: 250 W, 2.074 A @ 120 V, 60 Hz
  • Power and Current: 254 W, 1.103 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 01121455
Weiterführende Links zu "Ovation ED-200WW"

PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
LED (BOM#55)PTF1070000611LED (BOM#55)
fuse holder (BOM#47)PTF1090000041fuse holder (BOM#47)
PTF1120200173Φ128 lenticular lens A (BOM#1)
PTF112020024796 convex (BOM#55)

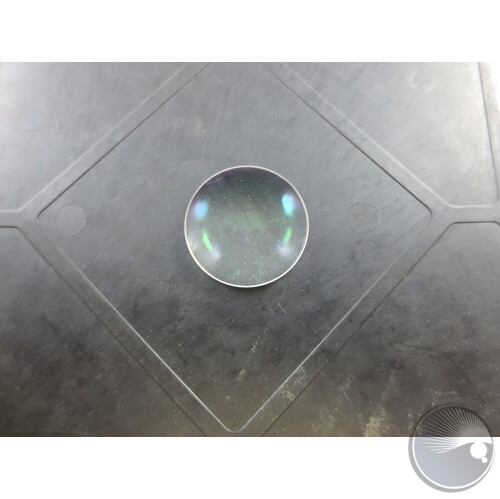

PTF112020024848 convex (BOM#53)
PTF112020024992 convex (BOM#54)
PTF1160000132Fan network (BOM#27)
Fan (BOM#25)PTF1160000437Fan (BOM#25)
Power supply  (BOM#67)PTF1160000495Power supply (BOM#67)
PTF1340100036thermal switch holder (BOM#22)
M10 handle/shank (BOM#9)PTF1340100039M10 handle/shank (BOM#9)

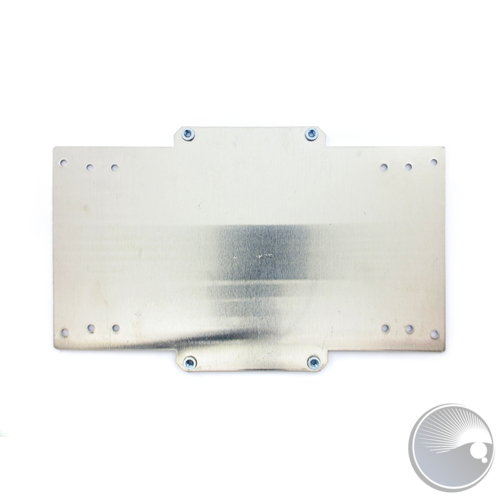

power supply cover (BOM#52)PTF1340109808power supply cover (BOM#52)
PTF1340109812Cutting pieces (BOM#14)

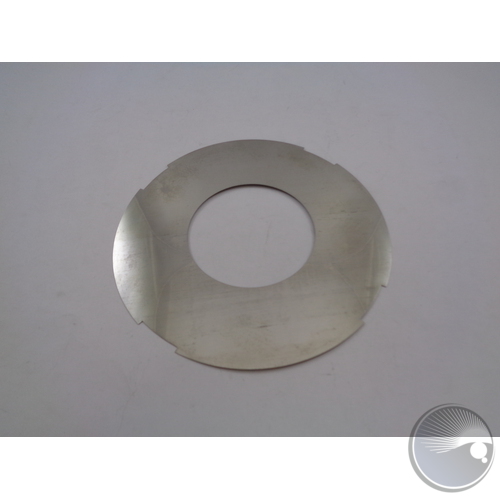

Cut sheet partition (BOM#12)PTF1340109815Cut sheet partition (BOM#12)
PTF1340111227Power board bracket (BOM#49)
PTF1340300218Spin the circlip (BOM#4)
PTF1340300219Card slot spring (BOM#5)
PTF1340300220Cutting leaf spring (BOM#58)
PTF1340601743Focus slider (BOM#7)
PTF1340601751Lens shock strips (BOM#2)
Copper gasket (BOM#12)PTF1340801433Copper gasket (BOM#12)
PTF1340802715Display Pillar (BOM#55)
PTF1340802716Control PCB supprot (BOM#39)
PTF1340802717Push the pillar (BOM#40)

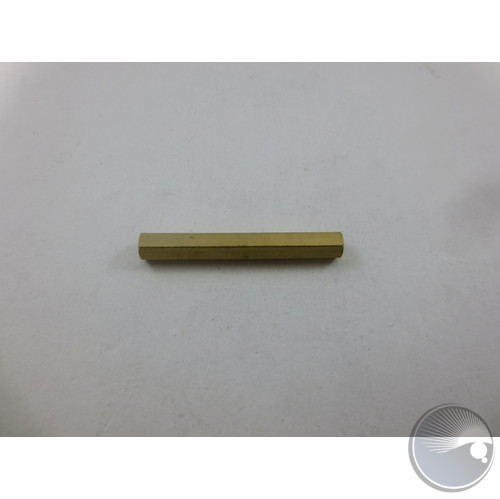

LED driver board support (BOM#36)PTF1340802796LED driver board support (BOM#36)
Black metal thin gasket (BOM#44)PTF1490500045Black metal thin gasket (BOM#44)
PTF14911001651/4 inch nuts (BOM#8)
PTF1491500029outer screw (BOM#72)

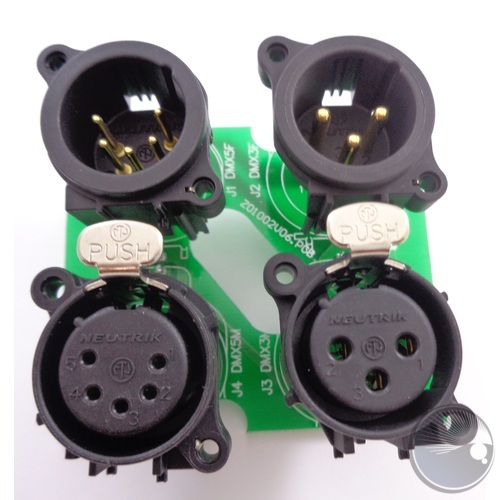

Metal Adapter PCB (BOM#44)PTF2260001920Metal Adapter PCB (BOM#44)

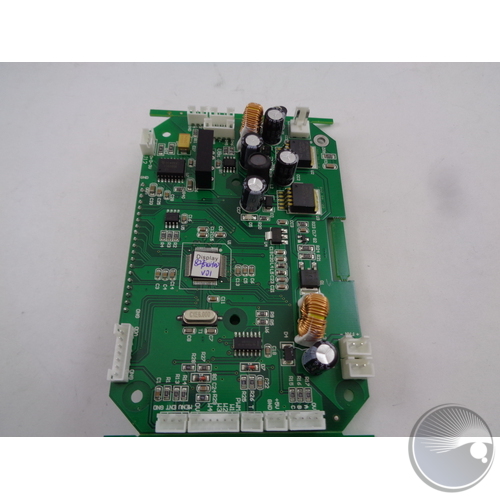

Display PCB (BOM#38)PTF2260001968Display PCB (BOM#38)
Control PCB (BOM#41)PTF2260001978Control PCB (BOM#41)

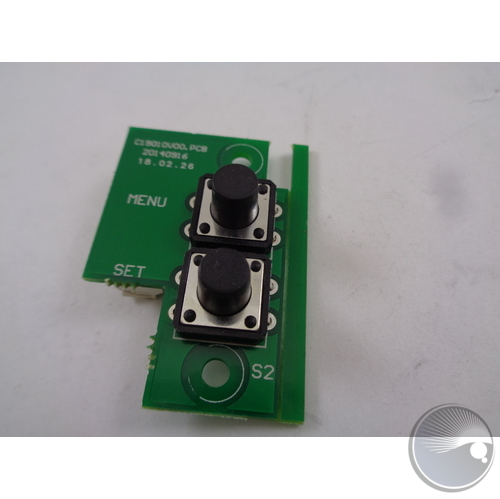

Control PCB (BOM#61)PTF2260001979Control PCB (BOM#61)

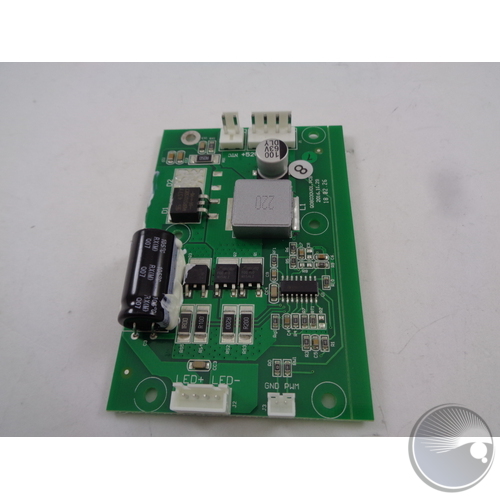

Drive PCB (BOM#34)PTF2260002168Drive PCB (BOM#34)
Gasket (BOM#60)PTF2440100882Gasket (BOM#60)

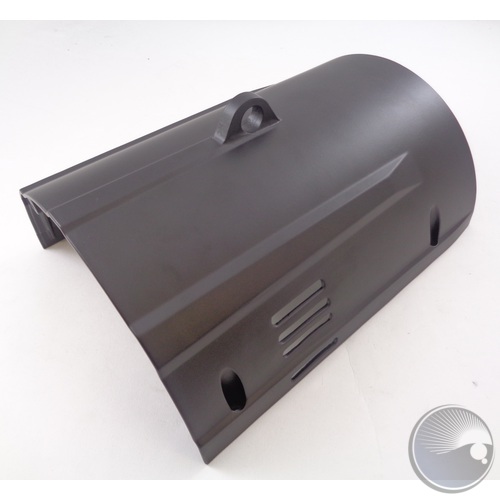

top cover (BOM#37)PTF2440102192top cover (BOM#37)

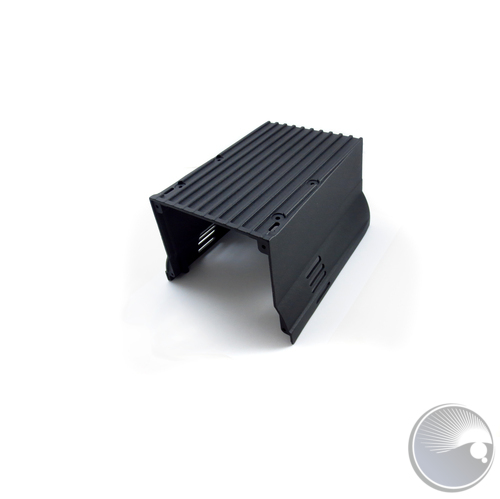

power supply cover (BOM#48)PTF2440102193power supply cover (BOM#48)
PTF2440102195Light tube A (BOM#59)
PTF2440102197Light tube B (BOM#10)
PTF2440102199Focusing tube A (BOM#6)
PTF2440102201Focusing tube B (BOM#3)

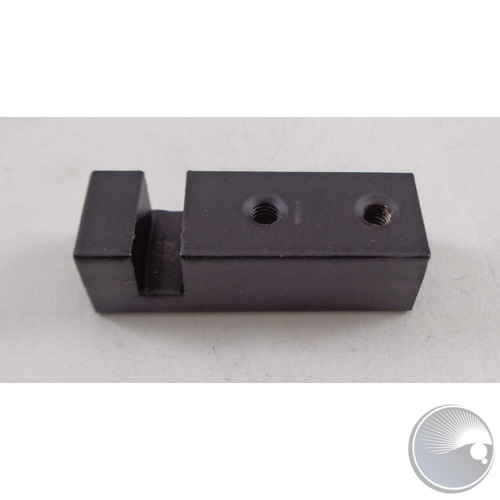

ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - FIXED SOCKET (BOM#17)PTF2440102260ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - FIXED SOCKET (BOM#17)
PTF2440102262Fan plate (BOM#31)

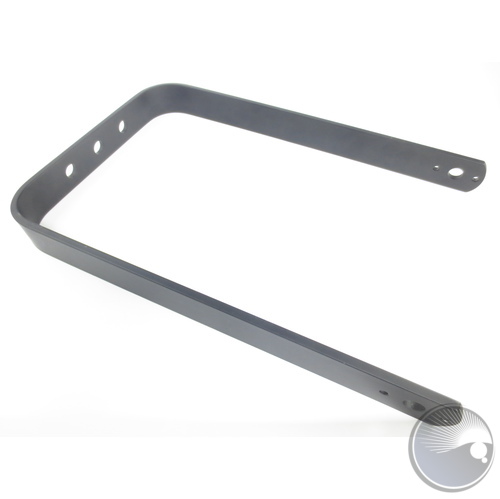

hanging bracket (BOM#25)PTF2440102265hanging bracket (BOM#25)
PTF2440102269Cutting plate platen (BOM#11)
PTF2440102271Cutting plate pad (BOM#16)
PTF2440102275Intermediate cylinder baffle (BOM#13)
PTF2440102315Bonding board A (BOM#33)

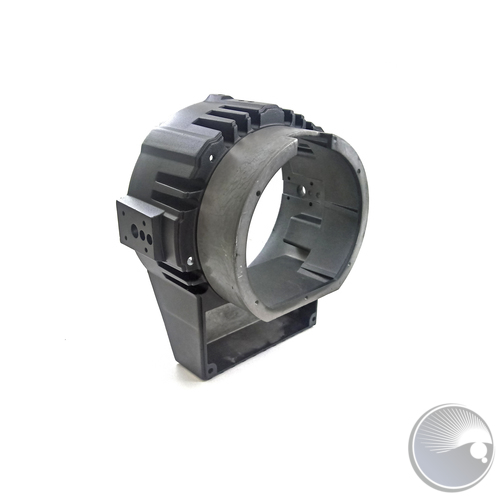

led cooling seat (BOM#26)PTF2440102491led cooling seat (BOM#26)

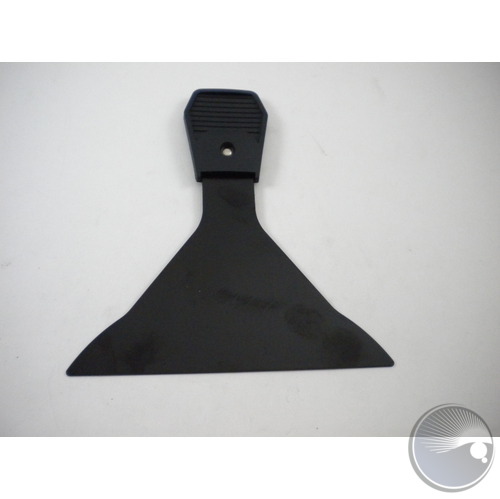

Half hollow rivet (BOM#57)PTF2440103354Half hollow rivet (BOM#57)
PTF2440103581Back plate (BOM#43)
PTF2440800229Handrail fixed plate (BOM#23)
Hanger fixed seat (BOM#21)PTF2440800233Hanger fixed seat (BOM#21)
back body handle (BOM#42)PTF2441200285back body handle (BOM#42)
PTF2441300004handwring screw (BOM#9)
